2ANDL-AXYUWi-Fi and Bluetooth Module

AXYU Module Datasheet Version: 20211102 Online Version Contents Contents 1 Product overview2 1.1 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 1.2 Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 2 Module interfaces3 2.1 Dimensions and footprint. . . . . . . . . . . . . . . . . . . . . . . .3 2.2 Pin definition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 3 Electrical parameters7 3.1 Absolute electrical parameters. . . . . . . . . . . . . . . . . . . . .7 3.2 Working conditions. . . . . . . . . . . . . . . . . . . . . . . . . . .7 3.3 RF power consumption. . . . . . . . . . . . . . . . . . . . . . . . .8 3.4 Power consumption during working. . . . . . . . . . . . . . . . . . .9 4 RF parameters12 4.1 Basic RF features. . . . . . . . . . . . . . . . . . . . . . . . . . . .12 4.2 TX performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 5 Antenna information17 5.1 Antenna type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 5.2 Antenna interference reduction. . . . . . . . . . . . . . . . . . . . .17 6 Packaging information and production instructions18 6.1 Mechanical dimensions. . . . . . . . . . . . . . . . . . . . . . . . .18 6.2 Recommended PCB footprint. . . . . . . . . . . . . . . . . . . . . .21 6.3 PCB footprint. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 6.4 Production instructions. . . . . . . . . . . . . . . . . . . . . . . . .24 6.5 Recommended oven temperature curve. . . . . . . . . . . . . . . . .25 6.6 Storage conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . .28 7 MOQ and packaging information29 8 Appendix: Statement30 I Contents AXYU is a low-power-consumption embedded Wi-Fi 6+Bluetooth module that Tuya has developed. Embedded with the Wi-Fi network protocol stack and rich library functions, it consists of a highly integrated wireless RF chip (ECR6600-TS2D). 1 / 32 1 Product overview 1 Product overview With the maximum clock rate of 240 MHz, AXYU also contains a low-power- consumption Andes D10 MCU, a WLAN MAC, a 1T1R WLAN, a 292-KB SRAM, a 2-MB flash memory, and extensive peripherals. AXYU is an RTOS platform that integrates all function libraries of the Wi-Fi MAC and TCP/IP protocol. You can develop embedded Wi-Fi products as required. 1.1 Features •Embeddedwithalow-power-consumptionAndesD10MCU,whichcanalsofunc- tion as an application processor Main clock rate: 240 MHz •Operating voltage: 3.0 to 3.6 V •Peripherals: 13 GPIOs, 1 Data UART, 1 Log UART, and 1 ADC •Wi-Fi and Bluetooth connectivity: –802.11 B/G/N20/N40/N40/AX20 –Channels 1 [email protected] (CH1 to 11 for US/CA and CH1 to 13 for EU/CN) –Support WEP, WPA, WPA2, and WPA2 PSK (AES) security modes –Support Bluetooth Low Energy 5.1 –Up to +20 dBm output power in 802.11b mode –Support uplink/downlink MU-OFDMA –Support fast network configuration via Wi-Fi for Android and iOS devices –Onboard PCB antenna –Passed CE and FCC certifications –Operating temperature: -40°C to 105°C 1.2 Applications •Intelligent buildings •Smart household and home appliances •Smart socket and light •Industrial wireless control •Baby monitor •Network camera •Intelligent bus 2 / 32 2 Module interfaces 2 Module interfaces 2.1 Dimensions and footprint AXYU has 3 lines of pins. The distance between two pins at two sides is 1.4 mm, and the distance between two pins at the bottom is 1.8 mm. The dimensions of AXYU are 15.8±0.35 mm (W)×20.3±0.35 mm (L) ×2.6±0.15 mm (H). The dimensions of AXYU are as follows: 2.2 Pin definition 3 / 32 2 Module interfaces Pin numberSymbolTypeFunction 1P00I/OGPIO_00, common GPIO, which can be reused as SPI_SCK and corresponds to Pin 25 of the IC 2P02I/OGPIO_02, common GPIO, which can be reused as SPI_MOSI and corresponds to Pin 23 of the IC 3P21I/OGPIO_21, common GPIO, correspond to Pin 6 of the IC 4P16I/OGPIO_16, common GPIO, correspond to Pin 10 of the IC 5ADCI/OGPIO_20, common GPIO, which can be used as ADC. The range of input voltage is 0 to 3.3V. Correspond to Pin 27 of the IC. 6L_RXI/OGPIO_17, UART_Log_RXD (used to receive information about the external logs of the module), which can be configured as a common GPIO 4 / 32 2 Module interfaces Pin numberSymbolTypeFunction 7L_TXI/OGPIO_13, UART_Log_TXD (used to send information about the internal logs of the module), which can be configured as a common GPIO 8 P24 I/O GPIO_24, hardware PWM, correspond to Pin 8 of the IC 9P25I/OGPIO_25, hardware PWM, correspond to Pin 7 of the IC 10P22I/OGPIO_22, hardware PWM, correspond to Pin 4 of the IC 11P23I/OGPIO_23, hardware PWM, correspond to Pin 3 of the IC 12P04I/OGPIO_04, hardware PWM, correspond to Pin 21 of the IC 13GNDPPower supply reference ground 14VCCPPower supply pin (3.3V) 15TXDI/OGPIO_6, UART0_TXD (user serial interface) 5 / 32 2 Module interfaces Pin numberSymbolTypeFunction 16RXDI/OGPIO_5, UART0_RXD (user serial interface) 17P15I/OGPIO_15, common GPIO, correspond to Pin 28 of the IC 18RSTI/OReset pin, reset at low level. The module has been pulled to a high level and the user can control the pin externally. 19P14I/OGPIO_14, common GPIO, correspond to Pin 29 of the IC 20P03I/OGPIO_03, common GPIO, which can be reused as SPI_MISO and corresponds to Pin 22 of the IC 21P01I/OGPIO_01, common GPIO, which can be reused as SPI_CS and corresponds to Pin 24 of the IC Note: P indicates a power supply pin and I/O indicates an input/output pin. 6 / 32 3 Electrical parameters 3 Electrical parameters 3.1 Absolute electrical parameters ParameterDescription Minimum value Maximum valueUnit TsStorage temperature -40125°C VDDPower supply voltage -0.33.6V ESD voltage (human body model) TAMB-25°C-2KV ESD voltage (machine model) TAMB-25°C-0.5KV 3.2 Working conditions Parameter Description Minimum value Typical value Maximum valueUnit TaOperating tempera- ture -40-105°C VDDOperating voltage 3.0-3.6V VILVoltage input low 0-0.3vddV VIHVoltage input high 0.7vdd -vddV 7 / 32 3 Electrical parameters Parameter Descripti…

Text truncated - open the document above for the full version.

Company: Hangzhou Tuya Information Technology Co.,Ltd Address: Room701,Building3,More Center,No.87 GuDun Road, Hangzhou,Zhejiang, China Tel: 86-571-86581786 Fax: 86-571-86581786 Date (12/23/2021) TUV SUD BABT UNLIMITED TCB Octagon House, Segensworth North, Fareham, Hampshire, PO15 5RL, United Kingdom Dear Sir or Madam, We, (Hangzhou Tuya Information Technology Co.,Ltd), hereby authorize Jiaxi XU from TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151 Heng Tong Road Shanghai 201108 P.R. China to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on (Dec.31,2022). Sincerely, Company Officer: Telephone Number: 86-571-86581786 Email: [email protected]

Company: Hangzhou Tuya Information Technology Co.,Ltd Address: Room701,Building3,More Center,No.87 GuDun Road, Hangzhou,Zhejiang, China Tel: 86-571-86581786 Fax: 86-571-86581786 Date (12/23/2021) TUV SUD BABT UNLIMITED TCB Octagon House, Segensworth North, Fareham, Hampshire, PO15 5RL, United Kingdom Confidentiality Request FCC ID: 2ANDL-AXYU Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, (Hangzhou Tuya Information Technology Co.,Ltd) hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Telephone Number: 86-571-86581786 Email: [email protected]

Company: Hangzhou Tuya Information Technology Co.,Ltd Address: Room701,Building3,More Center,No.87 GuDun Road, Hangzhou,Zhejiang, China Tel: 86-571-86581786 Fax: 86-571-86581786 Modular Approval Request FCC ID: 2ANDL-AXYU The following attestation addresses the requirements to support modular approval: Modular approval requirement Yes (provide brief statement) No * (a) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly The module has a metal shied. Refer to the external photo of EUT. (b) The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal Data to the modulation circuit is buffered as described in the operational description provided with the application. (c) The module must contain power supply regulation on the module The module contains its own power supply regulation. Please refer to schematic filed with this application. (d) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) The module has a PCB antenna and which permanently attached the module. Refer to the photo of EUT. Company: Hangzhou Tuya Information Technology Co.,Ltd Address: Room701,Building3,More Center,No.87 GuDun Road, Hangzhou,Zhejiang, China Tel: 86-571-86581786 Fax: 86-571-86581786 (e) The module must demonstrate compliance in a stand-alone configuration The module was tested stand- alone as shown in test setup photographs filed with this application. (f) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements) The FCC ID is printed on the label of the module. Refer to the label of EUT. (g) The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements The module comply with all specific rules.Refer to the datasheet. Modular approval requirement Yes (provide brief statement) No * (h) The module must comply with RF exposure requirements Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. * Please provide a detailed explanation if the answer is “No.” Yours sincerely, Name: Title: General Manager

Company: Hangzhou Tuya Information Technology Co.,Ltd Address: Room701,Building3,More Center,No.87 GuDun Road, Hangzhou,Zhejiang, China Tel: 86-571-86581786 Fax: 86-571-86581786 WIFI Channel 12 ,13 and 14 Declaration Letter We declare the equipment identified below with regards to Channel 12,13 and 14 capabilities for FCC ID: 2ANDL-AXYU Declaration Product hardware does not have the capability to operate on Channel 12,13 and 14. Product hardware has the capability to operate on Channel 12 ,13 and 14. However, these three channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 ,13 and 14. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 ,13 and 14, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo-location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title: / General Manager Signature: Phone: 86-571-86581786 Email: [email protected] Date: Dec.23,2021

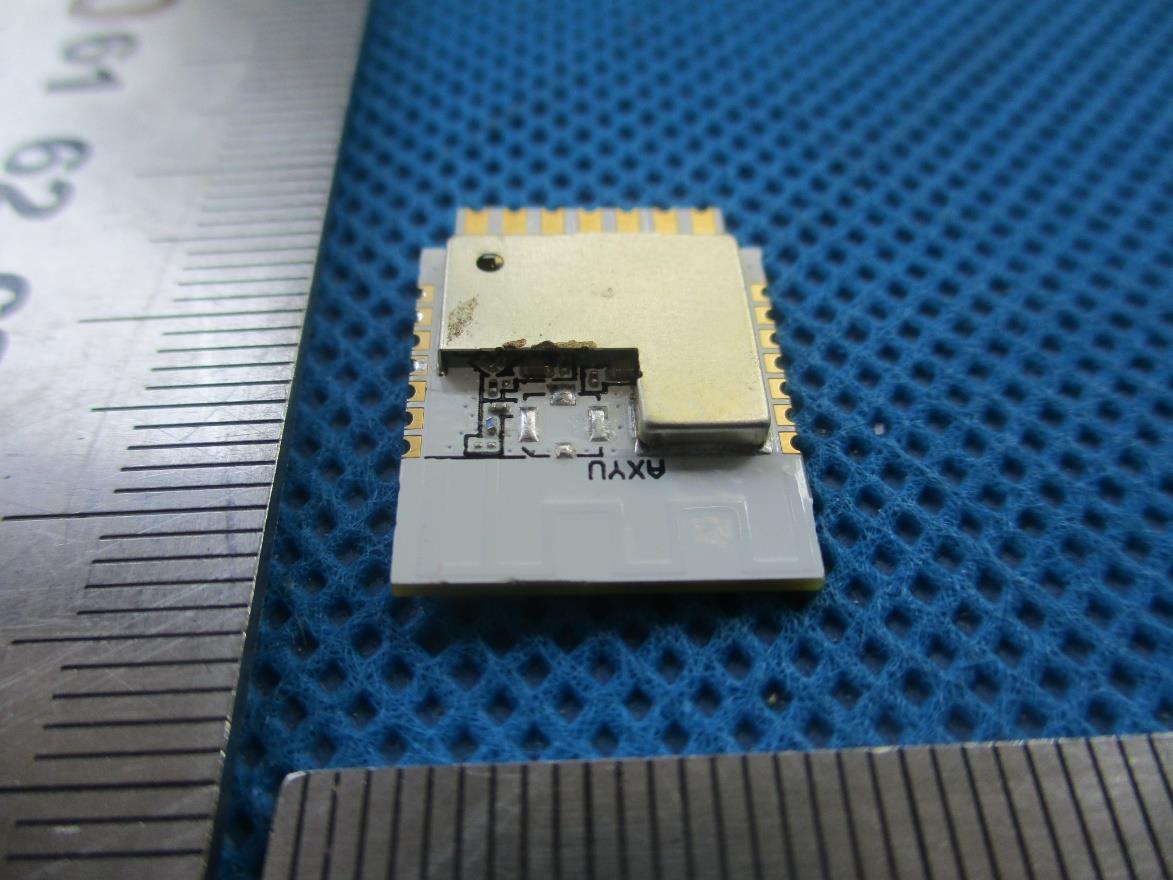

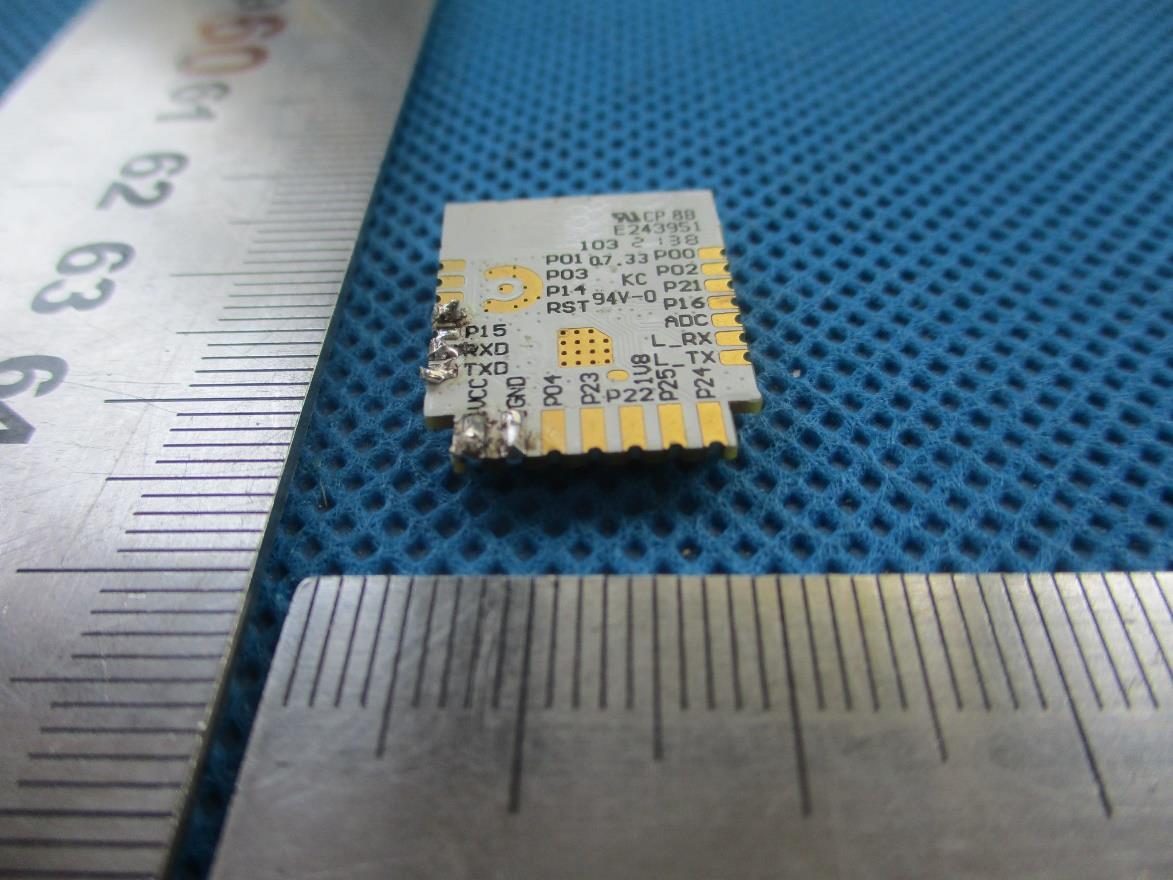

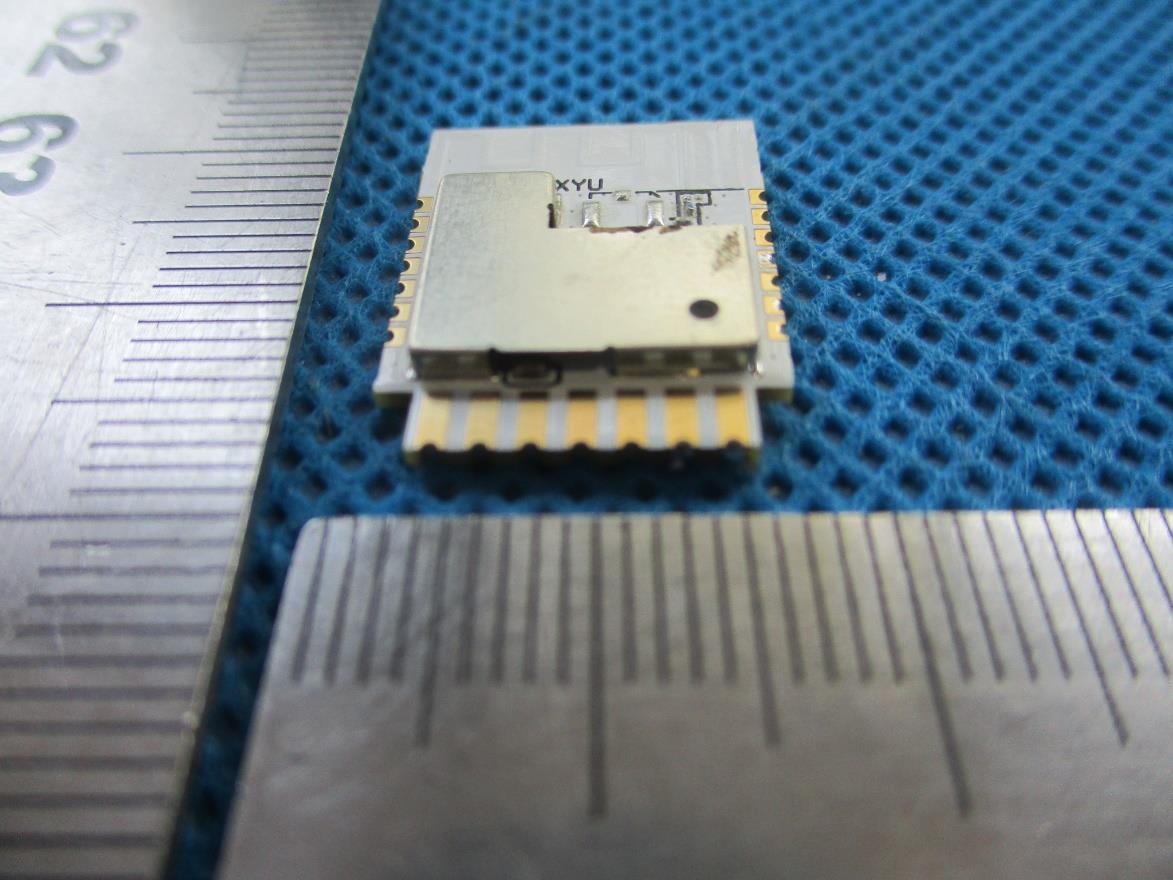

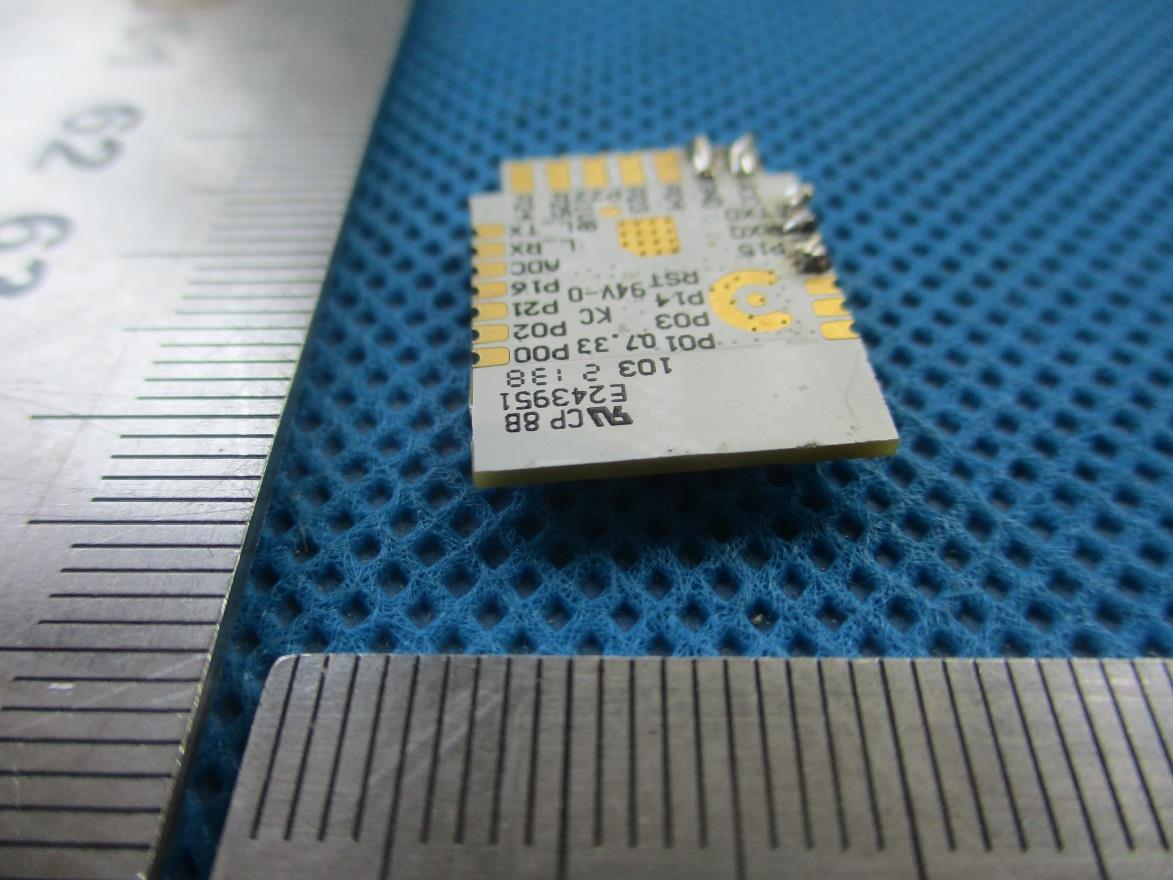

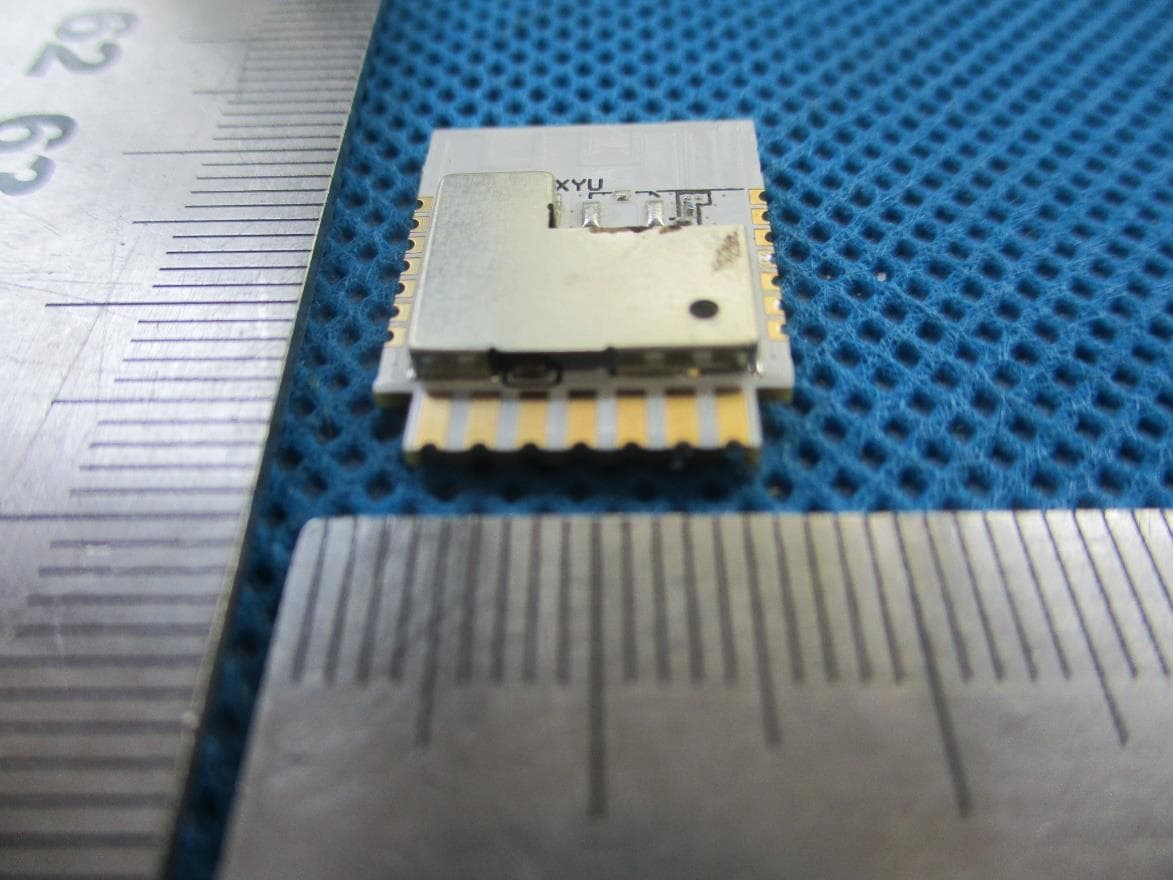

External Photos Documentation Manufacturer: Hangzhou Tuya Information Technology Co.,Ltd Page 1 of 3 Product: Wi-Fi and Bluetooth Module FCC ID: 2ANDL-AXYU External Photos Documentation Manufacturer: Hangzhou Tuya Information Technology Co.,Ltd Page 2 of 3 Product: Wi-Fi and Bluetooth Module FCC ID: 2ANDL-AXYU External Photos Documentation Manufacturer: Hangzhou Tuya Information Technology Co.,Ltd Page 3 of 3 Product: Wi-Fi and Bluetooth Module FCC ID: 2ANDL-AXYU

Label & Location Label position Label

Internal Photos Documentation Manufacturer: Hangzhou Tuya Information Technology Co.,Ltd Page 1 of 1 Product: Wi-Fi and Bluetooth Module FCC ID: 2ANDL-AXYU Antenna

Report No: 7095021029112A EMC_SHA_F_R_02.06E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 1 of 2 Rev. 20.00 MPE Calculation Applicant: Hangzhou Tuya Information Technology Co.,Ltd Address: Room701,Building3,More Center,No.87 GuDun Road,Hangzhou,Zhejiang China Product: Wi-Fi and Bluetooth Module FCC ID: 2ANDL-AXYU Model No.: AXYU Reference RF report # 7095021029112-00, 7095021029113-00 According to subpart 15.247(i)and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1,500 / / f/1500 30 1,500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Report No: 7095021029112A EMC_SHA_F_R_02.06E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 2 of 2 Rev. 20.00 Calculated Data for Wi-Fi Maximum peak output power at antenna input terminal (dBm): 24.98 Maximum peak output power at antenna input terminal (mW): 314.77 Prediction distance (cm): 20 Antenna Gain, typical (dBi): 1.3 Maximum Antenna Gain (numeric): 1.35 The worst case is power density at predication frequency at 20 cm (mW/cm 2 ): 0.085 MPE limit for general population exposure at prediction frequency (mW/cm 2 ): 1.0 The max power density 0.085 (mW/cm 2 ) < 1 (mW/cm 2 ) Result: Compliant Calculated Data for BLE Maximum peak output power at antenna input terminal (dBm): 5.92 Maximum peak output power at antenna input terminal (mW): 3.91 Prediction distance (cm): 20 Antenna Gain, typical (dBi): 1.3 Maximum Antenna Gain (numeric): 1.35 The worst case is power density at predication frequency at 20 cm (mW/cm 2 ): 0.00101 MPE limit for general population exposure at prediction frequency (mW/cm 2 ): 1.0 The max power density 0.00101 (mW/cm 2 ) < 1 (mW/cm 2 ) Result: Compliant - TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch Reviewed by: Prepared by: Tested by: _____________________ _____________________ ______________________ Hui TONG Jiaxi XU Cheng Huali EMC Section Manager EMC Project Engineer EMC Test Engineer Date: 2021-12-23 Date: 2021-12-23 Date: 2021-12-23

EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 1 of 63 Rev. 171.00 FCC - TEST REPORT Report Number : 7095021029112-00 Date of Issue: Dec.23,2021 Model : AXYU Product Type : Wi-Fi and Bluetooth Module Applicant : Hangzhou Tuya Information Technology Co.,Ltd Address : Room701,Building3,More Center,No.87 GuDun Road,Hangzhou,Zhejiang China Manufacturer : Hangzhou Tuya Information Technology Co.,Ltd Address : Room701,Building3,More Center,No.87 GuDun Road,Hangzhou,Zhejiang China Test Result : ◼ Positive  Negative Total pages including Appendices : 63 TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Report Number: 7095021029112-00 EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 2 of 63 Rev. 171.00 1 Table of Contents 1 Table of Contents ................................................................................................................................................................ 2 2 Details about the Test Laboratory ..................................................................................................................................... 3 3 Description of the Equipment under Test ........................................................................................................................ 4 4 Summary of Test Standards .............................................................................................................................................. 6 5 Summary of Test Results ................................................................................................................................................... 7 6 General Remarks ................................................................................................................................................................ 8 7 Test Setups .......................................................................................................................................................................... 9 8 Systems test configuration ............................................................................................................................................... 12 9 Technical Requirement .................................................................................................................................................... 13 9.1 Conducted Emission ................................................................................................................................................ 13 9.2 Conducted peak output power................................................................................................................................ 16 9.3 6dB bandwidth .......................................................................................................................................................... 17 9.4 Power spectral density ............................................................................................................................................. 23 9.5 Spurious RF conducted emissions ........................................................................................................................ 29 9.6 Band edge ................................................................................................................................................................. 45 9.7 Spurious radiated emissions for transmitter ......................................................................................................... 51 10 Test Equipment List ...................................................................................................................................................... 60 11 System Measurement Uncertainty ............................................................................................................................. 61 12 Photographs of Test Set-ups ...................................................................................................................................... 62 13 Photographs of EUT ..................................................................................................................................................... 63 Report Number: 7095021029112-00 EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 3 of 63 Rev. 171.00 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certificatio…

Text truncated - open the document above for the full version.

Report Number: 7095021029112-00 EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 29 of 63 Rev. 171.00 9.5 Spurious RF conducted emissions Test Method 1. Establish a reference level by using the following procedure: a. Set RBW=100 kHz. VBW≥3RBW. Detector =peak, Sweep time = auto couple, Trace mode = max hold. b. Allow trace to fully stabilize, use the peak marker function to determine the maximum PSD level. 2. Use the maximum PSD level to establish the reference level. a. Set the center frequency and span to encompass frequency range to be measured. b. Use the peak marker function to determine the maximum amplitude level. Ensure that the amplitude of all unwanted emissions outside of the authorized frequency band (excluding restricted frequency bands) are attenuated by at least the minimum requirements, report the three highest emissions relative to the limit. 3. Repeat above procedures until other frequencies measured were completed. Limit Frequency Range Limit (dBc) MHz 30-25000 -20 Report Number: 7095021029112-00 EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 30 of 63 Rev. 171.00 Spurious RF conducted emissions 802.11b Out-of-Band Emissions Channel 1 (2412MHz) Reference point Spurious Emission (30MHz – 1GHz) Spurious Emission (1GHz –5GHz) Spurious Emission (5GHz –26.5GHz) Report Number: 7095021029112-00 EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 31 of 63 Rev. 171.00 Out-of-Band Emissions Channel 6 (2437MHz) Reference point Spurious Emission (30MHz – 1GHz) Spurious Emission (1GHz –5GHz) Spurious Emission (5GHz –26.5GHz) Report Number: 7095021029112-00 EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 32 of 63 Rev. 171.00 Out-of-Band Emissions Channel 11 (2462MHz) Reference point Spurious Emission (30MHz – 1GHz) Spurious Emission (1GHz –5GHz) Spurious Emission (5GHz –26.5GHz) Report Number: 7095021029112-00 EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 33 of 63 Rev. 171.00 802.11g Out-of-Band Emissions Channel 1 (2412MHz) Reference point Spurious Emission (30MHz – 1GHz) Spurious Emission (1GHz –5GHz) Spurious Emission (5GHz –26.5GHz) Report Number: 7095021029112-00 EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 34 of 63 Rev. 171.00 Out-of-Band Emissions Channel 6 (2437MHz) Reference point Spurious Emission (30MHz – 1GHz) Spurious Emission (1GHz –5GHz) Spurious Emission (5GHz –26.5GHz) Report Number: 7095021029112-00 EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 35 of 63 Rev. 171.00 Out-of-Band Emissions Channel 11 (2462MHz) Reference point Spurious Emission (30MHz – 1GHz) Spurious Emission (1GHz –5GHz) Spurious Emission (5GHz –26.5GHz) Report Number: 7095021029112-00 EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 36 of 63 Rev. 171.00 802.11n(HT20) Out-of-Band Emissions Channel 1 (2412MHz) Reference point Spurious Emission (30MHz – 1GHz) Spurious Emission (1GHz –5GHz) Spurious Emission (5GHz –26.5GHz) Report Number: 7095021029112-00 EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 37 of 63 Rev. 171.00 Out-of-Band Emissions Channel 6 (2437MHz) Reference point Spurious Emission (30MHz – 1GHz) Spurious Emission (1GHz –5GHz) Spurious Emission (5GHz –26.5GHz) Report Number: 7095021029112-00 EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 38 of 63 Rev. 171.00 Out-of-Band Emissions Channel 11 (2462MHz) Reference point Spurious Emission (30MHz – 1GHz) Spurious Emission (1GHz –5GHz) Spurious Emission (5GHz –26.5GHz) Report Number: 7095021029112-00 EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 39 of 63 Rev. 171.00 802.11n(HT40) Out-of-Band Emissions Channel 3 (2422MHz) Reference point Spurious Emission (30MHz – 1GHz) Spurious Emission (1GHz –5GHz) Spurious Emission (5GHz –26.5GHz) Report Number: 7095021029112-00 EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 40 of 63 Rev. 171.00 Out-of-Band Emissions Channel 6 (2437MHz) Reference point Spurious Emission (30MHz – 1GHz) Spurious Emission (1GHz –5GHz) Spurious Emission (5GHz –26.5GHz) Report Number: 7095021029112-00 EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 41 of 63 Rev. 171.00 Out-of-Band Emissions Channel 9 (2452MHz) Reference point Spurious Emission (30MHz –…

Text truncated - open the document above for the full version.

EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 1 of 44 Rev. 171.00 FCC - TEST REPORT Report Number : 7095021029113-00 Date of Issue: Dec.23,2021 Model : AXYU Product Type : Wi-Fi and Bluetooth Module Applicant : Hangzhou Tuya Information Technology Co.,Ltd Address : Room701,Building3,More Center,No.87 GuDun Road,Hangzhou,Zhejiang China Manufacturer : Hangzhou Tuya Information Technology Co.,Ltd Address : Room701,Building3,More Center,No.87 GuDun Road,Hangzhou,Zhejiang China Test Result : ◼ Positive  Negative Total pages including Appendices : 44 TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch issued reports. This report is the confidenti…

Text truncated - open the document above for the full version.
