2ANDL-WBR1D-IPEXWiFi&Bluetooth Module

WBR1D-IPEX Datasheet 1 1 Product Overview WBR1D-IPEX is a low-power embedded Wi-Fi and Bluetooth module that Tuya has developed. It consists of a highly integrated RF chip (RTL8720DN) and several peripheral components, with an embedded Wi-Fi network protocol stack, Bluetooth network protocol, and robust library functions. WBR1D-IPEX is embedded with a low-power 32-bit CPU, 512 KB static random-access memory (SRAM), and 4 MB flash memory, and has extensive peripherals. WBR1D-IPEX is an RTOS platform that integrates all function libraries of the Wi-Fi MAC and TCP/IP protocols. You can develop embedded Wi-Fi products as required. 1.1 Features  Embedded low-power 32-bit CPU, which can also function as an application processor  Clock rates: 80 MHz and 160 MHz  Working voltage: 3.0 V to 3.6 V  Peripherals: six GPIOs, two universal asynchronous receivers/transmitters (UARTs), and one analog-to-digital converter (ADC)  Wi-Fi connectivity  802.11a/b/g/n 1x1, 2.4 GHz and 5 GHz capable  Channels 1 to 14 at 2.4 GHz and channels 36 to 177 at 5 GHz  WPA and WPA2 security modes  Up to +17 dBm output power in 802.11b mode and up to +15 dBm in 802.11a mode  STA, AP, and STA+AP working modes Tuya WBR1D-IPEX Wi-Fi Module Version: 1.0.0 Date: 2019-10-10 No.: 0000000001 Global Intelligent Platform Product Manual WBR1D-IPEX Datasheet 2  Smart and AP network configuration modes for Android and iOS devices  Onboard IPEX antenna with a gain of 2 dBi at 2.4 GHz and 2.6 dBi at 5 GHz  Working temperature: –20°C to +85°C 1.2 Applications  Intelligent building  Smart household and home appliances  Smart socket and light  Industrial wireless control  Baby monitor  Network camera  Intelligent bus WBR1D-IPEX Datasheet 3 Change History No. Date Change Description Version After Change 1 2019-10-10 This is the first release. 1.0.0 WBR1D-IPEX Datasheet 4 Contents 1 Product Overview ......................................................................................................... 1 1.1 Features ............................................................................................................. 1 1.2 Applications ....................................................................................................... 2 2 WBR1D-IPEX Label ..................................................................................................... 6 3 Module Interfaces ......................................................................................................... 7 3.1 Dimensions and Footprint ................................................................................. 7 3.2 Interface Pin Definition ...................................................................................... 7 3.3 Test Pin Definition .............................................................................................. 9 4 Electrical Parameters ................................................................................................. 10 4.1 Absolute Electrical Parameters ....................................................................... 10 4.2 Electrical Conditions ........................................................................................ 10 4.3 RF Current Consumption ................................................................................ 11 4.4 Working Current ............................................................................................... 12 5 RF Features ................................................................................................................ 13 5.1 Basic RF Features ........................................................................................... 13 5.2 TX Performance .............................................................................................. 13 5.3 RX Performance .............................................................................................. 14 6 Antenna Information ................................................................................................... 15 6.1 Antenna Type ................................................................................................... 15 6.2 Antenna Connector Specifications .................................................................. 15 7 Packaging Information and Production Instructions................................................... 15 7.1 Mechanical Dimensions................................................................................... 15 7.2 Recommended PCB Layout ............................................................................ 16 7.3 Production Instructions .................................................................................... 17 7.4 Recommended Oven Temperature Curve ...................................................... 19 7.5 Storage Conditions .......................................................................................... 20 8 Appendix: Statement .................................................................................................. 21 WBR1D-IPEX Datasheet 5 Tables Table 3-1 WBR1D-IPEX interface pins ................................................................................ 8 Table 3-2 WBR1D-IPEX test pins ........................................................................................ 9 Table 4-1 Absolute electrical parameters .......................................................................... 10 Table 4-2 Normal electrical conditions ............................................................................... 10 Table 4-3 Power consumption during constant transmission ............................................ 11 Table 4-4 Power consumption during constant receiving .................................................. 11 Table 4-5 WBR1D-IPEX working current ........................................................................... 12 Table 5-1 Basic RF features ...............................................................................…

Text truncated - open the document above for the full version.

Applicant/Grantee Hangzhou Tuya Information Technology Co.,Ltd /2ANDL FCC ID: 2ANDL-WBR1D-IPEX Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The radio portion of this module is shielded, please see exhibition external photos. Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The module has buffer modulation/data inputs. Y 3 The modular transmitter must have its own power supply regulation. The module has its own power supply regulation. Please see the schem.pdf Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The requirements of antenna connector and spurious emission have been fulfilled. Please refer to the Test Report exhibition. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting Please refer to the Setup Photo exhibition for the stand-alone test configuration. Y equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The Module will be labeled with its own FCC ID, and the instruction on the labeling rule of the end product has been stated in the User Manual of this module. Please refer to the Label and User Manual exhibition. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The required FCC rule has been fulfilled and all the instructions for maintaining compliance have been clearly stated in the User Manual. Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Y _________________________________ Contact Person: xiaodong Shou Company: Hangzhou Tuya Information Technology Co.,Ltd TEL: +86-571-86581786 FAX: +86-571-86581786 E-mail: [email protected]

Hangzhou Tuya Information Technology Co.,Ltd Room701,Building3,More Center,No.87 GuDun Road,Hangzhou,Zhejiang China Tel: +86-571-86581786; Fax: +86-571-86581786 Date: May 15, 2020 We, Hangzhou Tuya Information Technology Co.,Ltd , declare that this EUT (FCC ID: 2ANDL-WBR1D-IPEX) doesn't have Ad Hoc Mode function on "non-US/Canada frequencies". In addition, the frequency selection feature is disabled by firmware for devices marketed to the US/Canada. For DTS part of this device, only channels 1~11 will be used in North America. Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, ____ Contact Person: xiaodong Shou Company: Hangzhou Tuya Information Technology Co.,Ltd TEL: +86-571-86581786 FAX: +86-571-86581786 E-mail: [email protected]

Rev. 1/1/03 Hangzhou Tuya Information Technology Co.,Ltd Room701,Building3,More Center,No.87 GuDun Road,Hangzhou,Zhejiang China Tel: +86-571-86581786; Fax: +86-571-86581786 Date: May 15, 2020 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ANDL-WBR1D-IPEX Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ xiaodong Shou

Hangzhou Tuya Information Technology Co.,Ltd Room701,Building3,More Center,No.87 GuDun Road,Hangzhou,Zhejiang China Tel: +86-571-86581786; Fax: +86-571-86581786 Date: May 15, 2020 Power of Attorney To whom it may concern, Please be notified that I, xiaodong Shou, have designated Jim Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jim Tsai in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C 862. This authorization is limited to the product of as following: FCC ID: 2ANDL-WBR1D-IPEX If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, ____ Contact Person: xiaodong Shou Company: Hangzhou Tuya Information Technology Co.,Ltd TEL: +86-571-86581786 FAX: +86-571-86581786 E-mail: [email protected]

1/1 Hangzhou Tuya Information Technology Co.,Ltd Room701,Building3,More Center,No.87 GuDun Road,Hangzhou,Zhejiang China Tel: +86-571-86581786; Fax: +86-571-86581786 Date: May 15, 2020 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : 2ANDL-WBR1D-IPEX To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, Public Notice DA 04-1705 of the Commission’s policy and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which Hangzhou Tuya Information Technology Co.,Ltd deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, ____ Contact Person: xiaodong Shou Company: Hangzhou Tuya Information Technology Co.,Ltd TEL: +86-571-86581786 FAX: +86-571-86581786 E-mail: [email protected]

Hangzhou Tuya Information Technology Co.,Ltd UNII Declaration Letter We have declared below featured for FCC equipment authorization, device FCC ID: 2ANDL-WBR1D-IPEX (1) DFS Device -- Master, Client with Radar detection capability , Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412 – 2462 MHz Yes, No Yes, No Yes, No Yes, No 5150 – 5250 MHz Yes, No Yes, No Yes, No Yes, No 5250 – 5350 MHz Yes, No Yes, No Yes, No Yes, No 5470 – 5725 MHz Yes, No Yes, No Yes, No Yes, No 5725 – 5850 MHz Yes, No Yes, No Yes, No Yes, No (3) Country code selection ability - Yes , No If no, pls explain how was implemented : use Microsoft network utility (4) Meet 15.202 requirement - Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , No Apply , (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Signatory Contact Person: xiaodong Shou E-mail: [email protected]

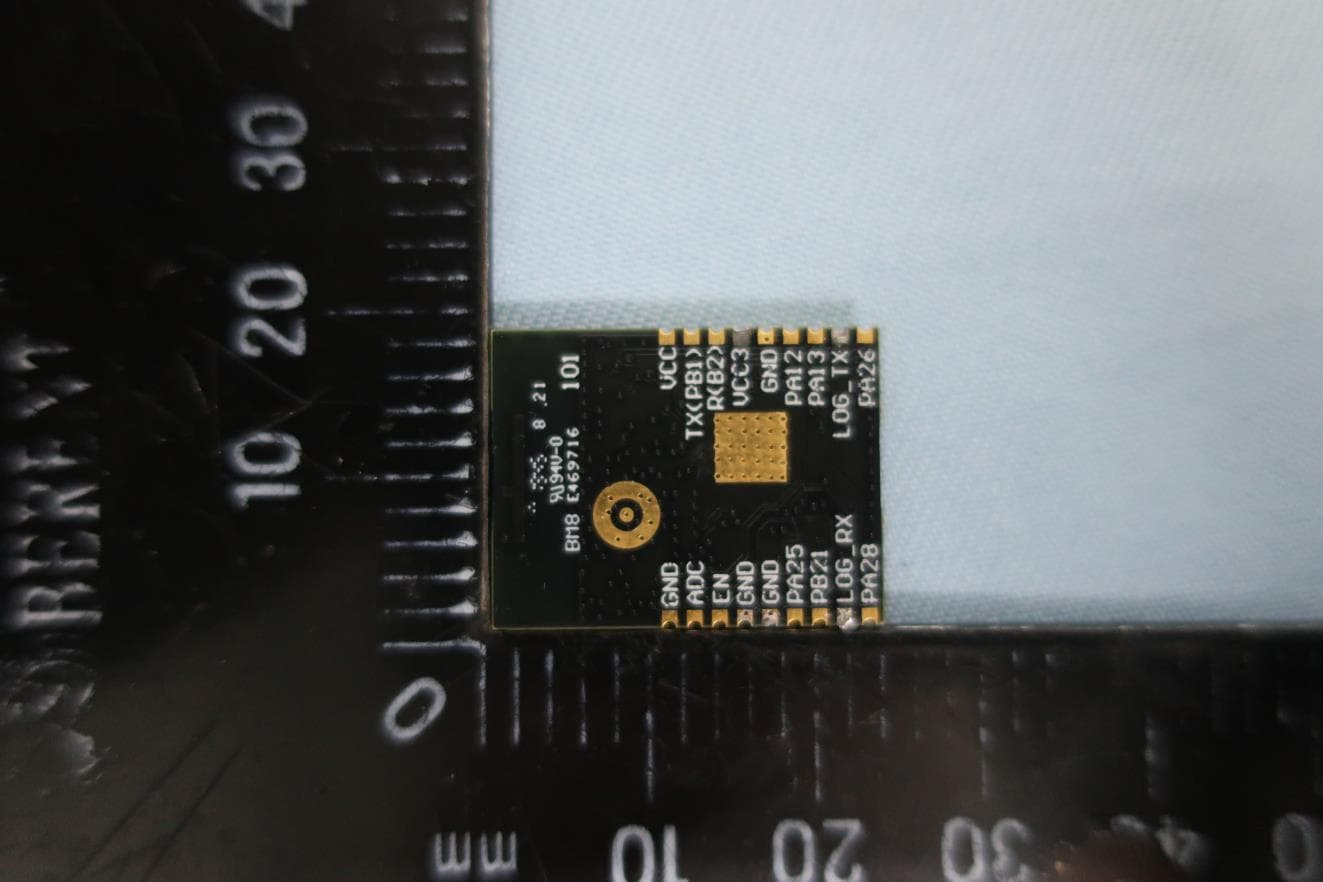

Photographs of EUT Report No.: EP9O3006-01 Model Name: WBR1D-IPEX Sporton International (Kunshan) Inc. Page Number : 1 of 2 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 16, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ANDL-WBR1D-IPEX 1. External Photograph of EUT Photographs of EUT Report No.: EP9O3006-01 Model Name: WBR1D-IPEX Sporton International (Kunshan) Inc. Page Number : 2 of 2 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 16, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ANDL-WBR1D-IPEX 720510

Photographs of EUT Report No.: EP9O3006-01 Model Name: WBR1D-IPEX Sporton International (Kunshan) Inc. Page Number : 1 of 2 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 16, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ANDL-WBR1D-IPEX 2. Internal Photograph of EUT Photographs of EUT Report No.: EP9O3006-01 Model Name: WBR1D-IPEX Sporton International (Kunshan) Inc. Page Number : 2 of 2 TEL : 86-0512-5790-0158 Report Issued Date : Apr. 16, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : 2ANDL-WBR1D-IPEX 720510

Sporton International (Kunshan) Inc. Page Number : 1 of 8 TEL : +86-512-57900158 / FAX : +86-512-57900958 Report Issued Date : Apr. 16, 2020 FCC ID : 2ANDL-WBR1D-IPEX Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA9O3006-01 RF Exposure Evaluation Report APPLICANT : Hangzhou Tuya Information Technology Co., Ltd EQUIPMENT : WiFi&Bluetooth Module MODEL NAME : WBR1D-IPEX FCC ID : 2ANDL-WBR1D-IPEX STANDARD : 47 CFR Part 2.1091 FCC KDB 447498 D01 v06 We, Sporton International (Kunshan) Inc., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1091 and FCC KDB 447498 D01 v06, and pass the limit. Without written approval of Sporton International (Kunshan) Inc., the test report shall not be reproduced except in full. Reviewed by: Rose Wang / Supervisor Approved by: Kat Yin / Manager Sporton International (Kunshan) Inc. No. 1098, Pengxi North Road, Kunshan Economic Development Zone Jiangsu Province 215300 People’s Republic of China Sporton International (Kunshan) Inc. Page Number : 2 of 8 TEL : +86-512-57900158 / FAX : +86-512-57900958 Report Issued Date : Apr. 16, 2020 FCC ID : 2ANDL-WBR1D-IPEX Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA9O3006-01 Table of Contents 1. ADMINISTRATION DATA ........................................................................................................................... 4 1.1. Testing Laboratory ............................................................................................................................. 4 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 5 3. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 6 4. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 7 5. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 8 5.1. Standalone Power Density Calculation ............................................................................................. 8 Sporton International (Kunshan) Inc. Page Number : 3 of 8 TEL : +86-512-57900158 / FAX : +86-512-57900958 Report Issued Date : Apr. 16, 2020 FCC ID : 2ANDL-WBR1D-IPEX Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA9O3006-01 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA9O3006-01 Rev. 01 Initial issue of report Apr. 16, 2020 Sporton International (Kunshan) Inc. Page Number : 4 of 8 TEL : +86-512-57900158 / FAX : +86-512-57900958 Report Issued Date : Apr. 16, 2020 FCC ID : 2ANDL-WBR1D-IPEX Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA9O3006-01 1. Administration Data 1.1. Testing Laboratory Sporton International (Kunshan) Inc. is accredited to ISO/IEC 17025:2017 by American Association for Laboratory Accreditation with Certificate Number 5145.02. Testing Laboratory Test Firm Sporton International (Kunshan) Inc. Test Site Location No. 1098, Pengxi North Road, Kunshan Economic Development Zone Jiangsu Province 215300 People’s Republic of China TEL : +86-512-57900158 FAX : +86-512-57900958 Test Site No. FCC Designation No. FCC Test Firm Registration No. CN1257 314309 Applicant Company Name Hangzhou Tuya Information Technology Co., Ltd Address Room701, Building3, More Center,No.87 GuDun Road, Hangzhou, Zhejiang, China Manufacturer Company Name Hangzhou Tuya Information Technology Co., Ltd Address Room701, Building3, More Center,No.87 GuDun Road, Hangzhou, Zhejiang, China Sporton International (Kunshan) Inc. Page Number : 5 of 8 TEL : +86-512-57900158 / FAX : +86-512-57900958 Report Issued Date : Apr. 16, 2020 FCC ID : 2ANDL-WBR1D-IPEX Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA9O3006-01 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type WiFi&Bluetooth Module Model Name WBR1D-IPEX FCC ID 2ANDL-WBR1D-IPEX Wireless Technology and Frequency Range WLAN 2.4GHz Band: 2412 MHz ~ 2462 MHz WLAN 5.2GHz Band: 5180 MHz ~ 5240 MHz WLAN 5.3GHz Band: 5260 MHz ~ 5320 MHz WLAN 5.5GHz Band: 5500 MHz ~ 5700 MHz WLAN 5.8GHz Band: 5745 MHz ~ 5825 MHz Bluetooth: 2402 MHz ~ 2480 MHz Mode WLAN 2.4GHz : 802.11b/g/n/ HT20/HT40 WLAN 5GHz : 802.11a/n HT20/HT40 Bluetooth LE HW Version 1.0.1 SW Version 2V1 Antenna Type / Gain WLAN 2.4GHz : IPEX antenna with gain 2.00 dBi WLAN 5GHz : IPEX antenna with gain 2.60 dBi Bluetooth: IPEX antenna with gain 2.00 dBi Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Sporton International (Kunshan) Inc. Page Number : 6 of 8 TEL : +86-512-57900158 / FAX : +86-512-57900958 Report Issued Date : Apr. 16, 2020 FCC ID : 2ANDL-WBR1D-IPEX Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA9O3006-01 3. Maximum RF average output power among production units <WLAN 2.4GHz> Mode Maximum Average Power (dBm) 802.11b 18.0 802.11g 17.0 802.11n-HT20 16.0 802.11n-HT40 15.0 <Bluetooth> Mode Maximum Average Power (dBm) Bluetooth LE 7.0 <WLAN 5GHz> Mode Maximum Average Power (dBm) WLAN 5.2GHz 802.11a 15.0 802.11n-HT20 14.5 802.11n-HT40 13.0 WLAN 5.3GHz 802.11a 15.0 802.11n-HT20 14.5 802.11n-HT40 13.0 WLAN 5.5GHz 802.11a 15.0 802.11n-HT20 14.5 802.11n-HT40 13.0 WLAN 5.8GHz 802.11a 15.0 802.11n-HT20 14.0 802.11n-HT40 13.0 Sporton International (Kunshan) Inc. Page Number : 7 of 8 TEL : +86-512-57900158 / FAX : +86-512-57900958 Report Issued Date : Apr. 16, 2020 FCC ID : 2ANDL-WBR1D-IPEX Report Version : Rev. 01 RF Exposure Evaluation Report Report No. : FA9O3006-01 4. RF Exposure Limit Introduction According to ANSI/IEEE C95.1-1992, the criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radia…
