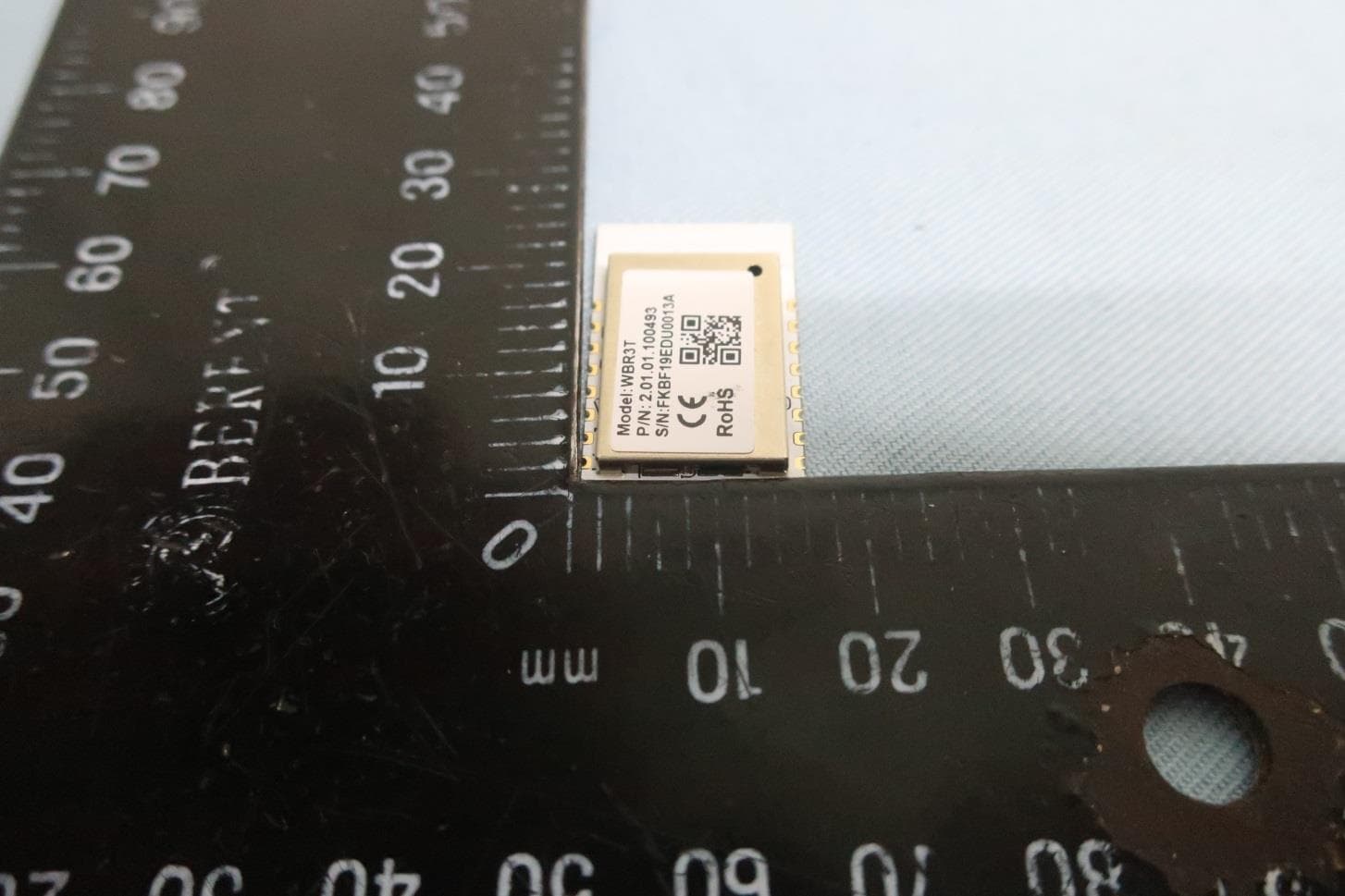

2ANDL-WBR3T

Hangzhou Tuya Information Technology Co.,Ltd

WiFi&Bluetooth Module

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Sep 21, 2020
Application Purpose: Original Equipment
Date of Application: Sep 20, 2020
Equipment Note: WiFi&Bluetooth Module
Frequency Range: 2412.00000000 - 2462.00000000
Company: Hangzhou Tuya Information Technology Co.,Ltd
Country: China

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

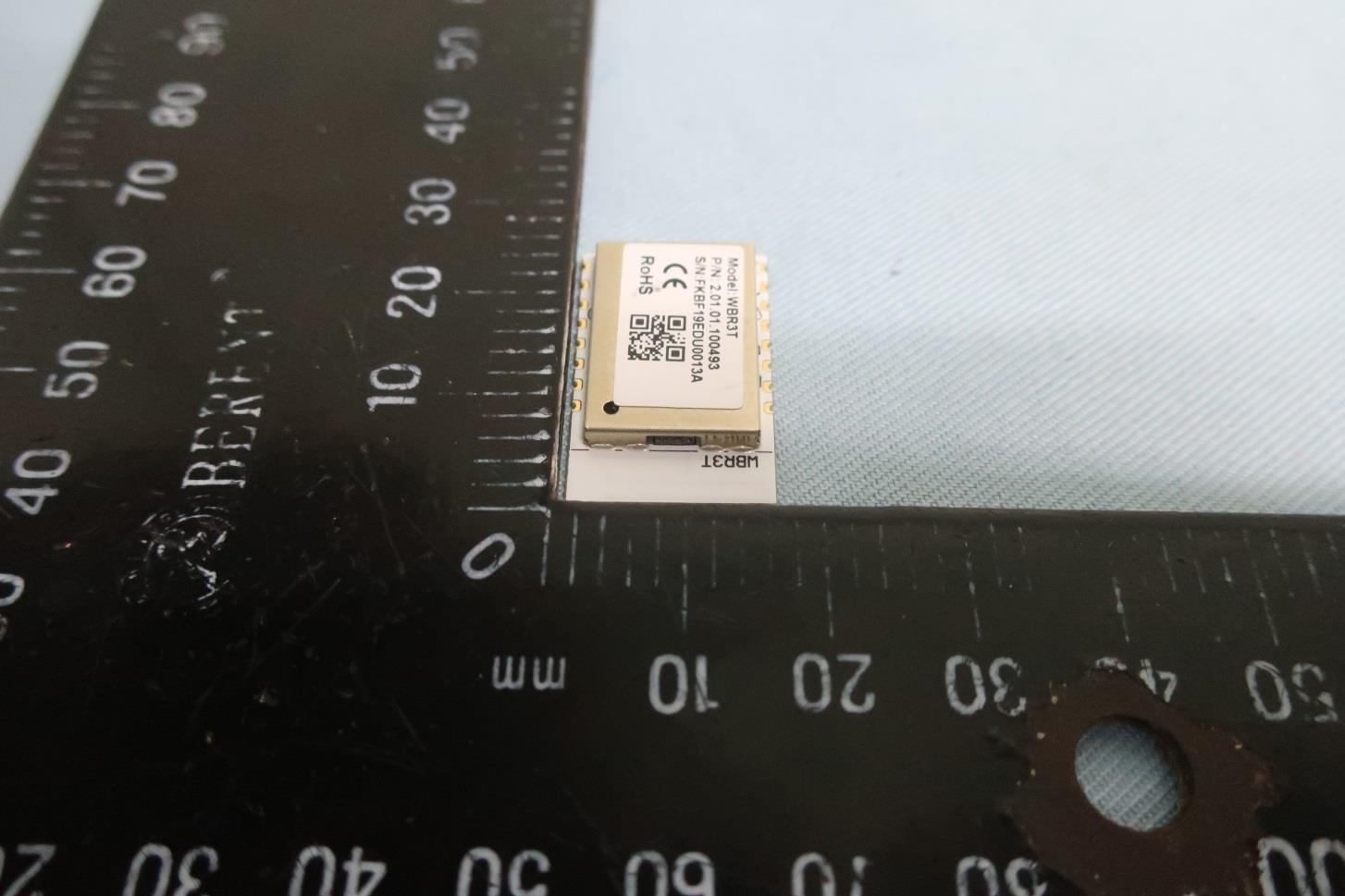

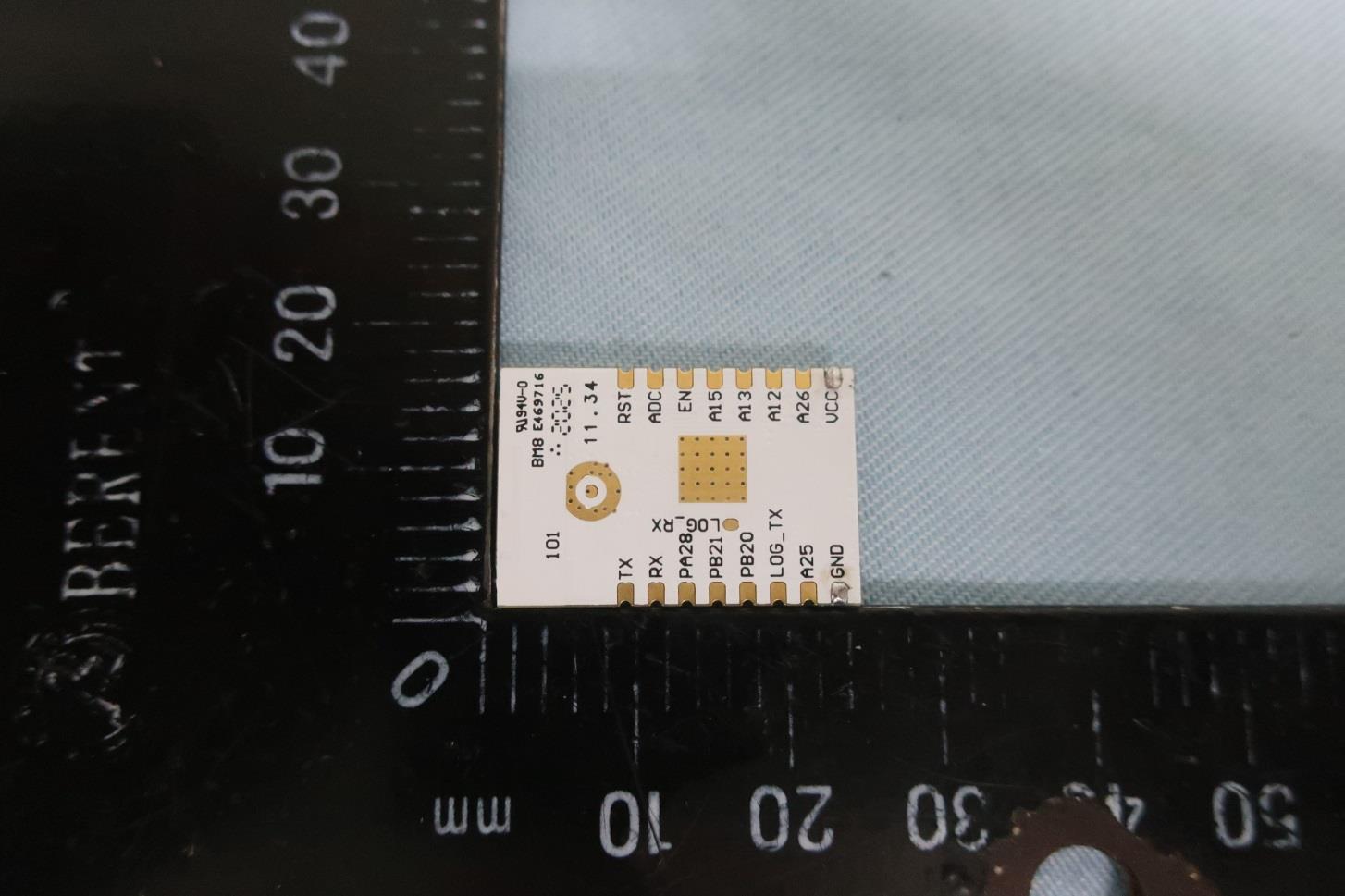

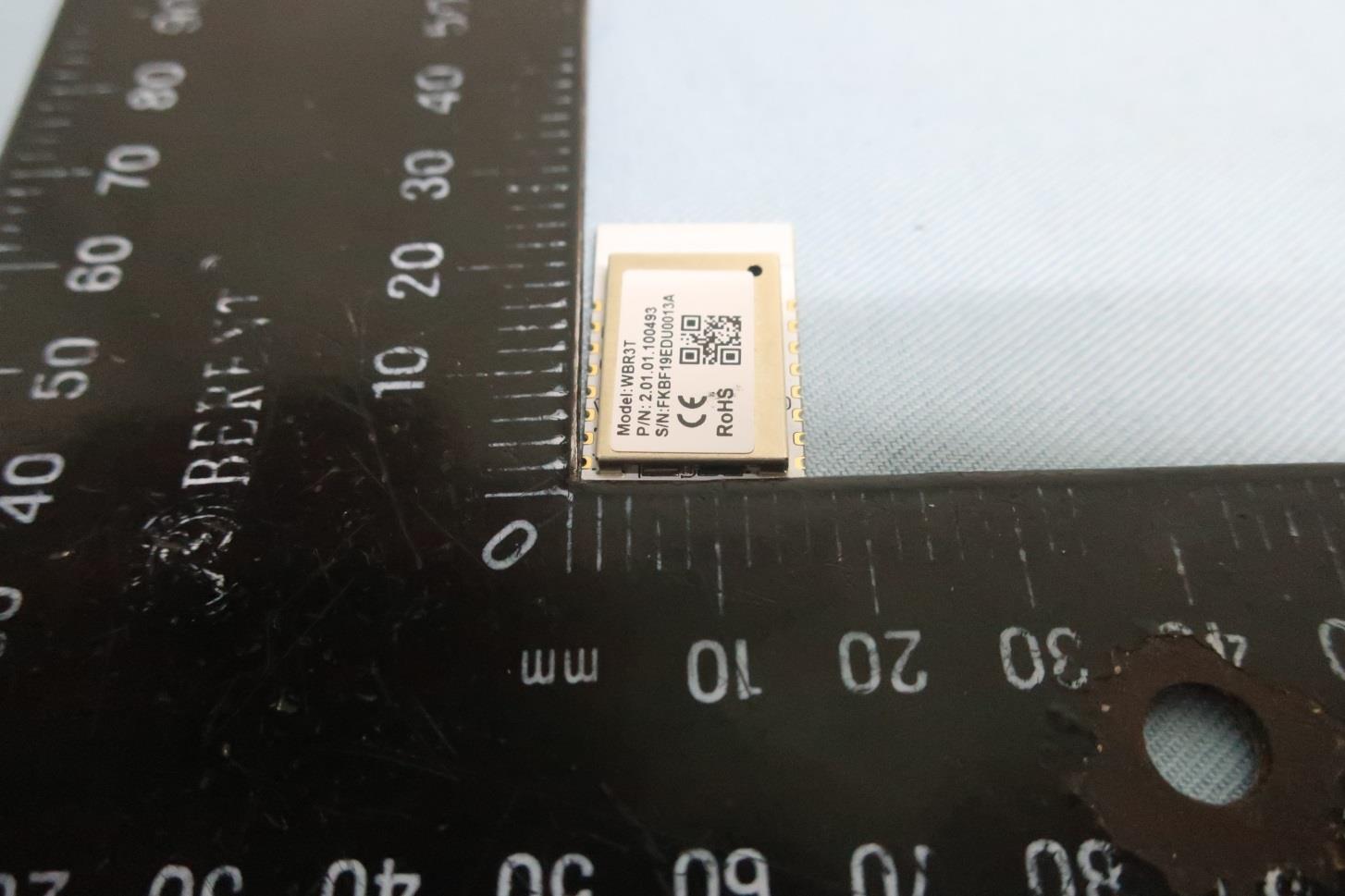

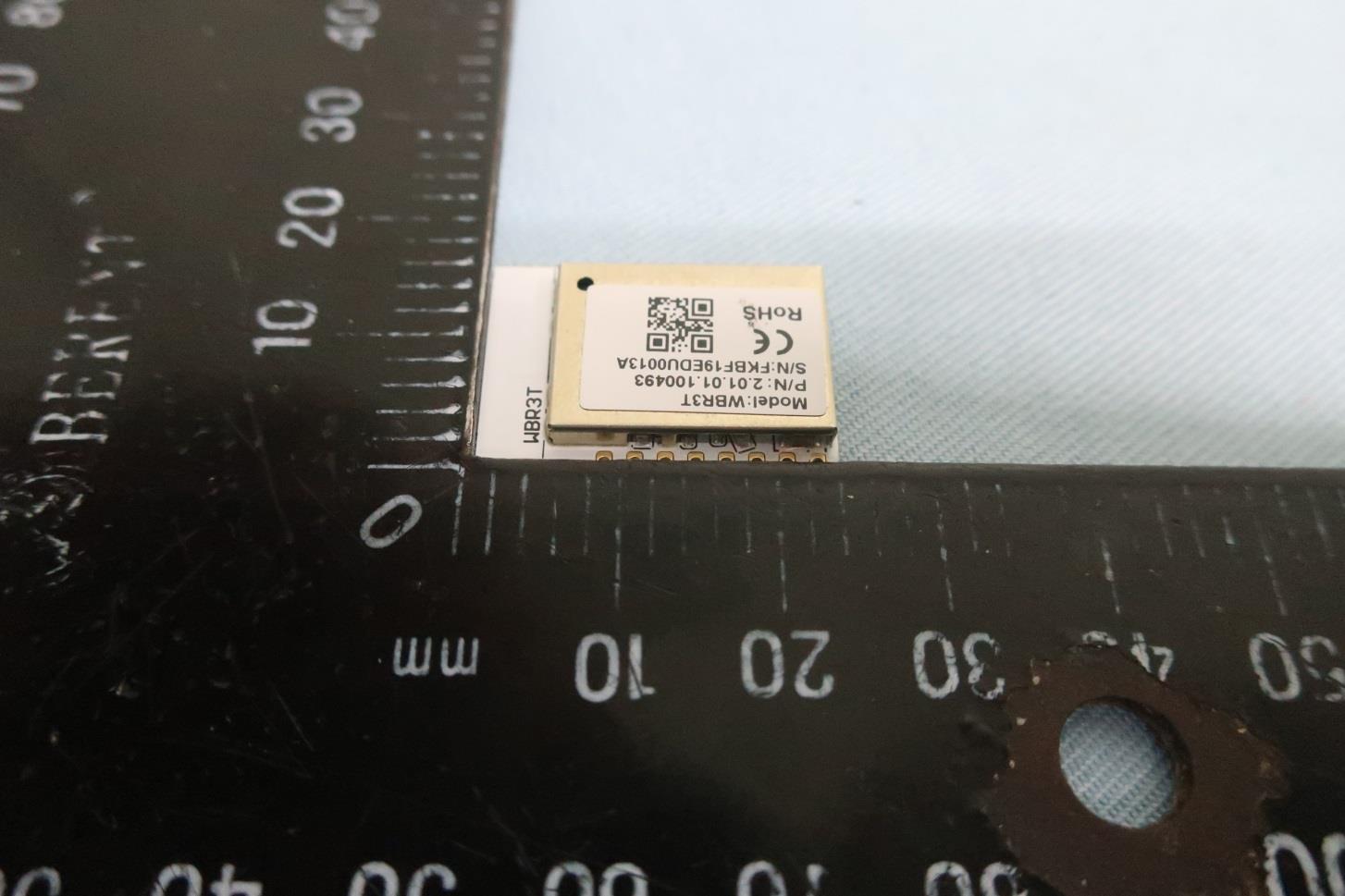

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.41 GHz - 2.46 GHz	356.50 mW

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Output power is maximum Peak conducted. This device has integrated UNII transmitter certified under the same FCC ID. This OEM module is approved for use in products operating as mobile transmitting device. The only antennas approved for use with this module are those documented in the filing, and must be installed in the manner specified therein. This device and its antenna(s) must operate with a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Grantee shall provide installation and operating instructions for satisfying RF exposure requirements to OEM integrators and installers. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. This device supports 802.11a/b/g/n, 20MHz and 40 MHz.
