2ANDL-ZT5Zigbee module

ZT5 Module Datasheet Version: 20210617 Online Version Contents Contents 1 Overview2 1.1 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 1.2 Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 1.3 Change history. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 2 Module interfaces3 2.1 Dimensions and package. . . . . . . . . . . . . . . . . . . . . . . .3 2.2 Pin definition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 3 Electrical parameters10 3.1 Absolute electrical parameters. . . . . . . . . . . . . . . . . . . . .10 3.2 Normal working conditions. . . . . . . . . . . . . . . . . . . . . . .10 3.3 TX and RX power consumption. . . . . . . . . . . . . . . . . . . . .11 3.4 Working current. . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 4 RF parameters12 4.1 Basic RF features. . . . . . . . . . . . . . . . . . . . . . . . . . . .12 4.2 TX performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 4.3 RX performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 5 Antenna information14 5.1 Antenna type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 5.2 Antenna interference reduction. . . . . . . . . . . . . . . . . . . . .14 6 Packaging information and production instructions15 6.1 Mechanical dimensions. . . . . . . . . . . . . . . . . . . . . . . . .15 6.2 Side view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 6.3 The schematic diagram of footprint. . . . . . . . . . . . . . . . . . .17 6.4 Production instructions. . . . . . . . . . . . . . . . . . . . . . . . .18 6.5 Recommended oven temperature curve. . . . . . . . . . . . . . . . .20 6.6 Storage conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . .23 7 MOQ and packaging information24 8 Appendix: Statement24 i Contents ZT5 is a Zigbee module that Tuya has developed. It consists of a highly integrated RF processing chip (Z2) and a few peripherals. ZT5 is embedded with a low-power 32-bit CPU, 1024-KB flash memory, 64-KB RAM, and rich peripherals. 1 / 26 1 OVERVIEW 1Overview Based on ZT5, you can develop embedded Zigbee products as required. 1.1Features •Embedded with a low-power 32-bit CPU and ARM Cortex-M33 processor •The clock rate: 48 MHz •Wide working voltage: 1.8 to 3.6 V •Peripherals: 6 GPIOs, 1 UART, and 1 ADC •Zigbee connectivity –Support 802.15.4 MAC/PHY –Working channels 11 to 26 @2.400 to 2.483 GHz, air interface rate: 250 Kbps –Up to +10dBm output power –Built-in onboard PCB antenna –Onboard PCB antenna with a gain of 2.8 dBi –Working temperature: -40°C to 85°C –Support hardware encryption and AES 128 1.2Applications •Intelligent building •Smart household and home appliances •Smart socket and light •Industrial wireless control •Baby monitor •Intelligent bus 1.3Change history 2 / 26 2 MODULE INTERFACES DateUpdated content Version after update 06/04/2021This is the first release. V1.0.0 2Module interfaces 2.1Dimensions and package ZT5 has two rows of pins with a spacing of 2±0.1 mm, 14 pins in total. TheZT5dimensionsare14.8±0.35mm(W)x20.4±0.35mm(L)x2.0±0.15mm(H) The dimensions of ZT5 are as follows: 3 / 26 2 MODULE INTERFACES 4 / 26 2 MODULE INTERFACES 5 / 26 2 MODULE INTERFACES 2.2Pin definition 6 / 26 2 MODULE INTERFACES Pin numberSymbolI/O typeFunction 1B4I/OSupport hardware PWM and correspond to B4 (Pin 14) on the internal IC 2D2I/OSupport hardware PWM and correspond to D2 (Pin 31) on the internal IC 3C2I/OUart_TXD，can also be used as GPIO，and correspond to C2 (Pin 22) on the internal IC 4C3I/OUart_RXD，can also be used as GPIO，and correspond to C3 (Pin 23) on the internal IC 5VCCPPower supply pin of the module (The typical power supply voltage: 3.3V 6C4I/OADC pin, which corresponds to C4 (Pin 24) on the internal IC 7GNDPPower supply reference ground 7 / 26 2 MODULE INTERFACES Pin numberSymbolI/O typeFunction 0SWSI/OBurning pin, which corresponds to SWS (Pin 5) on the internal IC 00B5I/OSupport hardware PWM and correspond to B5 (Pin 15) on the internal IC 8B7I/OGPIO, which corresponds to B7 (Pin 17) on the internal IC 9RSTIThe enabling pin and the EN pin are connected together and a pull-up resistor is connected to them. 10VCCPPower supply pin of the module (The typical power supply voltage: 3.3V) 11B1I/Owhich corresponds to B1 (Pin 6) of the IC 12GNDPPower supply reference ground 8 / 26 2 MODULE INTERFACES Note: P indicates a power supply pin and I/O indicates an input/output pin. 9 / 26 3 ELECTRICAL PARAMETERS 3Electrical parameters 3.1Absolute electrical parameters Parameter Description Minimum value Maximum valueUnit TaWorking temperature -4085°C VBATPower supply voltage 1.93.6V ESD voltage (human body model) TAMB-25°C-2KV ESD voltage (machine model) TAMB-25°C -0.5KV 3.2Normal working conditions Parameter Description Minimum Value Typical Value Maximum ValueUnit TaWorking tempera- ture -40-85°C VCCWorking voltage 1.93.33.6V VILI/O low level input --VDD*0.3V VIHI/O high level input VDD*0.7 --V 10 / 26 3 ELECTRICAL PARAMETERS Parameter Description Minimum Value Typical Value Maximum ValueUnit VOLI/O low level output --VDD*0.2V VOH I/O high level output VDD*0.8 --V 3.3TX and RX power consumption Working statusModeRate Transmit power/re- ceive Average value Peak value (Typical value) Unit Transmit-250 Kbps+0 dBm4.429mA Transmit -250 Kbps +10 dBm 9.144mA Receive-250 KbpsConstantly receive 6.610.2mA 3.4Working current Working mode Working status, Ta = 25°C Average value Maximum value (Typical value)Unit Quick network connection state The module is in the fast network connection state 9.159.49mA 11 / 26 4 RF PARAMETERS Working mode Working status, Ta = 25°C Average value Maximum value (Typical value)Unit Connected The module is connected to the network 8.959.15mA Deep sleep mode Deep sleep mode, reserve 32-KB SRAM 2.8-uA 4RF parameters 4.1Basic RF features ParameterDescription Working frequency2.405 to 2.480 GHz Zigbee standardIEEE 802.15.4 Data transmission rate250 Kbps Ant…

Text truncated - open the document above for the full version.

Company: Hangzhou Tuya Information Technology Co.,Ltd Address: Room701,Building3,More Center,No.87 GuDun Road, Hangzhou,Zhejiang, China Tel: 86-571-86581786 Fax: 86-571-86581786 Date (07/12/2021) TUV SUD BABT UNLIMITED TCB Octagon House, Segensworth North, Fareham, Hampshire, PO15 5RL, United Kingdom Dear Sir or Madam, We, (Hangzhou Tuya Information Technology Co.,Ltd), hereby authorize Jiaxi XU from TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151 Heng Tong Road Shanghai 201108 P.R. China to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on (Dec.31,2021). Sincerely, Company Officer: Telephone Number: 86-571-86581786 Email: [email protected]

Company: Hangzhou Tuya Information Technology Co.,Ltd Address: Room701,Building3,More Center,No.87 GuDun Road, Hangzhou,Zhejiang, China Tel: 86-571-86581786 Fax: 86-571-86581786 Date (07/12/2021) TUV SUD BABT UNLIMITED TCB Octagon House, Segensworth North, Fareham, Hampshire, PO15 5RL, United Kingdom Confidentiality Request FCC ID: 2ANDL-ZT5 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, (Hangzhou Tuya Information Technology Co.,Ltd) hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Telephone Number: 86-571-86581786 Email: [email protected]

Company: Hangzhou Tuya Information Technology Co.,Ltd Address: Room701,Building3,More Center,No.87 GuDun Road, Hangzhou,Zhejiang, China Tel: 86-571-86581786 Fax: 86-571-86581786 Date (07/012/2021) Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Modular Approval Request FCC ID: 2ANDL-ZT5 The following attestation addresses the requirements to support modular approval: Modular approval requirement Yes (provide brief statement) No * (a) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly The module has a metal shied. Refer to the external photo of EUT. (b) The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal Data to the modulation circuit is buffered as described in the operational description provided with the application. (c) The module must contain power supply regulation on the module The module contains its own power supply regulation. Please refer to schematic filed with this application. (d) The module must contain a permanently attached antenna, or The module has a PCB antenna and which permanently attached Company: Hangzhou Tuya Information Technology Co.,Ltd Address: Room701,Building3,More Center,No.87 GuDun Road, Hangzhou,Zhejiang, China Tel: 86-571-86581786 Fax: 86-571-86581786 contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) the module. Refer to the photo of EUT. (e) The module must demonstrate compliance in a stand-alone configuration The module was tested stand- alone as shown in test setup photographs filed with this application. (f) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements) The FCC ID is printed on the label of the module. Refer to the label of EUT. (g) The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements The module comply with all specific rules.Refer to the datasheet. Modular approval requirement Yes (provide brief statement) No * (h) The module must comply with RF exposure requirements Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. * Please provide a detailed explanation if the answer is “No.” Yours sincerely, Name: Title: General Manager

Label & Location Label position Label

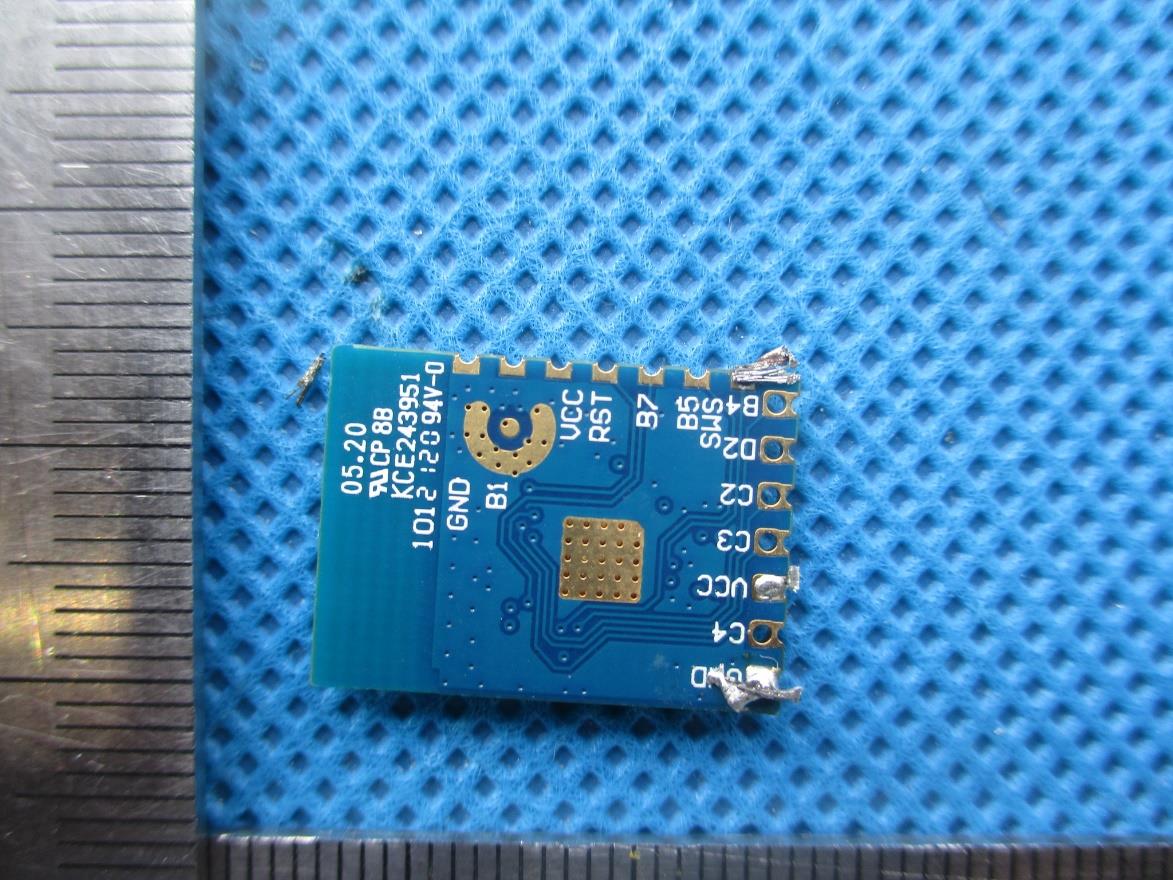

Internal Photos Documentation Manufacturer: Hangzhou Tuya Information Technology Co.,Ltd Page 1 of 1 Product: Zigbee Module FCC ID: 2ANDL-ZT5

Report No: 709502102966A EMC_SHA_F_R_02.06E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 1 of 2 Rev. 20.00 MPE Calculation Applicant: Hangzhou Tuya Information Technology Co.,Ltd Address: Room701,Building3,More Center,No.87 GuDun Road,Hangzhou,Zhejiang China Product: Zigbee Module FCC ID: 2ANDL-ZT5 Model No.: ZT5 Reference RF report # 709502102966-00 According to subpart 15.247(i)and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1,500 / / f/1500 30 1,500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Report No: 709502102966A EMC_SHA_F_R_02.06E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 2 of 2 Rev. 20.00 Calculated Data: Maximum peak output power at antenna input terminal (dBm): 9.62 Maximum peak output power at antenna input terminal (mW): 9.16 Prediction distance (cm): 20 Antenna Gain, typical (dBi): 2.80 Maximum Antenna Gain (numeric): 1.91 The worst case is power density at predication frequency at 20 cm (mW/cm 2 ): 0.0034 MPE limit for general population exposure at prediction frequency (mW/cm 2 ): 1.0 The max power density 0.0034 (mW/cm 2 ) < 1 (mW/cm 2 ) Result: Compliant - TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch Reviewed by: Prepared by: Tested by: _____________________ _____________________ ______________________ Hui TONG Jiaxi XU Wenqiang LU EMC Section Manager EMC Project Engineer EMC Test Engineer Date: 2021-07-08 Date: 2021-07-08 Date: 2021-07-08
