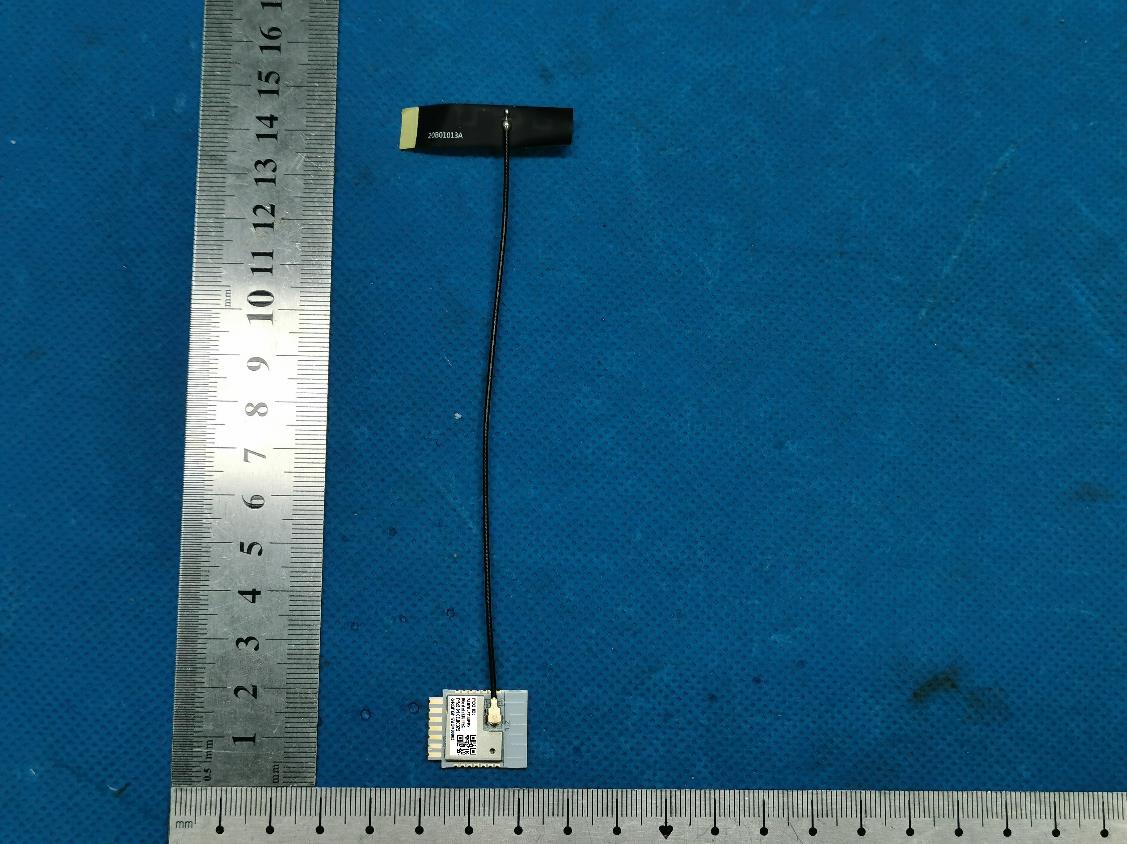

ZTU-IPEX Module Datasheet Hardware Product Development > Network Modules > Zigbee Module > ZT Series Module Version: 20210308 Online Version Contents Contents 1 Overview2 1.1 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 1.2 Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 1.3 Change history. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 2 Module interfaces3 2.1 Dimensions and package. . . . . . . . . . . . . . . . . . . . . . . .3 2.2 Pin definition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 3 Electrical parameters9 3.1 Absolute electrical parameters. . . . . . . . . . . . . . . . . . . . .9 3.2 Normal working conditions. . . . . . . . . . . . . . . . . . . . . . .9 3.3 TX and RX power consumption. . . . . . . . . . . . . . . . . . . . .10 3.4 Working current. . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 4 RF parameters11 4.1 Basic RF features. . . . . . . . . . . . . . . . . . . . . . . . . . . .11 4.2 TX performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 4.3 RX performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 5 Antenna13 5.1 Antenna type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 5.2 Antenna interference reduction. . . . . . . . . . . . . . . . . . . . .13 6 Packaging and production14 6.1 Mechanical dimensions. . . . . . . . . . . . . . . . . . . . . . . . .14 6.2 Side view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 6.3 Schematic diagram of a packaging. . . . . . . . . . . . . . . . . . .17 6.4 PCB Packaging-pin header. . . . . . . . . . . . . . . . . . . . . . . .17 6.5 Production instructions. . . . . . . . . . . . . . . . . . . . . . . . .19 6.6 Recommended oven temperature curve. . . . . . . . . . . . . . . . .21 6.7 Storage conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . .22 7 MOQ and packaging information23 i Contents 8 Appendix: Statement23 ii Contents ZTU-IPEX is a low-power embedded Zigbee module that Tuya has developed. It con- sists of a highly integrated RF processing chip (TLSR8258F1KAT32), a few periph- erals, a built-in 802.15.4 PHYMAC Zigbee network protocol stack, and rich library functions. ZTU-IPEX is embedded with a low-power 32-bit CPU, 1-MB flash program memory, 64-KB RAM, and abundant peripheral resources. 1 / 25 1 OVERVIEW 1Overview ZTU-IPEX is a FreeRTOS platform that integrates all function libraries of the Zig- bee MAC and TCP/IP protocols. You can develop embedded Zigbee products as re- quired. 1.1Features •Embedded with a low-power 32-bit CPU processor •The clock rate: 48 MHz •Wide working voltage: 1.8 to 3.6 V •Peripherals: 9 general-purpose input/output (GPIO), 1 universal asynchronous receiver/transmitter (UART), and 2 analog-to-digital converters (ADC) •Zigbee connectivity –Support 802.15.4 MAC/PHY –Working channels 11 to 26 @2.400 to 2.483 GHz, air interface rate: 250 Kbps –Up to +10dBm output power and dynamic output power>35 dB –The terminal equipment connects to the network actively. –Built-in onboard PCB antenna, Ipex connector reserved –IPEX antenna with a gain of 3.3dBi –Working temperature: -40°C to 105°C –Support hardware encryption and AES 128 1.2Applications •Intelligent building •Smart household and home appliances •Smart socket and light •Industrial wireless control •Baby monitor •Network camera •Intelligent bus 1.3Change history 2 / 25 2 MODULE INTERFACES Update dateUpdated contentVersion after update 3/8/2021This is the first release.V1.0.0 2Module interfaces 2.1Dimensions and package ZTU-IPEX has 3 rows of pins with a 1.4±0.1 mm pin spacing. The ZTU-IPEX dimensions are 20.3±0.35 mm (W)×15.8±0.35 mm (L) ×3±0.15 mm (H). The dimensions of ZTU-IPEX are as follows: 3 / 25 2 MODULE INTERFACES 4 / 25 2 MODULE INTERFACES 2.2Pin definition Pin number Symbol I/O type Function 1D3I/OCommon I/O pin, which corresponds to D3 (Pin 32) of IC 5 / 25 2 MODULE INTERFACES Pin numberSymbolI/O typeFunction 2D7I/OCommon I/O pin, which corresponds to D7 (Pin 2) of IC 3C0I/OCommon I/O pin, which corresponds to C0 (Pin 20) of IC 4SWSI/OBurning pin, which corresponds to SWS (Pin 5) of IC 5B6I/OADC pin, which corresponds to B6 (Pin 16) of IC 6A0I/OCommon I/O pin, which corresponds to A0 (Pin 3) of IC 7A1I/OCommon I/O pin, which corresponds to A1 (Pin 4) of IC 8C2I/OSupport hardware PWM and correspond to C2 (Pin 22) on the internal IC 9C3I/OSupport hardware PWM and correspond to C3 (Pin 23) on the internal IC 6 / 25 2 MODULE INTERFACES Pin numberSymbolI/O typeFunction 10D2I/OSupport hardware PWM and correspond to D2 (Pin 31) on the internal IC 11B4I/OSupport hardware PWM and correspond to B4 (Pin 14) on the internal IC 12B5I/OSupport hardware PWM and correspond to B5 (Pin 15) on the internal IC 13GNDPPower supply reference ground 14VCCPPower supply pin (3.3V) 15B1I/OUart_TXD, which corresponds to B1 (Pin 6) of IC 16B7I/OUart_RXD, which corresponds to B7 (Pin 17) of IC 17C4I/OADC pin, which corresponds to C4 (Pin 16) of IC 18RSTI/OReset pin, active low 7 / 25 2 MODULE INTERFACES Pin numberSymbolI/O typeFunction 19C1I/OCommon I/O pin, which corresponds to C1 (Pin 21) of IC 20D4I/OCommon I/O pin, which corresponds to D4 (Pin 1) of IC 21NCI/ONo connection Note: P indicates a power supply pin and I/O indicates an input/output pin. 8 / 25 3 ELECTRICAL PARAMETERS 3Electrical parameters 3.1Absolute electrical parameters Parameter Description Minimum value Maximum valueUnit TaWorking temperature -40105°C VBATPower supply voltage 1.83.6V Static electricity discharge voltage (human body model) TAMB-25°C-2KV Static electricity discharge voltage (machine model) TAMB-25°C - 0.5 KV 3.2Normal working conditions Parameter Description Minimum value Typical value Maximum valueUnit TaWorking tempera- ture -40-105°C VCCWorking voltage 1.83.33.6V 9 / 25 3 ELECTRICAL PARAMETERS Parameter Description Minimum value Typical value Maximum valueUnit VILI/O low-level input --VDD*0.3V VIH I/O high-le…
