2ANDLTY-R8808Smart Camera

SMART WI-FI C A M E RA USER MANUAL Thank you for purchasing Smart Camera. Get started using your new devices by downloading TuyaSmart, one convenient app that manages everything straight from your phone. Easily connect to your home Wi-Fi and control multiple devices from the touch of your fingertips. Contents Download & Register 2-4 Plug In 5 Connect (SmartConfig) 6-7 Connect (QR code net-pairing) 8-9 Questions, Troubleshooting, Notices 10-13 What’s in the Box • Smart Wi-Fi Camera • USB Cable • Power Adapter • User Manual Get Ready • Know your Wi-Fi network and password • Make sure your mobile device is running iOS ® 8 or higher or Android™ 4.1× or higher • Make sure you’re connecting to a 2.4GHz Wi-Fi network (It can’t connect to 5GHz networks) USER MANUAL 1 Download the TuyaSmart app from App Store or Google Play. 2、Description of assembly steps Screw specifications：KA3*24 1、 Screw fixed the wall in Pic 1 2、 Rotate and close the top cover of the base and install the equipment in Pic 2 Pic 1 Pic 2 3 Register an account on your TuyaSmart app STEP 1. Enter your mobile phone number or email address. STEP 2. Enter the verification code and create a password. 3 Register an account on your TuyaSmart app STEP 3. Login to the App. 3 Plug in How do I reset my device? Press the Reset Button (as Pic 1) for several second until camera starts to beep. Optional: Insert Micro SD card as shown in Pic 1. Button Instructions: Press one second to call Press five seconds to reset What does the blinking light mean? 4 Add device. Method 1: SmartConfig STEP 1 In the app, on the top corner of the Devices screen, click (+). Choose “Smart Camera” STEP 2 Make sure the indicator light on the device is flashing Red, indicating the device is ready to connect. If not, follow instructions to Reset the device so that indicator light is flashing red. then press “Next Step”. 4 Add device. Method 1: SmartConfig STEP 3 Enter your Wi-Fi network and password. STEP 4 The app will try to connect your device. During this time, the camera will beep, start quickly blinking Red, and then turn solid Green. *If the connection fails, try to connect directly using QR Code Mode. Add device. Method 1: SmartConfig 5 Add device. Method 2: QR code net-pairing STEP 1 In the app, on the top corner of the Devices screen, click (Otherwise) STEP 2 Choose “QR code” 5 Add device. Method 2: QR code net-pairing STEP 3 Enter your Wi-Fi network and password. STEP 4 Scan the QR Code with the camera.” 10 Frequently Asked Questions 1.Can I share with family and friends? Yes, you can share your cameras with family and friends who will have access to view the camera and control your bulbs, plugs, and other devices. In the app, press the Profile button and click on the “Device Sharing” button, and you will be able to give or revoke sharing permissions. In order to share, the other user should already have downloaded the app and registered a new account. 2. What’s the Wireless Range? The range of your home Wi-Fi is heavily dependent on your home router and the conditions of the room. Check with your router specifications for exact range data. 3. The device appears offline or unreachable? Make sure your Wi-Fi router is online and in range. Make sure you have the latest app functionality by clicking “Check for firmware update” in your device settings. 4. Cannot connect to your Wi-Fi network. Make sure you entered the correct Wi-Fi password during the Wi-Fi setup. Check whether there are any Internet connection problems. If the Wi-Fi signal is too weak, reset your Wi-Fi router and try again. 5. How Many Cameras Can I Control? TuyaSmart app can control an unlimited amount of devices in an unlimited amount of locations. Your router may have a limit of how many devices can be connected to one router. 6. Is the process same when I add the device through wifi or network cable? Yes,they have same process ,you can use forth step to add device. 12 System Requirements • Mobile device running iOS ® 8 or higher or Android™ 4.1x or higher • Existing Wi-Fi Network Technical Specifications • Camera: up to 10800p (1920x1080) at 20 frames / sec. H.264 encoding • Field of View: 104º diagonal • Audio: Internal Speaker and Microphone • Storage: supports up to 128G Micro SD card (not included) • Wi-Fi: IEEE 802.11b/g/n, 2.4GHz (not compatible with 5GHz Wi-Fi networks) CE Notice: Product name：Smart Camera Model number：SC211-WE2 working frequency：2412M-2472MHz CE Products with the CE marking comply with the Radio Equipment Directive (2014/53/EU), the Electromagnetic Compatibility Directive (2014/30/EU), the Low Voltage Directive (2014/35/EU) – issued by the Commission of the European. Compliance with these directives implies conformity to the following European Standards： EN300328 V2.1.1 EN301489-1/-17 V2.1.1 EN62368-1:2014+A11:2017 EN55032:2015+AC:2016(ClassB); EN55035:2017 EN62311:2008 WEEE This product must not be disposed of as normal household waste, in accordance with EU directive for waste electrical and electronic equipment (WEEE- 2012/19/EU). Instead，it should be disposed of by returning it to the point of sale, or to a municipal recycling collection point. FCC Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability …

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (obsolete) 4.0 5.0 Sep-16-2014 Updated company name & logo (current) 5.0 6.0 Jun-27-2018 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 6.0 (January 13, 2020) To: BVCPS, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Hangzhou Tuya Information Technology Co., Ltd hereby authorize Bureau Veritas Consumer Product Services, Inc. to act as a Certification Body for certifying for the following project(s): FCC ID: 2ANDLTY-R8808 Product Description: Smart Camera Model: SC211-WE2 Sincerely, Client’s signature Client’s name / title: XiaoDong Shou/ General Manager Contact information / address: Room701,Building 3 ,More Center, No.87 GuDun Road, Hangzhou, Zhejiang, China

SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (obsolete) 4.0 5.0 Nov-19-2015 Updated company logo (current) 5.0 6.0 Jun-26-2019 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 6.0 Hangzhou Tuya Information Technology Co.,Ltd January 13, 2020 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ANDLTY-R8808 Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name & title: Xiaodong Shou / General Manager Contact information / address: Room701, Building3, More Center, No.87 GuDun Road, Hangzhou, Zhejiang, China SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 6.0 Hangzhou Tuya Information Technology Co.,Ltd January 13, 2020 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: 2ANDLTY-R8808 To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47, and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days; or for a specified date of / / not to exceed 180 days from the Grant Date. See KDB 726920. - User Manual - Internal Photos The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature: Client’s name & title: Xiaodong Shou / General Manager Contact information / address: Room701, Building3, More Center,No.87 GuDun Road, Hangzhou, Zhejiang, China

SCS-F190 WiFi Channel 12&13 Declaration Letter Page 1 of 2 Rev.2.0 Created by William Graff Approved by Bao-Thuong Nguyen WIFI Channel 12 and 13 Declaration Letter Reason for Amendment Revision History Approved Date From To Initial Release (obsolete) Initial 1.0 December 22, 2015 Modify the select options (current) 1.0 2.0 September 23, 2016 SCS-F190 WiFi Channel 12&13 Declaration Letter Page 2 of 2 Rev.2.0 Created by William Graff Approved by Bao-Thuong Nguyen Hangzhou Tuya Information Technology Co., Ltd WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2ANDLTY-R8808 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo-location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title:General Manager Signature: Phone: 86-571-86581786 Email:[email protected] Date: January 13, 2020

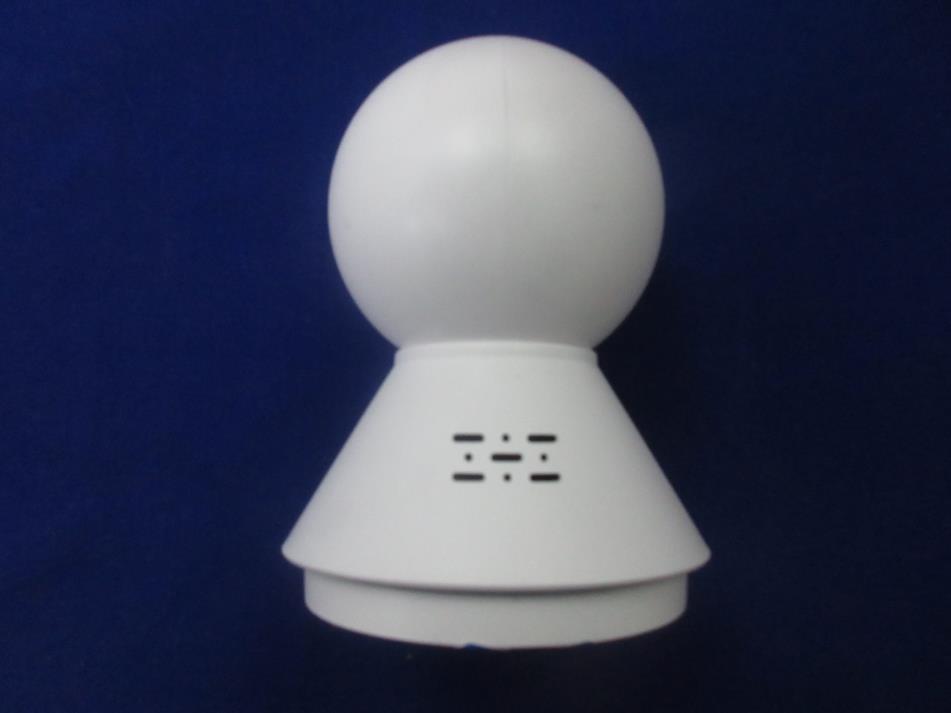

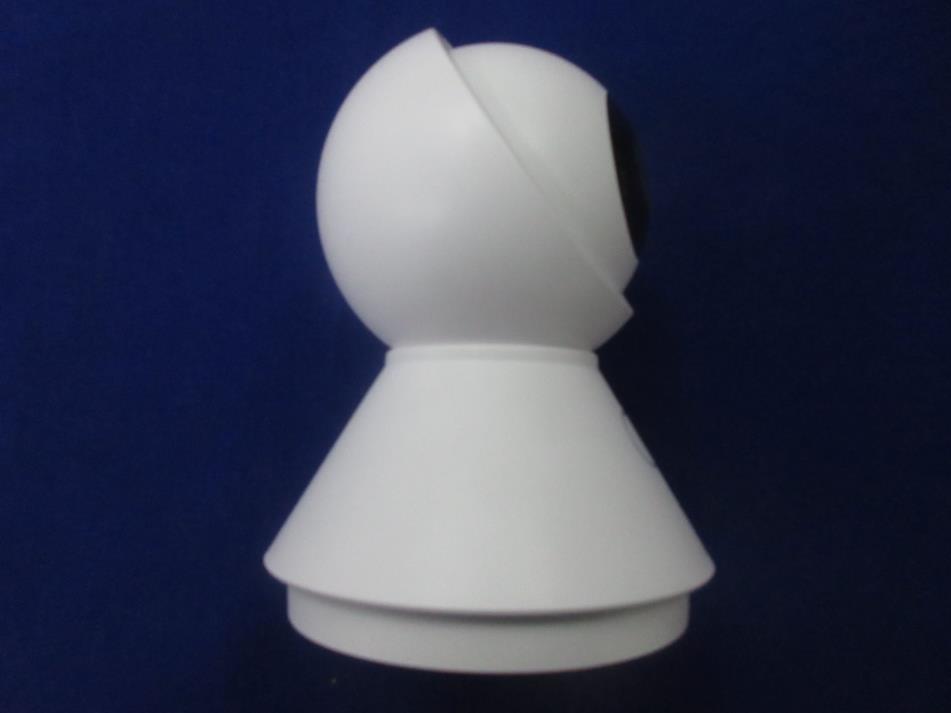

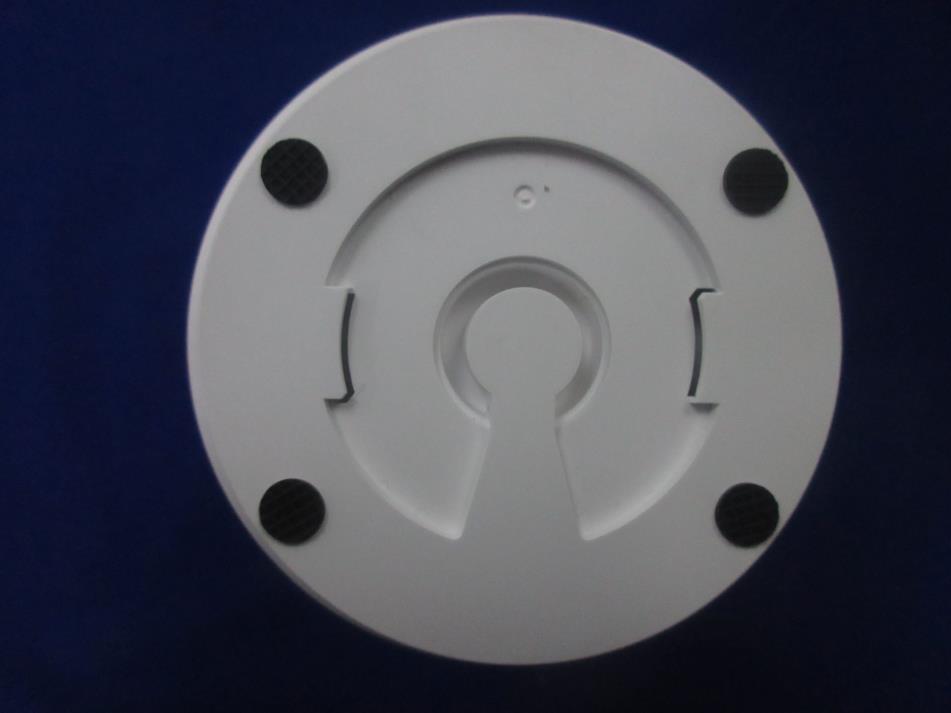

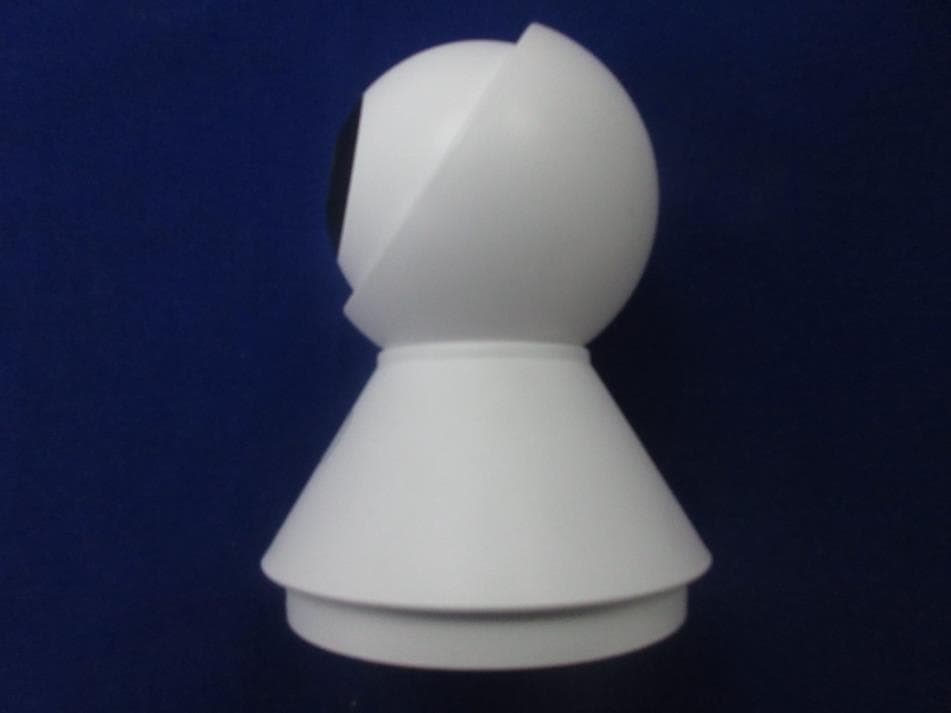

Page 1 of 4 External Photo Page 2 of 4 Page 3 of 4 Page 4 of 4
