2ANDLTY-R8818Smart Camera with Wi-Fi

SMART C A M E R A USER MANUAL Thank you for purchasing Smart Camera.Get started using your new devices by downloading TuyaSmart, oneconvenient app that manages everything straight from yourphone. Easily connect to your home Wi-Fi and controlmultiple devices from the touch of your fingertips. Contents Download & Register2-4 Plug In5 Connect (SmartConfig)6-7 Connect (QR code net-pairing)8-9 Questions, Troubleshooting, Notices10-13 What’s in the Box •Smart Wi-Fi Camera •2m USB Cable •Label for Location •Mounting Bracket •Power Adapter •User Manual •Screws Get Ready •Know your Wi-Fi network and password •Make sure your mobile device is running iOS ® 9 or higher or Android™ 4.1× or higher •Make sure you’re connecting to a 2.4GHz Wi-Fi network (It can’t connect to 5GHz networks) 1Download the TuyaSmart app from App Store or Google Play. 2Register an account on your TuyaSmart app STEP1. Enter your mobile phone number or email address. STEP 2. Enter the verification code and create a password. 2Register an account on your TuyaSmart app STEP 3. Login to the App. 3 Plug in How do I reset my device? Use the reset pin to press the Reset Button (as pic 1) for several seconds until the camera starts to beep. Optional:Insert Micro SD card as shown in pic 2 What does the blinking light mean? 4Add device.Method 1: SmartConfig STEP 1 In the app, on the top corner of the Devices screen, click (+). Choose “Smart Camera” STEP 2 Make sure the indicator light on the device is flashing Red, indicating the device is ready to connect. If not, follow instructions to Reset the device so that indicator light is flashing red. then press “Next Step”. 4Add device.Method 1: SmartConfig STEP 3 Enter your Wi-Fi network and password. STEP 4 The app will try to connectyour device. During this time, the camera will beep, start quickly blinking Red, and then turn solid Green. *If the connection fails, try to connect directly using QR Code Mode. Add device.Method 1: SmartConfig 5Add device.Method 2:QR code net-pairing STEP 1 In t h e a pp , o n t he t o p c or n e r of t h e Devices screen, click (Otherwise) STEP 2 Choose “QR code” 5Add device.Method 2:QR code net-pairing STEP 3 Enter your Wi-Fi network and password. STEP 4 Scan the QR Code with the camera.” 10 Frequently Asked Questions 1.Can I share with family and friends? Yes, you can share your cameras with family and friends who will have access to view the camera and control your bulbs, plugs, and other devices. In the app, press the Profile button and click on the “Device Sharing” button, and you will be able to give or revoke sharing permissions. In order to share, the other user should already have downloaded the app and registered a new account. 2. What’s the Wireless Range? The range of your home Wi-Fi is heavily dependent on your home router and the conditions of the room. Check with your router specifications for exact range data. 3. The device appears offline or unreachable? Make sure your Wi-Fi router is online and in range. Make sure you have the latest app functionality by clicking “Check for firmware update” in your device settings. 4. Cannot connect to your Wi-Fi network. Make sure you entered the correct Wi-Fi passw ord during the Wi-Fi setup. Check whether there are any Internet connection problems. If the Wi-Fi signal is too weak, reset your Wi-Fi router and try again. 5. How Many Cameras Can I Control? TuyaSmart app can control an unlimited amount of devices in an unlimited amount of locations. Your router may have a limit of how many devices can be connected to one router. 12 System Requirements •Mobile device running iOS ® 9 or higher or Android™ 4 .1 x or higher •Existing Wi-Fi Network Technical Specifications •RF frequency: 2.412 GHz to 2.472 GHz(Ch1-11 for US/CA,Ch1-13 for EU/CN) •Max Power RF: 17dBm EIRP •Model: SC021-WR2 •Storage: supports up to 128G Micro SD card (not included) •Wi-Fi: IEEE 802.11b/g/n, 2.4GHz •Working temperature: -10°C-45°C, less than 95% RH CE Notice: CE Products with the CE marking comply with the Radio Equipment Directive (2014/53/EU), the Electromagnetic Compatibility Directive (2014/30/EU), the Low Voltage Directive (2014/35/EU) – issued by the Commission of the European. Compliance with these directives implies conformity to the following European Standards： EN300328 V2.1.1 EN301489-1/-17 V2.1.1 EN62368-1:2014+A11:2017 EN55032:2015+AC:2016(ClassB); EN55035:2017 EN62311:2008 WEEE This product must not be disposed of as normal household waste, in accordance with EU directive for waste electrical and electronic equipment (WEEE- 2012/19/EU). Instead，it should be disposed of by returning it to the point of sale, or to a municipal recycling collection point. FCC Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this devi ce must accept any interference received, including interference that may cause undesired operation. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form. (b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a…

Text truncated - open the document above for the full version.

Company: Hangzhou Tuya Information Technology Co.,Ltd Address: Room701,Building3,More Center,No.87 GuDun Road, Hangzhou,Zhejiang, China Tel: 86-571-86581786 Fax: 86-571-86581786 WIFI Channel 12 ,13 and 14 Declaration Letter We declare the equipment identified below with regards to Channel 12,13 and 14 capabilities for FCC ID: 2ANDLTY-R8818 Declaration Product hardware does not have the capability to operate on Channel 12,13 and 14. Product hardware has the capability to operate on Channel 12 ,13 and 14. However, these three channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 ,13 and 14. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 ,13 and 14, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.)By default, this device operates in a mode that is compliant with the U.S. requirements. 2.)This device will also use supplemental information such as geo-location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title:/General Manager Signature: Phone:86-571-86581786 Email:[email protected] Date: June 30, 2020

Company: Hangzhou Tuya Information Technology Co.,Ltd Address: Room701,Building3,More Center,No.87 GuDun Road, Hangzhou,Zhejiang, China Tel: 86-571-86581786 Fax: 86-571-86581786 Date (06/12/2020) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2ANDLTY-R8818 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, (Hangzhou Tuya Information Technology Co.,Ltd) hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Telephone Number: 86-571-86581786 Email: [email protected]

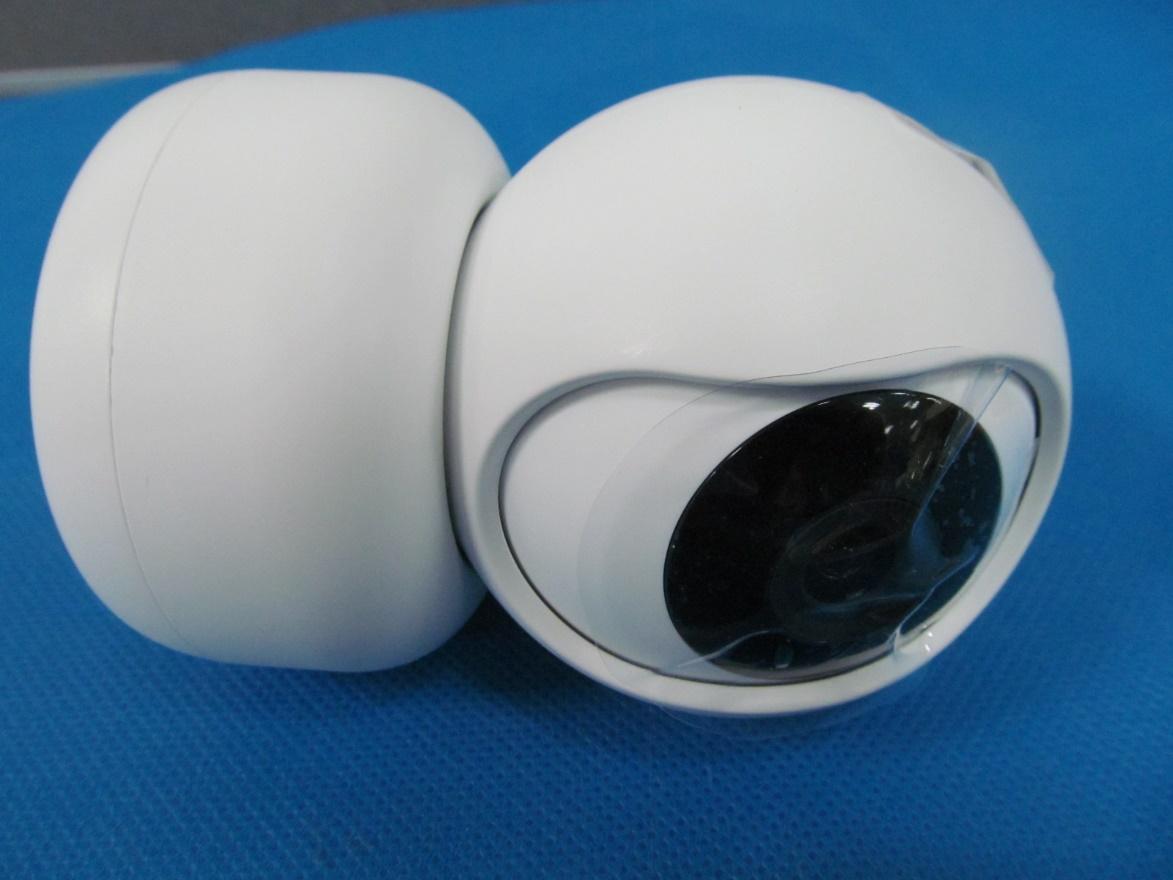

Photos Documentation Manufacturer: Hangzhou Tuya Information Technology Co.,Ltd Page 1 of 3 Product: Smart Camera FCC ID: 2ANDLTY-R8818 Model: SC012-WK2 Photo 1. Top view Photo 2. General view Photos Documentation Manufacturer: Hangzhou Tuya Information Technology Co.,Ltd Page 2 of 3 Product: Smart Camera FCC ID: 2ANDLTY-R8818 Photo 3. Adapter: KA06E-0501000US Photo 4. Adapter: KA06E-0501000US Photos Documentation Manufacturer: Hangzhou Tuya Information Technology Co.,Ltd Page 3 of 3 Product: Smart Camera FCC ID: 2ANDLTY-R8818 Photo 5. Adapter: A18A-050100U-US2 Photo 6. Adapter: A18A-050100U-US2

Photos Documentation Manufacturer: Hangzhou Tuya Information Technology Co.,Ltd Page 1 of 8 Product: Smart Camera FCC ID: 2ANDLTY-R8818 Photo 1. antenna view Photo 2. PCB view Ceramic antenna Photos Documentation Manufacturer: Hangzhou Tuya Information Technology Co.,Ltd Page 2 of 8 Product: Smart Camera FCC ID: 2ANDLTY-R8818 Photo 3. PCB view Photo 4. PCB view Photos Documentation Manufacturer: Hangzhou Tuya Information Technology Co.,Ltd Page 3 of 8 Product: Smart Camera FCC ID: 2ANDLTY-R8818 Photo 5. PCB view Photo 6. PCB view Photos Documentation Manufacturer: Hangzhou Tuya Information Technology Co.,Ltd Page 4 of 8 Product: Smart Camera FCC ID: 2ANDLTY-R8818 Photo 7. Internal view Photo 8. Internal view Photos Documentation Manufacturer: Hangzhou Tuya Information Technology Co.,Ltd Page 5 of 8 Product: Smart Camera FCC ID: 2ANDLTY-R8818 Photo 9. Internal view Photo 10. Motor view Photos Documentation Manufacturer: Hangzhou Tuya Information Technology Co.,Ltd Page 6 of 8 Product: Smart Camera FCC ID: 2ANDLTY-R8818 Photo 11. PCB view Photo 12. PCB view Photos Documentation Manufacturer: Hangzhou Tuya Information Technology Co.,Ltd Page 7 of 8 Product: Smart Camera FCC ID: 2ANDLTY-R8818 Photo 13. PCB view Photo 14. PCB view Photos Documentation Manufacturer: Hangzhou Tuya Information Technology Co.,Ltd Page 8 of 8 Product: Smart Camera FCC ID: 2ANDLTY-R8818 Photo 15. Camera view

Report No: 708882003249-00A EMC_SHA_F_R_02.06E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 1 of 2 Rev. 20.00 MPE Calculation Applicant: Hangzhou Tuya Information Technology Co.,Ltd Address: Room701,Building3,More Center,No.87 GuDun Road,Hangzhou,Zhejiang China Product: Smart Camera FCC ID: 2ANDLTY-R8818 Model No.: SC012-WK2 Reference RF report # 708882003249-00 According to subpart 15.247(i)and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.346141.63*(100)30 1.34–30824/f2.19/f*(180/f²)30 30–30027.50.0730.230 300–1,500//f/150030 1,500–100,000//1.030 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Report No: 708882003249-00A EMC_SHA_F_R_02.06E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 2 of 2 Rev. 20.00 Calculated Data: PCB antenna Maximum peak output power at antenna input terminal (dBm):19.81 Maximum peak output power at antenna input terminal (mW):95.72 Prediction distance (cm):20 Antenna Gain, typical (dBi):3.88 Maximum Antenna Gain (numeric):2.4434 The worst case is power density at predication frequency at 20 cm (mW/cm2): 0.0465 MPE limit for general population exposure at prediction frequency (mW/cm 2 ):1.0 The max power density 0.0465(mW/cm 2 ) < 1 (mW/cm 2 ) Result: Compliant - TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch Reviewed by: Prepared by:Tested by: _____________________ ___________________________________________ Hui TONGJiaxi XUWenqiang LU EMC Section ManagerEMC Project EngineerEMC Test Engineer Date: 2020-06-30 Date: 2020-06-30 Date: 2020-06-30

Report Number: 708882003249-00 EMC_SHA_F_R_02.04E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 1 of 52 Rev. 20.00 FCC - TEST REPORT Report Number:708882003249-00Date of Issue:July 6, 2020 Model: SC012-WK2 Product Type:Smart Camera Applicant:Hangzhou Tuya Information Technology Co.,Ltd Address: Room701,Building3,More Center,No.87 GuDun Road,Hangzhou,Zhejiang China Production Facility: Hangzhou Tuya Information Technology Co.,Ltd Address: Room701,Building3,More Center,No.87 GuDun Road,Hangzhou,Zhejiang China TestResult:nPositiveoNegative Total pages including Appendices:52 TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Report Number: 708882003249-00 EMC_SHA_F_R_02.04E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 2 of 52 Rev. 20.00 1 Table of Contents 1 Table of Contents .................................................................................................................. 2 2 Details about the Test Laboratory ......................................................................................... 3 3 Description of the Equipment under Test .............................................................................. 4 4 Summary of Test Standards .................................................................................................. 5 5 Summary of Test Results ...................................................................................................... 6 6 General Remarks .................................................................................................................. 7 7 Test Setups ........................................................................................................................... 8 8 Systems test configuration .................................................................................................. 11 9 Technical Requirement ....................................................................................................... 12 9.1 Conducted Emission ..................................................................................................... 12 9.2 Conducted peak output power ...................................................................................... 17 9.3 6dB bandwidth and 99% Occupied Bandwidth ............................................................. 18 9.4 Power spectral density .................................................................................................. 22 9.5 Spurious RF conducted emissions ............................................................................... 26 9.6 Band edge .................................................................................................................... 36 9.7 Spurious radiated emissions for transmitter .................................................................. 40 10 Test Equipment List ......................................................................................................... 49 11 System Measurement Uncertainty ................................................................................... 50 12 Photographs of Test Set-ups ........................................................................................... 51 13 Photographs of EUT ........................................................................................................ 52 Report Number: 708882003249-00 EMC_SHA_F_R_02.04E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 3 of 52 Rev. 20.00 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch No.16 Lane, 1951 Du Hui Road, Shanghai 201108, P.R. China Test Firm Registration Number: 820234 Telephone:+86 21 6141 0123 Fax:+86 21 6140 8600 Report Number: 708882003249-00 EMC_SHA_F_R_02.04E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 4 of 52 Rev. 20.00 3 Description of the Equipment under Test Description of the Equipment Under Test Product:Smart Camera Model no.:SC012-WK2 FCC ID: 2ANDLTY-R8818 Options and accessories: Adapter model: KA06E-050100US and A18A-050100U-US2 Rating:5V DC 1000mA (Adapter model:KA06E-050100US and A18A-050100U-US2 Input:100-240V~, 50/60Hz; Output: 5V DC, 1000mA) RF Transmission Frequency: For 802.11b/g/n-HT20: 2412~2462 MHz No. of Operated Channel: For 802.11b/g/n-HT20: 11 Mo…
