2ANEUCHE-632Bluetooth cheero Wireless Earphones Light Style 2

CHE-632 User Manual cheero Wireless Earphones Light Style 2 cheero First Use Note Ensure the charging case and earbuds are full charged before you start to use. How to Wear Select the best fitting ear tip and then wear earphones. Make sure that it fits snugly and seamlessly inside your ear to get the best sound and Noise Canceling performance. Power On Option 1: Open lid to power on earbuds and wait LED of earbuds turn on blue and red light for 1s. Option 2: Keep pressing smart finger touch for 3s to power on, if the case is not at hand. Power Off 1、Put earbuds into charging case and close lid to power them off. 2、Keep pressing smart finger touch for 6s,It will power off without connection and operation of your phone. How to Connect For the first time pairing, take the earbuds out of case and search bluetooth “cheero Light Style” on your phone, and tap to connect. ( Earbuds will auto re-connect to the last time device in connectivity records). How to Reset If earbuds is not working properly, follow below steps to the Factory Setting. Step 1: Take earbuds out of charging case , then press 5 times till LED blue light flashes to clear pairing. Put earbuds into the case and close the lip. Step 2: Open the lip，take earbuds out of the case，earbuds will auto paired with each other successfully. How to Charge Earbuds: Put earbuds into charging case, close the lid and they will be charged automatically. Charging Case: Charging the case with included cable and your DC5V/1A adapter ( PC USB port or other DC5V also compatible). LED blue light will show up when charging status, a long blue light when fully charged. Functional Operation Music Press X1 : either earbud for Pause / Play. Press X2: the left earbud for previous song; the right earbud for next song. Incoming Call Press X1: either earbud to answer /end a call Long Press 2s: either earbud to reject a call. Mode Switch Press X3: right earbud to activate siri voice assistant. Press X3: left earbud to switch gaming mode/normal mode. Volume adjustment Long Press : the left earbud to reduce the volume (-); the right earbud to increase the volume (+). Specification Bluetooth version V5.2 Support profile A2DP/AVRCP/HFP/HSP Transmission distance 10M/32.8FT Frequency range 2402MHz~2480MHz Driver Ф12MM*2 Hi-Fi Speaker Voltage 3.7V Talking time About 5H Playing time About 5H Charging Time About 1H Earphone battery 35mAh Support system IOS/Android/Windows Certification CE/FCC/ROHS What’s in the packing box? Charging Case*1 piece Wireless Earbuds*1 pair Manual*1 piece USB-C Charging Cable*1 piece FAQ Q: Earbuds can not be charged? A: 1. Ensure the charging case is fully charged, then put earbuds into the charging case to charge. 2. Dry clean the charging points as there maybe dirty. Q: No sound from left or right earbud? A: Ensure two earbuds are paired successfully. You can follow the “ How to Reset” to pair the earbuds. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Manufacturer: Tra Company Ltd Address: 6-6, Kitahama-higashi Chuo-ku Osaka-shi, Osaka, 540-0031, Japan You can find our product name, model, trademark, MIC ID number and LOGO on the manual and color box. FCC ID：2ANEUCHE-632 210-152780

Tra Company Ltd 6-6, Kitahama-higashi Chuo-ku Osaka-shi, Osaka, 540-0031, Japan Agent Authorization Company: Tra Company Ltd Address: 6-6, Kitahama-higashi Chuo-ku Osaka-shi, Osaka, 540-0031, Japan Product Name: cheero Wireless Earphones Light Style 2 Model Number(s): CHE-632 Product Description: Bluetooth cheero Wireless Earphones Light Style 2 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jan. 15, 2021 Name: Ryo Higashi Title: General Manager Company: Tra Company Ltd

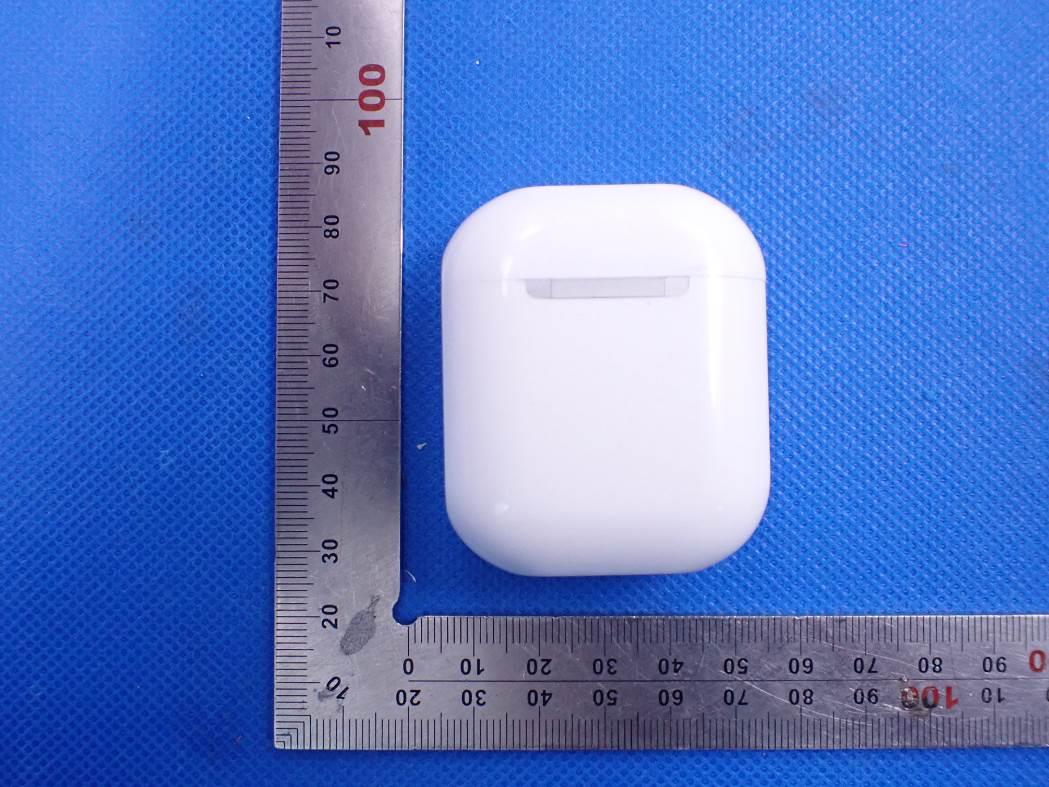

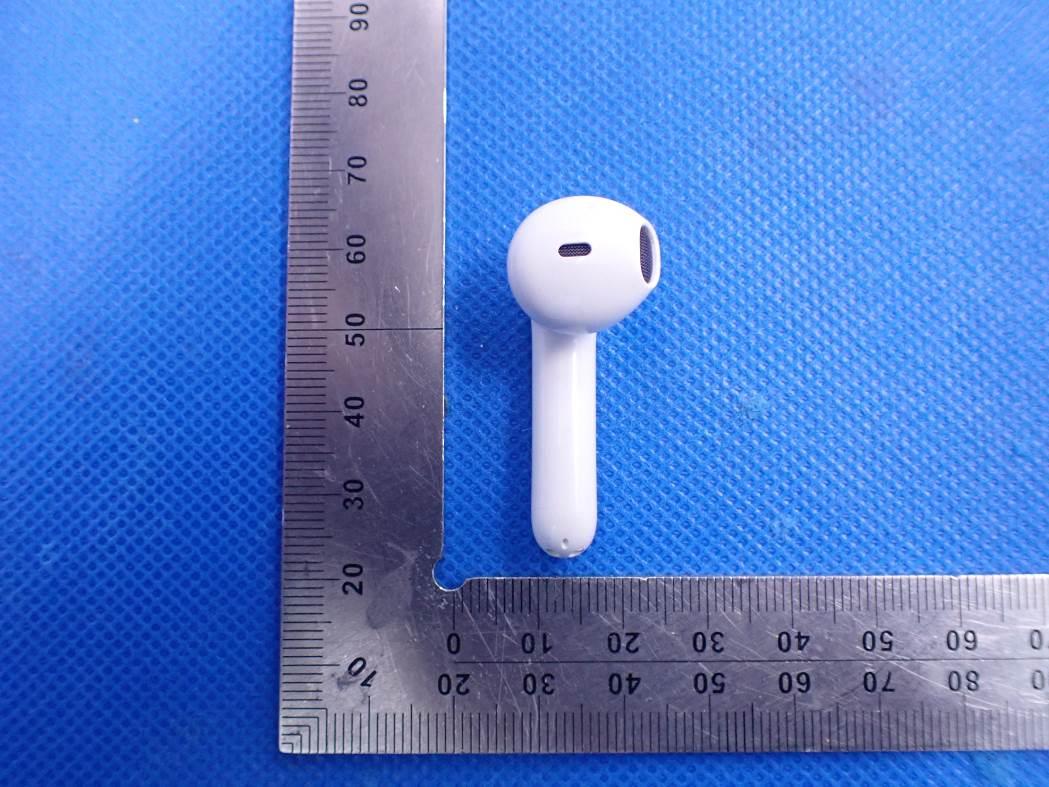

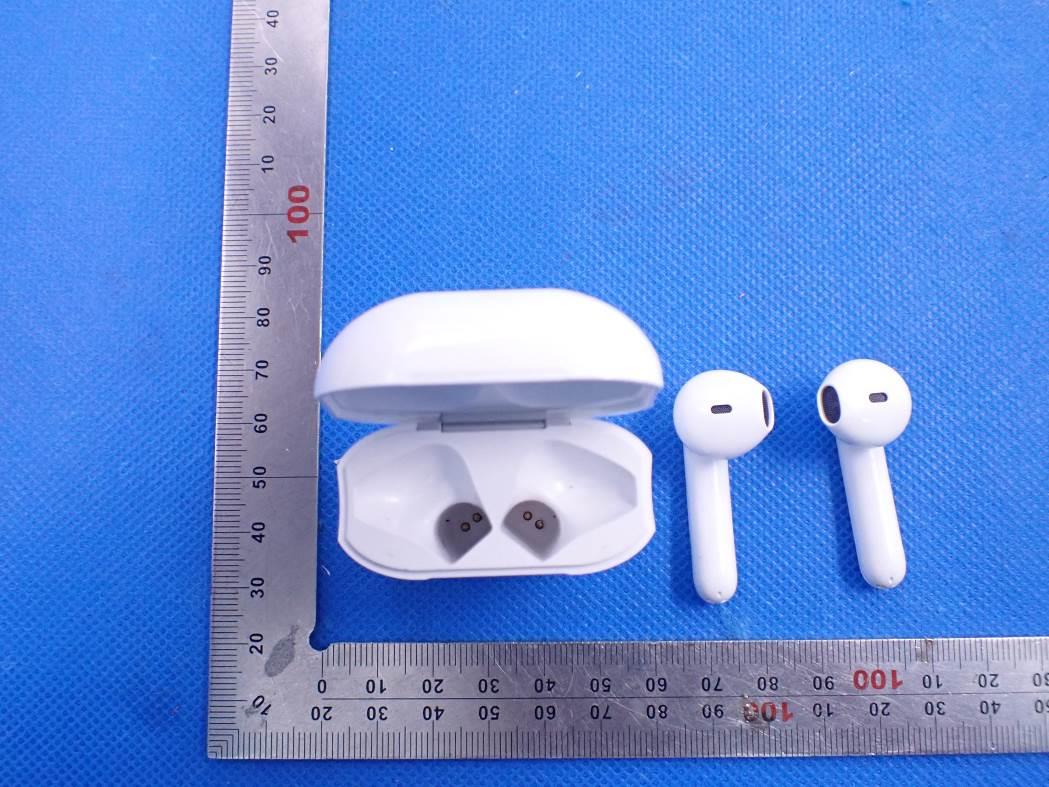

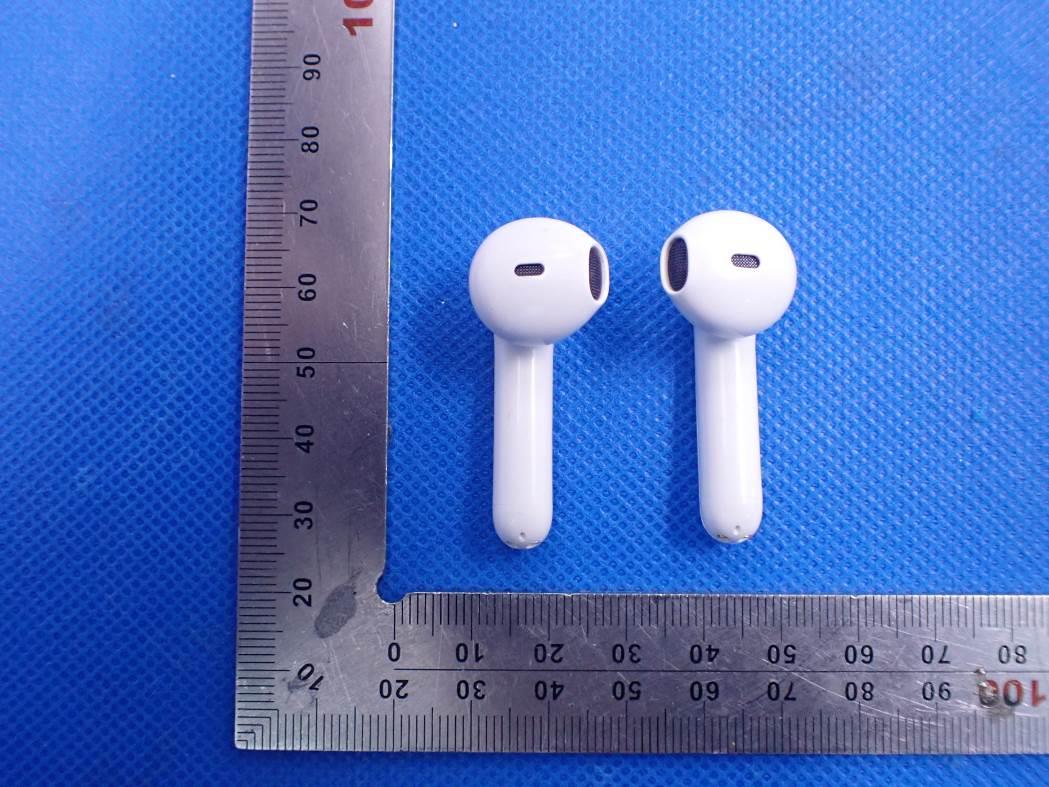

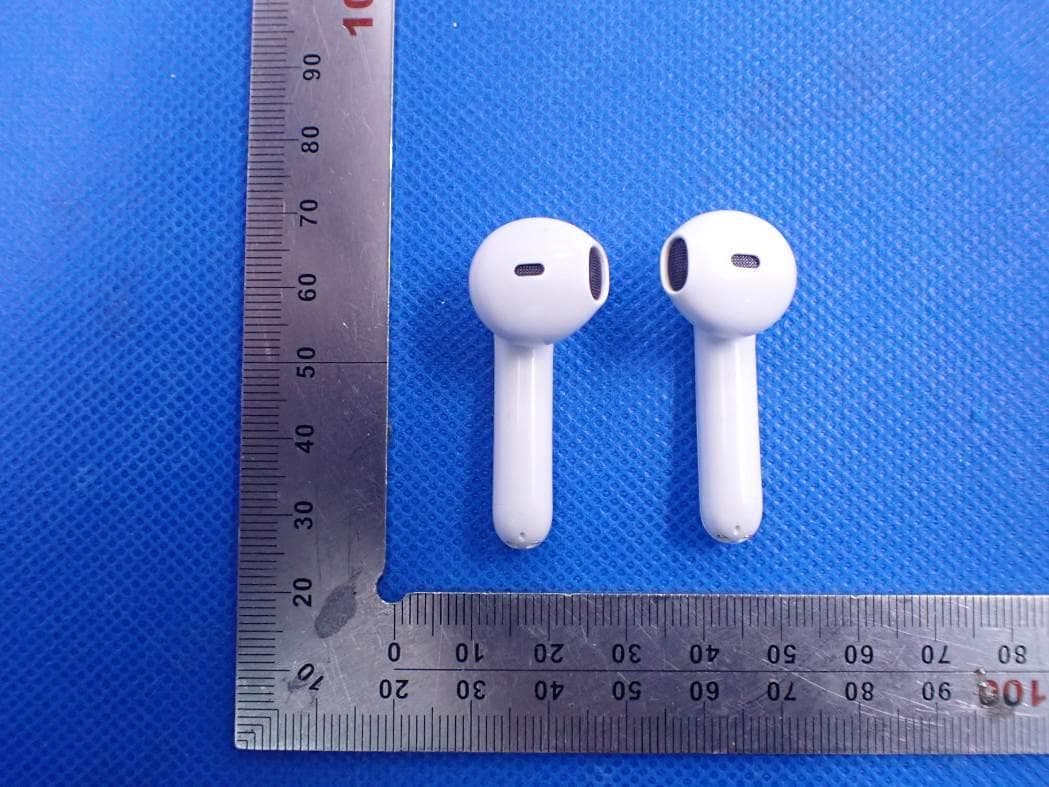

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT Left VIEW OF EUT(PORT) Right VIEW OF EUT(PORT) Charging Dock TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(port)-1 VIEW OF EUT(port)-2

Label Location The product does not have enough space to place the label, and FCC ID label is reflected in the user manual and package, as below: The MIC logo height is 5mm*5mm.

Internal Photos Left OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 Right OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 Charging Dock OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description cheero Wireless Earphones Light Style 2 Model Name CHE-632 FCC ID 2ANEUCHE-632 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BR/EDR: P t =4.040dBm=2.54mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(2.54mW /5mm) .[√2.402GHz)]=0.79<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 77 FCC Test Report Report No.: AGC05814201201FE03 FCC ID : 2ANEUCHE-632 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : cheero Wireless Earphones Light Style 2 BRAND NAME : cheero MODEL NAME : CHE-632 APPLICANT : Tra Company Ltd DATE OF ISSUE : Jan. 15, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC05814201201FE03 Page 2 of 77 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jan. 15, 2021 Valid Initial Release Report No.: AGC05814201201FE03 Page 3 of 77 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH .............................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ......................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ......................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 8 2.7. TEST METHODOLOGY ............................................................................................................................. 8 2.8. SPECIAL ACCESSORIES ......................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................................. 8 2.10. ANTENNA REQUIREMENT..................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 11 6. TEST FACILITY .............................................................................................................................................. 12 7. PEAK OUTPUT POWER ................................................................................................................................ 13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 14 8. 20DB BANDWIDTH ........................................................................................................................................ 20 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 20 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 20 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 21 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 27 Report No.: AGC05814201201FE03 Page 4 of 77 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 27 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 27 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 27 10. RADIATED EMISSION ................................................................................................................................. 40 10.1. MEASUREMENT PROCEDURE ........................................................................................................... 40 10.2. TEST SETUP ......................................................................................................................................... 42 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 43 10.4. TEST RESULT........................................................................................................................................ 43 11. NUMBER OF HOPPING FREQUENCY ..................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC05814201201FE03 Page 61 of 77 APPENDIX B: PHOTOGRAPHS OF EUT WHOLE VIEW OF EUT TOP VIEW OF EUT Report No.: AGC05814201201FE03 Page 62 of 77 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: AGC05814201201FE03 Page 63 of 77 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC05814201201FE03 Page 64 of 77 RIGHT VIEW OF EUT Left VIEW OF EUT(PORT) Report No.: AGC05814201201FE03 Page 65 of 77 OPEN VIEW OF EUT VIEW OF BATTERY Report No.: AGC05814201201FE03 Page 66 of 77 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna Report No.: AGC05814201201FE03 Page 67 of 77 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 Report No.: AGC05814201201FE03 Page 68 of 77 Right VIEW OF EUT(PORT) OPEN VIEW OF EUT Report No.: AGC05814201201FE03 Page 69 of 77 VIEW OF BATTERY INTERNAL VIEW OF EUT-1 BT Antenna Report No.: AGC05814201201FE03 Page 70 of 77 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Report No.: AGC05814201201FE03 Page 71 of 77 INTERNAL VIEW OF EUT-4 Charging Dock TOP VIEW OF EUT Report No.: AGC05814201201FE03 Page 72 of 77 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: AGC05814201201FE03 Page 73 of 77 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC05814201201FE03 Page 74 of 77 RIGHT VIEW OF EUT VIEW OF EUT(port)-1 Report No.: AGC05814201201FE03 Page 75 of 77 VIEW OF EUT(port)-2 OPEN VIEW OF EUT Report No.: AGC05814201201FE03 Page 76 of 77 VIEW OF BATTERY INTERNAL VIEW OF EUT-1 Report No.: AGC05814201201FE03 Page 77 of 77 INTERNAL VIEW OF EUT-2 ----END OF REPORT---- Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz CONDUCTED TEST SETUP
