2ANHJGDR42Remote Control

INSTUCTION Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Shanghai shengzhen commercial & trade Ltd company Address Xinlong road No.1373 Room 606 Minhang District Shanghai China Grantee Code 2ANHJ FCC ID 2ANHJGDR42 Authorized Contact Name Pristine Zhu Contact Email [email protected] Contact Phone 13817143296 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date:2022/03/02 Print Name: Pristine Zhu Title: General Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Shanghai shengzhen commercial & trade Ltd company Date: 2022-03-2 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2ANHJGDR42 To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Shanghai shengzhen commercial & trade Ltd company. This authorization is valid until further written notice from the applicant. Name (Printed): Pristine Zhu Title: General Manager Signature: On behalf of Company: Shanghai shengzhen commercial & trade Ltd company. Telephone: 13817143296

Shanghai shengzhen commercial & trade Ltd company. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Shanghai shengzhen commercial & trade Ltd company Xinlong road No.1373 Room 606 Minhang District Shanghai China Regarding: Confidentiality Request regarding application for FCC ID: 2ANHJGDR42 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Printed Name (on file with the FCC associated with the Grantee Code): Pristine Zhu Title: General Manager Company Name: Shanghai shengzhen commercial & trade Ltd company

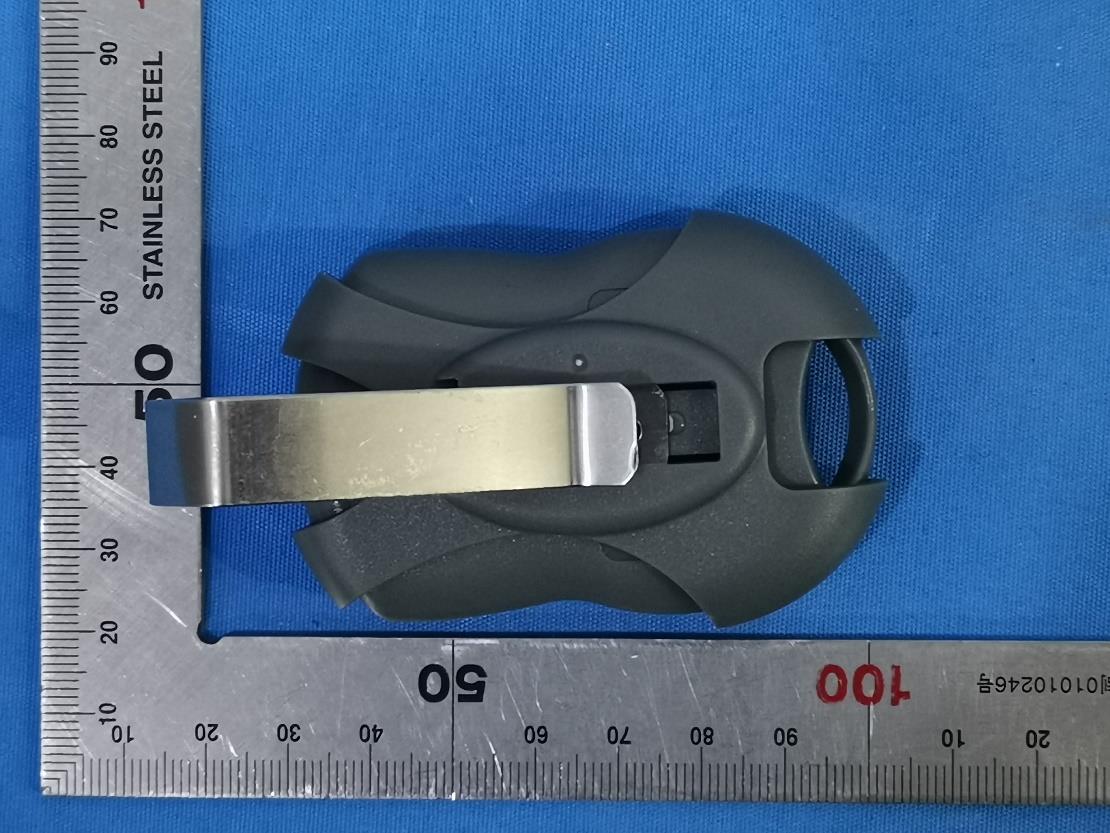

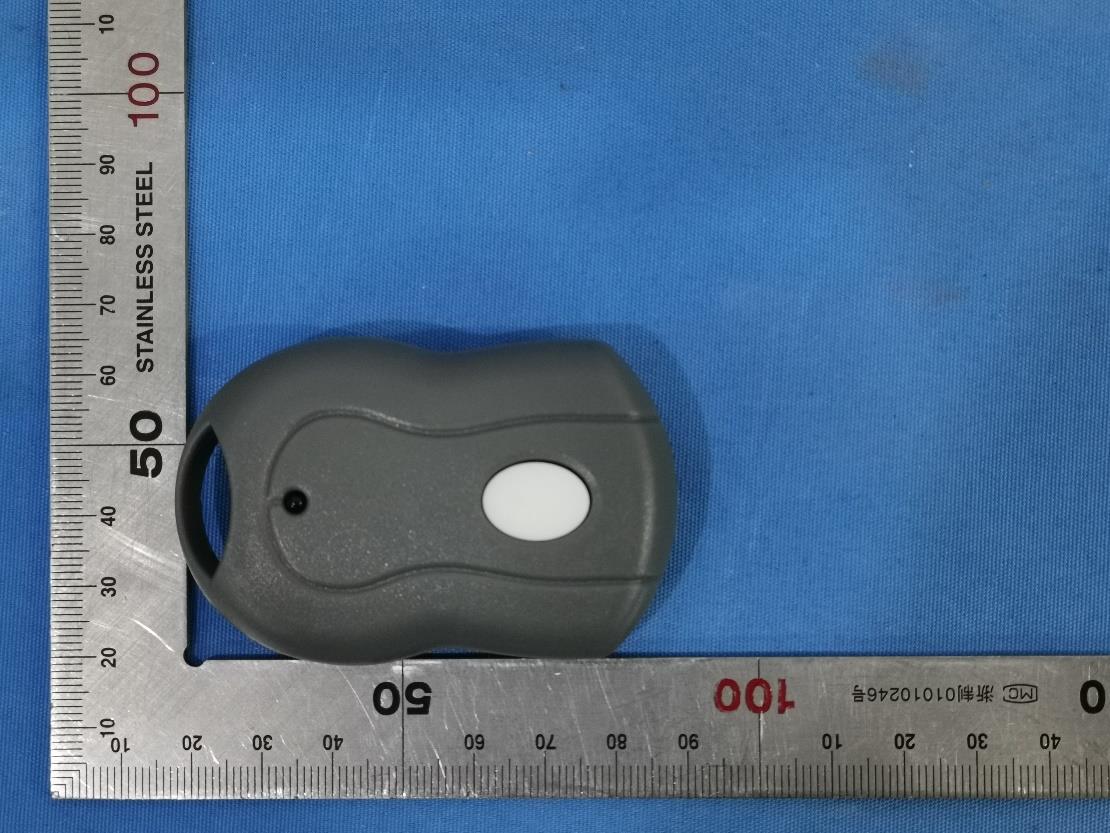

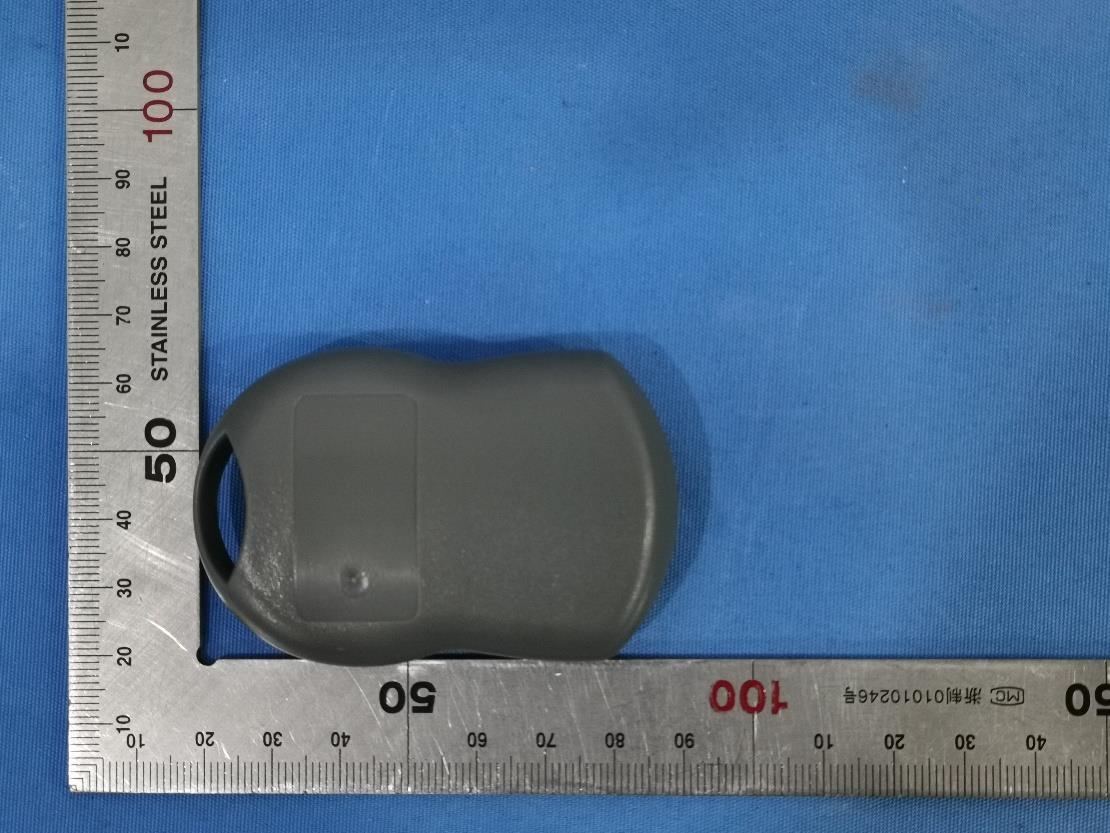

Compliance Certification Services (Kunshan) Inc. Page: 1 of 5 Page 1 of 5 External Photos Applicant: Shanghai shengzhen commercial & trade Ltd company Address of Applicant: Xinhong road No.1373 Room 606 Minhang District Shanghai China Equipment Under Test (EUT): Product Name: Remote Control Model No.: GDR42 Compliance Certification Services (Kunshan) Inc. Page: 2 of 5 Page 2 of 5 Compliance Certification Services (Kunshan) Inc. Page: 3 of 5 Page 3 of 5 Compliance Certification Services (Kunshan) Inc. Page: 4 of 5 Page 4 of 5 Compliance Certification Services (Kunshan) Inc. Page: 5 of 5 Page 5 of 5 End

Lable and Lable location 18mmX32mm Remark:It’s hard to put FCC statement on the product due to device’s irregular appearance. FCC statement will be placed in the user manual which the device is marketed. Product Name: Remote Control Model: GDR42 FCC ID: 2ANHJGDR42

Compliance Certification Services (Kunshan) Inc. Page: 1 of 5 Page 1 of 5 Internal Photos Applicant: Shanghai shengzhen commercial & trade Ltd company Address of Applicant: Xinhong road No.1373 Room 606 Minhang District Shanghai China Equipment Under Test (EUT): Product Name: Remote Control Model No.: GDR42 Compliance Certification Services (Kunshan) Inc. Page: 2 of 5 Page 2 of 5 Compliance Certification Services (Kunshan) Inc. Page: 3 of 5 Page 3 of 5 Compliance Certification Services (Kunshan) Inc. Page: 4 of 5 Page 4 of 5 Compliance Certification Services (Kunshan) Inc. Page: 5 of 5 Page 5 of 5 End

Compliance Certification Services (Kunshan) Inc. Page: 1 of 7 Appendix A for KSCR220200024301 1 Spurious Emissions 1.1 Field Strength of the Fundamental Signal Test channel Freq. (MHz) Result Level (dBμV/m) Limit Line (dBμV/m) Over Limit (dB) Detector Polarization Channel 1 315 63.61 75.62 -12.01 Peak Vertical 74.41 75.62 -1.21 Peak Horizontal Channel 2 390 72.11 79.24 -7.13 Peak Vertical 74.56 79.24 -4.68 Peak Horizontal Remark: If the Peak value below the AV Limit, the AV test doesn’t perform for this submission. 1.2 Spurious Emissions Below 1GHz 315MHz: Vertical: No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) Factor(dB/m) (dBuV/m) (dBuV/m) (dB) 1 155.1300 8.40 19.74 28.14 43.50 -15.36 QP 2* 315.1800 42.46 21.15 63.61 75.62 -12.01 peak 3 425.7600 5.00 23.96 28.96 46.00 -17.04 QP 4* 630.4300 5.19 26.88 32.07 55.62 -23.55 peak 5 896.2100 3.16 28.63 31.79 46.00 -14.21 QP 6* 945.6800 6.23 29.25 35.48 55.62 -20.14 peak Compliance Certification Services (Kunshan) Inc. Page: 2 of 7 Horizontal: No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) Factor(dB/m) (dBuV/m) (dBuV/m) (dB) 1 141.5500 5.78 19.86 25.64 43.50 -17.86 QP 2* 315.1800 53.26 21.15 74.41 75.62 -1.21 peak 3* 630.4300 11.56 26.88 38.44 55.62 -17.18 peak 4 720.6400 2.58 27.49 30.07 46.00 -15.93 QP 5 843.8300 3.03 28.05 31.08 46.00 -14.92 QP 6* 945.6800 9.72 29.25 38.97 55.62 -16.65 peak Compliance Certification Services (Kunshan) Inc. Page: 3 of 7 390MHz: Vertical: No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) Factor(dB/m) (dBuV/m) (dBuV/m) (dB) 1 144.4600 9.01 19.96 28.97 43.50 -14.53 QP 2* 389.8700 48.77 23.34 72.11 79.24 -7.13 peak 3* 693.4800 2.62 27.45 30.07 46.00 -15.93 QP 4 780.7800 7.78 27.70 35.48 59.24 -23.76 peak 5 891.3600 3.37 28.57 31.94 46.00 -14.06 QP 6* 994.1800 3.38 29.21 32.59 54.00 -21.41 QP Compliance Certification Services (Kunshan) Inc. Page: 4 of 7 Horizontal: No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) Factor(dB/m) (dBuV/m) (dBuV/m) (dB) 1 131.8500 9.11 19.55 28.66 43.50 -14.84 QP 2* 389.8700 51.22 23.34 74.56 79.24 -4.68 peak 3* 711.9100 2.57 27.50 30.07 46.00 -15.93 QP 4 780.7800 14.18 27.70 41.88 59.24 -17.36 peak 5 923.3700 2.32 28.96 31.28 46.00 -14.72 QP 6* 991.2700 2.26 29.22 31.48 54.00 -22.52 QP *Remark: If the Peak value below the AV Limit, the AV test doesn’t perform for this submission. Compliance Certification Services (Kunshan) Inc. Page: 5 of 7 Above 1GHz 315MHz: Mark Frequency (MHz) Reading (dBuV) Factor (dB) Emission (dBuV/m) Limit (dBuV/m) Over Limit (dB) Detector polarization 1 2050.000 57.96 -16.50 41.46 54.00 -12.54 peak Vertical 2 2625.000 57.00 -14.33 42.67 54.00 -11.33 peak Vertical 3 3285.000 55.68 -12.99 42.69 54.00 -11.31 peak Vertical 4 1760.000 58.26 -17.11 41.15 54.00 -12.85 peak Horizontal 5 1970.000 58.72 -16.76 41.96 54.00 -12.04 peak Horizontal 6 2570.000 56.68 -14.45 42.23 54.00 -11.77 peak Horizontal 390MHz: Mark Frequency (MHz) Reading (dBuV) Factor (dB) Emission (dBuV/m) Limit (dBuV/m) Over Limit (dB) Detector polarization 1 1655.000 59.02 -17.29 41.73 54.00 -12.27 peak Vertical 2 2355.000 57.47 -15.21 42.26 54.00 -11.74 peak Vertical 3 2855.000 56.10 -13.83 42.27 54.00 -11.73 peak Vertical 4 1770.000 59.47 -17.10 42.37 54.00 -11.63 peak Horizontal 5 2265.000 57.54 -15.59 41.95 54.00 -12.05 peak Horizontal 6 2755.000 56.72 -14.04 42.68 54.00 -11.32 peak Horizontal Compliance Certification Services (Kunshan) Inc. Page: 6 of 7 2 20dB Bandwidth Measurement Data: Frequency (MHz) 20dB bandwidth (kHz) Limit (kHz) Results 315 16.35 787.5 Pass 390 15.48 975 Pass Test plot as follows: Compliance Certification Services (Kunshan) Inc. Page: 7 of 7 3 Dwell Time Measurement Data: Test item Limit (s) Results Transmission Duration ≤5s Pass Test plot as follows:

Compliance Certification Services (Kunshan) Inc. Report No.: KSCR220200024301 Page: 1 of 20 Eric Lin Laboratory Manager TEST REPORT Application No.: KSCR2202000243AT FCC ID: 2ANHJGDR42 Applicant: Shanghai shengzhen commercial & trade Ltd company Address of Applicant: Xinhong road No.1373 Room 606 Minhang District Shanghai China Manufacturer: Shanghai shengzhen commercial & trade Ltd company Address of Manufacturer: Xinhong road No.1373 Room 606 Minhang District Shanghai China Factory: Shanghai shengzhen commercial & trade Ltd company Address of Factory: Xinhong road No.1373 Room 606 Minhang District Shanghai China Equipment Under Test (EUT): EUT Name: Remote Control Model No.: GDR42 Standard(s) : 47 CFR Part 15, Subpart C 15.231 Date of Receipt: 2022-02-22 Date of Test: 2022-03-15 to 2022-03-21 Date of Issue: 2022-03-22 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Report No.: KSCR220200024301 Compliance Certification Services (Kunshan) Inc. Page: 2 of 20 Revision Record Version Chapter Date Modifier Remark 01 2022-03-22 Original Authorized for issue by: Tommie_tang/Project Engineer Eric Lin/Reviewer Report No.: KSCR220200024301 Compliance Certification Services (Kunshan) Inc. Page: 3 of 20 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.231 N/A 47 CFR Part 15, Subpart C 15.203 Pass Radio Spectrum Matter Part Item Standard Method Requirement Result 20dB Bandwidth 47 CFR Part 15, Subpart C 15.231 ANSI C63.10 (2013) Section 6.9 47 CFR Part 15, Subpart C 15.231(c) Pass Radiated Emissions below 1GHz ANSI C63.10 (2013) Section 6.4&6.5 47 CFR Part 15C Section 15.231(b) and 15.209 Pass Dwell Time (15.231(a)) ANSI C63.10 (2013) Section 7.5 47 CFR Part 15, Subpart C 15.231(a) Pass Field Strength of the Fundamental Signal (15.231(b)) ANSI C63.10 (2013) Section 6.5 47 CFR Part 15, Subpart C 15.231(b) Pass Radiated Emissions above 1GHz ANSI C63.10 (2013) Section 6.6 47 CFR Part 15C Section 15.231(b) and 15.209 Pass Report No.: KSCR220200024301 Compliance Certification Services (Kunshan) Inc. Page: 4 of 20 3 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 TEST SUMMARY ................................................................................................................................. 3 3 CONTENTS ......................................................................................................................................... 4 4 GENERAL INFORMATION .................................................................................................................. 6 4.1 DETAILS OF E.U.T. ......................................................................................................................... 6 4.2 DESCRIPTION OF SUPPORT UNITS .................................................................................................... 6 4.3 MEASUREMENT UNCERTAINTY ......................................................................................................... 6 4.4 TEST LOCATION ............................................................................................................................. 7 4.5 TEST FACILITY ............................................................................................................................... 7 4.6 DEVIATION FROM STANDARDS ......................................................................................................... 7 4.7 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................. 7 5 EQUIPMENT LIST ............................................................................................................................... 8 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................10 6.1 ANTENNA REQUIREMENT ................................................................................................................10 6.1.1 Test Requirement: ..................................................................................................................10 7 RADIO SPECTRUM MATTER TEST RESULTS .................................................................................11 7.1 20DB BANDWIDTH .........................................................................................................................11 7.1.1 E.U.T. Operation .....................................................................................................................11 7.1.2 Test Mode Description ............................................................................................................11 7.1.3 Test Setup Diagram ................................................................................................................11 7.1.4 Measurement Procedure and Data .........................................................................................11 7.2 RADIATED EMISSIONS BELOW 1GHZ ................................................................................................12 7.2.1 E.U.T. Operation .....................................................................................................................12 7.2.2 Test Mode Description ............................................................................................................12 7.2.3 Test Setup Diagram ................................................................................................................12 7.2.4 Measurement Procedure and Data .........................................................................................13 7.3 DWELL TIME (15.231(A)) ...............................................................................................................14 7.3.1 E.U.T. Operation ...................................…

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. Page: 1 of 4 Page 1 of 4 Test Setup Photos-FCC Applicant: Shanghai shengzhen commercial & trade Ltd company Address of Applicant: Xinhong road No.1373 Room 606 Minhang District Shanghai China Equipment Under Test (EUT): Product Name: Remote Control Model No.: GDR42 Compliance Certification Services (Kunshan) Inc. Page: 2 of 4 Page 2 of 4 1 Contents Page 1 CONTENTS .......................................................................................................... 2 2 EQUIPMENT UNDER TEST PICTURES .......................................................... 3 2.1 Spurious emissions ....................................................................................... 3 Compliance Certification Services (Kunshan) Inc. Page: 3 of 4 Page 3 of 4 2 EQUIPMENT UNDER TEST PICTURES 2.1 Spurious emissions 30MHz-1GHz Compliance Certification Services (Kunshan) Inc. Page: 4 of 4 Page 4 of 4 Above 1GHz Zoom End
