2ANI5SA210SABRE Module

The SABRE Module offers a quick Bluetooth mobile access upgrade for legacy readers with a Hirose connector.* Remove the mounting screw at the bottom of the reader. Once the screw is removed pull the reader out and up to remove it from the wall mount bracket. The Hirose connector is hidden behind black electrical tape. By peeling the tape the connector will become accessible. The SABRE module has a matching Hirose connector that will plug into the host reader. Position the SABRE module (with logo up), onto the Hirose connector and press firmly to make a connection. Once a connection is made between the Hiroshi connectors, the module will start to receive power and within 5 seconds will be operational. With the SABRE module connected, re-mount the reader onto the wall and reinsert the mounting screw. Open the Safetrust Wallet APP and select Admin Installer tab. Make sure your system admin has set you up with this role). www.Safetrust.com Quick Start Guide SABRE Module With the Admin Installer tab open from the App, bring the phone in range of the SABRE Module and once visible from the App, highlight and select “Configure”. Select the corresponding IDENTITY SYSTEM from the drop down box. Assign a short “Name” and “Description” using alphanumeric characters. Enable the slider for “Self Enrollment” if you intend to allow your users to enroll mobile cre dential using their existing legacy cards from this reader. Click ‘Save’ to successfully complete reader configuration. When the SABRE Module information is successfully saved to the Credential Manager, an d assigned to the Identity System, the new description will appear in the Admin Installer with a unique serial number assigned. FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. RF Exposure: Mobile RF exposure device, there shall be a minimum separation of 20 cm between the device and any users or installers. FCC PART 15.19 STATEMENT: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Canada Radio Certification This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. To open the door, simply present your mobile device running the Safetrust Wallet application to the SABRE Module. When the phone is within the configured activation range, the LED within the assigned credential for this identity system will b e green i n color. If “Auto Authenticate” is enabled for the mobile credential, the credential will be sent to the SABRE Module whenever the mobile device is The two main configuration options for this are the “Sensitivity Level to Activate” slider, which determines how easily your mobile device with pick up the activation zone, and the “Anti Passback” setting, which defines the within the activation zone. Quick Start Guide SABRE Module www.Safetrust.com [email protected] +1 510 9 SAFE 09 SAFETRUST MODEL SA210 FCC ID: 2ANI5SA210 IC ID: 23133-SA210 MADE IN THE USA

Hyundai C-Tech, Inc. dba HCT America, Inc. 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848 || Fax: +1.510.933.8849 Page 1 of 1 FCC Modular Approval Attestation Letter Product Information Product Description: SABRE Module FRN: 0026788992 Model Name(s): SA210 FCC Product ID: - FCC Module ID: 2ANI5SA210 Modular Checklist/Information For Modular Approval, the module shall meet all the requirements listed below. Please check () if the module complies with the stated requirement. ☒ The modular transmitter must have its own shielding. ☒ The modular transmitter must have buffered modulation/data inputs. ☒ The modular transmitter must have its own power supply regulation. ☒ The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c). ☒ The modular transmitter must tested in a stand-alone configuration. ☒ The modular transmitter must be labeled with its own FCC ID number. ☒ The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instruction along with the module to explain any such requirements. ☒ The modular transmitter must comply with any applicable RF exposure requirements. If a module(s) does NOT meet one or more of the above listed requirements, the applicant may request Limited Modular Approval (LMA). For LMA, please state details about why the above requirement(s) could not be met; and state how control of the end product, into which the module will be installed, will be maintained by the applicant / manufacturer, such that full compliance of the end product is always ensured: Applicant/Agent Name: Jack Bubany Applicant/Agent Title: VP Applicant/Agent Signature: Signature Date: 01/15/2021

Hyundai C-Tech, Inc. dba HCT America, Inc. 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848 || Fax: +1.510.933.8849 Page 1 of 1 10-09-2020 HCT America, Inc. 1726 Ringwood Ave San Jose, CA 95131, USA Agent Authorization Letter Applicant Safetrust Inc Model Name SA210 FCC ID 2ANI5SA210 IC ID 23133-SA210 We, the undersigned, hereby authorize Hyundai C-Tech, Inc. dba HCT America Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Hyundai C-Tech, Inc. dba HCT America Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). We recognize that we are still responsible for the terms and conditions outlined in the HCT America Client Services Agreement. This authorization is valid until further written notice from the applicant. Sincerely, John Bubany VP Safetrust Inc 8112 Mill Creek Road Fremont, CA 94539, U.S.A. [email protected]

Hyundai C-Tech, Inc. dba HCT America, Inc. 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848 || Fax: +1.510.933.8849 Page 1 of 1 10-09-2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD FCC Request for Confidentiality We hereby request confidential treatment of information accompanying this application as outlined below: Applicant Safetrust Inc Model Name SA210 FCC ID 2ANI5SA210 Long-Term Confidentiality Short-Term Confidentiality •Block Diagram •Schematics •Operational Description •Internal Photos •Test Setup Photos •User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. We would like request to hold documents listed under Short-Term Confidentiality to remain confidential up to 180 days. Sincerely, John Bubany VP Safetrust Inc 8112 Mill Creek Road Fremont, CA 94539, U.S.A. [email protected]

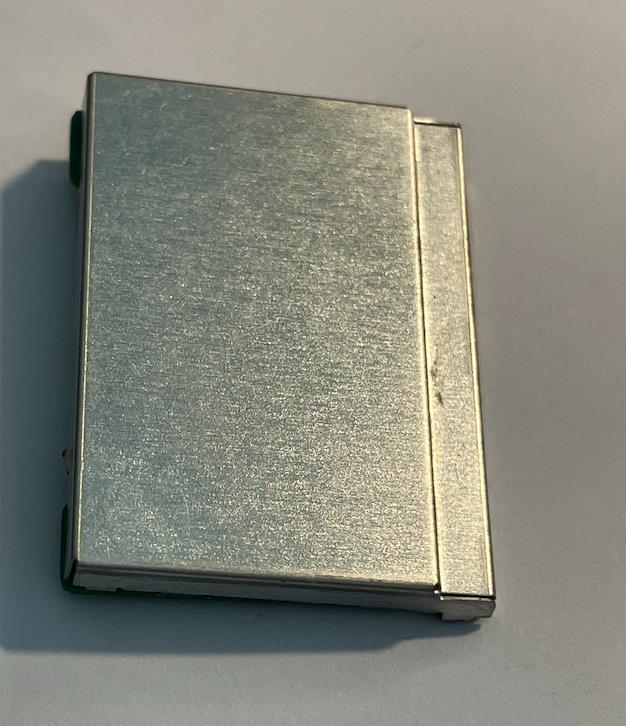

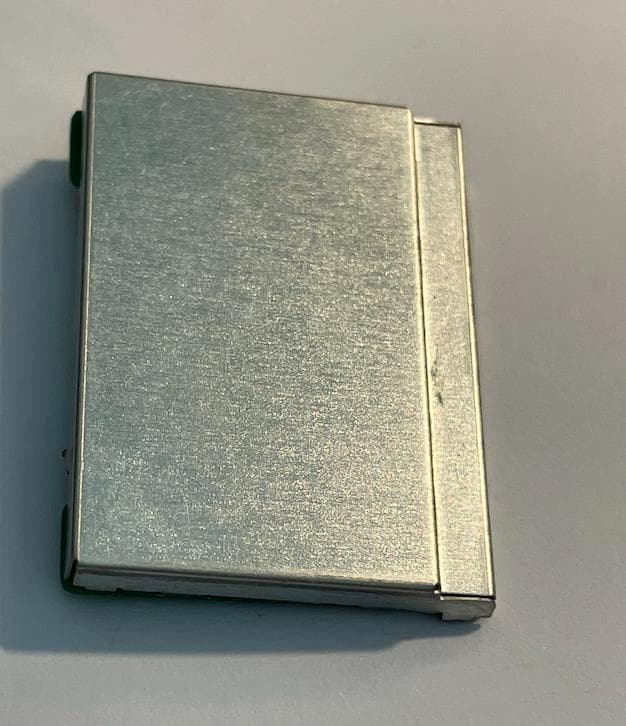

1 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 APPENDIX B.1 PHOTOGRAPHS OF EUT EXTERNAL PHOTOS Applicant Safetrust Inc. Model Name SA210 FCC ID 2ANI5SA210 IC ID 23133-SA210 2 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Front View Back View 3 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Front & Side View #1 Front & Side View #2 4 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Front & Bottom View

Safetrust Product Marking SAFETRUST MODEL SA210 FCC ID: 2ANI5SA210 IC ID: 23133-SA210 SN: 1000000 MADE IN USA All Rights Reserved

1 / 2 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 APPENDIX B.2 PHOTOGRAPHS OF EUT INTERNAL PHOTOS Applicant Safetrust Inc. Model Name SA210 FCC ID 2ANI5SA210 IC ID 23133-SA210 2 / 2 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Top view Bottom view

MPE REPORT F C C APPLICANT Safetrust Inc MODEL NAME SA210 FCC ID 2ANI5SA210 REPORT NUMBER HA200902-STI-002-R04 Report No.: HA200902-STI-002-R04 1 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 T E S T R E P O R T Date of Issue December 23, 2020 Test Site Hyundai C-Tech, Inc. dba HCT America, Inc. 1726 Ringwood Ave, San Jose, CA 95131, USA Applicant Safetrust Inc Applicant Address 8116 Mill Creek Rd, Fremont, CA 94539, U.S.A. FCC ID 2ANI5SA210 Model Name SA210 EUT Type SABRE Module FCC Classification Digital Transmission System (DTS) FCC Rule Part(s) Part 1 (§1.1310), Part 2 (§2.1091) Test Procedure KDB 447498 D01 v06 The device bearing the trade name and model specified above, has been shown to comply with the applicable technical standards as indicated in the measurement report and was in accordance with the procedures specified in §2.947. The results in this report apply only to the product which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech, Inc. dba HCT America, Inc. certifies that no party to application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 862 Tested By Reviewed By Billy Kim Sunwoo Kim Test Engineer Technical Manager Report No.: HA200902-STI-002-R04 2 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 REVISION HISTORY The revision history for this document is shown in table. TEST REPORT NO. DATE DESCRIPTION HA200902-STI-002-R04 12/23/2020 Initial Issue Report No.: HA200902-STI-002-R04 3 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 TABLE OF CONTENTS 1. EUT DESCRIPTION ............................................................................................................................................ 4 2. INTRODUCTION ................................................................................................................................................ 5 2.1. LIMIT ..................................................................................................................................................... 5 2.2. MAXIMUM PERMISSIBLE EXPOSURE PREDICTION .................................................................................... 5 3. RESULT ............................................................................................................................................................ 6 3.1. MPE Calculation ..................................................................................................................................... 6 3.2. SUMMARY OF RESULTS .......................................................................................................................... 7 Report No.: HA200902-STI-002-R04 4 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 1. EUT DESCRIPTION Model SA210 EUT Type SABRE Module Power Supply DC 5.0 V RF Specification WIFI 2.4 GHz : IEEE 802.11b/g/n HT20 (SISO) Bluetooth LE MCU (1Mbps) : nRF52832 Bluetooth LE MESH (1Mbps) : nRF52832 Bluetooth LE RX (1Mbps) : nRF52811 (Receive only) Modulation Type WIFI 2.4 GHz : DSSS/CCK, OFDM Bluetooth LE : GFSK Frequency Range WIFI 2.4 GHz : 2412 MHz – 2462 MHz Bluetooth LE : 2402 MHz – 2480 MHz Antenna Specification 1) WIFI 2.4 GHz 2.0 dBi (Peak Gain) BLE 1M (nRF52840) 2.0 dBi (Peak Gain) BLE 1M (nRF52832) 2.0 dBi (Peak Gain) Operating Environment Indoor and outdoor Operating Temperature -20 °C ~ 50 °C Note : 1. Antenna information is based on the document provided. Report No.: HA200902-STI-002-R04 5 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 2. INTRODUCTION 2.1. LIMIT The limit for Maximum Permissible Exposure (MPE), specified in FCC Rule Part §1.1310 listed in the table below, shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation specified in §1.1310 (b) Frequency Range (MHz) E- Field Strength (V/m) H- Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) (A) Limits for Occupational / Controlled Exposure 0.3 – 3.0 614 1.63 *100 6 3.0 – 30 1842 / f 4.89 / f *900 / f 2 6 30 – 300 61.4 0.163 1.0 6 300 – 1,500 - - f / 300 6 1,500 – 100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 0.3 – 1.34 614 1.63 *100 30 1.34 – 30 824 / f 2.19 / f *180 / f 2 30 30 – 300 27.5 0.073 0.2 30 300 – 1,500 - - f / 1500 30 1,500 – 100,000 - - 1.0 30 f = frequency in MHz, * = Plane-wave equivalent power density 2.2. MAXIMUM PERMISSIBLE EXPOSURE PREDICTION Prediction of MPE limit at a given distance S = PG 4πR² S : Power density (mW/cm 2 ) P : Output power to ante…

Text truncated - open the document above for the full version.

RF TEST REPORT F C C / I S E D APPLICANT Safetrust Inc MODEL NAME SA210 FCC ID 2ANI5SA210 ISED ID 23133-SA210 REPORT NUMBER HA200902-STI-002-R01 Report No.: HA200902-STI-002-R01 1 / 62 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 T E S T R E P O R T Date of Issue December 23, 2020 Test Site Hyundai C-Tech, Inc. dba HCT America, Inc. 1726 Ringwood Ave, San Jose, CA 95131, USA Applicant Safetrust Inc Applicant Address 8116 Mill Creek Rd, Fremont, CA 94539, U.S.A. FCC ID 2ANI5SA210 ISED ID 23133-SA210 Model Name SA210 EUT Type SABRE Module Modulation Type GFSK FCC Classification Digital Transmission System (DTS) FCC Rule Part(s) Part 15.247 ISED Rule Part(s) RSS-247 Issue 2 (February 2017), RSS-Gen Issue 5 (April 2018) Test Procedure ANSI C63.10-2013, KDB 558074 D01 v05r02 The device bearing the trade name and model specified above, has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures required. The results of testing in this report apply only to the product which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech, Inc. dba HCT America, Inc. certifies that no party to application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 862 Tested By Reviewed By Billy Kim Sunwoo Kim Test Engineer Technical Manager Report No.: HA200902-STI-002-R01 2 / 62 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 REVISION HISTORY The revision history for this document is shown in table. TEST REPORT NO. DATE DESCRIPTION HA200902-STI-002-R01 12/23/2020 Initial Issue Report No.: HA200902-STI-002-R01 3 / 62 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 4 2. METHODOLOGY ............................................................................................................................................... 5 3. INSTRUMENT CALIBRATION .............................................................................................................................. 5 4. FACILITIES AND ACCREDITATIONS ...................................................................................................................... 6 5. ANTENNA REQUIREMENTS ............................................................................................................................... 7 6. MEASUREMENT UNCERTAINTY ......................................................................................................................... 8 7. DESCRIPTION OF TESTS ..................................................................................................................................... 9 8. SUMMARY OF TEST RESULTS ........................................................................................................................... 22 9. TEST RESULT ................................................................................................................................................... 26 9.1. 6 dB BANDWIDTH / 99% BANDWIDTH MEASUREMENT .......................................................................... 26 9.2. OUTPUT POWER .................................................................................................................................. 29 9.3. POWER SPECTRAL DENSITY ................................................................................................................... 31 9.4. CONDUCTED BAND EDGE & SPURIOUS EMISSIONS ................................................................................ 33 9.5. RADIATED SPURIOUS EMISSIONS .......................................................................................................... 37 9.6. RADIATED RESTRICTED BAND EDGES ..................................................................................................... 48 9.7. RECEIVER SPURIOUS EMISSION ............................................................................................................. 50 9.8. POWERLINE CONDUCTED EMISSIONS .................................................................................................... 56 10. LIST OF TEST EQUIPMENT ............................................................................................................................. 58 APPENDIX A. TEST SETUP PHOTOS ...................................................................................................................... 59 APPENDIX B. PHOTOGRAPHS OF EUT .................................................................................................................. 60 Report No.: HA200902-STI-002-R01 4 / 62 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ri…

Text truncated - open the document above for the full version.

RF TEST REPORT F C C / I S E D APPLICANT Safetrust Inc MODEL NAME SA210 FCC ID 2ANI5SA210 ISED ID 23133-SA210 REPORT NUMBER HA200902-STI-002-R02 Report No.: HA200902-STI-002-R02 1 / 60 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 T E S T R E P O R T Date of Issue December 23, 2020 Test Site Hyundai C-Tech, Inc. dba HCT America, Inc. 1726 Ringwood Ave, San Jose, CA 95131, USA Applicant Safetrust Inc Applicant Address 8116 Mill Creek Rd, Fremont, CA 94539, U.S.A. FCC ID 2ANI5SA210 ISED ID 23133-SA210 Model Name SA210 EUT Type SABRE Module Modulation Type DSSS/CCK, OFDM FCC Classification Digital Transmission System (DTS) FCC Rule Part(s) Part 15.247 ISED Rule Part(s) RSS-247 Issue 2 (February 2017), RSS-Gen Issue 5 (April 2018) Test Procedure ANSI C63.10-2013, KDB 558074 D01 v05r02 The device bearing the trade name and model specified above, has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures required. The results of testing in this report apply only to the product which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech, Inc. dba HCT America, Inc. certifies that no party to application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 862 Tested By Reviewed By Billy Kim Sunwoo Kim Test Engineer Technical Manager Report No.: HA200902-STI-002-R02 2 / 60 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 REVISION HISTORY The revision history for this document is shown in table. TEST REPORT NO. DATE DESCRIPTION HA200902-STI-002-R02 12/23/2020 Initial Issue Report No.: HA200902-STI-002-R02 3 / 60 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 4 2. METHODOLOGY ............................................................................................................................................... 5 3. INSTRUMENT CALIBRATION .............................................................................................................................. 5 4. FACILITIES AND ACCREDITATIONS ...................................................................................................................... 6 5. ANTENNA REQUIREMENTS ............................................................................................................................... 7 6. MEASUREMENT UNCERTAINTY ......................................................................................................................... 8 7. DESCRIPTION OF TESTS ..................................................................................................................................... 9 8. SUMMARY OF TEST RESULTS ........................................................................................................................... 22 9. TEST RESULTS ................................................................................................................................................. 26 9.1. DUTY CYCLE ......................................................................................................................................... 26 9.2. 6 dB BANDWIDTH / 99% BANDWIDTH MEASUREMENT .......................................................................... 27 9.3. OUTPUT POWER .................................................................................................................................. 31 9.4. POWER SPECTRAL DENSITY ................................................................................................................... 34 9.5. CONDUCTED BAND EDGE & SPURIOUS EMISSIONS ................................................................................ 37 9.6. RADIATED SPURIOUS EMISSIONS .......................................................................................................... 41 9.7. RADIATED RESTRICTED BAND EDGES ..................................................................................................... 49 9.8. RECEIVER SPURIOUS EMISSION ............................................................................................................. 52 9.9. POWERLINE CONDUCTED EMISSIONS .................................................................................................... 54 10. LIST OF TEST EQUIPMENT ............................................................................................................................. 56 APPENDIX A. TEST SETUP PHOTOS ...................................................................................................................... 57 APPENDIX B. PHOTOGRAPHS OF EUT .................................................................................................................. 58 Report No.: HA200902-STI-002-R02 4 / 60 This document…

Text truncated - open the document above for the full version.

RF TEST REPORT F C C / I S E D APPLICANT Safetrust Inc MODEL NAME SA210 FCC ID 2ANI5SA210 ISED ID 23133-SA210 REPORT NUMBER HA200902-STI-002-R03 Report No.: HA200902-STI-002-R03 1 / 26 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 T E S T R E P O R T Date of Issue December 23, 2020 Test Site Hyundai C-Tech, Inc. dba HCT America, Inc. 1726 Ringwood Ave, San Jose, CA 95131, USA Applicant Safetrust Inc Applicant Address 8116 Mill Creek Rd, Fremont, CA 94539, U.S.A. FCC ID 2ANI5SA210 ISED ID 23133-SA210 Model Name SA210 EUT Type SABRE Module Modulation Type DSSS/CCK, OFDM, GFSK FCC Classification Digital Transmission System (DTS) FCC Rule Part(s) Part 15.247, Part 15.209 ISED Rule Part(s) RSS-247 Issue 2 (February 2017), RSS-Gen Issue 5 (April 2018) Tes…

Text truncated - open the document above for the full version.
