2ANI5SA520IoT Sensor

www.Safetrust.com SABRE IoT Sensor Quick Start Guide Connect IoT Sensor per the wiring diagram above. Select corresponding wiring for Wiegand or OSDP output. Optional electronic relay output for signaling. Once the IoT Sensor has been wired to the controller lines, its time to mount the reader. (A) Once the reader mounting plate is secured in place or Mullion reader mounted to the wall, its time to place the cover and secure with a screw at the bottom. (B) Finally, power the reader and test with a RFID card to make the reader was wired correctly and powered. (C) If wired correctly, the beeper will sound and LEDs flash. Specifications Wiring Parts List IoT Reader Mullion / Mini Mullion Screws (SMF #6-32x3/8" SS) - 1 casing to back plate mounting screw Wall Mount / Keypad 4Nos – Back Plate mounting screws for Wall Screws (SMF #6-32x3/8" SS) - 2 Junction- 1 casing to back plate mounting screw Nylon anchor plug -4 Nos - 2 Junction Nylon anchor plug -4 Nos A B C Mullion & Mini Mullion Wall Mount & Keypad Quick Start Guide SABRE IoT Sensor When the IoT Sensor information is successfully saved to the Credential Manager, and assigned to the Identity System, the new description will appear in the Admin Installer with a unique serial number assigned. To open the door, simply present your mobile device running the Safetrust Wallet application to the IoT Sensor reader. When the phone is within the configured activation range, the LED within the assigned credential for this identity system will be green in color. If “Auto Authenticate” is enabled for the mobile credential, the credential will be sent to the IoT Sensor reader whenever the mobile device is within the activation zone. Select the corresponding IDENTITY SYSTEM from the drop down box. Assign a short “Name” and “Description” using alphanumeric characters. Enable the slider for “Self Enrollment” if you intend to allow your users to enroll mobile credential using their existing legacy cards from this reader. Click ‘Save’ to successfully complete reader configuration. The two main configuration options for this are the “Sensitivity Level to Activate” slider, which determines how easily your mobile device with pick up the activation zone, and the “Anti Passback” setting, which defines the number of seconds between each attempt to resend a mobile credential. To adjust these settings, select the ‘Settings’ tab from the left navigation panel. www.Safetrust.com [email protected] +1 510 9 SAFE 09 With the Admin Installer tab open from the App, bring the phone in range of the IoT Sensor and once visible from the App, highlight and select “Configure”. FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complied with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference receiver, including interference that may cause undesired operation. Change or modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. RF Exposure: Mobile RF exposure device, there shall be a minimum separation of 20 cm between the device and any users or installers. Canada Radio Certification This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Open the Safetrust Wallet APP and select Admin Installer tab. Make sure your system admin has set you up with this role). MODEL SA520 FCC ID: 2ANI55A520 IC ID: 23133-SA520 SN: 1000000 MADE IN USA

07-29-2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA FCC Agent Authorization Letter Applicant Safetrust Inc Model Name SA520 FCC ID 2ANI5SA520 We, the undersigned, hereby authorize Hyundai C-Tech, Inc. dba HCT America Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Hyundai C-Tech, Inc. dba HCT America Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). We recognize that we are still responsible for the terms and conditions outlined in the HCT America Client Services Agreement. This authorization is valid until further written notice from the applicant. Sincerely, Jack Bubany VP Safetrust Inc 8116 Mill Creek Rd Fremont, CA 94539, USA

07-29-2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA FCC Confidentiality Request Letter Applicant Safetrust Inc Model Name SA520 FCC ID 2ANI5SA520 Pursuant to the provisions of Section 0.457 and 0.459 of the commission’s rules (47 CFR 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. • Block Diagram • Schematics • Technical Operation Description The above-mentioned documents contain detailed system and equipment description that are considered propriety information in operation of the equipment. The public disclosure of the above documents might be harmful to our company and would give competitors an unfair advantage in the market. In addition to the above-mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with marketing regulations in 47 CFR §2.803 ad the importation rules in 47 CFR §2.1204 while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We request that the Commission to grant Short-Term Confidentiality on the following attachments for 180 days after the grant as outlined in Public Notice DA 04-1705. • Internal Photos • External Photos • Test Setup Photos • User’s Manual Sincerely, Jack Bubany VP Safetrust Inc 8116 Mill Creek Rd Fremont, CA 94539, USA

07-29-2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA Cover Letter We would like to apply for FCC new application: Applicant Safetrust Inc Model Name(s) SA520 FCC ID 2ANI5SA520 Please find enclosed our Claim Report, which includes the following: • Agent Authorization Letter • Antenna Specification / Data Sheet • Confidential Request Letter • RF Test Report with Test Setup Photos • ID Label and Location Photograph • Product External and Internal Photos • RF Test Report • Block Diagram, Schematics, and Operational Description • User’s Manual Should you have any questions, please contact us. Sincerely, Jack Bubany VP Safetrust Inc 8116 Mill Creek Rd Fremont, CA 94539, USA

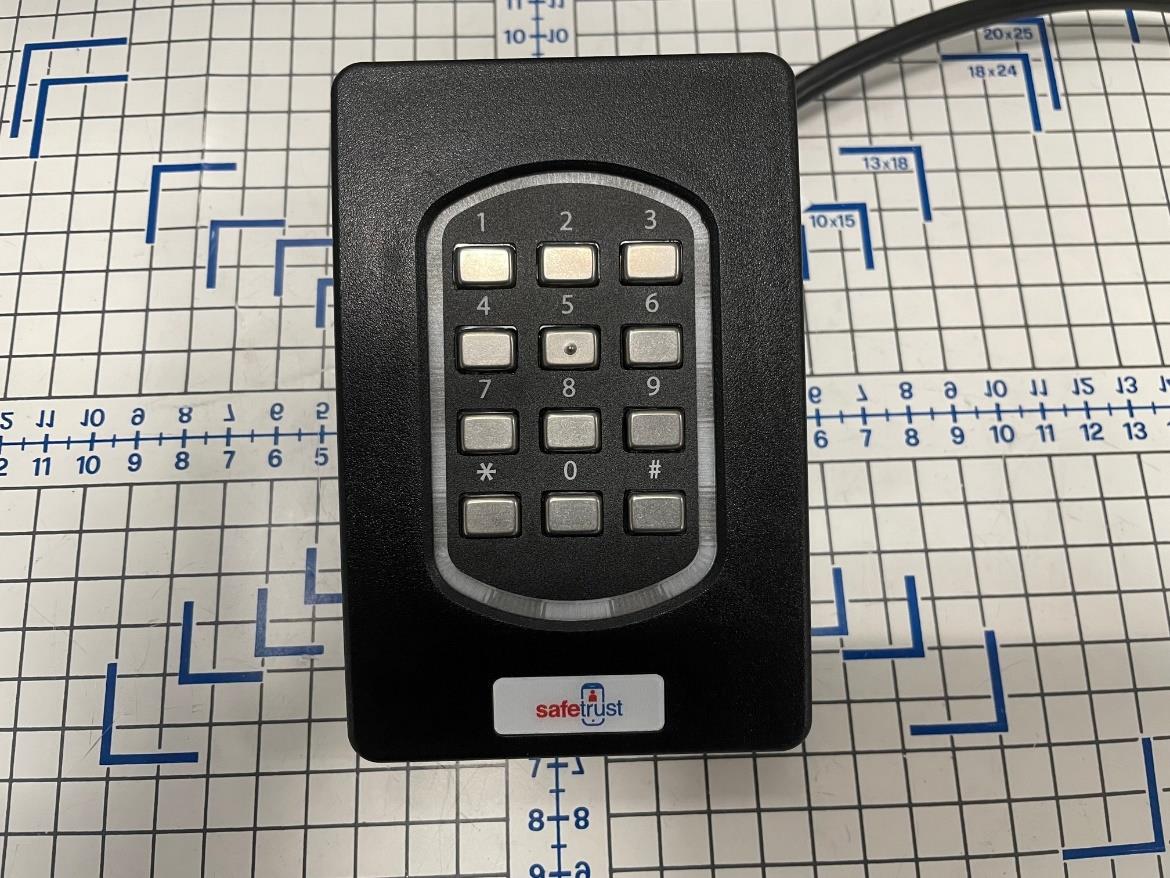

Si milarity letter These door readers were designed to transition users from traditional plastic RFID cards to mobile credentials, using BLE (Bluetooth) communication and a mobile phone with a Safetrust APP. The RFID access data is embedded with a mobile APP and transmitted when a user approaches a door for access. The readers employ WIFI to enable remote configuration and firmware updates through our portal, eliminating updates at the reader. All three readers contain a mother board and a daughter board. The mother board containing WIFI 5.8 GHz, BLE Main, and BLE MESH is identical for all three readers. The daughter board contains the antenna (LF, HF and BLE Receiver) and LEDs. All three daughter boards have the same base functionality. The two boards have a M/F connector which bring power to the main board. The daughter board varies in size based on the form factor of each housing. The mullion is for mounting on the mullion of a door and Wall Mount mounts on an electrical box. The keypad adds buttons to send individual PIN data. Using multiple BLE chips we can create a BLE MESH enabling the reader to determine the location of the user in relationship to the reader. Within this reader design block diagram there are references to RFID. The RFID design, which supports both 125kHz and 13.56MHz, is designed to support legacy plastic credentials, permitting users the ability to use mobile or plastic credentials for building access. The tune-up power tolerances for BLE are 0dBm +1dB / -5dB, and WLAN (5.8G): 9dBm +1dB / -3dB. Mullion Wall-Mount Keypad Model SA510 SA520 SA530 FCC ID 2ANI5SA510 2ANI5SA520 2ANI5SA530 IC ID 23133-SA510 23133-SA520 23133-SA530 Dimension 11.8 X 4.3 X 2.8 cm 11.8 X 7.8 X 2.8 cm 11.8 X 7.8 X 2.8 cm Housing mounting on the mullion of a door mounts on an electrical box Adds buttons to send individual PIN data Mother Board WIFI 5.8GHz BLE Main / BLE MESH WIFI 5.8GHz BLE Main / BLE MESH WIFI 5.8GHz BLE Main / BLE MESH Daughter Board (Antenna Board) LF, HF, BLE Receiver LF, HF, BLE receiver LF, HF, BLE Receiver Keypad X X Support No. of receiver ant. For BLE Mesh 4 4 5 Loop ant size of RFID HF (W x D )(mm) Approx. 34 X 94 Approx. 68 X 100 Approx. 68 X 100

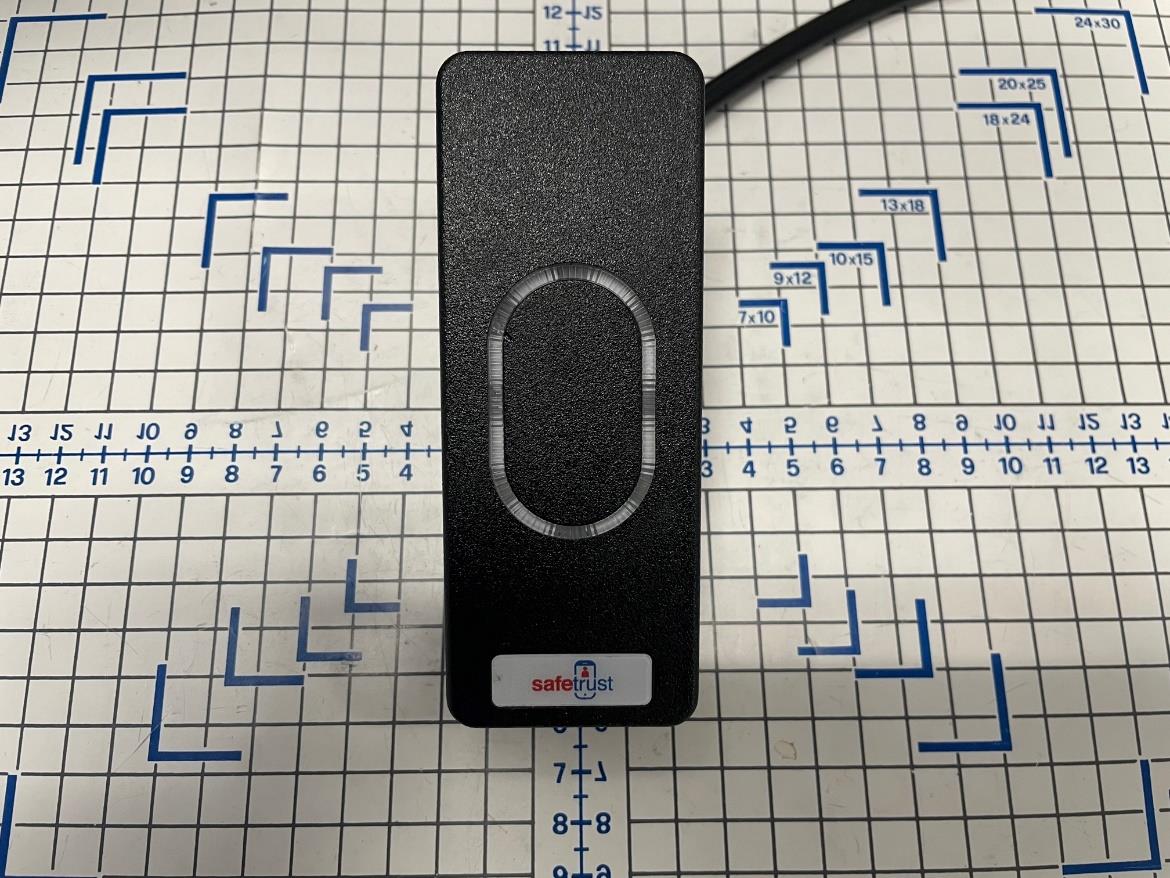

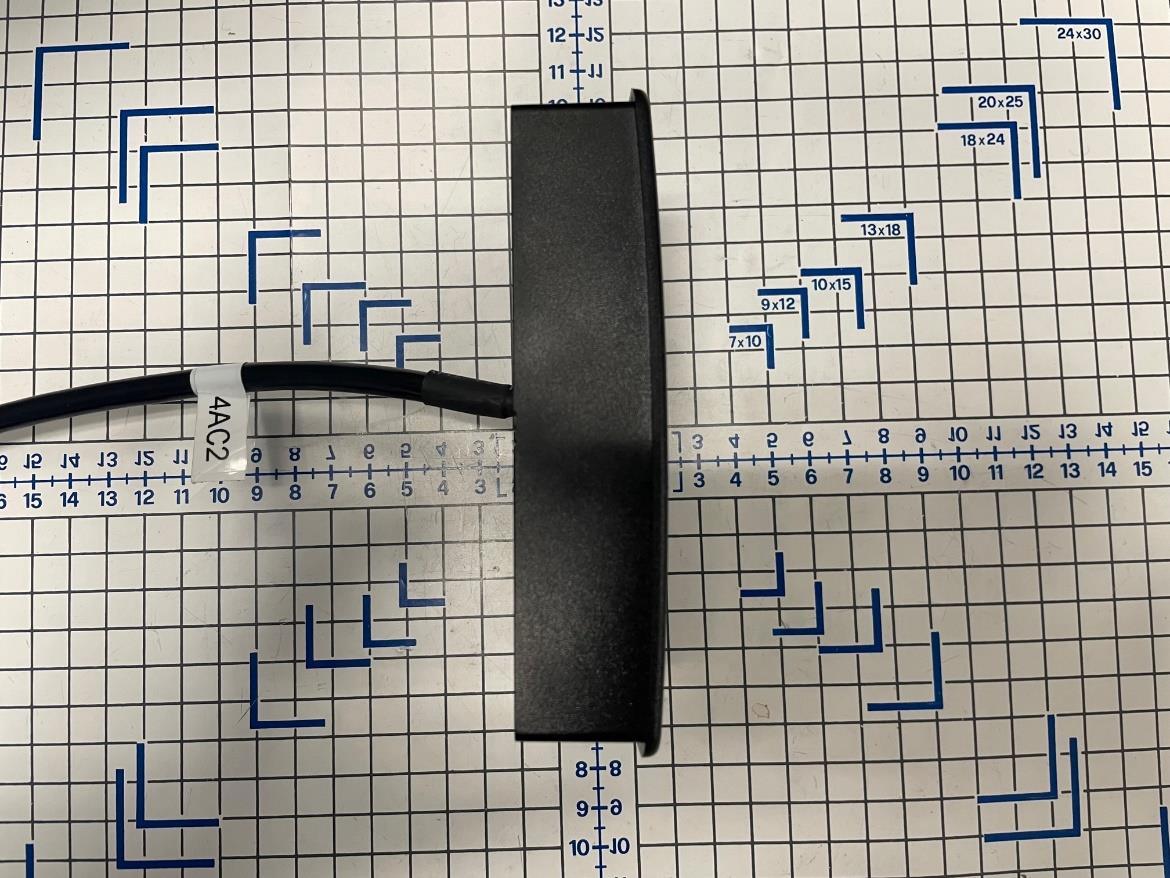

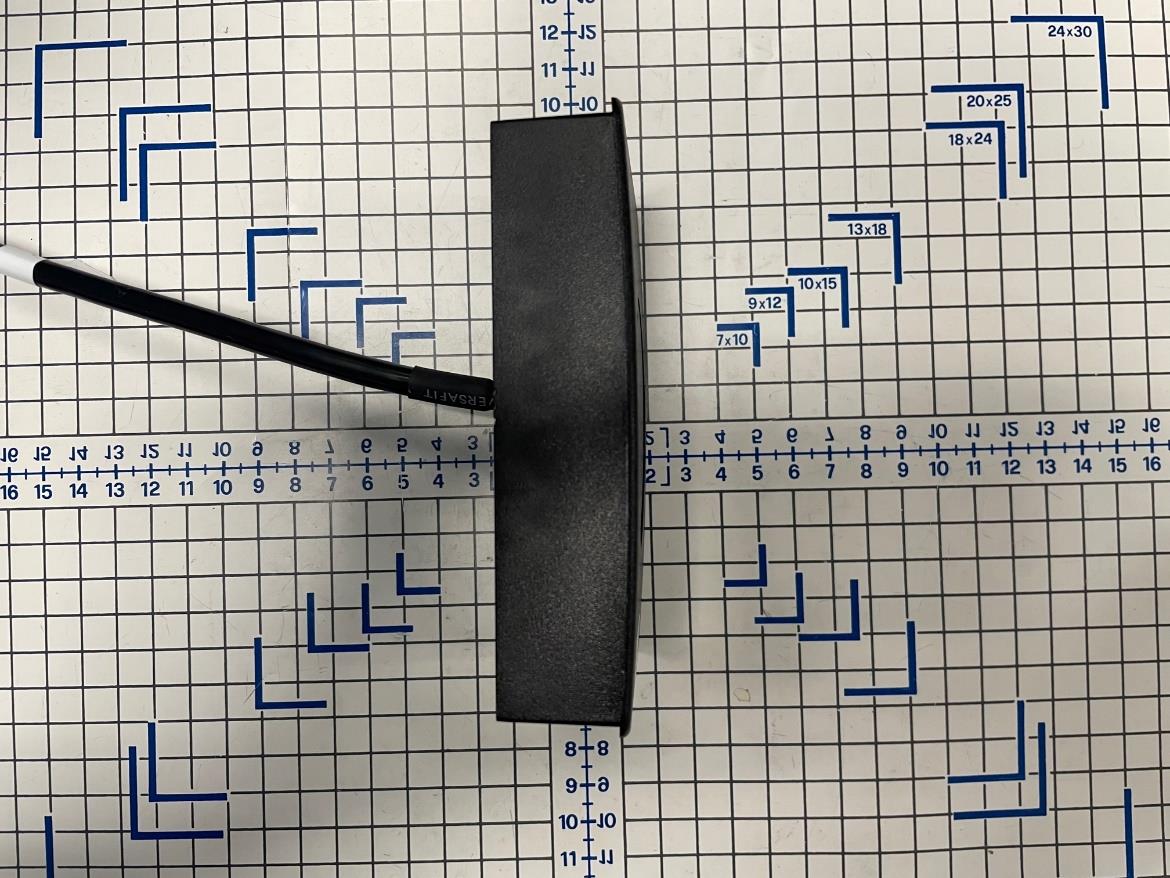

1 / 10 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 APPENDIX B.1 PHOTOGRAPHS OF EUT EXTERNAL PHOTOS Applicant Safetrust Inc. Model Name SA520 FCC ID 2ANI5SA520 IC ID 23133-SA520 Reference Test Report No.: HA220420-SFT-002-R 18 HA220420-SFT-002-R 19 HA220420-SFT-002-R 22 HA220420-SFT-002-R 23 HA220420-SFT-002-R 25 2 / 10 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Model : SA530 Front View Rear View 3 / 10 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Left Side View Right Side View 4 / 10 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Top View Bottom View 5 / 10 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Model : SA520 Front View Rear View 6 / 10 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Left Side View Right Side View 7 / 10 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Top View Bottom View 8 / 10 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Model : SA510 Front View Rear View 9 / 10 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Left Side View Right Side View 10 / 10 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Top View Bottom View

1 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 APPENDIX B.2 PHOTOGRAPHS OF EUT INTERNAL PHOTOS Applicant Safetrust Inc. Model Name SA520 FCC ID 2ANI5SA520 IC ID 23133-SA520 Reference Test Report No.: HA220420-SFT-002-R 18 HA220420-SFT-002-R 19 HA220420-SFT-002-R 22 HA220420-SFT-002-R 23 HA220420-SFT-002-R 25 2 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Main Board Front View Main Board Rear View 3 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Model : SA530 Internal View Antenna Board Front View 4 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Antenna Board Rear View 5 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Model : SA520 Internal View Antenna Board Front View 6 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Antenna Board Rear View 7 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Model : SA510 Internal View Antenna Board Front View 8 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Antenna Board Rear View

MPE REPORT F C C APPLICANT Safetrust Inc MODEL NAME SA520 FCC ID 2ANI5SA520 REPORT NUMBER HA220420-SFT-002-R25 Report No.: HA220420-SFT-002-R25 1 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 T E S T R E P O R T Date of Issue August 17, 2022 Test Site Hyundai C-Tech, Inc. dba HCT America, Inc. 1726 Ringwood Ave, San Jose, CA 95131, USA Applicant Safetrust Inc Applicant Address 8116 Mill Creek Rd, Fremont, CA 94539, U.S.A. FCC ID 2ANI5SA520 Model Name SA520 EUT Type IoT Sensor FCC Classification Digital Transmission System (DTS) Unlicensed National Information Infrastructure (NII) FCC Rule Part(s) Part 1 (§1.1310), Part 2 (§2.1091) Test Procedure KDB 447498 D01 v06 The device bearing the trade name and model specified above, has been shown to comply with the applicable technical standards as indicated in the measurement report and was in accordance with the procedures specified in §2.947. The results in this report apply only to the product which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech, Inc. dba HCT America, Inc. certifies that no party to application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 862 Tested By Reviewed By Yongsoo Park Sunwoo Kim Test Engineer Technical Manager Report No.: HA220420-SFT-002-R25 2 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 REVISION HISTORY The revision history for this document is shown in table. TEST REPORT NO. DATE DESCRIPTION HA220420-SFT-002-R25 August 17, 2022 Initial Issue Report No.: HA220420-SFT-002-R25 3 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 TABLE OF CONTENTS 1. EUT DESCRIPTION ............................................................................................................................................ 4 2. INTRODUCTION ................................................................................................................................................ 5 2.1. LIMIT ..................................................................................................................................................... 5 2.2. MAXIMUM PERMISSIBLE EXPOSURE PREDICTION .................................................................................... 5 3. RESULT ............................................................................................................................................................ 6 3.1. MPE Calculation ..................................................................................................................................... 6 3.2. SUMMARY OF RESULTS .......................................................................................................................... 7 Report No.: HA220420-SFT-002-R25 4 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 1. EUT DESCRIPTION Model SA520 EUT Type IoT Sensor RF Specification WIFI 5 GHz (U-NII 3) : 802.11a/n(HT20/40)/ ac(VHT20/40/80) Bluetooth LE MCU (1Mbps) Bluetooth LE MESH (1Mbps) RFID (LF/HF) Transmitter Chain WIFI 5 GHz : SISO Bluetooth LE : SISO (BLE MCU and BLE MESH transmit simultaneously) Antenna Specification WIFI 5 GHz 6.2 dBi (Peak Gain) BLE 1M (MCU) 2.0 dBi (Peak Gain) BLE 1M (MESH) 2.0 dBi (Peak Gain) Operating Environment Indoor and outdoor Operating Temperature -20 ° C ~ 50 ° C Note(s) : According to the comparative measurement data in the Evaluation Report, all measurement data from the reference FCC ID below were reused for this report. FCC ID : 2ANI5SA530 Report No.: HA220420-SFT-002-R25 5 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 2. INTRODUCTION 2.1. LIMIT The limit for Maximum Permissible Exposure (MPE), specified in FCC Rule Part §1.1310 listed in the table below, shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation specified in §1.1310 (b) Frequency Range (MHz) E- Field Strength (V/m) H- Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) (A) Limits for Occupational / Controlled Exposure 0.3 – 3.0 614 1.63 *100 6 3.0 – 30 1842 / f 4.89 / f *900 / f 2 6 30 – 300 61.4 0.163 1.0 6 300 – 1,500 - - f / 300 6 1, 500 – 100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 0.3 – 1.34 614 1.63 *100 30 1.34 – 30 824 / f 2.19 / f *180 / f 2 30 30 – 300 27.5 0.073 0.2 30 300 – 1,500 - - f / 1500 30 1, 500 – 100,000 - - 1.0 30 f = frequency in MHz, * = Plane-wave equivalent power density 2.2. MAXIMUM PERMISSIBLE EXPOSURE PREDICTION Prediction of MPE limit at a given distance S = PG 4πR² S : …

Text truncated - open the document above for the full version.

EVALUATION REPORT F C C / I S E D APPLICANT Safetrust Inc MODEL NAME SA520 FCC ID 2ANI5SA520 ISED ID 23133-SA520 REPORT NUMBER HA220420-SFT-002-R16 Report No.: HA220420-SFT-002-R16 1 / 17 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 T E S T R E P O R T Date of Issue August 17, 2022 Test Site Hyundai C-Tech, Inc. dba HCT America, Inc. 1726 Ringwood Ave, San Jose, CA 95131, USA Applicant Safetrust Inc Applicant Address 8116 Mill Creek Rd, Fremont, CA 94539, U.S.A. FCC ID 2ANI5SA520 ISED ID 23133-SA520 Model Name SA520 EUT Type IoT Sensor Modulation Type ASK, FSK, PSK / GFSK / OFDM FCC Classification Digital Transmission System (DTS) Unlicensed National Information Infrastructure (NII) Low Power Transmitter Below 1705 kHz (DCD) Low Power Communication Device Transmitter (DXX) FCC Rule Part(s) Part 15.225, Part 15.209, Part 15.207 / Part 15.247 / Part 15.407 ISED Rule Part(s) RSS-210 Issue 10 (April 2020) RSS-247 Issue 2 (February 2017) RSS-Gen Issue 5 Amd 2 (February 2021) Test Reference KDB 484596 D01 Reference Test Data v01 The device b earing the trade name and model specified above, has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures required. The results of testing in this r eport apply only to the product which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech, Inc. dba HCT America, Inc. certifies that no party to application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 862 Tested By Reviewed By Yongsoo Park Sunwoo Kim Test Engineer Te chnical Manager Report No.: HA220420-SFT-002-R16 2 / 17 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 REVISION HISTORY The revision history for this document is shown in table. TEST REPORT NO. DATE DESCRIPTION HA220420-SFT-002-R16 August 17, 2022 Initial Issue Report No.: HA220420-SFT-002-R16 3 / 17 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 4 2. MODEL DIFFERENCES ....................................................................................................................................... 5 3. REFERENCE DETAIL SECTION ............................................................................................................................. 5 4. SUMMARY OF THE SPOT CHECK RESULTS ........................................................................................................... 6 5. SPOT CHECK RESULTS........................................................................................................................................ 7 5.1. DTS ........................................................................................................................................................ 7 5.2. NII ....................................................................................................................................................... 10 5.3. DCD / DXX ........................................................................................................................................... 12 6. LIST OF TEST EQUIPMENT ............................................................................................................................... 14 APPENDIX A. TEST SETUP PHOTOS ...................................................................................................................... 15 APPENDIX B. PHOTOGRAPHS OF EUT .................................................................................................................. 16 Report No.: HA220420-SFT-002-R16 4 / 17 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 1. GENERAL INFORMATION EUT DESCRIPTION Model SA520 EUT Type IoT Sensor Serial Number SN3 Power Supply 12 V d.c. RF Specification WIFI 5 GHz (U-NII 3) : 802.11a/n(HT20/40)/ ac(VHT20/40/80) Bluetooth LE MCU (1Mbps) Bluetooth LE MESH (1Mbps) RFID (LF/HF) Transmitter Chain 5 GHz : SISO Bluet ooth LE : SISO Operating Environment Indoor and outdoor Operating Temperature -20 ° C ~ 50 ° C Modulation Type RFID (LF) ASK, FSK, PSK RFID (HF) ASK BLE MCU GFSK BLE MESH GFSK Antenna Specification 1) RFID (LF) Loop Antenna RFID (HF) Loop Antenna BLE MCU Antenna Type : Chip Antenna Peak Gain : 2.0 dBi BLE MESH Antenna Type : Chip Antenna Peak Gain : 2.0 dBi Firmware Version 2) BLE MCU/RFID (LF/HF) : 1.52.1009 BLE MESH : 1.52.167 WIFI : 1.0.344 Hardware Version 2) V4 Date(s) of Tests May 9, 2022 ~ July 19, 2022 Note(s) : 1. Antenna information is based on the document provid ed. 2. Firmware and Hardware Versions are provide…

Text truncated - open the document above for the full version.

RF TEST REPORT F C C / I S E D APPLICANT Safetrust Inc MODEL NAME SA520 FCC ID 2ANI5SA520 ISED ID 23133-SA520 REPORT NUMBER HA220420-SFT-002-R19 Report No.: HA220420-SFT-002-R19 1 / 57 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 T E S T R E P O R T Date of Issue August 17, 2022 Test Site Hyundai C-Tech, Inc. dba HCT America, Inc. 1726 Ringwood Ave, San Jose, CA 95131, USA Applicant Safetrust Inc Applicant Address 8116 Mill Creek Rd, Fremont, CA 94539, U.S.A. FCC ID 2ANI5SA520 ISED ID 23133-SA520 Model Name SA520 EUT Type IoT Sensor Modulation Type OFDM FCC Classification Unlicensed National Information Infrastructure (NII) FCC Rule Part(s) Part 15.407 ISED Rule Part(s) RSS-247 Issue 2 (February 2017) RSS-Gen Issue 5 Amd 2 (February 2021) Test Procedure ANSI C63.10-2013, KDB 789033 D02 v02r01, KDB 6 62911 D01 The device bearing the trade name and model specified above, has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures required. The results of testing in this report apply only to the product which was tested. Other similar equipment will not necessarily produce the same results due to production tolera…
