QA-FR-171-A LUXPAD TABLET Add: YangGuangGaoErFU Building, No 7008, SHENNAN Road, FuTian, SHENZHEN, China Tel: 00861353424318 Fax: 0755-83255400 Email: [email protected] FCC Conf idential Authorization Date: 2020-11-11 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID:2ANIRNITRO7Q In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, LUXPAD TABLET hereby requests l ong-term confidential treatment of information accompanying this application as outlined below: •Block Diagram •Schematics •Operation Description •Parts List/Tune up procedure (for licensed devices) The a bove materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sin cerely, Sign ature: Prin ted Name: Rita Yu Title: Manager

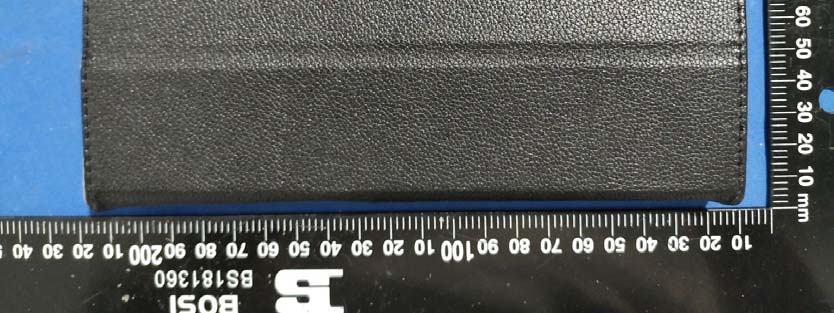

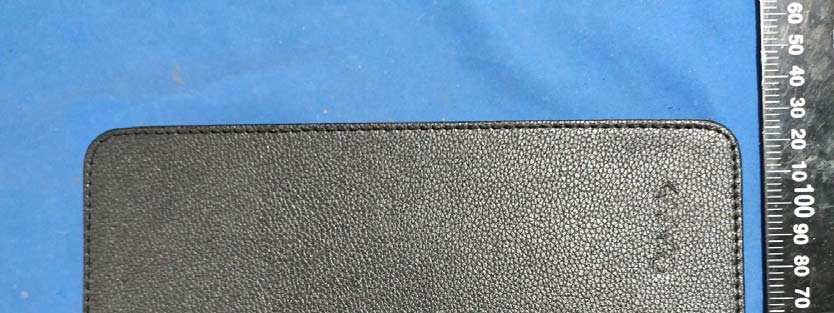

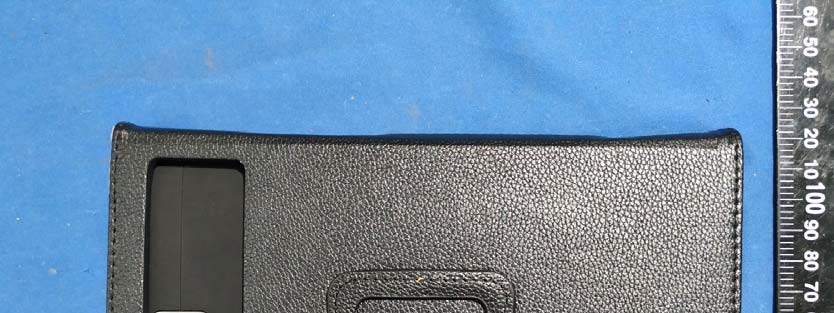

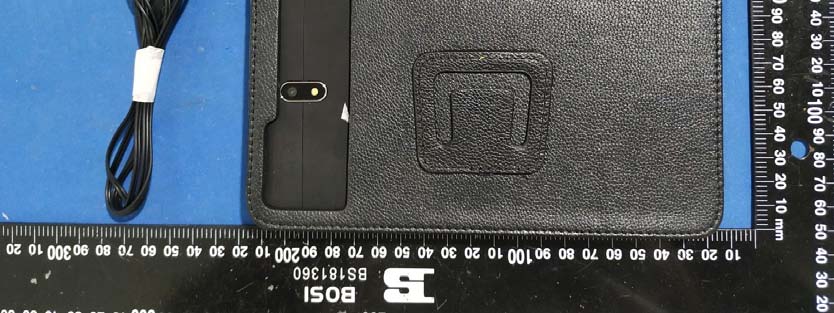

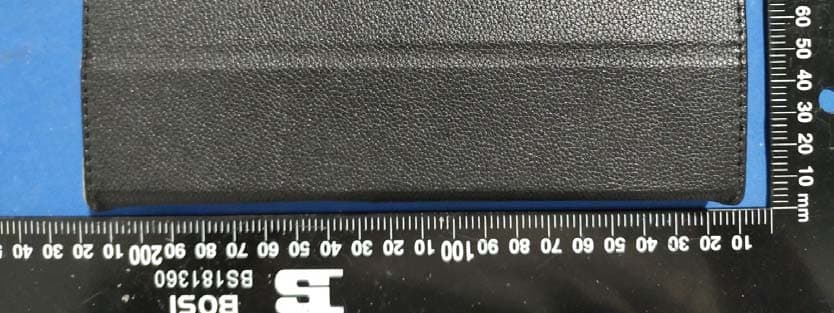

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Port

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS WWAN ANT WiFi&BT ANT

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*”. SAR EVALUATION REPORT For LUXPAD TABLET YangGuangGaoErFU Building, No 7008 SHENNAN Road, FuTian SHENZHEN, CHINA FCC ID: 2ANIRNITRO7Q Report Type: Original Report Product Type: TAB Report Number: RDG200925004-20 Report Date: 2020-11-10 Reviewed By: Rocky Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200925004-20 SAR Evaluation Report 2 of 50 Attestation of Test Results EUT Information EUT Description TAB Tested Model NITRO 7Q FCC ID 2ANIRNITRO7Q Serial Number RDG200925004-SA-S1 Test Date 2020-10-03~2020-10-05 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) GSM 850 1g Head SAR 0.03 1. 6 1g Body SAR 0.42 PCS 1900 1g Head SAR 0.11 1g Body SAR 0.79 WCDMA Band 2 1g Head SAR 0.12 1g Body SAR 1.31 WCDMA Band 5 1g Head SAR 0.03 1g Body SAR 0.31 WLAN 2.4G 1g Head SAR 0.03 1g Body SAR 0.13 Simultaneous 1g Head SAR 0.25 1g Body SAR 1.44 1g Body SAR 1.35(Hotspot) Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RF Exposure Procedures: TCB Workshop April 2019 IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequenc y range of 300 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D01 3G SAR Procedures v03r01 KDB 616217 D04 SAR for laptop and tablets v01r02 KDB 248227 D01 802 11 Wi-Fi SAR v02r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200925004-20 SAR Evaluation Report 3 of 50 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 EUT DESCRIPTION .................................................................................................................................................... 5 TECHNICAL SPECIFICATION ......................................................................................................................................... 5 REFERENCE, STANDARDS, AND GUIDELINES .................................................................................................. 6 SAR LIMITS ................................................................................................................................................................. 7 FACILITIES .................................................................................................................................................................. 8 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 9 5, IN THIS CASE, IEC PARAMETERS APPLIED.EQUIPMENT LIST AND CALIBRATION .......................... 14 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 15 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 15 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 16 LIQUID VERIFICATION ............................................................................................................................................... 16 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 18 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 19 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 22 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 22 CHEEK/TOUCH POSITION ........................................................................................................................................... 23 EAR/TILT POSITION ................................................................................................................................................... 23 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS .............................................................................. 24 TEST DISTANCE FOR SAR EVALUATION ........................................................…

Text truncated - open the document above for the full version.

PROBE CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES

Report No.: RDG200925004-20 Page 1 of 29 Plot 1#: GSM 850_Head Flat_Mid DUT: TAB; Type: NITRO 7Q; Serial: RDG200925004-SA-S1 Communication System: Generic GSM ; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.893 S/m; ε r = 41.383; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @ 836.6 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (101x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0353 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 1.986 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.0430 W/kg SAR(1 g) = 0.027 W/kg; SAR(10 g) = 0.017 W/kg Maximum value of SAR (measured) = 0.0356 W/kg 0 dB = 0.0356 W/kg = -14.49 dBW/kg Report No.: RDG200925004-20 Page 2 of 29 Plot 2#: GSM 850_Body Worn Back_Mid DUT: TAB; Type: NITRO 7Q; Serial: RDG200925004-SA-S1 Communication System: Generic GSM ; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.893 S/m; ε r = 41.383; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @ 836.6 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (71x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.456 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.419 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 0.583 W/kg SAR(1 g) = 0.289 W/kg; SAR(10 g) = 0.163 W/kg Maximum value of SAR (measured) = 0.454 W/kg 0 dB = 0.454 W/kg = -3.43 dBW/kg Report No.: RDG200925004-20 Page 3 of 29 Plot 3#: GSM 850_Body Back_Mid DUT: TAB; Type: NITRO 7Q; Serial: RDG200925004-SA-S1 Communication System: Generic GPRS-3 slots ; Frequency: 836.6 MHz;Duty Cycle: 1:2.66 Medium parameters used: f = 836.6 MHz; σ = 0.893 S/m; ε r = 41.383; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @ 836.6 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (71x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.716 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.326 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 0.868 W/kg SAR(1 g) = 0.406 W/kg; SAR(10 g) = 0.219 W/kg Maximum value of SAR (measured) = 0.643 W/kg 0 dB = 0.643 W/kg = -1.92 dBW/kg Report No.: RDG200925004-20 Page 4 of 29 Plot 4#: GSM 850_Body Right_Mid DUT: TAB; Type: NITRO 7Q; Serial: RDG200925004-SA-S1 Communication System: Generic GPRS-3 slots ; Frequency: 836.6 MHz;Duty Cycle: 1:2.66 Medium parameters used: f = 836.6 MHz; σ = 0.893 S/m; ε r = 41.383; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @ 836.6 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (51x151x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0184 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.364 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.0210 W/kg SAR(1 g) = 0.014 W/kg; SAR(10 g) = 0.0096 W/kg Maximum value of SAR (measured) = 0.0170 W/kg 0 dB = 0.0170 W/kg = -17.70 dBW/kg Report No.: RDG200925004-20 Page 5 of 29 Plot 5#: GSM 850_Body Bottom_Mid DUT: TAB; Type: NITRO 7Q; Serial: RDG200925004-SA-S1 Communication System: Generic GPRS-3 slots ; Frequency: 836.6 MHz;Duty Cycle: 1:2.66 Medium parameters used: f = 836.6 MHz; σ = 0.893 S/m; ε r = 41.383; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(10.33, 10.33, 10.33) @ 836.6 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.218 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.264 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.362 W/kg SAR(1 g) = 0.165 W/kg; SAR(10 g) = 0.083 W/kg Maximum value of SAR (measured) = 0.285 W/kg 0 dB = 0.285 W/kg = -5.45 dBW/kg Report No.: RDG200925004-20 Page 6 of 29 Plot 6#: PCS 1900_Head Flat_Mid DUT: TAB; Type: NITRO 7Q; Serial: RDG200925004-SA-S1 Communication System: Generic GSM ; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium parameters used: f = 1880 MHz; σ = 1.415 S/m; ε r = 40.002; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7441; ConvF(8.05, 8.05, 8.05) @ 1880 MHz; Calibrated: 2020/2/8  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE3 Sn471; Calibrated: 2019/12/25  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (101x81x…

Text truncated - open the document above for the full version.

Report No.: RDG200925004-20 Page 1 of 6 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Phantom Type: Twin SAM; Model: Twin SAM V5.0; S/N: 1412 Report No.: RDG200925004-20 Page 2 of 6 Head Flat Setup Photo Head Right Cheek Setup Photo 43 mm 47 mm 43 mm Report No.: RDG200925004-20 Page 3 of 6 Head Right Tilt Setup Photo Head Left Cheek Setup Photo Report No.: RDG200925004-20 Page 4 of 6 Head Left Tilt Setup Photo Body (Worn) Back Setup Photo (0mm) Report No.: RDG200925004-20 Page 5 of 6 Body Left Setup Photo (0mm) Body Right Setup Photo (0mm) Report No.: RDG200925004-20 Page 6 of 6 Body Bottom Setup Photo (0mm) Body Top Setup Photo (0mm)

FCC PART 15.247 TEST REPORT For LUXPAD TABLET YangGuangGaoErFU Building, No 7008 SHENNAN Road, FuTian SHENZHEN, CHINA Report Type: Original Report Product Name: TAB Re port Number: RDG200925004-00C Re port Date: 2020-11-12 Reviewed By: Ivan Cao Assistant Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID: 2ANIRNITRO7Q Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200925004-00C Page 2 of 50 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 DECLARATIONS ............................................................................................................................................................ 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 SUPPORT CABLE LIST AND DETAILS ............................................................................................................................ 9 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 10 SUMMARY OF TEST RESULTS ............................................................................................................................. 11 FCC §15.247 (i) & §1.1310 & §2.1093- RF EXPOSURE .......................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 13 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP ................................................................................................................................................................ 14 EMI TEST RECEIVER SETUP ....................................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 15 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 15 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 15 TEST DATA ................................................................................................................................................................ 16 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 18 APPLICABLE STANDARD ............................................................................................................................................ 18 EUT SETUP ................................................................................................................................................................ 18 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 19 TEST PROCEDURE ...................................................................................................................................................... 19 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 19 TEST EQUIPMENT LIST AND D…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emission -front View Conducted Emission -Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
