2ANPBRBC1260DOREGO 12V 60A DC-DC Battery Charger

VERSION A0 DC-DC Battery Charger REGO 12V 60A QUICK GUIDE input output DC-DC Battery Charger Contents Package Contents •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 01 Wiring Diagram •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 02 Product Overview ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 03 Installation •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 04 LED Indicators ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 14 Communication ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 15 Operation & Maintenance ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 18 01 input output DC-DC Battery Charger Quick Guide × 1 Renogy Temperature Sensor × 1 (Model: RTSCC) IGN Signal Wire × 1Screws × 4 VERSION A0 DC-DC Battery Charger REGO 12V 60A QUICK GUIDE input output DC-DC Battery Charger Package Contents 02 Starting Battery or DC Generator Service Battery System + Negative Positive input output DC-DC Battery Charger + z This Quick Guide contains important installation, operation, and maintenance instructions for REGO 12V 60A DC-DC Battery Charger. Please read the Quick Guide carefully before using. z Illustrations in the Quick Guide are for reference only. z For more detailed instructions, please refer to the full user manual at renogy.com. z For additional support, please contact our customer service through renogy.com/contact-us/. Wiring Diagram 03 input output DC-DC Battery Charger IGN CANCAN BVSBTS DC-DC Battery Charger inputoutput DC-DC Battery Charger 3114 911651012789 2 No.PartNo.Part 1Mounting Holes7Negative Output Terminal 2Fault Status Indicator8Positive Output Terminal 3Battery Status Indicator9CAN Communication Ports 4Battery Type Setting Knob10IGN Signal Wire Port 5Positive Input Terminal11BVS (Battery Voltage Sensor) Port 6Negative Input Terminal12BTS (Battery Temperature Sensor) Port z Please inspect the battery charger for any visible damage including cracks, dents, deformation, and other visible abnormalities before installation. z There are no user serviceable parts inside the battery charger. Do not disassemble or attempt to repair it. Product OverviewWiring Diagram 04 Recommended Components Battery Scenario A: REGO Battery Kit Renogy REGO Lithium BatteryRenogy REGO System Combiner Box Battery Adapter Cable (output) ( Anderson PP75 to Anderson 120 Adapter Cable ) Battery Adapter Cable (input) ( Anderson PP75 to Ring Terminal Adapter Cable ) Anderson PP75 Anderson 120 Battery Scenario B: Normal Battery Kit Normal Battery with +/- Bolts Battery Adapter Cables (input / output) ( Anderson PP75 to Ring Terminal Adapter Cable ) + - Installation 0505 Installation *Optional Accessories *Battery Fuse (80A)*Fuse Cable *Battery Voltage Sensor (Model: RVSCC) *Optional Accessories Wrench (10mm)Wrench (14mm)Measuring TapeInsulation Tape 10mm 10mm 10mm 14mm 14mm 14mm 3 4 5 6 Installation 0606 Installation Mounting Location z Risk of explosion! Never install the battery charger in a sealed enclosure with flooded batteries! Do not install in a confined area where battery gases can accumulate. z Place the battery charger on a vertical surface protected from direct sunlight, high temperatures, and water. Make sure there is good ventilation. z The battery charger requires at least 6 inches (150mm) of clearance above and below for proper air flow. Ventilation is highly recommended if mounted in an enclosure. z If the Battery Adapter Cable or Solar Panel Extension Cable is not long enough, you can use more extension cables or reselect the position where the battery charger needs to be secured. DC-DC Battery Charger STEP-1.1 ≥150mm ≥5.91inch ≥150mm ≥5.91inch DC -DC Battery Charger STEP-1.2 Confirm the installation location. Measure the length of the cables connecting to the battery and solar panel so they can be connected to the battery charger. 0707 InstallationInstallation Battery Charger Wiring z Please refer to the user manual of the battery charger at renogy.com for the recommended wire gauge and length. z Please make sure that the connections of the Anderson connectors are tight and secure. inputoutput DC-DC Battery Charger inputoutput STEP-2.1 REGO Battery Kit Normal Battery Kit STEP-2.2 For the Output terminal, align the Battery Adapter Cable's Anderson PP75 connectors to the correct orientation and polarity. Bind the Anderson PP75 connectors by sliding the side grooves. output DC-DC Battery Charger STEP-2.3 inputoutput DC-DC Battery Charger input STEP-2.4 Insert the Anderson PP75 connectors into the Output terminal. For the Input terminal, align the Battery Adapter Cable's Anderson PP75 connectors to the correct orientation and polarity. STEP-2.5 inputoutput DC-DC Battery Charger STEP-2.6 Bind the Anderson PP75 connectors by sliding the side grooves. Insert the Anderson PP75 connectors into the Input terminal. 0808 Installation Service Battery Wiring z Please read the user manual of the service battery carefully before installation. z Identify the polarity (positive and negative) on the cables used for the batteries. A reverse polarity contact may damage the unit. z Select a suitable wrench or other tool when tightening the battery bolts to their rated specification. z Please ensure that the Anderson connectors are fully seated and/or the ring terminals are securely connected. Battery Scenario A: REGO Battery Kit z Please read the user manual of System Combiner Box carefully before wiring. z If the devices are connected to the Anderson connectors of the System Combiner Box, please install a 160A NH fuse in the top NH fu…

Text truncated - open the document above for the full version.

RNG International Inc. Agent Authorization Letter 2022-12-12 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen Most Technology Service Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Jason jiang Position: CTO Company Name: RNG International Inc. Address: 5050 S Archibald Ave, Ontario, CA 91762, USA Tel / Fax 9095173598 /8885431164 E-Mail: [email protected]

RNG International Inc. Long Term Confidentiality Request Letter 2022.12.12 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR (FCC ID: 2ANPBRBC1260DO) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - e.g. Block diagram - e.g. SCH - e.g. Operational Description required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, Name: Jason jiang Position: CTO Company Name: RNG International Inc. Address: 5050 S Archibald Ave, Ontario, CA 91762, USA Tel / Fax 9095173598 /8885431164 E-Mail: [email protected]

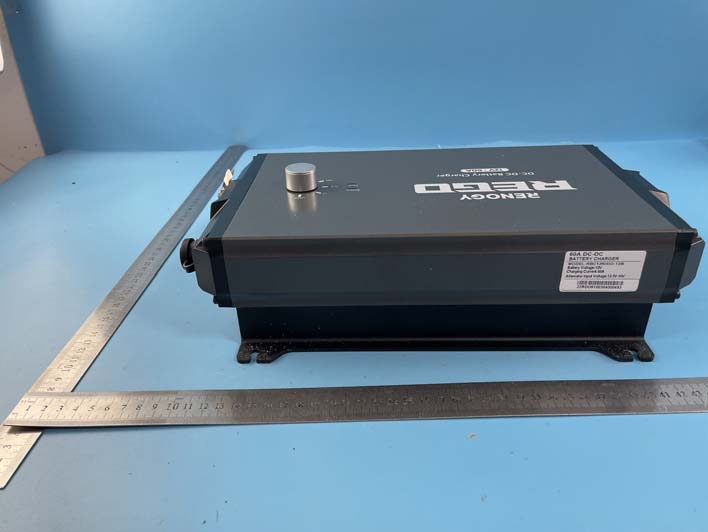

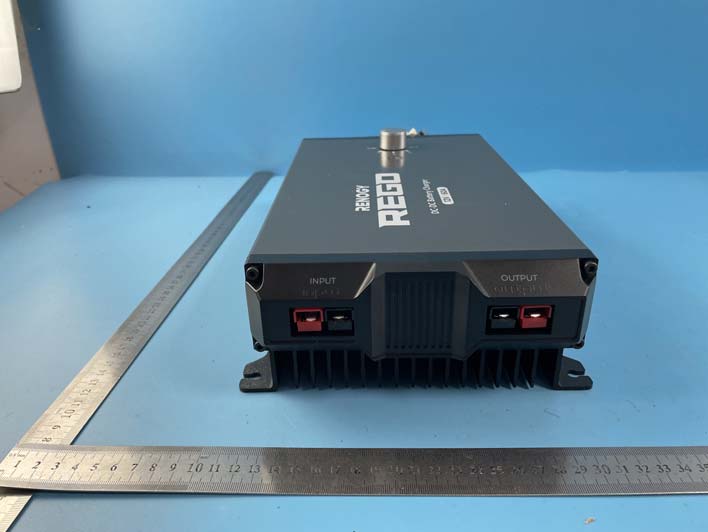

Model No.: RBC1260DO-12B FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE Model No.: RBC1260DO-12B LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Model No.: RBC1260DO-12B TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE
