2ANR7-TPA300Tire-Pressure Monitoring System

USER GUIDE TPA 300 Version BTPA1-7-1949 Reference: UM-BTPA1-6 REVISION OF THE TPA 300 GUIDE Due to continuing improvements, the information contained in this user manual, the features and design of this device are subject to be changed without prior notice. Edition/ Revision Reference Date (week/year) Chapters updated First edition UM-BTPA1-7 07/2020 Firmware version BTPA1-7-1949.13. TPA 300 user guide UM-BTPA1-6 1/54 User guide BOSCH TPA 300 TABLE OF CONTENTS TPA 300 INTRODUCTION .............................................................................................. 2 1. SPECIFICATIONS ...............................................................................................................................2 2. IMPORTANT SAFETY INSTRUCTIONS .............................................................................................3 3. CAUTION .............................................................................................................................................4 4. TPA 300 OVERVIEW ...........................................................................................................................5 5. FUNCTION KEYS ................................................................................................................................5 6. HEADER ICONS ..................................................................................................................................6 7. BOTTOM ICONS ..................................................................................................................................6 8. POWER ON ..........................................................................................................................................6 9. OPERATING INSTRUCTIONS ............................................................................................................7 TPA 300 USAGE IN STANDALONE MODE .................................................................... 9 1. CHECK TPMS SENSORS ...................................................................................................................9 2. PROGRAM TPMS SENSORS .......................................................................................................... 15 3. RECENT VEHICLE ........................................................................................................................... 22 4. KEYFOB TEST ................................................................................................................................. 25 5. SETTINGS ......................................................................................................................................... 27 TPA 300 USAGE WITH BOSCH SCAN TOOL .............................................................. 34 1. BLUETOOTH PAIRING .................................................................................................................... 34 2. OBDII RELEARN .............................................................................................................................. 37 MISCELLANEOUS ........................................................................................................ 40 1. CHARGE ........................................................................................................................................... 40 2. TOOL UPDATE ................................................................................................................................. 41 3. PRINT SENSOR DETAILS ............................................................................................................... 47 4. LIMITED WARRANTY / CERTIFICATE(S) ...................................................................................... 48 5. SOFTWARE PRODUCT LICENSE AGREEMENT .......................................................................... 48 6. SAFETY BATTERY AND CHARGE INFORMATION ...................................................................... 51 7. FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT ............................ 53 8. INDUSTRY CANADA STATEMENT ................................................................................................ 53 9. RECYCLING...................................................................................................................................... 54 INDEX ............................................................................................................................ 55 TPA 300 user guide UM-BTPA1-6 2/54 User guide BOSCH TPA 300 TPA 300 INTRODUCTION 1. SPECIFICATIONS Battery Type: 3.000 mAh rechargeable lithium-polymer battery. Battery Life: Approximately 300 activations per full charge. Dimensions (Max. L,W,D): 178.9 mm x 99.7 mm x 35.8 mm (7.04” x 3.92” x 1.40”). Case Material: High Impact ABS. Response Frequency: Main frequencies: 315 MHz and 433.92 MHz. Low Battery Indication: LCD bar graph display. Weight: Approx. 328 grams (0.72 lbs.) Temperatures: Operating: -4° F to 131° F (-20° C to +55° C). Storage: -40° F to 140° F (-40° C to +60° C). Operating Altitude: Up to 6560 ft (2000 m) Screen: 2.8” display Warranty: 1 year Product content: ➢ TPA 300 Tool ➢ QuickStart Guide ➢ Universal charger ➢ USB-B cable ➢ USB key with User Manual ➢ Carrying case TPA 300 user guide UM-BTPA1-6 3/54 User guide BOSCH TPA 300 2. IMPORTANT SAFETY INSTRUCTIONS Do not discard. Retain for future reference. This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device will not cause harmful interference, and (2) This device will accept any interference received, including interference that may cause undesired or improper operation. WARNING: This product emits electromagnetic and electronically generated waves that may interfere with the safe operation of pacemakers. Individuals that have pacemakers should never use this product. WARNING: Do not use on live electrical circuits. Must…

Text truncated - open the document above for the full version.

Date: 2020/1/17 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: 2ANR7-TPA300 Product name: Tire-Pressure Monitoring System To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model TPA-300 to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Dist., TaoYuan City 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : ATEQ INSTRUMENTS(ASIA)PTE LTD.TAIWAN BRANCH(SINGAPORE) Address : 3 LANE223, SAN JIA DONG STREET, 40642, TAICHUNG, TAIWAN. Signature : _________________________________ Name and Job Title. : Roger Lin / Manager E-mail : [email protected] Tel. : +886 4 2435278 2020/01/17

Confidentiality Request Letter Date: 2020/1/17 Federal Communications Commission Authorization and Evaluation Division FCC ID：2ANR7-TPA300 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant : ATEQ INSTRUMENTS(ASIA)PTE LTD.TAIWAN BRANCH(SINGAPORE) Address : 3 LANE223, SAN JIA DONG STREET, 40642, TAICHUNG, TAIWAN. Signature : _________________________________ Name and Job Title. : Roger Lin / Manager E-mail : [email protected] Tel. : +886 4 2435278

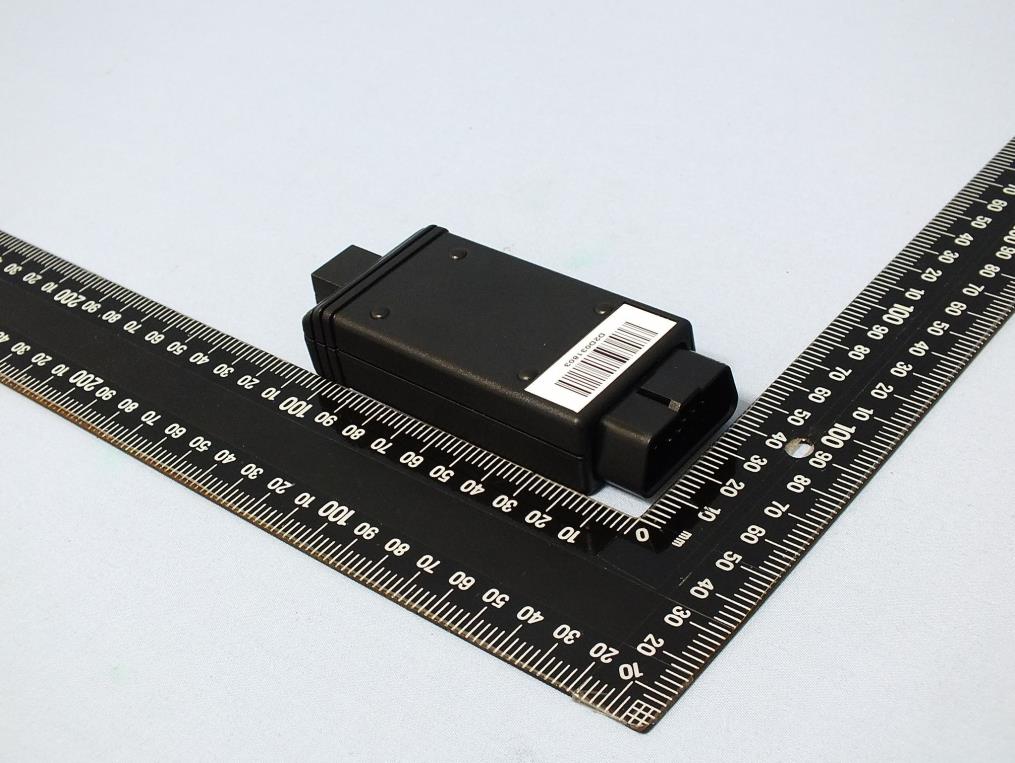

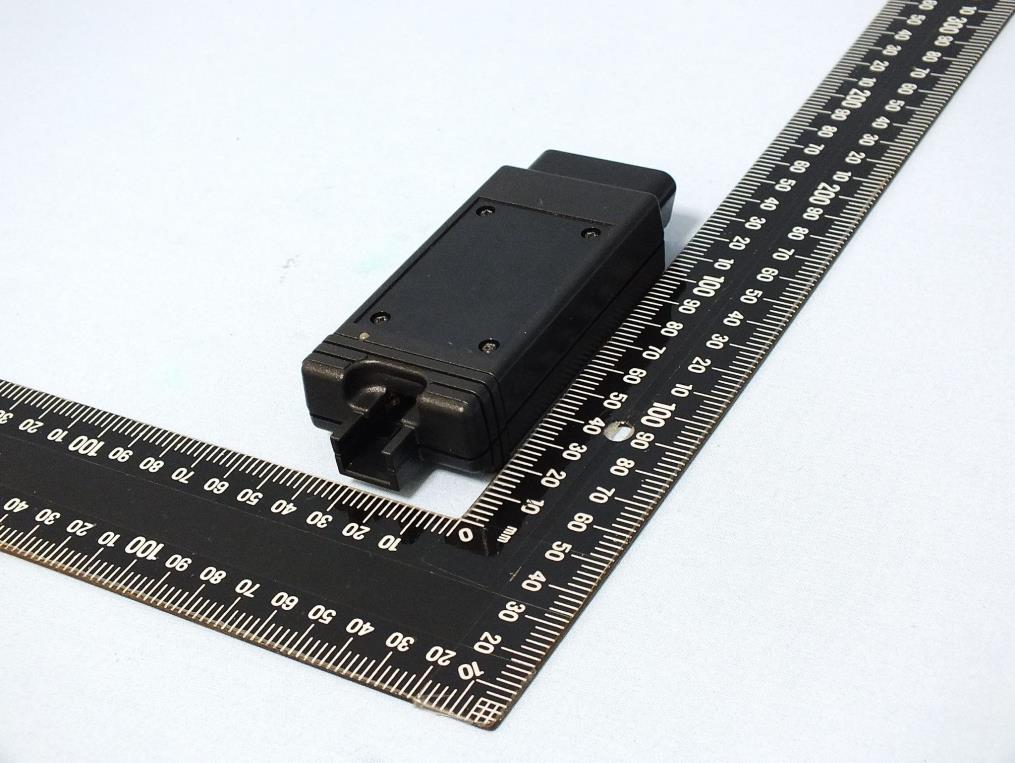

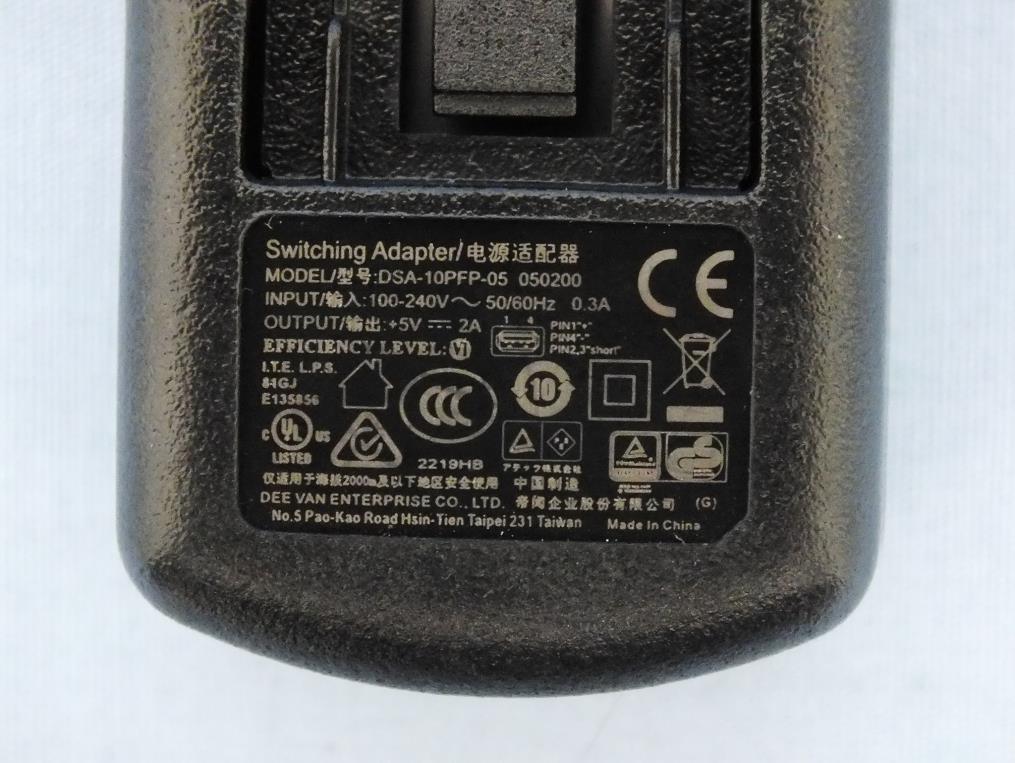

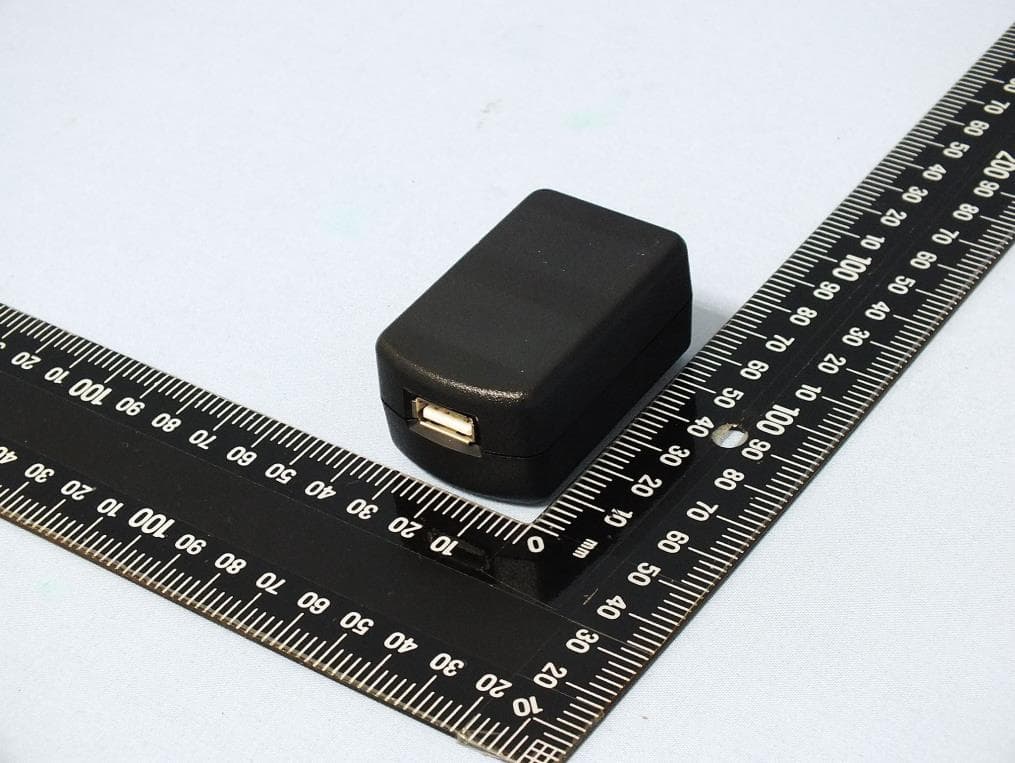

Project No.: 9D2703 Page No. : 1 of 16 Photographs of EUT Project No.: 9D2703 Page No. : 2 of 16 Project No.: 9D2703 Page No. : 3 of 16 Project No.: 9D2703 Page No. : 4 of 16 Project No.: 9D2703 Page No. : 5 of 16 Project No.: 9D2703 Page No. : 6 of 16 Project No.: 9D2703 Page No. : 7 of 16 Project No.: 9D2703 Page No. : 8 of 16 Project No.: 9D2703 Page No. : 9 of 16 Project No.: 9D2703 Page No. : 10 of 16

FCC ID : 2ANR7-TPA300 IC: 25555-TPA300

Project No.: 9D2703 Page No. : 11 of 16 Project No.: 9D2703 Page No. : 12 of 16 Project No.: 9D2703 Page No. : 13 of 16 Project No.: 9D2703 Page No. : 14 of 16 Project No.: 9D2703 Page No. : 15 of 16 Project No.: 9D2703 Page No. : 16 of 16

Report No.: FR9D2703 Page : 1 of 20 Report Version: Rev. 01 FCC Test Report FCC ID : 2ANR7-TPA300 Equipment : Tire-Pressure Monitoring System Model No. : TPA-300 Brand Name : BOSCH, MAC (Different brand for marketing purpose) Applicant : ATEQ INSTRUMENTS(ASIA)PTE LTD.TAIWAN BRANCH(SINGAPORE) Address : 3 LANE223, SAN JIA DONG STREET, 40642, TAICHUNG, TAIWAN. Standard : 47 CFR FCC Part 15.209 Received Date : Dec. 27, 2019 Tested Date : Jan. 06 ~ Jan. 08, 2020 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR9D2703 Page : 2 of 20 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Test Setup Chart .................................................................................................................................... 6 1.3 The Equipment List ................................................................................................................................ 7 1.4 Test Standards ....................................................................................................................................... 8 1.5 Deviation from Test Standard and Measurement Procedure ................................................................. 8 1.6 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION ....................................................................................................................... 9 2.1 Testing Condition ................................................................................................................................... 9 2.2 The Worst Test Modes and Channel Details ......................................................................................... 9 3 TRANSMITTER TEST RESULTS ........................................................................................................ 10 3.1 Conducted Emissions ........................................................................................................................... 10 3.2 Radiated Emissions .............................................................................................................................. 13 4 TEST LABORATORY INFORMATION ............................................................................................... 20 Report No.: FR9D2703 Page : 3 of 20 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR9D2703 Rev. 01 Initial issue Feb. 11, 2020 Report No.: FR9D2703 Page : 4 of 20 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV/m at 3m]: 0.558MHz 35.50 (Margin -10.50dB) - AV Pass 15.209 Radiated Emissions [dBuV/m at 3m]: 140.58MHz 41.74 (Margin -1.76dB) - QP Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR9D2703 Page : 5 of 20 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (kHz) Modulation Ch. Frequency (kHz) Channel Number Data/Bit Rate 125 ASK 125 1 100bps, 3.9kbps, 5kbps Baud 1.1.2 Antenna Details Ant. No. Type Connector Gain (dBi) Remark 1 WIRE N/A Coil 7dBi --- 1.1.3 EUT Operational Condition Supply Voltage 5Vdc from AC adapter 3.7Vdc from battery 1.1.4 Accessories Accessories No. Equipment Description 1 AC adapter Brand: DEE VAN ENTERPRISE CO., LTD. Model: DSA-10PFP-05 050200 I/P: 100-240Vac, 50/60Hz, 0.3A O/P: 5Vdc, 2A 2 Lithium battery Brand: Shenzhen Honcell Energy Co., Ltd. Model: HCP104060FC Rating: 3.7Vdc, 3000mAh 3 USB cable 0.75m shielded with one core 4 OBDII/TTD --- Report No.: FR9D2703 Page : 6 of 20 Report Version: Rev. 01 1.2 Test Setup Chart Test Setup Diagram (Charger mode) No. Signal cable / Length (m) 1 RJ45, 1.3m non-shielded. 2 USB, 0.75m shielded with 1 core. Test Setup Diagram (Battery mode) No. Signal cable / Length (m) 1 RJ45, 1.3m non-shielded. Report No.: FR9D2703 Page : 7 of 20 Report Version: Rev. 01 1.3 The Equipment List Test Item Conducted Emission Test Site Conduction room 1 / (CO01-WS) Tested Date Jan. 06, 2020 Instrument Manufacturer Model No. Serial No. Calibration Date Calibration Until Receiver R&S ESR3 101657 Jan. 08, 2019 Jan. 07, 2020 LISN R&S ENV216 101579 Mar. 08, 2019 Mar. 07, 2020 RF Cable-CON Woken CFD200-NL CFD200-NL-001 Oct. 22, 2019 Oct. 21, 2020 Measurement Software AUDIX e3 6.120210k NA NA Note: Calibration Interval of instruments listed above is one year. Test Item Radiated Emission Test Site 966 chamber1 / (03CH01-WS) Tested Date Jan. 08, 2020 Instrument Manufacturer Model No. Serial No. Calibration Date Calibration Until Spectrum Analyzer R&S FSV40 101498 Dec. 17, 2019 Dec. 16, 2020 Receiver R&S ESR3 101658 Dec. 12, 2019 Dec. 11, 2020 Bilog Antenna SCHWARZBECK VULB9168 VULB9168-522 Jul. 12, 2019 Jul. 11, 2020 Horn Antenna 1G-18G SCHWARZBECK BB…
