2ANRT-YAK-001YAKOOK

Copyright ⓒ 2021. Lab-T, Inc. User Manual SMART MEDICINE CHECKER Quick Guide 01. Contents of the Package Contents of the Package How to Attach it Quick Guide ▶ Use double-sided tape on the bottom of the product to attach the product to a place where it is easy to hang ▶ Hang the medicine bag in the hollow in the center of the product. Battery (CR2477) Yakook The battery is already inserted when purchasing the product, so you can use it right after assembling the product. When replacing the battery of Yakook, disassemble the top and bottom plates, remove the used one, and insert a new one. 02. Power Control & Battery Change How to turn on the powerHow to change the battery BatteryBattery(CL2477) Medication checker only works with its exclusive app. Take a picture of the QR code below or check out the app store or play store to find the exclusive Yakook app. ▶ Follow the instructions provided by the app for the connection between Yakook app and Yakook button. http://yakook.co.kr/en/app 03. App Installation Refer to the safety precautions and the product guide for using on Yakook website to use this product safely. http://yakook.co.kr/en/guide Safety Precautions. 04. Cautions 05. Customer Support / Product Specifications If you experience any problems using this product, contact customer support by emailing [email protected] The limited warranty period for this product is one year from the date of purchase. If the product is defective or a functional error occurs during this period, you can be exchanged the product for free or get its firmware updated. Connectivity Optimal Range Dimensions Weight Frequency BLE 4.2 Up to 30 ft. 2.2 x 2.0” 8.8 oz 2402 to 2480 MHz Working Temp Battery. Certification FCC ID Frequency output 20 to 120°F CR2477 (3v) R-R-Mdp-YAK-001 XXXXXX-XXXXX -2 dBm ± 1 dB FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION : Any Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ᆞ Reorient or relocate the receiving antenna. ᆞ Increase the separation between the equipment and receiver. ᆞ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ᆞ Consult the dealer or an experienced radio/TV technician for help. A minimum separation distance of 20 cm must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. SMART MEDICINE CHECKER Main Features Flash every 10 min. With no schedules If you press the button when it is not the time to notify you of the medication, the green indicator flashes once. If you press the button of Yakook that is not added on the app, the red indicator flashes once. Enter the medication time on the app. The green indicator flashes every 10 seconds for 5 minutes from the medication time. ※ Synchronizing the app and the device is recommended. 05. Main Features Button TestNo Device AddedNo Notification Scheduled GreenRed Flash once per clickFlash once per click 05. Main Features Flash three times for duplicated warning Enter the medication time on the app. The green indicator flashes every 10 seconds for 5 minutes from the medication time. Take medicine at the notification and press the button to record the medication. The green indicator flashes three times. If you press the button within five minutes again after the medication, the red indicator flashes three time. Medication NotificationMedication InputDuplicate Medication Warning Flash every 10 sec. Flash three times with medication input GreenRed ※ If a reminder for another medication is scheduled within an hour, it only flashes until the next medication time. 05. Main Features Green & red flashes If you do not press the medication button despite the medication reminder, the red indicator flashes every 10 seconds for an hour. The green indicator flashes for three seconds when the battery is inserted. When the battery remains at 20%, the green and red indicators flash alternately once every 10 minutes. Medication RemindingPower turned onLow Battery Flash every 10 sec.Lights on for 3 sec. GreenRed MediPlus Solution Co., Ltd. 2nd Fl, 39 Seongbuk-ro, Seongbuk-gu, Seoul 02880, Korea

MEDI PLUS SOLUTION CO., LTD. B2, 101, 24, Seongbuk-ro 9-gil, Seongbuk-gu, Seoul, 02880, South Korea Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ANRT-YAK-001 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name - Block Diagram - Schematics - Operational Description - Tune-up Procedure - 06. Block Diagram_YAK-001.pdf - 07. Schematics_YAK-001.pdf - 10. Operation Description_YAK-001.pdf - 12. Tune-up procedure_YAK-001.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below for a period of 180 days Exhibit Type File Name - RF Test Setup photos - Internal Photos - User manual - 03. Test Setup Photos_YAK-001.pdf - 05. Internal Photos_YAK-001.pdf - 08. User Manual_YAK-001.pdf (Signature) Yoonjung Bae / CEO +82-70-4910-3733 B2, 101, 24, Seongbuk-ro 9-gil, Seongbuk-gu, Seoul, 02880, South Korea

MEDI PLUS SOLUTION CO., LTD. B2, 101, 24, Seongbuk-ro 9-gil, Seongbuk-gu, Seoul, 02880, South Korea Date: Apr, 29, 2021 Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 SUBJECT: Application for Certification for FCC ID: 2ANRT-YAK-001 To Whom It May Concern: We, the undersigned, hereby authorize SangHoon, Yu at Lab-T, Inc. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SangHoon, Yu at Lab-T, Inc. on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, (Signature) Yoonjung Bae / CEO +82-70-4910-3733 B2, 101, 24, Seongbuk-ro 9-gil, Seongbuk-gu, Seoul, 02880, South Korea

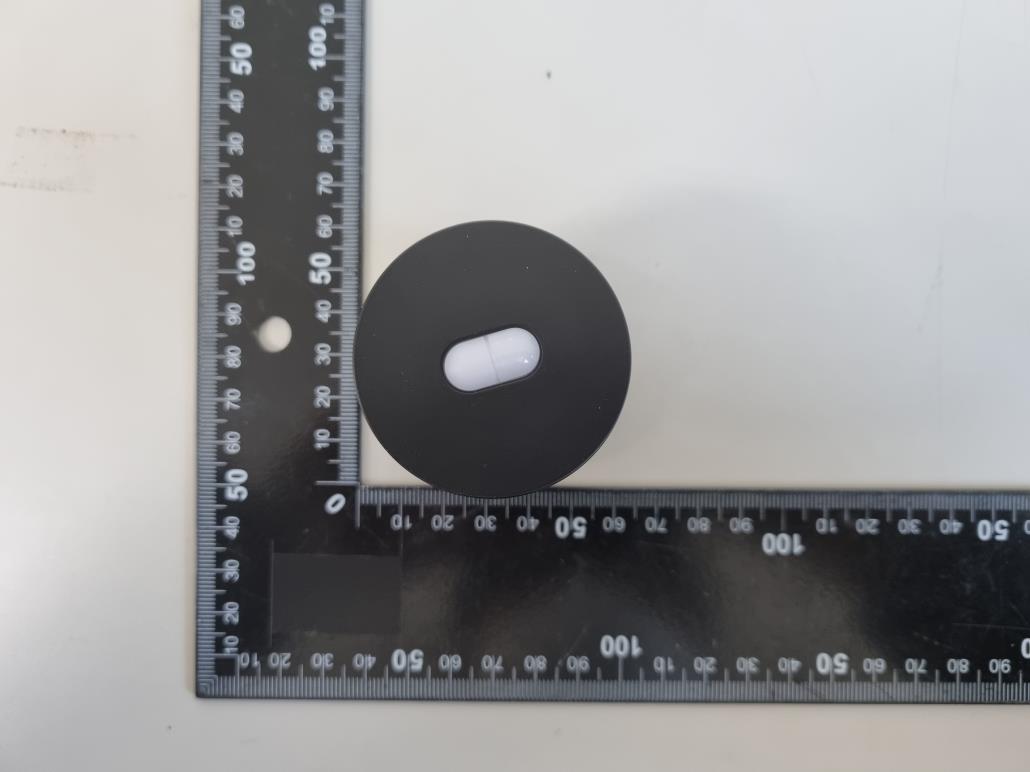

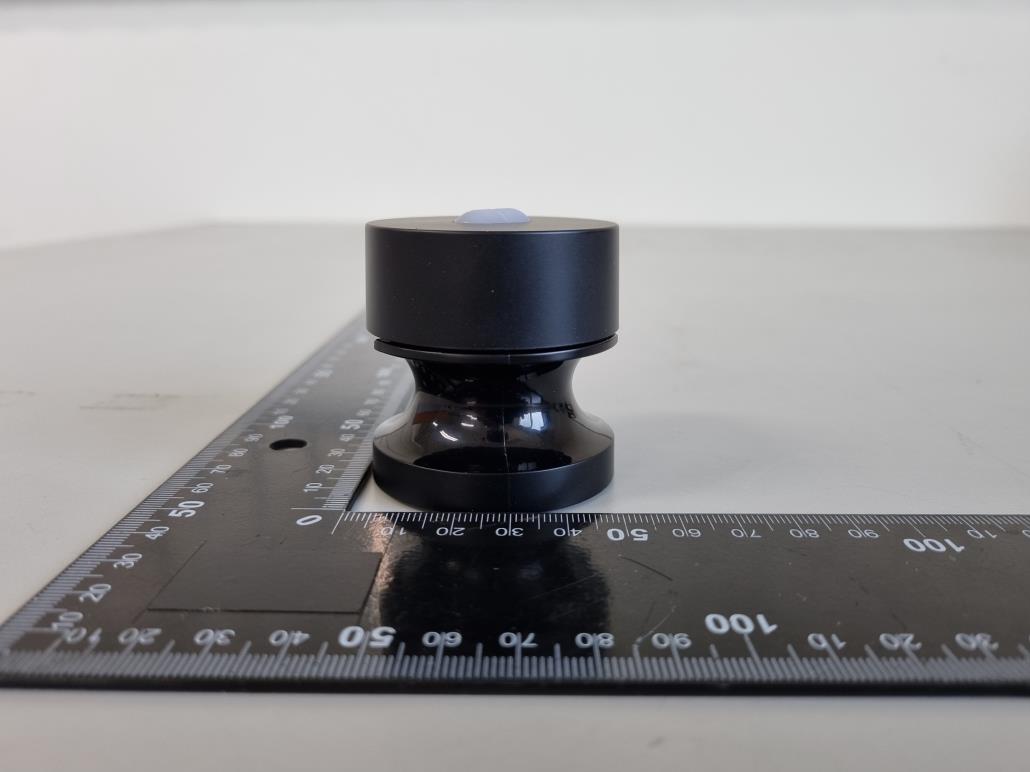

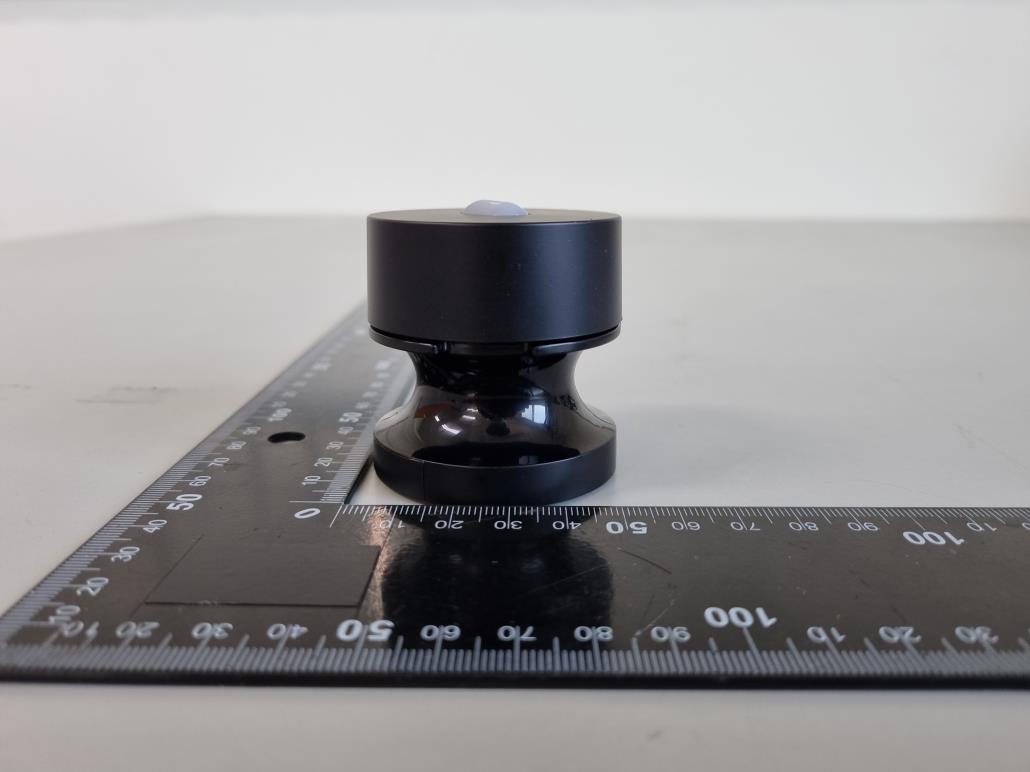

Page: 1 / 4 Copyright ⓒ 2021, Lab-T, Inc. External Photos Page: 2 / 4 Copyright ⓒ 2021, Lab-T, Inc. External Photos Front Rear Page: 3 / 4 Copyright ⓒ 2021, Lab-T, Inc. External Photos Top Bottom Page: 4 / 4 Copyright ⓒ 2021, Lab-T, Inc. External Photos Left Right

Copyright ⓒ 2021. Lab-T, Inc. FCC ID Label Informaion Copyright ⓒ 2021. Lab-T, Inc.

Page: 1 / 3 Copyright ⓒ 2021. Lab-T, Inc. Internal Photos Page: 2 / 3 Copyright ⓒ 2021. Lab-T, Inc. Internal Photos Main Board Front Main Board Rear Page: 3 / 3 Copyright ⓒ 2021. Lab-T, Inc. Internal Photos Inside

RF EXPOSURE KDB447498 was used as the guidance. SAR test exclusion considerations Step.1 For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion threshold are determined by the following : [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Step.2 For 100 MHz to 6 GHz and test separation distances > 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following {[Power allowed at numeric threshold for 50 mm in step a)] + [(test separation distance – 50 mm)· (f(MHz)/150)]} mW, for 100 MHz to 1500 MHz {[Power allowed at numeric threshold for 50 mm in step a)] + [(test separation distance – 50 mm)·10]} mW, for > 1500 MHz and ≤ 6 GHz Step.2-1 Step.2-2 The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below Copyright ⓒ 2021. Lab-T, Inc. Page :1 / 2 ( f(GHz) : the RF channel transmit frequency in GHz RF Exposure Compliance Issue Therefore, EUT is not required the SAR Evaluation. =0. 25P(mW) : Max tuneup Power (mW) R : Distance to the center of the radiation of the NOTE : f(GHz) was used as worst case is highest frequency.antenna5.00mm ) Estimated SAR at the specific separation - S= [(P(mW) / R)] X [√f(GHz)] - NOTE =[(0.79/5.00)]X[√( 2.48 )]S : Maximum Estimated SAR =0.81mW - PdBm- NOTE =0.79mW =-1.00dBm+0.06dBiP : Max tuneup Power (dBm) =-0.94dBmG : Maximum Peak Antenna Gain (dBi) - Maximum Peak Antenna Gain :0.06dBi - Maximum Output Power for the Calculation :-1.00 dBm The EUT will only be used with a separation of 5 millimeters or lesser between the antenna and the body of the SAR Exclusion calculation for this exposure is shown below. - EIRP=P + G- NOTE (Maximum :-1.00 dBm&Minimum :-3.00 dBm) - Target Power & Tolerance :-2.00 dBm&±1.00 dB SAR test exclusion considerations : Bluetooth LE -1.00 P : Max tuneup Power (dBm) - Measured RF Maximum Output Power(Avg.) :-1.30 dBm = - Frequency Range :2 402 MHz~2 480 MHz Copyright ⓒ 2021. Lab-T, Inc. Page :2 / 2
