2ANTC-ZR08PUWireless NVR

W4 Wireless Security Camera System Quick Start Guide Thanks f or your purchase at ZOSI. This quick start guide will guide you thrstalla and related seto following this guide, please visit (h ps://zositech.com/) for more installaps and detailed in forma If you have any problems about our products, please visit our online support center (support.zositech.com) or contact us befor e returning. Pr areless NVR Model: ZR08GP Manufacture Name: Ansjer Electronics Co.,Ltd ZOSI Technology Co., Ltd. 3/F, Taitan Industrial Park, Xiangzhou District, Zhuhai, Guangdong 519000, China 02 Contents What's in the Box Gallery & Specs How the System Works How to Connect the System Camera Installation Steps Installation Tips Hard Drive Installation Remote View Settings (App) Remote View Settings (AVSS Client) New Camera Pairing Warranty and Customer Service This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L' appareil ne doit pas produire de brouillage; (2) L' appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d' en compromettre le fonctionnement. 02 03 04 04 05 06 06 07 10 15 16 03 What's in the Box 01 4*Camera 1*Quick Start Guide 1*12V/2A NVR Power Adapter 4*12V/1A Camera Power Adapter 1*1m Ethernet Cable 1*Mouse1*Waterproof Lid 1*HDMI Cable4*Mounting Screw Bag 1*NVR4*Mounting Template 4*Warning Sticker NOTE: there are 4pcs cameras kit and 8pcs cameras kit. The amount of cameras, 12V/1A camera power adapters, mounting templates, mounting screw bags and warning stickers will be the same as the camera kit you purchase. For waterproof lid, there is 1pc for the 4-camera kit and 2pcs for the 8-camera kit. 04 2.1 Network Video Recorder ① VGA port: connect monitor with VGA port to NVR via VGA cable ② HDMI port: connect monitor with HDMI port to NVR via HDMI cable ③ Backup USB port: insert USB drive for backup or system upgrade ④ Ethernet port: connect router or switch to NVR via Ethernet cable ⑤ Mouse USB port: connect to mouse ⑥ Power port: connect to power supply ⑦ Audio port: audio signal output ⑧ Antenna: transmit wireless signal Gallery & Specs 02 NOTE: NVR with hard drive support 24/7 recording. ② HDMI port ① VGA port ⑦ Audio port⑤ Mouse USB port ⑥ Power port ④ Ethernet port ⑧ Antenna ③ Backup USB port 2.2 Camera ① Lens: capture image and video ② Spotlights: illumination and light alarm ③ IR-LEDs: provide night vision in dark environment ④ CDS: day and night auto switch ⑤ Microphone: for voice intercom ⑥ Speaker: for voice intercom and voice alarm ⑦ Antenna: transmit wireless signal ① Lens ⑦ Antenna ⑥ Speaker ⑤ Microphone ④ CDS ② Spotlights*2 ③ IR-LEDs*4 05 The wireless NVR system consists of two parts. One is the NVR connected to the monitor, and the other is the IP cameras installed. Both NVR and IPC need independent power supply to work. Users can watch the real-time video captured by each IPC on the monitor. These images will also be saved in NVR for later playback at any time. How the System Works 03 To ensure that the product can work normally, we recommend that you connect the whole system before installation to see if there is any damage during transportation. How to connect the system: 1. Connect NVR to router using a network cable. 2. Connect monitor to NVR via HDMI or VGA port(VGA cable is not included). 3. Connect the included USB mouse to the top USB port of NVR. 4. Connect NVR to power supply (12V power adapter) 6. The monitor will display live video of the camera. 5. After the system starts, connect camera to the system (maximum support 8 channels). How to Connect the System 04 06 Backup USB port Monitor Router 1. Screw the antenna onto the camera. Please keep the antenna vertical for best reception. Note: fold the camera bracket before installing the antenna so you can easily install the antenna as shown in the picture. 2. Drill a hole on the wall according to mounting template, and insert wall plugs into the hole. 3. Align the mounting hole of the camera with the wall plugs, and then tighten screws into the wall plugs. 4. Loosen the bracket screw and adjust the camera to a proper angle. 5. Tighten the screws. Camera Installation Steps 05 1. Mount the antenna 4. Adjust the angle5. Tighten screws 3. Install the camera2. Insert wall plugs into the holes 07 Please refer to the picture down below for the ideal installation. It is recommended to place the camera at least 7 feet (2.1m) above the ground and tilted slightly downward towards the monitoring area, excluding any high- traffic areas. (E.g.sidewalks or roadways). 1. Ensure that the camera’s view is open and free of obstructions. 2. Place the camera at no more than 20 feet (6.1m) to ensure that the area you want to monitor is within the field of view. 3. Install the camera within the receiving range of the recorder (refer to the camera specifications). 4. The camera can be used outdoors (protection rating IP66). Installation Tips 06 Some camera kits may not contain hard drives, depending on the camera kit you purchase. This kit support most 3.5” HDD. NOTE: Please skip this step if your recorder has a pre-installed hard drive. 1. Power off the NVR, unscrew and remove the top cover of recorder. 2. Connect the power cable and data cable of the hard drive to the corresponding ports in the recorder. 3. Put the hard disk into the recorder. All wires should cross up over the hard drive. 4. Hold the hard disk and the NVR, …

Text truncated - open the document above for the full version.

Ansjer Electronics Co., Ltd July 29, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2ANTC-ZR08PU Model Number: ZR08PU, P208W, U208W, S208W, PQ08W, LQ08W, SQ08W, LQ08W, ZR08GU, ZR08PP, ZR08GP, ZR04JB, ZR08KB, ZR08QB, ZR08DP, ZR08JP, ZR08LL, ZR08PR, ZR08PS, ZR04PB, ZR08AP, ZR08PU, ZR08NN To Whom It May Concern: We, The Ansjer Electronics Co., Ltd hereby declare that the models are identical except the model name. Except for the different above, no other modification is performed. Sincerely, Signature: Ansjer Electronics Co., Ltd Contact person: Lanner Lan

Ansjer Electronics Co., Ltd Agent Authorization Company: Ansjer Electronics Co., Ltd Address: 301#, 1st Building, No.21 Yongtian Road, Xiangzhou 519000, Zhuhai, Guangdong, China Product Name: Wireless NVR Model Number(s): ZR08PU, P208W, U208W, S208W, PQ08W, LQ08W, SQ08W, LQ08W, ZR08GU, ZR08PP, ZR08GP, ZR04JB, ZR08KB, ZR08QB, ZR08DP, ZR08JP, ZR08LL, ZR08PR, ZR08PS, ZR04PB, ZR08AP, ZR08PU, ZR08NN Product Description: Wireless NVR We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-07-29 Name: Lanner Lan Company: Ansjer Electronics Co., Ltd

Ansjer Electronics Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-07-23 Subject; Request for Confidentiality FCC ID: 2ANTC-ZR08PU To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Ansjer Electronics Co., Ltd Contact person: Lanner Lan

FCC ID Label Location 40mm&50mm FCC ID: 2ANTC-ZR08PU

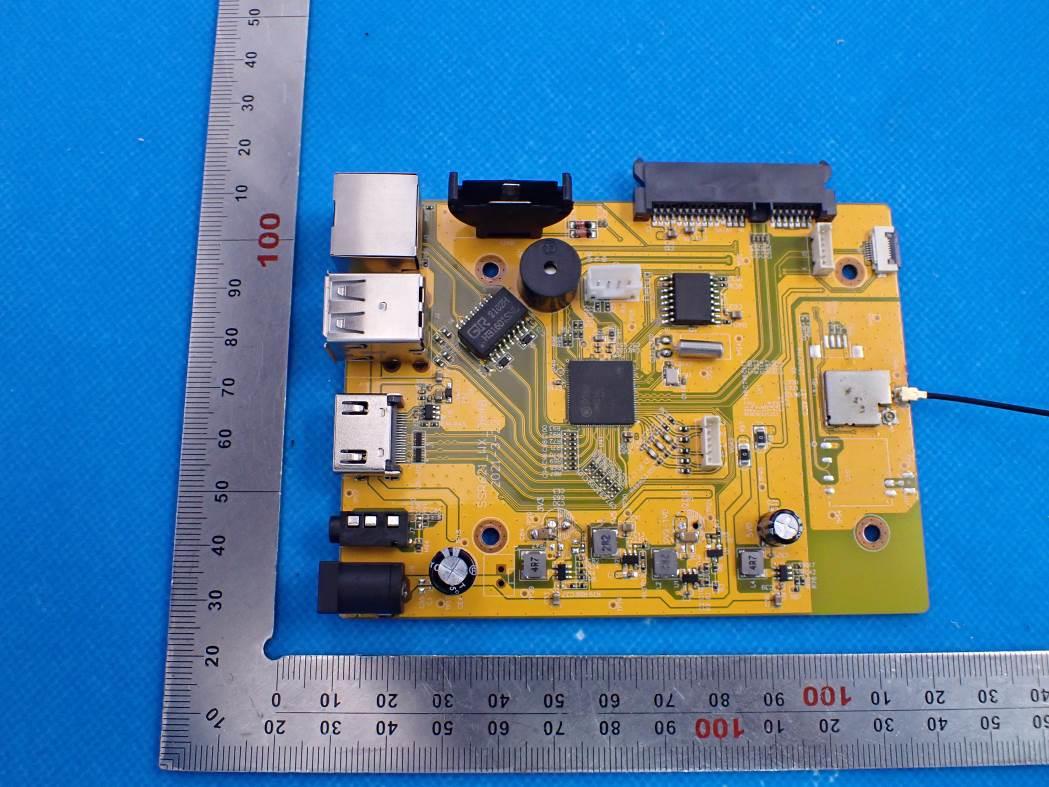

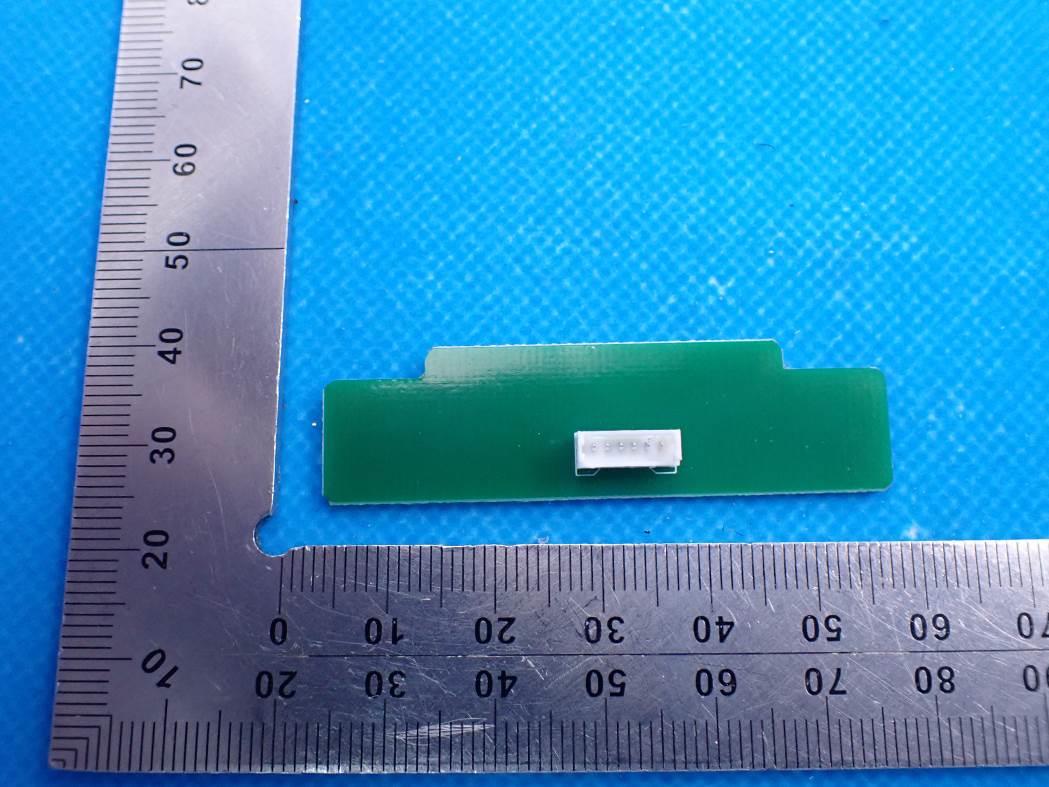

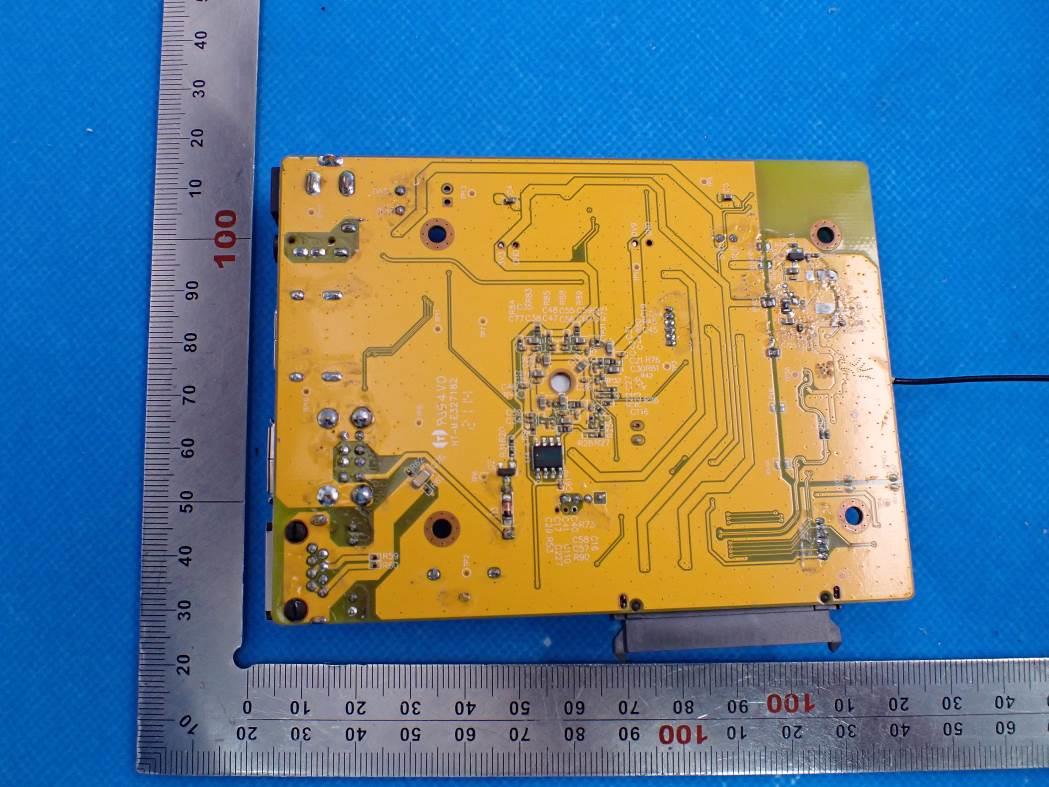

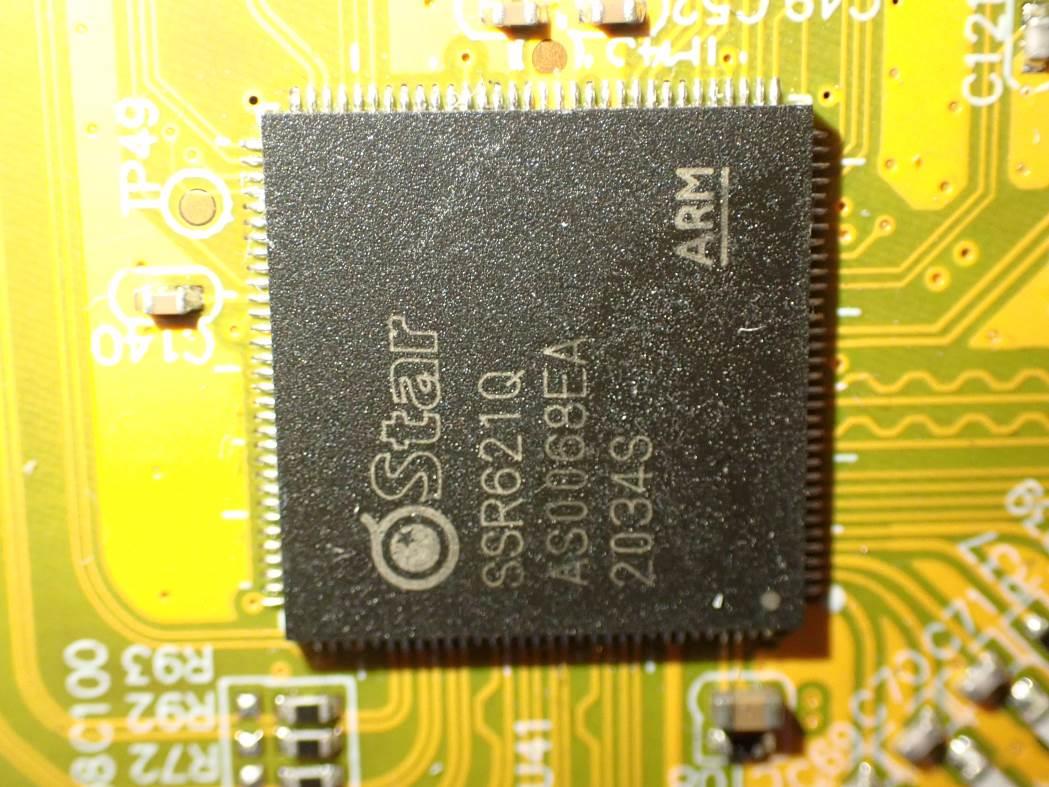

Internal Photos INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT INTERNAL VIEW-8 OF EUT INTERNAL VIEW-9 OF EUT INTERNAL VIEW-10 OF EUT Test Antenna Dummy Antenna INTERNAL VIEW-11 OF EUT

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Wireless NVR Model Name ZR08PU Series Model P208W, U208W, S208W, PQ08W, LQ08W, SQ08W, LQ08W, ZR08GU, ZR08PP, ZR08GP, ZR04JB, ZR08KB, ZR08QB, ZR08DP, ZR08JP, ZR08LL, ZR08PR, ZR08PS, ZR04PB, ZR08AP, ZR08PU, ZR08NN FCC ID 2ANTC-ZR08PU 2. EVALUATION METHOD AND LIMIT Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- 1500 -- -- f/1500 30 1500 -- 100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz * Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. See 47 CFR §§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna CALCULATION A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be at least 20 cm and fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of § 2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. 2.4G WIFI: Antenna Gain=3dBi (Numeric 2.0), π=3.14 Frequency Output Power Output Power Power Density Power Density Limit MHz dBm mW mW/cm 2 mW/cm 2 2412 14.92 31.05 0.012 1

Page 1 of 80 Report No.: AGC06662210603FE05 FCC ID : 2ANTC-ZR08PU APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Wireless NVR BRAND NAME : N/A MODEL NAME : ZR08PU, P208W, U208W, S208W, PQ08W, LQ08W, SQ08W, LQ08W, ZR08GU, ZR08PP, ZR08GP, ZR04JB, ZR08KB, ZR08QB, ZR08DP, ZR08JP, ZR08LL, ZR08PR, ZR08PS, ZR04PB, ZR08AP, ZR08PU, ZR08NN APPLICANT : Ansjer Electronics Co., Ltd DATE OF ISSUE : Jul. 22, 2021 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd FCC Test Report Report No.: AGC06662210603FE05 Page 2 of 80 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jul. 22, 2021 Valid Initial Release Report No.: AGC06662210603FE05 Page 3 of 80 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. IEEE 802.11N MODULATION SCHEME .................................................................................................... 7 2.4. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 7 2.5. TEST METHODOLOGY ............................................................................................................................. 7 2.6. SPECIAL ACCESSORIES ......................................................................................................................... 7 2.7. EQUIPMENT MODIFICATIONS ................................................................................................................. 7 2.8. ANTENNA REQUIREMENT....................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 11 5.2. EQUIPMENT USED IN EUT SYSTEM ..................................................................................................... 11 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 11 6. TEST FACILITY .............................................................................................................................................. 12 7. OUTPUT POWER ........................................................................................................................................... 13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 14 8. BANDWIDTH .................................................................................................................................................. 15 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 15 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 16 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 27 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 27 9.3. MEASUREMENT EQUIPMENT USEDJN ................................................................................................ 27 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 27 Report No.: AGC06662210603FE05 Page 4 of 80 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ........................................................ 39 10.1 MEASUREMENT PROCEDURE ............................................................................................................ 39 10.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 39 10.3 MEASUREMENT EQUIPMENT USED ................................................................................................... 39 10.4 LIMITS AND MEASUREMENT RESULT ................................................................................................. 39 11. RADIATED EMISSION ................................................................................................................................. 45 11.1. MEASUREMENT PROCEDURE.............................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC06662210603FE05 Page 56 of 80 EUT Wireless NVR Model Name ZR08PU Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11b with data rate 1 2462MHz Antenna Vertical Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC06662210603FE05 Page 57 of 80 EUT Wireless NVR Model Name ZR08PU Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11g with data rate 6 2412MHz Antenna Horizontal Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC06662210603FE05 Page 58 of 80 EUT Wireless NVR Model Name ZR08PU Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11g with data rate 6 2412MHz Antenna Vertical Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC06662210603FE05 Page 59 of 80 EUT Wireless NVR Model Name ZR08PU Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11g with data rate 6 2462MHz Antenna Horizontal Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC06662210603FE05 Page 60 of 80 EUT Wireless NVR Model Name ZR08PU Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11g with data rate 6 2462MHz Antenna Vertical Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC06662210603FE05 Page 61 of 80 EUT Wireless NVR Model Name ZR08PU Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11n20 with data rate 6.5 2412MHz Antenna Horizontal Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC06662210603FE05 Page 62 of 80 EUT Wireless NVR Model Name ZR08PU Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11n20 with data rate 6.5 2412MHz Antenna Vertical Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC06662210603FE05 Page 63 of 80 EUT Wireless NVR Model Name ZR08PU Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11n20 with data rate 6.5 2462MHz Antenna Horizontal Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC06662210603FE05 Page 64 of 80 EUT Wireless NVR Model Name ZR08PU Temperature 25°C Relative Humidity 60% Pressure 960hPa Test Voltage Normal Voltage Test Mode 802.11n20 with data rate 6.5 2462MHz Antenna Vertical Test Graph for Peak Measurement Test Graph for Average Measurement RESULT: PASS Report No.: AGC06662210603FE05 Page 65 of 80 12. LINE CONDUCTED EMISSION TEST 12.1. LIMITS OF LINE CONDUCTED EMISSION TEST Frequency Maximum RF Line Voltage Q.P (dBμV) Average (dBμV) 150kHz~500kHz 66-56 56-46 500kHz~5MHz 56 46 5MHz~30MHz 60 50 Note: 1. The lower limit shall apply at the transition frequency. 2. The limit decreases linearly with the logarithm of the frequency in the range 0.15 MHz to 0.50 MHz. 12.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST EUT & Support Units Report No.: AGC06662210603FE05 Page 66 of 80 12.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST 1. The equipment was set up as per the test configuration to simulate typical actual usage per the user’s manual. When the EUT is a tabletop system, a wooden table with a height of 0.8 meters is used and is placed on the ground plane as per ANSI C63.10 (see Test Facility for the dimensions of the ground plane used). When the EUT is a floor-standing equipment, it is placed on the ground plane which has a 3-12 mm non-conductive covering to insulate the EUT from the ground plane. 2. Support equipment, if needed, was placed as per ANSI C63.10. 3. All I/O cables were positioned to simulate typical actual usage as per ANSI C63.10. 4. All support equipment received AC120V/60Hz power from a LISN, if any. 5. The EUT received DC 5V power from adapter which received AC120V/60Hz power from a LISN. 6. The test program was started. Emissions were measured on each current carrying line of the EUT using a spectrum Analyzer / Receiver connected to the LISN powering the EUT. The LISN has two monitoring points: Line 1 (Hot Side) and Line 2 (Neutral Side). Two scans were taken: one with Line 1 connected to Analyzer / Receiver and Line 2 connected to a 50 Ohm load; the second scan had Line 1 connected to a 50 Ohm load and Line 2 connected to the Analyzer / Receiver. 7. Analyzer / Receiver scanned from 150 kHz to 30MHz for emissions in each of the test modes. 8. During the above scans, the emissions were maximized by cable manipulation. 9. The test mode(s) were scanned during the preliminary test. Then, the EUT configuration and cable configuration of the above highest emission level were recorded for reference of final testing. 12.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST 1. EUT and support equipment was set up on the test bench as per step 2 of the preliminary test. 2. A scan was taken on both power lines, Line 1 and Line 2, recording at least the six highest emissions. Emission frequency and amplitude were recorded into a computer in which correction factors were used to calculate the emission level and compare reading to the applicable limit. If EUT emission level was less – 2dB to the A.V. limit in Peak mode, then the emission signal was re-checked using Q.P and Average detector. 3. The test data of the worst case was reported on the Summary Data page. Report No.: AGC06662210603FE05 Page 67 of 80 12.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST Line Conducted Emission Test Line 1-L Report No.: AGC06662210603FE05 Page 68 of 80 Line Conducted Emission Test Line 2-N RESULT: PASS Report No.: AGC06662210603FE05 Page 69 of 80 APPENDIX A: PHOTOGRAPHS OF TEST SETUP FCC RADIATED EMISSION TEST SETUP BELOW 1GHZ FCC RADIATED EMISS…

Text truncated - open the document above for the full version.

Test Setup Photos FCC RADIATED EMISSION TEST SETUP BELOW 1GHZ FCC RADIATED EMISSION TEST SETUP ABOVE 1GHZ CONDUCTED EMISSION TEST SETUP CONDUCTED TEST SETUP
