2ANX3-ECO01LoRa device

Operating manual Publish Date: 2024-06-05 v1.2 Wireless sensor ElektronikSystem i Umeå AB Tivstevägen 48, 90736 Umeå, Sweden E-mail: [email protected] ǀ Web: www.elsys.se Specifications in this document are subject to change without notice. ©ElektronikSystem i Umeå AB 2024 Operating manual ECO series Operating manual ECO series ElektronikSystem i Umeå AB Tvistevägen 48, 90736 Umeå, Sweden E-mail: [email protected] ǀ Web: www.elsys.se Important safety information Read this manual before attempting to install the device! Failure to observe recommendations included in this manual may be dangerous or cause a violation of the law. The manufacturer, ElektronikSystem i Umeå AB will not be held responsible for any loss or damage resulting from not following the instructions of this operating manual. • The device must not be dismantled or modified in any way. • The device is only intended for indoor use. Do not expose it to moisture. • The device is not intended to be used as a reference sensor, and ElektronikSystem i Umeå AB will not be held liable for any damage which may result from inaccurate readings. • The device must never be subjected to shocks or impacts. • To clean the device, wipe with a soft moistened cloth. Use another soft, dry cloth to wipe dry. Do not use any detergent or alcohol to clean the device. Disposal note in accordance with Waste from Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU The device, as well as all the individual parts, must not be disposed of with household waste or industrial waste. You are obliged to dispose of the device at the end of its service life in accordance with the requirements of Directive 2012/19/EU to protect the environment and to reduce waste through recycling. For additional information and how to carry out disposal, please contact the certified disposal service providers. Operating manual ECO series ElektronikSystem i Umeå AB Tvistevägen 48, 90736 Umeå, Sweden E-mail: [email protected] ǀ Web: www.elsys.se Contents 1. Description ................................................................................................................1 1.1 Dimensions (mm) .........................................................................................1 1.2 Label ................................................................................................................2 1.3 Main features of the ECO series .................................................................3 2. Mounting guidelines ................................................................................................4 3. Installation .................................................................................................................5 4. Service and maintenance ........................................................................................5 5. Sensor configuration ................................................................................................6 5.1 NFC configuration .........................................................................................6 5.2 Over the air configuration ............................................................................7 5.3 Application parameters .................................................................................7 6. Sensor behavior ........................................................................................................8 6.1 Sensor startup ...............................................................................................8 6.2 Energy storage ...............................................................................................8 6.3 Sampling mode / Periodic measurement ..................................................8 6.4 Scheduled transmission ...............................................................................8 6.5 LED indication ................................................................................................9 7. Internal sensors ..................................................................................................... 10 7.1 Temperature ................................................................................................ 11 7.2 Humidity ....................................................................................................... 11 7.3 Light .............................................................................................................. 12 7.4 CO2 .............................................................................................................. 12 8. Device specifications ............................................................................................ 13 Operating manual ECO series ElektronikSystem i Umeå AB Tvistevägen 48, 90736 Umeå, Sweden E-mail: [email protected] ǀ Web: www.elsys.se 9. Sensor payload format ......................................................................................... 14 10. Regulations ....................................................................................................... 14 10.1 Legal notices ............................................................................................... 14 10.2 Federal Communication Commission Interference Statement ........... 15 10.3 Declaration of Conformity ......................................................................... 17 11. Revision History ............................................................................................... 18 Operating manual ECO series 1 ElektronikSystem i Umeå AB Tvistevägen 48, 90736 Umeå, Sweden E-mail: [email protected] ǀ Web: www.elsys.se 1. Description The ECO series of sensors are batteryless LoRaWAN ® indoor climate sensors powered by indoor light. The sensor measures, depending on model, temperature, humidity, light intensity, and CO2 level. It is equipped with NFC (Near Field Communication) for easy configuration with an NFC-enabled smartphone. 1.1 Dimensions (mm) Solar cell surface Operating…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 June 13, 2024 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the following products: FCC ID Model name 2ANX3-ECO01 ECO Series For the product stated above, we request permanent confidentiality for exhibits which contain Operational Description, Block Diagram, Schematics, Parts Lists or Tune Up Information. The above exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Peter Björk Company: ElektronikSystem i Umeå AB Address: Tvistevägen 48 90736 Umeå Sweden Phone: +46-(0)90100500 Email: [email protected]

2024-08-12 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Certification and Engineering Bureau Innovation, Science and Economic Development Canada Spectrum Engineering Branch 3701 Carling Avenue, Building 94 Ottawa, Ontario K2H 8S2 ATTESTATION STATEMENT Declaration on Electrically Identical Models TO WHOM IT MAY CONCERN We, ElektronikSystem i Umeå AB, declare on our sole responsibility that the model family ECO Series, HVIN: ECO, ECO CO2 with IC Certification Number: 26904-ECO01 and FCC ID: 2ANX3-ECO01 is identical in hardware and software to the models tested. The only differences between the models are the number of sensors populated on the PCB. Because of different possible sensor configurations, Radiated Spurious Emissions have been tested with two different sensor configurations to evaluate if the different configurations have any effect on RF performance. These two tested different configurations are representative for both HVIN's. See differences listed in the table below: ECO ECO CO2 Tested Temperature Humidity Light CO2 NFC We attest that above changing are not relevant for any RF behaviour subject to regulatory items. Therefore, CTC advanced GmbH Test Report 1-7043_23-01-12_A and 1-7043_23-01-12_B remain applicable. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Johan Haake, CTO ElektronikSystem i Umeå AB Tvistevägen 48, 90736 Umeå, Sweden +4673-5843663 [email protected]

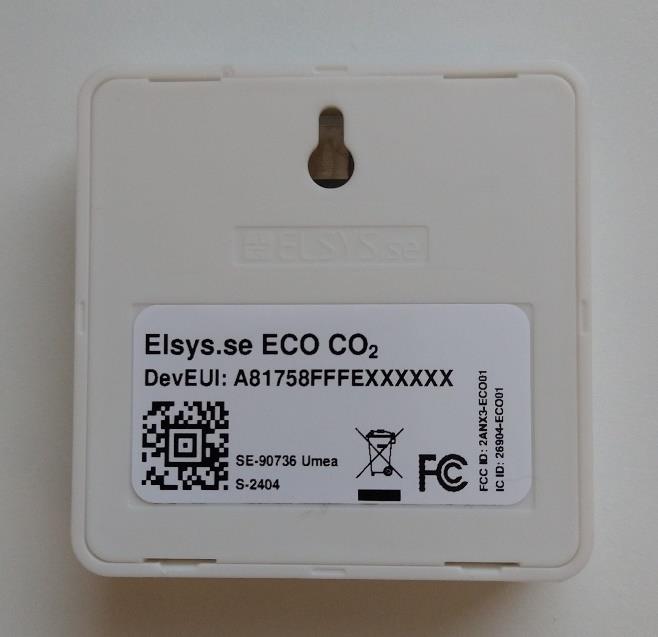

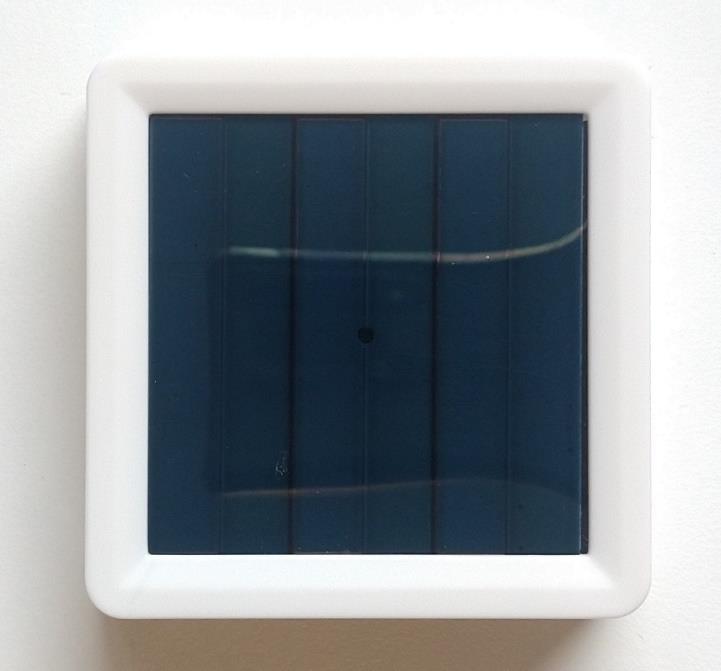

External photos, ECO Front view photos ECO Series Side view photos ECO Series Top ECO Series Bottom FCC ID 2ANX3-ECO01 IC ID: 26904-ECO01 ECO Series left side ECO Series right side Back side and label locations ECO ECO CO2

External photos, ECO Front view photos ECO Series Side view photos ECO Series Top ECO Series Bottom FCC ID 2ANX3-ECO01 IC ID: 26904-ECO01 ECO Series left side ECO Series right side Back side and label locations ECO ECO CO2

Internal photos, ECO Series ECO back side ECO CO2 back side ECO Series front side with solar cell ECO Series front side without solar cell FCC ID 2ANX3-ECO01 IC ID: 26904-ECO01

© cetecom advanced GmbH Page 1 of 2 RF Exposure Evaluation according to KDB 447498 D01 v06 Report identification number: 1-7043_23-01-10_TR1-R03_MPE_FCC Certification numbers and labeling requirements FCC ID 2ANX3-ECO01 This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorised: Alexander Hnatovskiy Eric Tuettmann Lab Manager Testing Manager Radio Labs Radio Labs Report no.: 1-7043_23-01-10_TR1-R03 © cetecom advanced GmbH Page 2 of 2 1. MPE at given distance (KDB 447498 D01 General RF Exposure Guidance v06) Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG / 4 π R 2 where: S = Power density P = Power input to the antenna G = Antenna gain R = Distance to the center of radiation of the antenna PG = Output Power including antenna gain The table below is excerpted from Table 1B of 47 CFR 1.1310 titled “Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure” Frequency Range (MHz) Power Density (mW/cm 2 ) Averaging Time (minutes) 300 -1500 f/1500 30 1500 - 100000 1.0 30 where f = Frequency (MHz) 2. EUT technologies Declared minimum safety distance: 20 cm f Min f Max #P ERP P E IRP P RF E xp S Result S Limit % LoRa 902928AN/A16.416.40.00870.601.44% Output Power [dBm ] SRD Technology Frequency [MH z] Reference Power Density [mW/cm²] Share of Limit Referenced Documents: # Results from: A Customer Questionnaire 3. Conclusion This prediction demonstrates the following: The power density levels for FCC at a distance of 20 cm are below the maximum levels allowed by regulations. Conclusion: RF exposure evaluation is not required.

ABRACON IS ISO9001-2015 CERTIFIED Hidden Creek Ln Spicewood TX 786695101 Phone: 512-371-6159 | Fax: 512-351-8858 REVISED: For terms and conditions of sales, please visit: www.abracon.com OnBoard 868/915/868+2400 MHz - Antenna PRO-OB-471 34.00 x 11.53 x 4.93 mm RoHS/RoHS II Compliant MSL Level = 1 Request Samples Check Inventory Features •Supports 868, 915 or 868+2400 MHz •Profile of 4.93 mm •Mixed Linear Polarization •Surface Mount •Durable-Shelf life of upto 10 years •Three different evaluation boards available: o“SMD 868” for 860-870 MHz o“SMD 915” for 902-928 MHz o“SMD 868+2400” for 860-870 + 2400-2500 MHz Applications •Wi-Fi/BT/LPWA/LoRA/SigFox/ISM •IoT, M2M oIndustrial oInfrastructure oMedical •Remote Technology / Monitoring •Network devices •Consumer Tracking •Smart Metering Product Image ABRACON IS ISO9001-2015 CERTIFIED Hidden Creek Ln Spicewood TX 78669 5101 Phone: 512-371-6159 | Fax: 512-351-8858 REVISED: For terms and conditions of sales, please visit: www.abracon.com OnBoard 868/915/868+2400 MHz - Antenna PRO-OB-471 34.00 x 11.53 x 4.93 mm RoHS/RoHS II Compliant MSL Level = 1 Request Samples Check Inventory Electrical Specification Note: All measurements were conducted on its evaluation board in free space. Performance will vary depending on the ground plane, application, and environment. Mechanical Specification Environmental Specification Parameter Specification Unit “SMD 868” “SMD 915” “SMD 868+2400” Operating Frequency 860 - 870 902 - 928 860 - 870 2400 - 2500 MHz Center Frequency 865 915 865 2450 Return Loss ˂ -9.9 ˂ -6.6 < -8.3 < -4.3 dB dB Polarization Mixed Linear Peak Gain 1.7 2.4 1 3.8 dBi Efficiency > 63 > 50 > 49 > 43 % Impedance 50 Ω Parameter Specification Antenna Dimension 34.00 x 11.53 x 4.93 mm Evaluation board Dimension “SMD 868” 120 x 50 mm Evaluation board Dimension “SMD 915” 120 x 50 mm Evaluation board Dimension “SMD 868+2400” 95 x 38 mm Mounting Type Surface Mount Parameter Specification Operating Temperature -40°C to +125°C Storage Temperature Maximum Temperature 400°C RoHS Compliance Yes Compliant with EU directive 2011/65/EU and 2015/863 Shelf life 10 years MSL Level 1, unlimited Mechanical resistance Immunity to vibrations IEC/EN 60068-2-6, Fc test Immunity to shock IEC/EN 60068-2-27, Ea test ABRACON IS ISO9001-2015 CERTIFIED Hidden Creek Ln Spicewood TX 78669 5101 Phone: 512-371-6159 | Fax: 512-351-8858 REVISED: For terms and conditions of sales, please visit: www.abracon.com OnBoard 868/915/868+2400 MHz - Antenna PRO-OB-471 34.00 x 11.53 x 4.93 mm RoHS/RoHS II Compliant MSL Level = 1 Request Samples Check Inventory Product Dimension Unit : mm Antenna pins and keep-out block Unit : mm ABRACON IS ISO9001-2015 CERTIFIED Hidden Creek Ln Spicewood TX 78669 5101 Phone: 512-371-6159 | Fax: 512-351-8858 REVISED: For terms and conditions of sales, please visit: www.abracon.com OnBoard 868/915/868+2400 MHz - Antenna PRO-OB-471 34.00 x 11.53 x 4.93 mm RoHS/RoHS II Compliant MSL Level = 1 Request Samples Check Inventory PCB layout and antenna pin numbering The antenna uses PIFA technology and should thus be mounted on a ground plane. If there are several layers in the PCB, there is an advantage to add vias for smooth interconnection of the ground areas to avoid splits in the ground plane. It is also important that there is a ground clearance around the NC pads and the RF feed pad, through all layers of the PCB. It is recommended to implement a matching network to optimize the antenna impedance in your application. The components can be positioned under the antenna. See recommendations in the figures below. Pin configuration PCB Layout (from evaluation board) Clearance through all layers Unit: mm ABRACON IS ISO9001-2015 CERTIFIED Hidden Creek Ln Spicewood TX 78669 5101 Phone: 512-371-6159 | Fax: 512-351-8858 REVISED: For terms and conditions of sales, please visit: www.abracon.com OnBoard 868/915/868+2400 MHz - Antenna PRO-OB-471 34.00 x 11.53 x 4.93 mm RoHS/RoHS II Compliant MSL Level = 1 Request Samples Check Inventory Measurement Setup The antenna measurements for 868 MHz were done with the OnBoard “SMD 868” evaluation board (PRO-EB-472, 120 x 50 mm) - measured in free space. The antenna measurements for 915 MHz were done with the OnBoard “ SMD 915” evaluation board (PRO-EB-476, 120 x 50 mm) - measured in free space. The antenna measurements for 868+2400 MHz were done with the OnBoard “SMD 868+2400” evaluation board (PRO-EB-531, 95 x 38 mm) - measured in free space. ABRACON IS ISO9001-2015 CERTIFIED Hidden Creek Ln Spicewood TX 78669 5101 Phone: 512-371-6159 | Fax: 512-351-8858 REVISED: For terms and conditions of sales, please visit: www.abracon.com OnBoard 868/915/868+2400 MHz - Antenna PRO-OB-471 34.00 x 11.53 x 4.93 mm RoHS/RoHS II Compliant MSL Level = 1 Request Samples Check Inventory Reflection Characteristics “SMD 868” – Return Loss Total Radiation Efficiency “SMD 868” Maximum Radiation Gain “SMD 868” ABRACON IS ISO9001-2015 CERTIFIED Hidden Creek Ln Spicewood TX 78669 5101 Phone: 512-371-6159 | Fax: 512-351-8858 REVISED: For terms and conditions of sales, please visit: www.abracon.com OnBoard 868/915/868+2400 MHz - Antenna PRO-OB-471 34.00 x 11.53 x 4.93 mm RoHS/RoHS II Compliant MSL Level = 1 Request Samples Check Inventory Reflection Characteristics “SMD 915” – Return Loss Total Radiation Efficiency “SMD 915” Maximum Radiation Gain “SMD 915” ABRACON IS ISO9001-2015 CERTIFIED Hidden Creek Ln Spicewood TX 78669 5101 Phone: 512-371-6159 | Fax: 512-351-8858 REVISED: For terms and conditions of sales, please visit: www.abracon.com OnBoard 868/915/868+2400 MHz - Antenna PRO-OB-471 34.00 x 11.53 x 4.93 mm RoHS/RoHS II Compliant MSL Level = 1 Request Samples Check Inventory Reflection Characteristics “SMD 868+2400” – Return Loss Total Radiation Efficiency “SMD 868+2400” Maximum Radiation Gain “SMD 868+2400” ABRACON IS ISO9001-2015 CERTIFIED Hidden Creek Ln Spicewood TX 78669 5101 Phone: 512-371-6159 | Fax: 512-351-8858 REVISED: For terms and conditions o…

Text truncated - open the document above for the full version.

Annex A101 - Photographs No.1-7043/23-01-01_TR1-A101-R1 February 29, 2024 DescriptionInternal photographs of EUT This document is electronically signed and valid without handwritten signature. Public keys for verification of the electronic signatures can be requested at the testing laboratory. Authorized Hans-Joachim Wolsdorfer Lab Manager Radio Labs cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7043/23-01-01_TR1-A101-R1 Release 1 - Page 1 of 3 Photo 1 Photo 2 cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7043/23-01-01_TR1-A101-R1 Release 1 - Page 2 of 3 Photo 3 - END OF DOCUMENT - cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7043/23-01-01_TR1-A101-R1 Release 1 - Page 3 of 3

BNetzA - CAB - 02/21 - 102 TEST REPORT Test report no.: 1-7043_23-01-13_A Testing laboratory Applicant cetecom advanced GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: https://cetecomadvanced.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2018-03) by the Deutsche Akkreditierungsstelle GmbH (DAkkS). The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12047-01-00. ISED Testing Laboratory Recognized Listing Number: DE0001 FCC designation number: DE0002 Elektroniksystem i Umeå AB Tvistevägen 48 90736 Umeå / SWEDEN Phone: +46 901 00500 Contact: Fanny Adamson e-mail: [email protected] Manufacturer Elektroniksystem i Umeå AB Tvistevägen 48 90736 Umeå / SWEDEN Test standard/s FCC - Title 47 CFR Part 15 FCC - Title 47 of the Code of Federal Regulations; Chapter I; Part 15 - Radio frequency devices RSS - 247 Issue 3 Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: LoRa device Model name: ECO, ECO CO2 FCC ID: 2ANX3-ECO01 ISED certification number: 26904-ECO01 Frequency: 902.0 MHz – 928.0 MHz Technology tested: LoRa Antenna: Integrated etched pcb antenna Power supply: 2.7 V to 3.6 V DC by solar module Temperature range: +5°C to +35°C This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorized: Test performed: Christoph Schneider Hans-Joachim Wolsdorfer Lab Manager Lab Manager Radio Labs Radio Labs Test report no.: 1-7043_23-01-13_A © cetecom advanced GmbH Page 2 of 51 1 Table of contents 1 Table of contents ....................................................................................................................................... 2 2 General information ................................................................................................................................... 3 2.1 Notes and disclaimer ...................................................................................................................... 3 2.2 Application details .......................................................................................................................... 3 2.3 Test laboratories sub-contracted .................................................................................................... 3 3 Test standard/s, references and accreditations ......................................................................................... 4 4 Reporting statements of conformity – decision rule .................................................................................. 5 5 Test environment ...................................................................................................................................... 6 6 Test item ................................................................................................................................................... 6 6.1 General description ......................................................................................................................... 6 6.2 Additional information .................................................................................................................... 7 7 Description of the test setup ...................................................................................................................... 8 7.1 Shielded semi anechoic chamber .................................................................................................... 9 7.2 Shielded fully anechoic chamber ................................................................................................... 11 7.3 Conducted measurements ............................................................................................................ 12 8 Sequence of testing ................................................................................................................................. 13 8.1 Sequence of testing radiated spurious 9 kHz to 30 MHz ............................................................... 13 8.2 Sequence of testing radiated spurious 30 MHz to 1 GHz ............................................................... 14 8.3 Sequence of testing radiated spurious 1 GHz to 12 GHz ............................................................... 15 9 Measurement uncertainty ........................................................................................................................ 16 10 Additional comments ........................................................................................................................... 17 11 Summary of measurement results ....................................................................................................... 18 12 Measurement results ........................................................................................................................... 19 12.1 Maximum output power ............................................................................................................. 19 12.2 Antenna gain ............................................................................................................................. 22 12.3 Power spectral density .............................................................................................................. 23 12.4 Spectrum bandwidth – 6 dB bandwidth and 99% bandwidth ...................................................... 26 12.5 Detailed spurious emissions @ the band edge – conducted and radiated .................................. 3…

Text truncated - open the document above for the full version.

Annex A102 - Photographs No.1-7043/23-01-01_TR1-A102-R1 February 29, 2024 DescriptionExternal photographs of EUT This document is electronically signed and valid without handwritten signature. Public keys for verification of the electronic signatures can be requested at the testing laboratory. Authorized Hans-Joachim Wolsdorfer Lab Manager Radio Labs cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7043/23-01-01_TR1-A102-R1 Release 1 - Page 1 of 3 Photo 1 Photo 2 cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7043/23-01-01_TR1-A102-R1 Release 1 - Page 2 of 3 Photo 3 Photo 4 - END OF DOCUMENT - cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7043/23-01-01_TR1-A102-R1 Release 1 - Page 3 of 3

Annex A104 - Photographs No.1-7043/23-01-01_TR1-A104-R1 February 29, 2024 DescriptionTest set-up photographs This document is electronically signed and valid without handwritten signature. Public keys for verification of the electronic signatures can be requested at the testing laboratory. Authorized Hans-Joachim Wolsdorfer Lab Manager Radio Labs cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7043/23-01-01_TR1-A104-R1 Release 1 - Page 1 of 3 Photo 1 Photo 2 cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7043/23-01-01_TR1-A104-R1 Release 1 - Page 2 of 3 Photo 3 Photo 4 - END OF DOCUMENT - cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7043/23-01-01_TR1-A104-R1 Release 1 - Page 3 of 3
