Comson (Shenzhen) Electronic Technology Co.,Ltd. Soundbar Bluetooth Speaker Mode No.:S10 USER MANUAL Read all instructions before using your speaker Waring： Do not put this product in a high temperature and humid environment, please put it in a ventilated and dry place. If metal objects or liquid are spilled into the product accidentally,should be cut off the power supply immediately and the product can be used after inspection by a professional. Do not open the product shell at will to prevent other accidents. If you need to repair, please contact our company's after‐sales service to help. Any modification or disassembly of this equipment without permission will lose the right to enjoy the after‐sales service. Product Description: 1) Support Bluetooth V5.0 ,Plays up to 10 meters (Approximately 30 feet) 2) Support Five playback modes: Bluetooth (hands‐free), AUX In, U disk (PC mode,use a USB date cable to Connect to PC), TF card, FM Radio 3) Built‐in Microphone with echo inside 4) Using DSP technology to enhance the three kinds of sound effects (music mode, game mode, classical mode), in different EQ mode,the sound quality is clear and natural, the treble is beautiful and the bass is full and rich,So People can enjoy the shocking game sound, Just Like a real immersive live duel. 5) Mechanical gaming keyboard with RGB light backlight changing synchronized with music. And the RGB light have 7 mode can be option. 6) Support Lossless audio format : APE, FLAC, MP3, WAV, MP3, WMA. 7) Support standby mode:When the speaker is not playing, it will automatically stand by after 30 minutes and into the low power consumption mode. Interface & Function Description: 1）Charging indicator 2）TYPE‐C USB charging port 3）External microphone input 4）Audio signal input (also FM antenna) 5）U Disk Interface （REMARK:PC mode is the same interface） 6）TF card slot 7）Function keyboard and Symphony decorative lights 8）Built‐in MIC Buttons&Keyboard function description: 1) On/Off : long press for two seconds to turn on or standby 2) Mode key: Short press mode key to switch (U disk, TF card, Bluetooth, AUX, FM) 3) Volume ‐: short press and long press to decrease volume 4) Volume +: short press and long press volume up 5) Sound effect option key: short press to switch in music mode/game mode/ classical mode 6) Play/Pause key: Short press to pause or mute, in Bluetooth mode, long press for two seconds to re‐pair Bluetooth, and then short press again to connect to the currently disconnected Bluetooth; in FM mode, long press for two seconds to re‐search the radio station, and auto save station when search finished. 7) Previous song key: previous song or previous station 8) Next song key: next song or next station 9) Colorful light mode button: short press to switch cyclically in 7 RGB light mode, long press for two seconds to turn off the light or turn on the light Operation guider: 1) Bluetooth pairing mode: Using the controls on your Bluetooth device, scan for and select “S10” in your Bluetooth settings to pair. If your device requests a password, enter the default password “0 0 0 0” . Refer to the user’s manual for your specific device for instructions on pairing and connecting Bluetooth devices. long press to turn on, the default is Bluetooth mode with a prompt tone, the Bluetooth speaker will automatically enter the pairing connection ,and the blue decorative light flashes quickly;After paired,you can heard a prompt sound "Bluetooth connection successful", and the blue indicator light flashes slowly. Kind noted :It’s will automatically connect to the last Bluetooth device which was paired. 2) Bluetooth playing music and answering calls mode: In Bluetooth mode, after the speaker and the Bluetooth device are connected, if a music file has been added to the Bluetooth device’s music play list, short press the Bluetooth speaker Play/pause button to control the phone or Bluetooth device Play music, the blue LED light is on when the music is playing normally, and in pause the led is slow flashing; when the phone has an incoming call, the Bluetooth speaker automatically pauses the play, short press the play/ pause button to answer the call, And then short press the play/ pause button To hang up the call, the music will be played automatically after the call. 3) The Bluetooth speaker to disconnected from other Bluetooth devices: in the Bluetooth mode, long press the play/pause button for 2 seconds to enter the Bluetooth re‐pairing state, the blue decorative light flashes quickly, and it stays on after the connection is successful. 4) AUX‐IN mode: Insert a Φ3.5 stereo plug switch to AUX‐IN input mode automatically. 5) FM play mode: switch to FM mode, long press the play/pause button to automatic FM radio search, it’s will play the first saved station after searching, and short press the previous or next button to switch between stations. (Reminder: When using the FM mode, please insert the audio signal cable into the AUX‐IN Slot as an FM antenna) 6) TF card mode: Insert a TF card and automatically switch to TF card mode. 7) U Disk Play Mode: Insert a U Disk and automatically switch to U disk Play mode. 8) PC mode: After inserting the USB data cable to the computer USB port, it will automatically switch to the USB sound card mode，Music/Sound can be input from PC. And meantime,The sound can be transmitted to PC though the speaker. Just like a headset,the sound can be interconnection and transfer between PC & speaker when gaming. The Clarity dialogue and immersive volume, perfect for your games & movies Experience. Charging and low battery reminder: the indicator light will be on when charging, and it will go out when fully charged. When the battery is too low, "beep~" prompt sound, need to be charged in time. When the product is not used for a long time, it is recommended to charge the product once every quarter to extend the life of the lithium battery. Date sheet and Specifications: Music input mode U disk, TF Card, Bluetooth Co…

Text truncated - open the document above for the full version.

Comson (Shenzhen) Electronic Technology Co.,Ltd. 3rd Floor, Building 22#, No. 6 Xingye 1st road, Fenghuang Community, Fuyong, Bao'an District, Shenzhen, 518103, China Tel: +86 0755-85258717 Fax: +86 0755-85250310 Series Models Description Date: 2021/05/25 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD FCC ID: 2ANXIS10BT418 Dear Sir/Madam, We, Comson (Shenzhen) Electronic Technology Co.,Ltd. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only color and model number is different for these model: Product name: Soundbar Bluetooth Speaker Model no.: S10, S10X, BT-418, BT10, BT10X, BT-416 Sincerely, Name: Jiamao Fu Company: Comson (Shenzhen) Electronic Technology Co.,Ltd. Address: 3rd Floor, Building 22#, No. 6 Xingye 1st road, Fenghuang Community, Fuyong, Bao'an District, Shenzhen, 518103, China Phone: +86 0755-85258717 Fax: +86 0755-85250310 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: May 25, 2021 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ANXIS10BT418 S10, S10X, BT-418, BT10, BT10X, BT-416 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Jiamao Fu Company: Comson (Shenzhen) Electronic Technology Co.,Ltd. Address: 3rd Floor, Building 22#, No. 6 Xingye 1st road, Fenghuang Community, Fuyong, Bao'an District, Shenzhen, 518103, China Phone: +86 0755-85258717 Fax: +86 0755-85250310 E-Mail: [email protected]

Comson (Shenzhen) Electronic Technology Co.,Ltd. 3rd Floor, Building 22#, No. 6 Xingye 1st road, Fenghuang Community, Fuyong, Bao'an District, Shenzhen, 518103, China Tel: +86 0755-85258717 Fax: +86 0755-85250310 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 5/26/2021 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ANXIS10BT418 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: Jiamao Fu Company: Comson (Shenzhen) Electronic Technology Co.,Ltd. Address: 3rd Floor, Building 22#, No. 6 Xingye 1st road, Fenghuang Community, Fuyong, Bao'an District, Shenzhen, 518103, China Phone: +86 0755-85258717 Fax: +86 0755-85250310 E-Mail: [email protected]

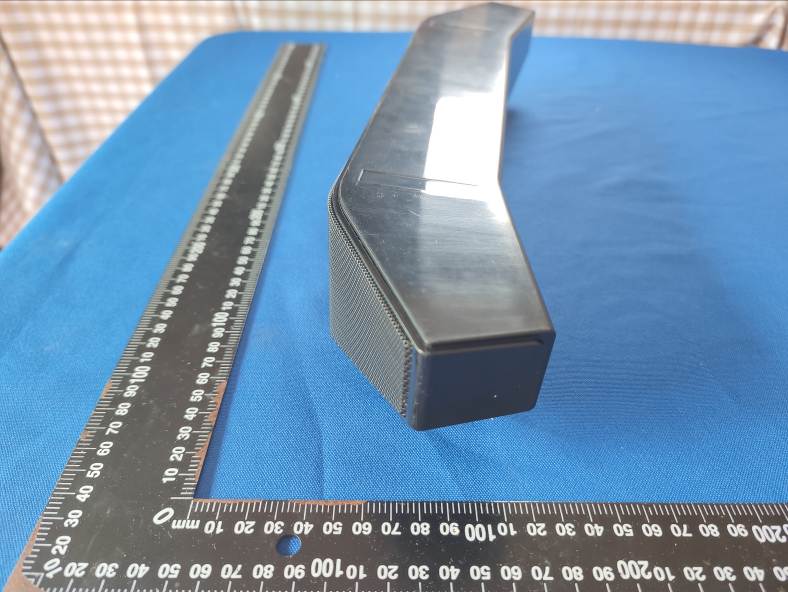

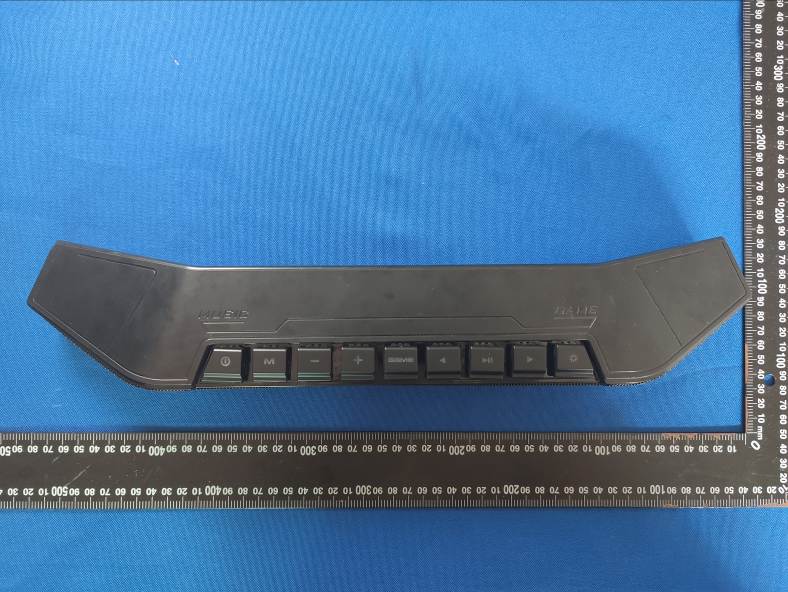

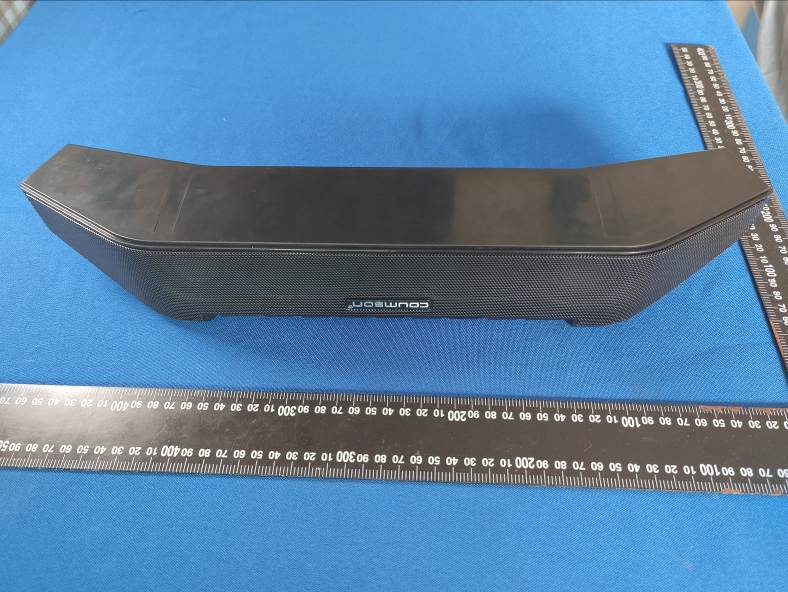

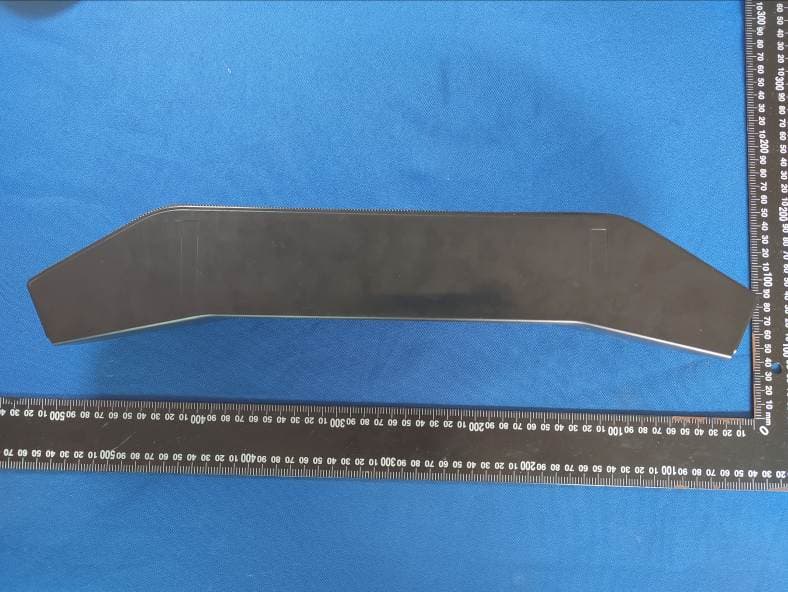

FCC ID: 2ANXIS10BT418 Test Model: S10

Label and Label Location Soundbar Bluetooth Speaker Model: S10 FCC ID: 2ANXIS10BT418 Comson (Shenzhen) Electronic Technology Co.,Ltd. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2ANXIS10BT418 Test Model: S10 Antenna

RF Exposure evaluation FCC ID: 2ANXIS10BT418 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK Channel Channel 00 Channel 39 Channel 78 Target (dBm) -2.0 -1.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK Channel Channel 00 Channel 39 Channel 78 Target (dBm) -2.0 -1.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 8DPSK Channel Channel 00 Channel 39 Channel 78 Target (dBm) 3.0 2.0 2.0 Tolerance ±(dB) 1.0 1.0 1.0 2. Evalu ation Result Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.402 5 4 2.512 0.8<3.0 Yes 3. C on clu sion The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06, No SAR is required. .....................End.........................

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ............................................ : GTS20210517015-1-1 2ANXIS10BT418 Compiled by ( position+printed name+signature) .. : File administrators Jimmy Wang Supervised by ( position+printed name+signature) .. : Test Engineer Aaron Tan Approved by ( position+printed name+signature) .. : Manager Jason Hu Date of issue ..................................... : May 18, 2021 Representative Laboratory Name .: Shenzhen Global Test Service Co., Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : Comson (Shenzhen) Electronic Technology Co.,Ltd. Address ............................................ : 3rd Floor, Building 22#, No. 6 Xingye 1st road, Fenghuang Community, Fuyong, Bao'an District, Shenzhen, 518103, China Test specification ...........................: Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ....................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Soundbar Bluetooth Speaker Trade Mark ....................................... : Manufacturer ................................... : Comson (Shenzhen) Electronic Technology Co.,Ltd. Model/Type reference....................... : S10 Listed Models .................................. : S10X, BT-418, BT10, BT10X, BT-416 Ratings ............................................. : DC 7.4V by Rechargeable Li-ion Battery Charging power input: 5V2A Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Hardware version ............................. : REV:0.1 Software version .............................. : V1.0 Frequency .......................................... From 2402MHz to 2480MHz Result................................................ : PASS Report No.: GTS20210517015-1-1 Page 2 of 47 T E S T R E P O R T Test Report No. : GTS20210517015-1-1 May 18, 2021 ____________________________________________________________________________________ Date of issue Equipment under Test : Soundbar Bluetooth Speaker Model /Type : S10 Listed Models : S10X, BT-418, BT10, BT10X, BT-416 Applicant : Comson (Shenzhen) Electronic Technology Co.,Ltd. Address : 3rd Floor, Building 22#, No. 6 Xingye 1st road, Fenghuang Community, Fuyong, Bao'an District, Shenzhen, 518103, China Manufacturer : Comson (Shenzhen) Electronic Technology Co.,Ltd. Address : 3rd Floor, Building 22#, No. 6 Xingye 1st road, Fenghuang Community, Fuyong, Bao'an District, Shenzhen, 518103, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20210517015-1-1 Page 3 of 47 Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Test Sample 5 2.4 Equipment Under Test 5 2.5 Short description of the Equipment under Test (EUT) 6 2.6 EUT operation mode 6 2.7 Block Diagram of Test Setup 6 2.8 Special Accessories 6 2.9 Related Submittal(s) / Grant (s) 6 2.10 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 13 4.3 Maximum Peak Output Power 19 4.4 20dB Bandwidth 20 4.5 Frequency Separation 24 4.6 Number of hopping frequency 26 4.7 Time of Occupancy (Dwell Time) 28 4.8 Out-of-band Emissions 32 4.9 Pseudorandom Frequency Hopping Sequence 40 4.10 Antenna Requirement 41 5 T E S T S E T UP P H O T O S O F T H E E U T ......................................... 42 6 P H O T O S O F T H E E U T ........................................................... 43 Report No.: GTS20210517015-1-1 Page 4 of 47 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices Report No.: GTS20210517015-1-1 Page 5 of 47 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Apr. 22, 2021 Testing commenced on : Apr. 23, 2021 Testing concluded on : May 06, 2021 2.2 Product Description Product Description: Soundbar Bluetooth Speaker Model/Type reference: S10 Listed Models: S10X, BT-418, BT10, BT10X, BT-416 Model Difference: PCB board, circuit, structure and internal of these model(s) are the same, On…

Text truncated - open the document above for the full version.

FCC ID: 2ANXIS10BT418 Test Model: S10 Test Setup for Power Line Conducted Emissions Test Setup for Radiated Emissions(Below 1GHz) Test Setup for Radiated Emissions(Above 1GHz)
