2ANYC-RF5520Portable Barcode Reader

QuickUseGuide https://fast.scandocs.net/manual/WX-BT/en Formoreproductinformation,scantheQRcodeorvisitthewebsite. WX-BT-V1.1 ImportantSafetyInstructions Keepthereadingwindowclean.  Maintaintheoptimaldistancebetweenthescannerand barcodeforhighsuccessrate. Ensurebarcodequality(avoidwrinkledorcontaminated labels).  Enablethecorrespondingbarcodetypeifnotalready activated. Recommendations Followthemanualinstructionsforproperoperation.  Useabrushtoremovedirtfromthereadingwindow. Useabrushtoremovedirtfromthereadingwindow. Cleanthewindowwithasoftcloth(e.g.,glassescleaning cloth). Avoidstoringthedeviceinexcessivelyhotenvironments. Keepthedeviceawayfromdustyordirtysurroundings. Disclaimer Duetoproductupdates,somedetailsinthisdocument maydifferfromtheactualproduct.Pleaserefertothe physicalproductforaccuracy.Theinterpretationrightsof thisdocumentbelongtoourcompany.Wereservethe righttomodifythismanualwithoutpriornotice. FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body.

Guangzhou Netum Electronic Technology Co., Ltd. Building 1, No. 51 Xiangshan Avenue, Ningxi Street, Zengcheng District Guangzhou, 511300 China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2025/12/10 U.S. Agent Designation Guangzhou Netum Electronic Technology Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2ANYC-RF5520): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Guangzhou Netum Electronic Technology Co., Ltd. Guangzhou Netum Electronic Technology Co., Ltd. with the FRN [0032927238] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature QiuHua Liao Hardware Engineer Guangzhou Netum Electronic Technology Co., Ltd. Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

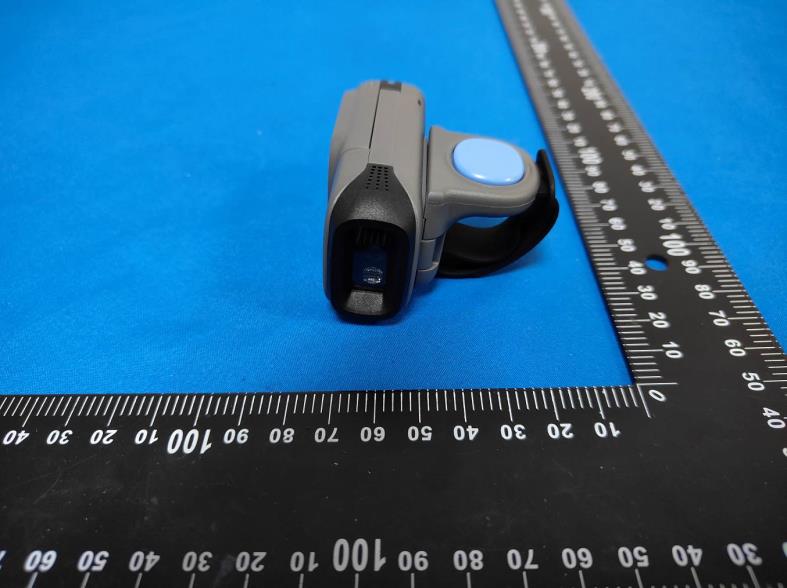

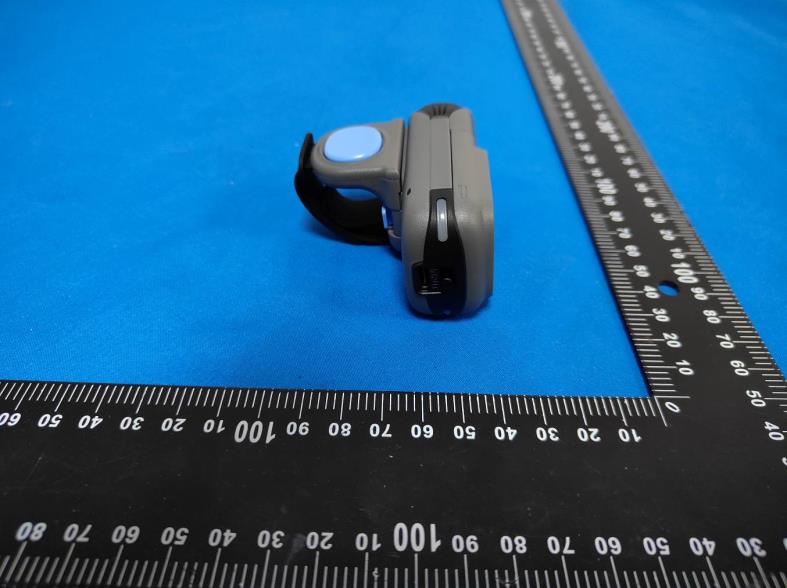

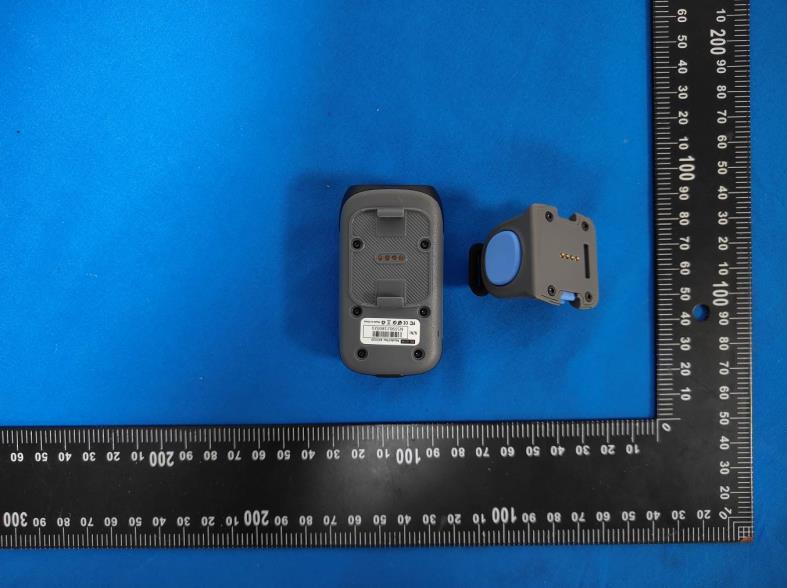

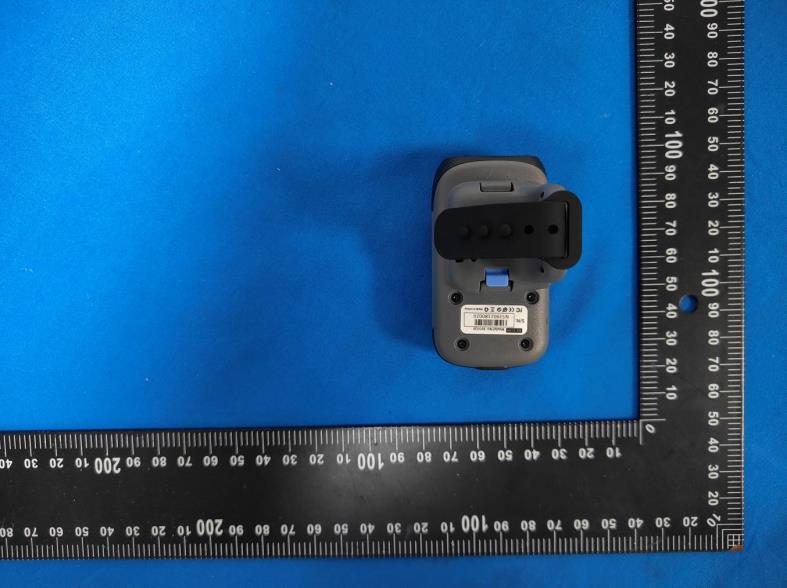

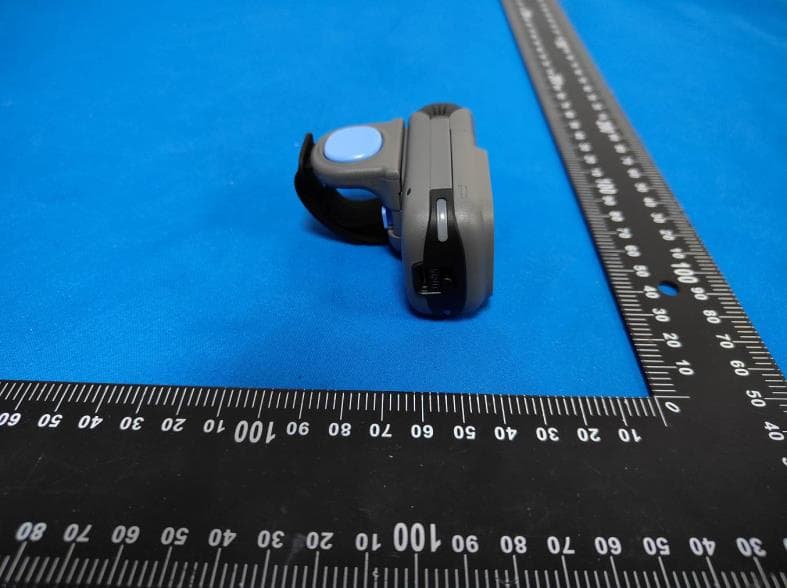

FCC ID:2ANYC-RF5520 External Photos of the EUT FCC ID:2ANYC-RF5520 FCC ID:2ANYC-RF5520

Label and Location Size: L: 3.0cm*W: 1.0cm Label and Location FCC ID : 2ANYC-RF5520

FCC ID:2ANYC-RF5520 Internal Photos of the EUT FCC ID:2ANYC-RF5520 FCC ID:2ANYC-RF5520 FCC ID:2ANYC-RF5520 ANT FCC ID:2ANYC-RF5520 FCC ID:2ANYC-RF5520

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID. ........................................... : CTA25112801803 2ANYC-RF5520 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Ace Chai Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Dec. 06, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Guangzhou Netum Electronic Technology Co., Ltd. Address ............................................ : Building 1, No. 51 Xiangshan Avenue, Ningxi Street, Zengcheng District Guangzhou, 511300 China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Portable Barcode Reader Trade Mark ....................................... : NETUM, NetumScan Manufacturer .................................... : Guangzhou Netum Electronic Technology Co., Ltd. Model/Type reference ....................... : RF5520 Listed Models ................................... : Refer to page 2 Ratings.............................................. : Input: 5V2A Battery: 3.7V 1200mAh 4.44Wh Result ................................................ : PASS Report No.: CTA25112801803 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Portable Barcode Reader Model /Type : RF5520 Listed Models : RF3520, RF3521, RF352X, RF5521, RF552X, RF7520, RF7521, RF752X, RF8520, RF852X, RF9520, RF952X, RF8099, RF5520U, RF9520X Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Guangzhou Netum Electronic Technology Co., Ltd. Address : Building 1, No. 51 Xiangshan Avenue, Ningxi Street, Zengcheng District Guangzhou, 511300 China Manufacturer : Guangzhou Netum Electronic Technology Co., Ltd. Address : Building 1, No. 51 Xiangshan Avenue, Ningxi Street, Zengcheng District Guangzhou, 511300 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25112801803 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 8 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion .............................................................................................…

Text truncated - open the document above for the full version.

ShenZhen Feasycom Technology Co.,Ltd www.feasycom.com -1- Bluetooth antenna of PCB on-board specification 1，Index Item Content Page Remark 1 Index 1 2 Spec Drawing 2 3 Specification 2 4 Antenna On Test Board 3 5 Return Loss 3 6 Radiation Pattern 3 Document Type: 2.4GHZ coil antenna Document Version: V1.0 Release Date: Oct. 30，2018 ShenZhen Feasycom Technology Co.,Ltd Telephone: 86-755-27924639 Shenzhen Feasycom Technology Co.,Ltd ShenZhen Feasycom Technology Co.,Ltd www.feasycom.com -2- www.feasycom.com 2，Spec Drawing 3，Specification Product Number: 2.4GHZ coil antenna Sample Photo: A. Electrical Characteristics Frequency 2400 ~ 2500 MHz S.W.R. <=2.0 Gain 2.0 dBi Efficiency ~ 50% Polarization Linear Impedance 50 Ohm Shenzhen Feasycom Technology Co.,Ltd ShenZhen Feasycom Technology Co.,Ltd www.feasycom.com -3- B. Material & Mechanical Characteristics Material of Radiator Gold-plated copper C. Environmental Operation Temperature - 40°C ~ + 85°C Storage Temperature - 40°C ~ + 105°C 4，Antenna On Test Board 5, Return Loss 6，Radiation Pattern Radiation Pattern and Gain were dependent on measurement board design. The specification of coil antenna was measur ed based on the PCB size and installation position as shown in the below figure Test Board. FR4 Thickness 0.8mm Shenzhen Feasycom Technology Co.,Ltd ShenZhen Feasycom Technology Co.,Ltd www.feasycom.com -4- Vertical Horizontal Y - Z Plane Average Gain=1.19 dBi Peak Gain = 2.00 dBi Average Gain = 0.71 dBi Peak Gain= -1.37 dBi Average Gain=-8.6 dBi X - Z Plane Average Gain=-2.91dBi Peak Gain= -3.76 dBi Average Gain= -8.72dBi Peak Gain= -0.25 dBi Average Gain= -4.24 dBi Shenzhen Feasycom Technology Co.,Ltd ShenZhen Feasycom Technology Co.,Ltd www.feasycom.com -5- X - Y Plane Average Gain=-0.95 dBi Peak Gain= 0.76 dBi Average Gain= -5.81dBi Peak Gain= 1.37 dBi Average Gain= -2.67 dBi Shenzhen Feasycom Technology Co.,Ltd

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA25112801801 2ANYC-RF5520 Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Dec. 06, 2025 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: Guangzhou Netum Electronic Technology Co., Ltd. Address ...........................................: Building 1, No. 51 Xiangshan Avenue, Ningxi Street, Zengcheng District Guangzhou, 511300 China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Portable Barcode Reader Trade Mark ......................................: NETUM, NetumScan Manufacturer ...................................: Guangzhou Netum Electronic Technology Co., Ltd. Model/Type reference .....................: RF5520 Listed Models ..................................: Refer to page 2 Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: Input: 5V2A Battery: 3.7V 1200mAh 4.44Wh Result ..............................................: PASS Report No.: CTA25112801801 Page 2 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Portable Barcode Reader Model /Type : RF5520 Listed Models : RF3520, RF3521, RF352X, RF5521, RF552X, RF7520, RF7521, RF752X, RF8520, RF852X, RF9520, RF952X, RF8099, RF5520U, RF9520X Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Guangzhou Netum Electronic Technology Co., Ltd. Address : Building 1, No. 51 Xiangshan Avenue, Ningxi Street, Zengcheng District Guangzhou, 511300 China Manufacturer : Guangzhou Netum Electronic Technology Co., Ltd. Address : Building 1, No. 51 Xiangshan Avenue, Ningxi Street, Zengcheng District Guangzhou, 511300 China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25112801801 Page 3 of 36 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS .......................................................................................................................................... 4 2 SUMMARY ........................................................................................................................................................ 5 2.1 General Remarks .................................................................................................................................... 5 2.2 Product Description* ................................................................................................................................ 5 2.3 Equipment Under Test ............................................................................................................................ 5 2.4 Short description of the Equipment under Test (EUT) ............................................................................ 5 2.5 EUT configuration .................................................................................................................................... 5 2.6 EUT operation mode ............................................................................................................................... 5 2.7 Block Diagram of Test Setup .................................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) .............................................................................................................. 6 2.9 Modifications ........................................................................................................................................... 6 3 TEST ENVIRONMENT ...................................................................................................................................... 7 3.1 Address of the test laboratory .............................................................................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BLE FCC ID : 2ANYC-RF5520 Company : Guangzhou Netum Electronic Technology Co., Ltd. EUT : Portable Barcode Reader Model Number : RF5520 Report No. : CTA25112801801 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.660 2401.680 2402.340 0.5 PASS 2440 0.632 2439.700 2440.332 0.5 PASS 2480 0.648 2479.692 2480.340 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0034 2401.5174 2402.5208 --- --- 2440 1.0016 2439.5195 2440.5211 --- --- 2480 1.0071 2479.5181 2480.5252 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -0.06 ≤30 PASS 2440 -0.43 ≤30 PASS 2480 -0.42 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -15.63 ≤8.00 PASS 2440 -16.34 ≤8.00 PASS 2480 -15.86 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -0.17 -51.23 ≤-20.17 PASS High 2480 -0.35 -52.6 ≤-20.35 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -2.03 -2.03 --- PASS 30~1000 -2.03 -67.96 ≤-22.03 PASS 1000~26500 -2.03 -43.04 ≤-22.03 PASS 2440 Reference -1.48 -1.48 --- PASS 30~1000 -1.48 -68.36 ≤-21.48 PASS 1000~26500 -1.48 -44.41 ≤-21.48 PASS 2480 Reference -0.90 -0.90 --- PASS 30~1000 -0.90 -67.47 ≤-20.9 PASS 1000~26500 -0.90 -44.33 ≤-20.9 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.62 0.6613 66.13 1.80 --- --- 2440 0.41 0.62 0.6613 66.13 1.80 --- --- 2480 0.41 0.62 0.6613 66.13 1.80 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21
