2AO23-BTSP25Bluetooth Speaker

wireless speaker • Full charge requires approximately 2.5 hours and can play for 4 hours with full charge • Charging is complete when red light turns o • Plug USB-C end of charging cable into back of speaker • Plug USB end of charging cable into a power supply of at least DC 5V 1A charging • You can pair two speakers of this same model together to get true stereo sound • Turn Bluetooth o on your device, place two matching speakers together, switch them on, double click power button on one speaker to enter TWS paring • The speakers will automatically pair with one another, you will hear an ascending double chime when they pair • After the speakers are paired, the indicator will be solid blue on the left channel speaker and will ash blue on the right channel speaker; use your device to connect to Soda Pop Speaker • Pairing of multiple speakers does not rely on the "Dual Audio" feature of newer phones TWS (True Wireless Stereo) pairing • Do not modify or repair this device • Do not use in high temperatures or extreme weather • Do not use chemical detergents to clean your device, us a soft dry cloth safety • If the speaker is not working correctly, turn it on/o to reset • If the speaker won’t turn on, recharge the battery and try again • If the speaker won’t charge, make sure the supply works, is 5V 1A, and not damaged • If the speaker makes no sound or does not show as an available device, make sure it is not paired with other devices, if so unpair the device and repair the desired device troubleshooting Can’t get it to pair? Just have a question? call us at: 1-833-TGT-Tech or: 1-833-848-8324 need some help? • Insert your AUX cable (not included) into AUX port of the speaker • Insert opposite end of the AUX cable into the media source AUX/line in • Hold the dial for 3 seconds to power on • Wait for rapid ashing blue light • Use Bluetooth settings on your phone to pair with Soda Pop Speaker • Blue light turns solid followed by a chime - pairing successful pairing • Solid red - charging • No red light - fully charged • Rapid ashing blue - pairing mode • Solid blue - bluetooth connected • Ascending tones - power on • Descending tones- power o • Descending double chime - ready to pair • Ascending double chime - paired • Low descending tune - low battery • Two high chimes - max volume • Two low chimes - min. volume indicators • Wireless speaker • USB-A to USB-C charging cable included Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Target Corp. Mpls. MN, 55403 Phone: 612-304-6073 For qualied repair specialists requesting repair information and parts please contact the original manufacturer at customersupport@gemsndyours.com WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction. FCC ID: 2AO23-BTSP25 Model: BTSP25 Input: 5V 1A Made in China This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. backtop charge port AUX port microphone hold for 3 sec. - on/o/reject incoming call click- play/ pause/answer/ end calls click the dial left - vol. up/next track click the dial right - vol. down/prev. track double click - TWS pairing triple click - switch mode: Bluetooth/aux indicator loudspeaker 5.78in

Chug, Inc. 7157 Shady Oak Rd, Eden Prairie MN 55344, United States 092723-17 rev 10 Certification Application Attestation Statements Date: June 22, 2026 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) ______Chug,Inc.______ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) _____Chug,Inc.______ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is /  - is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates – see KDB 986446 Question 5) as an entity producing “covered” equipment. The applicant also certifies that the device does not have cybersecurity and/or anti-virus software produced by Kaspersky Lab, Inc or any of its successors and assignees identified on the covered list installed on the device, nor will it be installed by the applicant at any time after certification. Thank you, By: __________________________ ________Michael Clemmer__________ (Signature 2 ) (Print name) Title: ______general manager________ Company: _______Chug,Inc.________ Telephone: _____612-868-2191_ 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters must be placed on appropriate letterhead.

U.S. Agent Designation for Service of Process (Applicant is Both Grantee and U.S. Agent) TO: American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information This letter is to confirm that the Applicant will also serve as the U.S. Agent for Service of Process as required by 47 CFR 2.911(d)(7). The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The Applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information changes. Applicant Company name: Chug,Inc. FRN #: 0027222264 Grantee Code:2AO23 Contact Name:Michael Clemmer Street Address:7157 Shady Oak Rd, Eden Prairie MN 55344, United States City/Province/Zip: Wshington,55344 Telephone No:612-868-2191 Email:[email protected] Applicant Signature 1 : Date: 2026-6-22 Signed by (Printed Name/Title): Michael Clemmer,general manager 1 - Letters must be placed on appropriate letterhead. The signee for the applicant must be one of the following: Applicant (grantee) contact of record in the FCC’s authorization system, or authorized officers or employee of the applicant (grantee).

Chug, Inc. 7157 Shady Oak Rd, Eden Prairie MN 55344, United States 050222-17 Authority to Act as Agent Date: June 22, 2026 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: ____Shenzhen UnionTrust Quality and Technology Co., Ltd.______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: _____12 months__ By: __________________________ __________Michael Clemmer____ (Signature 1 ) (Print name) Title: __________general manager___ On behalf of: ___________Chug,Inc. (Company Name) Telephone: _612-868-2191_______ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Chug, Inc. 7157 Shady Oak Rd, Eden Prairie MN 55344, United States 050222-17 Request for Confidentiality Date: June 22, 2026 Subject: Confidentiality Request for: ____2AO23-BTSP25 Pursuant to FCC 47 CFR 0.457(d) and 0.459 and/or IC RSP-100, Section 12.4, the applicant requests that a part of the subject application(s) be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☐ Short Term --------------------------- External Photos ☐ Short Term ☐ Permanent * 1 Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☐ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☐ Short Term --------------------------- Test Setup Photos ☐ Short Term ☐ Permanent * 1 User’s Manual ______Chug,Inc.______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality for FCC Applications: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __N/A__ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Short Term Confidentiality for Industry Canada Applications: Starting May 2022, ISED will recognize short term confidentiality on certain exhibits until the intended date of marketing. The applicant requests the exhibits selected above as short term confidential be withheld from public view until: (specify ISED expiration date / date of marketing) . Sincerely, By: ____________general manager_ Michael Clemmer (Signature/Title 2 ) (Print name) The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

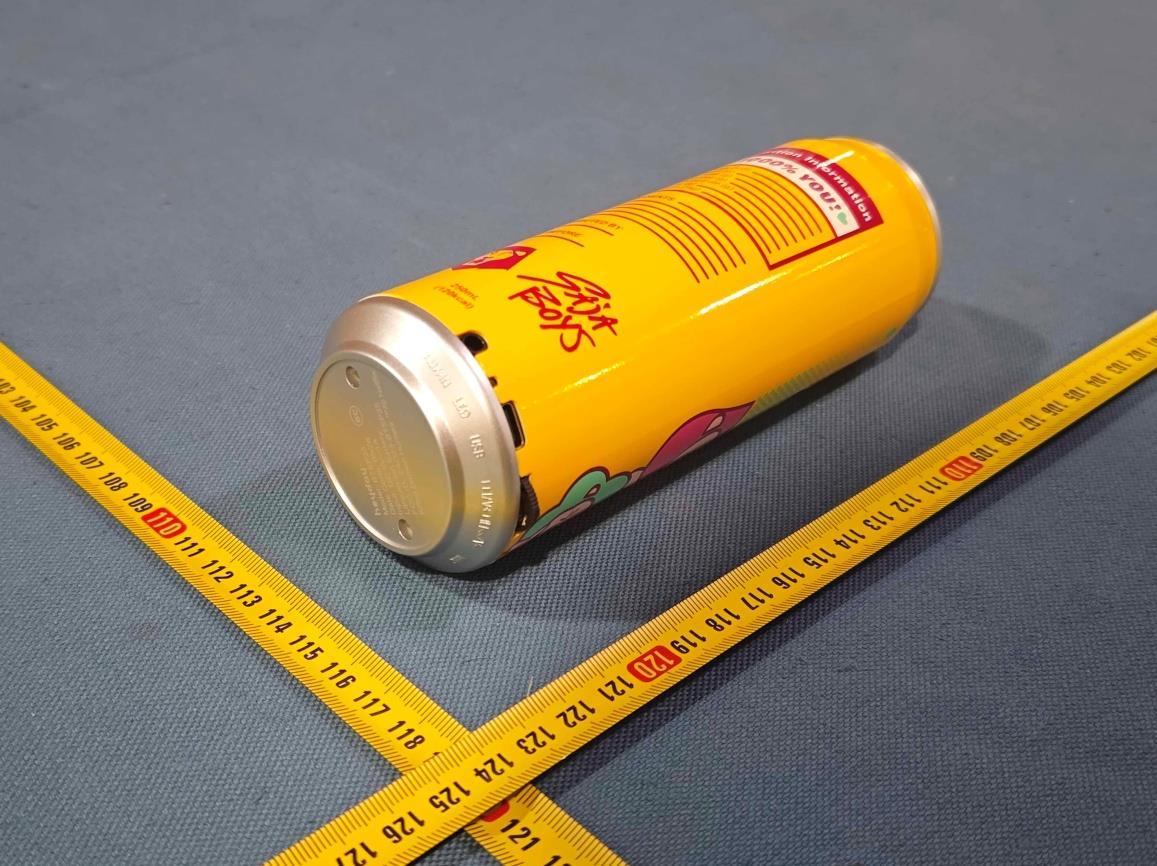

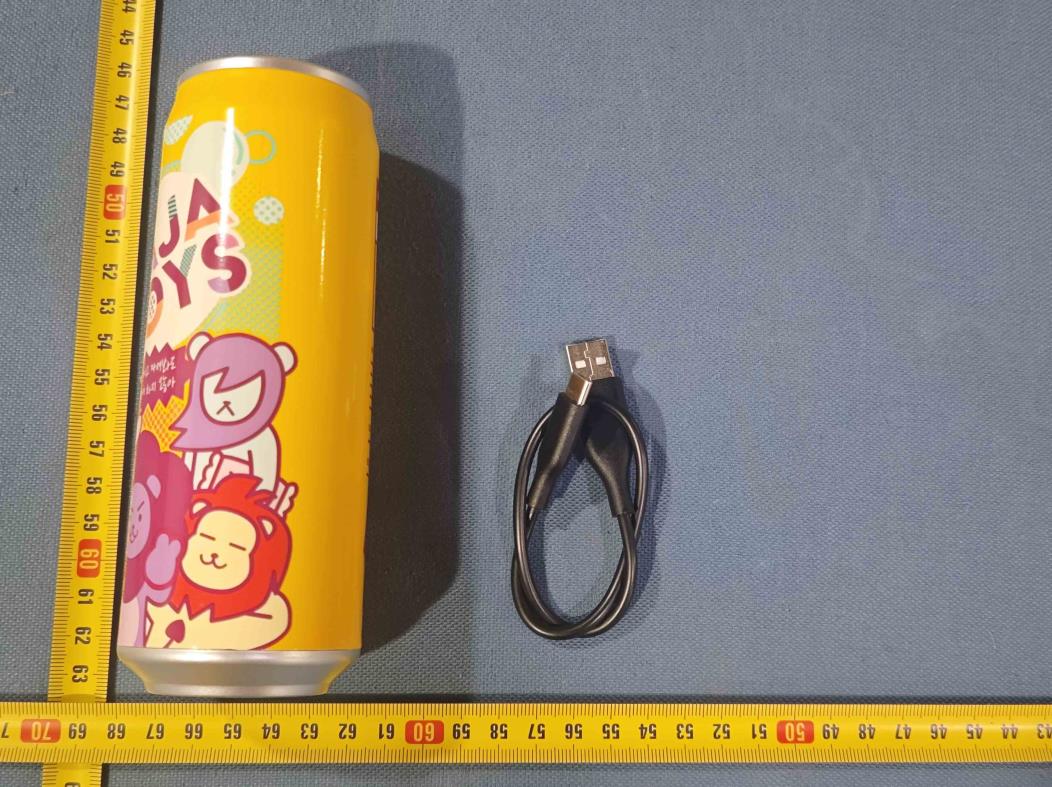

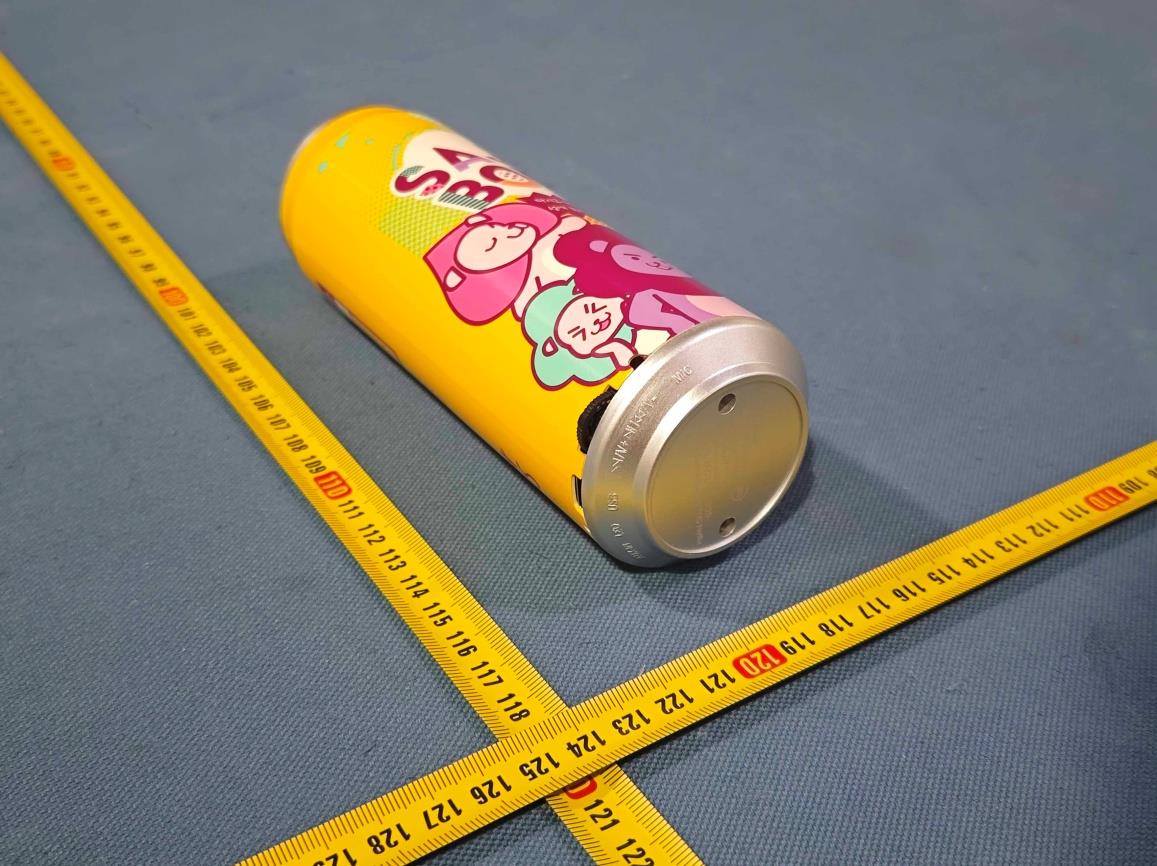

Page 1 of 3 FCC ID: 2AO23-BTSP25 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F., Block A, Building 6, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 3 FCC ID: 2AO23-BTSP25 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F., Block A, Building 6, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com EUT Photo EUT Photo Page 3 of 3 FCC ID: 2AO23-BTSP25 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F., Block A, Building 6, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com EUT Photo EUT Photo

工艺：移印 尺寸：17.3 X 29.2mm 颜色：Pantone Cool Gray 7C 6.4 mm 11.2 mm 17.3 mm 29.2 mm

Page 1 of 3 FCC ID: 2AO23-BTSP25 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F., Block A, Building 6, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT INTERNAL PHOTOS EUT Photo EUT Photo BT Antenna Page 2 of 3 FCC ID: 2AO23-BTSP25 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F., Block A, Building 6, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com EUT Photo EUT Photo Page 3 of 3 FCC ID: 2AO23-BTSP25 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F., Block A, Building 6, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com EUT Photo

Page 1 of 8 Report No.: 26052825028RFC-2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F., Block A, Building 6, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART1-V1.1 SAR TEST EXCLUSION EVALUATION REPORT Product Name: Bluetooth Speaker Trade Mark: Heyday, deal worthy, Chug Inc., Gems Model No.: BTSP25 Report Number: 26052825028RFC-2 Test Standards: FCC 47 CFR Part 2.1093 FCC ID: 2AO23-BTSP25 Test Result: PASS Date of Issue: June 30, 2026 Prepared for: Chug, Inc. 7157 Shady Oak Rd, Eden Prairie MN 55344, United States Prepared by: Shenzhen UnionTrust Quality and Technology Co., Ltd. 16/F., Block A, Building 6, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, Guangdong, China TEL: +86-755-2823 0888 FAX: +86-755-2823 0886 Prepared by: Reviewed by: David Chen Kevin Liang Senior Project Engineer Assistant Manager Approved by: Date: June 30, 2026 Billy Li Technical Director Page 2 of 8 Report No.: 26052825028RFC-2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F., Block A, Building 6, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART1-V1.1 Version Version No. Date Description V1.0 June 30, 2026 Original Page 3 of 8 Report No.: 26052825028RFC-2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F., Block A, Building 6, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART1-V1.1 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 4 1.4 OTHER INFORMATION ......................................................................................................................................... 5 1.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................................................... 5 1.6 DEVIATION FROM STANDARDS ............................................................................................................................ 5 1.7 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 5 1.8 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 5 2. EQUIPMENT LIST .................................................................................................................................................... 5 3. SAR TEST EXCLUSION EVALUATION ................................................................................................................... 6 3.1 REFERENCE DOCUMENTS FOR EVALUATION ........................................................................................................ 6 3.2 EXEMPTION LIMITS FOR ROUTINE EVALUATION – SAR EVALUATION .................................................................... 6 3.2.1 SAR TEST EXCLUSION THRESHOLD ........................................................................................................ 6 3.2.2 TEST PROCEDURE ................................................................................................................................. 7 3.3 MPE CALCULATION RESULTS ............................................................................................................................ 7 3.3.1 FOR BT ................................................................................................................................................. 7 APPENDIX 1 PHOTOS OF TEST SETUP ....................................................................................................................... 8 APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS ................................................................................... 8 Page 4 of 8 Report No.: 26052825028RFC-2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F., Block A, Building 6, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART1-V1.1 1. GENERAL INFORMATION 1.1 CLIENT INFORMATION Applicant: Chug, Inc. Address of Applicant: 7157 Shady Oak Rd, Eden Prairie MN 55344, United States Manufacturer 1: Hunan XuanTong Technology Co., Ltd. Address of Manufacturer: B2 Building, Standard Factory, Caojiapeng Four Phases, Baofeng Street, Shimen County, Changde City, Hunan Province, China Manufacturer 2: Rocker Technology Co., Ltd Address of Manufacturer: Building S3, 2nd Floor, Area A, Samanea Innovation and Technology Park, Prey Roka Village, Chhak Chheu Neang Commune, Ang Snuol District, Kandal Province. Cambodia. Manufacturer 3: Dongguan Roker Intelligent Technology Co., Ltd. Address of Manufacturer: Building 3, No. 35, Dongping Road Changping Section, Changping Town, Dongguan, Guangdong, China 1.2 EUT INFORMATION Product Name: Bluetooth Speaker Model No.: BTSP25 Trade Mark: Heyday, deal worthy, Chug Inc., Gems DUT Stage: Identical Prototype EUT Supports Function: (Provided by th…

Text truncated - open the document above for the full version.

Productspecification QuickReferenceDate PCB Antenna Frequency 2.45GHz *1 Ant. Port Input Pwr. (dBm)0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm)-2.3 (Input pwr – loss pwr) Peak EIRP(dBm)1.3 Directivity (dBi)1 (alldirectionantenna) Efficiency (dB)-2.3 (58.5%) Gain (dBi)1.3(PeakGainXY-plane) Maximum Power (dBm)1.3 (XY-plane) Minimum Power (dBm)-4(XY-plane) Avg. Power (dBm)-0.5(XY-plane) Max/Min Ratio (dB)5.3(XY-plane) Max/Avg Ratio (dB)1.8(XY-plane) Min/Avg Ratio (dB)-3.5(XY-plane) Average Gain (dB)-0.5 (Avg Gain XY-plane) All the technical data and information contained herein are subject to change without prior noti c e AntennaLayout&moduleonthesystemboard AntennaGain GainTable Unit in dBi @2.44GHzXY-planeXZ-planeYZ-planeEfficiency PeakAvg.PeakAvg.PeakAvg. Module Board 1.3-0.51.3-3.81.1-3.058.5% Antenna module on the system board Shenzhen Kangdaxing Electronic Technology Co., L Manufacturer Address Antenna Type Antenna Model td. 4/F, Dongshan Plant, Block A, Huafeng 1st Tech Park, Bao'an Ave, Sanwei, Gucheng, Xixiang, Bao' an, Shenzhen, China 1/4 lambda Folded Monopole Antenna ReturnLoss TheEnvironmentofAntennaRadiationPattern 3Dradiationpatterndiagram XY-planeXZ-planeYZ-plane

Page 1 of 68 Report No.: 26052825028RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F., Block A, Building 6, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 FCC TEST REPORT Product Name: Bluetooth Speaker Trade Mark: Heyday, deal worthy, Chug Inc., Gems Model No.: BTSP25 Report Number: 26052825028RFC-1 Test Standards: FCC 47 CFR Part 15 Subpart C FCC ID: 2AO23-BTSP25 Test Result: PASS Date of Issue: June 29, 2026 Prepared for: Chug, Inc. 7157 Shady Oak Rd, Eden Prairie MN 55344, United States Prepared by: Shenzhen UnionTrust Quality and Technology Co., Ltd. 16/F., Block A, Building 6, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, Guangdong, China TEL: +86-755-2823 0888 FAX: +86-755-2823 0886 Prepared by: Reviewed by: David Chen Henry Lu Senior Project Engineer Team Leader Approved by: Date: June 29, 2026 Billy Li Technical Director Page 2 of 68 Report No.: 26052825028RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F., Block A, Building 6, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 Version Version No. Date Description V1.0 June 29, 2026 Original Page 3 of 68 Report No.: 26052825028RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F., Block A, Building 6, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.2.1 GENERAL DESCRIPTION OF EUT ............................................................................................................ 4 1.2.2 DESCRIPTION OF ACCESSORIES .............................................................................................................. 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 5 1.4 OTHER INFORMATION ......................................................................................................................................... 5 1.5 DESCRIPTION OF SUPPORT UNITS ...................................................................................................................... 6 1.6 TEST LOCATION ................................................................................................................................................. 6 1.7 TEST FACILITY ................................................................................................................................................... 6 1.8 DEVIATION FROM STANDARDS ............................................................................................................................ 6 1.9 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 7 1.10 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 7 1.11 MEASUREMENT UNCERTAINTY ........................................................................................................................... 7 2. TEST SUMMARY ...................................................................................................................................................... 8 3. EQUIPMENT LIST .................................................................................................................................................... 9 4. TEST CONFIGURATION ........................................................................................................................................ 10 4.1 ENVIRONMENTAL CONDITIONS FOR TESTING ...................................................................................................... 10 4.1.1 NORMAL OR EXTREME TEST CONDITIONS ............................................................................................. 10 4.1.2 RECORD OF NORMAL ENVIRONMENT AND TEST SAMPLE ........................................................................ 10 4.2 TEST CHANNELS ............................................................................................................................................. 10 4.3 EUT TEST STATUS .......................................................................................................................................... 10 4.4 PRE-SCAN .................................................................................................................................................... 11 4.4.1 WORST-CASE DATA PACKETS ................................................................................................................ 11 4.4.2 TESTED CHANNEL DETAIL ...................................................................................................................... 11 4.5 TEST SETUP .................................................................................................................................................... 12 4.5.1 FOR RADIATED EMISSIONS TEST SETUP ................................................................................................ 12 …

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2AO23-BTSP25 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F., Block A, Building 6, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com APPENDIX 1 PHOTOS OF TEST SETUP Radiated emission Test Setup (30 MHz~1 GHz) Radiated emission Test Setup (Above 1 GHz) Page 2 of 2 FCC ID: 2AO23-BTSP25 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F., Block A, Building 6, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, Guangdong, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com RF Conducted Test Setup Conducted Emission Test Setup
