2AO23-WT1Walkie Talkie

Whats Included: • Walkie Talkies Quick Tips: • This package contains 2 walkie-talkie units. They are communication devices operating on public radio frequencies, equipped with optional 8 / 20 / 22 channels and a backlit LCD screen. You can make free communications over several kilometers, with a maximum range of up to 3 kilometers in open areas. 2 Long Range Walkie Talkies Battery/Charging: • To insert batteries into the device, first remove the belt attachment, lift the attachment clip on top and push the belt attachment upwards. • Slide and lift open the battery compartment cover on the back of the walkie-talkie, then insert 4 AAA batteries (not included) aligned with the "+" and "-" polarity markings. Replace the battery cover and reattach the belt clip. • The battery icon on the LCD screen displays remaining power via segmented bars: full power, two-thirds power, one-third power and empty power. When power is low, the battery icon flashes continuously and a warning beep sounds, reminding you to replace or recharge the batteries. Power on/off: • Hold the Power Button for 3 seconds to switch the radio on or off. A beep tone will sound as a confirmation prompt. Adjusting volume level: • Press the Up Button to turn up the volume, and press the Down Button to turn it down. The current volume level will be displayed on screen. Receiving and Transmitting: • When the indicator lights up, the device enters Reception mode, ready to receive incoming calls or audio signals transmitted on the active frequency. • Press the Call button to switch the device to Transmission mode, which will send an audio signal to the paired unit. • To transmit a voice message, press the TALK button and speak into the microphone. Keep pressing the button throughout your speech, and release it only after you finish speaking. • Maintain a minimum distance of 5 cm between your mouth and the microphone. Note: The paired device needs identical channel and CTCSS code. After releasing the TALK button upon finishing your speech, the opposite device will beep to signal transmit readiness. Changing Channels: • Press the MENU button once; the current channel number will flash on the display. • Press the Up button or Down button to switch channels. • Press the TALK button to confirm the setting and return to standby mode. Note: If no button is pressed within 15 seconds during setup, the unit will automatically revert to standby mode. CTCSS & DCS Introduction: • License-free radios operating within the 400~470 MHz frequency band are equipped with 8/20/22 available communication channels. There are 99 selectable tone options available for you to choose freely. • If many radio users are present in your neighborhood, it is possible that some of them are using the same communication channel. • Sub-channels are designed to prevent you from receiving unwanted signals from other users. • Two radios can communicate with one another only if they are set to the same main channel and selected with an identical sub-channel. There are two types of sub-channels: Continuous Tone Coded Squelch System (CTCSS, Analog Subtone): • When CTCSS is activated, a low-frequency tone (67–250 Hz) is transmitted alongside your voice signal. These tones are filtered out during audio processing, so they are generally inaudible and will not interfere with normal conversation. Digital Coded Squelch (DCS): • DCS stands for Digital Coded Squelch, an internal digital private-line encrypted squelch signaling built into the radio. It works in parallel with CTCSS analog subtone; both serve to isolate irrelevant radios sharing the same frequency, and communication is only available between radios set to the identical main channel plus matching DCS code. This radio is programmed with a total of 99 sub-channel codes: Codes 01–38: 38 groups of CTCSS analog subtone Codes 39–99: 61 groups of DCS digital codes Important Note: CTCSS and DCS cannot be enabled simultaneously on a single channel; you may select only one type for use. Setting to code 0F means subtone function is disabled, and the radio will receive all signals on the selected main channel. Walkie Talkies Front Back Speaker/Mic (on the top) Channel/ Menu item TX/RX Icon Lamp Button Scanning/Vox Scan Button Down Button Call Button Talk Button Up Button Lamp (on the top) Battery Level Power Button Volume MENU Button Keypad Lock Microphone Monitor Button CTCSS / DCS Menu Option Belt Clip Battery Compartment (removed battery cover) CTCSS/DCS Setting: • Press the MENU button twice; the current CTCSS/DCS code will flash on the display. • Press the Up button or Down button to select a different code. • Press the TALK button to confirm the setting and return to standby mode. Note: To turn off the CTCSS/DCS function, select the "OF" option in the CTCSS/DCS menu. After confirmation, "OF" will be displayed on the screen. Monitor: • The monitor function allows you to detect weak signals on the current channel. • Press and hold the MON button to activate channel monitoring. • Channel monitoring stops when you release the MON button. Note: During channel monitoring the receiver circuit in the Radios will not listen to CTCSS codes. VOX Selection (Voice-Activated Transmission): • This radio supports VOX voice-activated transmission. When VOX mode is enabled, the radio automatically transmits audio once triggered by your voice or surrounding sounds. • VOX function is not recommended for use in noisy or windy environments. Note: Pressing the TALK button will override VOX mode. • Press the MENU button three times; the current VOX setting will flash on the screen, and the VOX icon will appear. • Press the Up button to adjust VOX sensitivity between Level 1 and Level 3 (Level 3 = highest sensitivity). • Press the Down button repeatedly until "OF" appears on the display to disable VOX. • Press the TALK button to save the setting and return to standby mode. Scanning for Active Channels: • Press the SCAN button the "Scan" indicator icon w…

Text truncated - open the document above for the full version.

Chug,Inc. 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname:Chug,Inc. Address:7157ShadyOakRoad,EdenPrairie,MN55344,USA ProductName:WalkieTalkie FCCID:2AO23-WT1 Model(s):WT1 2.911(d)(5)(i)EquipmentType We,[Chug,Inc.](“theapplicant”)certifythattheequipmentforwhichauthorizationissoughtthrough certificationisnot:  Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules.  Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Name:MichaelClemmerDate:2026-07-22 TitleandCompanyname:generalmanager/Chug,Inc. NOTE1 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Chug,Inc. 2.911(d)(5)(ii)ApplicantAttestationv1.2 Section2.911(d)(5)(ii)Certification–Applicant(CoveredList) Companyname:Chug,Inc. Address:7157ShadyOakRoad,EdenPrairie,MN55344,USA ProductName:WalkieTalkie FCCID:2AO23-WT1 Model(s):WT1 2.911(d)(5)(ii)Applicantfiling We,[Chug,Inc.](“theapplicant”)certifythat,asofthedateofthefilingoftheapplication,the applicantisnotidentified NOTE1 onthe“CoveredList” NOTE2 ,establishedpursuantto §1.50002ofthischapter,asanentityproducingcoveredcommunicationsequipment. Yourssincerely, Name:MichaelClemmerDate:2026-07-22 TitleandCompanyname:generalmanager/Chug,Inc. NOTE1 Deleteoptionnotapplicabletothisapplication. NOTE2 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Chug,Inc. 7157ShadyOakRoad,EdenPrairie,MN55344,USA Date: 7/22/2026 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 FCCID: 2AO23-WT1 FRN:0027222264 USAgent–AttestationStatement/Part2.911(d)(7) Chug,Inc.certifies,thatasof7/22/2026,wehavedesignatedChug,Inc.toacceptserviceof processonourbehalfforFCCID:2AO23-WT1. Chug,Inc. acceptstomaintainanagentofserviceofprocessintheUnitedStatesfornolessthan oneyearaftereitherthegranteehaspermanentlyterminatedallmarketingandimportationofthe applicableequipmentwithintheU.S.,ortheconclusionofanyCommission-relatedadministrative orjudicialproceedinginvolvingtheequipment,whicheverislater. Chug,Inc.acceptsasofthedateofthefilingofthisapplication,theobligationofbeingthe designatedagentforthepurposeofacceptingserviceofprocessonbehalfofChug,Inc.forFCC ID:2AO23-WT1. DesignatedAgentInformation: CompanyName:Chug,Inc. FRN:0027222264 Address:7157ShadyOakRoad,EdenPrairie,MN55344,USA ContactPerson:MichaelClemmer Phone:(612)868-2191 Email:[email protected] Sincerely, Company: Chug,Inc. DesignatedAgent:Chug,Inc. CompanyRepresentative:MichaelClemmer DesignatedAgent Representative:MichaelClemmer Signature:Signature:

Chug,Inc. LetterofAuthorization Company:Chug,Inc. Address:7157ShadyOakRoad,EdenPrairie,MN55344,USA ProductName:WalkieTalkie ModelNumber:WT1 FCCIdentifier:2AO23-WT1 WeauthorizeMiCOMLabsInc,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningtheabovenamedequipment. AnyindividualwithinMiCOMLabsisauthorizedtoactonourbehalfandtakeactionon theapplication. WedeclarethatMiCOMLabsInc,575BoulderCourt,Pleasanton,California94566, USA,isallowedtoforwardallinformationrelatedtotheapprovalprojecttotheFederal CommunicationCommissionandtodiscussanyissuesconcerningtheapproval application.AnyandallactscarriedoutbyMiCOMLabsonourbehalfshallhavethe sameeffectasactsofourown. Name:MichaelClemmerDate:2026-07-22 Title:generalmanager

Chug,Inc. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2026-07-22 Subject;RequestforConfidentiality FCCID:2AO23-WT1 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:MichaelClemmer Title:generalmanager

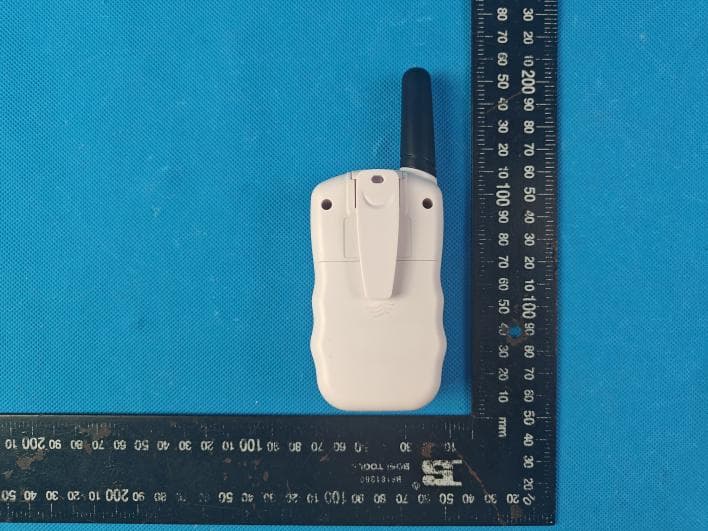

7.1. External Photos

Walkie Talkie Model:WT1 Input:4 x 1.5V AAA battery MC.0926 FCC ID:2AO23-WT1 Made in Vietnam

7.2. Internal Photos FRS ANT

TEST REPORT For SAR Report No......................................... : CHTW26075011 Project No ........................................ : SHT2606055601W FCC ID ............................................. : 2AO23-WT1 Applicant’s name ............................. : Chug, Inc. Address ............................................ : 7157 Shady Oak Road, Eden Prairie, MN 55344,USA Product Name .................................. : Walkie Talkie Trade Mark....................................... : Zsou, GEMS, heyday, heyday™ Model No.......................................... : WT1 Listed Model(s) ................................ : - Standard .......................................... : FCC 47 CFR Part2.1093 ANSI/IEEE Std C95.1-1992 IEEE Std 1528-2013 Date of receipt of test sample..........: 2026/6/24 Date of testing.............................: 2026/7/8 Date of issue...............................: 2026/7/21 Result ................... ........................: PASS Compiled by (Position+Printed name+Signature) : File administrator Caspar Chen Supervised by (Position+Printed name+Signature) : Project Engineer Xiaodong Zhao Approved by (Position+Printed name+Signature) : RF Manager Xu Yang Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................ : Building 7, Baiwang Idea Factory, No.1051, Songbai Road, Yangguang Community, Xili Subdistrict, Nanshan District, Shenzhen, Guangdong, China Test Report Form No. ........................ : R0066 Test Report Form(s) Originator ......... : Shenzhen Huatongwei International Inspection Co., Ltd. Master TRF ........................................ : Dated 2025-07 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context.The test report merely correspond to the test sample.The authenticity of this Test Report and its contents can be verified by contacting the Laboratory, responsible for this Test Report. Report No.: CHTW26075011 Page 2 of 26 Contents 1. Statement of Compliance 3 2. Test Standards and Report version 4 2.1. Test Standards 4 2.2. Report version 4 3. Summary 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Test frequency list 6 3.5. Testing Laboratory Information 6 3.6. Environmental conditions 6 4. Equipments Used during the Test 7 5. Measurement Uncertainty 8 6. SAR Measurements System Configuration 9 6.1. SAR Measurement Set-up 9 6.2. DASY5 E-field Probe System 10 6.3. Phantoms 11 6.4. Device Holder 11 7. SAR Test Procedure 12 7.1. Scanning Procedure 12 7.2. Data Storage and Evaluation 14 8. Position of the wireless device in relation to the phantom 16 8.1. Front-of-face 16 8.2. Body Position 16 9. Dielectric Property Measurements & System Check 17 9.1. Tissue Dielectric Parameters 17 9.2. SAR System Validation 18 9.3. System Check 18 10. SAR Exposure Limits 21 11. Antenna Location 22 12. Radiated Power Measurement Results and Tune-up 23 13. SAR Measurement Results 24 14. Test Setup Photos 25 15. External Photos of the EUT 26 Report No.: CHTW26075011 Page 3 of 26 1. Statement of Compliance Maximum Reported SAR (W/kg @1g) RF Exposure Conditions FRS Front-of-face(Dist.= 25mm) 0.065 Body-worn(Dist.= 0mm) 0.124 Note: 1. This device is in compliance with Specific Absorption Rate (SAR) for general population/uncontrolled exposure limits specified in FCC 47 CFR part 2 (2.1093) and IEEE Std C95.1. 2. This device had been tested in accordance with the measurement methods and procedures specified in IEEE 1528 and FCC KDB publications. 3. The above SAR values are all based on a 75% duty cycle. Report No.: CHTW26075011 Page 4 of 26 2. Test Standards and Report version 2.1. Test Standards The tests were performed according to following standards: FCC 47 Part 2.1093: Radiofrequency Radiation Exposure Evaluation:Portable Devices ANSI/IEEE C95.1-1992: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz IEEE Std 1528-2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. FCC published RF exposure KDB procedures: KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04: SAR Measurement Requirements for 100 MHz to 6 GHz KDB 865664 D02 RF Exposure Reporting v01r02: RF Exposure Compliance Reporting and Documentation Considerations KDB 447498 D04 Interim General RF Exposure Guidance v01: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies TCB workshop: April, 2019; Page 19, Tissue Simulating Liquids (TSL) 2.2. Report version Revision No. Date of issue Description N/A 2026-07-21 Original Report No.: CHTW26075011 Page 5 of 26 3. Summary 3.1. Client Information Applicant: Chug, Inc. Address: 7157 Shady Oak Road, Eden Prairie, MN 55344,USA Manufacturer: Chug, Inc. Address: 7157 Shady Oak Road, Eden Prairie, MN 55344,USA Factory: Si Yuan Tech Co.,Ltd Address: Lot G3, road N5, ChauSon Industrial Park, ChauSon ward, Phu Ly City, H, Tinh Thanh Hoa, Ha Nam, Vietnam 3.2. Product Description Main unit Name of EUT: Walkie Talkie Trade Mark: Zsou, GEMS, heyday, heyday™ Model No.: WT1 Listed Model(s): - Power supply: DC 6.0V from battery Hardware version: TML-T 388V2.0. Software version: JX_388p_V4_20250726.hexe Device Dimension: Length x Width x Thickness (mm): 142 x 53 x 25 Device Category: Portable Product stage: Production unit RF Exposure Environmen…

Text truncated - open the document above for the full version.

Appendix Report Project No. SHT2606055601W Test sample No. YPHT26060556007 Model No. WT1 Start test date 2026/7/8 Finish date 2026/7/8 Temperature 23.0°C Humidity 58% Test EngineerAuditor Appendix clause Test ItemResult AERP Measurement ResultsPASS BSAR Measurement ResultsPASS Appendix:1 of 3 Project No.:SHT2606055601W Appendix A:ERP Measurement Results Power Mode Channel Separation Frequency ERP (dBm) Tune up limit (dBm) ChannelMHz Analog12.5kHz CH4462.6375 25.58 26.00 CH11467.6375 25.82 26.00 Appendix A: 2/3 Project No.:SHT2606055601W Appendix B:SAR Measurement Results Front-of-face Mode Channel Separati on Test Position Test Distance (mm) Frequency ERP (dBm) Tune up limit (dBm) Tune up scaling factor Power Drift(dB) Measure d SAR(1g) Report SAR(1g) 75% Duty SAR(1g)Plot No. CHMHz(W/kg)(W/kg)(W/kg) Analog12.5kHzFront25 CH4462.6375 25.58 26.00 1.102 -0.14 0.079 0.087 0.065 1 CH11467.6375 25.82 26.00 1.042 -0.14 0.062 0.065 0.048 - Body-worn Mode Channel Separati on Test Position Test Distance (mm) Frequency ERP (dBm) Tune up limit (dBm) Tune up scaling factor Power Drift(dB) Measure d SAR(1g) Report SAR(1g) 75% Duty SAR(1g) Plot No. CHMHz(W/kg)(W/kg)(W/kg) Analog12.5kHz Back (With Belt Clip) 0 CH4462.6375 25.58 26.00 1.102 -0.09 0.150 0.165 0.124 2 CH11467.6375 25.82 26.00 1.042 -0.04 0.132 0.138 0.103 - Appendix B: 3/3 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR LabDate: 2026/7/8 Analog-12.5kHz Front-of-face Communication System: UID 0, Analog (0); Frequency: 462.637 MHz;Duty Cycle: 1:1 Medium parameters used: f = 463 MHz; σ = 0.873 S/m; ε r = 43.54; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:23.0°C;Liquid Temperature:22.2°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(11.51, 11.51, 11.51) @ 462.637 MHz; Calibrated: 2025/11/ 27 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lE lectronics: DAE4 Sn1549; Calibrated: 2026/5/ 8 lPhantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 lDASY52 52.10.4(1535); SEMCAD X 14.6.14(7501) Front 25mm/CH4/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.108 W/kg Front 25mm/CH4/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.31 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 0.120 W/kg SAR(1 g) = 0.079 W/kg; SAR(10 g) = 0.057 W/kg Smallest distance from peaks to all points 3 dB below: Larger than measurement grid (> 16 mm) Ratio of SAR at M2 to SAR at M1 = 68.1% Maximum value of SAR (measured) = 0.103 W/kg 0 dB = 0.103 W/kg = -9.87 dBW/kg Appendix D: SAR Test Data Plots Plot No.1 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR LabDate: 2026/7/8 Analog-12.5kHz Body-worn Communication System: UID 0, Analog (0); Frequency: 462.637 MHz;Duty Cycle: 1:1 Medium parameters used: f = 463 MHz; σ = 0.873 S/m; ε r = 43.54; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:°C;Liquid Temperature:°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(11.51, 11.51, 11.51) @ 462.637 MHz; Calibrated: 2025/11/ 27 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lE lectronics: DAE4 Sn1549; Calibrated: 2026/5/ 8 lPhantom: ELI V8.0 ; Type: QD OVA 004 AA ; Serial: 2078 lDASY52 52.10.4(1535); SEMCAD X 14.6.14(7501) Back(With Belt Clip) 0mm/CH4/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.206 W/kg Back(With Belt Clip) 0mm/CH4/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.02 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 0.256 W/kg SAR(1 g) = 0.150 W/kg; SAR(10 g) = 0.097 W/kg Smallest distance from peaks to all points 3 dB below = 22.6 mm Ratio of SAR at M2 to SAR at M1 = 62.6% Maximum value of SAR (measured) = 0.203 W/kg 0 dB = 0.203 W/kg = -6.93 dBW/kg Appendix D: SAR Test Data Plots Plot No.2 Appendix E: DAE and Probe Calibration Certificate 1 of 12 1.1. DAE4 Calibration Certificate Appendix E: DAE and Probe Calibration Certificate 2 of 12 Appendix E: DAE and Probe Calibration Certificate 3 of 12 Appendix E: DAE and Probe Calibration Certificate 4 of 12 1.2. Probe Calibration Certificate Appendix E: DAE and Probe Calibration Certificate 5 of 12 Appendix E: DAE and Probe Calibration Certificate 6 of 12 Appendix E: DAE and Probe Calibration Certificate 7 of 12 Appendix E: DAE and Probe Calibration Certificate 8 of 12 Appendix E: DAE and Probe Calibration Certificate 9 of 12 Appendix E: DAE and Probe Calibration Certificate 10 of 12 Appendix E: DAE and Probe Calibration Certificate 11 of 12 Appendix E: DAE and Probe Calibration Certificate 12 of 12 Appendix F: Dipole Calibration Certificate 1 of 7 1.1. D450V3 Dipole Calibration Certificate Appendix F: Dipole Calibration Certificate 2 of 7 Appendix F: Dipole Calibration Certificate 3 of 7 Appendix F: Dipole Calibration Certificate 4 of 7 Appendix F: Dipole Calibration Certificate 5 of 7 Appendix F: Dipole Calibration Certificate 6 of 7 Appendix F: Dipole Calibration Certificate 7 of 7 Extended Dipole Calibrations Referring to KDB865664 D01, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Head-450 Date of measurement Return-loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary impedance (ohm) Delta (ohm) 2024-01-24 -21.5 58.4 -3.50 2025-01-17 -22.3 3.72 56.3 2.1 -5.19 1.69 2026-01-13 -22.5 4.65 56.2 2.2 -4.96 1.46 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5ohm of prior calibration. Therefore the verification result should support extended calibration.

TEST REPORT Report No......................................... : CHTW26075015 Project No ........................................ : SHT2606055602W FCC ID ............................................. : 2AO23-WT1 Applicant’s name ............................. : Chug, Inc. Address ............................................ : 7157 Shady Oak Road, Eden Prairie, MN 55344,USA Product Name .................................. : Walkie Talkie Trade Mark....................................... : Zsou, GEMS, heyday, heyday™ Model No.......................................... : WT1 Listed Model(s) ................................ : - Standard .......................................... : FCC CFR Title 47 Part 95 Subpart B Date of receipt of test sample..........: 2026/6/29 Date of testing.............................: 2026/6/30 - 2026/7/13 Date of issue...............................: 2026/7/21 Result ................... ........................: PASS Compiled by (Position+Printed name+Signature) : File administrator Xiaodong Zhao Supervised by (Position+Printed name+Signature) : Project Engineer Caspar Chen Approved by (Position+Printed name+Signature) : RF Manager Xu Yang Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................ : Building 7, Baiwang Idea Factory, No.1051, Songbai Road, Yangguang Community, Xili Subdistrict, Nanshan District, Shenzhen, Guangdong, China Test Report Form No. ........................ : R0066 Test Report Form(s) Originator ......... : Shenzhen Huatongwei International Inspection Co., Ltd. Master TRF ........................................ : Dated 2025-07 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context.The test report merely correspond to the test sample.The authenticity of this Test Report and its contents can be verified by contacting the Laboratory, responsible for this Test Report. Report No.: CHTW26075015 Page 2 of 31 Contents 1. TEST S T AN D AR D S A N D R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Test mode 7 4.3. Support unit used in test configuration and system 8 4.4. Testing environmental condition 8 4.5. Measurement uncertainty 8 4.6. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 11 5.1. Carrier Output Power (ERP) 11 5.2. 99% Occupied Bandwidth & 26dB Bandwidth 12 5.3. Emission Mask 13 5.4. Modulation Limit 14 5.5. Audio Frequency Response 15 5.6. Audio Low Pass Filter Response 17 5.7. Frequency stability VS Temperature 18 5.8. Frequency stability VS Voltage 19 5.9. Transmit Radiated Spurious Emission 20 6. TEST SETUP PHOTOS 25 7. EXTERANAL AND INTERNAL PHOTOS 27 7.1. External Photos 27 7.2. Internal Photos 29 8. APPENDIX REPORT 31 Report No.: CHTW26075015 Page 3 of 31 1. TEST STAND ARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: FCC CFR Title 47 Part 95 Subpart B: Family Radio Service (FRS) FCC Rules Part 2: Frequency allocations and radio treaty matters; General rules and regulations ANSI C63.26-2013: American National Standard for Compliance Testing of Transmitters Used in Licensed Radio Services ANSI C63.4-2014: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz 1.2. Report version Revision No. Date of issue Description N/A 2026-07-21 Original Report No.: CHTW26075015 Page 4 of 31 2. TEST DESCRIPTION Section Test Items Standard Requirement Result Test Engineer 5.1 Carrier Output Power (ERP) Part 95.567 Part 2.1046(a) PASS Caspar Chen 5.2 99% Occupied Bandwidth & 26dB bandwidth Part 95.573 Part 2.1049 PASS Caspar Chen 5.3 Emission Mask Part 95.579(a)(1)(2)(3) Part 2.1049 PASS Caspar Chen 5.4 Modulation Limit Part 95.575 Part 2.1047(b) PASS Caspar Chen 5.5 Audio Frequency Response Part 95.575 Part 2.1047(a) PASS Caspar Chen 5.6 Audio Low Pass Filter Response Part 95.575 Part 2.1047(a) PASS Caspar Chen 5.7 Frequency Stability V.S. Temperature Part 95.565 Part 2.1055 PASS Caspar Chen 5.8 Frequency Stability V.S. Voltage Part 95.565 Part 2.1055 PASS Caspar Chen 5.9 Transmit Radiated Spurious Emission Part 95.579(a)(3) Part 2.1053 PASS Junxu Lin Note: The measurement uncertainty is not included in the test result. Report No.: CHTW26075015 Page 5 of 31 3. SUMMARY 3.1. Client Information Applicant: Chug, Inc. Address: 7157 Shady Oak Road, Eden Prairie, MN 55344,USA Manufacturer: Chug, Inc. Address: 7157 Shady Oak Road, Eden Prairie, MN 55344,USA Factory: Si Yuan Tech Co.,Ltd Address: Lot G3, road N5, ChauSon Industrial Park, ChauSon ward, Phu Ly City, H, Tinh Thanh Hoa, Ha Nam, Vietnam 3.2. Product Description Main unit information: Product Name: Walkie Talkie Trade Mark: Zsou, GEMS, heyday, heyday™ Model No.: WT1 Listed Model(s): - Power supply: DC 6V from AAA*4 Hardware version: T-388P V05 Software version: JX_388p_V4_20250726.hex 3.3. Radio Specification Description Support Frequency Range: CH01~CH07: 462.5625MHz~ 462.7125MHz CH08~CH14: 467.5625MHz~ 467.7125MHz CH15~CH22: 462.5500MHz~ 462.7250MHz Modulation Type: FM Emission Designator: * 1 11K0F3E Antenna Type: Fixed / Spring Antenna Antenna Gain: 0dBi Note: (1) *1 According to FCC Part 2.202 requirements, the Necessary Bandwidth …

Text truncated - open the document above for the full version.

6.TEST SETUP PHOTOS

14. Test Setup Photos Liquid depth in the flat Phantom Front-of-face(25mm) Body-worn With Belt Clip (0mm)
