2AO23-PANC1Wireless ANC Over-Ear Headphones

• Utilize the ANC button to cycle the three dierent active noise-cancellation settings • Pressing the button once from o will enter ANC mode (Active Noise- Cancellation) and is indicated with two ascending tones • ANC mode reduces outside noise at least 30dB reduction and makes your music the focus of your trip instead of the people around you • Pressing the button again (twice from o) will enter AMB mode (Ambient) and is indicated by two high tones • AMB mode only lets in high frequency sounds this way you can still get some quiet time on a bus or airplane but never miss an announcement • Pressing the button again (three from o) will turn OFF the Active Noise- Cancellation and is indicated with two descending tones • If the headphones are turned o when ANC or AMB is active, that mode will be activated when the headphones are turned back on ANC (Active Noise-Canceling)/AMB (Ambient) • Plug the USB-C end of the charging cable into the headphones • Plug the opposite end of the charging cable into a power supply of at least DC 5V 1A warning: please use UL compliant power supply • Full charge requires approximately 2.5 hours • Charging is complete when red light turns o note: headphones cannot playback when charging charging • Insert the AUX cable into headphone AUX port • Insert opposite end of the AUX cable into the media source AUX/line in • Do not use near any water source • Do not modify or repair this device • Do not use in high temperatures or extreme weather • Do not use chemical detergents to clean your device, use a soft dry cloth safety Can’t get it to pair? Have a question or comment? call us at: 1-833-TGT-Tech or: 1-833-848-8324 need some help? • lf the headphones are not working correctly, turn them on/o to reset • lf the headphones won't turn on, recharge the battery and try again • lf the headphones won't charge, make sure the power supply works, is 5V 1A , and not damaged • lf the headphones make no sound or do not show as an available device, make sure they are not paired to a dierent device already • To re-enter pairing mode hold the power button for 7 seconds when headphones are o troubleshooting • Bluetooth Wireless ANC headphones • USB-C to USB-C charging cable • 3.5mm AUX cable • Carrying case included Ascending tones - power on Descending tones - power o Three rapid tones - ready to pair Two rapid dings - low battery Quick ascending tone - max volume Quick descending tone - min volume Descending bass tone - bass boost on Ascending bass tone - bass boost o indicators Slow ashing white - pairing/re-pairing Rapid ashing white - paired/incoming call Intermittent ashing white - active call/streaming Solid red - low power/charging Red light o - charging complete When pairing for the rst time, while the headphones are o, press and continuously hold the power button for 7 seconds to turn on the headphones; the indicator on the right will slow ash white when it’s ready to pair • Use the Bluetooth settings on your phone to pair with heyday ANC pro Rapid ashing white - pairing successful note: holding the power button for 4 seconds will power headphones on/o; holding for 7 seconds while the headphones are o with turn the headphones on and enter pairing mode pairing • The headphones can be used wirelessly via Bluetooth or wired via the AUX cable Note: when power on and insert aux cable, press ANC button to switch ANC. when power o and insert aux cable, hold for 3 seconds to turn ANC on/o • The earcups can be folded to make it easier to put into the carrying case • The headband can be extended as needed to adjust the t and comfort quick tips ANC/Ambient solid white - ANC/Ambient on Two ascending tones - ANC ON Two high tones - Ambient ON Two descending tones - Ambient OFF ANC/AMB button indicators Target Corp. Mpls. MN, 55403 Phone: 612-304-6073 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC ID:2AO23- PANC1 Model: PANC1 Input: 5V 1A Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For qualied repair specialists requesting repair information and parts please contact the original manufacturer at customersupport@gemsndyours.com ANC button press - ANC on/ambient/ANC o double press - bass on/o right sideleft side charge port press - vol. up hold - next track/ reject call/transfer call press - play/pause/ answer/end calls double press - voice assist triple press - redial hold - on/o/pair press - vol. dow…

Text truncated - open the document above for the full version.

Chug, Inc. 7157 Shady Oak Rd, Eden Prairie MN 55344, United States 092723-17 rev 10 Certification Application Attestation Statements Date: March 3, 2026 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) ______Chug,Inc.______ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) _____Chug,Inc.______ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is /  - is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates – see KDB 986446 Question 5) as an entity producing “covered” equipment. The applicant also certifies that the device does not have cybersecurity and/or anti-virus software produced by Kaspersky Lab, Inc or any of its successors and assignees identified on the covered list installed on the device, nor will it be installed by the applicant at any time after certification. Thank you, By: __________________________ ________Michael Clemmer__________ (Signature 2 ) (Print name) Title: ______general manager________ Company: _______Chug,Inc.________ Telephone: _____612-868-2191_ 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters must be placed on appropriate letterhead.

U.S. Agent Designation for Service of Process (Applicant is Both Grantee and U.S. Agent) TO: American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information This letter is to confirm that the Applicant will also serve as the U.S. Agent for Service of Process as required by 47 CFR 2.911(d)(7). The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The Applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information changes. Applicant Company name: Chug,Inc. FRN #: 0027222264 Grantee Code:2AO23 Contact Name:Michael Clemmer Street Address:7157 Shady Oak Rd, Eden Prairie MN 55344, United States City/Province/Zip: Wshington,55344 Telephone No:612-868-2191 Email:[email protected] Applicant Signature 1 : Date:2025-10-13 Signed by (Printed Name/Title):Michael Clemmer,general manager 1 - Letters must be placed on appropriate letterhead. The signee for the applicant must be one of the following: Applicant (grantee) contact of record in the FCC’s authorization system, or authorized officers or employee of the applicant (grantee).

Chug, Inc. 7157 Shady Oak Rd, Eden Prairie MN 55344, United States 050222-17 Authority to Act as Agent Date: March 3, 2026 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: ____Shenzhen UnionTrust Quality and Technology Co., Ltd.______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: _____12 months__ By: __________________________ __________Michael Clemmer____ (Signature 1 ) (Print name) Title: __________general manager___ On behalf of: ___________Chug,Inc. (Company Name) Telephone: _612-868-2191_______ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Chug, Inc. 7157 Shady Oak Rd, Eden Prairie MN 55344, United States 050222-17 Request for Confidentiality Date: March 3, 2026 Subject: Confidentiality Request for: ____2AO23-PANC1 Pursuant to FCC 47 CFR 0.457(d) and 0.459 and/or IC RSP-100, Section 12.4, the applicant requests that a part of the subject application(s) be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☐ Short Term --------------------------- External Photos ☐ Short Term ☐ Permanent * 1 Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☐ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☐ Short Term --------------------------- Test Setup Photos ☐ Short Term ☐ Permanent * 1 User’s Manual ______Chug,Inc.______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality for FCC Applications: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __N/A__ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Short Term Confidentiality for Industry Canada Applications: Starting May 2022, ISED will recognize short term confidentiality on certain exhibits until the intended date of marketing. The applicant requests the exhibits selected above as short term confidential be withheld from public view until: (specify ISED expiration date / date of marketing) . Sincerely, By: ____________general manager_ Michael Clemmer (Signature/Title 2 ) (Print name) The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

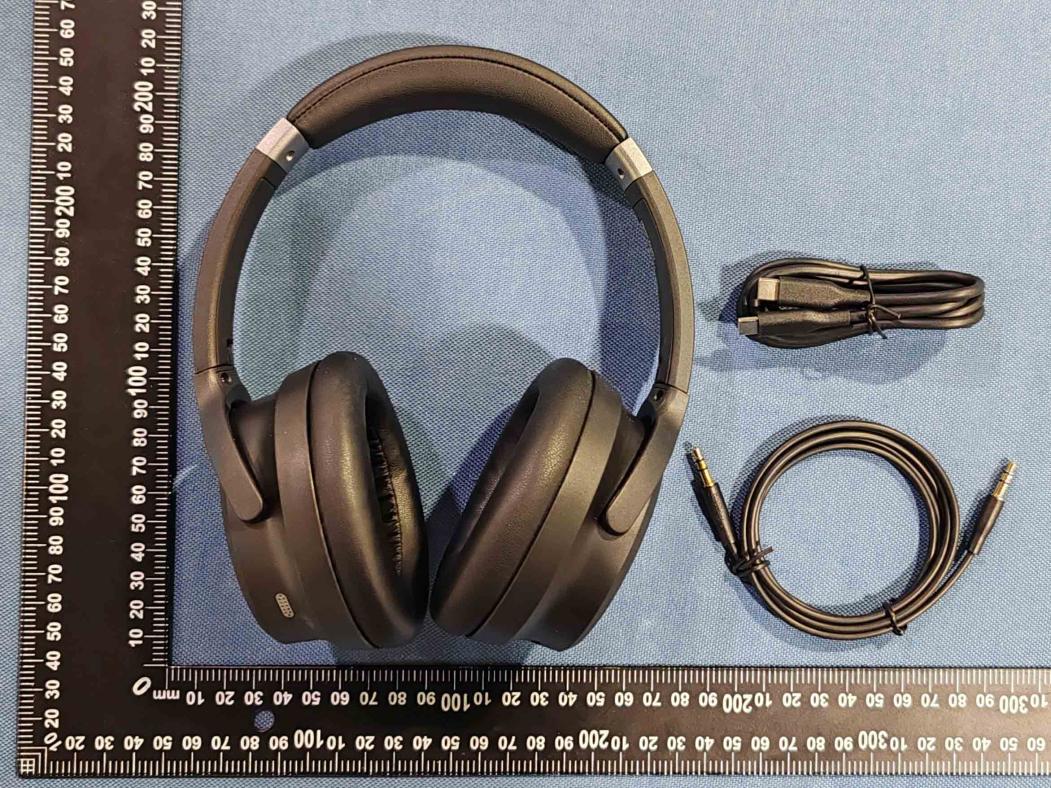

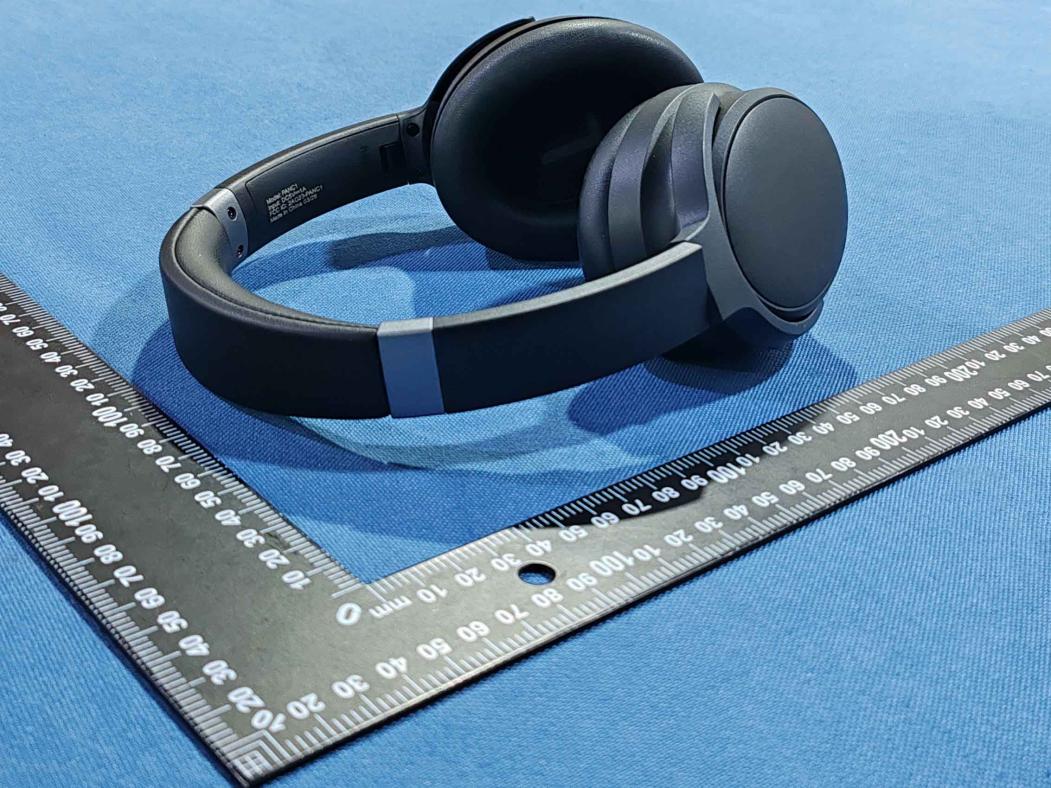

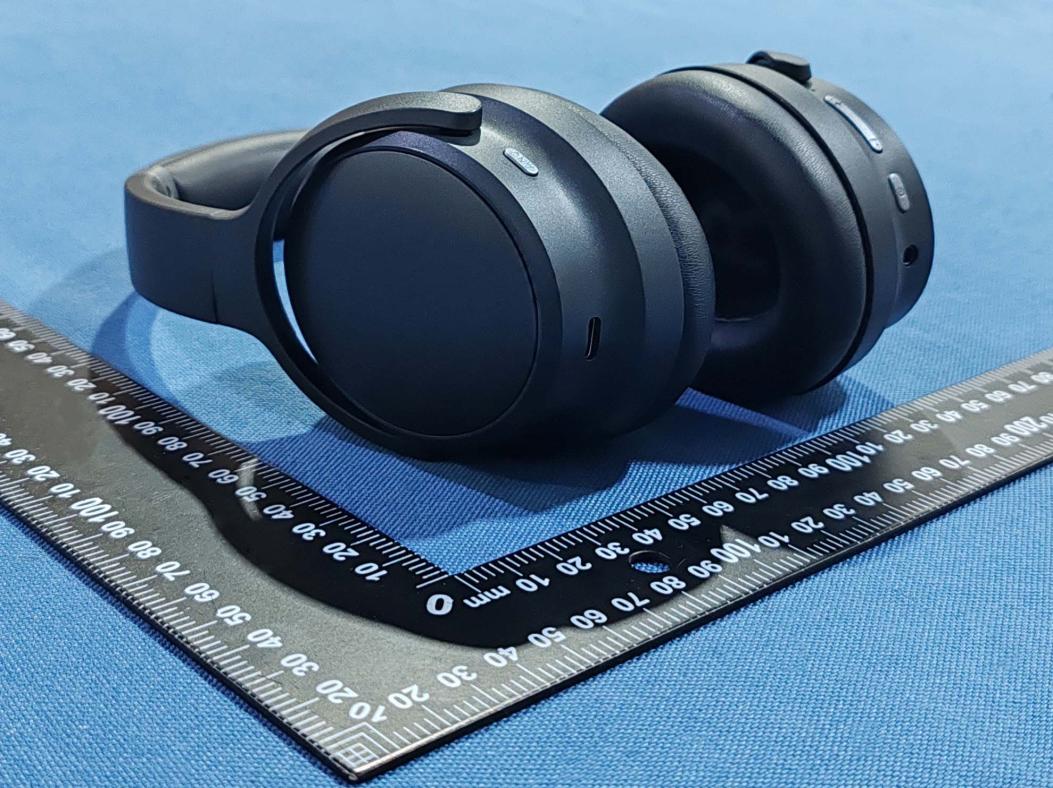

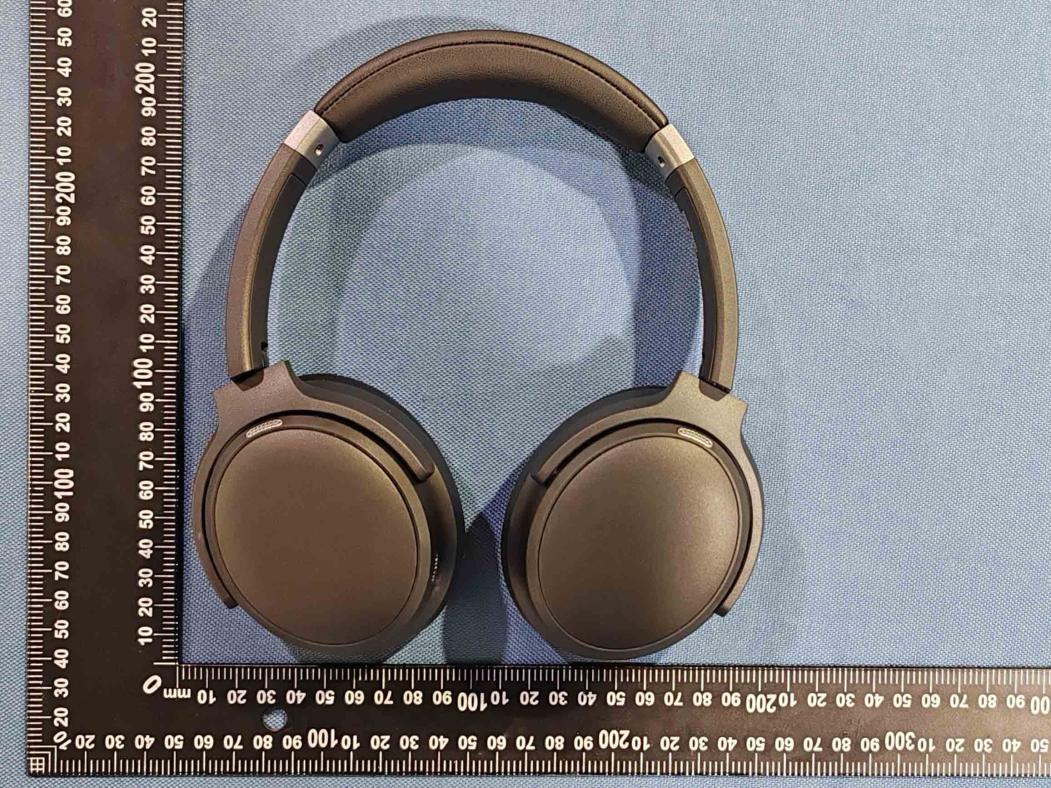

Page 1 of 5 FCC ID: 2AO23-PANC1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6th, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 5 FCC ID: 2AO23-PANC1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6th, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 5 FCC ID: 2AO23-PANC1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6th, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 5 FCC ID: 2AO23-PANC1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6th, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 5 of 5 FCC ID: 2AO23-PANC1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6th, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo

Page 1 of 5 FCC ID: 2AO23-PANC1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6th, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT INTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 5 FCC ID: 2AO23-PANC1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6th, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 5 FCC ID: 2AO23-PANC1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6th, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 5 FCC ID: 2AO23-PANC1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6th, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo BT Antenna Page 5 of 5 FCC ID: 2AO23-PANC1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6th, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo

Page 1 of 8 Report No.: 26012722274RFC-2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6th, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART1-V1.1 SAR TEST EXCLUSION EVALUATION REPORT Product Name: Wireless ANC Over-Ear Headphones Trade Mark: heyday, Chug Inc., Gems, deal worthy Model No.: PANC1 Report Number: 26012722274RFC-2 Test Standards: FCC 47 CFR Part 2.1093 FCC ID: 2AO23-PANC1 Test Result: PASS Date of Issue: March 4, 2026 Prepared for: Chug, Inc. 7157 Shady Oak Rd, Eden Prairie MN 55344, United States Prepared by: Shenzhen UnionTrust Quality and Technology Co., Ltd. 16/F, Block A, Building 6th, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, China TEL: +86-755-2823 0888 FAX: +86-755-2823 0886 Prepared by: Reviewed by: David Chen Henry Lu Senior Project Engineer Team Leader Approved by: Date: March 4, 2026 Kevin Liang Assistant Manager Page 2 of 8 Report No.: 26012722274RFC-2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6th, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART1-V1.1 Version Version No. Date Description V1.0 March 4, 2026 Original Page 3 of 8 Report No.: 26012722274RFC-2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6th, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART1-V1.1 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 4 1.4 OTHER INFORMATION ......................................................................................................................................... 5 1.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................................................... 5 1.6 DEVIATION FROM STANDARDS ............................................................................................................................ 5 1.7 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 5 1.8 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 5 2. EQUIPMENT LIST .................................................................................................................................................... 5 3. SAR TEST EXCLUSION EVALUATION ................................................................................................................... 6 3.1 REFERENCE DOCUMENTS FOR EVALUATION ........................................................................................................ 6 3.2 EXEMPTION LIMITS FOR ROUTINE EVALUATION – SAR EVALUATION .................................................................... 6 3.2.1 SAR TEST EXCLUSION THRESHOLD ........................................................................................................ 6 3.2.2 TEST PROCEDURE ................................................................................................................................. 7 3.3 MPE CALCULATION RESULTS ............................................................................................................................ 7 3.3.1 FOR BT ................................................................................................................................................. 7 APPENDIX 1 PHOTOS OF TEST SETUP ....................................................................................................................... 8 APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS ................................................................................... 8 Page 4 of 8 Report No.: 26012722274RFC-2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6th, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART1-V1.1 1. GENERAL INFORMATION 1.1 CLIENT INFORMATION Applicant: Chug, Inc. Address of Applicant: 7157 Shady Oak Rd, Eden Prairie MN 55344, United States Manufacturer 1: Rocker Technology Co., Ltd Address of Manufacturer 1: Building S3, 2nd Floor, Area A, Samanea Innovation and Technology Park, Prey Roka Village, Chhak Chheu Neang Commune, Ang Snuol District, Kandal Province. Cambodia. Manufacturer 2: Hunan XuanTong Technology Co., Ltd Address of Manufacturer 2: B2 Building, Standard Factory, Caojiapeng Four Phases, Baofeng Street, Shimen County, Changde City, Hunan Province, China Manufacturer 3: Dongguan Roker Intelligent Technology Co., Ltd. Address of Manufacturer 3: Building 3, No. 35, Dongping Road Changping Section, Changping Town, Dongguan, Guangdong, China 1.2 EUT INFORMATION Product Name: Wireless ANC Over-Ear Headphones Model No.: PANC1 Trade Mark: heyday, Chug Inc., Gems, deal worthy DUT Stage: Identical Prototype EUT Supports Function: (Provided by the customer) 2.4 GHz ISM B…

Text truncated - open the document above for the full version.

Page 1 of 62 Report No.: 26012722274RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6th, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 FCC TEST REPORT Product Name: Wireless ANC Over-Ear Headphones Trade Mark: heyday, Chug Inc., Gems, deal worthy Model No.: PANC1 Report Number: 26012722274RFC-1 Test Standards: FCC 47 CFR Part 15 Subpart C FCC ID: 2AO23-PANC1 Test Result: PASS Date of Issue: March 4, 2026 Prepared for: Chug, Inc. 7157 Shady Oak Rd, Eden Prairie MN 55344, United States Prepared by: Shenzhen UnionTrust Quality and Technology Co., Ltd. 16/F, Block A, Building 6th, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, China TEL: +86-755-2823 0888 FAX: +86-755-2823 0886 Prepared by: Reviewed by: David Chen Henry Lu Senior Project Engineer Team Leader Approved by: Date: March 4, 2026 Kevin Liang Assistant Manager Page 2 of 62 Report No.: 26012722274RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6th, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 Version Version No. Date Description V1.0 March 4, 2026 Original Page 3 of 62 Report No.: 26012722274RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6th, Baoneng Science and Technology Park, Longhua Street, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.2.1 GENERAL DESCRIPTION OF EUT ............................................................................................................ 4 1.2.2 DESCRIPTION OF ACCESSORIES .............................................................................................................. 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 5 1.4 OTHER INFORMATION ......................................................................................................................................... 5 1.5 DESCRIPTION OF SUPPORT UNITS ...................................................................................................................... 6 1.6 TEST LOCATION ................................................................................................................................................. 6 1.7 TEST FACILITY ................................................................................................................................................... 6 1.8 DEVIATION FROM STANDARDS ............................................................................................................................ 6 1.9 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 6 1.10 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 7 1.11 MEASUREMENT UNCERTAINTY ........................................................................................................................... 7 2. TEST SUMMARY ...................................................................................................................................................... 8 3. EQUIPMENT LIST .................................................................................................................................................... 9 4. TEST CONFIGURATION ........................................................................................................................................ 10 4.1 ENVIRONMENTAL CONDITIONS FOR TESTING ...................................................................................................... 10 4.1.1 NORMAL OR EXTREME TEST CONDITIONS ............................................................................................. 10 4.1.2 RECORD OF NORMAL ENVIRONMENT AND TEST SAMPLE ........................................................................ 10 4.2 TEST CHANNELS ............................................................................................................................................. 10 4.3 EUT TEST STATUS .......................................................................................................................................... 10 4.4 PRE-SCAN .................................................................................................................................................... 11 4.4.1 WORST-CASE DATA PACKETS ................................................................................................................ 11 4.4.2 TESTED CHANNEL DETAIL ...................................................................................................................... 11 4.5 TEST SETUP .................................................................................................................................................... 12 4.5.1 FOR RADIATED EMISSIONS TEST SETUP ................................................................................................ 12 4.5.2 FOR CONDUCTED RF TE…

Text truncated - open the document above for the full version.

V . S .W . R < 1.4 Polarization Type V ertical & Horizontal Frequenc Range2400 ~ 2500GHz Input Impendence(ohm)50 Efficiency (dB) 6 0.2 % 6 0.2 %-3.61.21.0 Maximum Power (dBm)1.2 (XY-plane) Gain (dBi)1.2 (Avg Gain XY-plane) Peak EIRP(dBm)1.2 Tot. Rad. Pwr. (dBm)-1.2 (Input pwr – loss pwr) Product specification Quick Reference Date Antenna module on the system board Ant. Port Input Pwr. (dBm)0 (Typ. BT class 2 output power) Directivity (dBi)1(all direction antenna) Minimum Power (dBm)-4(XY-plane) Avg. Power (dBm)-0.5(XY-plane) All the technical data and information contained herein are su…
