2AO23-TW15CTrue wireless earbuds

5.31 inch cut line fold line 12 inch front coverpage 6page 5 page 4page 3page 2 back 1 2 34 1 2 34 pairing The buds will start to ash red and white, this means that they are ready to pair. Use the Bluetooth settings on your device to pair with HEYDAY EARBUD 05. When the earbuds have successfully paired they will turn white ve seconds and then fade. To pair the earbuds to your device for the rst time open the case and remove both earbuds. To reenter pairing put both earbuds back in the charging case with the lid open. Hold the reset button on the back so the case power indicator ashes 3 times. To reset to factory settings hold it so the indicator ashes 6 times. After reentering pairing or resetting start the pairing process at step 1. earbuds open case rightleft back earbud power indicator earbud power indicator touch sensor microphone touch sensor microphone input USB-C port reset button case power indicator • TWS Earbuds • TWS Earbud Case • USB-C Charging Cable • Small,Medium and Large Earbud Tips included indicators Earbud Rapid Flashing Red/White - Pairing mode Earbud Flashes White and Fades - Paired Earbud Flashing Red - Low power Earbud Solid Red - Charging Earbud No Light - Charging complete Case One Light - 25% charged Case Two Lights - 50% charged Case Three Lights - 75% charged Case Four Lights - 100% charged Ascending Tones - Power on Descending Tones - Power o Three Rapid Tones - Ready to pair Single Chime - Paired Two Rapid Dings - Low battery Quick Beep - Next(R) / previous(L) song touch controls quick tip: the touch sensor is located in the center of the earbud, be sure to touch here so inputs register * - indicates that the left and right earbud have a dierent function orleft earbudright earbud hold 2 sec. - next song* - reject call - prev. song* - reject call 1 tap - play/pause - answer/end call - play/pause - answer/end call 2 taps - voice assist- voice assist 12 3 12 3 earbud tips To change the size of the earbud tip, squeeze it and pull it away from the earbud. Select the size that is the most comfortable for you and push it onto the earbud. The earbud tip has an interior sleeve that slides onto the earbud. Repeat steps 2 and 3 for the second earbud. The earbuds come with small, medium and large earbud tips and can be changed at any time. Place both earbuds back into the case Charging is complete when lights turn o Full charge requires approximately 1 hour charging earbuds • After pairing to your device remove only the right earbud from the case to enter single earbud use single earbud use • Plug USB-C end of charger into the back of the case • Plug USB end into a power supply of at least DC 5V 1A warning: please use UL compliant power supply • Full charge requires approximately 2 hours and will provide 24 hours of earbud use • Charging is complete when all 4 LEDs are solid white charging case • The earbuds are resistant to sweat which means they’re perfect for workouts note: the charging case does not have the same rating and should not be used in the same conditions IPX5 water resistance hey! welcome to your Heyday™ true wireless earbuds. let’s get you set up. welcome! coverpage 6 how to fold DO NOT PRINT page 5 • Do not use near any water source • Do not modify or repair this device • Do not use chemical detergents to clean your device, use a soft dry cloth WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, re or the like safety Can’t get it to pair? Have a question or comment? call us at: 877-698-4883 or: 877-MyTgtTech online at: TargetTechSupport.com need some help? • If the earbuds are not working correctly place them into the case with the lid open and reset them • If the earbuds won’t turn on, recharge the battery and try again • If the earbuds won’t charge, make sure the power supply works, is 5V>1A, not damaged and that the case is charged • If the earbuds still won’t charge, make sure the charge pins are clear of debris as this may cause a connection issue; if they are use a soft dry cloth to clean them • If the earbuds make no sound or do not show as an available device, make sure they are not paired, if so unpair the device and repair to the desired device troubleshooting NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC ID: 2AO23-TW15C Model: TW15C Input: 5V Max 1A Earbud Battery Capacity: 3.6V/60mAh/0.216Wh Case Battery Capacity: 3.7V/ 500mAh/ 1.850Wh Made in China This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Target Corp. Mpls. MN, 55403 Phone: 1-612-304-6073

TCB Authority to Act as Agent Number: MS-0045317 Revision: 0 Effective date: Oct 8, 2021 Page 1 of 1 The following is a sample Agency Request letter, which needs to be completed on company letterhead, signed by an authorized Applicant/Agent, and submitted to TÜV Rheinland. Authority to Act as Agent Date: ___2022-01-24___ TUV Rheinland of North America, Inc. 1279 Quarry Lane., Suite. A Pleasanton, CA 94566 To Whom It May Concern: I appoint ___TUV Rheinland (Shenzhen) Co., Ltd. __ to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with __Chug,Inc. / 7157 Shady Oak Road Eden Prairie, Washington Minnesota United States. __ For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Date: _ e.g. Typically 8 – 12 months__ Agreement is valid for 12 months from the above date. By: ______________________ __Michael Clemmer _ (Signature) (Print name) __general manager__ __ ____ 612-868-2191 _ (Title) (Telephone) On behalf of: _____ Chug,Inc. ________ (Company Name)

Standard Form Sample Request for Confidentiality Letter MS-0044715 Page 1 of 1 Revision 0 The following is a sample Confidentiality Request letter, which needs to be completed on company letterhead, signed by an authorized Applicant/Agent, and submitted to TÜV Rheinland. Date: 2022.01.24 Subject: Confidentiality Request for FCC ID: 2AO23-TW15C Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Internal Photos *** Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Permanent User’s Manual*** Short Term n/a Test Setup Short Term n/a External Photos ______ Chug,Inc. ______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. (*** PAG only) Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___180___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: _________________________________ Michael Clemmer _ (Signature/Title) (Print name)

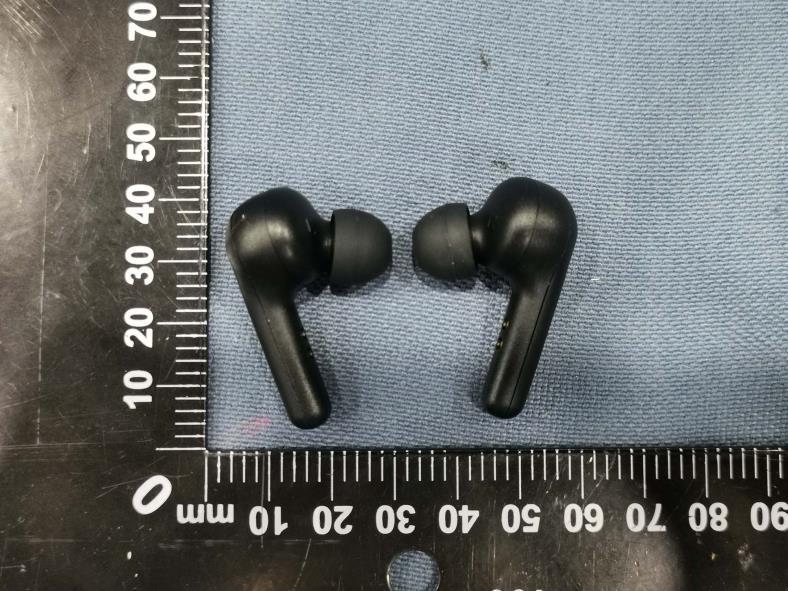

Page 1 of 4 FCC ID: 2AO23-TW15C Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 4 FCC ID: 2AO23-TW15C Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com EUT Photo EUT Photo Page 3 of 4 FCC ID: 2AO23-TW15C Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com EUT Photo EUT Photo Page 4 of 4 FCC ID: 2AO23-TW15C Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com EUT Photo EUT Photo

Chug, Inc. Label Artwork and Location We declare that: Applicant: Chug, Inc. Address: 7157 Shady Oak Road Eden Prairie, Washington Minnesota United States Date: 2022.02.15 Subject: Request for FCC ID: 2AO23-TW15C FCC ID location of User Manual This application for FCC certification is for Bluetooth technology. The charging case only has the function of charging the earbuds, the earbuds with Bluetooth technology is the RF body. However, because the earbuds body area is too small, the FCC ID number is reflected in the random instruction. Label Label location

Page 1 of 6 FCC ID: 2AO23-TW15C Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT INTERNAL PHOTOS EUT Photo EUT Photo Antenna Antenna Page 2 of 6 FCC ID: 2AO23-TW15C Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com EUT Photo EUT Photo Page 3 of 6 FCC ID: 2AO23-TW15C Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com EUT Photo EUT Photo Page 4 of 6 FCC ID: 2AO23-TW15C Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com EUT Photo EUT Photo Page 5 of 6 FCC ID: 2AO23-TW15C Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com EUT Photo EUT Photo Page 6 of 6 FCC ID: 2AO23-TW15C Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com EUT Photo EUT Photo

RF Exposure Requirements Product Description: True wireless earbuds Model No.: TW15C FCC ID: 2AO23-TW15C According to the KDB 447498 D01 V06, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Bluetooth BR & EDR Frequency Range: 2402 MHz to 2480 MHz Type of Modulation: GFSK, π/4DQPSK, 8DPSK Device category: Portable device (Distance: 5mm) Antenna Type: Integral antenna (Gain: 0 dBi) The conducted output power specified is 1 dBm Tolerance: ±3 dB Operating Mode Frequency Tune-up Power (Average) Tolerance Maximum Tune-up Power Separation Distance SAR Test Exclusion Threshold (MHz) (dBm) (dBm) (dBm) (mW) (mm) (mW) EDR 2402-2480 1 3 4 2.51 5 10 So the transmitter complies with the RF exposure requirements and the SAR is not required.

Page 1 of 67 Report No.: 211206004RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 FCC TEST REPORT Product Name: True wireless earbuds Trade Mark: Heyday Model No.: TW15C Add. Model No.: N/A Report Number: 211206004RFC-1 Test Standards: FCC 47 CFR Part 15 Subpart C FCC ID: 2AO23-TW15C Test Result: PASS Date of Issue: February 15, 2022 Prepared for: Chug, Inc. 7157 Shady Oak Road Eden Prairie, Washington Minnesota United States Prepared by: Shenzhen UnionTrust Quality and Technology Co., Ltd. Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China TEL: +86-755-2823 0888 FAX: +86-755-2823 0886 Prepared by: Reviewed by: Dylan Zhang Eric Yu Senior Project Engineer Project Supervisor Approved by: Date: February 15, 2022 Kevin Liang Assistant Manager Page 2 of 67 Report No.: 211206004RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 Version Version No. Date Description V1.0 February 15, 2022 Original Page 3 of 67 Report No.: 211206004RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.2.1 GENERAL DESCRIPTION OF EUT ............................................................................................................ 4 1.2.3 DESCRIPTION OF ACCESSORIES .............................................................................................................. 5 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 5 1.4 OTHER INFORMATION ......................................................................................................................................... 6 1.5 DESCRIPTION OF SUPPORT UNITS ...................................................................................................................... 6 1.6 TEST LOCATION ................................................................................................................................................. 6 1.7 TEST FACILITY ................................................................................................................................................... 7 1.8 DEVIATION FROM STANDARDS ............................................................................................................................ 7 1.9 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 7 1.10 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 7 1.11 MEASUREMENT UNCERTAINTY ........................................................................................................................... 7 2. TEST SUMMARY ...................................................................................................................................................... 8 3. EQUIPMENT LIST .................................................................................................................................................... 9 4. TEST CONFIGURATION ........................................................................................................................................ 10 4.1 ENVIRONMENTAL CONDITIONS FOR TESTING ...................................................................................................... 10 4.1.1 NORMAL OR EXTREME TEST CONDITIONS ............................................................................................. 10 4.1.2 RECORD OF NORMAL ENVIRONMENT..................................................................................................... 10 4.2 TEST CHANNELS ............................................................................................................................................. 10 4.3 EUT TEST STATUS .......................................................................................................................................... 10 4.4 PRE-SCAN .................................................................................................................................................... 11 4.4.1 PRE-SCAN UNDER ALL PACKETS AT MIDDLE CHANNEL .............................................................................. 11 4.4.2 WORST-CASE DATA PACKETS ................................................................................................................ 11 4.4.3 TESTED CHANNEL DETAIL ...................................................................................................................... 11 4.5 TEST SETUP .................................................................................................................................................... 12 4.5.1 FOR…

Text truncated - open the document above for the full version.

Page 26 of 67 Report No.: 211206004RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 8DPSK Lowest Channel Middle Channel Highest Channel Page 27 of 67 Report No.: 211206004RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 5.5 CARRIER FREQUENCIES SEPARATION Test Requirement: FCC 47 CFR Part 15 Subpart C Section 15.247 (a)(1) Test Method: ANSI C63.10-2013 Section 7.8.2 Limit: Frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 125 mW. Test Procedure: Remove the antenna from the EUT and then connect a low loss RF cable from the antenna port to the spectrum analyzer. Use the following spectrum analyzer settings: a) Span: Wide enough to capture the peaks of two adjacent channels. b) RBW: Start with the RBW set to approximately 30% of the channel spacing; adjust as necessary to best identify the center of each individual channel. c) Video (or average) bandwidth (VBW) ≥ RBW. d) Sweep: Auto. e) Detector function: Peak. f) Trace: Max hold. g) Allow the trace to stabilize. h) Use the marker-delta function to determine the separation between the peaks of the adjacent channels. Note: The cable loss and attenuator loss were offset into measure device as an amplitude offset. Test Setup: Refer to section 4.5.3 for details. Instruments Used: Refer to section 3 for details Test Results: Pass Left: Type of Modulation Adjacent Channel Separation (MHz) Minimum Limit (MHz) Channel 39 Channel 39 GFSK 1.000 0.845 π/4 DQPSK 1.000 0.819 8DPSK 1.000 0.847 Note: The minimum limit is two-third 20 dB bandwidth. Right: Type of Modulation Adjacent Channel Separation (MHz) Minimum Limit (MHz) Channel 39 Channel 39 GFSK 1.000 0.641 π/4 DQPSK 1.000 0.819 8DPSK 1.000 0.819 Note: The minimum limit is two-third 20 dB bandwidth. Page 28 of 67 Report No.: 211206004RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 The test plots as follows: Left GFSK π/4 DQPSK 8DPSK Page 29 of 67 Report No.: 211206004RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 Right GFSK π/4 DQPSK 8DPSK Page 30 of 67 Report No.: 211206004RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 5.6 NUMBER OF HOPPING CHANNEL Test Requirement: FCC 47 CFR Part 15 Subpart C Section 15.247(b)(1) Test Method: ANSI C63.10-2013 Section 7.8.3 Limit: Frequency hopping systems in the 2400 – 2483.5 MHz band shall use at least 15 non-overlapping channels. Test Procedure: Remove the antenna from the EUT and then connect a low loss RF cable from the antenna port to the spectrum analyzer. Use the following spectrum analyzer settings: a) Span: The frequency band of operation. Depending on the number of channels the device supports, it may be necessary to divide the frequency range of operation across multiple spans, to allow the individual channels to be clearly seen. b) RBW < 30% of the channel spacing or the 20 dB bandwidth, whichever is smaller. c) VBW ≥ RBW. d) Sweep: Auto. e) Detector function: Peak. f) Trace: Max hold. g) Allow the trace to stabilize. Note: The cable loss and attenuator loss were offset into measure device as an amplitude offset. Test Setup: Refer to section 4.5.3 for details. Instruments Used: Refer to section 3 for details Test Results: Pass Left： Type of Modulation Number of Hopping Channel GFSK 79 π/4 DQPSK 79 8DPSK 79 Right： Type of Modulation Number of Hopping Channel GFSK 79 π/4 DQPSK 79 8DPSK 79 Page 31 of 67 Report No.: 211206004RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 The test plots as follows: Left GFSK_Low End Spectrum Channel Hopping Plot GFSK_High End Spectrum Channel Hopping Plot Page 32 of 67 Report No.: 211206004RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 π/4 DQPSK_Low End Spectrum Channel Hopping Plot π/4 DQPSK_High End Spectrum Channel Hopping Plot Page 33 of 67 Report No.: 211206004RFC-1 Shenzhen UnionTrust Quality and Tech…

Text truncated - open the document above for the full version.

Page 46 of 67 Report No.: 211206004RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 The test plots as follows: Left: GFSK In-Band Reference Level Out of Band Emission Lowest Channel Middle Channel Highest Channel Page 47 of 67 Report No.: 211206004RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 π/4DQPSK In-Band Reference Level Out of Band Emission Lowest Channel Middle Channel Highest Channel Page 48 of 67 Report No.: 211206004RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 8DPSK In-Band Reference Level Out of Band Emission Lowest Channel Middle Channel Highest Channel Page 49 of 67 Report No.: 211206004RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 Hopping Lowest Channel Hopping Highest Channel GFSK π/4DQPSK 8DPSK Page 50 of 67 Report No.: 211206004RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 Right: GFSK In-Band Reference Level Out of Band Emission Lowest Channel Middle Channel Highest Channel Page 51 of 67 Report No.: 211206004RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 π/4DQPSK In-Band Reference Level Out of Band Emission Lowest Channel Middle Channel Highest Channel Page 52 of 67 Report No.: 211206004RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng science and technology park, Longhua district, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-FCCPART15.247-V1.1 8DPSK In-Band Reference Level Out of Band Emission Lowest Channel Middle Channel Highest Channel Page 53 of 67 Report No.: 211206004RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Buildin…

Text truncated - open the document above for the full version.
