2AO2U-TEAM8EAUDIBLE GOLF GPS EARBUDS

KERTEC LLC

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Dec 03, 2023
Application Purpose: Original Equipment
Date of Application: Dec 03, 2023
Equipment Note: AUDIBLE GOLF GPS EARBUDS
Frequency Range: 2402.00000000 - 2480.00000000
Company: KERTEC LLC
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

KERTEC LLC Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 12/1/2023 U.S. Agent Designation KERTEC LLC acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID:2AO2U-TEAM8E): Name and company of U.S. agent: FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of KERTEC LLC. KERTEC LLC with the FRN 0025230566 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. S incerely, Signature Renan Lore Director KERTEC LLC Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7)-U, V05

Attestation Statements

Covered Equipment Identification Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows: We, applicant Company Name: KERTEC LLC Address: 10685-B HAZELHURST DR STE B 13324 HOUSTON, Texas 77043, United States Phone: +1-323-522-5553 certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2023-11-30 Name / Title: Renan Lore / Director Company: KERTEC LLC Address: 10685-B HAZELHURST DR STE B 13324 HOUSTON, Texas 77043, United States Phone: +1-323-522-5553 Fax: N/A Email: [email protected]

Attestation Statements

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2AO2U-TEAM8E TEAM8 E We, applicant Company Name: KERTEC LLC Address: 10685-B HAZELHURST DR STE B 13324 HOUSTON, Texas 77043, United States Phone: +1-323-522-5553 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2023-11-30 Name / Title: Renan Lore / Director Company: KERTEC LLC Address: 10685-B HAZELHURST DR STE B 13324 HOUSTON, Texas 77043, United States Phone: +1-323-522-5553 Fax: N/A Email: [email protected]

Cover Letter(s)

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2AO2U-TEAM8E TEAM8 E For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2023-11-30 Name / Title: Renan Lore / Director Company: KERTEC LLC Address: 10685-B HAZELHURST DR STE B 13324 HOUSTON, Texas 77043, United States Phone: +1-323-522-5553 Fax: N/A Email: [email protected]

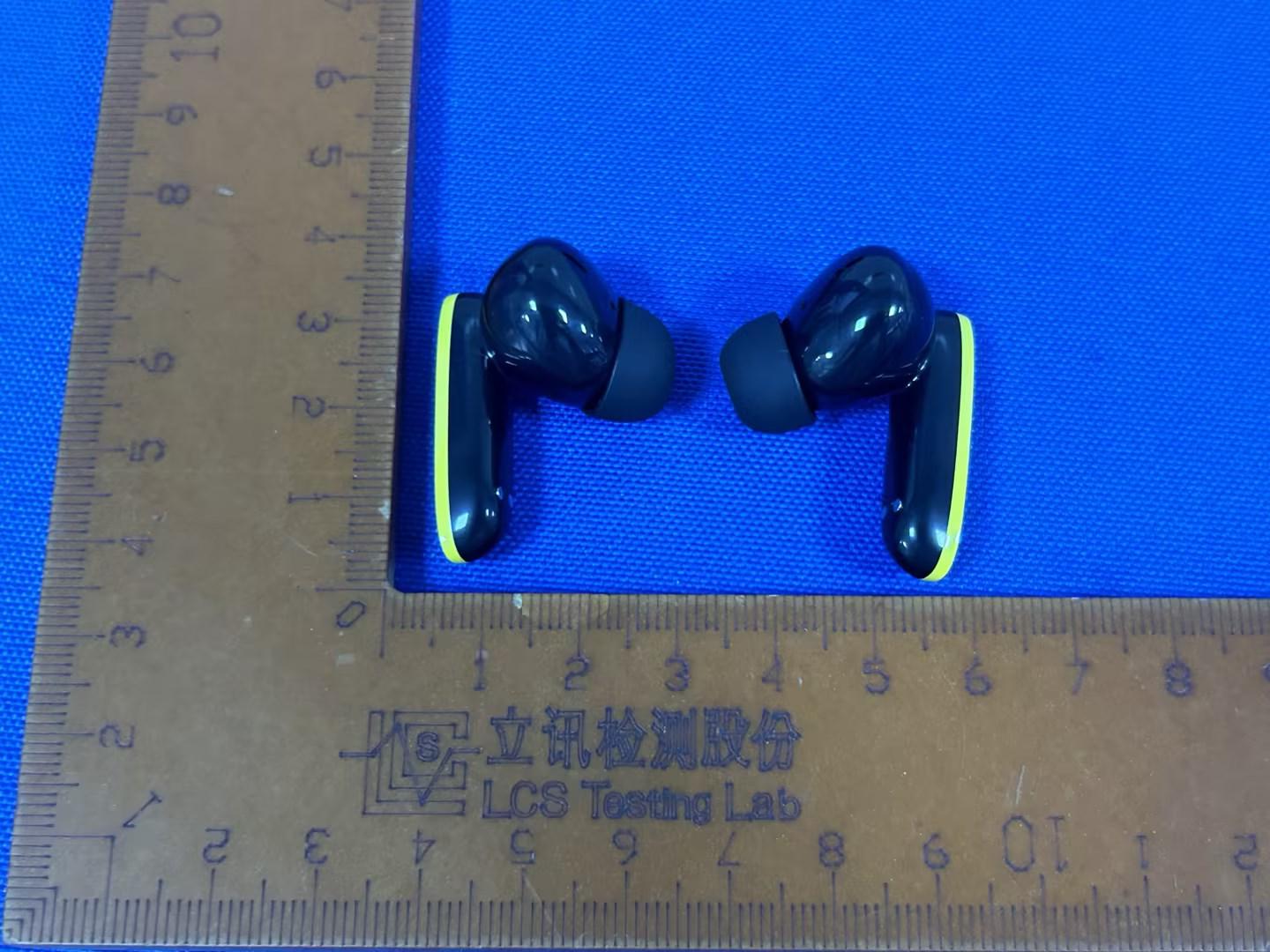

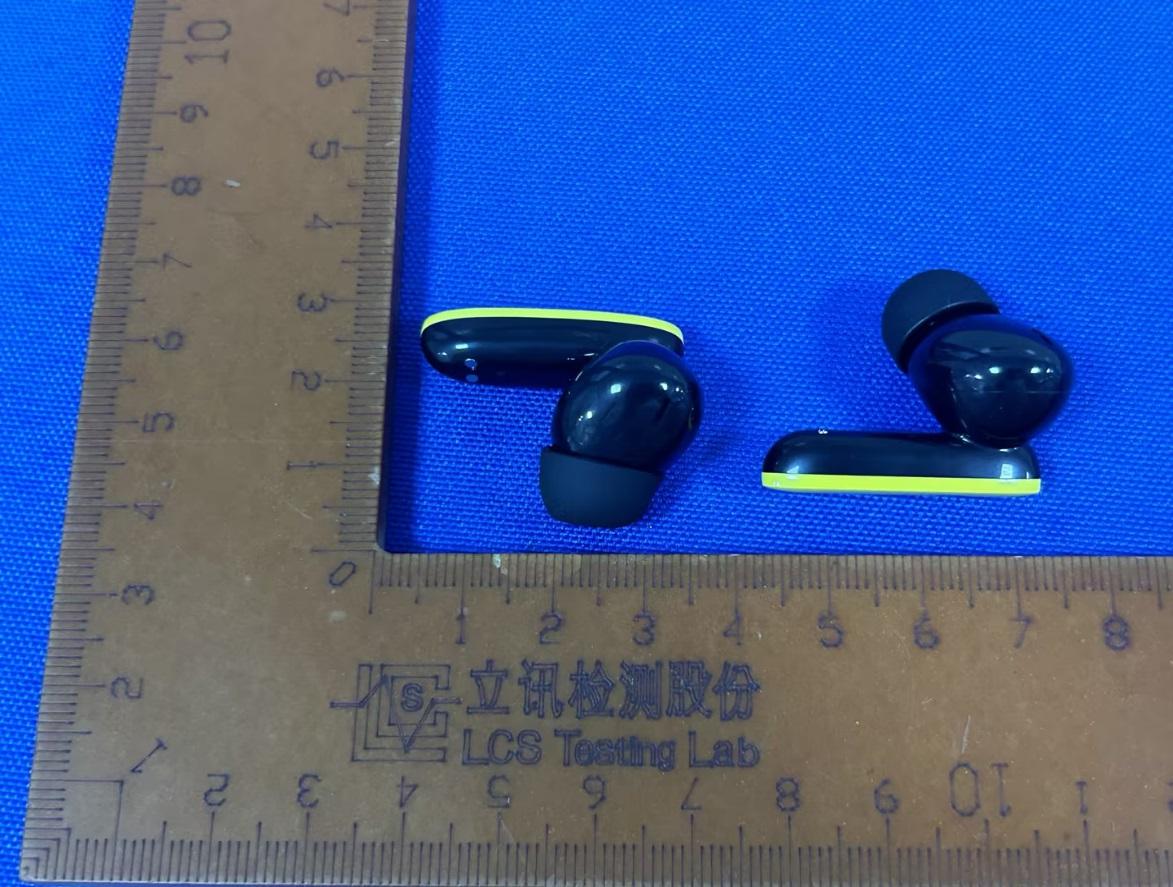

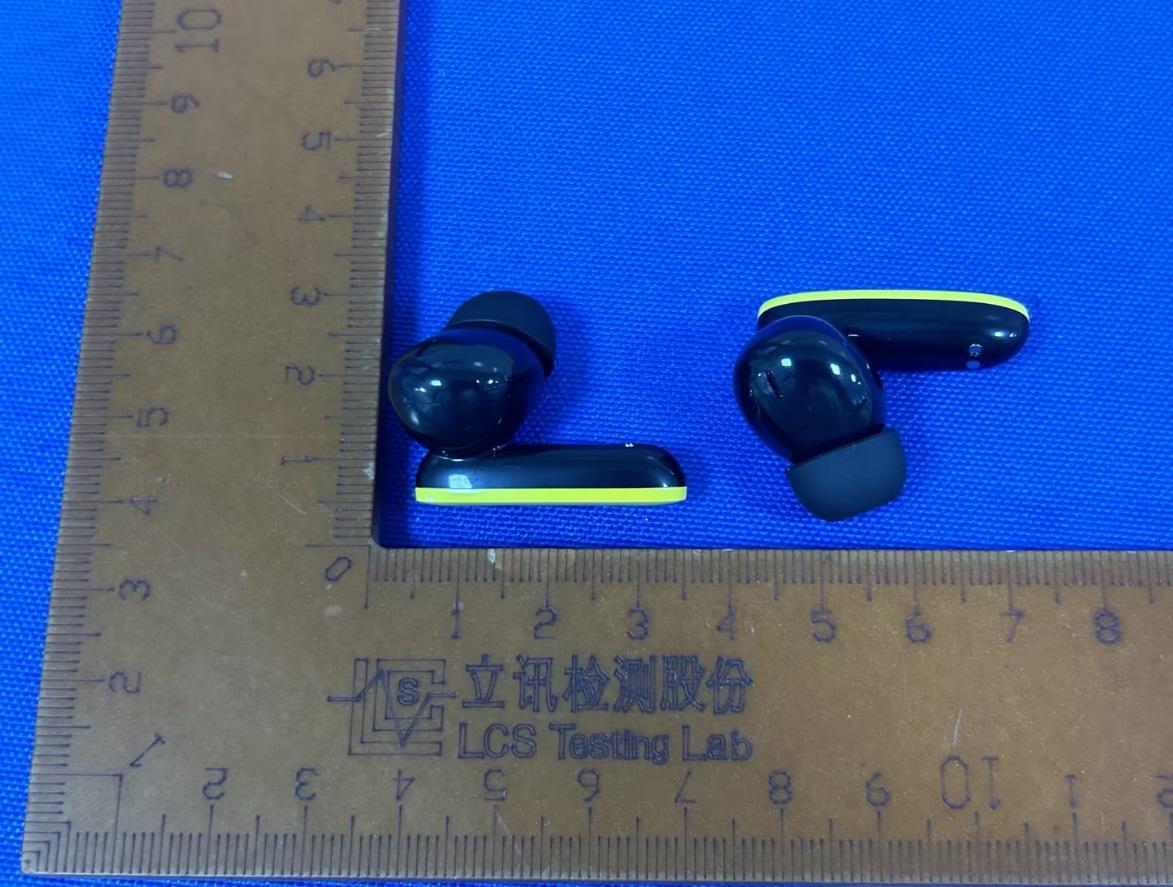

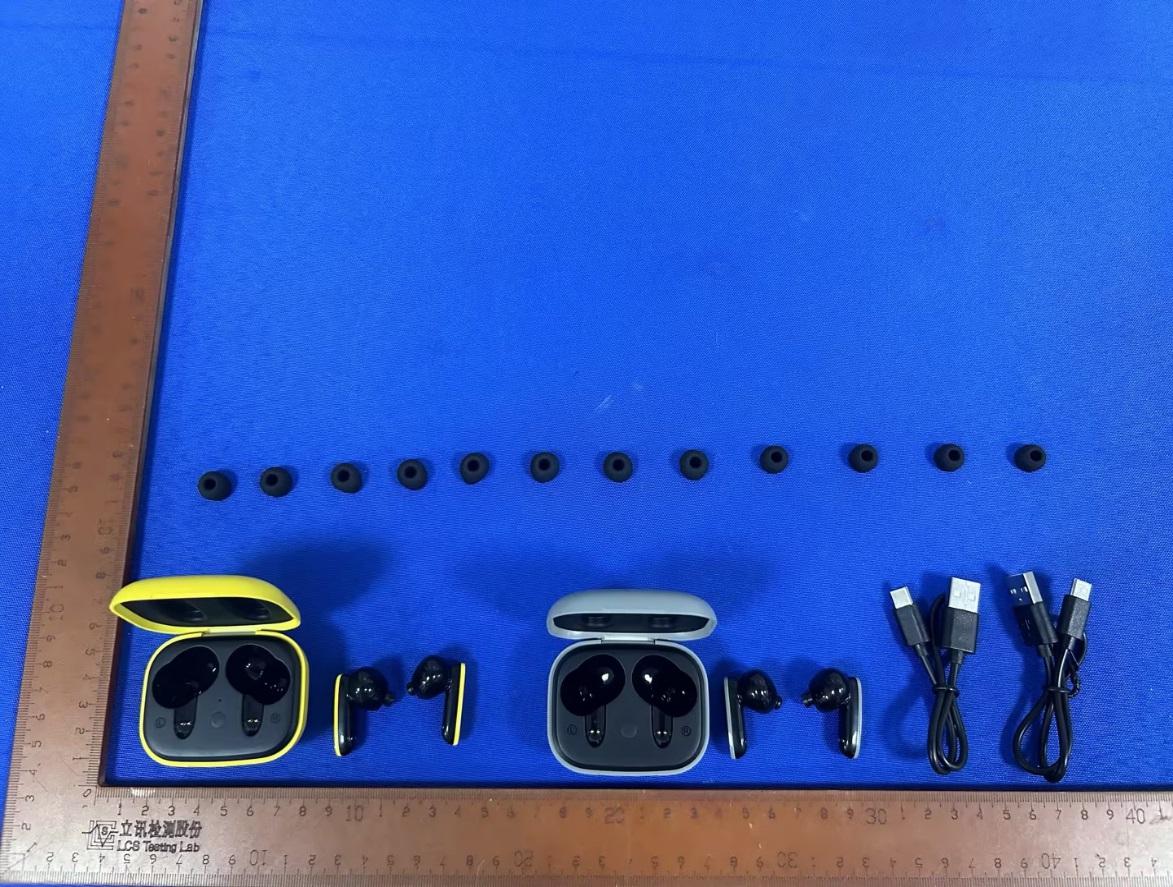

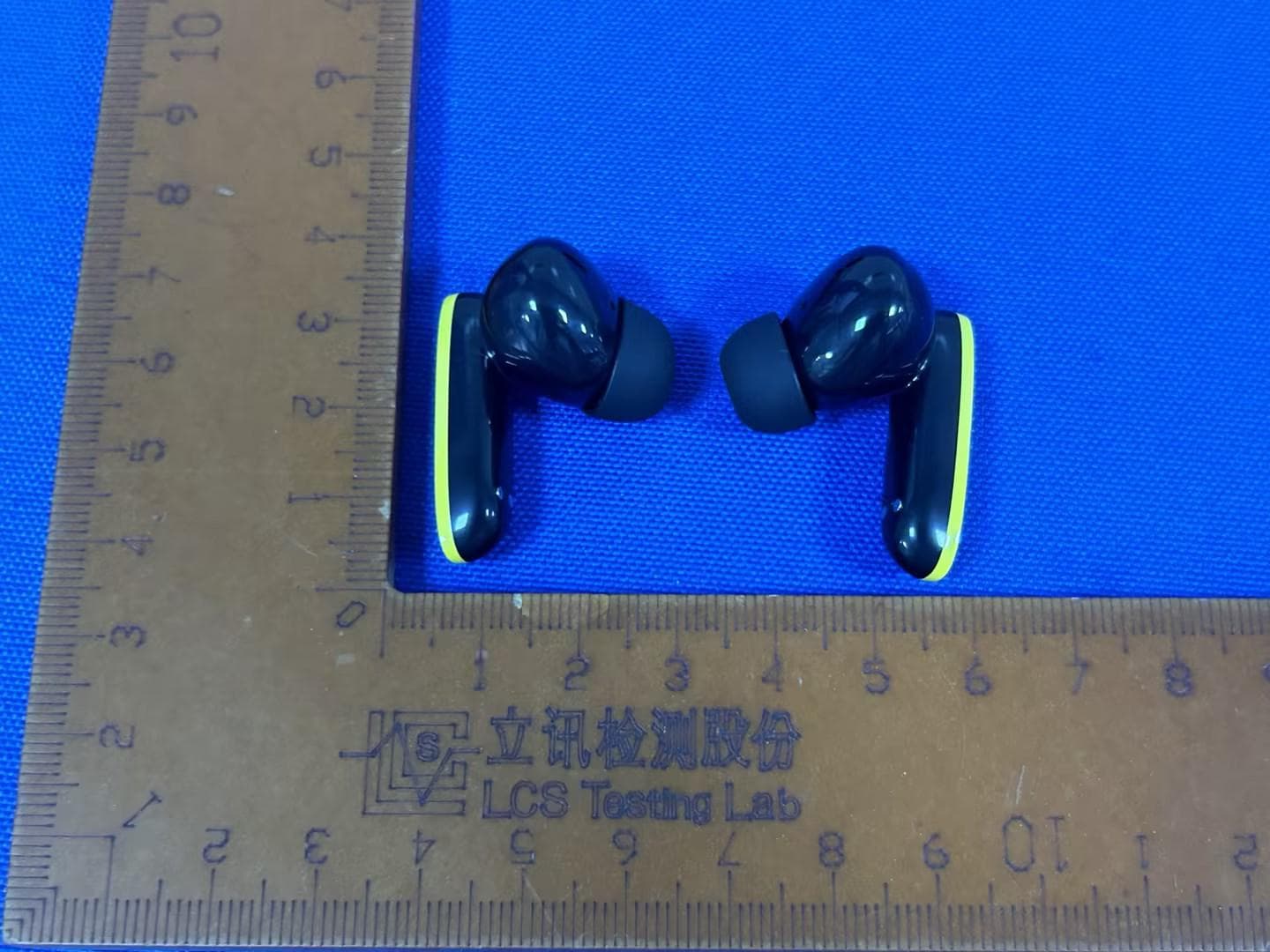

External Photos

ID Label/Location Info

Page1of1FCCID:2AO2U-TEAM8E ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L:3.0cmxW:1.0cm) LabelLocation AUDIBLEGOLFGPSEARBUDS Model:TEAM8E FCCID:2AO2U-TEAM8E

Internal Photos

Page1of5FCCID:2AO2U-TEAM8E ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity InternalPhotosoftheEUT Fig.1 Fig.2 BTAntenna Page2of5FCCID:2AO2U-TEAM8E ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of5FCCID:2AO2U-TEAM8E ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of5FCCID:2AO2U-TEAM8E ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8 Page5of5FCCID:2AO2U-TEAM8E ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.9

RF Exposure Info

Page1of4FCCID:2AO2U-TEAM8E ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCRFExposureEvaluation 1.ProductInformation FCCID: 2AO2U-TEAM8E Productname:AUDIBLEGOLFGPSEARBUDS TestModel:TEAM8E PowerSupply:Earbuds:Input:DC5V,30mAMax0.15W DC3.7VbyLi-ionBattery(40mAh) HardwareVersion:/ SoftwareVersion/ Bluetooth:2402MHz~2480MHz ChannelNumber:79channelsforBluetoothV5.3(DSS) 40channelsforBluetoothV5.3(DTS) ChannelSpacing:1MHzforBluetoothV5.3(DSS) 2MHzforBluetoothV5.3(DTS) ModulationType:GFSK,π/4-DQPSKforBluetoothV5.3(DSS) GFSKforBluetoothV5.3(DTS) BluetoothVersion:V5.3 AntennaType:FPCAntenna AntennaGain: 1.17dBi Exposurecategory:Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:PortableDevice 2.EvaluationmethodandLimit AccordingtoKDB447498D01GeneralRFExposureGuidancev06Section4.3.1StandaloneSAR testexclusionconsiderations:“UnlessspecificallyrequiredbythepublishedRFexposureKDB procedures,standalone1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulation exposureconditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARTestExclusionThresholdcondition,listedbelow,issatisfied.Thesetest exclusionconditionsarebasedonsource-basedtime-averagedmaximumconductedoutputpower oftheRFchannelrequiringevaluation,adjustedfortune-uptolerance,andtheminimumtest separationdistancerequiredfortheexposureconditions.22Theminimumtestseparationdistance isdeterminedbythesmallestdistancefromtheantennaandradiatingstructuresoroutersurfaceof thedevice,accordingtothehostformfactor,exposureconditionsandplatformrequirements,toany partofthebodyorextremityofauserorbystander(see5)ofsection4.1).ToqualifyforSARtest exclusion,thetestseparationdistancesappliedmustbefullyexplainedandjustifiedbythe operatingconfigurationsandexposureconditionsofthetransmitterandapplicablehostplatform requirements,typicallyintheSARmeasurementorSARanalysisreport,accordingtotherequired publishedRFexposureKDBprocedures.WhennootherRFexposuretestingorreportingis required,astatementofjustificationandcompliancemustbeincludedintheequipmentapproval,in lieuoftheSARreport,toqualifyfortheSARtestexclusion.Whenrequired,thedevicespecific conditionsdescribedintheotherpublishedRFexposureKDBproceduresmustbesatisfiedbefore applyingtheseSARtestexclusionprovisions;forexample,handheldPTTtwo-wayradios,handsets, laptops&tabletsetc.“ [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, Page2of4FCCID:2AO2U-TEAM8E ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity mm)]·[√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR,where: •f(GHz)istheRFchanneltransmitfrequencyinGHz •PoweranddistanceareroundedtothenearestmWandmmbeforecalculation •Theresultisroundedtoonedecimalplaceforcomparison •3.0and7.5arereferredtoasthenumericthresholdsinthestep2below Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mm andfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmaccordingtof)insection4.1isappliedto determineSARtestexclusion. Whenoneofthefollowingtestexclusionconditionsissatisfiedforallcombinationsof simultaneoustransmissionconfigurations,furtherequipmentapprovalisnotrequiredto incorporatetransmittermodulesinhostdevicesthatoperateinthemixedmobileandportablehost platformexposureconditions.ThegranteeisresponsiblefordocumentingthisaccordingtoClassI permissivechangerequirements.AntennasthatqualifyforstandaloneSARtestexclusionmust applytheestimatedstandaloneSARtodeterminesimultaneoustransmissiontestexclusion. a)The[∑of(thehighestmeasuredorestimatedSARforeachstandaloneantennaconfiguration, adjustedformaximumtune-uptolerance)/1.6W/kg]+[∑ofMPEratios]is≤1.0. b)TheSARtopeaklocationseparationratiosofallsimultaneouslytransmittingantennapairs operatinginportabledeviceexposureconditionsareall≤0.04,andthe[∑ofMPEratios]is≤ 1.0. 3.ReferEvaluationMethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadio FrequencyElectromagneticFields,3kHzto300GHz. FCCKDBpublication447498D01GeneralRFExposureGuidancev06:MobileandPortableDevices RFExposureProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1093:Radiofrequencyradiationexposureevaluation:portabledevices 4.ConductedPowerResults <BT> ModeChannelFrequency(MHz)PeakConductedOutputPower(dBm) GFSK 02402 0.39 392441 1.23 782480 -0.33 π/4DQPSK 02402 0.45 392441 1.35 782480 0.4 Page3of4FCCID:2AO2U-TEAM8E ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity <BTLE> ModeChannelFrequency(MHz) PeakConductedOutputPower(dBm) GFSK 02402-0.33 1924400.22 392480-1.4 <BT2LE> ModeChannelFrequency(MHz) PeakConductedOutputPower(dBm) GFSK 02402-0.47 1924400.03 392480-1.59 5.ManufacturingTolerance <BT> GFSK(Peak) ChannelChannel0Channel39Channel78 Target(dBm)01.00 Tolerance±(dB)1.01.01.0 π/4DQPSK(Peak) ChannelChannel0Channel39Channel78 Target(dBm)01.00 Tolerance±(dB)1.01.01.0 <BTLE> GFSK(Peak) ChannelChannel0Channel19Channel39 Target(dBm)00-1.0 Tolerance±(dB)1.01.01.0 <BT2LE> GFSK(Peak) ChannelChannel0Channel19Channel39 Target(dBm)00-1.0 Tolerance±(dB)1.01.01.0 Page4of4FCCID:2AO2U-TEAM8E ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 6.EvaluationRe…

Text truncated - open the document above for the full version.

Test Report

深圳市朋伴兴业科技有限公司客户确认签章(APPROVEDSIGNATURE) 产品规格承认书 SPECIFICATIONS 客户/CUSTOMER: 产品名称/DESCRIPTION:FPC天线客户型号/CUSTOMERPARTNO:ANC-010-BT 产品型号/OURMODELNO:X1492-010-BT 日期/DATE:2022-09-30 确认签字,盖章后请返回承认书一份 PLEASERETURNTOUSONECOPYOF“SPECIFICATIONFORAPPROVAL”WITHYOURAPPROVED SIGNATURES Page1 核准王海审核刘飞制作刘小美 Shenzhen Pengban Xingye Technology Co.,Ltd Room 605, Building 4, 1970 Science and Technology Town, Minzhi Street, Longhua District, Shenzhen, China 深圳市朋伴兴业科技有限公司 Contents Contents........................................................................................................................................................................2 1.Summary....................................................................................................................................................................3 2.GeneralDescription...............................................................................................................................................3 2.1AntennaComponents/Partrevisions....................................................................................................3 2.2Definitions......................................................................................................................................................3 3.ElectricalPerformance...........................................................................................................................................4 3.1MatchingCircuitDescription..................................................................................................................4 3.2VSWR(Testinfreespace).........................................................................................................................4 3.3Gain&Efficiency............................................................................................................................................5 3.43DRadiationPattern..................................................................................................................................5 4.AntennaEngineerdrawing.................................................................................................................................7 5.ReliabilityTestingReport....................................................................................................................................8 Page2 深圳市朋伴兴业科技有限公司 1.Summary Thisreportsummarizestheelectricalresultsoftheourantennatosupporttheproject 010.Thetestfixtureismadeforfurthertesting,whichisshowbelow： 2.GeneralDescription 2.1AntennaComponents/Partrevisions TheantennapartnumberisT：A 2.2Definitions VSWR：VoltageStandingWaveRate TRP：totalradiatedpower TIS：totalistropicsensitivity Page3 深圳市朋伴兴业科技有限公司 3.ElectricalPerformance 3.1MatchingCircuitDescription 3.2VSWR(Testinfreespace) Page4 深圳市朋伴兴业科技有限公司 3.3Gain&Efficiency Frequency (MHz) Gain(dB)Efficiency(%) 24001.0238.46 24101.1139 24201.1639.36 24301.1139.27 24401.1739.35 24501.0239.45 24600.8438.68 24700.6237.41 24800.135.83 2490-0.234.6 2500-0.533.53 3.43DRadiationPattern Page5 深圳市朋伴兴业科技有限公司 Page6 深圳市朋伴兴业科技有限公司 4.AntennaEngineerdrawing Page7 Page7 深圳市朋伴兴业科技有限公司 5.ReliabilityTestingReport Partnumber：BT WorkDate：2022.09.26 Testitem：NeutralSalt-Fogtest Testrequirement： Hydrochloricfogthroughneutraltesting:Inthetimeof24hours,norustcorrosion,color fadingorsolderpeelofftotheantennafpcsopinNacl5%±1%PHvalue6.5-7.2,above 85%humidity.and35°C±2°CSealsenvironment. Testresult：Norustcorrosion,colorfadingorsolderpeeloffontheantennasurfaceafter testing Evaluation：pass Page8

Test Report

Page 1 of 38 FCCID:2AO2U-TEAM8EReportNo.:LCSA11143142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity AppendixA RFTestDataforBT(ConductedMeasurement) ProductName:AUDIBLEGOLFGPSEARBUDS TestModel:TEAM8E EnvironmentalConditions Temperature: 23.8C RelativeHumidity:52.1% ATMPressure:100.0kPa TestEngineer: PaddiChen Supervisedby:NickPeng Page 2 of 38 FCCID:2AO2U-TEAM8EReportNo.:LCSA11143142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.1-20dBBandwidth ConditionModeFrequency(MHz)Antenna-20dBBandwidth(MHz)Limit-20dBBandwidth(MHz)Verdict NVNT1-DH52402Ant10.94N/APass NVNT1-DH52441Ant10.947N/APass NVNT1-DH52480Ant10.956N/APass NVNT2-DH52402Ant11.28N/APass NVNT2-DH52441Ant11.289N/APass NVNT2-DH52480Ant11.313N/APass Page 3 of 38 FCCID:2AO2U-TEAM8EReportNo.:LCSA11143142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs -20dBBandwidthNVNT1-DH52402MHzAnt1 -20dBBandwidthNVNT1-DH52441MHzAnt1 Page 4 of 38 FCCID:2AO2U-TEAM8EReportNo.:LCSA11143142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity -20dBBandwidthNVNT1-DH52480MHzAnt1 -20dBBandwidthNVNT2-DH52402MHzAnt1 Page 5 of 38 FCCID:2AO2U-TEAM8EReportNo.:LCSA11143142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity -20dBBandwidthNVNT2-DH52441MHzAnt1 -20dBBandwidthNVNT2-DH52480MHzAnt1 Page 6 of 38 FCCID:2AO2U-TEAM8EReportNo.:LCSA11143142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.2MaximumPeakConductedOutputPower ConditionModeFrequency(MHz)AntennaConductedPower(dBm)Limit(dBm)Verdict NVNT1-DH52402Ant10.3921Pass NVNT1-DH52441Ant11.2321Pass NVNT1-DH52480Ant1-0.3321Pass NVNT2-DH52402Ant10.4521Pass NVNT2-DH52441Ant11.3521Pass NVNT2-DH52480Ant10.421Pass Page 7 of 38 FCCID:2AO2U-TEAM8EReportNo.:LCSA11143142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs PowerNVNT1-DH52402MHzAnt1 PowerNVNT1-DH52441MHzAnt1 Page 8 of 38 FCCID:2AO2U-TEAM8EReportNo.:LCSA11143142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PowerNVNT1-DH52480MHzAnt1 PowerNVNT2-DH52402MHzAnt1 Page 9 of 38 FCCID:2AO2U-TEAM8EReportNo.:LCSA11143142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PowerNVNT2-DH52441MHzAnt1 PowerNVNT2-DH52480MHzAnt1 Page 10 of 38 FCCID:2AO2U-TEAM8EReportNo.:LCSA11143142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.3CarrierFrequenciesSeparation ConditionModeAntennaHoppingFreq1(MHz)HoppingFreq2(MHz)HFS(MHz)Limit(MHz)Verdict NVNT1-DH5Ant12401.8322403.0021.170.627Pass NVNT2-DH5Ant12402.0122403.010.9980.853Pass Page 11 of 38 FCCID:2AO2U-TEAM8EReportNo.:LCSA11143142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs CFSNVNT1-DH52402MHzAnt1 CFSNVNT2-DH52402MHzAnt1 Page 12 of 38 FCCID:2AO2U-TEAM8EReportNo.:LCSA11143142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.4DwellTime ConditionModeFrequency (MHz) AntennaPulseTime (ms) TotalDwellTime (ms) Burst Count PeriodTime (ms) Limit (ms) Verdict NVNT1-DH52402Ant12.909314.17210831600400Pass NVNT2-DH52402Ant12.899281.2039731600400Pass Page 13 of 38 FCCID:2AO2U-TEAM8EReportNo.:LCSA11143142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs DwellNVNT1-DH52402MHzAnt1OneBurst DwellNVNT1-DH52402MHzAnt1Accumulated Page 14 of 38 FCCID:2AO2U-TEAM8EReportNo.:LCSA11143142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86…

Text truncated - open the document above for the full version.

Test Report

Page 1 of 36 FCCID:2AO2U-TEAM8EReportNo.:LCSA11143142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT FOR KERTECLLC AUDIBLEGOLFGPSEARBUDS TestModel:TEAM8E Preparedfor:KERTECLLC Address:10685-BHazelhurstDr.Ste13324HOUSTON,TX77043USA Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address: 101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:November16,2023 Numberoftestedsamples:2 SampleNo.:A231018035-1,A231018035-2 Serialnumber:Prototype DateofTest:November16,2023~November23,2023 DateofReport:November24,2023 Page 2 of 36 FCCID:2AO2U-TEAM8EReportNo.:LCSA11143142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCSA11143142EA DateofIssue.......................................:November24,2023 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................: 101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China TestingLocation/Procedure............ : FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:KERTECLLC Address................................................: 10685-BHazelhurstDr.Ste13324HOUSTON,TX77043USA TestSpecification Standard..............................................:FCCCFR47PART15C(15.247) TestReportFormNo.........................:LCSEMC-1.0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. TestItemDescription.....................:AUDIBLEGOLFGPSEARBUDS TradeMark..........................................:TecTecTec! TestModel...........................................:TEAM8E Ratings.................................................:Earbuds:Input:DC5V,30mAMax0.15W DC3.7VbyLi-ionBattery(40mAh) Result..................................................:Positive Compiledby:Supervisedby:Approvedby: LiHuan/AdministratorCaryLuo/TechniqueprincipalGavinLiang/Manager Page 3 of 36 FCCID:2AO2U-TEAM8EReportNo.:LCSA11143142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCC--TESTREPORT TestResult Positive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCSA11143142EA November24,2023 Dateofissue TestModel.............................. : TEAM8E EUT......................................... : AUDIBLEGOLFGPSEARBUDS Applicant...............................:KERTECLLC Address...................................:10685-BHazelhurstDr.Ste13324HOUSTON,TX77043 USA Telephone...............................:/ Fax..........................................:/ Manufacturer.........................:KERTECLLC Address...................................:10685-BHazelhurstDr.Ste13324HOUSTON,TX77043 USA Telephone...............................:/ Fax..........................................:/ Factory...................................:MANOVAInternationalLimited Address...................................:FlatA,13thFloor,CenturyIndustrialCentre,33-35AuPui WanStreet,FoTan,N.T,HongKong. Telephone...............................:/ Fax..........................................:/ Page 4 of 36 FCCID:2AO2U-TEAM8EReportNo.:LCSA11143142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity RevisionHistory ReportVersionIssueDateRevisionContentRevisedBy 000November24,2023InitialIssue--- Page 5 of 36 FCCID:2AO2U-TEAM8EReportNo.:LCSA11143142EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TABLEOFCONTENTS 1.GENERALINFORMATION ......................................................................................................... 6 1.1DescriptionofDevice(EUT) ............................................................................................................... 6 1.2SupportequipmentList........................................................................................................................7 1.3ExternalI/OCable................................................................................................................................7 1.4DescriptionofTestFacility .................................................................................................................. 7…

Text truncated - open the document above for the full version.

Test Setup Photos

Page1of2FCCID:2AO2U-TEAM8E ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestSetupPhotosoftheEUT TestSetupPhoto(s)ofRadiatedEmissionsMeasurement Fig.1 Fig.2 Page2of2FCCID:2AO2U-TEAM8E ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:webmaster@lcs-cert.…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Renan Lore

[email protected](323) 522-5553Fax: none

Test Firm

Shenzhen LCS Compliance Testing Laboratory Ltd.Gavin Liang

[email protected]0755-82591330Fax: 0755-82591132

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	1.40 mW

Confidentiality

Long Term

Grant Notes

Power listed is maximum peak conducted output power. This filing meets the SAR threshold exclusion set forth in KDB 447498 and therefore can be used in mobile/portable configurations. The antenna used for this transmitter must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
