2AO85-AFQ05kids alarm clock

SHENZHEN JINGDU TECHNOLOGY CO.,LTD Add: 4F, Building D, Fuxinlin Park Hangcheng industrial Park, Qianjin 2 Road Baoan District, Shenzhen China Date: 2021-6-3 FCC ID: 2AO85-AFQ05 Dear Sir/Madam, We, SHENZHEN JINGDU TECHNOLOGY CO.,LTD Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: kids alarm clock Model no.: AFQ05, AFQ06, AFQ07, AFQ08 Sincerely, Name/Title： Jack Wang/Product Manager Company: SHENZHEN JINGDU TECHNOLOGY CO.,LTD Address: 4F, Building D, Fuxinlin Park Hangcheng industrial Park, Qianjin 2 Road Baoan District, Shenzhen China Phone: 13077885188 Fax: N.A. E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-6-3> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AO85-AFQ05 AFQ05 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Jack Wang/Product Manager Company: SHENZHEN JINGDU TECHNOLOGY CO.,LTD Address: 4F, Building D, Fuxinlin Park Hangcheng industrial Park, Qianjin 2 Road Baoan District, Shenzhen China Phone: 13077885188 Fax: N.A. E-Mail: [email protected]

SHENZHEN JINGDU TECHNOLOGY CO.,LTD 4F, Building D, Fuxinlin Park Hangcheng industrial Park, Qianjin 2 Road Baoan District, Shenzhen China Date: 2021-6-3 FCC ID: 2AO85-AFQ05 Model Number: AFQ05 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, SHENZHEN JINGDU TECHNOLOGY CO.,LTD, declare that this EUT (FCC ID: 2AO85-AFQ05 ) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： Jack Wang/Product Manager Company: SHENZHEN JINGDU TECHNOLOGY CO.,LTD Address: 4F, Building D, Fuxinlin Park Hangcheng industrial Park, Qianjin 2 Road Baoan District, Shenzhen China Phone: 13077885188 Fax: N.A. E-Mail: [email protected]

SHENZHEN JINGDU TECHNOLOGY CO.,LTD 4F, Building D, Fuxinlin Park Hangcheng industrial Park, Qianjin 2 Road Baoan District, Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-6-3 To whom it may concern: We, SHENZHEN JINGDU TECHNOLOGY CO.,LTD the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AO85-AFQ05 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Jack Wang/Product Manager Company: SHENZHEN JINGDU TECHNOLOGY CO.,LTD Address: 4F, Building D, Fuxinlin Park Hangcheng industrial Park, Qianjin 2 Road Baoan District, Shenzhen China Phone: 13077885188 Fax: N.A. E-Mail: [email protected]

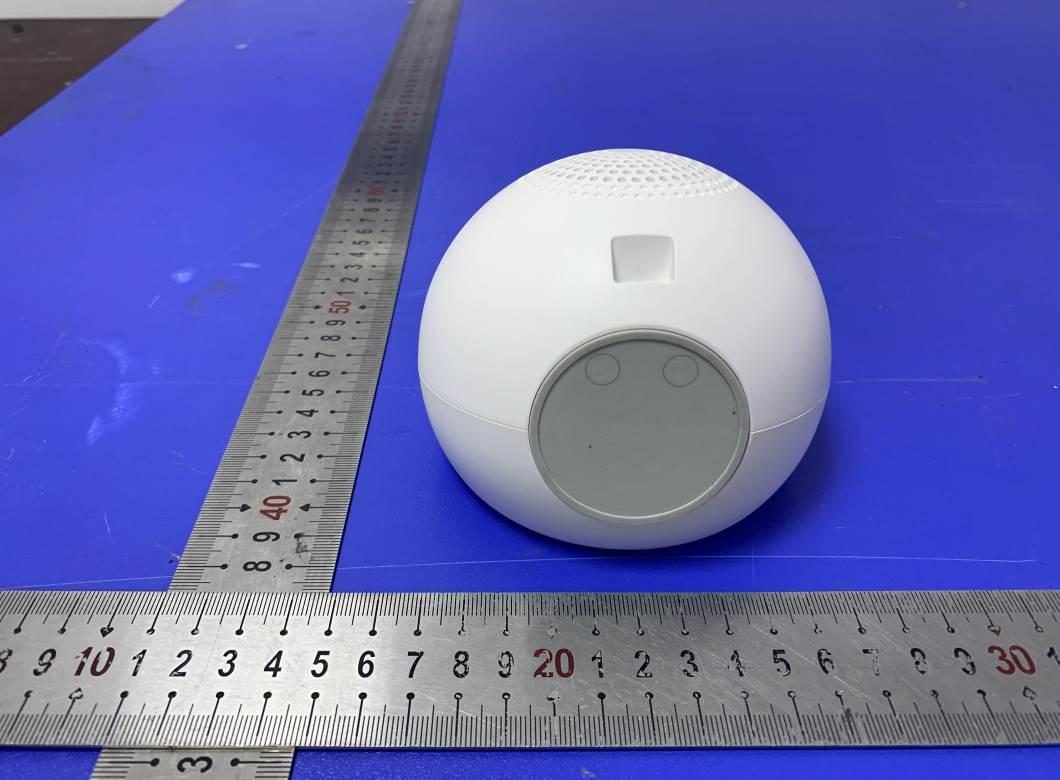

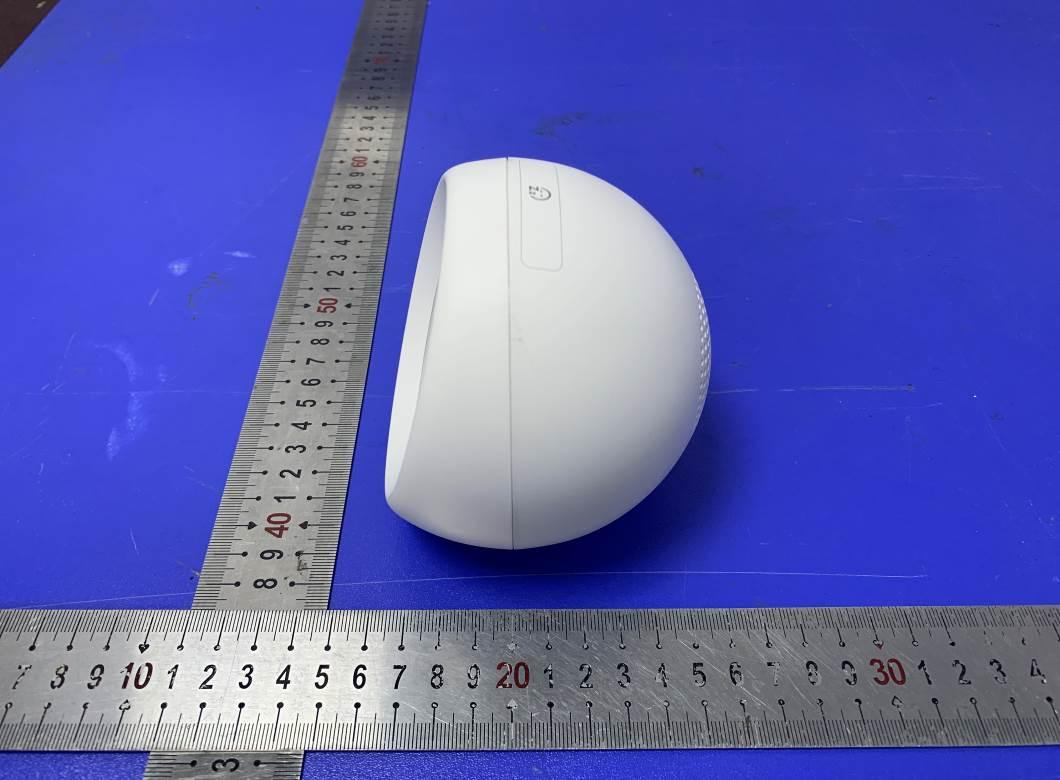

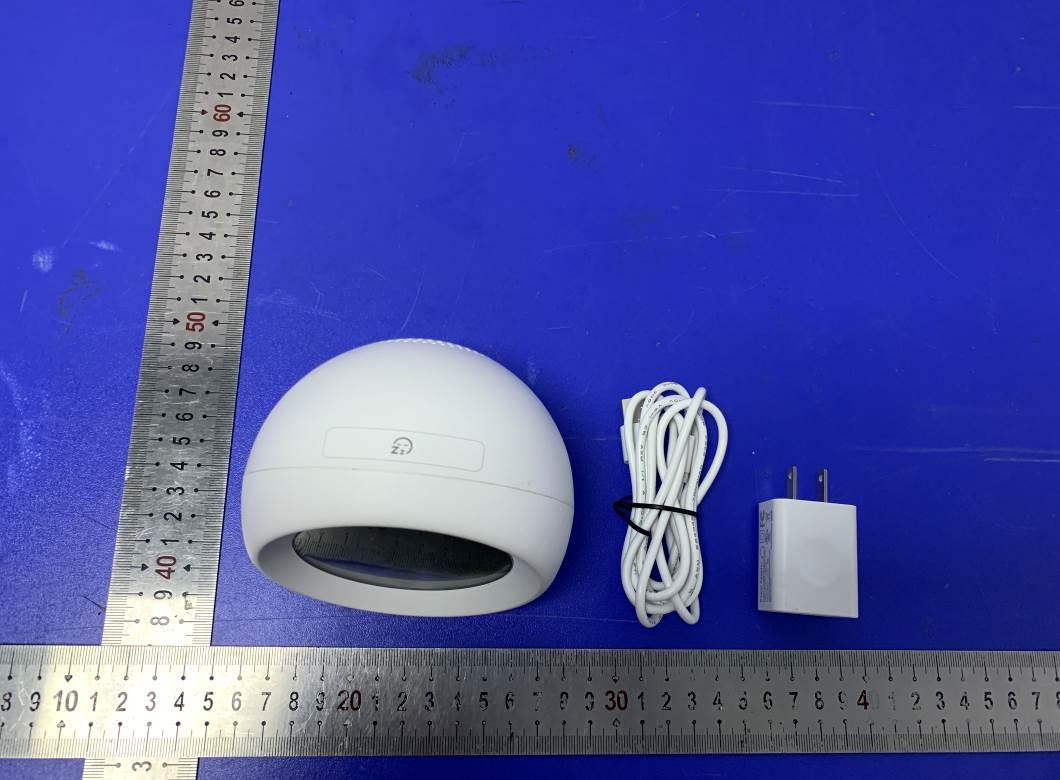

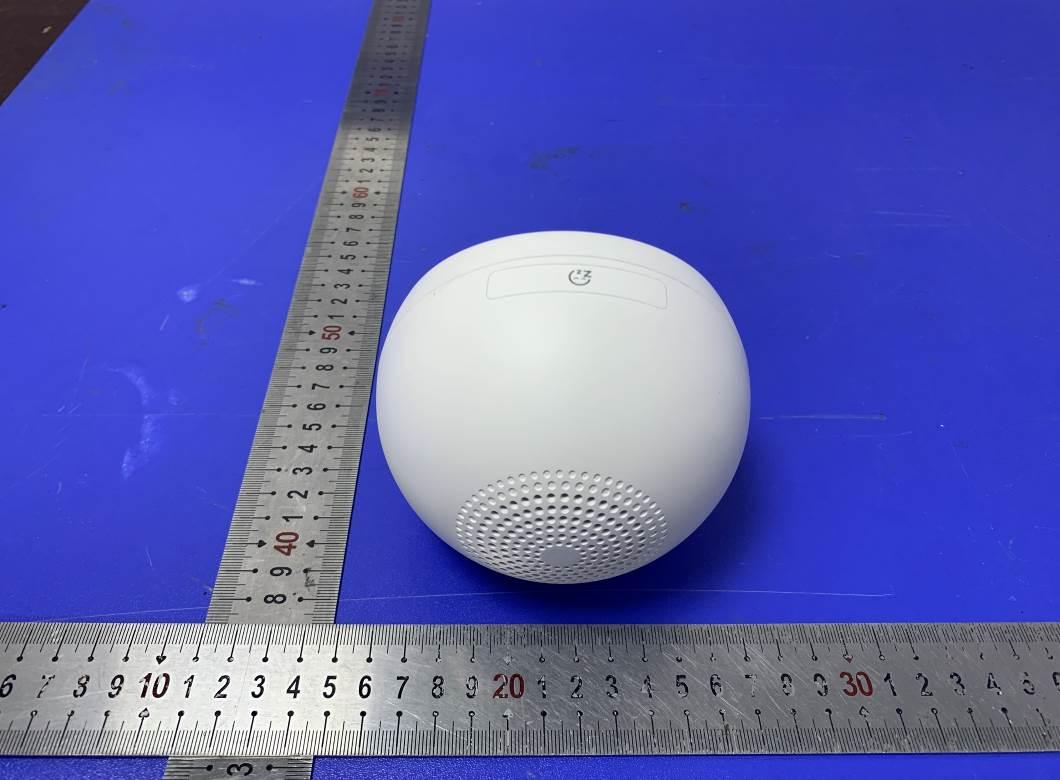

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 5 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 5 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 5 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 5 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 5 Fig.9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L3.0cm*W3.0cm Label Location kids alarm clock Model No.: AFQ05 FCC ID: 2AO85-AFQ05

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Fig.7 Fig.8 WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Fig.9 Fig.10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 Maximum Permissible Exposure Report 1. Product Information FCC ID: 2AO85-AFQ05 Product name kids alarm clock Test Model AFQ05 Additional Model No. AFQ06, AFQ07, AFQ08 Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power supply For Adapter Model: TPA-46B050100UU Input: AC 100-240V, 50/60Hz, 0.2A Output: DC 5.0V, 1000mA Operation frequency 2412MHz ~ 2462 MHz Antenna Type PCB Antenna Antenna Gain 2.3dBi(Max.) Hardware version V1.0 Software version V1.1.71 Channel Number 11 Channels for 20MHz bandwidth (2412~2462MHz) 7 Channels for 40MHz bandwidth (2422~2452MHz) Channel Spacing 5MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information GTV can only use antennas certificated as follows provided by manufacturer; Antenna type and antenna number Operate frequency band Maximum antenna gain Notes PCB Antenna 2000 MHz – 2500 MHz 2.3dBi WiFi Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 6. Conducted Power [2.4GWIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) 11B 1 2412 17.25 6 2437 17.68 11 2462 17.46 11G 1 2412 15.57 6 2437 17.24 11 2462 17.01 11N20SISO 1 2412 13.43 6 2437 15.58 11 2462 15.66 11N40SISO 3 2422 15.13 6 2437 15.89 9 2452 16.35 7. Measurement Results 2.4GWIFI 11B (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 17.0 17.0 17.0 Tolerance ±(dB) 1.0 1.0 1.0 11G (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 15.0 17.0 17.0 Tolerance ±(dB) 1.0 1.0 1.0 11N20SISO (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 13.0 15.0 15.0 Tolerance ±(dB) 1.0 1.0 1.0 11N40SISO (Peak) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 15.0 15.0 16.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 8. Evaluation Results As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 1 of 46 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: kids alarm clock Trade Mark: SYCEES, Tntants, Kapebow Test Model: AFQ05 Environmental Conditions Temperature: 24.6  C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Jay Li Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 99.76 PASS 11G 2437 Ant1 98.56 PASS 11N20SISO 2437 Ant1 98.65 PASS 11N40SISO 2437 Ant1 98.07 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 2 of 46 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 3 of 46 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 4 of 46 A.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 17.25 30 PASS MCH 17.68 30 PASS HCH 17.46 30 PASS 11G LCH 15.57 30 PASS MCH 17.24 30 PASS HCH 17.01 30 PASS 11N20SISO LCH 13.43 30 PASS MCH 15.58 30 PASS HCH 15.66 30 PASS 11N40SISO LCH 15.13 30 PASS MCH 15.89 30 PASS HCH 16.35 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 5 of 46 A.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -10.572 8 PASS MCH -9.656 8 PASS HCH -9.436 8 PASS 11G LCH -17.302 8 PASS MCH -15.031 8 PASS HCH -15.069 8 PASS 11N20SISO LCH -18.387 8 PASS MCH -16.842 8 PASS HCH -15.297 8 PASS 11N40SISO LCH -19.202 8 PASS MCH -18.778 8 PASS HCH -19.523 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 6 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 7 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 8 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 9 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 10 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 11 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 12 of 46 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 9.119 ≥0.5 PASS MCH 9.102 ≥0.5 PASS HCH 9.580 ≥0.5 PASS 11G LCH 11.34 ≥0.5 PASS MCH 12.53 ≥0.5 PASS HCH 12.55 ≥0.5 PASS 11N20SISO LCH 10.11 ≥0.5 PASS MCH 13.79 ≥0.5 PASS HCH 11.34 ≥0.5 PASS 11N40SISO LCH 31.35 ≥0.5 PASS MCH 31.29 ≥0.5 PASS HCH 33.79 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 13 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 14 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 15 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 16 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 17 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 18 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 19 of 46 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH 4.91 -38.366 -15.090 PASS MCH 5.685 -37.968 -14.315 PASS HCH 5.329 -38.022 -14.671 PASS 11G LCH -0.991 -38.155 -20.991 PASS MCH 0.177 -37.959 -19.823 PASS HCH 0.337 -37.868 -19.663 PASS 11N20 SISO LCH -3.408 -38.224 -23.408 PASS MCH -0.818 -38.658 -20.818 PASS HCH -1.339 -38.230 -21.339 PASS 11N40 SISO LCH -5.106 -36.906 -25.106 PASS MCH -4.316 -37.081 -24.316 PASS HCH -4.302 -37.593 -24.302 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 20 of 46 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 21 of 46 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 22 of 46 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 23 of 46 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 24 of 46 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 25 of 46 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 26 of 46 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 27 of 46 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 28 of 46 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA Page 29 of 46 11N40SISO_L…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 37 FCC TEST REPORT For SHENZHEN JINGDU TECHNOLOGY CO., LTD kids alarm clock Test Model: AFQ05 Additional Model No.: Please Refer to Page 6 Prepared for : SHENZHEN JINGDU TECHNOLOGY CO., LTD Address : 4F, Building D, Fuxinlin Park Hangcheng industrial Park, Qianjin 2 Road Baoan District, Shenzhen China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : April 25, 2021 Number of tested samples : 2 Sample No. : 210423004A-1, 210423004A-2 Serial number : Prototype Date of Test : April 25, 2021 ~ April 26, 2021 Date of Report : April 28, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 37 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS210423004AEA Date of Issue ................................... : April 28, 2021 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : SHENZHEN JINGDU TECHNOLOGY CO., LTD Address ........................................... : 4F, Building D, Fuxinlin Park Hangcheng industrial Park, Qianjin 2 Road Baoan District, Shenzhen China Test Specification Standard .......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : kids alarm clock Trade Mark ...................................... : SYCEES, Tntants, Kapebow Test Model ...................................... : AFQ05 Ratings ............................................ : For Adapter Model: TPA-46B050100UU Input: AC 100-240V, 50/60Hz, 0.2A Output: DC 5.0V, 1000mA Result ............................................ : Positive Compiled by: Supervised by: Approved by: Vera Deng/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 37 FCC -- TEST REPORT EUT......................................... : kids alarm clock Test Model........................... : AFQ05 Applicant............................... : SHENZHEN JINGDU TECHNOLOGY CO., LTD Address.................................. : 4F, Building D, Fuxinlin Park Hangcheng industrial Park, Qianjin 2 Road Baoan District, Shenzhen China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Linklite Smart Lighting Co., Ltd Address................................... : 4th floor, A3 building, Yangbei industrial park 1st phase, Huangtian, Hangcheng street, Bao'an district, Shenzhen city, Guangdong Province. 518100 Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210423004AEA April 28, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 37 Revision History Revision Issue Date Revisions Revised By 000 April 28, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 Report No.: LCS210423004AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 37 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 7 1…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AO85-AFQ05 _______________________________________________________________________________________________ 1.2. Photo of Conducted Emissions Measurement Fig. 3
