2AO85-WXM29XLR Wireless Transmitter and Receiver

4 5 6 2 3 WXM29 The XLR Microphone Wireless System adopts UHF frequency band transmission, which has the characteristics of long transmission distance, strong anti-interference ability, low delay and clear sound quality. Compatible with a variety of pickups. The working status is intuitive, and easy to use. Note: Please read and follow all warnings carefully before use, and keep this manual for subsequent use. microphone music input switching Transmitter Connect microphoneConnect microphone 48V power supply. Up for audio input; down for mic input Green light when powered on Type-c charging port, input voltage DC5V 1A Type-c charging port, input voltage DC5V 1A When connecting the Condenser microphone, you need to press twice, then long press for 10 seconds to 48V mode (48V will be displayed on the screen) (1)Hold to turn on;long press to turn off (2)Change frequency:short press twice with powered on. 25 frequencies in total. 4 5 2 3 4 5 2 3 Input port to connect amplifier Display connection, battery life and frequency Hold to turn on;Long press to turn off Red Green Blue Low power Volume Battery life Audio equipment with XLR port can be connected to this product, including mixers, multimedia speakers, power amplifiers, etc. Mixing console PA Transmitter can not be turned on Receiver can not be turned on No sound Small sound Intermittent sound Howling, screaming 1 (1)Charge first, then check whether the transmitter charging indicator light is on. (2)Press and hold the power switch for 2 seconds to power on, short press cannot power on. (1)Charge first, then check whether the transmitter charging indicator light is on. (2)Press and hold the power switch for 2 seconds to power on, short press cannot power on. (1)Check whether the volume of the microphone and the audio device has (2)Check whether the transmitter and receiver are successfully connected; (3)The amplifier which connect the receiver may need to set the input mode, been turned on; the microphone information will be displayed if the connection is successful. please refer to the manual of the amplifier for setting; (1)Check whether the switch button of the transmitter is in the appropriate (2)Turn up the volume of the output device. position. If the transmitter is connected to the microphone input, it should be adjusted to the microphone position, (1)Shorten the distance between the transmitter and the receiver, the visual (2)Change frequency; distance does not exceed 50M, and the transmission distance will be shortened when there are obstacles in the middle; (1)Reduce the volume of the amplifier or microphone; (2)Do not place the microphone too close to the speaker. 2 3 4 5 6 Receiving frequency: U BandFrequency stability: <0.002% Sensitivity: 2mVInterference frequency ratio > 90dB Image interference ratio: >88dBSignal to noise ratio: >95dB Audio output: 800mV-1.4V Working range: Standard conditions 30 to 50 m Receive channel: 1 Supply Voltage: DC 5V Antenna: universal antenna Carrier frequency: U BandFrequency stability: <0.002% Transmit power: 10mW Current consumption: <25mA Harmonic: <Main wave 40dB Standard: Fixed frequency Battery: lithium battery Antenna: built-in Dynamic Range: >95dB System distortion(<1%，1K Hertz modulation) Frequency response: 50Hz-18KHz(+3dB) 1X Transmitter 1X Receiver 1X XLR to 6.35mm adapter 1X charging cable 1X User Manual FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement.

SHENZHEN JINGDU TECHNOLOGY CO.,LTD Agent Authorization Company: SHENZHEN JINGDU TECHNOLOGY CO.,LTD Address: 3F, Building D, Fuxinlin Park Hangcheng industrial Park, Qianjin 2 Road Baoan District, ShenzhenXixiang town, China Product Name: XLR Wireless Transmitter and Receiver Model Number(s): WXM29, WXM29A, WXM29B, WXM29C, WXM29D, WXM29-1, WXM29- 2, WXM29-3, WXM29-4 Product Description: XLR Wireless Transmitter and Receiver We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Apr. 28, 2022 Name: Jack Wang Title: Product Manager Company: SHENZHEN JINGDU TECHNOLOGY CO.,LTD

SHENZHEN JINGDU TECHNOLOGY CO.,LTD Off ice of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Apr. 28, 2022 Subject; Request for Confidentiality FCC ID: 2AO85-WXM29 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jack Wang Title: Product Manager

Model Difference Declaration To Whom It May Concern, We, SHENZHEN JINGDU TECHNOLOGY CO.,LTD(XLR Wireless Transmitter and Receiver) Trademark:Bietrun, Kapebow;Model Number:WXM29, WXM29A, WXM29B, WXM29C, WXM29D, WXM29-1, WXM29-2, WXM29-3, WXM29-4;All model’s the function, s oftware and electric circuit are the same, only with a product color, appearance and model named different for commercial purpose. Test sample model: WXM29. Please contact me if you have any question. Name: Jack Wang Date: Apr. 28, 2022 Title: Product Manager Signature of applicant:

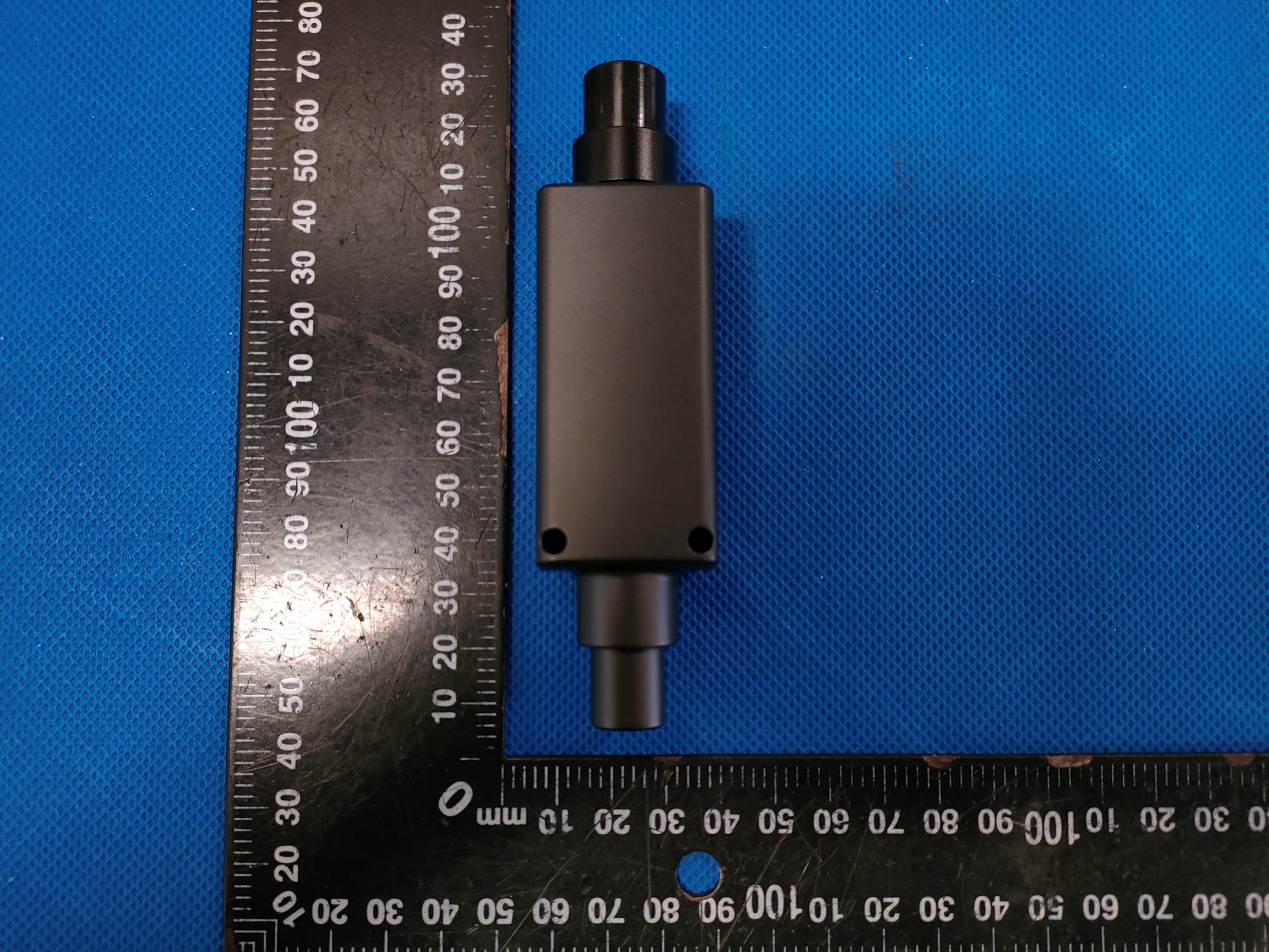

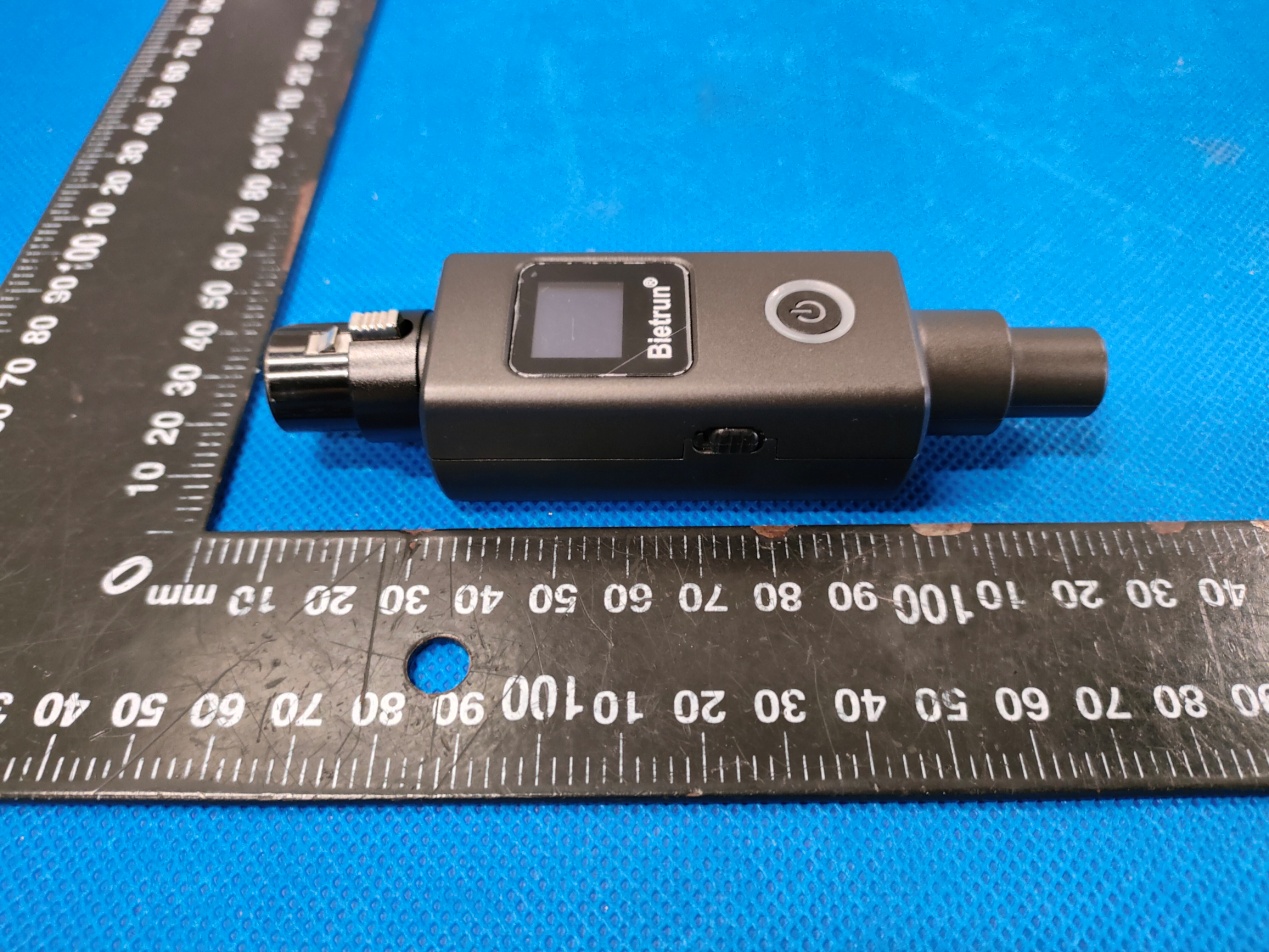

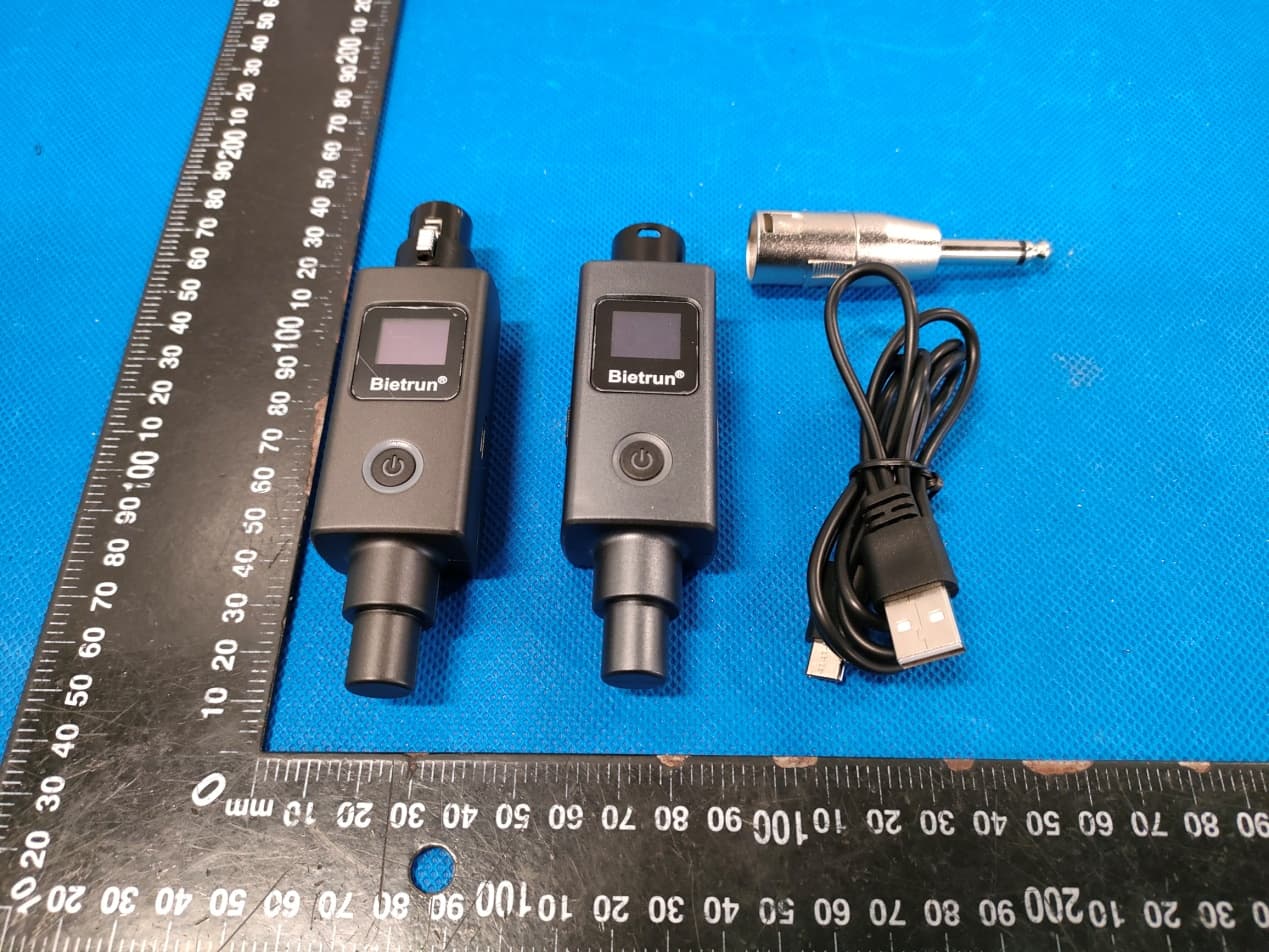

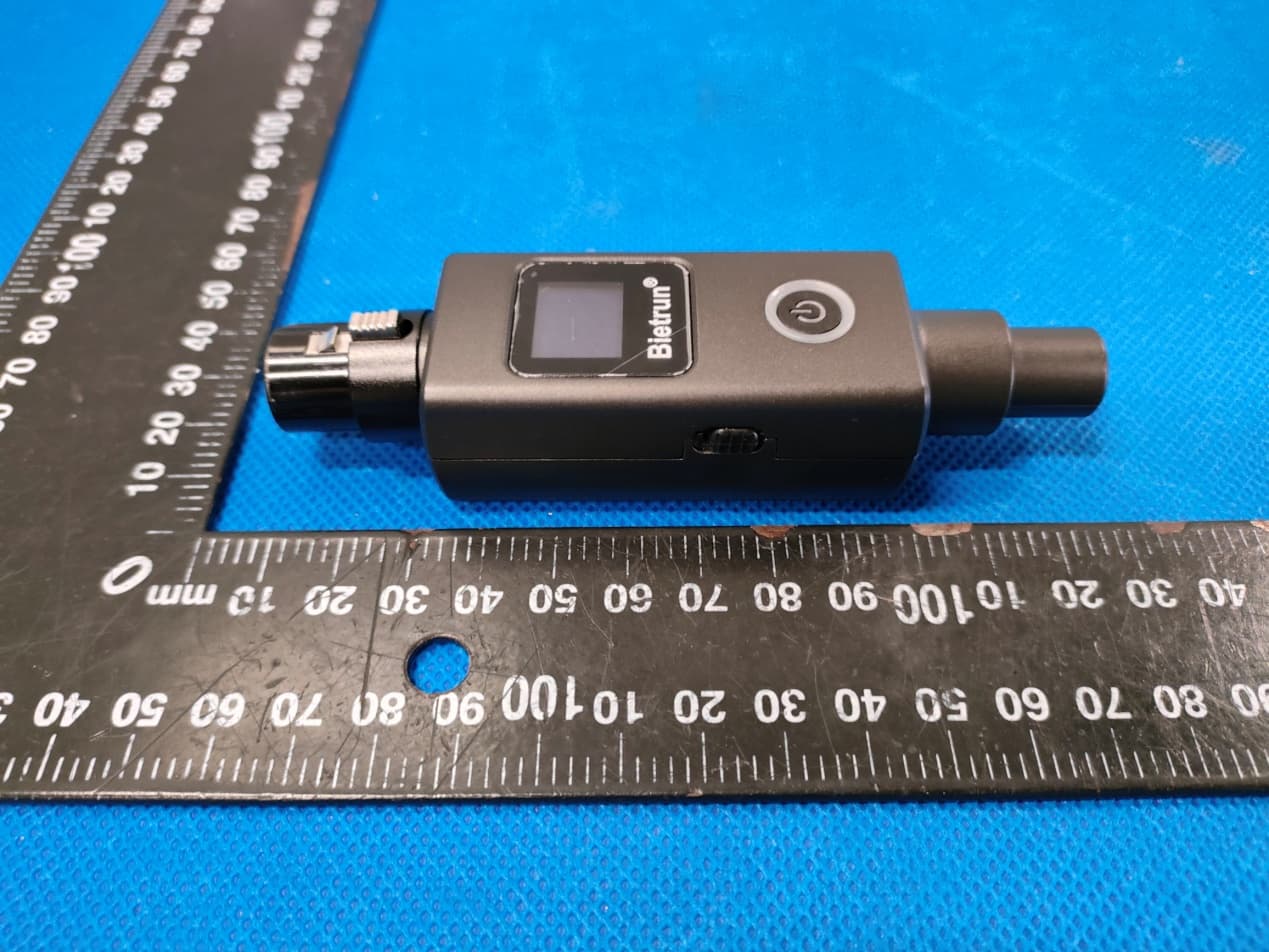

Annex A External Photos Report No.:HK2204181614-E Page 1 of 4 Report No.:HK2204181614-E Page 2 of 4 Report No.:HK2204181614-E Page 3 of 4 Report No.:HK2204181614-E Page 4 of 4

FCC ID LABEL: Ca. 5mm x 10mm Label Location FCC ID: 2AO85-WXM29

Annex B Internal Photo Report No.:HK2204181614-E Page 1 of 4 Antenna Report No.:HK2204181614-E Page 2 of 4 Report No.:HK2204181614-E Page 3 of 4 Report No.:HK2204181614-E Page 4 of 4

FCC RF Exposure EUT Description: XLR Wireless Transmitter and Receiver Model No.: WXM29 FCC ID: 2AO85-WXM29 1. Limits According to KDB 447498 D04 General RF Exposure Guidance v01 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation Output power (dBm) Tune Up Power (dBm) Max Tune Up power dBm/mW Min test separati on distance mm ResultLimit SAR Test Exclusion 560.5 3.40 2.5±1(3.5)2.239 5 0.3353.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2204181614-E, antenna gain=1dBi Per KDB 447498 D04, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.335 which is<= 3, SAR testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Page 1 of 31 Report No.: HK2204181614-E FCC TEST REPORT Test report On Behalf of SHENZHEN JINGDU TECHNOLOGY CO.,LTD For XLR Wireless Transmitter and Receiver Model No.: WXM29, WXM29A, WXM29B, WXM29C, WXM29D, WXM29-1, WXM29-2, WXM29-3, WXM29-4 FCC ID: 2AO85-WXM29 Prepared for : SHENZHEN JINGDU TECHNOLOGY CO.,LTD 3F, Building D, Fuxinlin Park Hangcheng industrial Park, Qianjin 2 Road Baoan District, ShenzhenXixiang town, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Apr. 18, 2022 ~ Apr. 25, 2022 Date of Report: Apr. 25, 2022 Report Number: HK2204181614-E Applica n Address . Manufa c Address . Product Trade M a Product n Model an Standard This publ the Shenz of the ma not assu material d Date of T Date (s) o Date of Is Te s t R e su nt’s name .. .................. cture's Nam .................. descriptio n ark ............... name ........... nd/or type re ds .............. lication may zhen HUAK aterial. She me liabilit y due to its pl Test ............ of performan ssue ........... ult ............... Te s Te Au TE ............... : ............... : me ............ : ............... : n .................. : .................. : eference : ............... : y be reprod K Testing Te nzhen HUA y for damag acement an .................. nce of tests .................. .................. sting Engin chnical Ma n thorized Sig P ST RESU SHENZHE 3F, Buildin Road Bao Shenzhen FLOOR 4 HENGCH XIXIANG GUANG D Bietrun, K XLR Wire WXM29, W WXM29-2 FCC Rule ANSI C63 duced in wh echnology C AK Testing T ges resultin nd context. .............. : .............. : .............. : .............. : ee r : nager : gnatory : Page 2 of 3 ULT CER EN JINGDU ng D, Fuxinl oan District, n LongXiang , BUILDING ENG INDU STREET, B DONG CHIN Kapebow less Trans m WXM29A, W 2, WXM29-3 s and Regu 3.4: 2014 hole or in p Co., Ltd. is a Technology ng from the Apr. 18, 2 0 Apr. 25, 20 Pass 31 RTIFICAT U TECHNOL lin Park Han ShenzhenX g Intelligent G D, FUXIN STRIAL Z O BAOAN DIS NA mitter and R WXM29B, W 3, WXM29-4 ulations Part art for non- acknowledge y Co., Ltd. ta e reader's 022 ~ Apr. 2 022 (Gary Qi a (Eden H (Jason Z h Report TION LOGY CO., ngcheng ind Xixiang tow t Technology LIN INDUS ONE FUHUA STRICT SHE Receiver WXM29C, W 4 t 15 Subpar -commercia ed as copyr akes no res interpretati 5, 2022 an) u) hou) t No.: HK22 ,LTD dustrial Par wn, China y Co. Ltd. STRIAL ARE A COMMUN ENZHEN WXM29D, W rt C Section al purposes right owner sponsibility on of the 04181614-E rk, Qianjin 2 EA, NITY WXM29-1, 15.236 as long a s and source for and will reproduced E 2 s e l d Page 3 of 31 Report No.: HK2204181614-E TABLE OF CONTENTS 1 TEST SUMMARY ................................................................................................................................................. 5 1.1 TEST PROCEDURES AND RESULTS ............................................................................................................................... 5 1.2 INFORMATION OF THE TEST LABORATORY ................................................................................................................. 5 1.3 MEASUREMENT UNCERTAINTY ................................................................................................................................... 5 2 GENERAL INFORMATION.................................................................................................................................... 6 2.1 GENERAL DESCRIPTION OF EUT .................................................................................................................................. 6 2.2 CARRIER FREQUENCY OF CHANNELS .......................................................................................................................... 7 2.3 OPERATION OF EUT DURING TESTING ........................................................................................................................ 7 2.4 DESCRIPTION OF TEST SETUP ...................................................................................................................................... 8 2.5 DESCRIPTION OF SUPPORT UNITS ............................................................................................................................... 8 3 TEST RESULTS AND MEASUREMENT DATA ....................................................................................................... 10 3.1 CONDUCTED EMISSIONS TEST .................................................................................................................................. 10 3.2 RADIATED EMISSION TEST ........................................................................................................................................ 13 3.3 CONDUCTED OUTPUT POWER .................................................................................................................................. 18 3.4 OCCUPIED BANDWIDTH MEASUREMENT ................................................................................................................. 19 3.5 NECESSARY BANDWIDTH .......................................................................................................................................... 22 3.6 FREQUENCY STABILITY .............................................................................................................................................. 26 3.7 ANTENNA REQUIREMENT ......................................................................................................................................... 28 4 PHOTOGRAPH OF TEST .................................................................................................................................... 29 5 PHOTOGRAPH OF EUT ...................................................................................................................................... …
