2AO9P-MUZ3003BT Earbuds

1. READ ALL INSTRUCTIONS BEFORE USING YOUR EARPHONES. 2. Do not use your earphones near water. Clean using a dry or slightly moist cloth. 3. Do not place your earphones on any wet surfaces. 4. Do not allow children or the infirm to play with your earphones without adult supervision. 5. Do not expose your earphones to excessive heat, flames or fire. 6. Always press all buttons carefully. Do not manhandle your earphones. 7. Do not use in extremely dry environments, as this can lead to static discharge during usage. 8. Do not expose your earphones to temperatures above 40°C. Keep out of direct sunlight. 9. Do not attempt to repair this product yourself. Contact a qualified service center if your earphones are in need of service. 10. Do not drop, puncture or expose your earphones to excessive trauma. 11. Your earphones are not intended for commercial use. 12. Do not place near objects that generate a strong magnetic field. 13. Use only the supplied charging cables. Unplug this device when not in use for long periods of time or during lightning storms. 14. Use a soft cloth to clean your earphones. Never use any harsh chemicals or detergents. Make sure your earphones are dry before charging. 15. Please recycle or dispose of your earphones properly based on the laws and rules of your municipality. Contact local recycling facilities and/or the manufacturer of your earphones for further information. This warranty covers the original consumer purchaser only and is not transferable. This warranty covers products that fail to function properly UNDER NORMAL USAGE, due to defects in material or workmanship. Your product will be repaired or replaced at no charge for parts or labor for a period of one year. What Is Not Covered by Warranty Damages or malfunctions not resulting from defects in material or workmanship and damages or malfunctions from other than normal use, including but limited to, repair by unauthorized parties, tampering, modification or accident. To Obtain Warranty Service and Troubleshooting Information: Call 1-800-592-9541 in the U.S. or visit our website at www.vivitar.com. To receive Warranty service along with the name and address of an authorized product service center, the original consumer purchaser must contact us for problem determination and service procedures. Proof of purchase in the form of a bill of sale or receipted invoice, evidencing that the product is within the applicable Warranty period(s), MUST be presented in order to obtain the requested service. It is your responsibility to properly package and send any defective products along with a dated copy of proof of purchase, a written explanation of the problem, and a valid return address to the authorized service center at your expense. Do not include any other items or accessories with the defective product. Any products received by the authorized service center that are not covered by warranty will be returned unrepaired. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sakar International is under license. Other trademarks and trade names are those of their respective owners. Important Safety Precautions Vivitar One Year Warranty FCC Statement Controlling Music NEXT TRACK + LAST TRACK Tap the Next Track Button to advance to the next track in a playlist. Tap the Last Track Button to return to the last track in a playlist. VOLUME + - VOLUME - Press and hold the Volume + Button to increase the volume. Press and hold the Volume - Button to decrease the volume. + - + - + - + - Earphones ® MUZ3003 I USER’S MANUAL Specifications Charging Bluetooth Pairing Using Your Earphones A Quick Look Bluetooth Specification: Bluetrum 5.0 Bluetooth Range: Up to 33 feet (10 meters) Battery Type: 55mAh, 3.7V, Polymer Lithium Ion Battery Charge Time: Approximately 2 Hours Play Time: Approximately 3.5 hours* *Applicable at 50% of maximum volume. Results will be lower when volume is higher. Charging Port Microphone Power/Play/Pause/Answer/Voice Assistant LED Indicator Light 1. The included USB charging cable has a Micro USB plug and a standard USB plug. 2. Insert the USB charging cable’s Micro USB plug into the charging port on your earphones. 3. Insert the USB charging cable’s standard USB plug into the USB port of a computer or suitable USB charging adapter. 4. The LED indicator light turns red while the earphones are charging then turns blue once charging is complete. 1. Press and hold the power…

Text truncated - open the document above for the full version.

Elita International Limited 29F 2, Building 2, China Phoenix Building, No.2008 Shennan Avenue, Futian District, Shenzhen, Guangdong, China Statement Product: BT Earbuds Model: MUZ3003 Additional Model: VZ40029BT Trademark: muze We hereby state that All models above are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2020/06/05 Name: Bing Xiong Company Name: Elita International Limited Address: 29F 2, Building 2, China Phoenix Building, No.2008 Shennan Avenue, Futian District, Shenzhen, Guangdong, China Tel / Fax: +86-755-23914543/+86-755-23914543 E- Mail: [email protected]

Elita International Limited 2020-06-05 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen Tongce Testing Lab. / 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Elita International Limited / 29F 2, Building 2, China Phoenix Building, No.2008 Shennan Avenue,Futian District, Shenzhen, Guangdong, China (Applicant Name and address) <Signature> Name: Bing Xiong Title: N/A Applicant Company: Elita International Limited

Elita International Limited 2020-06-05 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AO9P-MUZ3003 Product Name: BT Earbuds Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: •S chematics •Block diagram •Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Na me: Bing Xiong Title: N/A Company: Elita International Limited

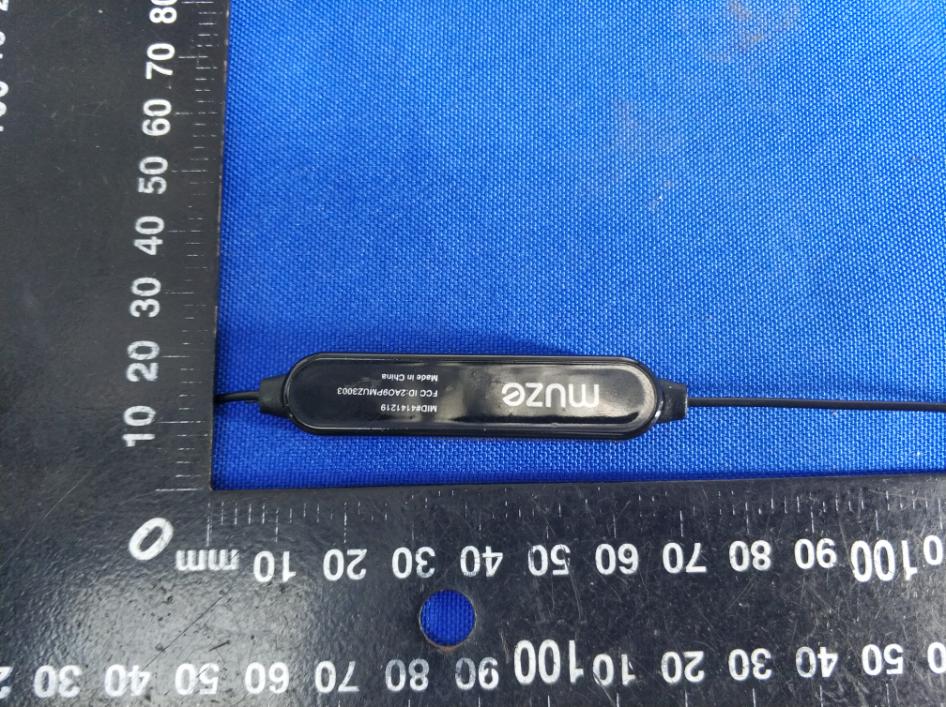

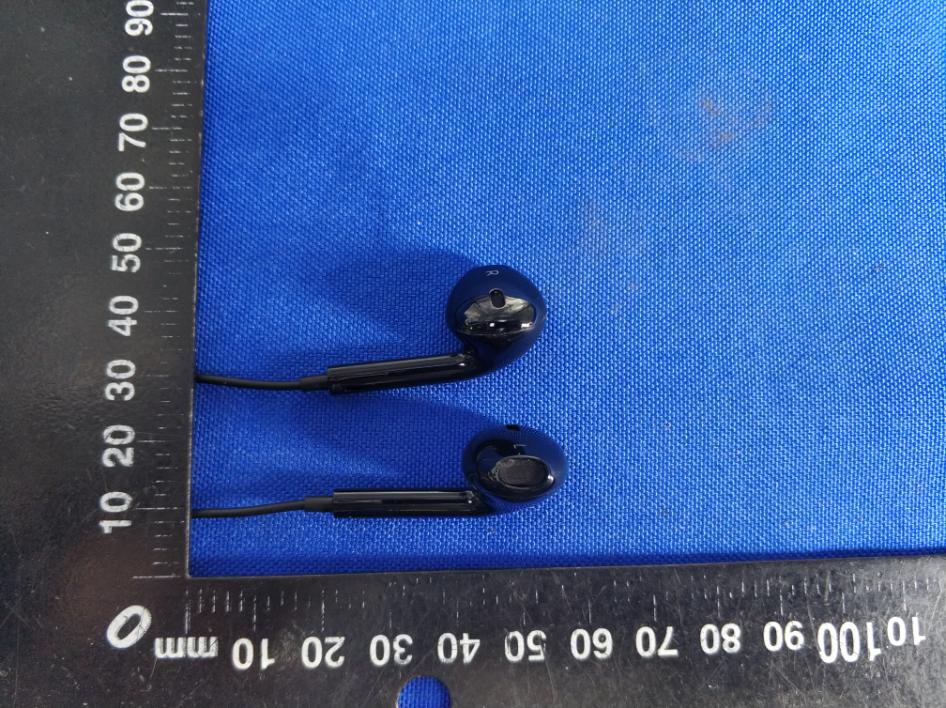

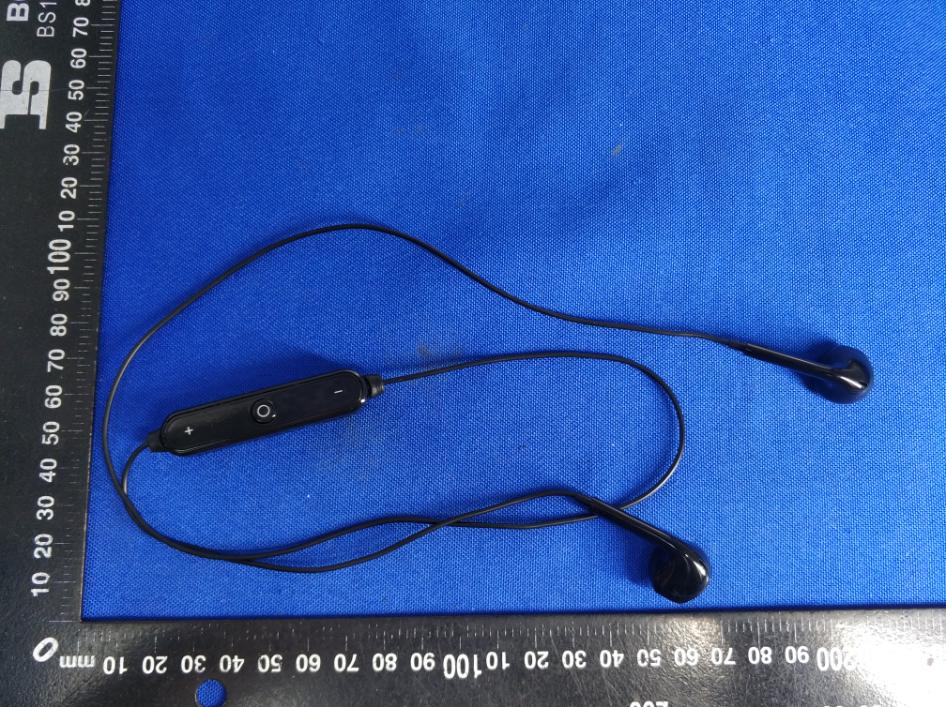

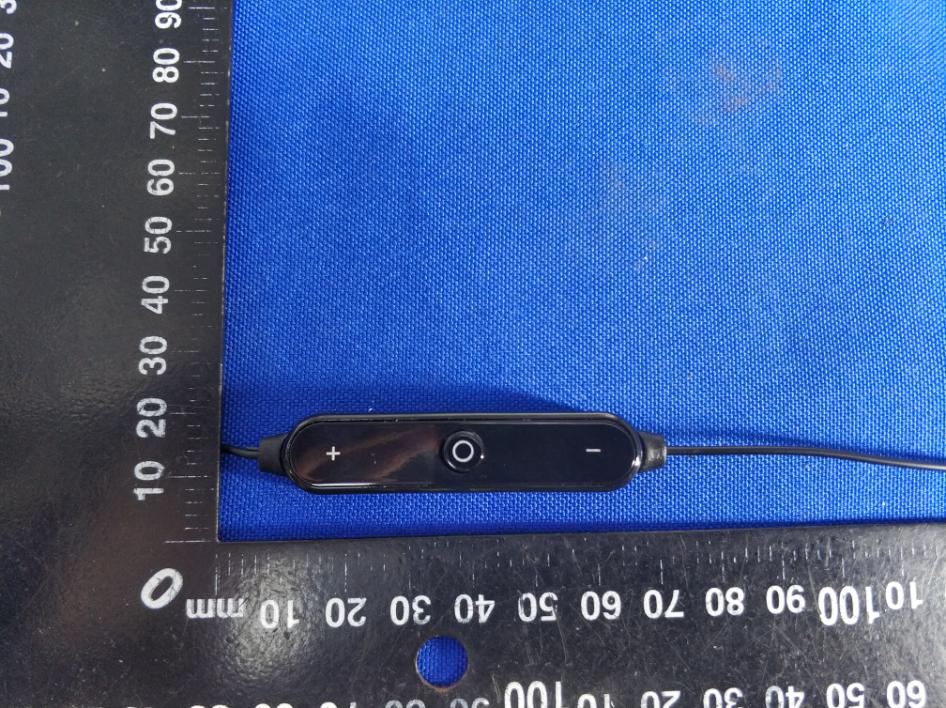

Page 1 of 5 Appendix B: Photographs of EUT Product: BT Earbuds Model: MUZ3003 External Photos Page 2 of 5 Page 3 of 5 Page 4 of 5 Page 5 of 5

Label Artwork and Location Model: MUZ3003 Label: Size: L*W=42*8mm Location

Page 1 of 4 Appendix B: Photographs of EUT Product: BT Earbuds Model: MUZ3003 Internal Photos Page 2 of 4 Page 3 of 4 Antenna Page 4 of 4

RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison For BDR+EDR: Channel Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR CH 39 2.441 4.53 4±1 5 3.16 5 1.0 3.0 Result: Base on the calculation value, No SAR measurement is required.

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AO9P-MUZ3003 Product: BT Earbuds Model No.: MUZ3003 Additional Model No.: VZ40029BT Trade Mark: muze Report No.: TCT200525E016 Issued Date: Jun. 05, 2020 Issued for: Elita International Limited 29F 2, Building 2, China Phoenix Building, No.2008 Shennan Avenue, Futian District, Shenzhen, Guangdong, China Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 This test report was based on TCT200525E017; Only change trade mark, model No. and photos. Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT200525E016 Page 2 of 65 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification....................................................................................... 3 2. Test Result Summary ............................................................................... 4 3. EUT Description ........................................................................................ 5 4. General Information .................................................................................. 6 4.1. Test environment and mode ................................................................................. 6 4.2. Description of Support Units ................................................................................ 6 5. Facilities and Accreditations ................................................................... 7 5.1. Facilities ................................................................................................................. 7 5.2. Location ................................................................................................................. 7 5.3. Measurement Uncertainty ..................................................................................... 7 6. Test Results and Measurement Data ...................................................... 8 6.1. Antenna requirement ............................................................................................ 8 6.2. Conducted Emission ............................................................................................. 9 6.3. Conducted Output Power ................................................................................... 13 6.4. 20dB Occupy Bandwidth .................................................................................... 18 6.5. Carrier Frequencies Separation ......................................................................... 23 6.6. Hopping Channel Number .................................................................................. 28 6.7. Dwell Time ............................................................................................................ 31 6.8. Pseudorandom Frequency Hopping Sequence ................................................ 36 6.9. Conducted Band Edge Measurement ................................................................ 37 6.10. Conducted Spurious Emission Measurement ................................................. 41 6.11. Radiated Spurious Emission Measurement .................................................... 45 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT200525E016 Page 3 of 65 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: BT Earbuds Model No.: MUZ3003 Additional Model No.: VZ40029BT Trade Mark: muze Applicant: Elita International Limited Address: 29F 2, Building 2, China Phoenix Building, No.2008 Shennan Avenue, Futian District, Shenzhen, Guangdong, China Manufacturer: SEN CHUANG ELECTRONICS LIMITED Address: OPPOSITE HENGSHAN PARK, GURAO TOWN, CHAOYANG DISTRICT, SHANTOU, GUANGDONG, CHINA Date of Test: May 26, 2020 – Jun. 04, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Jun. 04, 2020 Aaron Mo Reviewed By: Date: Jun. 05, 2020 Beryl Zhao Approved By: Date: Jun. 05, 2020 Tomsin Report No.: TCT200525E016 Page 4 of 65 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna Requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(1) PASS 20dB Occupied Bandwidth §15.247 (a)(1) PASS Carrier Frequencies Separation §15.247 (a)(1) PASS Hopping Channel Number §15.247 (a)(1) PASS Dwell Time §15.247 (a)(1) PASS Radiated Emission §15.205/§15.209 PASS Band Edge §15.247(d) PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. 5.The BT Earbuds device with FCC ID: 2AO9P-MUZ3003 is electrically identical with certified device (Product Name: BT Earbuds with FCC ID: 2AO9PVZ40028BT ，grant date：2020-06-09).Only color, model no, FCC ID is different . So test data in report TCT200525E016 of BT Earbuds device with FCC ID: 2AO9P-MU…

Text truncated - open the document above for the full version.

Page 1 of 2 Appendix A: Photographs of Test Setup Product: BT Earbuds Model: MUZ3003 Radiated Emission Page 2 of 2 Conducted Emission
