VF60016BT USER’S MANUAL Bluetooth Speaker RECHARGEABLE BATTERY UP TO 4 HOURS PLAYTIME † Important Safety Precautions When using your Vivitar Boombox Wireless Speaker, basic safety precautions should always be followed, including the following:1. READ ALL INSTRUCTIONS BEFORE USING YOUR SPEAKER.2. Do not use your speaker near water. Clean using a soft cloth or paper towel.3. Do not place your speaker on any wet surfaces.6. Always press all buttons or switches carefully. Do not manhandle your speaker.7. Do not use in extremely dry environments, as this can lead to static discharge during usage.8. Do not expose your speaker to temperatures above 102°F/ 40°C. Keep out of direct sunlight. service.10. Do not drop, throw, or expose your speaker to excessive trauma.11. Your speaker is not intended for commercial use.13. Unplug this device when not in use for long periods of time. Do not charge during lightning storms.14. Please recycle or dispose of your speaker properly based on the laws and rules of your municipality. Contact local recycling facilities and/or the manufacturer of your speaker for further information. BATTERY WARNING:-The device is equipped with an integrated lithium ion battery. The battery cannot be replaced. Do not attempt to remove the battery from the device. -Do not dispose of in re or expose to excessive heat. -Do not crush, puncture, incinerate, or short circuit external contacts. -Please recycle or dispose of the battery properly. Contact your local recycling facilities and/or the manufacturer for further information. CAUTION IntroductionThank you for purchasing your Vivitar Boombox Wireless Speaker, item VF60016BT. Your speaker is compatible with most smartphones and Bluetooth. In order to get the best results Package Contents-Vivitar VF60016BT Boombox Wireless Speaker-USB Charging Cable-3.5mm AUX Cable-User’s Manual with Warranty InformationBluetooth Range: Up to 33 feet (10 meters) Power Supply: 5V/ 500mA Battery Type: 1200 mAh Lithium Ion Battery Charge Time: Approximately 2-3 Hours Play Time: Approximately 3-4 Hours** ** * Applicable at 50% of maximum volume. Results will be lower when volume is higher. A Quick Look On/Off Switch Auxiliary Port Charging Port Charging Your Speaker Your speaker has a built-in, rechargeable lithium Ion battery. To avoid damage, do not attempt to remove the battery. The full performance of the battery is only achieved after a few charging-dis-1. Connect one end of the included USB charging cable to the charging port on your speaker. Then plug the other end of the USB charging cable into a USB port on your computer or a suitable power adapter in order to recharge the internal rechargeable battery.2. When the battery is charging, the LED indicator light will turn red. The LED indicator light willturn off when the battery is fully charged. Unplug when charging is complete.NOTE: Overcharging could reduce the life of the battery. And a charged battery will lose its capacity if it is not used on a regular basis.Important!To avoid a complete discharge of the battery, charge your speaker at least once every six months. Pairing Your Speaker with a Bluetooth DeviceYour speaker can be paired with most Bluetooth devices including iPads, iPhones, and most smartphones, and tablets. In order to pair your speaker with a device, follow the steps below:1. Slide the On/Off Switch to the ON position in order to turn on your speaker. The LEDindicator light will turn blue and blink rapidly to indicate its in pairing mode.2. Go into the Bluetooth settings screen on your phone. Connect “ VF60016BT” under available devices.3. Once paired, the LED indicator light will turn blue. Using Your Speaker1. Slide the On/Off Switch to the ON position in order to turn your speaker ON. If you have already paired your speaker to your Bluetooth device, they will automatically remain paired each time you power on your speaker.3. To use your speaker with devices that are not Bluetooth enabled, plug one end of a standard 3.5mm audio cable into the Auxiliary Port on your speaker. Plug the other end into the headphone jack on your audio device.Note : You can adjust volume and playback settings on your phone or connected audio device. Maintenance and Care-Before using your speaker, inspect the ports to make sure that they are clear of dust and debris before charging or inserting an AUX cable. -Use a soft cloth to clean your speaker. Never use any harsh chemicals or detergents. Make sure your speaker is dry before using. -When your speaker is not in use, it should be stored in a cool, dry place. -Never tug or yank on either USB charging cables or AUX cables while they are connected to your speaker. Connect and disconnect these cables as carefully as possible. -Never expose your speaker to high temperatures, extreme cold, high humidity or excessive moisture or water. -Please recycle or dispose of your speaker properly based on the laws and rules of your munici-pality. Contact local recycling facilities and/or the manufacturer of your speaker for further information. FCC Statementvoid the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to …

Text truncated - open the document above for the full version.

Elita International Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020.04.01 Subject; Request for Long Term Confidentiality FCC ID: 2AO9PVF60016BT To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Bing Xiong Title: N/A

Elita International Limited Agent Authorization Company: Elita International Limited Address: 29F 2, Building 2, China Phoenix Building, No.2008 Shennan Avenue, Futian District, Shenzhen, Guangdong, China Product Name: Bluetooth Speaker Model Number(s): VF60016BT Product Description: Bluetooth Speaker We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-04-01 Name: Bing Xiong Title: N/A Company: Elita International Limited

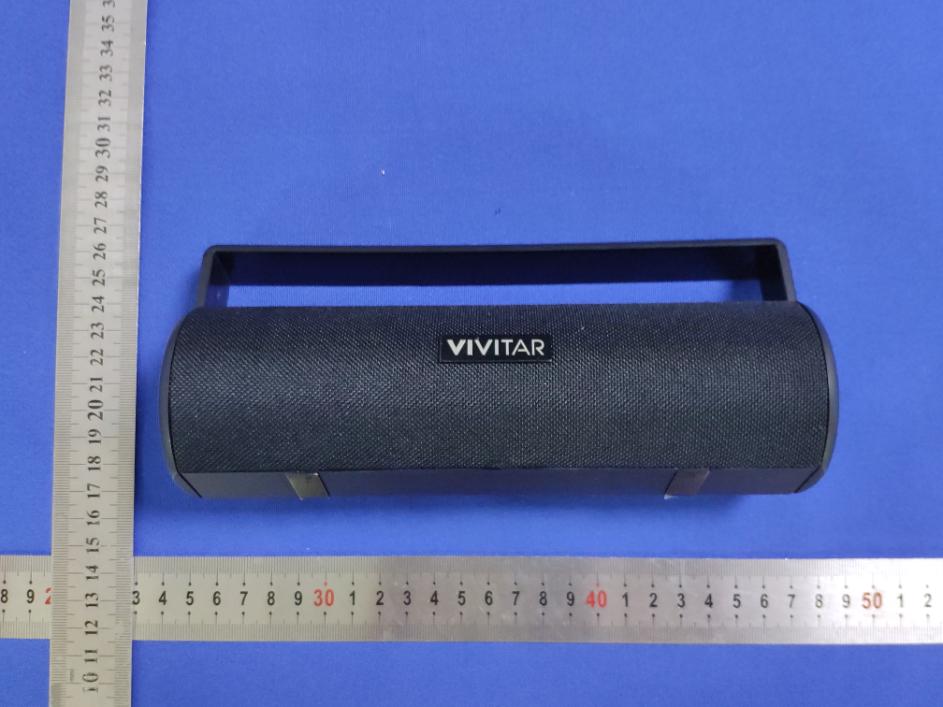

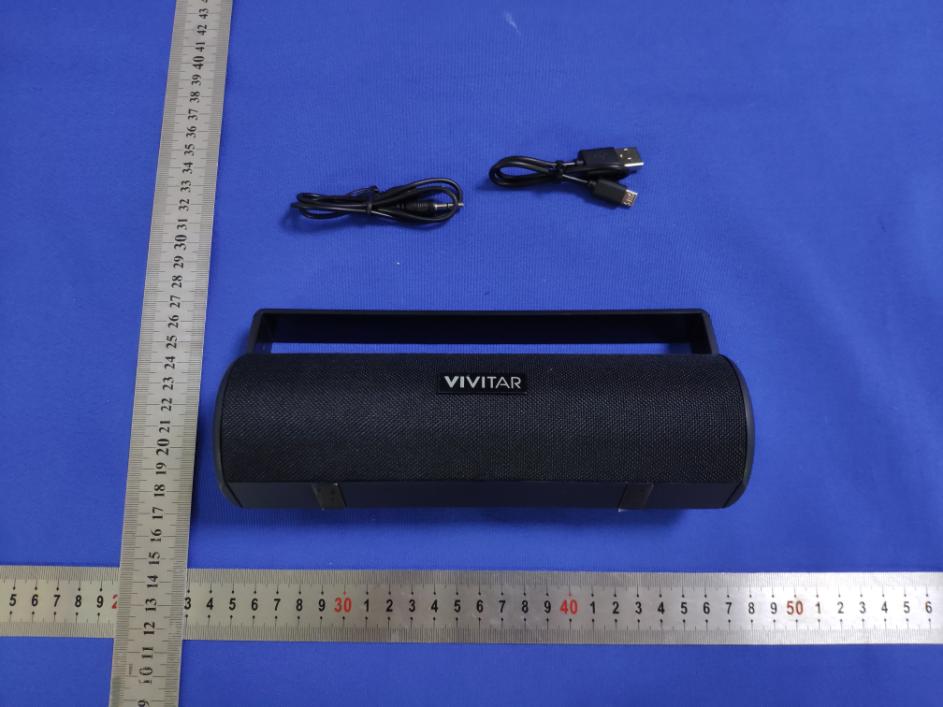

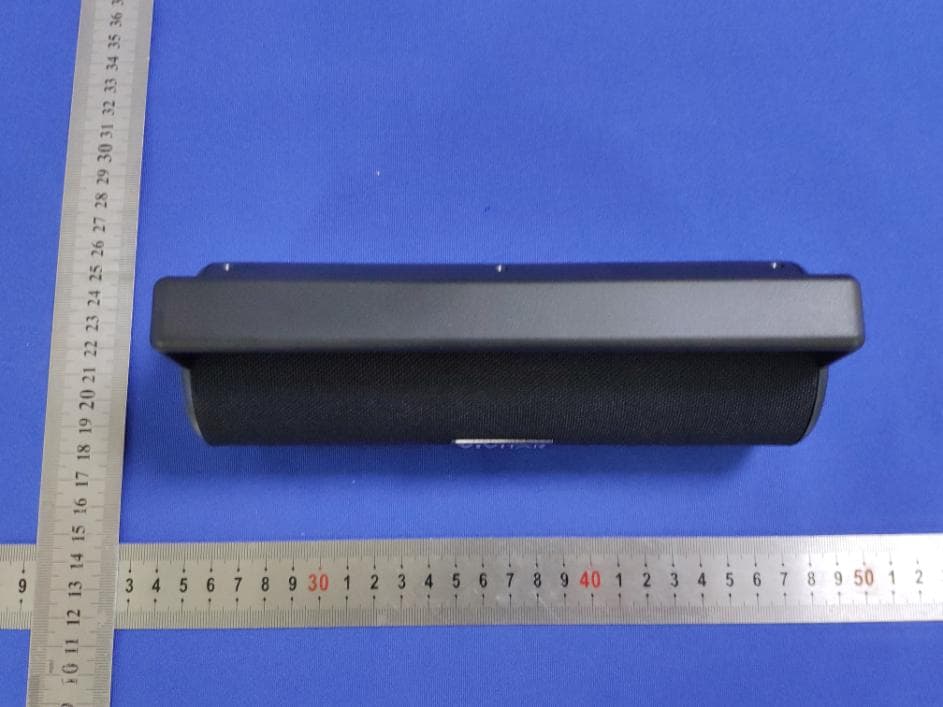

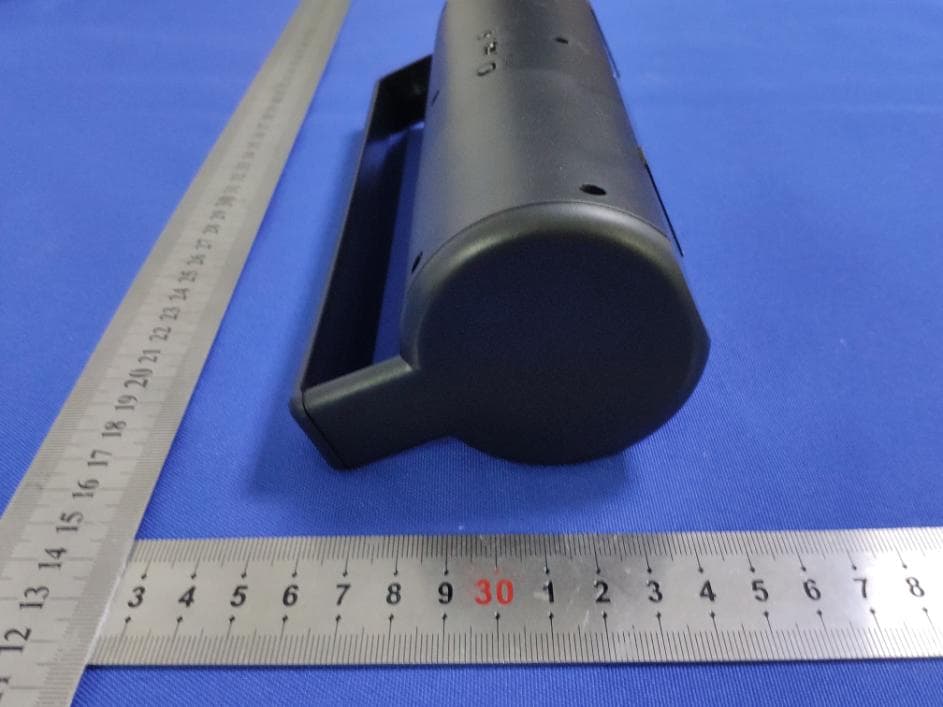

Page 1 of 4 Appendix B: Photographs of EUT Product: Bluetooth Speaker Model: VF60016BT External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

Item No.:VF60016BT FCC ID :2AO9PVF60016BT MID# 4140320 Made in China Item No.:VF60016BT FCC ID :2AO9PVF60016BT MID# 4140320 Made in China Size:L*W=40*18mm Label Artwork and Location Model: VF60016BT Label: Location

Page 1 of 3 Appendix B: Photographs of EUT Product: Bluetooth Speaker Model: VF60016BT Internal Photos Page 2 of 3 Antenna Page 3 of 3

RF exposure evaluation FCC ID: 2AO9PVF60016BT §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison  Channel Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR CH 00 2.402 5.38 5.0±1 6.0 3.98 5 1.23 3.0 Result: Base on the calculation value, No SAR measurement is required.

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AO9PVF60016BT Product: Bluetooth Speaker Model No.: VF60016BT Additional Model No.: N/A Trade Mark: VIVITAR Report No.: TCT200319E011 Issued Date: Mar. 31, 2020 Issued for: Elita International Limited 29F 2, Building 2, China Phoenix Building, No.2008 Shennan Avenue, Futian District, Shenzhen, Guangdong, China Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT200319E011 Page 2 of 64 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ..................................................................................... 3 2. Test Result Summary .............................................................................. 4 3. EUT Description ....................................................................................... 5 4. General Information ................................................................................. 6 4.1. Test environment and mode ................................................................................. 6 4.2. Description of Support Units ................................................................................ 7 5. Facilities and Accreditations .................................................................. 8 5.1. Facilities ................................................................................................................. 8 5.2. Location ................................................................................................................. 8 5.3. Measurement Uncertainty ..................................................................................... 8 6. Test Results and Measurement Data ..................................................... 9 6.1. Antenna requirement ............................................................................................ 9 6.2. Conducted Emission ........................................................................................... 10 6.3. Conducted Output Power ................................................................................... 14 6.4. 20dB Occupy Bandwidth .................................................................................... 19 6.5. Carrier Frequencies Separation ......................................................................... 24 6.6. Hopping Channel Number .................................................................................. 29 6.7. Dwell Time ............................................................................................................ 32 6.8. Pseudorandom Frequency Hopping Sequence ................................................ 37 6.9. Conducted Band Edge Measurement ................................................................ 38 6.10.Conducted Spurious Emission Measurement .................................................. 42 6.11.Radiated Spurious Emission Measurement ..................................................... 46 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT200319E011 Page 3 of 64 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: BT Speaker Model No.: VF60016BT Additional Model: N/A Trade Mark: VIVITAR Applicant: Elita International Limited Address: 29F 2, Building 2, China Phoenix Building, No.2008 Shennan Avenue, Futian District, Shenzhen, Guangdong, China Manufacturer: DongGuan XingYue Electronic Co., Ltd Address: No.98, Swan industrial district, LiWu, QiaoTou Town, DongGuan City, GuangDong Province, China Date of Test: Mar. 20, 2020 – Mar. 30, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Mar. 30, 2020 Brave Zeng Reviewed By: Date: Mar. 31, 2020 Beryl Zhao Approved By: Date: Mar. 31, 2020 Tomsin Report No.: TCT200319E011 Page 4 of 64 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna Requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(1) PASS 20dB Occupied Bandwidth §15.247 (a)(1) PASS Carrier Frequencies Separation §15.247 (a)(1) PASS Hopping Channel Number §15.247 (a)(1) PASS Dwell Time §15.247 (a)(1) PASS Radiated Emission §15.205/§15.209 PASS Band Edge §15.247(d) PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT200319E011 Page 5 of 64 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product: Bluetooth Speaker Model No.: VF60016BT Additional Model: N/A Trade Mark: VIVITAR Bluetooth version: V5.0 Operation Frequency: 2402MHz~2480MHz Transfer Rate: 1/2/3 Mbits/s Number of Channel: 79 Modulation Type: GFSK, π/4-…

Text truncated - open the document above for the full version.

Page 1 of 2 Appendix A: Photographs of Test Setup Product: Bluetooth Speaker Model: VF60016BT Radiated Emission Page 2 of 2 Conducted Emission
