按键与接口 Foreword Thank you for purchasing HiBy’s new generation portable digital audio player, the R8II. To help you get the best out of the R8II, this user guide has been compiled to introduce you to the R8II’s features and how to use them. Please read thoroughly in the first days of ownership. Power on/off, restart, screen locking / unlocking 1.Power on: press and hold power button for two seconds 2.Power off / restart: hold power button while R8II is powered on to bring up power off / restart option screen; (press briefly to unlock the screen first if it is locked) 3.Lock screen: Press power button briefly while R8II is powered on to lock / unlock screen; 4.Turn on screen: when R8II is powered on with screen off, press power button briefly to turn it on. Operating System The R8II sports a lightly customized Android 12 operating system which may be operated in the same way as most smartphones, including the installation of 3rd party audio and general apps and use of the Play Store; Music player app Preloaded with HiByMusic Professional edition, specially customized for HiFi digital audio players for powerful features, perfect sound and ease of use; Micro SD card installation Micro SD Card sizes of up to 2TB are accepted. Charging PD2.0 is supported. 3.5mm and 4.4mm line out Auto line out mode switch: the device automatically detects when it is connected to an amplifier rather than headphones and switches automatically to Line Out mode. RGB LED 1.The LED on the R8II power button doubles as an indicator light for the audio format being sent to the DAC: 2. MQA—green MQA studio—blue MQA rendering—magenta Not playing—pale blue PCM: 48kHz and under—yellow 64-192kHz—cyan blue >192kHz—orange All DSD: white Coaxial digital audio output The R8II supports coaxial digital output via its type-c port. This may be adapted to regular RCA connectors via our Type-C->RCA interconnect, available at store.hiby.com or one of the various retail partners listed at the end of this document. USB Digital audio output Connect USB DAC / amps to the R8II USB type-C port. File transfer: connect the R8II to the computer via the provided USB type-C cable. After this, pull down the notification shade on the R8II, scroll down to the bottom and tap twice on “USB for charging”, then select “File transfer” in the menu. Now the R8II will function as an MTP storage device for file transfer. On a Mac it is necessary to also install Android File Transfer to enable MTP file transfer. Wireless connectivity 1.Bluetooth5.0 Connect the R8II with new Bluetooth audio devices as follows: a.Pull down the notification shade then pull down again to expand the list of quick status indicator buttons; press and hold on the Bluetooth icon to enter the Bluetooth setup screen; b.Turn on the Bluetooth master switch; c.Tap “Pair new device” to search for nearby Bluetooth devices (set the Bluetooth device to be paired to broadcast or pairing mode according to its instructions) d.Tap on the name of your Bluetooth device on the R8II to pair with it; once successfully paired, it will appear under the list of “paired devices”. 2.WiFi The R8II supports both 2.4GHz and 5GHz WiFi. Apart from using it to connect it to the internet for music streaming, internet etc., it can also be used Firmware update Over-the-air online update 1.Updating automatically via WiFi is recommended. 2.The R8II will automatically detect updates and prompt about the update in the notification shade if an update is found. 3. You may also go to Settings->System- >SystemUpdates to manually check for and download updates. Direct Transport Audio architecture for lossless digital audio on Android DTA (Direct Transport Audio) is the name of HiBy’s full-time bitperfect android audio framework; it bypasses Android’s sample rate conversion by modifying its audio stack to output bitperfect audio For further in-depth operation instructions, please visit (URL) or scan the following QR code: QUICK GUIDE 快速上手指南 前言 感谢您购买了HiBy推出的便携高清无损高通骁⻰高 性能播放器新一代R8。为了让R8II给您带来更好的体 验，这份说明书将介绍R8II的功能和使用方法，希望让 您更了解R8II使用得更畅快。 开机/关机、重启/锁屏/亮屏 1、开机：⻓按电源键两秒即可开机；
2、关机、重启：开机状态下⻓按电源键，即可弹出关机 /重启菜单； 3、锁屏：开机状态下，点击电源键即可锁屏； 4、亮屏：点击电源键。 操作系统 HiBy R8II内置安卓12系统，与日常安卓系统手机操 作系统一致，可随意安装第三方APP等； 1、音乐播放APP 内置海⻉音乐APP专业版，专为HiFi设计的音乐播放 器，功能强大简单易用; 2、应用市场 内置酷安应用市场，可以搜索下载任何APP。 3.5mm&4.4mm
LO线路输出 LO线路输出：使用时，相关接口检测到设备接入自动 切换LO模式。 COAX同轴输出 R8II同轴输出使用TYPE-C口，可以选择使用TYPE-C转 RCA线，相关线材可以通过HiBy官方直营店铺购买。 RGB
LED 1、R8II
电源键上的LED灯能作为当前播放音频的格 式，分别显示对应的颜色; 2、各播放状态指示灯： MQA—— 绿色 MQA studio —— 蓝色 MQA rendering——洋红色 不播放——淡蓝色 PCM ≤ 48kHz——⻩色 PCM 88.2kHz ~ 192kHz——⻘色 PCM ≥ 352.8kHz——橙色 DSD ——白色 USB
DAC
IN传输数字音频信号 1．即作为电脑USB
DAC，使用USB数据线与电脑连接后， 下拉状态栏，把USB状态改为音频输入； 2．部分系统需要安装驱动程序，请前往
www.hiby.com
服务与支持→产品支持→USB
DAC
IN,
并详细阅读内附 的USB
DAC使用方法.pdf 文件传输 数据线连接机器与电脑，连接成功后，需要在机器上把状 态栏拉下，选择USB接入功能信息条，在弹出窗口中选择 传输文件，即可在电脑中操作将文件拉入本机内存或外 置SD卡中； 无线连接功能 1、蓝牙5.0 R8II连接到新的蓝牙设备（如蓝牙耳机、蓝牙音箱等） 时，需要先和该蓝牙设备进行配对，步骤如下： a.下拉框中点击设置-蓝牙界面； b.打开蓝牙开关； c.点击“与新设备配对”，将会自动搜索可用设备； d.点击连接到相应设备，连接成功的设备将显示在 “已配对的设备”栏。 2、WiFi R8II支持2.4G/5G 双频WiFi，日常使用外，亦可以通 过海⻉音乐APP，进行WiFi传歌、使用WiFi下的 HiByLink、使用私有云DLNA/局域网等。 DTA安卓全局无损输出架构 DTA（Direct Transport Audio）安卓全局无损输 出系统，通过软件层面绕过安卓系统中重采样 SRC，直接输出原汁原味的声音。 固件更新 OTA在线升级 1.建议连接WiFi进行升级; 2.R8II会自动检测版本，如果检测到更新版本的固 件，将在状态栏提示更新; 3.可通过【设置】→【系统】→【系统更新】，下载升级 固件; 4.下载完成后，安装升级即可。 特殊辅助功能 双清 1. 关机； 2. 先按住上一曲键，再按电源键开机，等待出现机器人 界面； 3. 在机器人界面，按住电源键不放的同时按一下播放暂 停键； 4. 下一曲键和播放暂停键为选择按钮，电源键为确认按 钮，这个时候就可以进入选择列表中的
wipe 开头的选 项进行双清（全部数据清除，请谨慎！）。 强制关机 强制关机：开机状态下，机器出现卡死状态或其他异常 情况无法正常关机或重启，可以⻓按电源键+下一曲按 钮15秒，进行强制关机。 更多详细操作，请扫描以下二维码关注海⻉音乐公众 号，并回复“R8II说明书” 中文 ENGLISH USB
DAC
OUT数字转盘 通过USB口，使用R8II外接解码放大器，相关线材可 以通过HiBy官方直营店铺购买。 Acting as USB DAC a.connect the R8II to the computer via the provided USB type-C cable. After this, pull down the notification shade on the R8II, scroll down to the bottom and tap twice on “USB for charging”, then select “USB DAC in” in the menu. b.On windows 7 it would be necessary to install the USB audio driver for this; go to store.hiby.com -> Scroll to bottom -> C…

Text truncated - open the document above for the full version.

High resolution music player

High resolution music player

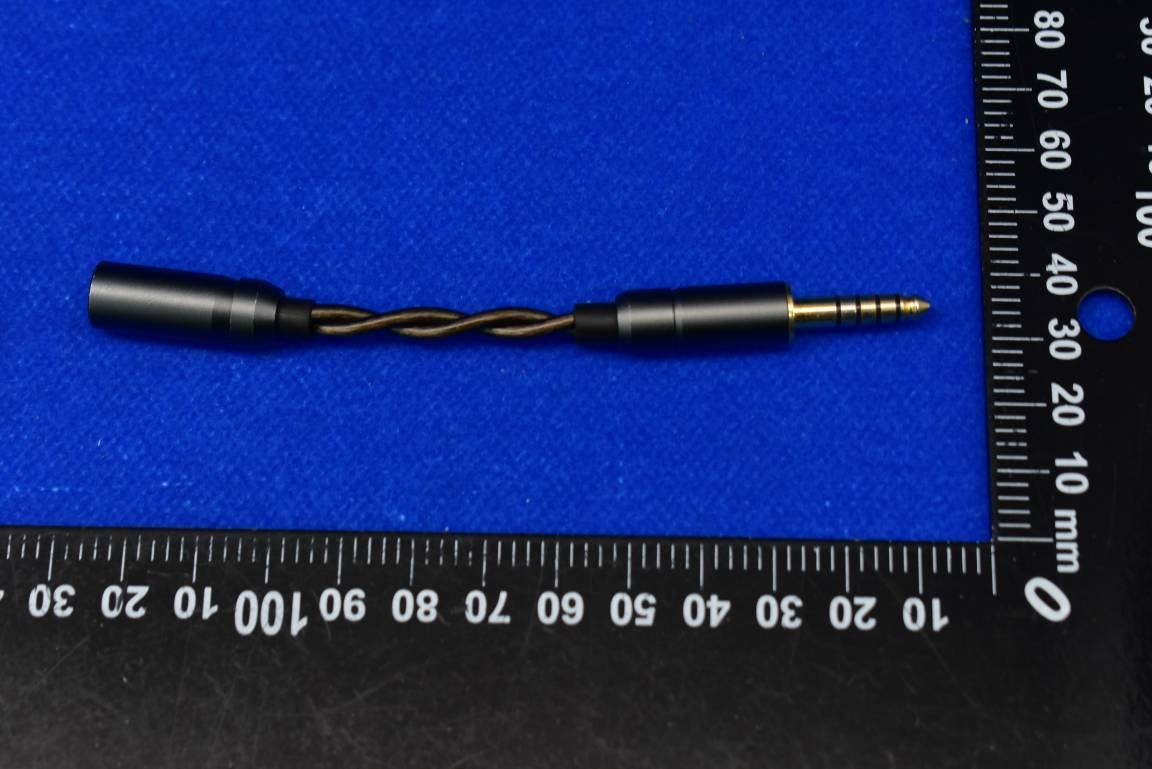

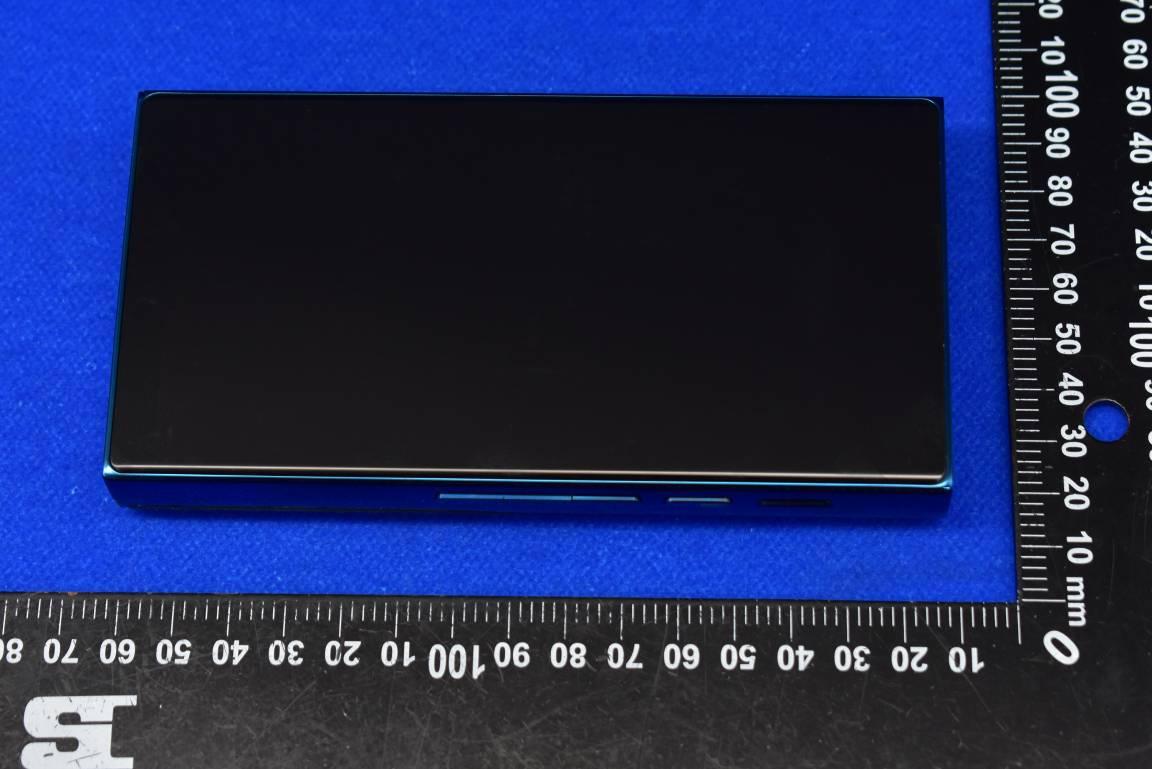

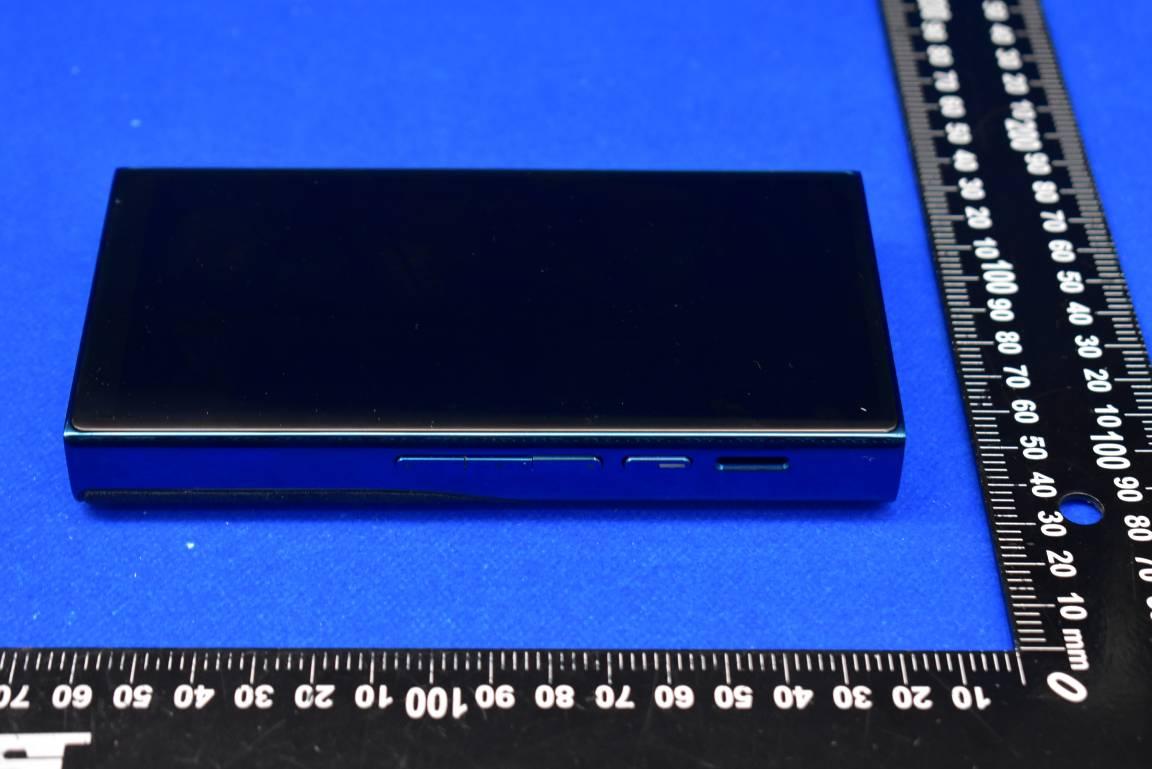

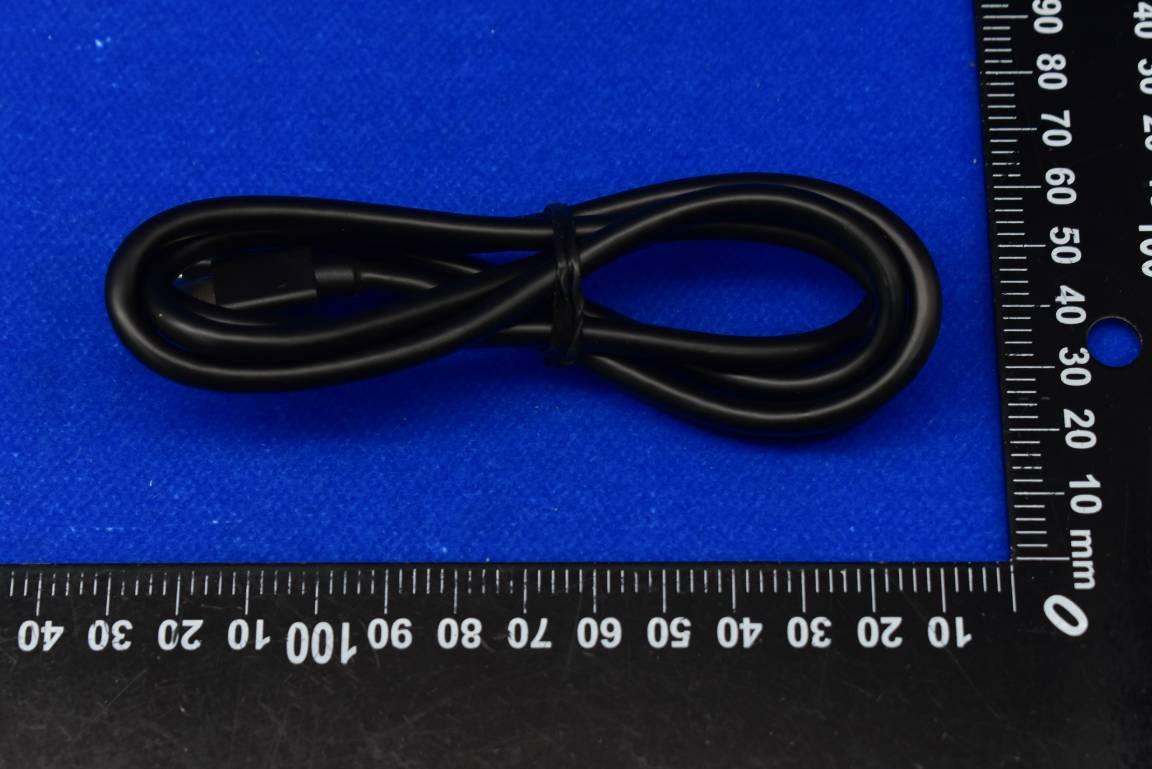

FCC ID: 2AOBQ-HIBYR8G2 MODEL NAME: HiBy R8II External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. Accessories
