2AOEA-EVC300Control Module

EcoNet Controls Inc.
Control Module - FCC ID 2AOEA-EVC300 - EcoNet Controls Inc.
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Jul 05, 2020
Application Purpose
Original Equipment
Date of Application
Jul 05, 2020
Equipment Note
Control Module
Frequency Range
433.92000000 - 433.92000000
Company
EcoNet Controls Inc.
Country
Canada

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Bulldog-JW Valve Robot, Model EVC300 Control Module Quick Start Guide The Bulldog-JW Starter Kit is a Leak Detection & Prevention Solution that “Just Works”. 1.Install the Bulldog motor assembly over your water shutoff ball valve (See Mounting/Valve Install Guide) 2.Connect the Motor Assembly to the Control Module 3.Plug in the AC Adapter and connect it to the Control Module 4.Position the Sensors in to Leak sensitive locations. 5.Done! Leak Alarm Reset: •Click On/Off Reset Button (Speaker) •Click On/Off Valve Open/Close Button (once or twice) Adding ELS100 Leak Sensors •Green ¾ Circle is the Leak Sensor Pairing Button (dotted, ¾ circle with arrow) •Adding/Pairing Leak Sensors: Click Green Button On/Off, then activate leak sensor for 2 Beep Cycles •Click Alarm Reset, repeat above for additional Leak Sensors Exclude All Leak Sensors: •All paired Leak Sensors can be removed (Excluded) by holding green button for approx. 5 seconds until red blink acknowledgment Valve Open/Close Button WIFI Pairing Button Leak Sensor Pairing Button Alarm Reset Button WIFI Pairing to eWeLink App: •Install, setup account and login to eWeLink App •The Valve Icon is the WIFI Pairing Button •Blue LED is WIFI Status, Slow Single Blink, pause, not paired, not broadcasting •Blink, blink, blink, pause, repeat, ready to be paired (Quick Pairing mode) •2.4GHz Network required & Smart Phone should be connected to this 2.4GHz Network •If not in pairing mode, hold Valve Icon button for approx.. 4 seconds to set to pairing mode •On smart phone, in eWeLink App, use “+” and following instructions for “Quick Pairing” •App. should acknowledge successful pairing in 20-90 seconds •Rename the Bulldog valve appropriately, “Water Main”, other? •In the device settings menu (select device, 3 dot settings menu), update “Power-on State” to “Last state” •In device settings, turn on “Push Notifications” to receive notice of valve open or closed. (On/Off) •In device settings, update “Current Version”, if required LED Status Steady Slow Blink 3 Blink, Pause Solid On Solid Off Blue LED Not WIFI Paired Waiting to be paired WIFI Paired Red LED, Valve Icon Valve Open Valve Closed Green LED (Speaker) Green, System Armed or Red – in alarm state Speaker Beeping FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. *RF warning for Mobile device: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Cover Letter(s)

C5266091_X8_Ed.1 1/1 LetterofAuthorization EcoNetControlsInc. Company:EcoNetControlsInc. Address:1100SuttonDr.,Unit3Burlington,OntarioCanada ProductName:ControlModule ModelNumber:EVC300 FCCIdentifier:2AOEA-EVC300 WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:BlakeAllenDate:2020-07-03 Title:CEO Signatureofapplicant:

Cover Letter(s)

C5266091_X10_Ed.1 1/1 EcoNetControlsInc. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:2020-07-03 Subject:RequestforConfidentiality FCCID:2AOEA-EVC300 ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo BlockDiagram Schematics TestReportNoNo TestSetupPhotosNo User’sManual InternalPhotos PartsList/TuneUp RFExposureInfo OperationalDescription CoverLetter(s)NoNo SDRSoftware/SecurityInfoNo Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. Sincerely, Signature: Name:BlakeAllen Title:CEO

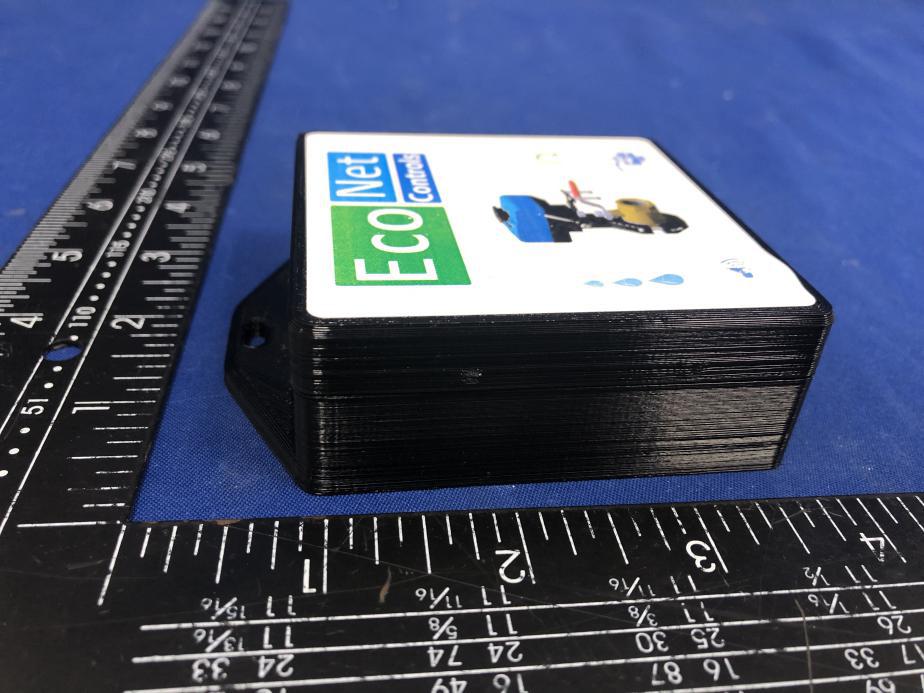

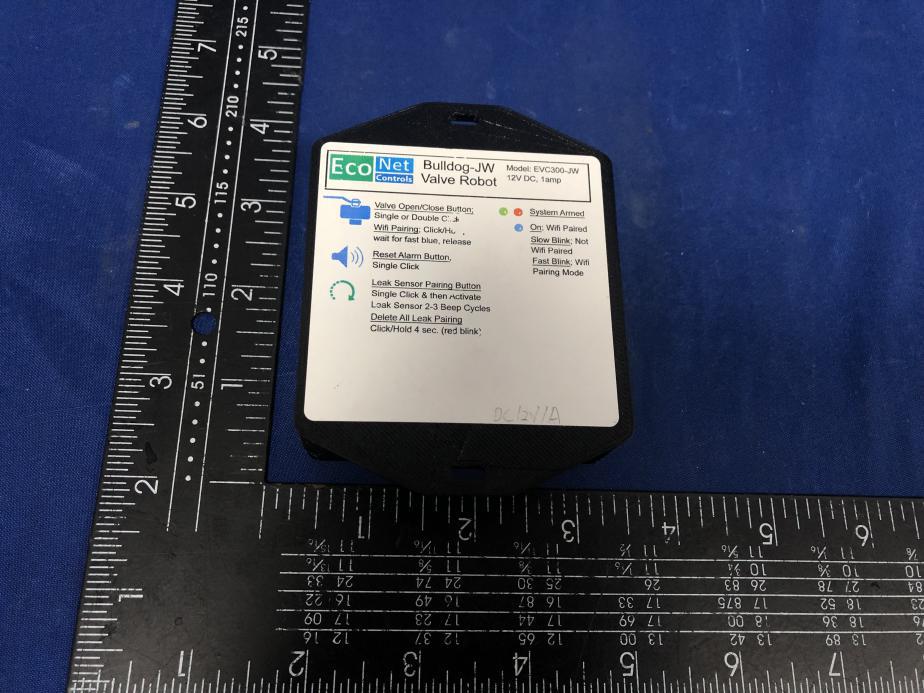

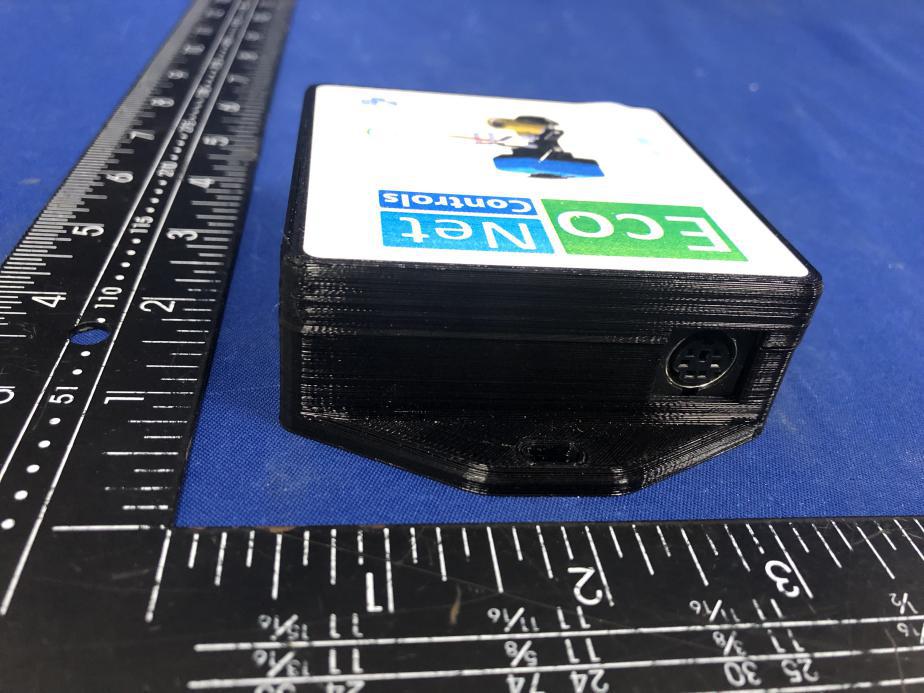

External Photos

FCC ID: 2AOEA-EVC300

Internal Photos

FCC ID: 2AOEA-EVC300 PCBantenna Single-stageAntenna

Test Report

Page1of39 FCCTESTREPORT FCCID:2AOEA-EVC300 Product:ControlModule ModelName:EVC300 Additionalmode: N/A Brand: EcoNetControlsInc. ReportNo.:PTC20062305601E-FC02 Preparedfor EcoNetControlsInc. 1100SuttonDr.,Unit3Burlington,OntarioCanada Preparedby PreciseTesting&CertificationCo.,Ltd Building1,No.6,TongxinRoad,DongchengStreet,Dongguan,Guangdong,China ReportNo.:PTC20062305601E-FC02 Page2of39 1TESTRESULTCERTIFICATION Applicant’sname:EcoNetControlsInc. Address:1100SuttonDr.,Unit3Burlington,OntarioCanada Manufacture'sname:NIE-TECHCO.,LTD. Address: Room101No.2FourRoad,LudipuIndustrial,HumenTown,Dongguancity, China Productname:ControlModule Modelname:EVC300 Standards:FCCCFR47Part15Section15.231 Testprocedure:ANSIC63.10:2013 TestDate:Jun.24,2020toJul2,2020 DateofIssue:Jul2,2020 TestResult:Pass ThisdevicedescribedabovehasbeentestedbyPTC,andthetestresultsshowthattheequipmentunder test(EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofPTC,thisdocumentmaybe alteredorrevisedbyPTC,personalonly,andshallbenotedintherevisionofthedocument. TestEngineer: LeoYang/Engineer TechnicalManager: ChrisDu/Manager ReportNo.:PTC20062305601E-FC02 Page3of39 Contents Page 1TESTRESULTCERTIFICATION................................................................................................................................2 2TESTSUMMARY...........................................................................................................................................................5 3GENERALINFORMATION..........................................................................................................................................6 3.1GENERALDESCRIPTIONOFE.U.T.....................................................................................................................6 3.2TESTMETHODOLOGY..........................................................................................................................................7 3.3TESTSITE.............................................................................................................................................................8 4EQUIPMENTDURINGTEST.......................................................................................................................................9 4.1EQUIPMENTSLIST................................................................................................................................................9 4.2MEASUREMENTUNCERTAINTY..........................................................................................................................10 4.3DESCRIPTIONOFSUPPORTUNITS....................................................................................................................11 5CONDUCTEDEMISSION...........................................................................................................................................12 5.1E.U.T.OPERATION............................................................................................................................................12 5.2EUTSETUP........................................................................................................................................................12 5.3TESTSET-UP(BLOCKDIAGRAMOFCONFIGURATION)..................................................................................13 5.4MEASUREMENTPROCEDURE............................................................................................................................13 5.5CONDUCTEDEMISSIONLIMIT............................................................................................................................13 5.6MEASUREMENTDESCRIPTION...........................................................................................................................13 5.7CONDUCTEDEMISSIONTESTRESULT..............................................................................................................13 6RADIATEDSPURIOUSEMISSIONS.......................................................................................................................16 6.1EUTOPERATION...............................................................................................................................................18 6.2TESTSETUP.......................................................................................................................................................19 6.3SPECTRUMANALYZERSETUP...........................................................................................................................20 6.4TESTPROCEDURE.............................................................................................................................................21 6.5SUMMARYOFTESTRESULTS...........................................................................................................................22 7OCCUPIEDBANDWIDTH..........................................................................................................................................26 7.1APPLICABLESTANDARD.....................................................................................................................................26 7.2CONFORMANCELIMIT........................................................................................................................................26 7.3TESTPROCEDURE.............................................................................................................................................26 7.4TESTRESULT.....................................................................................................................................................27 8TRANSMISSIONREQUIREMENT............................................................................................................................28 ReportNo.:PTC20062305601E-FC02 Page4of39 8.1APPLICABLE…

Text truncated - open the document above for the full version.

Test Setup Photos

Conducted Emissions Radiated Spurious Emissions From 30MHz-1000MHz FCC ID: 2AOEA-EVC300 Test frequency from Above 1GHz

Contact Information

Applicant

Blake Allen(CEO)
[email protected]905-330-7474Fax: 416-946-1122

Technical Contact

NIE-TECH CO., LTD.Winnie
[email protected]86 18814338280

Dongguan · China

Test Firm

Precise Testing & Certification Co., LTD.Chris Du
[email protected]+86-769-38808222

Technical Specifications

#Rule PartsFrequency RangePower Output
115.231433.92 MHz - 433.92 MHz-
