2AOERSGM-M1PSerafim M1 PRO Gaming Mouse

Important Safety,Compliance and Warranty Information English *If you encounter problems with the correct operation of the device, and the troubleshooting does not help, please unplug the device and contact our online customer service, or go to https://serafim-tech.com/contact for support. Do not try to disassemble or repair this device yourself under any circumstances, otherwise the warranty will be invalid. *Keep the device away from liquid or any humid environment. Operate this device within the ideal temperature range (0°C (32°F) to 45°C (113°F)). If the temperature is out of the ideal range, turn off the device until the temperature returns to the ideal range. *Serafim M1 PRO has a built-in rechargeable lithium battery. Generally speaking, the service life of this battery is usually related to usage habits. If you think the included rechargeable lithium battery is exhausted (low battery), please try charging first. If the battery cannot be charged smoothly after many attempts, the battery may be out of use. Do not disassemble and replace the battery by yourself 中文 *若在正確操作裝置方面遭遇問題，且疑難排解並無幫助，請拔下裝置並與我們線上客服連絡，或是前往https://serafim-tech.com/contact 尋求支 援。請勿在任何情況下嘗試自行拆解或維修此裝置，否則保固將失效。 *保持裝置遠離液體或任何潮濕環境。在理想溫度範圍（0°C (32°F) 至 45°C (113°F)）内操作此裝置。如果溫度超出理想範圍，請關此裝置，直到溫度 回復至理想範圍。 *Serafim M1 PRO內建可充電式鋰電池。一般來說，這種電池的使用壽命通常與使用習慣有關。如果你認為隨附的充電鋰電池電量已耗盡（低電量）， 請先嘗試充電。若經過多次嘗試仍無法順利充電，電池可能已無法使用，切勿自行拆解更換電池。 FCC Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment causes harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by doing one or more of the this manual following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC exposure compliance requirement, please follow operation instruction as documented. CE Caution RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. M1 PRO Shield Assembly Method組裝方式 For any future information please visit Serafim official website: https://www.serafim-tech.com 有關資訊更新，請造訪碩擎科技官方網站：https://www.serafim-tech.com If however you encounter any problems we would be glad to answer all your concerns at [email protected] 如果您遇到任何問題，我們將很樂意在[email protected] 回答您的所有疑慮 Decomposition method: Please decompose according to A, B, C steps and arrows 分解方式: 請按照A、B、C步驟與箭頭方式分解 1 2 User Manual 使用者手冊 Pay attention to the tenon direction of A, B and C 注意A、B、C卡榫方向!! Product Registration 產品註冊 Complete online product registration to get an additional 3-month extended product warranty 完成線上產品註冊，將 可獲得額外3個月的延 長產品保固 Assembly method: Please follow the steps A, B, C and the arrows to assemble 組裝方式: 請按照A、B、C步驟與箭頭方式組裝 Online customer service 線上客服 ↓↓

Antenna Specification Specifications Summary ITEMSPEC. Model NameIBM 2.4 GHz Center Frequency 2402 MHz 2441 MHz 2480 MHz 2.34 dBi 2.07dBi 1.45 dBi MAX. GAIN2.34 dBi PolarizationHorizontal Azimuth Beam Pattern Omni-directional Impedance50Ω Antenna Length3.1cm Antenna Photo & Length (mm) Test Address 16 Tzu Chiang Road, Hsinchu Industrial District Hsinchu Hsien 303, Taiwan Test Date2009-04-14 Test Instrument vector network analyzer - R&S ZVB20 1. Main antenna : 2402 MHz 1.1 Horizontal Frequency(MHZ):2402Antenna Polarity:Horizontal Maximum Gain(dBi): 2.34 Average Gain(dBi):-2.48 Minim um Gain(dBi):-55.18 1.2 Vertical Frequency(MHZ):2402Antenna Polarity:Vertical Maximum Gain(dBi): -4.51 AverageGain(dBi) :-8.98 Minimum Gain(dBi):-62.3 2. Main antenna : 2441 MHz 2.1 Horizontal Frequency(MHZ):2441Antenna Polarity:Horizontal Maximum Gain(dBi): 2.07 Average Gain(dBi) : -2.54 Minimum Gain(dBi): -66.98 2.2 Vertical Frequency(MHZ):2441Antenna Polarity:Vertical Maximum Gain(dBi): -4.29 AverageGain(dBi) :-8.81 Minimum Gain(dBi):-51.4 2. Main antenna : 2480 MHz 2.1 Horizontal Frequency(MHZ): 2480AntennaPolarity:Horizontal Maximum Gain(dBi):1.45 AverageG ain(dBi) : -3.34 Minimum Gain(dBi): -53.4 2.2 Vertical Frequency(MHZ):2480Antenna Polarity:Vertical Maximum Gain(dBi): -4.95 AverageGain(dBi) :-9.06 Minimum Gain(dBi):-60.00

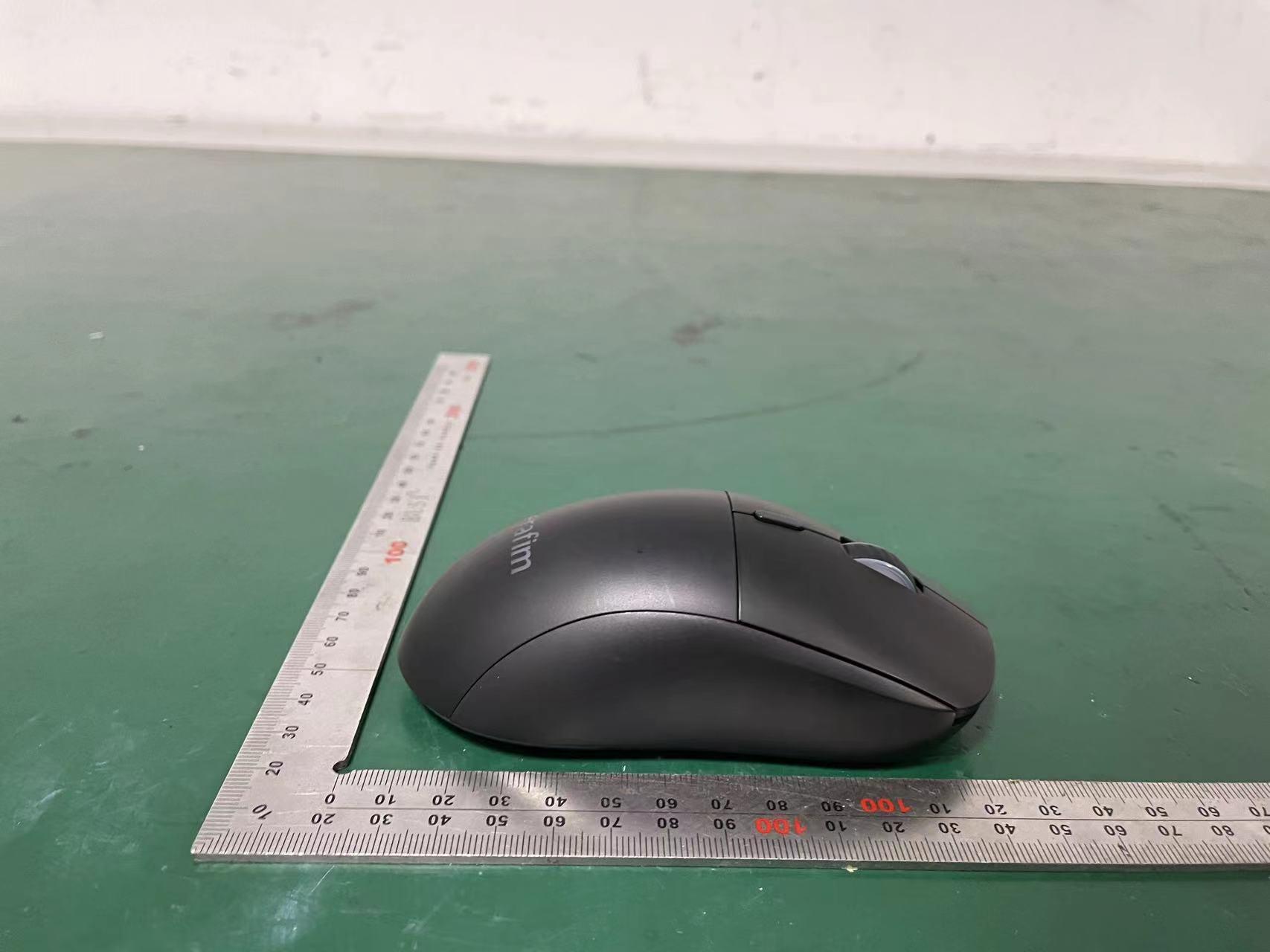

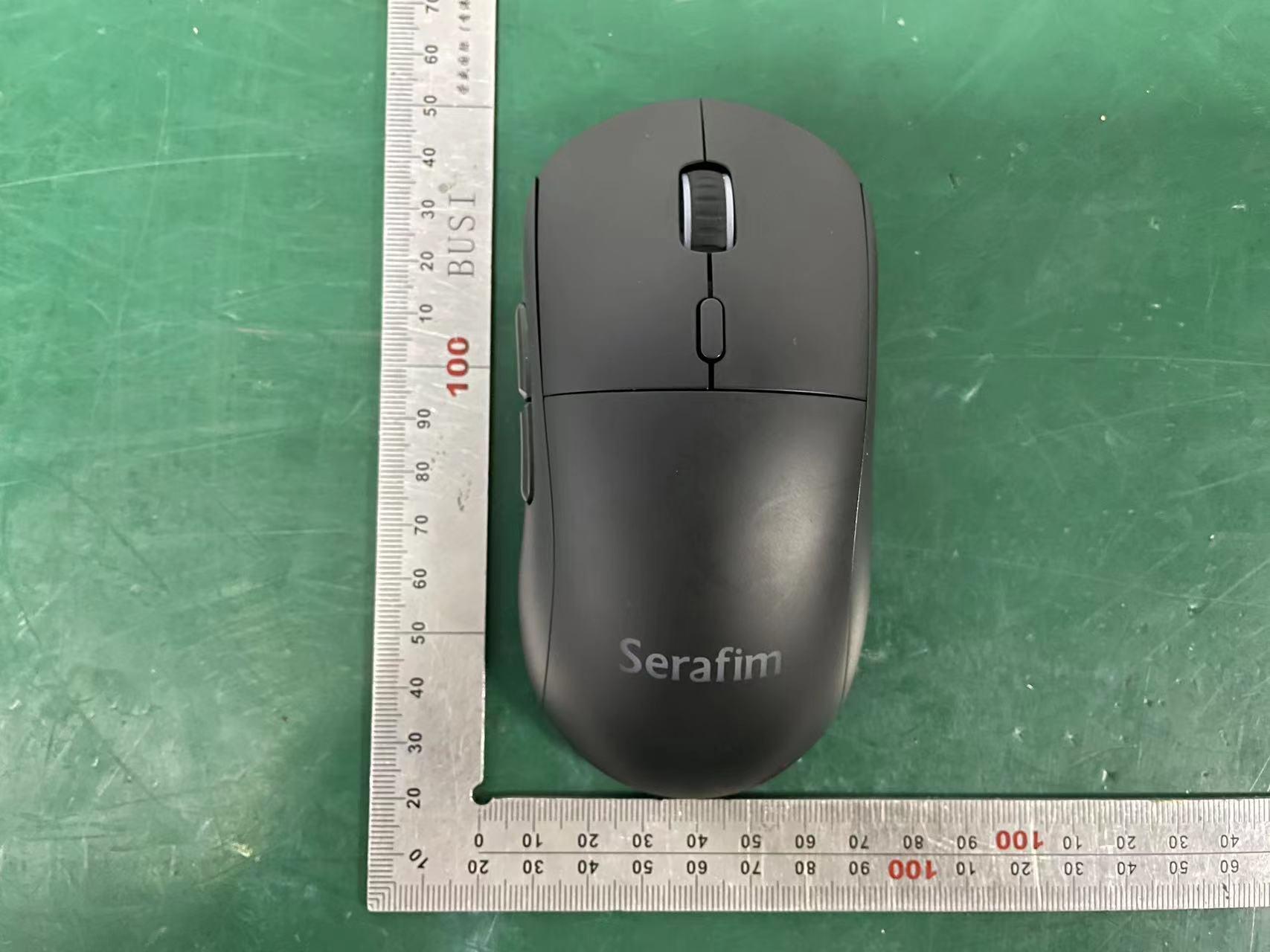

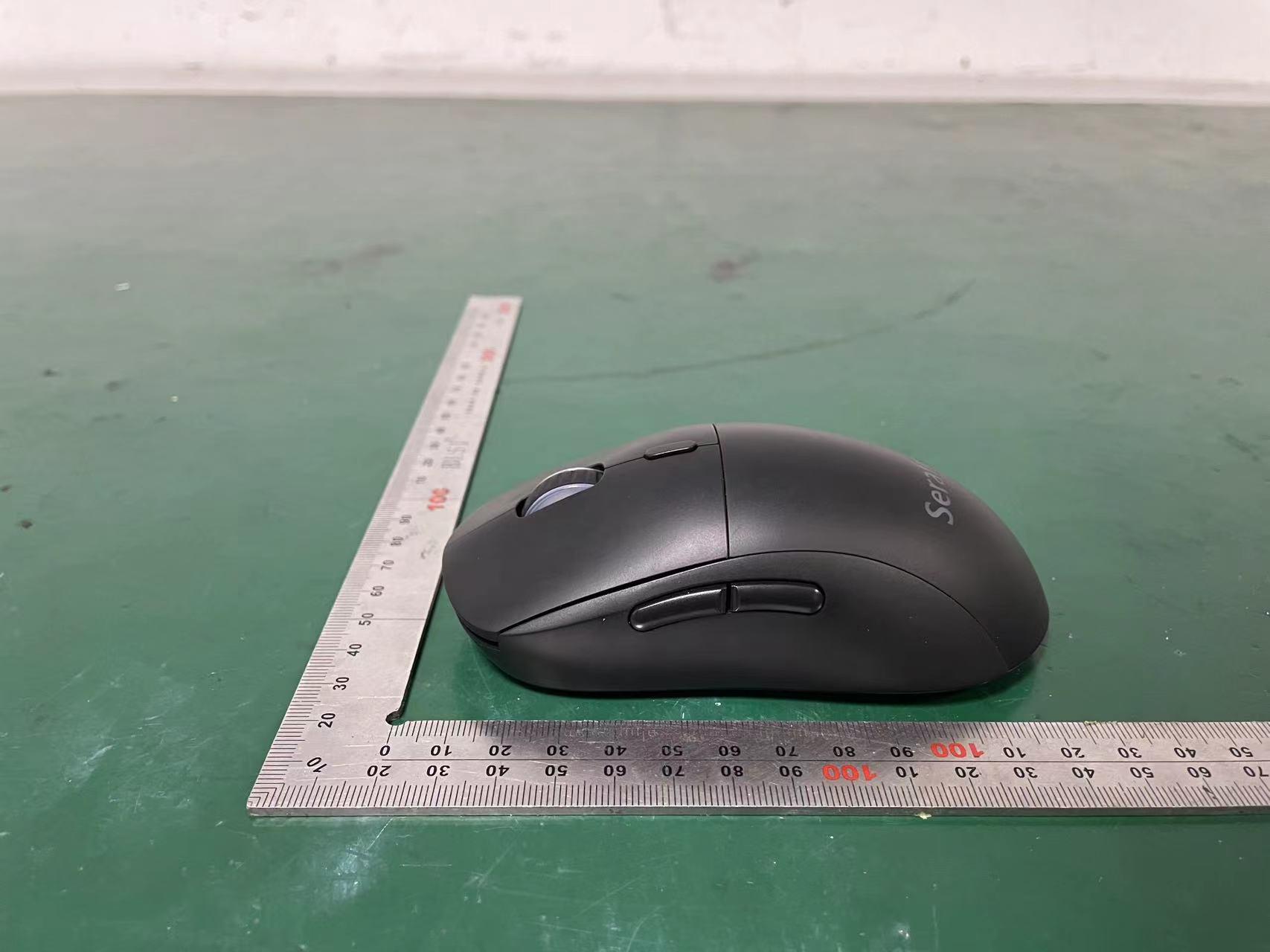

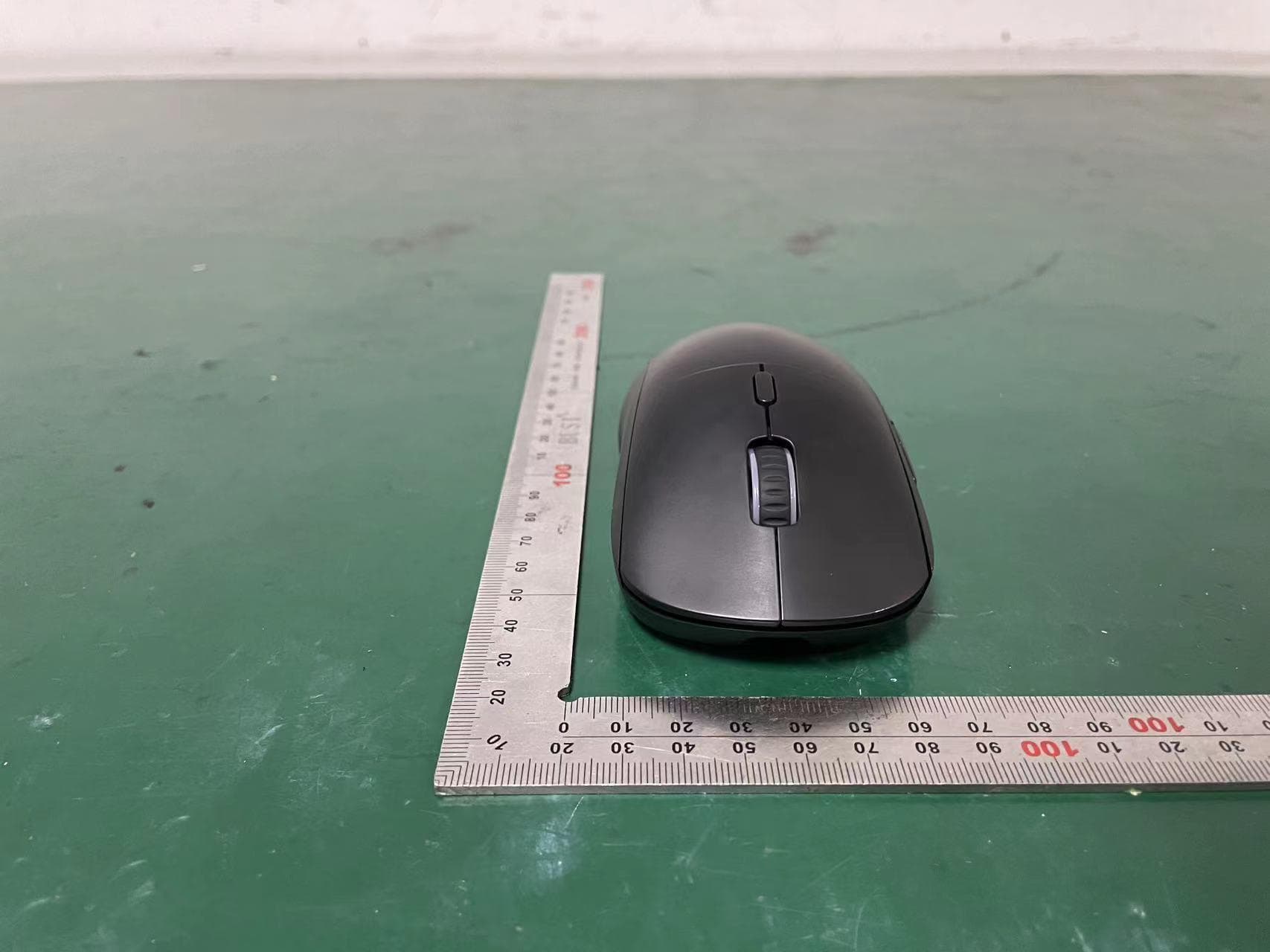

Externalphotos M/N:SerafimM1Pro Externalphotos M/N:SerafimM1Pro Externalphotos M/N:SerafimM1Pro Externalphotos M/N:SerafimM1Pro

Internalphotos M/N:SerafimM1Pro Internalphotos M/N:SerafimM1Pro Internalphotos M/N:SerafimM1Pro RFAntenna

FCC ID: 2AOERSGM-M1P EST Technology Co., Ltd Report No. ESTE-R2211091 Page 1 of 3 FCC RF EXPOSURE REPORT Serafim Technologies Inc. Serafim M1 PRO Gaming Mouse Model Number: Serafim M1 PRO Additional Model: ST-GM377W, ST-GM909W, ST-GM912W, ST-GM121W, ST-GM069W, ST-GM205W, ST-GM119W, ST-GM118W, ST-GM700W, ST-GM701W, ST-GM503W, ST-GM049W, ST-GM389W, ST-GM386W, ST-GM397W, ST-GM117W, ST-GM107W, ST-GM100W FCC ID: 2AOERSGM-M1P Applicant: Serafim Technologies Inc. Address: 5F., No.6, Aly. 9, Ln. 45, Baoxing Rd., Xindian Dist., New Taipei City, Taiwan Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2211091 Date of Test: Oct. 25~Nov. 09, 2022 Date of Report: Nov. 10, 2022 FCC ID: 2AOERSGM-M1P EST Technology Co., Ltd Report No. ESTE-R2211091 Page 2 of 3 1. Applicable Standards FCC Part 2(Section 2.1093) FCC KDB 447498 D04 Interim General RF Exposure Guidance v01 2. Exposure Evaluation of Portable or Mobile Devices Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 300 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: 2AOERSGM-M1P EST Technology Co., Ltd Report No. ESTE-R2211091 Page 3 of 3 3. Evaluation Results Ant gain=2.34dBi, Ant numeric gain=1.714 2.34-2.15= 0.19dBd, Ant numeric gain=1.045 Field strength = 93.15dBuV/m@3m Limited=3060*(0.5/20)^x, x=-log(60/(3060*√f))= 2.72mW P={ [10 93.15/20) /10 6 *3] 2 / (30*1.714) }*1000mW =0.362mW < 2.72mW ERP=0.362mW*1.045=0.378mW < 2.72mW Note: 1. We choose f=2.48GHz to calculate MPE limit as higher frequency will have lower MPE limits. 2. SAR Test Exclusion Thresholds is 2.72mW for separation distance 5mm. Therefore, SAR test is not required. End of Test Report

FCC ID: 2AOERSGM-M1P EST Technology Co., Ltd Report No.ESTE-R2211090 Page 1 of 47 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Serafim Technologies Inc. Serafim M1 PRO Gaming Mouse Model Number: Serafim M1 PRO Additional Model: ST-GM377W, ST-GM909W, ST-GM912W, ST-GM121W, ST-GM069W, ST-GM205W, ST-GM119W, ST-GM118W, ST-GM700W, ST-GM701W, ST-GM503W, ST-GM049W, ST-GM389W, ST-GM386W, ST-GM397W, ST-GM117W, ST-GM107W, ST-GM100W FCC ID: 2AOERSGM-M1P Applicant Serafim Technologies Inc. Address: 5F., No.6, Aly. 9, Ln. 45, Baoxing Rd., Xindian Dist., New Taipei City, Taiwan Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2211090 Date of Test: Oct. 25~Nov. 09, 2022 Date of Report: Nov. 10, 2022 FCC ID: 2AOERSGM-M1P EST Technology Co., Ltd Report No.ESTE-R2211090 Page 2 of 47 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 4 1.1. Description of Device (EUT) ........................................................................................................... 4 1.2. Antenna Information ........................................................................................................................ 4 1.3. Information of RF Cable .................................................................................................................. 4 2. SUMMARY OF TEST ......................................................................................................................... 5 2.1. Summary of test result ...................................................................................................................... 5 2.2. Test Facilities ................................................................................................................................... 6 2.3. Measurement uncertainty ................................................................................................................. 7 2.4. Assistant equipment used for test ..................................................................................................... 7 2.5. Block Diagram ................................................................................................................................. 7 2.6. Test Mode ......................................................................................................................................... 8 2.7. Power Setting of Test Software ........................................................................................................ 8 2.8. Channel List ..................................................................................................................................... 8 2.9. Test Equipment List ......................................................................................................................... 9 3. FIELD STRENGTH OF FUNDAMENTAL ............................................................................................ 10 3.1. Limit ............................................................................................................................................... 10 3.2. Test Setup ....................................................................................................................................... 10 3.3. Spectrum Analyzer Setting ............................................................................................................. 10 3.4. Test Procedure ................................................................................................................................ 11 3.5. Test Result ...................................................................................................................................... 12 4. RADIATED SPURIOUS EMISSIONS AND BAND EDGE ...................................................................... 19 4.1. Limit ............................................................................................................................................... 19 4.2. Test Setup ....................................................................................................................................... 21 4.3. Spectrum Analyzer Setting ............................................................................................................. 22 4.4. Test Procedure ................................................................................................................................ 23 4.5. Test Result ...................................................................................................................................... 24 5. 20DB BANDWIDTH ........................................................................................................................ 36 5.1. Limit ............................................................................................................................................... 36 5.2. Test Setup ....................................................................................................................................... 36 5.3. Spectrum Analyzer Setting ............................................................................................................. 36 5.4. Test Procedure ................................................................................................................................ 36 5.5. Test Condition ................................................................................................................................ 36 5.6. Test Result ...................................................................................................................................... 37 6. ANTENNA REQUIREMENTS .......…

Text truncated - open the document above for the full version.

Radiatedemissiontest:Below1GHz Radiatedemissiontest:Above1GHz
