2AOFNCBC002True Wireless Earbuds

iWorld Global Trading LLC Add: 65 West 36th Street 11th floor, NY 10018, United States Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Dear Sir/Madam, We, iWorld Global Trading LLC Hereby declares the following statement for FCC, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product Name: True Wireless Earbuds FCC ID: 2AOFNCBC002 Model Number(s): PATW-1001-WH, PATW-1001-PK, PATW-1001-BL, PATW-1001-BK, PATW-1000-FL, PATW-1000-MB, PATW-1000-BK Sincerely, Name: Yafit Shahar/VP of Support Company: iWorld Global Trading LLC Address: 65 West 36th Street 11th floor, NY 10018, United States Phone: 212-255-5170 Fax: 718 906 7059 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-05-26> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AOFNCBC002 PATW-1001-WH, PATW-1001-PK, PATW-1001-BL, PATW-1001-BK, PATW-1000-FL, PATW-1000-MB, PATW-1000-BK For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Yafit Shahar/VP of Support Company: iWorld Global Trading LLC Address: 65 West 36th Street 11th floor, NY 10018, United States Phone: 212-255-5170 Fax: 718 906 7059 E-Mail: [email protected]

iWorld Global Trading LLC Add: 65 West 36th Street 11th floor, NY 10018, United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/05/26 To whom it may concern: We, iWorld Global Trading LLC the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AOFNCBC002 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: Yafit Shahar/VP of Support Company: iWorld Global Trading LLC Address: 65 West 36th Street 11th floor, NY 10018, United States Phone: 212-255-5170 Fax: 718 906 7059 E-Mail: [email protected]

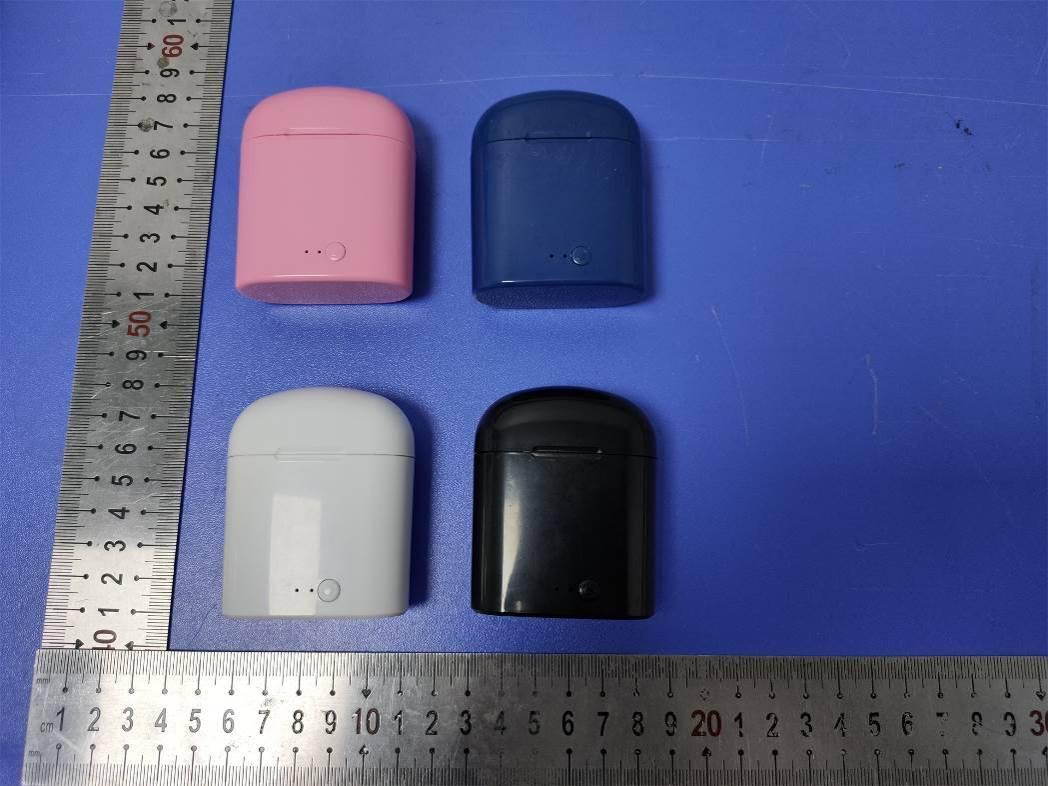

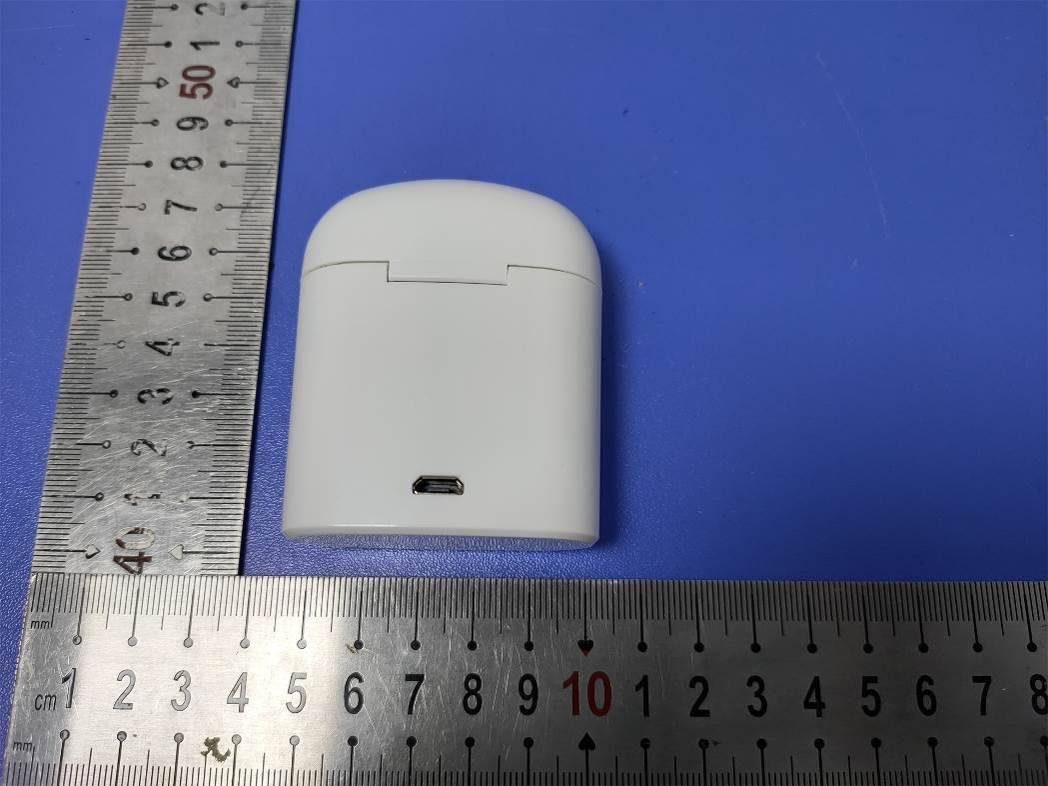

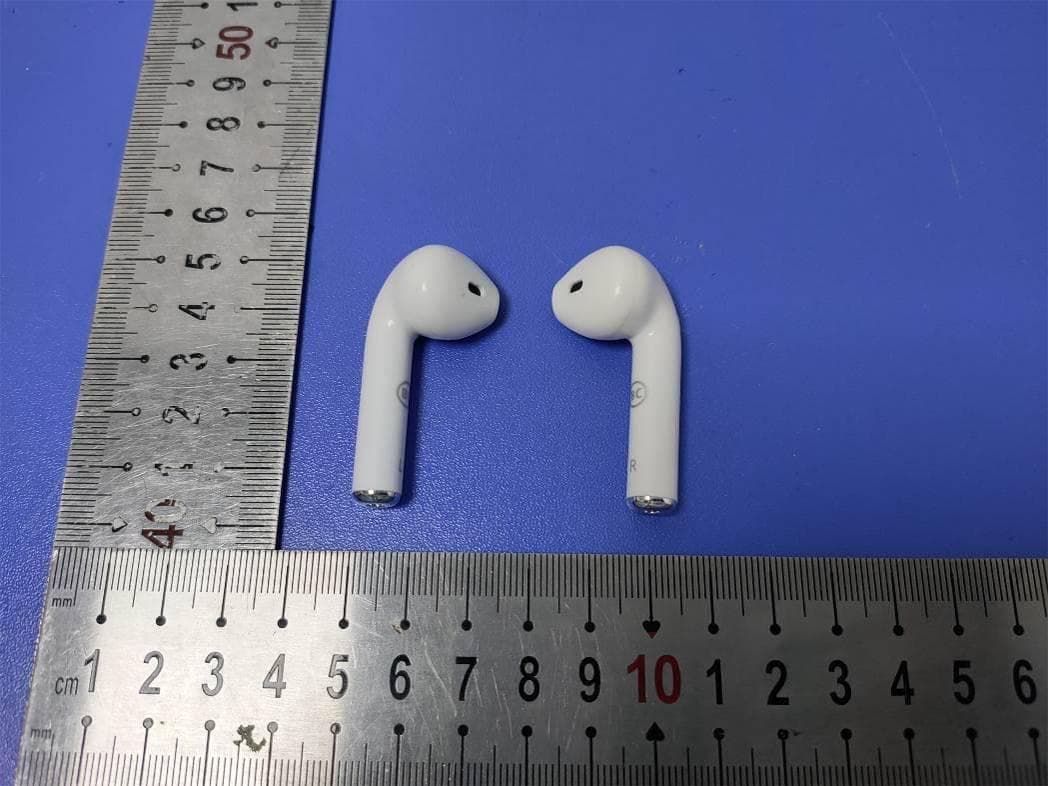

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 5 Fig.9 Fig.10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION (Size: L2.0m x0.5cm) Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location True Wireless Earbuds FCC ID: 2AOFNCBC002

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 Internal Photos of the EUT Fig.1 Fig.2 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AOFNCBC002 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AOFNCBC002 Product name True Wireless Earbuds Model number PATW-1001-WH, PATW-1001-PK, PATW-1001-BL, PATW-1001-BK, PATW-1000-FL, PATW-1000-MB, PATW-1000-BK Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power supply Input: DC 5V DC 3.7V by Li-ion Battery(35mAh) Operation frequency Bluetooth: 2402MHz-2480MHz Modulation Type GFSK, π/4-DQPSK for Bluetooth V5.0 (DSS) GFSK for Bluetooth V5.0 (DTS) Channel Number 79 Channels for Bluetooth V5.0(DSS) 40 channels for Bluetooth V5.0(DTS) Antenna Type PCB Antenna Antenna Gain 0 dBi(Max.) Hardware version XL-i7-HF V1.6 Software version 21DF-9838C007)_200307 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AOFNCBC002 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. 3. Refer evaluation method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results Mode Channel Frequency(MHz) Average Conducted Output Power (dBm) GFSK 0 2402 -2.211 39 2441 -2.206 78 2480 -2.597 π/4DQPSK 0 2402 -1.321 39 2441 -1.237 78 2480 -1.667 GFSK(BLE) 0 2402 -2.195 19 2440 -1.971 39 2480 -2.246 5. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -2.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.0 -1.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 GFSK (BT LE) (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -2.0 -1.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AOFNCBC002 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 6. Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW GFSK 2.441 5 -1.0 0.7943 0.25 < 3.0 Yes π/4DQPSK 2.441 5 0.0 1.0000 0.32 < 3.0 Yes GFSK (BT LE) 2.440 5 -1.0 0.7943 0.36 < 3.0 Yes Remark: 1. Output power including tune up tolerance; 2. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. 3. WLAN and BT share same modular and same antenna, no need consider simultaneous transmit. 7. Conclusion The measure…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 Report No.: LCS200413178AEB Page 1 of 14 Appendix B RF Test Data for BT V5.0(DTS) (Conducted Measurement) Product Name: True Wireless Earbuds Trade Mark: iWorld, Prime Audio, Macbeth Collection, Kodak, CoreAudio Test Model: PATW-1001-WH Environmental Conditions Temperature: 23.6  C Relative Humidity: 53.6% ATM Pressure: 100.0 kPa Test Engineer: Alisa Huang Supervised by: Li Huan B.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 Report No.: LCS200413178AEB Page 2 of 14 B.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH -2.195 30 PASS BT LE MCH -1.971 30 PASS BT LE HCH -2.246 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 Report No.: LCS200413178AEB Page 3 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 Report No.: LCS200413178AEB Page 4 of 14 B.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -13.655 8 PASS BT LE MCH -13.252 8 PASS BT LE HCH -13.472 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 Report No.: LCS200413178AEB Page 5 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 Report No.: LCS200413178AEB Page 6 of 14 B.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.5044 ≥0.5 PASS BT LE MCH 0.5048 ≥0.5 PASS BT LE HCH 0.5062 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 Report No.: LCS200413178AEB Page 7 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 Report No.: LCS200413178AEB Page 8 of 14 B.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH -2.325 -36.422 -22.325 PASS BT LE MCH -2.114 -37.003 -22.114 PASS BT LE HCH -2.398 -37.301 -22.398 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 Report No.: LCS200413178AEB Page 9 of 14 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 Report No.: LCS200413178AEB Page 10 of 14 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 Report No.: LCS200413178AEB Page 11 of 14 B.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH -2.253 -48.635 -22.25 PASS BT LE HCH -2.262 -34.068 -22.26 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 Report No.: LCS200413178AEB Page 12 of 14 B.7 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -43.53 2.0 0 53.73 PEAK 74 PASS Ant1 2310.0 -53.46 2.0 0 43.80 AV 54 PASS Ant1 2390.0 -37.33 2.0 0 59.93 PEAK 74 PASS Ant1 2390.0 -52.75 2.0 0 44.51 AV 54 PASS 2480 Ant1 2483.5 -28.99 2.0 0 68.27 PEAK 74 PASS Ant1 2483.5 -47.35 2.0 0 49.91 AV 54 PASS Ant1 2500.0 -41.13 2.0 0 56.13 PEAK 74 PASS Ant1 2500.0 -52.19 2.0 0 45.07 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 Report No.: LCS200413178AEB Page 13 of 14 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 Report No.: LCS200413178AEB Page 14 of 14 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 Report No.: LCS200413178AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 32 FCC TEST REPORT For iWorld Global Trading LLC True Wireless Earbuds Test Model: PATW-1001-WH Additional Model No.: Please Refer To Page 6 Prepared for : iWorld Global Trading LLC Address : 65 West 36th Street 11th floor, NY 10018, United States Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : April 26, 2020 Number of tested samples : 2 Sample No. : 200413178A-1, 200413178A-2 Serial number : Prototype Date of Test : April 26, 2020 ~ April 28, 2020 Date of Report : May 08, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 Report No.: LCS200413178AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 32 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS200413178AEB Date of Issue ................................... : May 08, 2020 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : iWorld Global Trading LLC Address ........................................... : 65 West 36th Street 11th floor, NY 10018, United States Test Specification Standard .......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : True Wireless Earbuds Trade Mark .......................................................................................................................................... : iWorld, Prime Audio, Macbeth Collection, Kodak, CoreAudio Model/ Type reference ........................................................................................................................ : PATW-1001-WH Ratings ................................................................................................................................................ : Input: DC 5V DC 3.7V by Li-ion Battery(35mAh) Result ............................................ : Positive Compiled by: Supervised by: Approved by: Linda He / Administrators Jin Wang / Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 Report No.: LCS200413178AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 32 FCC -- TEST REPORT Type / Model........................... : PATW-1001-WH EUT......................................... : True Wireless Earbuds Applicant............................... : iWorld Global Trading LLC Address.................................. : 65 West 36th Street 11th floor, NY 10018, United States Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Dongguan meiyin technology co. ltd. Address................................... : Building C, No 1, zhiquan hi-tech park road, Dongkeng town, Dongguan city China. Telephone............................... : / Fax.......................................... : / Factory................................... : Dongguan meiyin technology co. ltd. Address................................... : Building C, No 1, zhiquan hi-tech park road, Dongkeng town, Dongguan city China. Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200413178AEB May 08, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 Report No.: LCS200413178AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 32 Revision History Revision Issue Date Revisions Revised By 000 May 08, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 Report No.: LCS200413178AEB This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 32 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ....................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOFNCBC002 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Test Setup Photo(s) of Conducted Emissions Measurement Fig. 3
