2AOIFSAS980SWTWater Timer

S A S 980SWT-7 SAS980SWT-7

SHENZHEN SASWELL TECHNOLOGY INC. Add: 1601-1602 ,Floor16,Building4,Tianan Cloud Park Bantian Street,Longgang District Shenzhen China Date: 2021-7-24 FCC ID: 2AOIFSAS980SWT Dear Sir/Madam, We, SHENZHEN SASWELL TECHNOLOGY INC. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Water Timer Model no.: SAS980SWT-7, SAS980SWT-7(US), SAS980SWT-7(EU) Sincerely, Name/Title： Martin Yuan/Manager Company: SHENZHEN SASWELL TECHNOLOGY INC. Address: 1601-1602 ,Floor16,Building4,Tianan Cloud Park Bantian Street,Longgang District Shenzhen China Phone: +86-755-61218391-828 Fax: +86-755-61218391-828 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-7-24> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AOIFSAS980SWT SAS980SWT-7 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Martin Yuan/Manager Company: SHENZHEN SASWELL TECHNOLOGY INC. Address: 1601-1602 ,Floor16,Building4,Tianan Cloud Park Bantian Street,Longgang District Shenzhen China Phone: +86-755-61218391-828 Fax: +86-755-61218391-828 E-Mail: [email protected]

SHENZHEN SASWELL TECHNOLOGY INC. 1601-1602 ,Floor16,Building4,Tianan Cloud Park Bantian Street,Longgang District Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-7-24 To whom it may concern: We, SHENZHEN SASWELL TECHNOLOGY INC. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AOIFSAS980SWT including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Martin Yuan/Manager Company: SHENZHEN SASWELL TECHNOLOGY INC. Address: 1601-1602 ,Floor16,Building4,Tianan Cloud Park Bantian Street,Longgang District Shenzhen China Phone: +86-755-61218391-828 Fax: +86-755-61218391-828 E-Mail: [email protected]

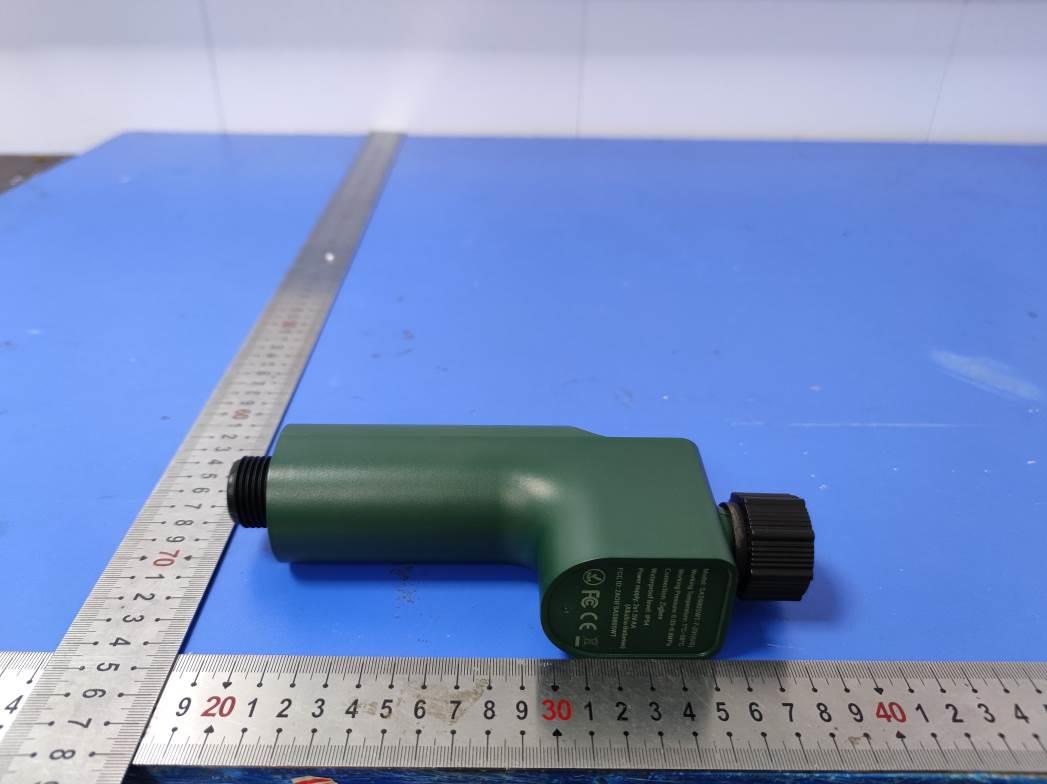

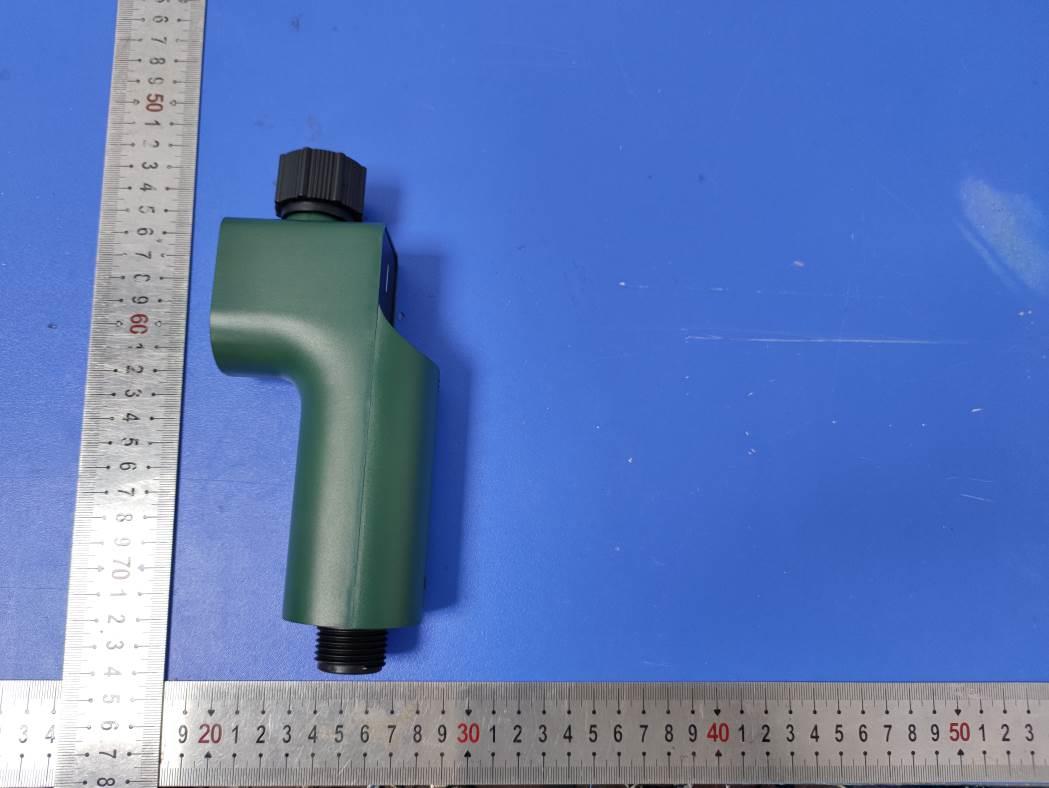

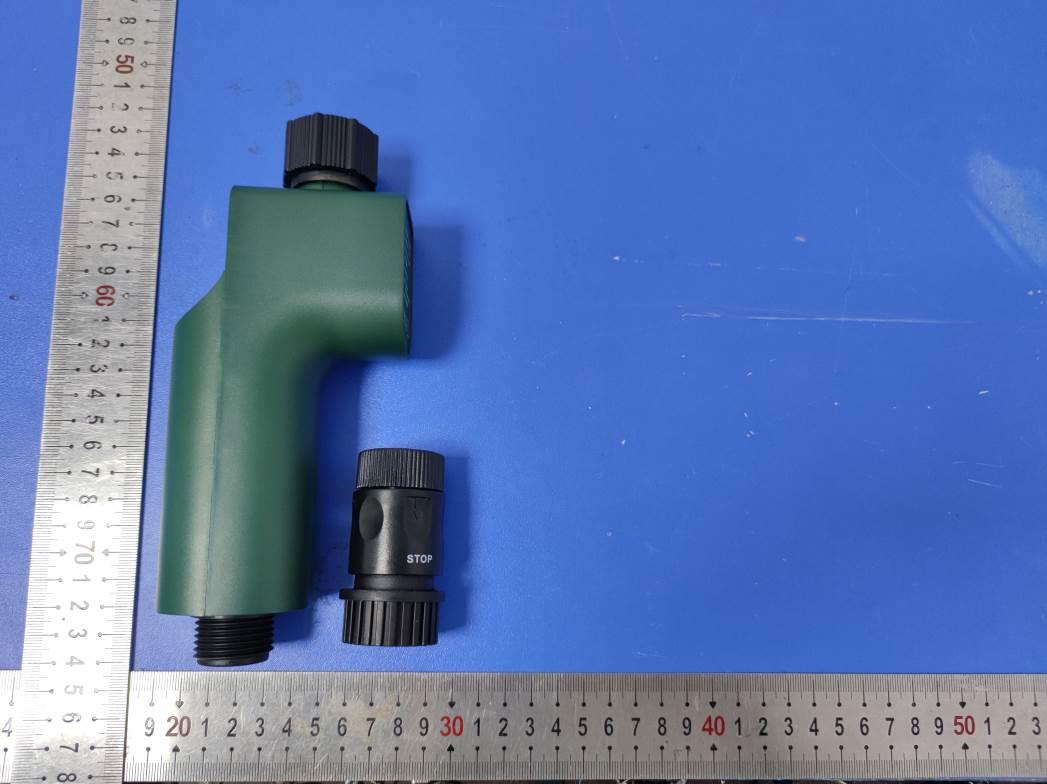

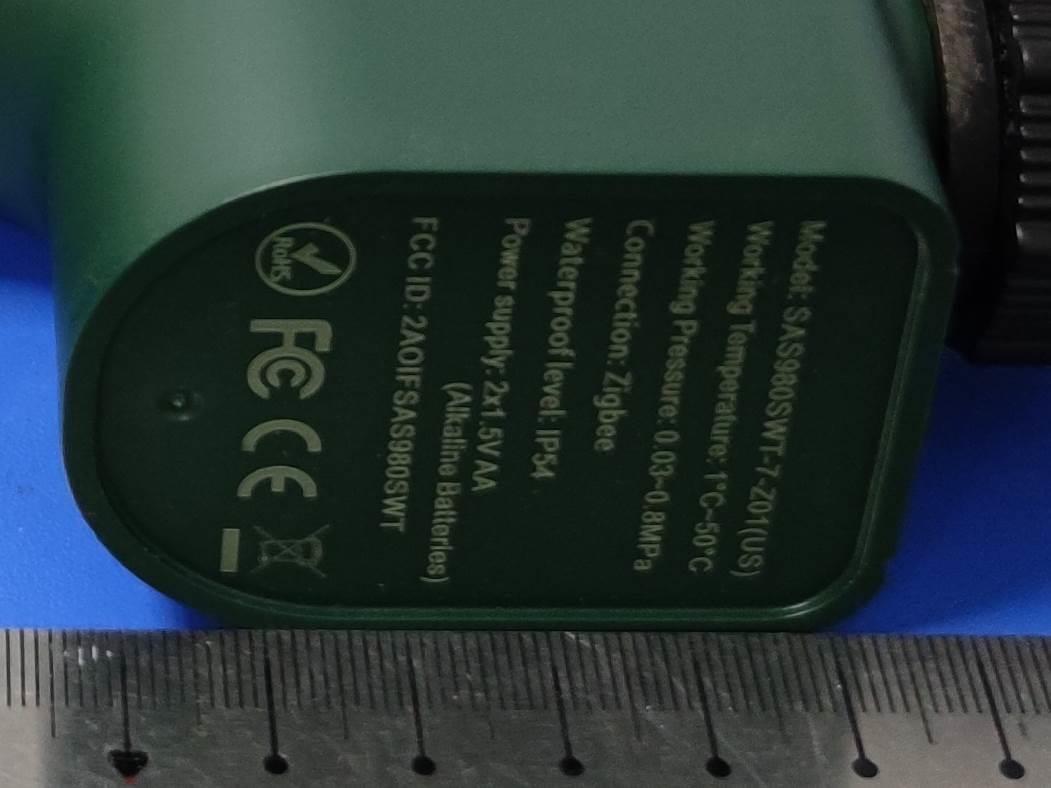

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AOIFSAS980SWT 1 / 4 EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AOIFSAS980SWT 2 / 4 Fig.3 Fig.4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AOIFSAS980SWT 3 / 4 Fig.5 Fig.6 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AOIFSAS980SWT 4 / 4 Fig.7 Fig.8

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AOIFSAS980SWT 1 / 6 INTERIOR PHOTOGRAPHS Fig.1 Fig.2 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AOIFSAS980SWT 2 / 6 Fig.3 Fig.4 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AOIFSAS980SWT 3 / 6 Fig.5 Fig.6 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AOIFSAS980SWT 4 / 6 Fig.7 Fig.8 Antenna Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AOIFSAS980SWT 5 / 6 Fig.9 Fig.10 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AOIFSAS980SWT 6 / 6 Fig.11

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AOIFSAS980SWT This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 FCC RF Exposure Evaluation 1. Product Information FCC ID 2AOIFSAS980SWT Product name Water Timer Test Model SAS980SWT-7 Additional Model No SAS980SWT-7(US), SAS980SWT-7(EU) Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power supply DC 1.5V by 2*AA battery Modulation Type Zigbee: O-QPSK Antenna Type Zigbee: PCB Antenna Antenna Gain Zigbee: 2.2dBi(Max.) Hardware version / Software version / FCC Operation frequency Zigbee: 2405MHz-2480MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AOIFSAS980SWT This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information The Smart Gateway can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Zigbee Antenna PCB Antenna 2405MHz-2480MHz 2.2dBi Zigbee Antenna Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AOIFSAS980SWT This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 6. Conducted Power <Zigbee> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2405 4.710 7 2440 4.648 15 2480 5.069 7. Manufacturing Tolerance <Zigbee> GFSK (Peak) Channel Channel 0 Channel 7 Channel 15 Target (dBm) 5.0 5.0 5.0 Tolerance ±(dB) 1.0 1.0 1.0 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AOIFSAS980SWT This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 8. Measurement Results 8.1 Standalone MPE As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. <Zigbee> Band/Mode RF output power Antenna Gain (dBi) MPE (mW/cm2) MPE Limits (mW/cm2) dBm mW Zigbee 6.0 3.9811 2.2 0.0013 1.0000 Remark: 1. Output power including tune-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer; 9. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF E…

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AOIFSAS980SWT Report No.: LCS210527043AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 31 FCC TEST REPORT For SHENZHEN SASWELL TECHNOLOGY INC. Water Timer Test Model: SAS980SWT-7 Additional Model No.: SAS980SWT-7(US), SAS980SWT-7(EU) Prepared for : SHENZHEN SASWELL TECHNOLOGY INC. Address : 1601-1602, Floor16, Building4, Tianan Cloud Park Bantian Street, Longgang District, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : July 06, 2021 Number of tested samples : 2 Sample No. : 210527043A-1, 210527043A-2 Serial number : Prototype Date of Test : July 06, 2021 ~ July 23, 2021 Date of Report : July 24, 2021 Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AOIFSAS980SWT Report No.: LCS210527043AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 31 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ...................... : LCS210527043AEA Date of Issue ........................................ : July 24, 2021 Testing Laboratory Name ................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ................................................ : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ................ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ............................... : SHENZHEN SASWELL TECHNOLOGY INC. Address ................................................ : 1601-1602, Floor16, Building4, Tianan Cloud Park Bantian Street, Longgang District, Shenzhen, China Test Specification Standard ............................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ........................ : LCSEMC-1.0 TRF Originator .................................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .......................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ............................... : Water Timer Trade Mark .......................................... : None Test Model ........................................... : SAS980SWT-7 Ratings ................................................. : DC 1.5V by 2*AA battery Result ................................................. : Positive Compiled by: Supervised by: Approved by: Cherry Chen/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AOIFSAS980SWT Report No.: LCS210527043AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 31 FCC -- TEST REPORT Test Model............................... : SAS980SWT-7 EUT......................................... : Water Timer Applicant............................... : SHENZHEN SASWELL TECHNOLOGY INC. Address.................................. : 1601-1602, Floor16, Building4, Tianan Cloud Park Bantian Street, Longgang District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : SHENZHEN SASWELL TECHNOLOGY INC. Address................................... : 6/F, 4/F, 3/F, Building K, No. 8 East Region, ShangXue Science & Technology Industry Park, BuJi, ShenZhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210527043AEA July 24, 2021 Date of issue Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AOIFSAS980SWT Report No.: LCS210527043AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 31 Revision History Revision Issue Date Revisions Revised By 000 July 24, 2021 Initial Issue Gavin Liang Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AOIFSAS980SWT Report No.: LCS210527043AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 31 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................... 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS ............................................................................................. 7 …

Text truncated - open the document above for the full version.

Shenzhen LCS Compliance Testing Laboratory Ltd. FCC ID: 2AOIFSAS980SWT 1 / 1 TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Below 1 GHz Above 1 GHz
