2AOIFT18XUTWThermostat

If you have difficult with your T18X, please try the following suggestions. Most problem can be corrected quickly and easily FAQ 1.Question：Is there a way to turn Alexa off? If so, can the light be turned off as well? Answer ：Alexa can be turned off by mute, so it will no longer listen.But in mute mode, the light will be in red can not be turned off. 2.Question: When will the T18X allow its wake word to be changed? We've made Alexa's word be "Computer" and want to change the T18X too. Answer ： The wake word was determined by amazon,unfortunately,user can not to change wake word currently,But if amazon makes this feature available, we’d love to add it. 3.QuestionDoes the T18X have an audio output like the dot? we currently plug one of our dots into the stereo, and the thermostat is ： right next to it. Answer ：It does not. The T18X doesn't have a AUX output for other audio equipment. But it does have a built-in speaker for music and other audio. 4.Question: Does anybody know if the manufacturer gives people a hard time in fulfilling the warranty? Answer ： Service and Support: All products come back by a 30-day change period, 1 Year maintenance period and lifetime support, But before that,please contact our customer service firstly. 5.Question: If i wired my ceiling fans to be controlled via wifi will the T18X control the ceiling fans also? Answer ： As long as your ceiling fan is compatible with the Amazon Alexa Voice service, then you would be able to talk to the T18X for control with your fans. 6.Question: Have a single gas fired hot water heating system with 4 zones. Will one T18X be able to control all four zones? If not, what are my options? Answer ： You would need a T18X per zone, if you want to control and monitor each zone remotely. 7.Question: Can i use an T18X with a heat pump? Answer ： Yes, all our T18X smart thermostats work with Heat Pump systems. Air to air or geothermal. 8.Question: Does the package contain the trim plate and if so what are the dimensions? Answer ： The T18X does come with a large trim plate:：Length：165mm Width：129 mm 9.Question: Can the "alexa" feature of this thermostat be used to control the rainmachine mini-8 2nd gen sprinkler controller? Answer ： As long as your sprinkler control is able to be controlled by Alexa, like other smart home devices, then T18X will be able to take voice commands for that system. 10.Question: If i want this to hold a temperature and not do any program or anything automatic will it hold that temp? Answer ： You can set the Hold action (when you manually adjust to a new temperature) to be indefinite. Then, whenever you change the temperature, it will stay on that new set point until you change it. 1 11.Question: If I have have 2 thermostats, how can I voice control them individually if both wake up Alexa? Answer ： If two T18X are installed at the same time, It is impossible to control one of these devices accurately by voice, because both T18X use alexa as a wake word. we suggest that the installation distance between multiple T18X should be more than 7 meters, this prevents Alexa from controlling two or more T18X at the same time. 12.Question: In the privacy policies, it states, "T18X...may also anonymously aggregate your data..." wondering who all they share your data with? its not specific. Answer ： To protect users' privacy, T18X does not collect any information about customers，In the APP, we only need customers to fill in the simplest personal information when they register as users. 13.Question: If I have the Amazon Echo as well, when I say Alexa will both devices activate if both "hears" (devices located in diff locations)? Answer ： Alexa's ESP service is not currently available to 3rd party devices, like the T18X. But if they open to 3rd party devices, we'll look into adding it to the T18X. Currently the T18X will respond whenever it hears the wake word "Alexa". 14.Question: Can the T18X be connected to my Amazon Firestick? Answer ： The T18X can control any Alexa compatible device. I don't believe the fire stick is Alexa compatible. 15.QuestionWhy does alexa keep telling us "sorry, i need a minute"? none of the other echo dots in our house have this issue. ： is my alexa faulty? Answer ： When Alexa is saying "Sorry, I need a minute", then there's an issue with the Alexa service. When you get this response, and it continues after a good while, Please turn off the power for a few seconds and then turn it back on, If it still doesn't work, then contact our . 16.Question: Say I set up my vacation schedule.What if shut off wifi before that.Will the T18X still follow the schedule or it always needs access to the cloud? Answer ： If you loose wifi in the middle of a vacation event, the T18X will still be able to hold the vacation until the end date. It doesn't require a wifi signal to hold the vacation event. But without wifi internet, you won't be able to monitor or control the T18X remotely. 17.Question: When does the top blue led turns on? on all the time? only when alexa gets triggered? or when the thermostat "wakes" up (standing in front of it)? Answer ： The LED light at the top of T18X will only light up when the wake word is used, when it's thinking, when it responds, or when the device is muted to not wake up. 18.Question: I've called wink to see if its compatible with T18X 4 and they said "soon," but its not mentioned on either website. will it happen? when? Answer ： T18X is only compatible with Alexa and is currently not compatible with wink. 19.QuestionCan I say to it - Alexa, turn the temperature to 76 degrees? ： Answer ： You can! You can give Alexa commands to control the heating or cooling by talking to your T18X. Since the device uses far fetch voice, it'll be able to hear you from across the room. 20.Question: Can you turn the system off? Sometimes we turn off our systems and open the windows on nice days. Answer ： With all our T18X thermostat, you have the ability to turn the system to OFF mode. Or you can schedule …

Text truncated - open the document above for the full version.

SHENZHEN SASWELL TECHNOLOGY INC. Agent Authorization Company: SHENZHEN SASWELL TECHNOLOGY INC. Address: Room 1601-1602 Floor16, Building4, Tianan Cloud Park, No.2018 Xuegang Road, Bantian Street, Longgang District, Shenzhen, China Product Name: Thermostat Trade Mark: N/A Model Number: T18XUTW-7-WIFI(TY) FCC ID: 2AOIFT18XUTW We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-03-04 Name: Martin Yuan Title: Manager Company: SHENZHEN SASWELL TECHNOLOGY INC.

SHENZHEN SASWELL TECHNOLOGY INC. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-03-04 Subject; Request for Confidentiality FCC ID: 2AOIFT18XUTW To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Martin Yuan Title: Manager Company: SHENZHEN SASWELL TECHNOLOGY INC.

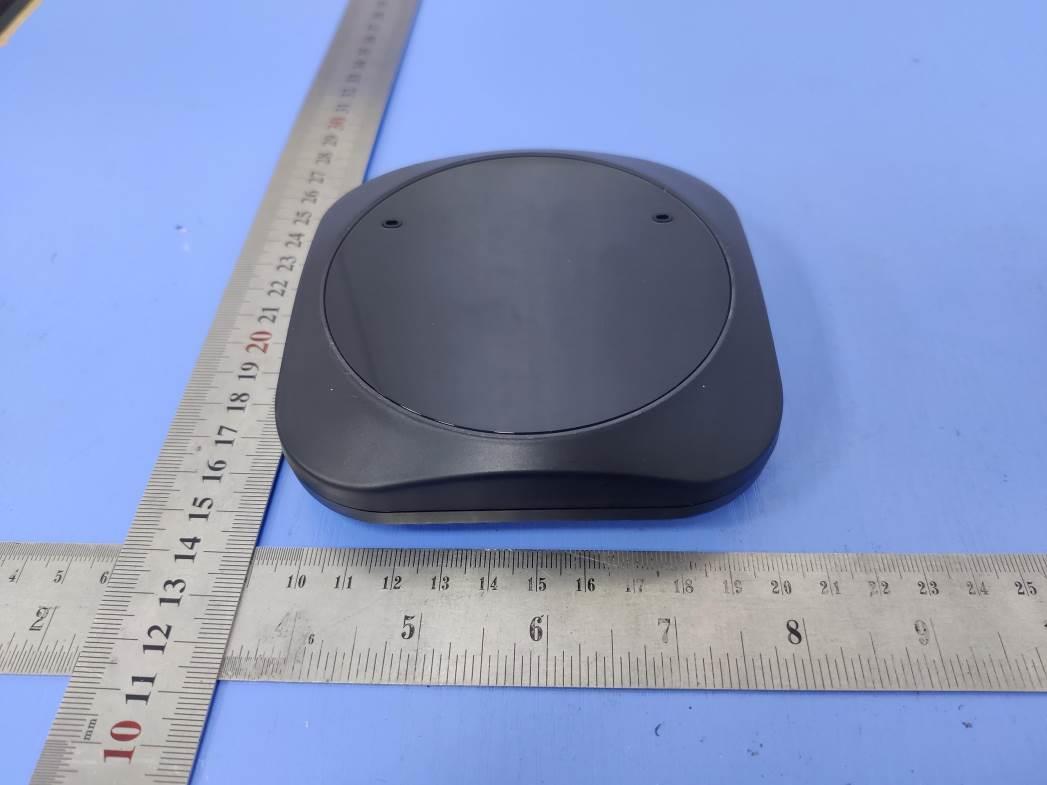

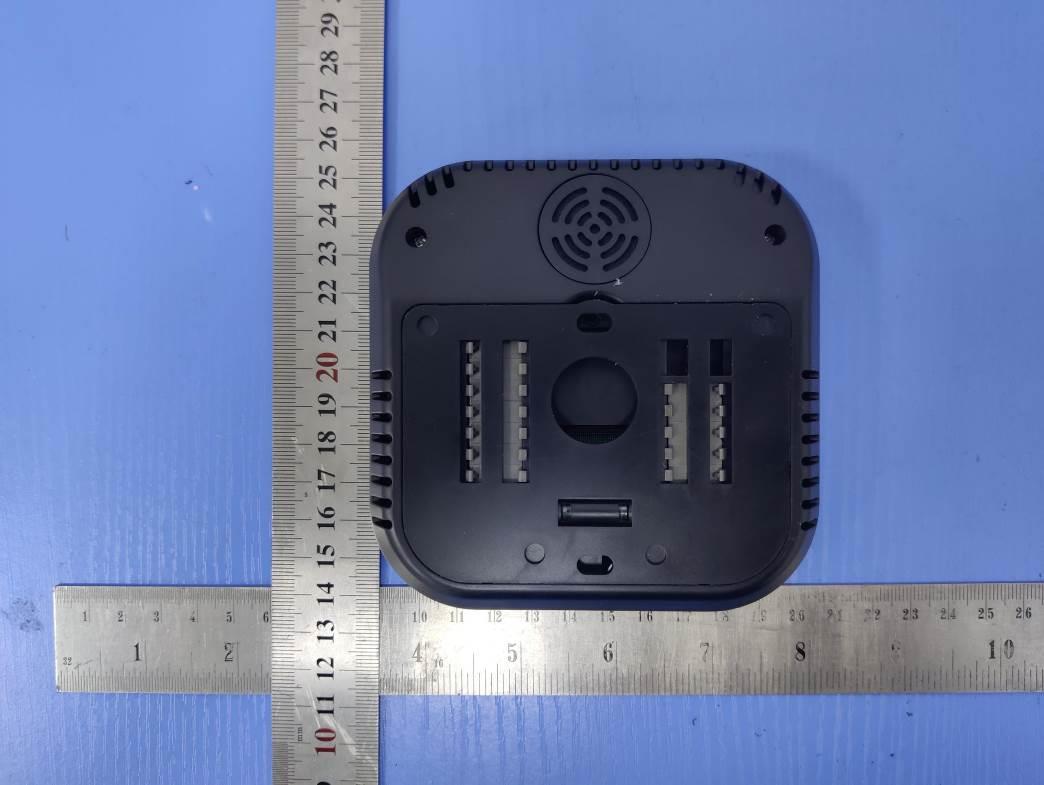

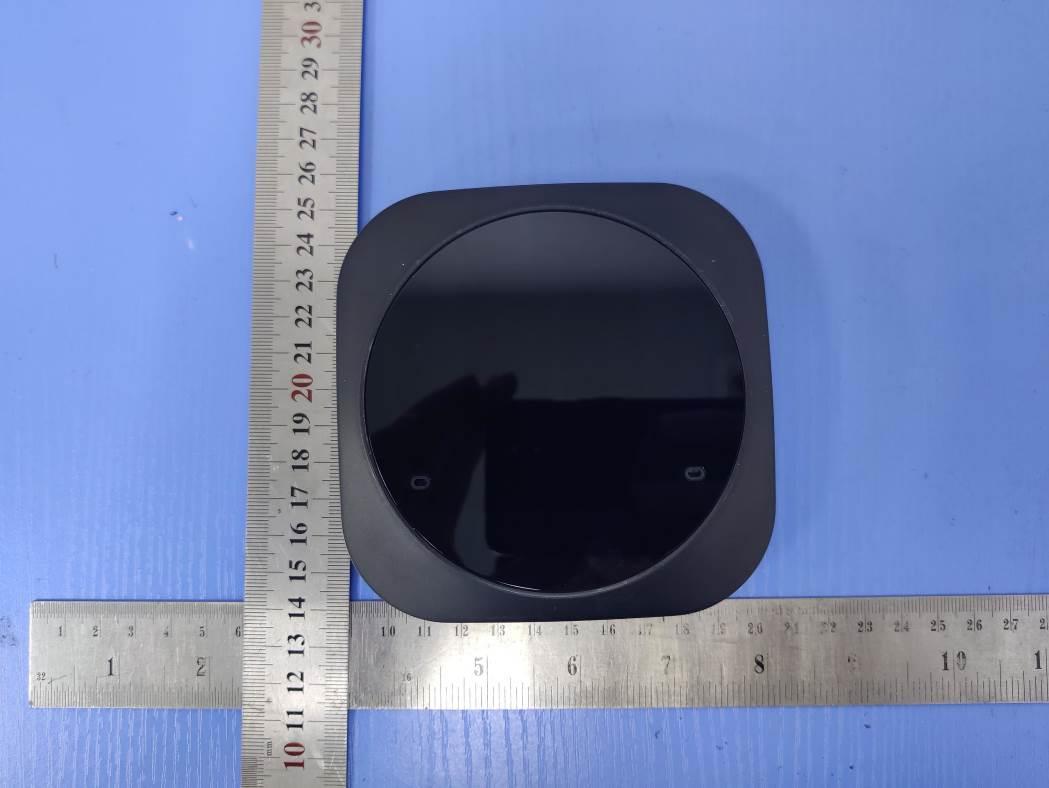

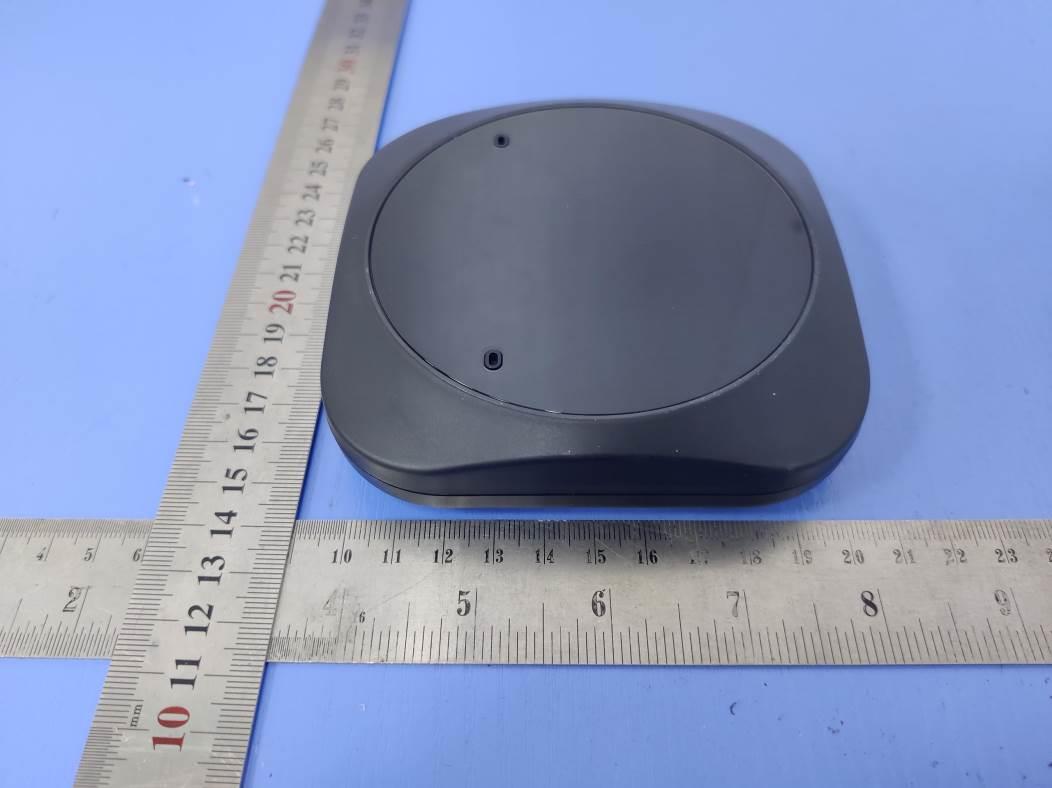

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW EXTERIOR PHOTOGRAPHS Fig.1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Fig.2 Fig.3 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Fig.4 Fig.5 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Fig.5 Fig.6 WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 FCC RF Exposure Evaluation 1. Product Information FCC ID 2AOIFT18XUTW Product name Thermostat Model number T18XUTW-7-WIFI(TY) Power supply Input: DC/AC 24V Modulation Type IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) Antenna Type PCB Antenna Antenna Gain 1.6dBi(Max.) Hardware version V3.2.PCB Software version V1.0.0 FCC Operation frequency 2412 – 2462 MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Artemis Antenna can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna PCB Antenna 2412MHz-2462MHz 1.6dBi WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 6. Conducted Power Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) 11B 1 2412 17.93 6 2437 18.14 11 2462 18.08 11G 1 2412 18.78 6 2437 19.44 11 2462 19.34 11N20SISO 1 2412 17.92 6 2437 19.14 11 2462 18.71 11N40SISO 3 2422 19.20 6 2437 19.34 9 2452 19.22 7. Manufacturing Tolerance 11B (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 17.0 18.0 18.0 Tolerance ±(dB) 1.0 1.0 1.0 11G (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 18.0 19.0 19.0 Tolerance ±(dB) 1.0 1.0 1.0 11N20SISO (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 17.0 19.0 18.0 Tolerance ±(dB) 1.0 1.0 1.0 11N40SISO (Peak) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 19.0 19.0 19.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 8. Measurement Results 8.1 Standalone MPE As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. B…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 1 of 46 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Thermostat Trade Mark: N/A Test Model: T18XUTW-7-WIFI(TY) Environmental Conditions Temperature: 24.6 C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Carl Fu Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 99.8 PASS 11G 2437 Ant1 98.6 PASS 11N20SISO 2437 Ant1 98.7 PASS 11N40SISO 2437 Ant1 99.2 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 2 of 46 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 3 of 46 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 4 of 46 A.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 17.93 30 PASS MCH 18.14 30 PASS HCH 18.08 30 PASS 11G LCH 18.78 30 PASS MCH 19.44 30 PASS HCH 19.34 30 PASS 11N20SISO LCH 17.92 30 PASS MCH 19.14 30 PASS HCH 18.71 30 PASS 11N40SISO LCH 19.20 30 PASS MCH 19.34 30 PASS HCH 19.22 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 5 of 46 A.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -10.950 8 PASS MCH -8.455 8 PASS HCH -8.873 8 PASS 11G LCH -13.763 8 PASS MCH -13.198 8 PASS HCH -13.782 8 PASS 11N20SISO LCH -13.838 8 PASS MCH -13.416 8 PASS HCH -13.931 8 PASS 11N40SISO LCH -15.531 8 PASS MCH -15.156 8 PASS HCH -16.058 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 6 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 7 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 8 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 9 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 10 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 11 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 12 of 46 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 9.566 ≥0.5 PASS MCH 9.111 ≥0.5 PASS HCH 9.566 ≥0.5 PASS 11G LCH 12.59 ≥0.5 PASS MCH 12.58 ≥0.5 PASS HCH 12.57 ≥0.5 PASS 11N20SISO LCH 12.59 ≥0.5 PASS MCH 12.58 ≥0.5 PASS HCH 12.53 ≥0.5 PASS 11N40SISO LCH 31.33 ≥0.5 PASS MCH 31.37 ≥0.5 PASS HCH 30.09 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 13 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 14 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 15 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 16 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 17 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 18 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 19 of 46 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict 11B LCH 4.936 -37.056 -15.064 PASS MCH 6.045 -37.364 -13.955 PASS HCH 5.936 -37.916 -14.064 PASS 11G LCH 2.065 -37.681 -17.935 PASS MCH 3.129 -37.512 -16.871 PASS HCH 2.354 -38.002 -17.646 PASS 11N20 SISO LCH 1.744 -38.024 -18.256 PASS MCH 2.773 -37.631 -17.227 PASS HCH 2.068 -37.047 -17.932 PASS 11N40 SISO LCH -1.355 -38.511 -21.355 PASS MCH -1.101 -38.389 -21.101 PASS HCH -0.275 -38.283 -20.275 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 20 of 46 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 21 of 46 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 22 of 46 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 23 of 46 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 24 of 46 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 25 of 46 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 26 of 46 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 27 of 46 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 28 of 46 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA Page 29 of 46 11N4…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 39 FCC TEST REPORT For SHENZHEN SASWELL TECHNOLOGY INC. Thermostat Test Model: T18XUTW-7-WIFI(TY) Prepared for : SHENZHEN SASWELL TECHNOLOGY INC. Address : Room 1601-1602 Floor16, Building4, Tianan Cloud Park, No.2018 Xuegang Road, Bantian Street, Longgang District, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : January 29, 2021 Number of tested samples : 2 Sample number : 210127008A-1, 210127008A-2 Serial number : Prototype Date of Test : January 29, 2021~ February 02, 2021 Date of Report : February 04, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 39 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS210127008AEA Date of Issue .................................. : February 04, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : SHENZHEN SASWELL TECHNOLOGY INC. Address .......................................... : Room 1601-1602 Floor16, Building4, Tianan Cloud Park, No.2018 Xuegang Road, Bantian Street, Longgang District, Shenzhen, China Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. .................. : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : Thermostat Trade Mark ..................................... : N/A Test Model ...................................... : T18XUTW-7-WIFI(TY) Ratings ........................................... : Input: DC/AC 24V Result ............................................ : Positive Compiled by: Supervised by: Approved by: Jin Wang/ File administrator Linda He / Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 39 FCC -- TEST REPORT EUT......................................... : Thermostat Test Model............................... : T18XUTW-7-WIFI(TY) Applicant............................... : SHENZHEN SASWELL TECHNOLOGY INC. Address.................................. : Room 1601-1602 Floor16, Building4, Tianan Cloud Park, No.2018 Xuegang Road, Bantian Street, Longgang District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : SHENZHEN SASWELL TECHNOLOGY INC. Address................................... : 6/F, 4/F, 3/F, Building K, No. 8 East Region, ShangXue Science & Technology Industry Park, BuJi, ShenZhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210127008AEA February 04, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 39 Revision History Revision Issue Date Revisions Revised By 000 February 04, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW Report No.: LCS210127008AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 39 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 7 1.3. EXTERNAL I/O CABLE ..................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW _______________________________________________________________________________________________ TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Below 1 GHz Above 1 GHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AOIFT18XUTW _______________________________________________________________________________________________ Power Line Conducted Emission
