2AOK9-X200X200

70mai Dash Cam Omni User Manual 01 ① Power button ② Upper button ③ Lower button ④ Adhesive sticker ⑤ Mount ⑥ Microphone ⑦ Display screen ⑧ Camera ⑨ Speaker ⑩ Power port ⑪ Round-shape indicator ⑫ Cradle head Product overview Please read this manual carefully before using the product and keep it in a safe place. Specifications Product: Dash Cam Model: X200 Resolution: 1920×1080 Lens: FOV 140°/ F1.5 Battery capacity: 300mAh Input: 5V 2A Power supply: Car cigarette lighter Battery type: Lithium polymer battery Packing list 1. Dash Cam × 1 2. Power cord × 1 3. Car charger × 1 4. Mount × 1 5. Electrostatic sticker × 2 6. Wiring crowbar × 1 7. Adhesive sticker × 2 (with 1 piece pre-applied to the mount) 8. User manual × 1 02 3. Connecting the power supply Run the power cord along the top of the windshield, down the A-pillar, and around the glove compartment. Connect the power cord to the car charger, then plug the charger into the cigarette lighter socket. 4. Adjusting the dash cam angle Hold the dash cam and turn the dash cam up and down to adjust the dash cam angle based on the preview screen. 2. Installing the dash cam Peel off the protective film from the adhesive sticker and paste the dash cam on the electrostatic sticker in the dotted area. Make sure the gap on the adhesive sticker aligns with that on the electrostatic sticker and the display screen faces the car interior. Installing/uninstalling the mount The mount is pre-installed on the dash cam. If you need to unstall it, follow the steps below: Uninstalling the mount: Hold the dash cam and screw it clockwise and then the dash cam will seperate with the dash cam. Installation 1. Installing the electrostatic sticker Put the electrostatic sticker on the recommended area as shown in the figure. Make the gap on the electrostatic sticker face upwards. Select the flat, smooth and clean area for the installation and avoid the edge of the windshield. Remove air bubbles between the sticker and the glass. Notes: ● Use the included crowbar to hide the power cord underneath the vehicle’s headliner and rubber seal along the A-pillar. ● Depending on the vehicle, the cigarette lighter socket may be located in a different position. The figure provided is for reference only. 03 Connecting with 70mai app This product needs to be used in conjunction with the 70mai app. You can download and install the app by scanning the QR code on the right or finding “70mai” in the app store. Note: Android 4.4 & iOS 9.0 or above is required to connect to the dash cam’s Wi-Fi hotspot with a mobile phone. User guide For more on product functions and FAQs, please see the user guide by scanning the QR code on the right. Accessories (optional) This product can also be used with the 70mai 4G Hardwire Kit. Scan the QR code to obtain the operation guide for the 70mai 4G Hardwire Kit. Microphone Locating point Installing the mount: 1. Align the microphone with the big locating point on the right of the mount, and then the dash cam is inserted to the mount. 2. Hold the dash cam and screw counterclockwise until the microphone is aligned with the big locating point on the left of the mount, and then the dash cam is tighten up with the mount. Precautions ● Before using the dash cam, please read all the precautions and the user guide to ensure correct and safe use. ● The dash cam is intended to assist drivers with the purpose of recording the environment outside the vehicle. The dash cam does not guarantee the user’s driving safety. We shall not be held liable for any accident, damage, or loss of information caused by operating the dash cam while driving. ● Due to differences in vehicle conditions, driving style, driving environment, etc., some functions may not work properly. A power failure, usage in environments outside the normal operating temperature or humidity range, or a collision may cause the dash cam to function abnormally. There is no guarantee that this dash cam will function normally under all circumstances. Videos 04 recorded by this dash cam are for reference only. ● The eMMC (Embedded Multi Media Card) is built in the dash cam for storage. You can find the memory capacity information on the label of the dash cam and product box. ● Install this dash cam correctly, and do not block the driver’s line of sight, nor block the vehicle’s airbag, in order to avoid product failure or personal injury. ● Use the included car charger, power cord, and other accessories in order to avoid product failure due to non- conformance. We shall not be held liable for any loss or damage caused by the use of a non-genuine car charger or power cord. ● The dash cam is equipped with a built-in battery that cannot be removed. Do not disassemble the dash cam. Do not expose batteries or battery packs to sunlight, fire, or environments where the ambient temperature is extreme heat. There is a risk of explosion if the battery is incorrectly installed, therefore only use and replace with the same or an equivalent type of battery. ● Keep the dash cam away from water drops or splashes. Keep the device dry to avoid battery failure. ● If the battery becomes deformed, swollen, or starts leaking during use or storage, stop using the dash cam immediately in order to avoid safety issues, and contact after-sales service. ● Never wash the dash cam with chemical solvent or cleaner. ● Keep the dash cam away from any strong magnetic fields, as they may cause damage to the dash cam. ● Do not use the dash cam in environments with temperatures over 60°C or below -10°C. Regulatory Compliance Information WEEE Information All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local…

Text truncated - open the document above for the full version.

70maiCo.,Ltd. To:FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD FCCID:2AOK9-X200 Productdescription:DashCam Typedesignation:X200 Trademark:N/A ToWhomItMayConcern: HasbeentheunitsusedforconductingFCCcompliancetesting,theSDoCpartwillbe testedbyEMTEK(SHENZHEN)CO.,LTD. Ifyouhaveanyquestionorconcerns,pls.contactus. Client’sSignature: CindyLv Date:2022.4.24 70maiCo.,Ltd.

70maiCo.,Ltd. FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 FCCApplicationforFCCID:2AOK9-X200 ToWhomItMayConcern: We,theundersigned,herebyauthorizeLisaWangatEMTEK(SHENZHEN)CO.,LTD.onour behalf,toapplytotheFederalCommunicationsCommissiononourequipment.Anyandallacts carriedoutbyEMTEK(SHENZHEN)CO.,LTD.onourbehalfshallhavethesameeffectasacts ofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,theapplicant, arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301oftheAnti-DrugActof 1988,21USC853a,andnopartytotheapplicationissubjecttoadenialoffederalbenefits pursuanttothatsection. Client’sSignature: CindyLv Date:2022.4.24 70maiCo.,Ltd.

Rev11/20/07 70maiCo.,Ltd. FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID:2AOK9-X200 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockDiagram CircuitSchematic OperationDescription X200_BlockDiagram X200_CircuitSchematic X200_OperationDescription Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. PursuanttoDA04-1705June15,2004oftheCommission’spublicnotice,wealsorequest temporaryconfidentialtreatmentofinformationaccompanyingthisapplicationasoutlinedbelow foraperiodof180days: ExhibitTypeFileName UserManual ExternalPhotos InternalPhotos TestSetupPhotos X200_UserManual X200_ExternalPhotos X200_InternalPhotos X200_TestSetupPhotos Client’sSignature: CindyLv Date:2022.5.16 70maiCo.,Ltd.

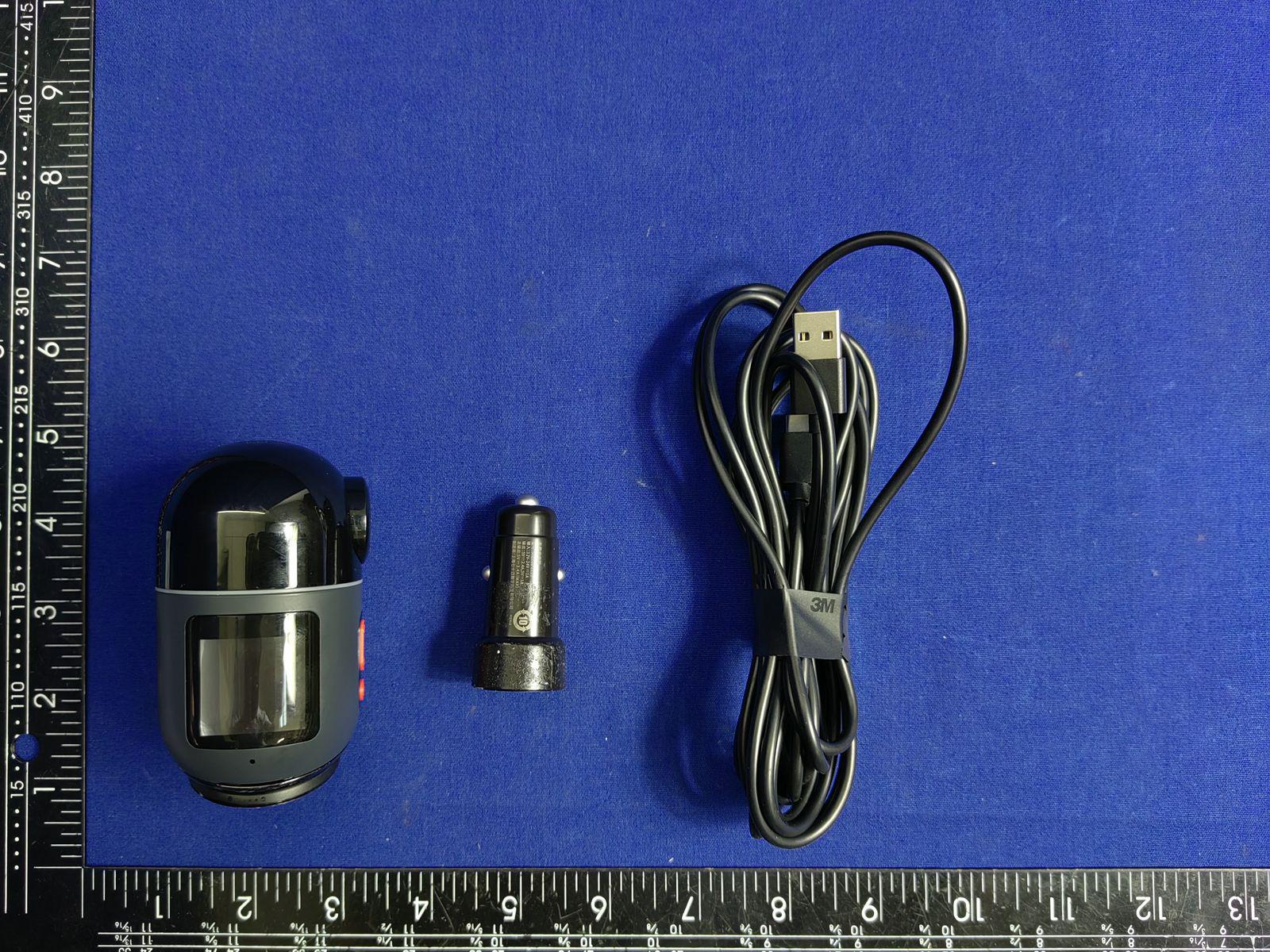

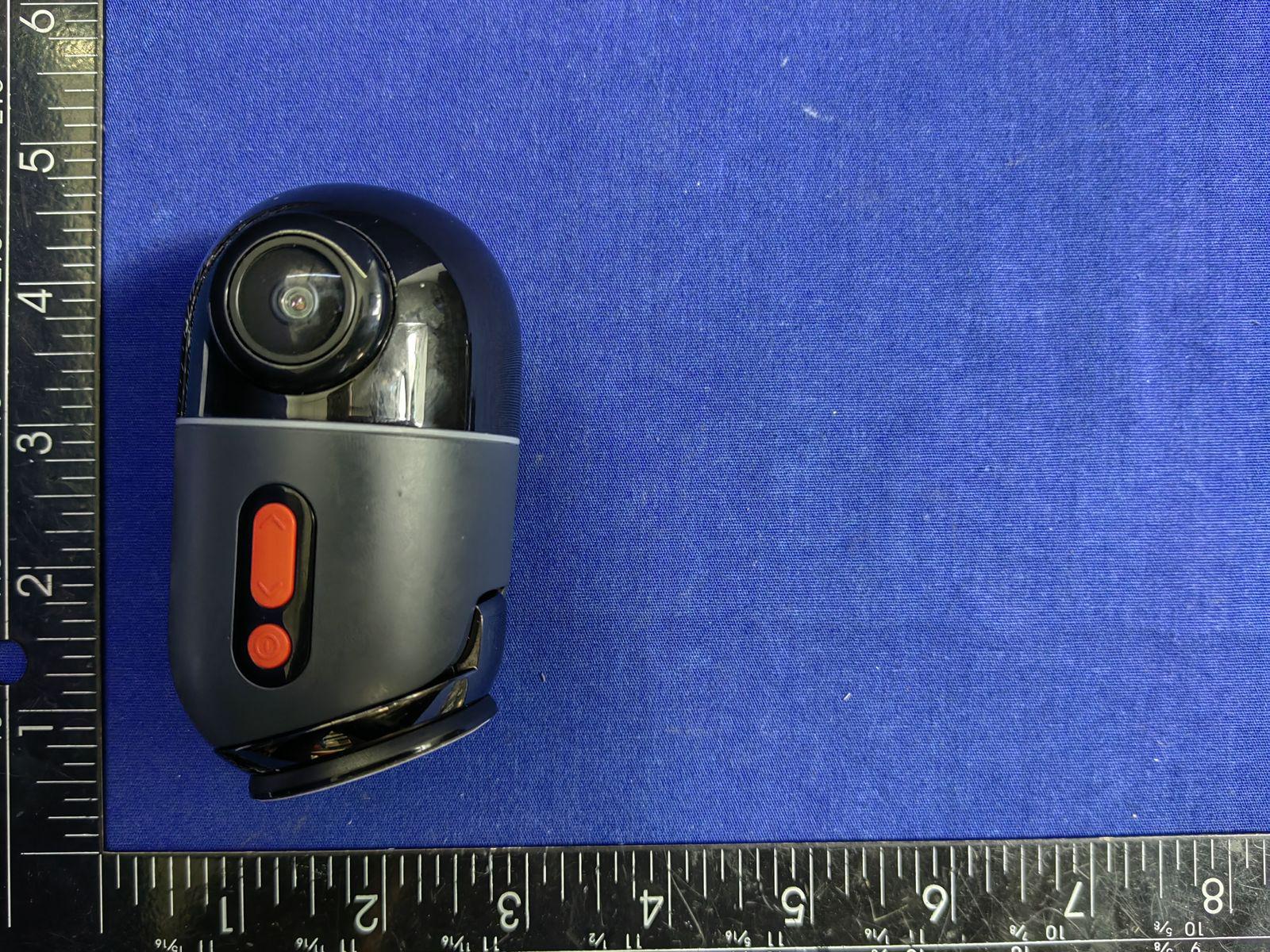

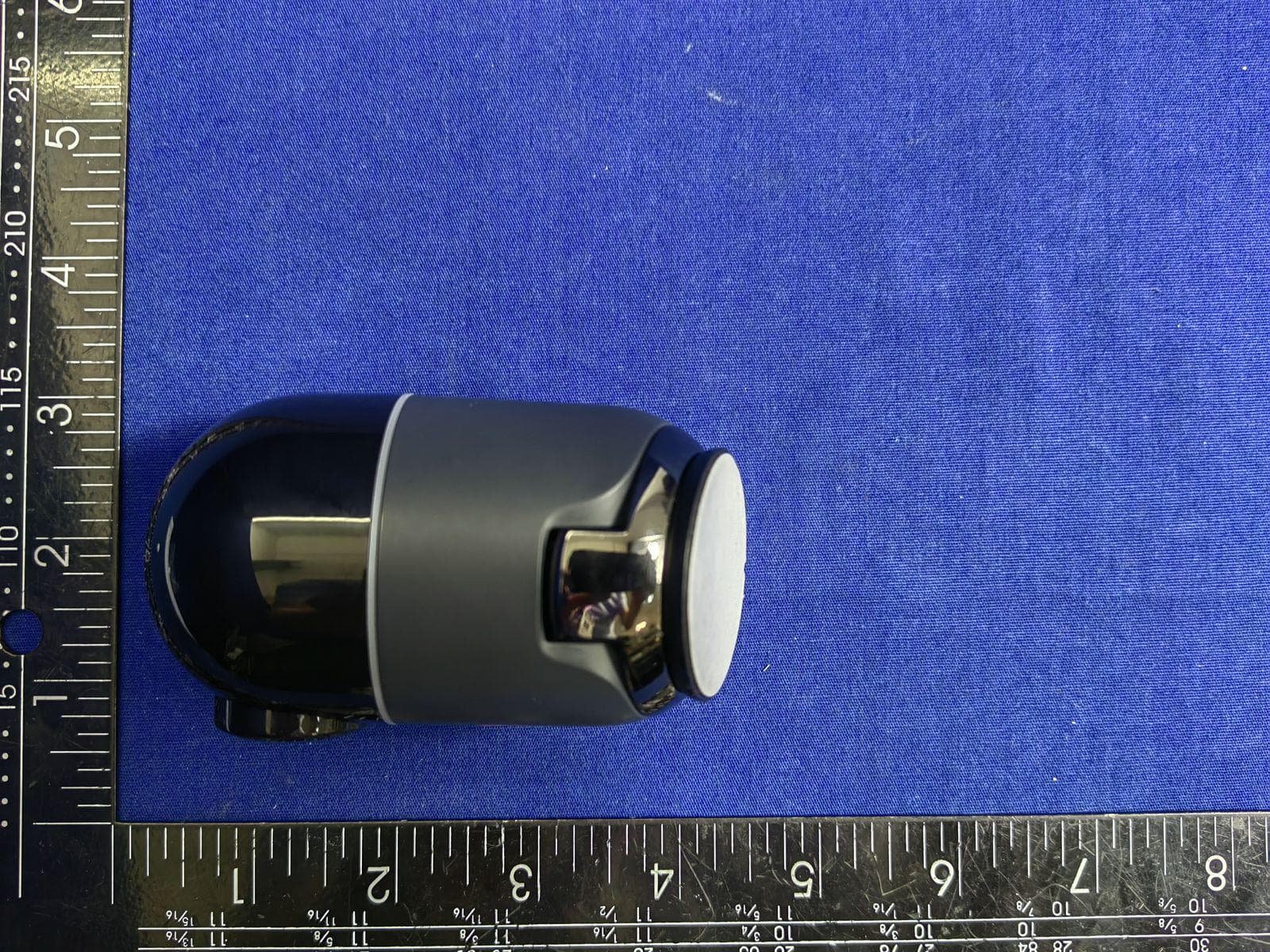

Page1of4 EXTERNALPHOTOS Page2of4 Page3of4 Page4of4 -----TheEnd-----

Page1of4 INTERNALPHOTOS BT/WIFIAntenna Page2of4 Page3of4 Page4of4 -----TheEnd-----

FCCID:2AOK9-X200 RFEXPOSUREEVALUATION AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeusedto evaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b) LimitsforMaximumPermissibleExposure(MPE) Frequency Range(MHz) ElectricField Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A)LimitsforOccupational/ControlExposures 300-1500----F/3006 1500-100000----56 (B)LimitsforGeneralPopulation/UncontrolExposures 300-1500----F/15006 1500-100000----130 11.1Friistransmissionformula:Pd=(Pout*G)\(4*pi*R 2 ) Where Pd=PowerdensityinmW/cm 2 Pout=outputpowertoantennainmW G=Numericgainoftheantennarelativetoisotropicantenna Pi=3.1416 R=distancebetweenobservationpointandcenteroftheradiatorin20cm PdthelimitofMPE,1mW/cm 2 .Ifweknowthemaximumgainofthendtotal powerinputtotheantenna,throughthecalculation,wewillknowthedistance wheretheMPElimitisreached. 11.2MeasurementResult Mode MaxMeasured power(dBm) Antenna gain(dBi) Antenna GainNumeric R (cm) Evaluation result (mW/cm2) Power densityLimits (mW/cm2) BLE-5.9851.441.393200.00006991 BT-1.2871.441.393200.00020611 WIFI2.4G15.051.441.393200.00886501

Report No. ENS2112280168W01202RPage 1 of 62Ver.1.0 TEST REPORT Product Name：Dash Cam Model Number：X200 FCC ID：2AOK9-X200 Prepared for:70mai Co., Ltd Address:Room2220, building2, No.588, Zixingroad, MinHangDistrict, Shanghai. CHINA Prepared by:EMTEK (SHENZHEN) CO., LTD. Address:Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number:ENS2112280168W01202R Date(s) of Tests:March 9, 2022 to April 6, 2022 Date of Issue:April 13, 2022 $二维码$ Report No. ENS2112280168W01202RPage 2 of 62Ver.1.0 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION........................................................................................................................3 2 EUT TECHNICAL DESCRIPTION......................................................................................................................5 3 SUMMARY OF TEST RESULT...........................................................................................................................6 4 TEST METHODOLOGY ....................................................................................................................................... 7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ......................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED ...................................................................................................... 7 4.3 DESCRIPTION OF TEST MODES.............................................................................................................8 5 FACILITIES AND ACCREDITATIONS................................................................................................................9 5.1 FACILITIES.....................................................................................................................................................9 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ............................................................................... 9 6 TEST SYSTEM UNCERTAINTY ....................................................................................................................... 10 7 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 11 7.1 RADIO FREQUENCY TEST SETUP 1.....................................................................................................11 7.2 RADIO FREQUENCY TEST SETUP 2.....................................................................................................11 7.3 CONDUCTED EMISSION TEST SETUP................................................................................................13 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ................................................................. 14 7.5 SUPPORT EQUIPMENT ............................................................................................................................ 14 8 FREQUENCY HOPPING SYSTEM REQUIREMENTS ................................................................................ 15 8.1 STANDARDAPPLICABLE.................................................................................................................................15 8.2 EUT PSEUDORANDOMFREQUENCYHOPPINGSEQUENCE.........................................................................15 8.3 EQUALHOPPINGFREQUENCYUSE...............................................................................................................16 8.4 FREQUENCYHOPPINGSYSTEM ..................................................................................................................... 16 9 TEST REQUIREMENTS .................................................................................................................................... 17 9.1 20DB BANDWIDTH ..................................................................................................................................... 17 9.2 CARRIER FREQUENCY SEPARATION..................................................................................................23 9.3 NUMBER OF HOPPING FREQUENCIES...............................................................................................29 9.4 AVERAGE TIME OF OCCUPANCY (DWELL TIME)..............................................................................31 9.5 MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................. 35 9.6 CONDUCTED SUPRIOUS EMISSION .................................................................................................... 41 9.7 RADIATED SPURIOUS EMISSION .......................................................................................................... 46 9.8 CONDUCTED EMISSION TEST...............................................................................................................60 9.9 ANTENNA APPLICATION..........................................................................................................................61 Report No. ENS2112280168W01202RPage 3 of 62Ver.1.0 1 TEST RESULT CERTIFICATION Applicant:70mai Co., Ltd Address:Room2220, building2, No.588, Zixingroad, MinHangDistrict, Shanghai. CHINA Manufacturer:70mai Co., Ltd Address:Room2220, building2, No.588, Zixingroad, MinHangDistrict, Shanghai. CHINA EUT:Dash Cam Model Name:X200 Trademark:N/A Measurement Procedure Used: APPLICABLE STANDARDS STANDARDTEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by EMTEK (SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relate only to the tested sample identified in this report.…

Text truncated - open the document above for the full version.

Page1of1 TESTSETUPPHOTOGRAPHS 1.1.PhotosofRadiationEmissionMeasurement SpuriousEmissionTestSetup(30MHz-1GHz) SpuriousEmissionTestSetup(Above1GHz) -----TheEnd-----
