2AOKM-AC4keyless transmitter

Remote Tech LLC

Click to zoom

Application Details

Equipment Class: DSC - Part 15 Security/Remote Control Transmitter
Date of Grant: Jun 18, 2020
Application Purpose: Original Equipment
Date of Application: Jun 18, 2020
Equipment Note: keyless transmitter
Frequency Range: 313.85000000 - 313.85000000
Company: Remote Tech LLC
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User’s manual This remote has lock,unlock,trunk,and panic buttons,you can open or close the vehicle with the remote transmitter. LOCK When you press the LOCK button, the vehicle doors will lock. If the door is not close, can not lock the door, also key in the ignition switch also can not lock the doors. UNLOCK When you press the UNLOCK button, you can open the all doors.if the key is in the ignition switch, can not unlock the doors. Trunk When press the TRUNK buttons,open the trunk.It can not close the trunk using this transmitter. PANIC When press the PANIC button, the vehicle will start sounding the horn and flushing the hazdard lamp until press any buttons on transmitter. FCC COMPLIANCE STATEMENT: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: - Reorient the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Cover Letter(s)

Remote Tech LLC DATE :2020-6-11 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AOKM-AC4 Product Name: keyless transmitter Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: Schematics Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2020-6-11 By: John Strong Signature Printed Title: Manager On behalf of : Remote Tech LLC Telephone: 302-336-8136

Cover Letter(s)

Remote Tech LLC DATE:2020-6-11 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act asAgent On our behalf, I appoint Shenzhen Zhongjian Nanfang Testing Co.,Ltd.; 1st Floor, Block No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China；Bruce.Zhang, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Compliance testing LLC, still resides with Remote Tech LLC 310 ALDER RD, DOVER DE 19904 USA Dated this 2020-6-11 By: John Strong Signature Printed Title: Manager On behalf of : Remote Tech LLC Telephone: 302-336-8136

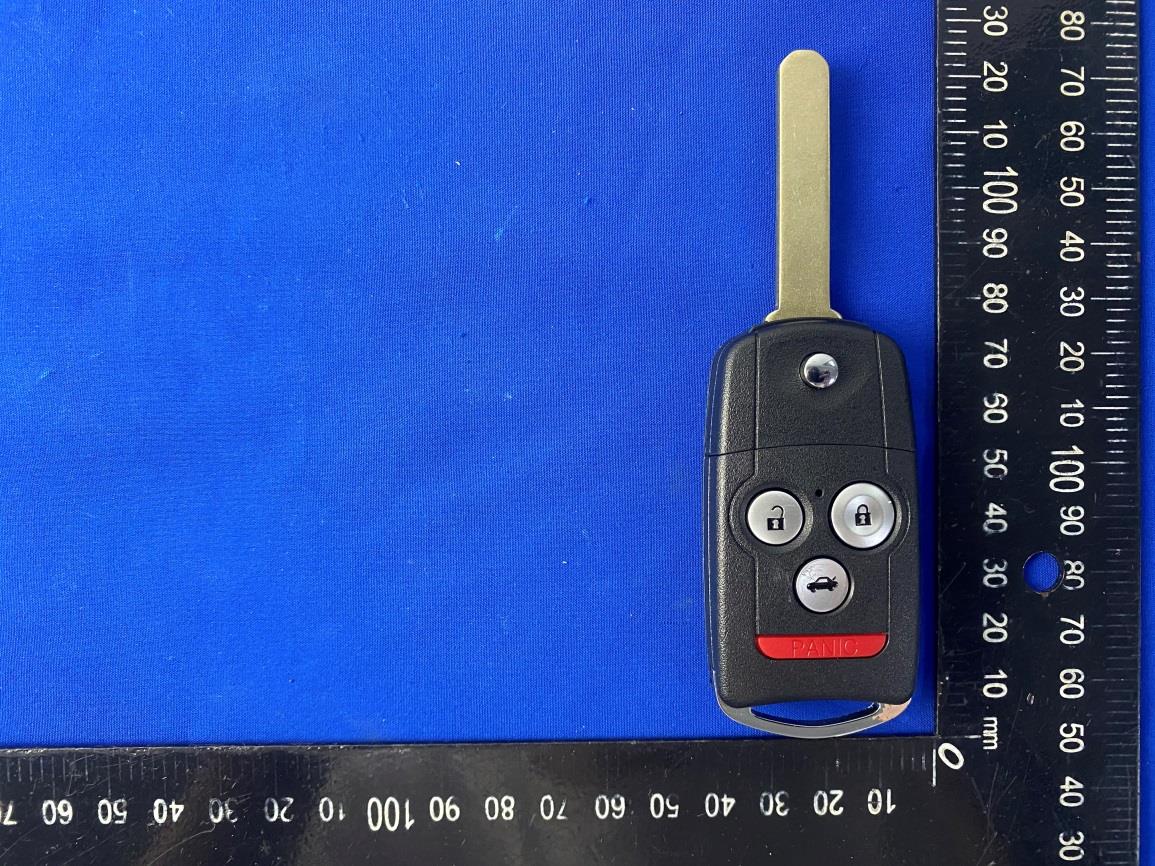

External Photos

Internal Photos

Report No: CCISE200504301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2005043 No.110~116, Building B, Jinyuan Business Building, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Tel: +86-755-23118282, Fax: +86-755-23116366 Page 30 of 35 Report No: CCISE200504301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2005043 No.110~116, Building B, Jinyuan Business Building, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Tel: +86-755-23118282, Fax: +86-755-23116366 Page 31 of 35 Report No: CCISE200504301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2005043 No.110~116, Building B, Jinyuan Business Building, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Tel: +86-755-23118282, Fax: +86-755-23116366 Page 32 of 35 Report No: CCISE200504301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2005043 No.110~116, Building B, Jinyuan Business Building, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Tel: +86-755-23118282, Fax: +86-755-23116366 Page 33 of 35 Report No: CCISE200504301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2005043 No.110~116, Building B, Jinyuan Business Building, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Tel: +86-755-23118282, Fax: +86-755-23116366 Page 34 of 35 Report No: CCISE200504301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2005043 No.110~116, Building B, Jinyuan Business Building, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Tel: +86-755-23118282, Fax: +86-755-23116366 Page 35 of 35 ------End of report------

RF Exposure Info

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10- g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m Sopt = (EXd) 2 /30 x gt Ant gain= 0dBi ; so Ant numeric gain=1 Field strength =74.25 dBμ V/m @3m So Pt={ [10 (74.25 /20) /10 6 x3] 2 /30x1 }x1000 mW =0.008mW So (0.008mW/5mm)x √0.31385 GHz =0.0009< 3 Then SAR evaluation is not required

Test Report

Shenzhen Zhongjian Nanfang Testing Co., Ltd. Report No: CCISE200504301 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the CCIS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC & IC REPORT Applicant: Remote Tech LLC Address of Applicant: 310 ALDER RD, DOVER DE 19904 USA Equipment Under Test (EUT) Product Name: keyless transmitter Model No.: RT-AC439H FCC ID: Canada IC: Applicable standards: 2AOKM-AC4 24223-AC4 FCC CFR Title 47 Part 15 Subpart C Section 15.231 RSS-Gen Issue 5 March 2019 Amendment 1 RSS-210 Issue 10 December 2019 Annex A Section A.1 Date of sample receipt: 14 May, 2020 Date of Test: 15 May, to 04 Jun., 2020 Date of report issue: 08 Jun., 2020 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. Report No: CCISE200504301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2005043 No.110~116, Building B, Jinyuan Business Building, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 35 2 Version Version No. Date Description 00 08 Jun., 2020 Original Prepared By: Date: 08 Jun., 2020 Test Engineer Check By: Date: 08 Jun., 2020 Project Engineer Report No: CCISE200504301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2005043 No.110~116, Building B, Jinyuan Business Building, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 35 3 Contents Page 1 COVER PAGE ................................................................................................................................................... 1 2 VERSION ........................................................................................................................................................... 2 3 CONTENTS ....................................................................................................................................................... 3 4 TEST SUMMARY .............................................................................................................................................. 4 5 GENERAL INFORMATION .............................................................................................................................. 5 5.1 CLIENT INFORMATION ............................................................................................................................................ 5 5.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 5 5.3 TEST MODE ............................................................................................................................................................ 5 5.4 MEASUREMENT UNCERTAINTY .............................................................................................................................. 5 5.5 DESCRIPTION OF SUPPORT UNITS ........................................................................................................................ 5 5.6 LABORATORY FACILITY.......................................................................................................................................... 6 5.7 LABORATORY LOCATION ....................................................................................................................................... 6 5.8 TEST INSTRUMENTS LIST ....................................................................................................................................... 6 6 TEST RESULTS AND MEASUREMENT DATA ............................................................................................. 7 6.1 ANTENNA REQUIREMENT ....................................................................................................................................... 7 6.2 RADIATED EMISSION ............................................................................................................................................. 8 6.2.1 Field Strength Of The Fundamental Signal .............................................................................................. 10 6.2.2 Spurious Emissions ..................................................................................................................................... 14 6.3 OCCUPY BANDWIDTH .......................................................................................................................................... 20 6.4 DURATION TIME ................................................................................................................................................... 22 6.5 FREQUENCY STABILITY ....................................................................................................................................... 24 7 TEST SETUP PHOTOS .................................................................................................................................. 26 8 EUT C…

Text truncated - open the document above for the full version.

Test Setup Photos
