2AOKM-CYV10smart key

User’s Manual Electronic Key FCC ID:2AOKM-CYV10 IC : 24223-CYV10 MODEL:RT-CY3B, RT-CY4BH,RT-CY4BR,RT-CY5BS This remote has lock, unlock, panic buttons; you can open or close the vehicle with the remote transmitter. LOCK Button: When you press the LOCK button, it locks all the doors UNLOCK Button: Pressing the button unlocks the driver’s door. Pressing the button again within 5 seconds unlocks the other doors. PANIC Button: When you press the PANIC button, the vehicle will start sounding the horn and flushing the hazard lamp. To stop the alarm, press any button on the electronic key. FCC COMPLIANCE STATEMENT: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IC WARNING: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1)This device may not cause interference. (2)This device must accept any interference, including interference that may cause undesired operation of the device ADVERTENCIA IC Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS)d'Innovation, Sciences et Développement économique Canada. Le fonctionnement est soumis auxdeux conditions suivantes : (1)Cet appareil ne doit pas causer d'interférences. (2)Cet appareil doit accepter toutes les interférences, y compris celles susceptibles deprovoquer un fonctionnement indésirable de l'appareil. NOTE:The battery is not installed in the product when the product is sold to the customer. It must be installed by the customer themselves

Declaration Letter We, Remote Tech LLC, declare: Product name: Remote Key Models: RT-CY3B, RT-CY4BH,RT-CY4BR,RT-CY5BS FCC ID: 2AOKM-CYV10 I C: 24223-CYV10 All models are identical inside, including the electrical circuit design, layout, components used and internal wiring. Models RT-CY3B, RT-CY4BH,RT- CY4BR,RT-CY5BS represent appearance of the key with 3,4 and 5 buttons on the shell. The PCB function is the same for all these models. Sincerely yours, Signature: Name/Title: John Strong /Manager Company: Remote Tech LLC Tel. No. 302-336-8136 E-Mail: [email protected] Date：2020-9-07

Step 2: insert the Emergency key into the concave part on the top of the key , and turn the Emergency key slightly to open the key. 第三步，这样就打开了这个钥匙，很容易看到产品标签， 这个钥匙不会经过超声波 处理。 Step3: now the key was opened .and we can easy to see the label here. The key will not be processed by ultrasonic wave. 如何打开钥匙 查看产品标签 How to open the shell and show the Label location 第一步： 用手摁下钥匙侧面的PUSH 键，钥匙顶端的备用钥匙可以轻松拉出。 Step 1: press the push button on the side of the key, the Emergency key on the top can be pulled out easily. 第二步， 用备用钥匙插入钥匙壳顶部的凹入部位，稍微用力转动备用钥匙，就可以 把这个遥控打开。

Remote Tech LLC DATE :2020-9-25 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AOKM-CYV10 Product Name: smart key Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2020-9-25 By: John Strong Signature Printed Title: Manager On behalf of : Remote Tech LLC Telephone: 302-336-8136

Remote Tech LLC DATE:2020-9-25 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act asAgent On our behalf, I appoint Shenzhen Zhongjian Nanfang Testing Co.,Ltd.; 1st Floor, Block No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China；Bruce.Zhang, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Remote Tech LLC 310 ALDER RD, DOVER DE 19904 USA Dated this 2020-9-25 By: John Strong Signature Printed Title: Manager On behalf of : Remote Tech LLC Telephone: 302-336-8136

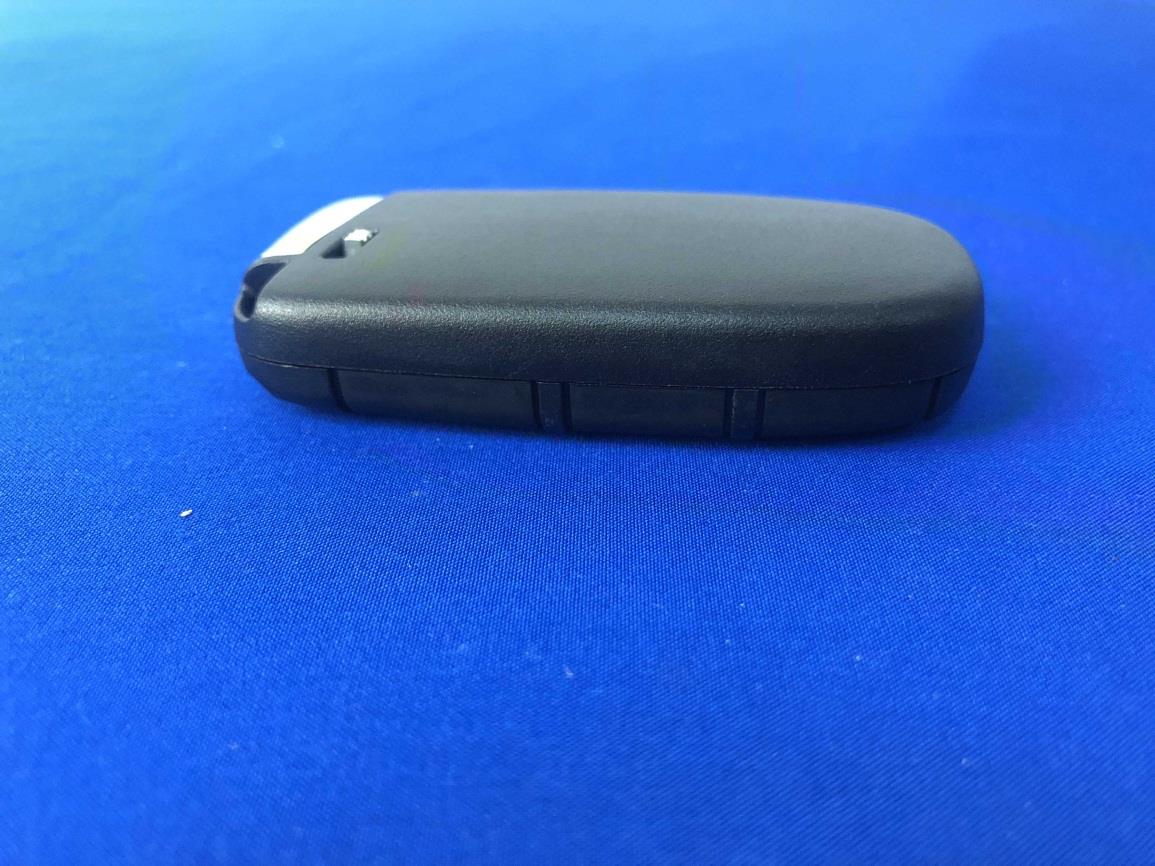

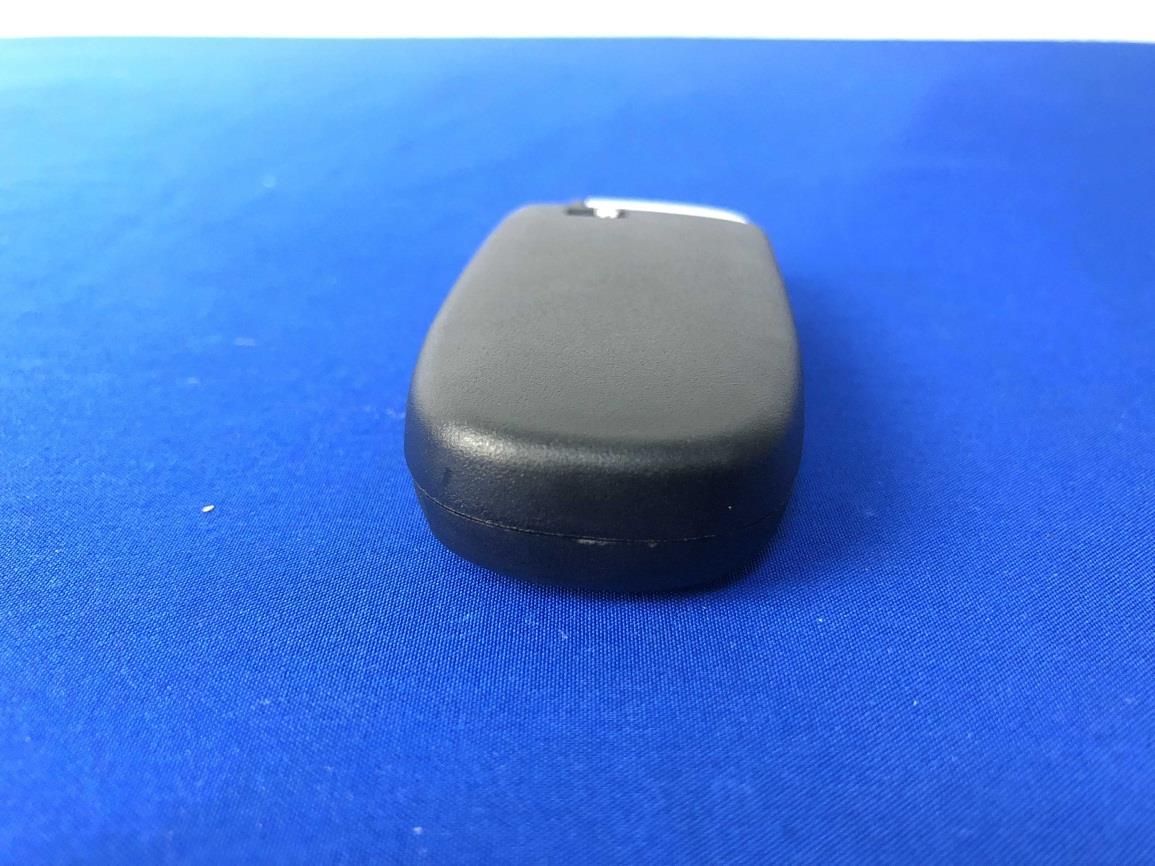

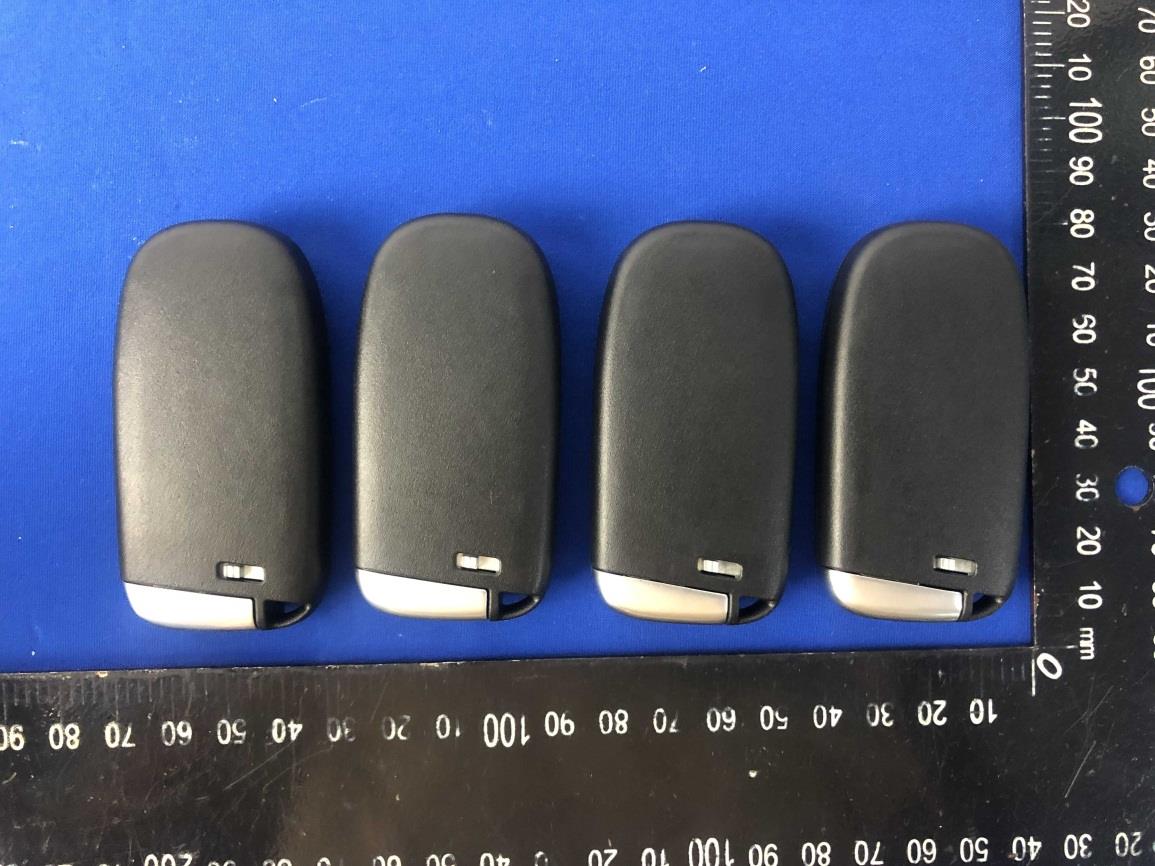

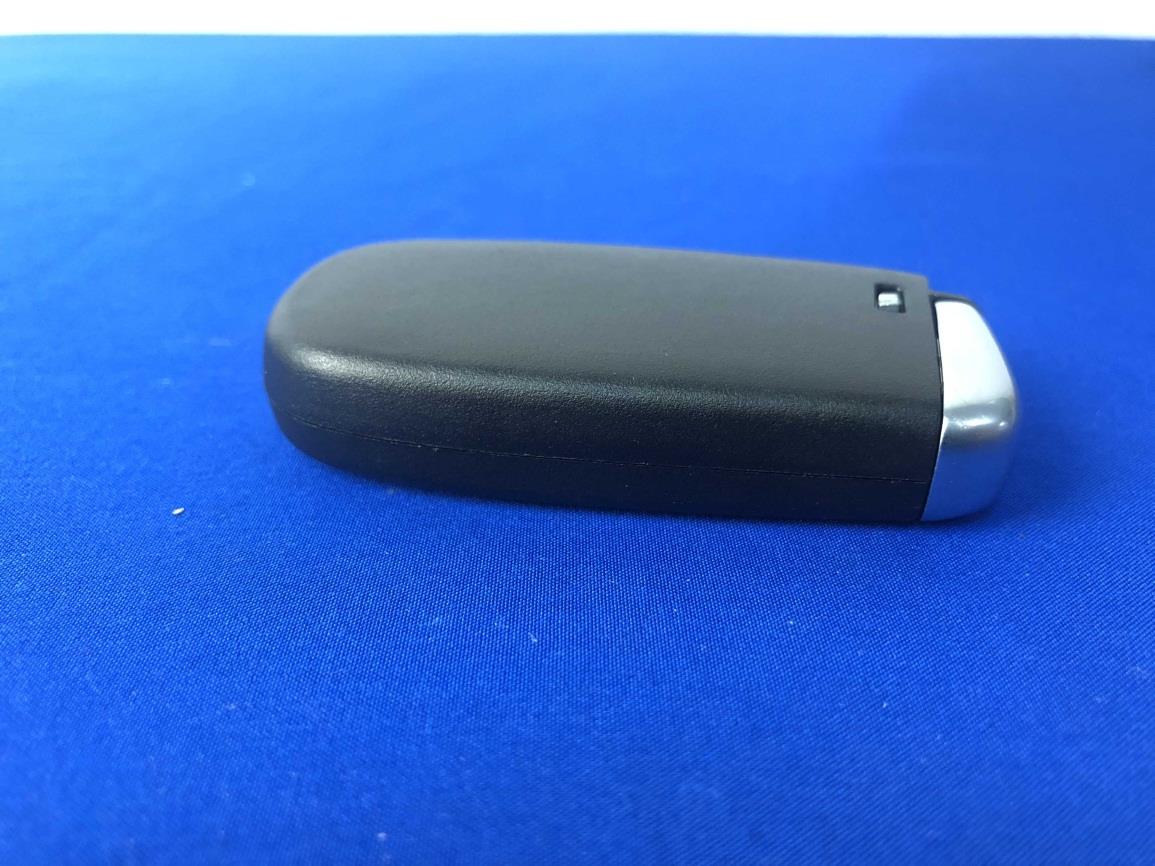

Report No: CCISE200805301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2008053 No.110~116, Building B, Jinyuan Business Building, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Tel: +86-755-23118282, Fax: +86-755-23116366 Page 25 of 31 8 EUT Constructional Photos Report No: CCISE200805301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2008053 No.110~116, Building B, Jinyuan Business Building, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Tel: +86-755-23118282, Fax: +86-755-23116366 Page 26 of 31 Report No: CCISE200805301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2008053 No.110~116, Building B, Jinyuan Business Building, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Tel: +86-755-23118282, Fax: +86-755-23116366 Page 27 of 31

Label : FCC ID:2AOKM-CYV10 IC :24223-CYV10 MODEL:RT-CY3B P/N:RT-13023 FCC ID:2AOKM-CYV10 IC :24223-CYV10 MODEL:RT-CY4BH P/N:RT-13024 FCC ID:2AOKM-CYV10 IC :24223-CYV10 MODEL:RT-CY4BR P/N:RT-13026 FCC ID:2AOKM-CYV10 IC :24223-CYV10 MODEL:RT-CY5BS P/N:RT-13025 Size: 10.5*3.6 mm Location:

Report No: CCISE200805301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2008053 No.110~116, Building B, Jinyuan Business Building, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Tel: +86-755-23118282, Fax: +86-755-23116366 Page 28 of 31 Report No: CCISE200805301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2008053 No.110~116, Building B, Jinyuan Business Building, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Tel: +86-755-23118282, Fax: +86-755-23116366 Page 29 of 31 Report No: CCISE200805301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2008053 No.110~116, Building B, Jinyuan Business Building, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Tel: +86-755-23118282, Fax: +86-755-23116366 Page 30 of 31 Report No: CCISE200805301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2008053 No.110~116, Building B, Jinyuan Business Building, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Tel: +86-755-23118282, Fax: +86-755-23116366 Page 31 of 31 ------End of report------

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10- g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m Sopt = (EXd) 2 /30 x gt Ant gain= 0dBi ; so Ant numeric gain= 1 Field strength =80.38 dBμV/m @3m So Pt={ [10 (80.38/20) /10 6 x3] 2 /30x1}x1000 mW =0.033 mW So (0.033 mW/5mm)x √0.4339 GHz = 0.00435 < 3 Then SAR evaluation is not required

Report No: CCISE200805301 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2008053 No.110~116, Building B, Jinyuan Business Building, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Tel: +86-755-23118282, Fax: +86-755-23116366 Page 24 of 31 7 Test Setup Photos Radiated Emission Below 1GHz Above 1GHz
