2AOKM-CYV12Remote Key

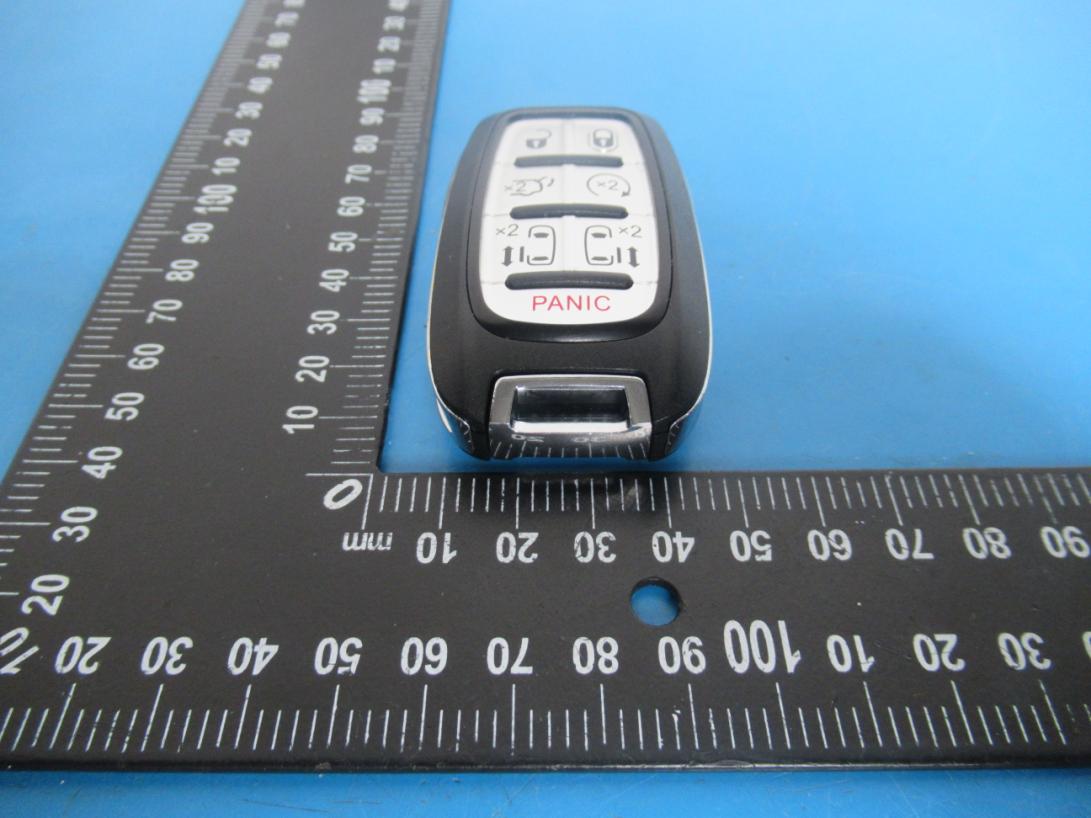

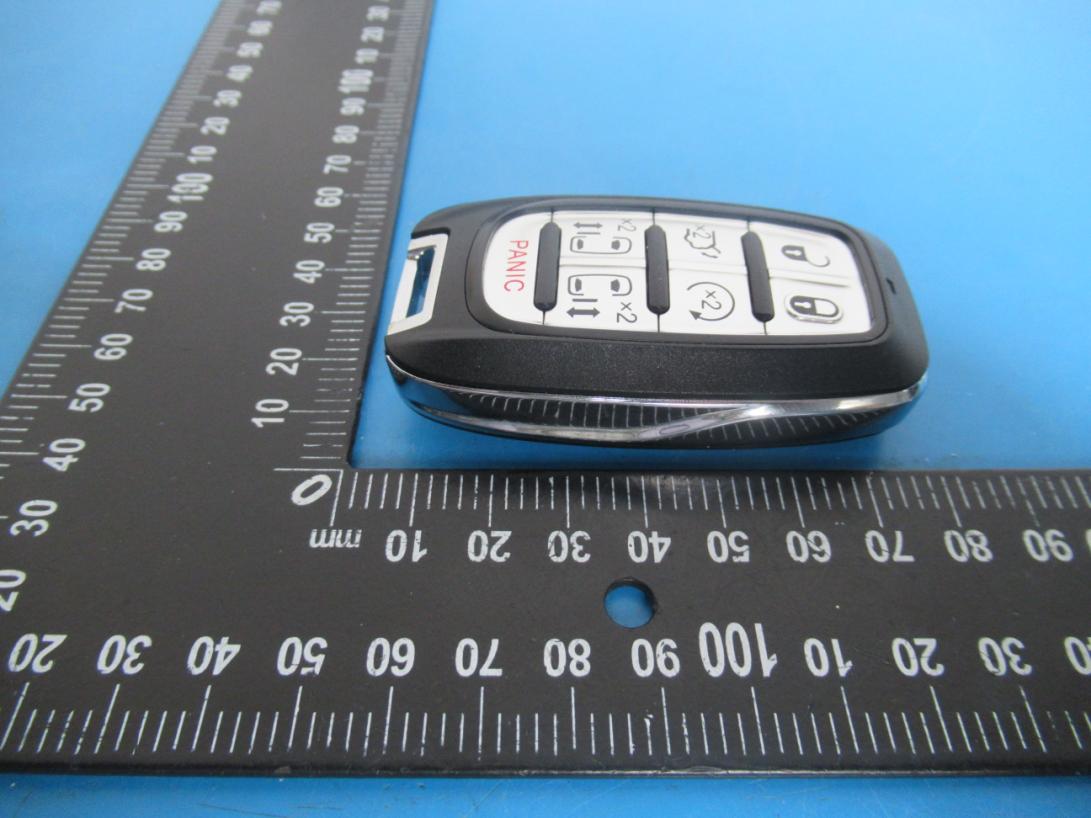

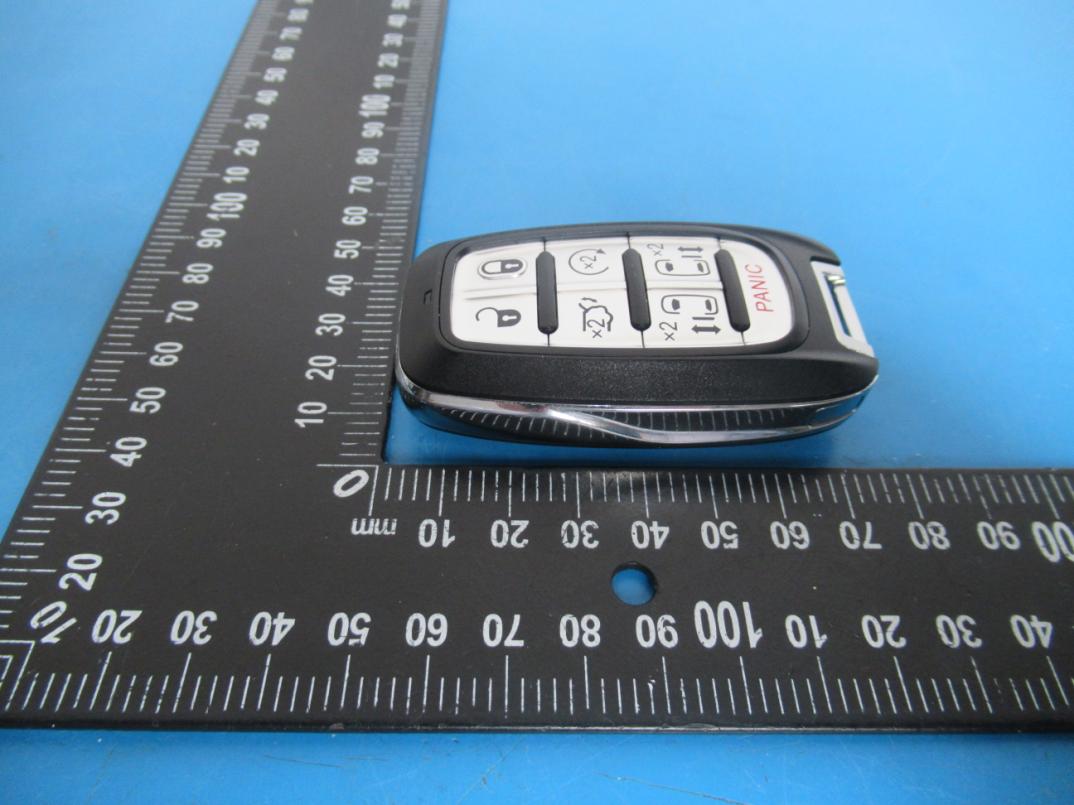

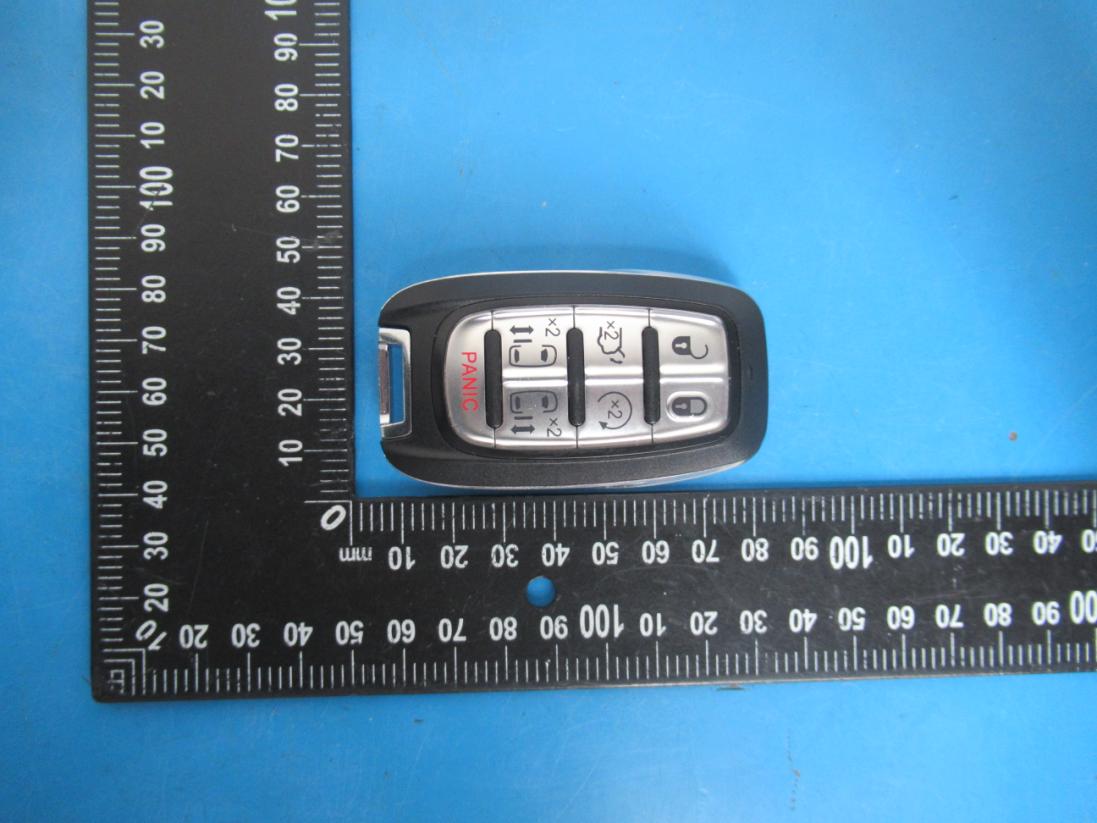

User manual Company: Remote Tech LLC Address: 310 ALDER RD,Dover,DE 19904,USA Name:Remote Key Model: RT-CY7BT Operation instructions 1. After matching the key to the car, press 1 the unlock key for 2 seconds to open the door and press 2 the lock key for 2 seconds to close the door. 2.The ignition start key is used to manually unlock and start the car. Product parameters Rated voltage DC 3V Working current <6mA Operating voltage 1.8V~3.6V Transmit power >-20dbm Key operation force 400±50g Operating temperature -5°C +45°C Stand-by current <1uA transmitting frequency 433.92M±75KHZ Modulation ASK Battery CR2032 Key durability More than 100,000 times 1 key:Unlock key 5 key:Panickey, used to looking for car 2 key： Lock key 3 key: Start key 4 key: trunk 6&7 key: Left sliding door Right sliding door User manual FCC COMPLIANCE STATEMENT: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IC WARNING This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device ADVERTENCIA IC Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS)d'Innovation, Sciences et Développement économique Canada. Le fonctionnement est soumis auxdeux conditions suivantes : (1) Cet appareil ne doit pas causer d'interférences. (2) Cet appareil doit accepter toutes les interférences, y compris celles susceptibles deprovoquer un fonctionnement indésirable de l'appareil.

Differences Description We Remote Tech LLC state: Product name: Remote Key Model(HVIN): RT-CY7BT, RT-CY6BT, RT-CY5BT, RT-CY3BT FCC ID: 2AOKM-CYV12 IC: 24223-CYV12 All model’s the function, software and electric circuit are the same, except the appearance key and model numbers difference. Signature: 2020/06/29 Signatory Name John Strong Position Technical Manager Company Name Remote Tech LLC Address 310 ALDER RD, Dover, DE 19904, USA Tel 302-336-8136 Fax 302-336-8136 Email [email protected]

2020.06.29 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AOKM-CYV12 Product Name: Remote Key Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: Schematics Long-term confidential Block diagram Long-term confidential Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name John Strong Position Technical Manager Company Name Remote Tech LLC Address 310 ALDER RD, Dover, DE 19904,USA Tel 302-336-8136 Fax 302-336-8136 Email [email protected] Remote Tech LLC

FCC ID: 2AOKM-CYV12 IC: 24223-CYV12

Label Size: 1.5x1.0cm FCC ID: 2AOKM-CYV12 IC: 24223-CYV12 Remote Tech LLC Model Name: Remote Key Model No.: RT-CY7BT FCC ID: 2AOKM-CYV12 IC: 24223-CYV12 Remote Tech LLC Model Name: Remote Key Model No.: RT-CY6BT Location FCC ID: 2AOKM-CYV12 IC: 24223-CYV12 Remote Tech LLC Model Name: Remote Key Model No.: RT-CY5BT FCC ID: 2AOKM-CYV12 IC: 24223-CYV12 Remote Tech LLC Model Name: Remote Key Model No.: RT-CY3BT

FCC ID: 2AOKM-CYV12 IC: 24223-CYV12 Antenna

FCC ID: 2AOKM-CYV12 RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt For Worst case Mode: 433.92MHz Field strength =76.81 dBuV/m @3m Ant gain 0 dBi; so Ant numeric gain=1 So pt= {[10 (76.81/20) /10 6 x3] 2 /30x1} x 1000 mW =0.014 mW So (0.014mW/5mm) x √0.43392GHz = 0.002<3 Then SAR evaluation is not required
