2AOKM-CYV15Smart key

Remote Tech LLC

Click to zoom

Application Details

Equipment Class: DSC - Part 15 Security/Remote Control Transmitter
Date of Grant: Apr 27, 2021
Application Purpose: Original Equipment
Date of Application: Apr 24, 2021
Equipment Note: Smart key
Frequency Range: 433.92000000 - 433.92000000
Company: Remote Tech LLC
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User’sManual ElectronicKey FCCID:2AOKM-CYV15 IC:24223-CYV15 MODEL:RT-CYZ3B,RT-CYZ4B,RT-CYZ5B,RT-CYZ7B,RT-CYZ6B Thisremotehaslock,unlock,panicanddependingonthestyle,oneofthefollowingbuttons-RemoteStartor TrunkorLiftgateorFlipperGlassbuttons. LOCKButton: WhenyoupresstheLOCKbutton,itlocksallthedoors. UNLOCKButton: Tounlockthedriver’sdoor,pressandreleasetheUNLOCKbuttonontheremoteonce.Tounlockalldoorspress UNLOCKbuttontwice. PANICButton: WhenyoupressandholdthePANICbuttonforatleastonesecondandthenreleaseit,thevehiclewillstart soundingthehornandflushingtheparklamps.Tostopthealarm,pressPanicbuttonagainontheremote. LIFTGATEButton: PressingtheLIFTGATEbuttontwiceontheremoteopensandclosesthehatch. TRUNKButton: PressingtheTRUNKbuttontwiceontheremoteopensandclosesthetrunk. REMOTESTARTButton: Presstheremotestartbuttontwicewithin5seconds.ThevehiclewillstayintheRemoteStartmodefora 15-minutecycle.PressandreleaseremotestartbuttononcetoexitRemoteStartmode. FLIPPERGLASSButton: PressingtheFLIPPERGLASSbuttontwiceontheremoteopensandclosestheliftgateflipperglass. FCCCOMPLIANCESTATEMENT: Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived, includinginterferencethatmaycauseundesiredoperation.Changesormodificationsnotexpresslyapprovedbythe partyresponsibleforcompliancecouldvoidtheuser'sauthoritytooperatetheequipment. ICWARNING: Thisdevicecontainslicence-exempttransmitter(s)/receiver(s)thatcomplywithInnovation,ScienceandEconomic DevelopmentCanada’slicence-exemptRSS(s).Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseinterference. (2)Thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesiredoperationofthe device ADVERTENCIAIC Cetappareilcontientdesémetteurs/récepteursexemptésdelicenceconformesauxRSS(RSS)d'Innovation, SciencesetDéveloppementéconomiqueCanada.Lefonctionnementestsoumisauxdeuxconditionssuivantes: (1)Cetappareilnedoitpascauserd'interférences. (2)Cetappareildoitacceptertouteslesinterférences,ycompriscellessusceptiblesdeprovoquerun fonctionnementindésirabledel'appareil.

Attestation Statements

DeclarationLetter We,RemoteTechLLC,declare: Productname:Smartkey Models:RT-CYZ3B ， RT-CYZ4B ， RT-CYZ5B ， RT-CYZ7B ， RT-CYZ6B FCCID:2AOKM-CYV15 IC:24223-CYV15 Allmodelsareidenticalinside,includingtheelectricalcircuitdesign,layout, componentsusedandinternalwiring.ModelsRT-CYZ3B ， RT-CYZ4B ， RT-CYZ5B ， RT-CYZ7B ， RT-CYZ6Brepresentappearanceofthekeywith2,3 and4buttonsontheshell.The PCBfunctionisthesameforallthesemodels. Sincerelyyour Signature: Name/Title:JohnStrong Tel.No.:302-336-8136 E-Mail:[email protected] Company:RemoteTechLLC Date：2021-4-7

Cover Letter(s)

RemoteTechLLC DATE: 2021-3-19 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 AuthoritytoActasAgent On our behalf, I appoint Jianyan Testing Group Shenzhen Co., Ltd.; No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. , to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Remote Tech LLC Dated this 2021-3-19 By: JohnStrong SignaturePrinted Title: On behalf of : RemoteTechLLC Telephone: 302-336-8136

Cover Letter(s)

RemoteTechLLC DATE :2021-3-19 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AOKM-CYV15 Product Name: Smartkey Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: Schematics Block diagram Operation description BOM These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2021-3-19 By: John Strong SignaturePrinted Title: Onbehalfof:RemoteTechLLC Telephone: 302-336-8136

Cover Letter(s)

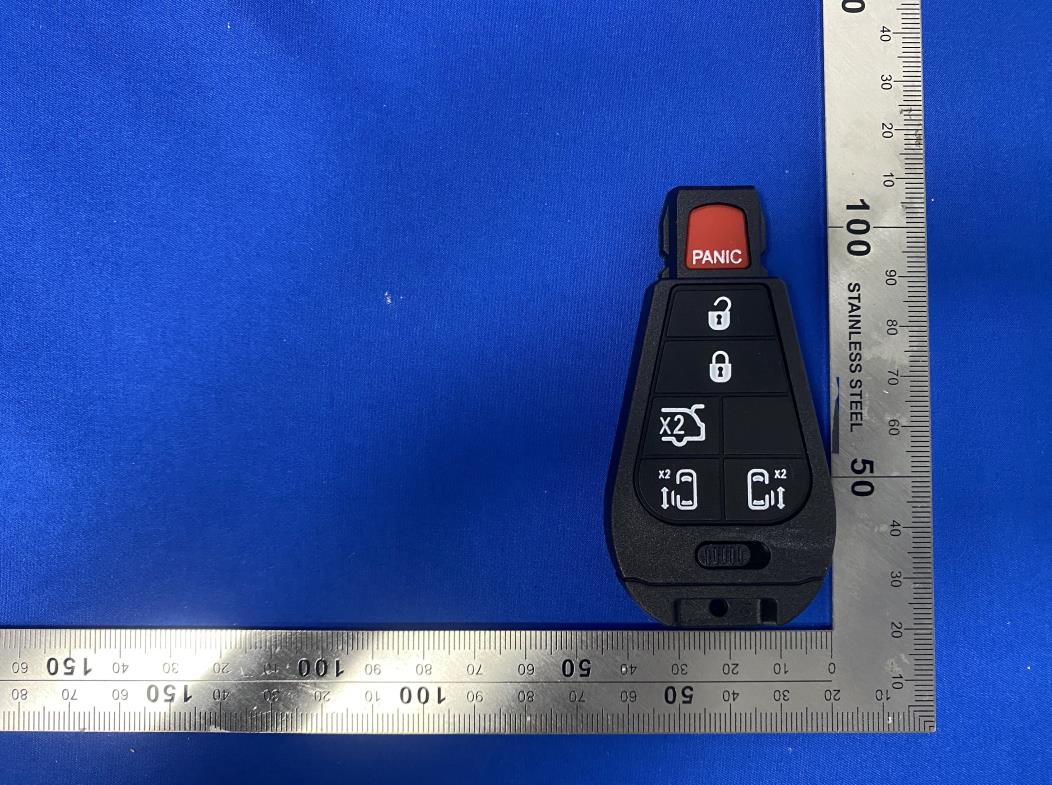

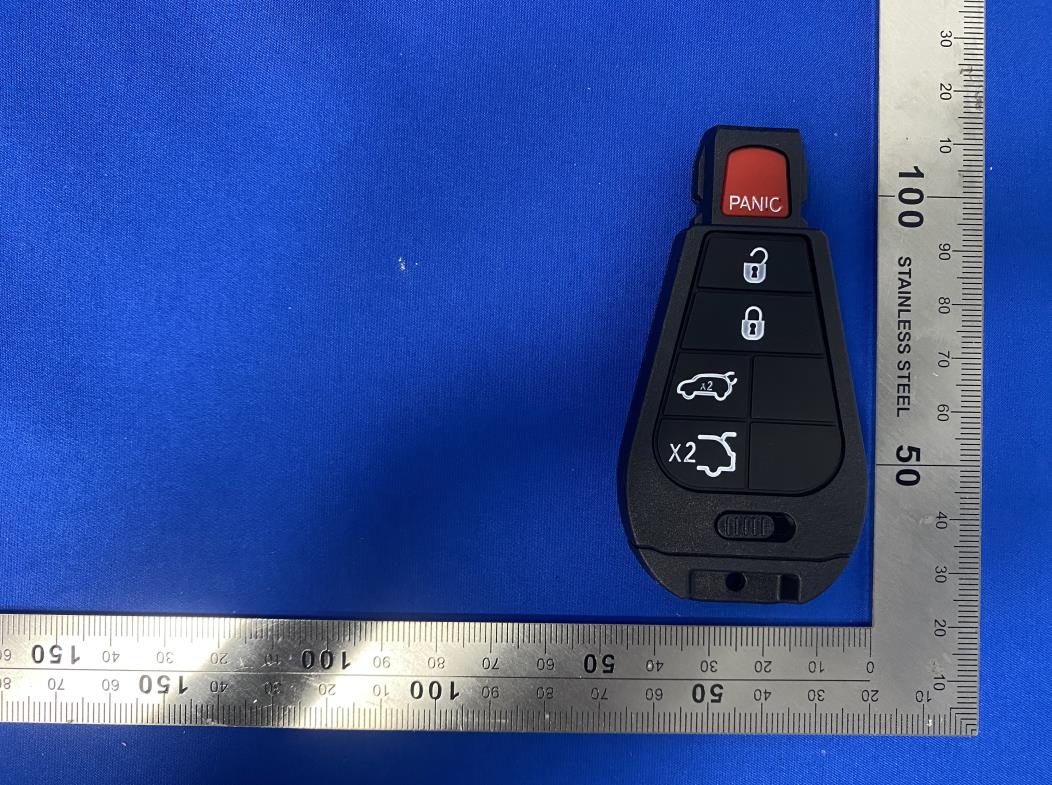

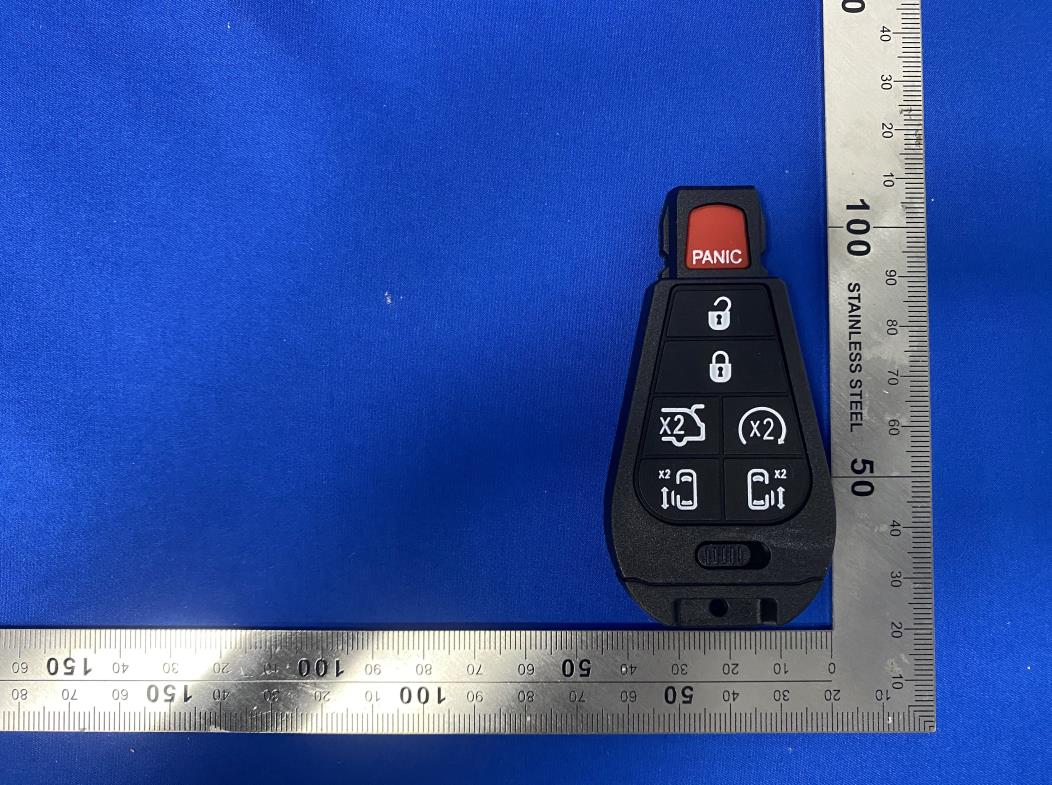

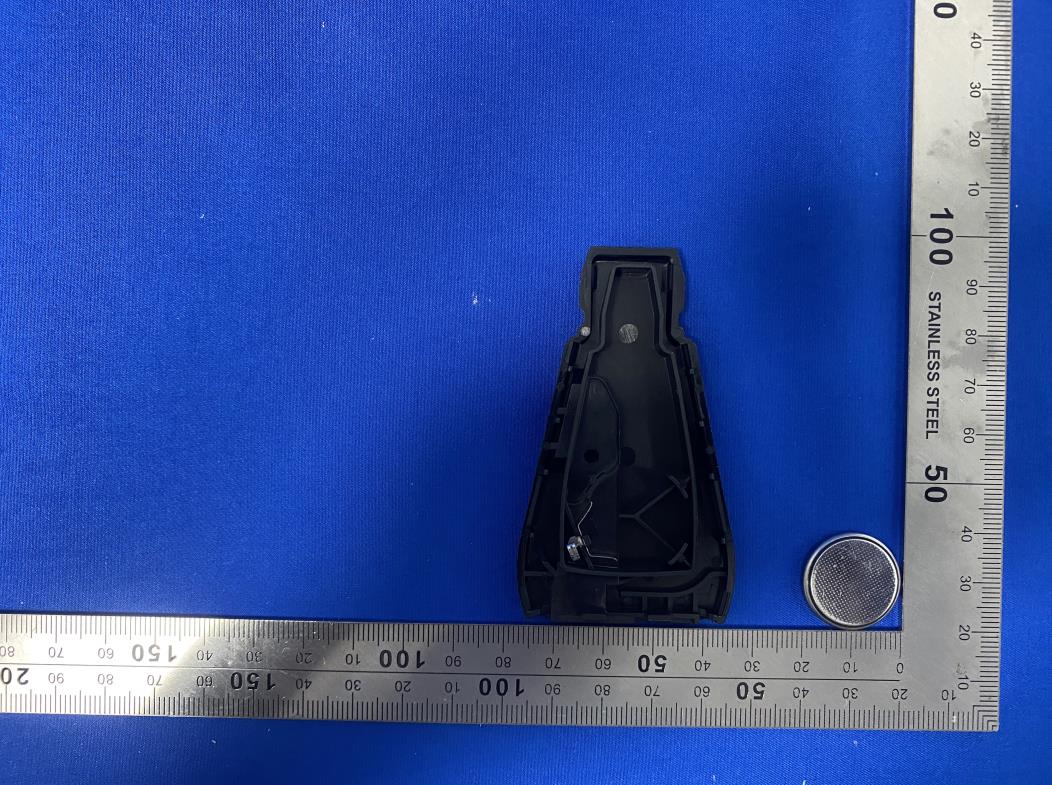

如何打开钥匙查看产品标签 How to open the shell and show the Label location 第一步：用手摁下钥匙顶端的PUSH 键，钥匙顶端的备用钥匙可以轻松拉出。 Step 1: press the push button on the top of the key, the Emergency key on the top can be pulled out easily. 第二步，用撬动工具轻轻插入钥匙壳的顶端缝隙，稍微用力转动备用钥匙，就可以把这个遥控打开。 Step 2: Gently insert the prying tool into the top slot of the key case , and turn the Emergency key slightly to open the key. 第三步，这样就打开了这个钥匙来装和换电池，很容易看到产品标签，这个钥匙不会经过超声波处理。 Step3: now the key was opened to install and change battery .and we can easy to see the label here. The key will not be processed by ultrasonic wave.

External Photos

Report No: JYTSZB-R12-2100507 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103033 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 24 of 35 8 EUT Constructional Photos Report No: JYTSZB-R12-2100507 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103033 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 25 of 35 Report No: JYTSZB-R12-2100507 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103033 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 26 of 35 RT-CYZ3B Report No: JYTSZB-R12-2100507 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103033 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 27 of 35 RT-CYZ4B RT-CYZ4B Report No: JYTSZB-R12-2100507 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103033 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 28 of 35 RT-CYZ5B RT-CYZ5B Report No: JYTSZB-R12-2100507 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103033 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 29 of 35 RT-CYZ6B RT-CYZ6B Report No: JYTSZB-R12-2100507 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103033 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 30 of 35 RT-CYZ7B Report No: JYTSZB-R12-2100507 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103033 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 31 of 35 Report No: JYTSZB-R12-2100507 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103033 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 32 of 35

ID Label/Location Info

Label : FCC ID :2AOKM-CYV15 IC : 24223-CYV15 MODEL: RT-CYZ3B P/N: RT-SKZ3 FCC ID :2AOKM-CYV15 IC : 24223-CYV15 MODEL: RT-CYZ4B P/N: RT-SKZ5 FCC ID :2AOKM-CYV15 IC : 24223-CYV15 MODEL: RT-CYZ5B P/N: RT-SKZ9 FCC ID :2AOKM-CYV15 IC : 24223-CYV15 MODEL: RT-CYZ7B P/N: RT-SKZ7 FCC ID :2AOKM-CYV15 IC : 24223-CYV15 MODEL: RT-CYZ6B P/N: RT-SKZ6 Location:

Internal Photos

RF Exposure Info

RFExposureevaluation Accordingto447498D01GeneralRFExposureGuidancev05 The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzat testseparationdistances≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.test separationdistance,mm)]·[√f(GHz)]≤3.0for1-gSARand≤7.5for 10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbefore calculation Theresultisroundedtoonedecimalplaceforcomparison eirp=ptxgt=(EXd) 2 /30 where: pt=transmitteroutputpowerinwatts, gt=numericgainofthetransmittingantenna(unitless), E=electricfieldstrengthinV/m,---10 ((dBuV/m)/20) /10 6 d=measurementdistanceinmeters(m)---3m Sopt=(EXd) 2 /30xgt Antgain=-5dBi;soAntnumericgain=0.316 Fieldstrength=72.31dBμV/m@3m SoPt={[10 (72.31/20) /10 6 x3] 2 /[30x0.316}}x1000mW=0.016mW So(0.016mW/5mm)x√0.43392GHz=0.0021<3 ThenSARevaluationisnotrequired
