2AOKM-GV13Remote Key

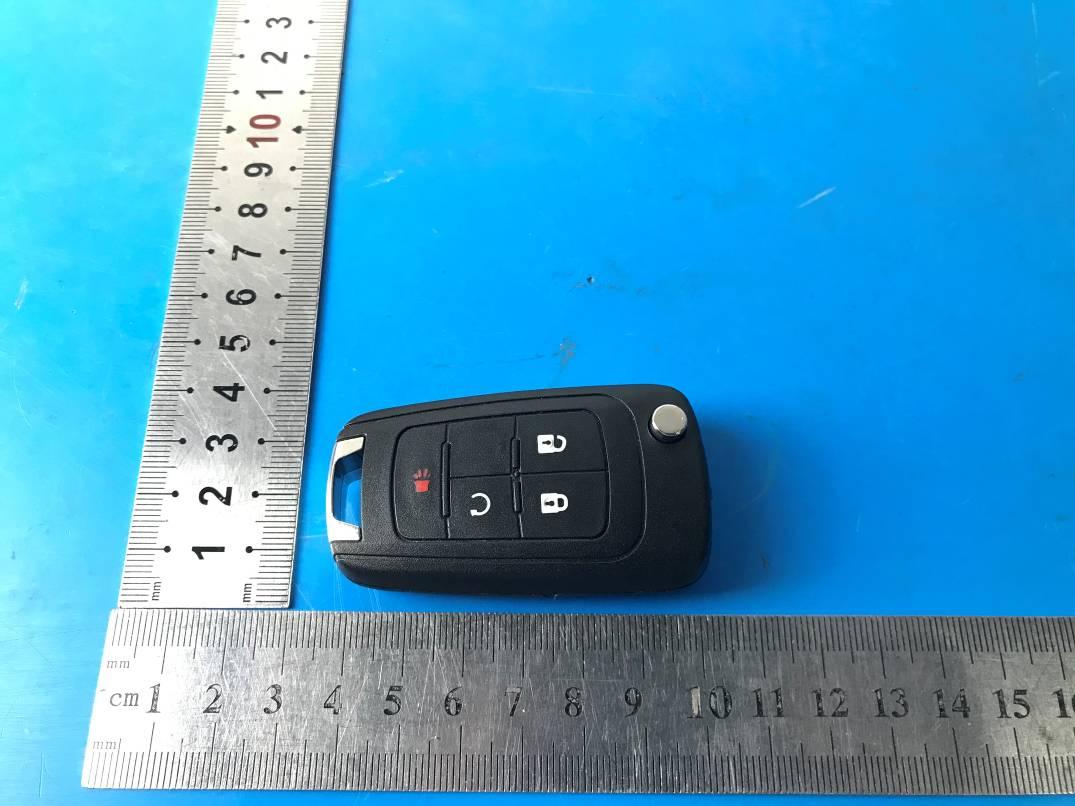

Company: Remote Tech LLC Address: 310 ALDER RD, Dover, DE 19904, USA Name: Remote Key Model: RT-GV123,RT-GV124,RT-GV125 Operation instructions 1. After matching the key to the car, press 1 the unlock key for 2 seconds to open the door and press 2 the lock key for 2 seconds to close the door. 2.The Start key is used to manually unlock and start the car. Product parameters Rated voltage DC 3V Working current <5mA Operating voltage 1.8V~3.6V Transmit power >-20dbm Key operation force 200±50g Operating temperature -5°C +45°C Stand-by current <1uA transmitting frequency 315M±75KHZ Modulation ASK Battery CR2032 Key durability More than 100,000 times 1 key:Unlock key 2 key: Lock key 3key: Start 4 key： Panic FCC COMPLIANCE STATEMENT: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IC WARNING This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device ADVERTENCIA IC Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS)d'Innovation, Sciences et Développement économique Canada. Le fonctionnement est soumis auxdeux conditions suivantes : (1) Cet appareil ne doit pas causer d'interférences. (2) Cet appareil doit accepter toutes les interférences, y compris celles susceptibles deprovoquer un fonctionnement indésirable de l'appareil.

2020.06.09 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AOKM-GV13 Product Name: Remote Key Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: Schematics Long-term confidential Block diagram Long-term confidential Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name John Strong Position Technical Manager Company Name Remote Tech LLC Address 310 ALDER RD, Dover, DE 19904,USA Tel 302-336-8136 Fax 302-336-8136 Email [email protected] Remote Tech LLC

Differences Description We Remote Tech LLC state: Product name: Remote Key Model: RT-GV123, RT-GV124, RT-GV125 FCC ID: 2AOKM-GV13 IC: 24223-GV13 All model’s the function, software and electric circuit are the same, except the appearance key and model numbers difference. Signature: 2020/06/08 Signatory Name John Strong Position Technical Manager Company Name Remote Tech LLC Address 310 ALDER RD, Dover, DE 19904, USA Tel 302-336-8136 Fax 302-336-8136 Email [email protected]

FCC ID: 2AOKM-GV13 IC: 24223-GV13

Label Size: 1.5x1.0cm Location FCC ID: 2AOKM-GV13 IC: 24223-GV13 Remote Tech LLC Model Name: Remote Key Model No.: R T-GV123 FCC ID: 2AOKM-GV13 IC: 24223-GV13 Remote Tech LLC Model Name: Remote Key Model No.: R T-GV124 FCC ID: 2AOKM-GV13 IC: 24223-GV13 Remote Tech LLC Model Name: Remote Key Model No.: R T-GV125

FCC ID: 2AOKM-GV13 IC: 24223-GV13 Antenna

FCC TEST REPORT FCC ID: 2AOKM-GV13 On Behalf of Remote Tech LLC Remote Key Model No.: RT-GV123, RT-GV126, RT-GV127 Prepared for : Remote Tech LLC Address : 310 ALDER RD, Dover, DE 19904, USA Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Report Number : A2005112-C01-R01 Date of Receipt : May 29, 2020 Date of Test : May 30-June 4, 2020 Date of Report : June 5, 2020 Version Number : V0 Page 2 of 30 Report No.: A2005112-C01-R01 Contents 1. General Information ............................................................................................................... 5 1.1. Description of Device (EUT) ...............................................................................5 1.2. Accessories of Device (EUT)...............................................................................6 1.3. Tested Supporting System Details .......................................................................6 1.4. Test Facility ..........................................................................................................6 2. Summary of test ...................................................................................................................... 7 2.1. Summary of test result .........................................................................................7 2.2. Block Diagram .....................................................................................................7 2.3. Test mode .............................................................................................................8 2.4. Test Conditions .....................................................................................................8 2.5. Measurement Uncertainty (95% confidence levels, k=2) ....................................8 2.6. Test Equipment .....................................................................................................9 3. Radiation Emission ............................................................................................................... 10 3.1. Radiation Emission Limits(15.209&231) ..........................................................10 3.2. Test Setup ...........................................................................................................10 3.3. Test Procedure .................................................................................................... 11 3.4. Test Equipment Setting For emission test. .........................................................12 3.5. Test Condition ....................................................................................................12 3.6. Test Result ..........................................................................................................12 4. POWER LINE CONDUCTED EMISSION ....................................................................... 17 4.1. Conducted Emission Limits (15.209) ................................................................17 4.2. Test Setup ...........................................................................................................17 4.3. Test Procedure ....................................................................................................17 4.4. Test Results ........................................................................................................18 5. Occupied bandwidth ............................................................................................................. 19 5.1. Test limit .............................................................................................................19 5.2. Method of measurement .....................................................................................19 5.3. Test Setup ...........................................................................................................19 5.4. Test Results ........................................................................................................19 6. Transmission time ................................................................................................................. 21 6.1. Test limit .............................................................................................................21 6.2. Method of measurement .....................................................................................21 6.3. Test Setup ...........................................................................................................21 6.4. Test Results ........................................................................................................21 7. Antenna Requirement .......................................................................................................... 23 7.1. Standard Requirement ........................................................................................23 7.2. Antenna Connected Construction ......................................................................23 7.3. Result..................................................................................................................23 8. Test setup photo .................................................................................................................... 24 9. Photos of EUT ....................................................................................................................... 25 Page 3 of 30 Report No.: A2005112-C01-R01 TEST REPORT DECLARATION Applicant : Remote Tech LLC Address : 310 ALDER RD, Dover, DE 19904, USA Manufacturer : Remote Tech LLC Address : 310 ALDER RD, Dover, DE 19904, USA EUT Description : Remote Key (A) Model No. : RT-GV123, RT-GV126, RT-GV127 (B) Trademark : N/A Measurement Standard Used: FCC Rules and Regulations Part 15 Subpart C Section 15.231 ANSI C63.10-2013 The device described above is tested by Shenzhen Alpha Product Testing Co., Ltd. to determine the maximum emission leve…

Text truncated - open the document above for the full version.

FCC ID: 2AOKM-GV13 IC: 24223-GV13 Photos of Radiated emission
