2AOKM-VL1keyless transmitter

User’s manual This remote has lock,unlock,left doo r,right door ,panic,trunk buttons,you can open or close the vehicle with the remote transmitter. LOCK When you press the LOCK button, the vehicle doors will lock. If the door is not close, can not lock the door, also key in the ignition switch also can not lock the doors. UNLOCK When you press the UNLOCK button, you can open the all doors.if the key is in the ignition switch, can not unlock the doors. LIGHT When you press the LIGHT button, you can turn on or turn off the lamp . Trunk When press the TRUNK buttons,open the trunk.It can not close the trunk using this transmitter. PANIC When press the PANIC button, the vehicle will start sounding the horn and flushing the hazdard lamp until press any buttons on transmitter. FCC COMPLIANCE STATEMENT: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received,including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IC WARNING: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device ADVERTENCIA IC Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS)d'Innovation, Sciences et Développement économique Canada. Le fonctionnement est soumis auxdeux conditions suivantes : (1) Cet appareil ne doit pas causer d'interférences. (2) Cet appareil doit accepter toutes les interférences, y compris celles susceptibles deprovoquer un fonctionnement indésirable de l'appareil. FCC ID: 2AOKM-VL1 IC: 24223-VL1 MODEL: RT-VL15B

Remote Tech LLC DATE :2021-6-28 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC I D: 2AOKM-VL1 Product Name: keyless transmitter Request for C onfidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: •Schematics •Block diagram •Operation d escription •BOM These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2021-6-28 By: John Strong SignaturePrinted Ti tle: On behalf of : Remote Tech LLC Telephone: 302-336-8136

Remote Tech LLC DATE:2021-6-28 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act asAgent On our behalf, I appoint Jianyan Testing Group Shenzhen Co., Ltd.; No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China., to act as our agent in the preparation of this applic ation for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Remote Tech LLC Dated this 2021-6-28 By: John St rong Signature Printed Title: On behalf of : Remote Tech LLC Telephone: 302‐336‐8136

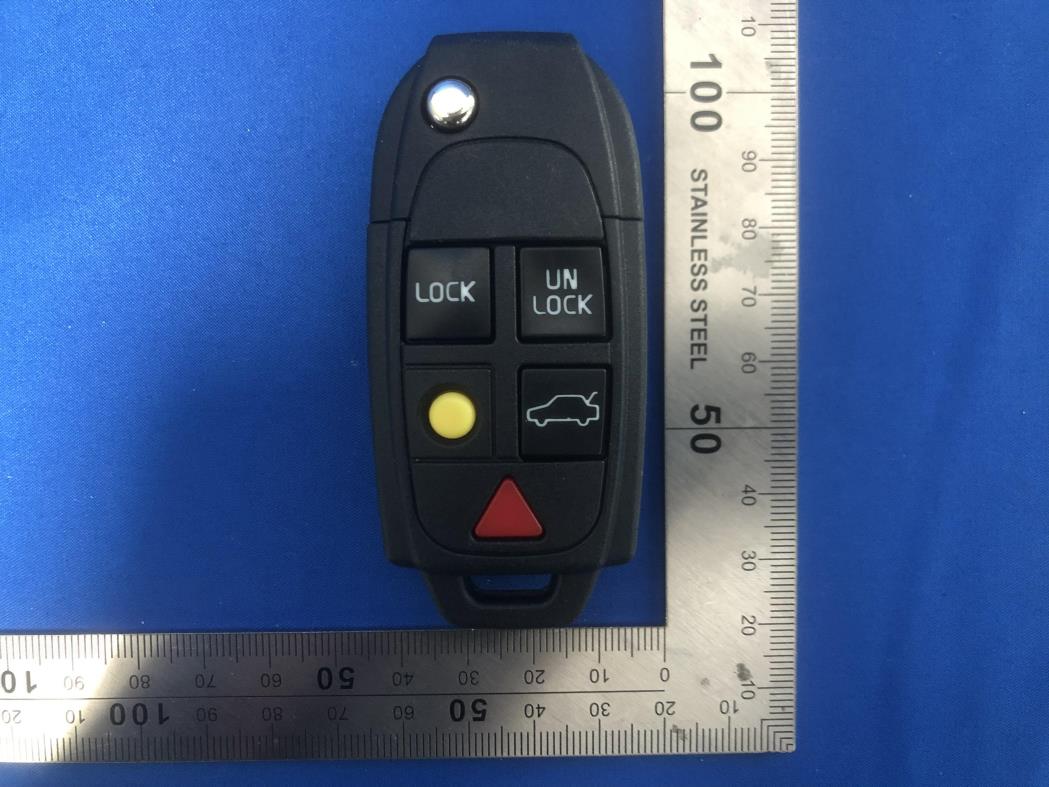

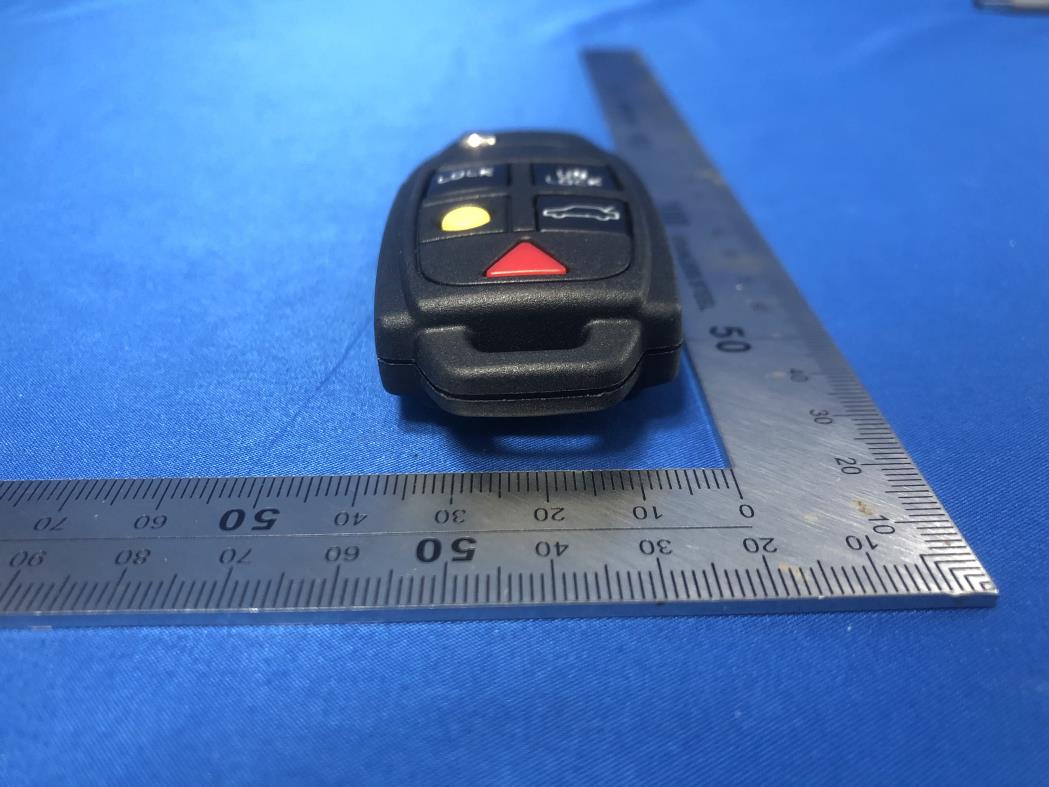

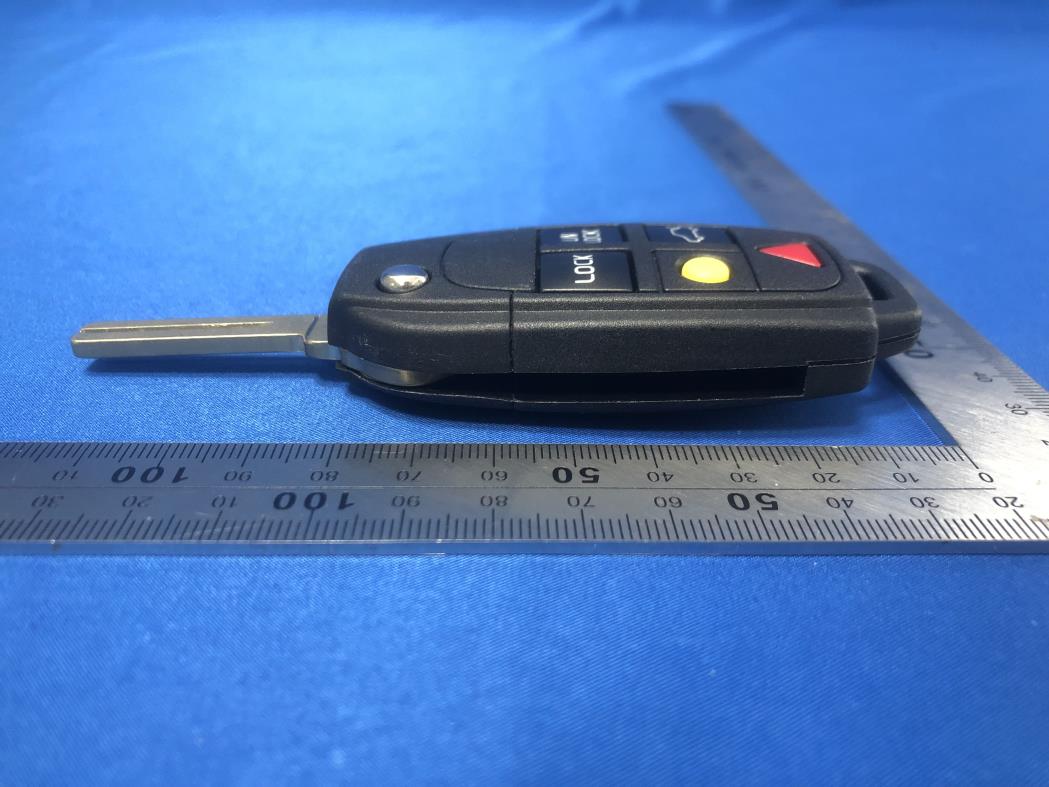

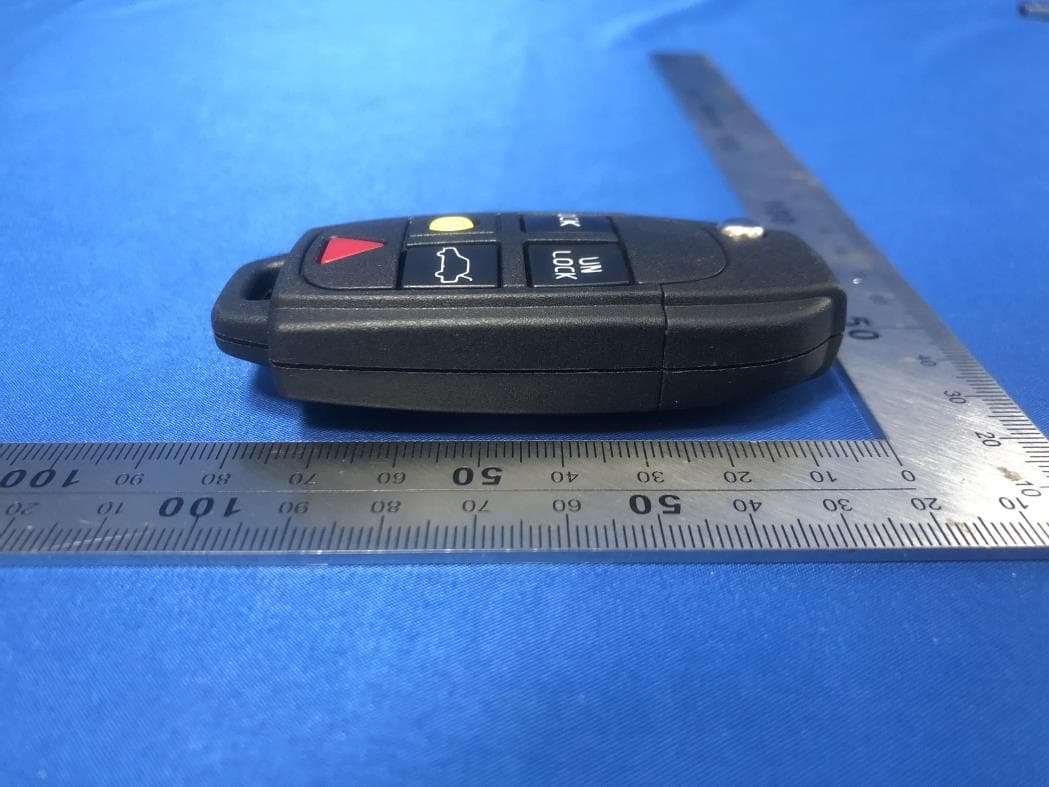

Report No: JYTSZB-R12-2101109 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2106042 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 24 of 34 8 EUT Constructional Photos Report No: JYTSZB-R12-2101109 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2106042 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 25 of 34 Report No: JYTSZB-R12-2101109 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2106042 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 26 of 34 Report No: JYTSZB-R12-2101109 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2106042 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 27 of 34 Report No: JYTSZB-R12-2101109 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2106042 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 28 of 34 Report No: JYTSZB-R12-2101109 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2106042 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 29 of 34

FC C I D: 2AOKM-VL1 IC: 2 4223-VL1 MODEL: R T-VL15B P/N : RT-LQN

Report No: JYTSZB-R12-2101109 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2106042 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 30 of 34 Report No: JYTSZB-R12-2101109 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2106042 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 31 of 34 Report No: JYTSZB-R12-2101109 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2106042 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 32 of 34 Report No: JYTSZB-R12-2101109 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2106042 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 33 of 34 Report No: JYTSZB-R12-2101109 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2106042 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 34 of 34 ------End of report------

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m Sopt = (EXd) 2 /30 x gt Ant gain=0 dBi ; so Ant numeric gain=1 Field strength =71.38dBμV/m @3m So Pt={ [10 (71.38 /20) /10 6 x3] 2 /30x1}x1000 mW =0.004 mW So ( 0.004 mW/5mm)x √0.315 GHz = 0.00045 < 3 Then SAR evaluation is not required

JianYan Testing Group Shenzhen Co., Ltd. Report No: JYTSZB-R12-2101109 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the JYT product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC REPORT Applicant: Remote Tech LLC Address of Applicant: 310 ALDER RD, DOVER DE 19904 USA Equipment Under Test (EUT) Product Name: keyless transmitter Model No.: RT-VL15B FCC ID: 2AOKM-VL1 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.231 Date of sample receipt: 16 Jun., 2021 Date of Test: 17 Jun., to 09 Jul., 2021 Date of report issue: 14 Jul., 2021 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. Report No: JYTSZB-R12-2101109 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2106042 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 33 2 Version Version No. Date Description 00 06 Jul., 2021 Original 01 14 Jul., 2021 1. Updated Field Strength on page 5/11. 2. Updated Spurious Emissions on page 13 to 15. 3. Updated Page 19. Prepared By: Date: 14 Jul., 2021 Test Engineer Check By: Date: 14 Jul., 2021 Project Engineer Report No: JYTSZB-R12-2101109 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2106042 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 33 3 Contents Page 1 COVER PAGE ....................................................................................................................................................... 1 2 VERSION ............................................................................................................................................................... 2 3 CONTENTS ........................................................................................................................................................... 3 4 TEST SUMMARY .................................................................................................................................................. 4 5 GENERAL INFORMATION .................................................................................................................................. 5 5.1 CLIENT INFORMATION ............................................................................................................................................ 5 5.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 5 5.3 TEST MODE ............................................................................................................................................................ 5 5.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................................................ 5 5.5 MEASUREMENT UNCERTAINTY .............................................................................................................................. 5 5.6 ADDITIONS TO, DEVIATIONS, OR EXCLUSIONS FROM THE METHOD....................................................................... 5 5.7 LABORATORY FACILITY .......................................................................................................................................... 6 5.8 LABORATORY LOCATION ....................................................................................................................................... 6 5.9 TEST INSTRUMENTS LIST ....................................................................................................................................... 7 6 TEST RESULTS AND MEASUREMENT DATA ................................................................................................ 8 6.1 ANTENNA REQUIREMENT ....................................................................................................................................... 8 6.2 RADIATED EMISSION ............................................................................................................................................. 9 6.2.1 Field Strength Of The Fundamental Signal .............................................................................................. 11 6.2.2 Spurious Emissions ..................................................................................................................................... 13 6.3 BANDWIDTH ......................................................................................................................................................... 18 6.4 DURATION TIME ................................................................................................................................................... 20 7 TEST SETUP PHOTOS.............…

Text truncated - open the document above for the full version.

Report No: JYTSZB-R12-2101109 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2106042 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 23 of 34 7 Test Setup Photos Radiated Emission Below 1GHz Above 1GHz
