1 L R Charging Case LED Status Light 4 Olive Max Setting Buttons and Touchpad 5 2 3 In the Box Before using the Olive Max for the first time, charge for at least 30 minutes! * For general usage charging for at least 30 minutes is recommended. Olive Max User Manual Earbud (Left, Right) Urethane Eartips (4 Pairs) * M size eartips are attached to the earbuds at the time of purchase. * XS Yellow / S Orange / M Green / L Blue / XL White Charging Case Urethane Eartips (3 Pairs) * S Orange / M Green / L Blue USB Type-C Cable * Please make sure to use the included cable. Urethane Eartips (1 Pair) Insert the left and right earbuds inside the Charging Case and close the lid. Connect the Charging Case and the USB Adapter with the included USB Type-C Cable. * USB Adapter not included with Olive Max. The Charging Case’s LED will turn purple to indicate charging. For safe and proper usage please read this user manual before using the product. Instructions for use (Olive Max) by Olive Union Inc. Thank you for choosing the Olive Max. Before using this device, please read the User Manual to familiarize yourself with its use and care. Failure to follow instructions and care outlined in this User Manual may result in product damage, malfunction, or even injury. For questions and support regarding the Olive Max or My Olive App, please contact Olive Customer Support. Olive Customer Support For the fastest reply, please reach out to us through email: [email protected] CS Phone Service is available with limited hours. For details, call the below number. Earbud Details Charging Case Details Mic 2, 3 Volume Buttons Touchpad Infrared Sensor [L]: left [R]: right Charging Terminal Urethane Eartip (M Size) Setting Button The Charging Cases’s LED light indicates different information. A solid color indicates the status of the Charging Case, and a blinking light indicates status of the Olive Max earbud. * When the Charging Case’s battery has run out of charge, the Olive Max earbuds can not be turned on or off. Please charge the Charging Case ASAP. Green Charging Case is fully charged. Purple Charging Case should be recharged when possible. Blue (blinking) The Olive Max earbuds are in manual pairing mode. Green (blinking) The Olive Max earbuds are resetting. Olive Max Earbud Controls * Touchpad can be activated or deactivated using My Olive app. * Adjusting either the left or right Volume Buttons and Touchpad will affect both ears. 702-848-4837 Product Specification LED Charging Terminal Volume Buttons You can adjust the volume with the Volume Buttons on the earbud. Touchpad + Volume - Volume Three kinds of touch actions allow for various earbud operations. 1. Classification Name : Wireless earbud 2. Product Name : Olive Max 3. Model Name Wireless Charging USB Type-C Charging Port Charging Case Single tap Music play/pause Setting Button Double tap Hearing Mode change Tap & Hold Hear-Thru Mode ON/OFF Answer/hang up/cancel a call 4. General Information To prevent howling and ensure the best hearing experience, make sure to follow the instructions below when wearing your Olive Max. By using the Setting Button on the Charging Case, you can check the battery status of the Charging Case, manually pair earbuds, and reset the earbuds to factory settings. Check Battery Status of Charging Case Press the Setting Button once to check the Charging Case’s battery. Green Charging Case battery is fully charged or sufficient. Activate Olive Max Manual Pairing Purple Charging Case should be recharged when possible. R-R-OLU-O U1P010 2 FCC ID : 2AOLH-OU1P0102 * For more detailed information about the product, please visit our website (us.oliveunion.com) Check the earbuds for their Right and Left symbols. * [L] left / [R] right Hook the Olive Max behind your ear. Insert the eartip inside the ear and gently twist and rotate to secure it. Turn on Manual Pairing to easily connect the Olive Max to a new device. 1. Put the earbuds into the charging case and press the setting button for 3 seconds. 2. While in Manual Pairing, the LED will turn blue and blink. Factory Reset Reset your Olive Max to default factory settings. If you are having any problems or issues, a Factory Reset can often solve them. 1. Put the earbud in the charging case and press the setting button for 7 seconds. 2. When the Factory Reset is complete, the LED will turn green and blink. 2 Wearing the Olive Max 2 3 Charging the Olive Max 1 Olive Max Overview LED 3 Wireless Charging The Olive Max can be charged wirelessly! Place the Charging Case on a wireless charger. * Wireless charger not included with Olive Max. * Some wireless chargers not compatible. * Wireless charging may take longer than wired charging. Once 3sec 7sec Make sure to try all sizes and types of earbuds! A good fit and feeling is one of the most important factors for a good hearing experience. Make sure to try all the different sizes and types of eartips! * Compress the urethane eartips with your fingers before inserting into your ear so they expand and create a tight seal. Attach the eartips by aligning the nozzle of the earbud with the grove inside the eartip and then pushing until they lock into place. 1 R Mic 1 Olive Max Model Name Etc. OU1P0102 Product Name Specifications Earbud Rated output Internal power, Lithium-ion coin cell , DC 3.7 V / 114mAh x2 Radio frequency (RF) 2402~2480 MHz IP grade <IPX7> RF test temperaturecv 0C ~ 50C Operating mode Continuous mode Electric shock protection Internally powered device, BF mounting part RF specification Bluetooth v5.1 Charging Case Rated output DC 5 V / 0.5A Charging method Grounding method / USB cable / Wireless charging Country of manufacture Republic of Korea Legal manufacturer Olive Union KR Manufacturer Partron Search Settings Warnings and Precautions FCC Regulatory Compliance Open the Charging Case lid to automatically enter Pairing Mode. Then, follow the instructions below to pair to your smartphone device. * Do not close the lid of the Charging …

Text truncated - open the document above for the full version.

Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification DATE : January 17, 2023 FCC ID : 2AOLH-OU1P0102 FHSS ATTESTATION SATATEMENT This ‘Bluetooth module’ contains an embedded Bluetooth device that Olive Union inc confirms compliance with the following Part 15 regulations. 15.247(a)(1) The hopping sequence is pseudorandom All channels are used equally on average The receiver input bandwidth equals the transmit bandwidth The receiver hops in sequence with the transmit signal 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) stream. 15.247(h) The system does not coordinate it channels selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Sincerely, Signed: Printed name: Jaden, Lee Title: Principal Research Engineer Company Name: Olive Union inc

Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification DATE : January 17, 2023 FCC ID : 2AOLH-OU1P0102 Product Equality Declaration The Left earbud and the right earbud are electrically equivalent device. No change in RF characteristic has occurred. Sincerely, Signed: Printed name: Jaden, Lee Title: Principal Research Engineer Company Name: Olive Union inc

Olive Union inc January 12, 2023 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: 2AOLH-OU1P0102 Pursuant to Sections 0.457(d) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request permanent confidential treatment of exhibits identified as such in the table below and request they are permanently withheld from public review based on the documents containing trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. We also request short-term confidentiality on certain exhibits until the intended date of marketing as outlined below. We request the exhibits be withheld from public view for a period of 180 days. We attest marketing of the product will only commence after the period of short-term confidentiality expires, or if marketing is to commence before the requested number of days listed above, the grantee will inform Nemko to release the Short-Term Confidentiality information withheld on the FCC equipment authorization website. Exhibit Type of Confidentiality Requested Block Diagrams ☒ Permanent ☐ Short Term External Photos ------------------ ☒ Short Term Internal Photos ☐ Permanent* ☒ Short Term Operation Description ☒ Permanent ☐ Short Term Parts List & Placement/BOM ☒ Permanent ☐ Short Term Tune-Up Procedure ☒ Permanent ☐ Short Term Schematic Diagrams ☒ Permanent ☐ Short Term Test Setup Photos ------------------ ☒ Short Term User’s Manual ☐ Permanent* ☒ Short Term The asterisked items (*) require further information to be provided in this justification letter before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. Note: any documents held under the Short-Term confidentiality will automatically become public after the requested time if an appropriate extension request has not been received. Any exhibits (i.e., schematic diagrams) that may have already been requested to have “Permanent” confidentiality as shown above need not be repeated under Short-Term confidentiality request. Sincerely, Signed: Printed name: Jaden, Lee Title: Principal Research Engineer Company Name: Olive Union inc

Olive Union inc January 12, 2023 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 AUTHORITY TO ACT AS AGENT - FCC On our behalf, I appoint Nemko Korea Co.,Ltd. (165-51, Yurim-ro, Cheoin-gu, Yongin-si, Gyeonggi- do, 17042, Rep. of Korea and 155, Osan-ro, Mohyeon-eup, Cheoin-gu, Yongin-si, Gyeonggi-do 16885 Rep. of Korea), to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America Inc., still resides still resides with us. Sincerely, Printed name: Jaden, Lee

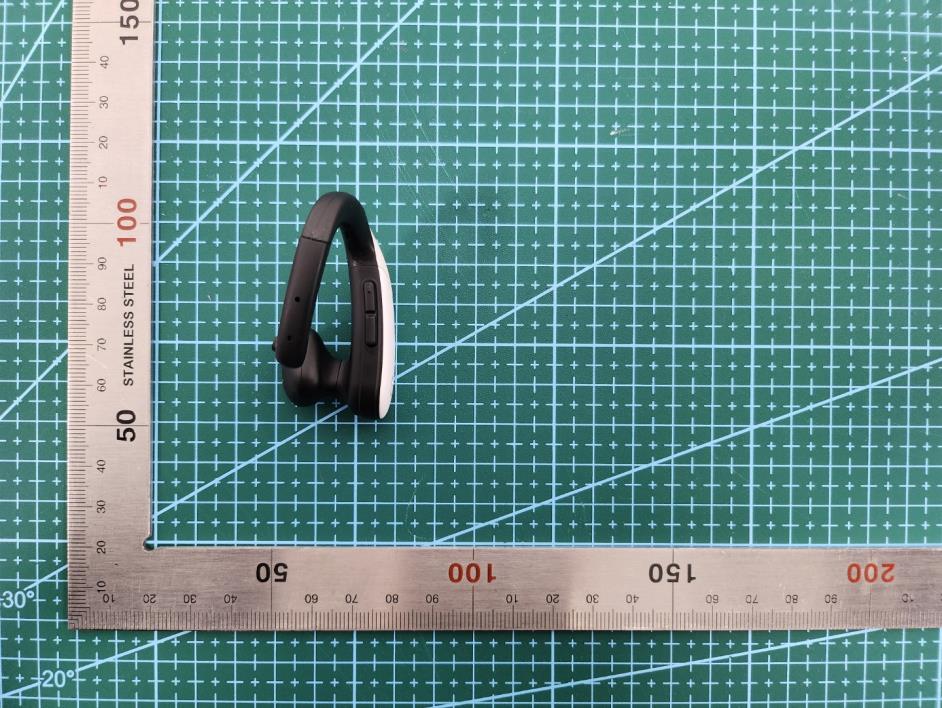

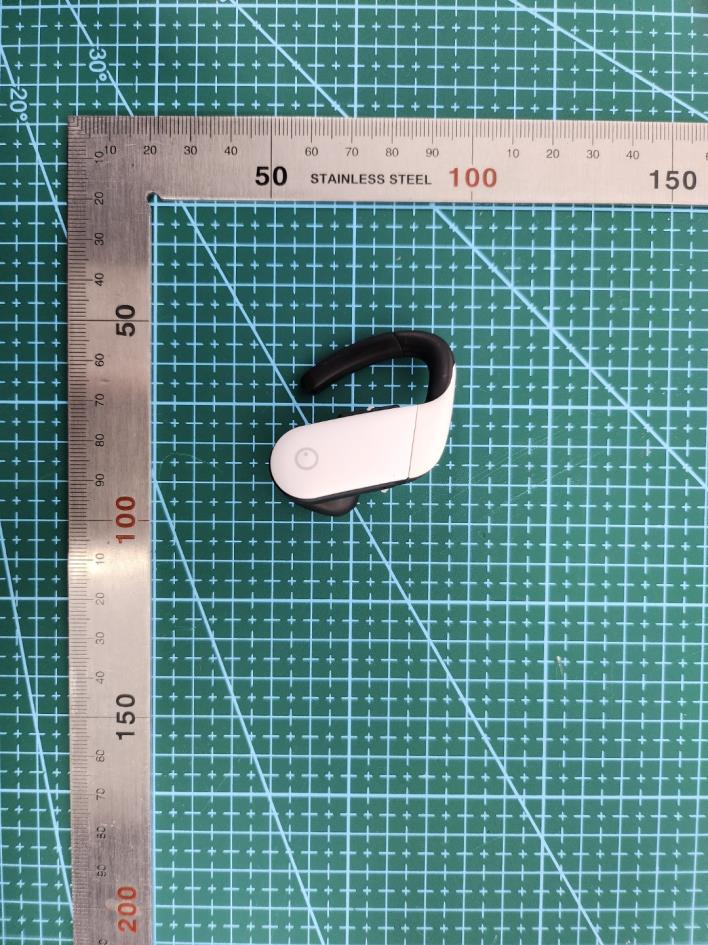

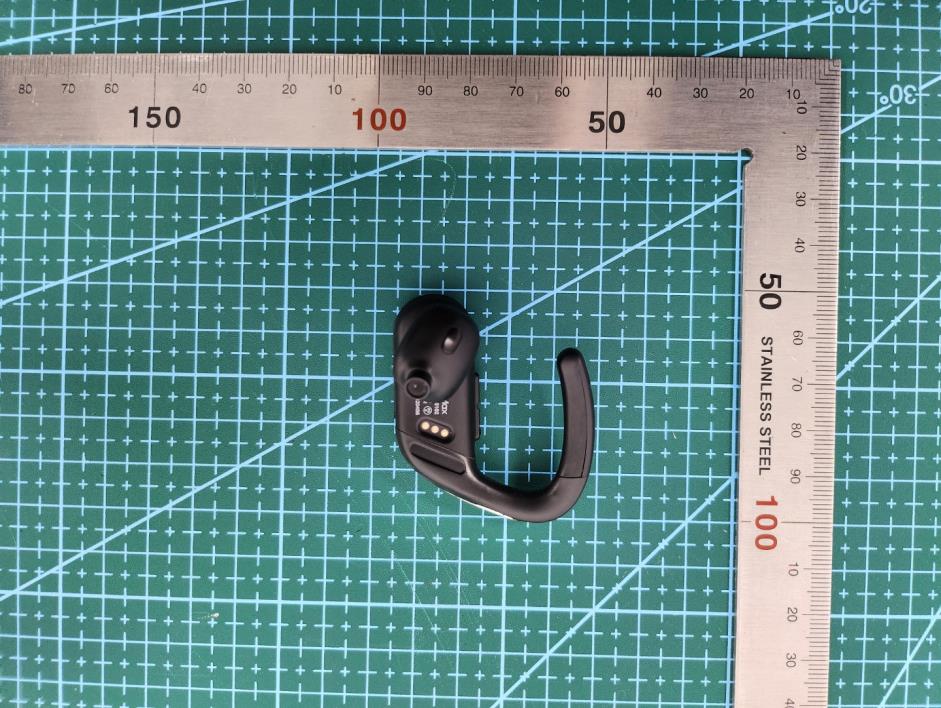

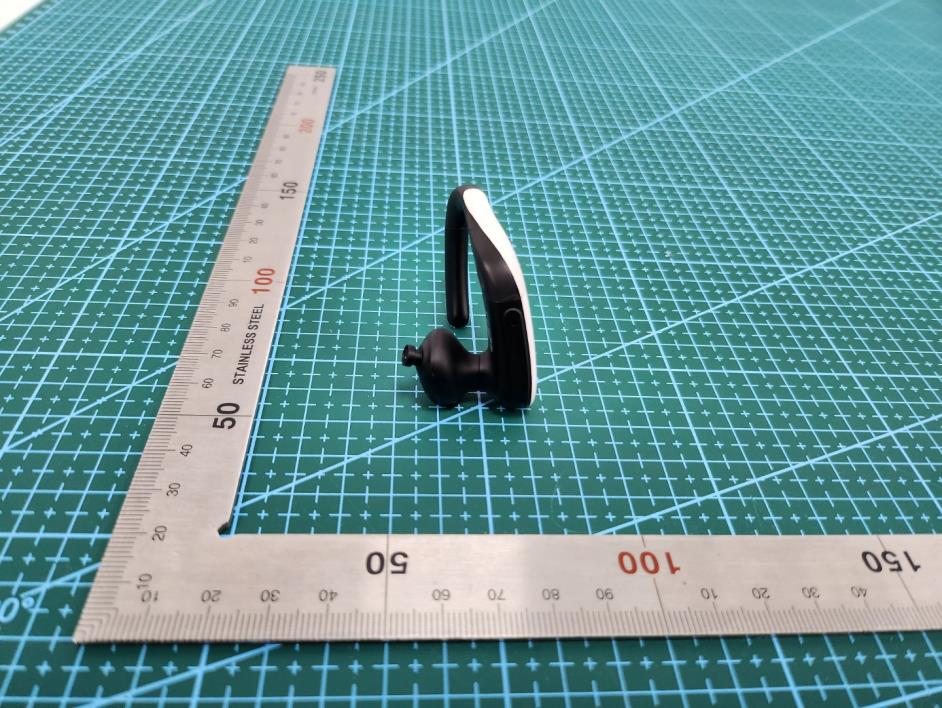

Reference No.: NK-22-R-271 FCC Certification Olive Union inc FCC ID : 2AOLH-OU1P0102 Page 1 of 6 External Photo 1. External Photographs of EUT(Left) Front View of EUT Rear View of EUT Reference No.: NK-22-R-271 FCC Certification Olive Union inc FCC ID : 2AOLH-OU1P0102 Page 2 of 6 Top View of EUT Bottom View of EUT Reference No.: NK-22-R-271 FCC Certification Olive Union inc FCC ID : 2AOLH-OU1P0102 Page 3 of 6 Left View of EUT Right View of EUT Reference No.: NK-22-R-271 FCC Certification Olive Union inc FCC ID : 2AOLH-OU1P0102 Page 4 of 6 2. External Photographs of EUT(Right) Front View of EUT Rear View of EUT Reference No.: NK-22-R-271 FCC Certification Olive Union inc FCC ID : 2AOLH-OU1P0102 Page 5 of 6 Top View of EUT Bottom View of EUT Reference No.: NK-22-R-271 FCC Certification Olive Union inc FCC ID : 2AOLH-OU1P0102 Page 6 of 6 Left View of EUT Right View of EUT

Reference No.: NK-22-R-272 FCC Certification Olive Union inc FCC ID : 2AOLH-OU1P0102 Page 1 of 1 LABELLING REQUIREMENTS The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. < Charging Case Bottom> Labelling Requirements

Reference No.: NK-22-R-271 FCC Certification Olive Union inc FCC ID : 2AOLH-OU1P0102 Page 1 of 8 Internal Photo 1. Internal Photographs of EUT(Left) Internal View of EUT Front View of Battery Reference No.: NK-22-R-271 FCC Certification Olive Union inc FCC ID : 2AOLH-OU1P0102 Page 2 of 8 Front View of Main Board Rear View of Main Board Reference No.: NK-22-R-271 FCC Certification Olive Union inc FCC ID : 2AOLH-OU1P0102 Page 3 of 8 Front View of Antenna Rear View of Antenna Reference No.: NK-22-R-271 FCC Certification Olive Union inc FCC ID : 2AOLH-OU1P0102 Page 4 of 8 Front View of Sub Board Front View of Sub Board Reference No.: NK-22-R-271 FCC Certification Olive Union inc FCC ID : 2AOLH-OU1P0102 Page 5 of 8 2. Internal Photographs of EUT(Right) Internal View of EUT Front View of Battery Reference No.: NK-22-R-271 FCC Certification Olive Union inc FCC ID : 2AOLH-OU1P0102 Page 6 of 8 Front View of Main Board Rear View of Main Board Reference No.: NK-22-R-271 FCC Certification Olive Union inc FCC ID : 2AOLH-OU1P0102 Page 7 of 8 Front View of Antenna Rear View of Antenna Reference No.: NK-22-R-271 FCC Certification Olive Union inc FCC ID : 2AOLH-OU1P0102 Page 8 of 8 Front View of Sub Board Front View of Sub Board

December 27, 2022 FCC Certification Olive Union inc FCC ID : 2AOLH-OU1P0102 Page 1 of 1 Maximum Permissible Exposure RF Exposure Limit According to KDB 447498D01 v06: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ꞏ[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is <5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Device category : Portable device Transmitting mode : Single transmitting Max. transmitting frequency : 2 480 MHz Min. test separation distance : 5 mm Max. Antenna Gain : Left : 2.23 dBi Right : 2.21 dBi Max. time average power : 8 dBm Max. power with turn-up tolerance : 9 dBm 7.94 mW Maximum Permissible Exposure For this device: 8 mW[maximum average output power]/5 mm[minimum separation distance] x √2.48 GHz = 2.52 Note. The calculation result was rounded to one decimal place for comparison. Test Result : This is less than 3.0 for 1-g SAR. SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required.

1of 12 ⒸPartron–Since 2003 All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior written consent of the copyright owner The information furnished in this publication is subject to changes without notice. Approval sheet Olive Max Earbuds ANT/Touch Olive Max Earbuds FPCB Antenna RevisionDate 1.02022.11.14 BLE ANTENNA SPECIFICATION 품명 OliveMaxEarbuds ANT/Touch L,R 모델Olive Max ERP CODE REVISIONVER 1.0 생산지국내 검사및포장국내 (주)파트론 입안심사품질합의결정 김재한서재운이광규김원근 (주) 파트론 경기도화성시삼성1로2길22 ᆞ정당한사유가있는경우외에는기술자료를제공하도록요구하지않고, 취득한기술자료를유용하지않습니다. ᆞWe are not supposed to ask the partners to provide the technical Document without valid reason. The acquired Technical Document should not be used elsewhere. Approval sheet ⒸPartron–Since 2003 All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior written consent of the copyright owner The information furnished in this publication is subject to changes without notice. Approval 전자결재 상측면 하측면 2of 12 ⒸPartron–Since 2003 All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior written consent of the copyright owner The information furnished in this publication is subject to changes without notice. Approval sheet Olive Max Earbuds ANT/Touch Olive Max Earbuds FPCB Antenna RevisionDate 1.02022.11.14 -CONTENTS- ※ 표지 ※ 목차 1. 이력관리 2. 부품의개요및치수규격 3. 중점관리항목 4. 전기적특성 5. 시험방법 6. 기구적특성 1 p 2 p 3 p 4 p 4 p 5 p 8 p 10 p 3of 12 ⒸPartron–Since 2003 All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior written consent of the copyright owner The information furnished in this publication is subject to changes without notice. Approval sheet Olive Max Earbuds ANT/Touch Olive Max Earbuds FPCB Antenna RevisionDate 1.02022.11.14 1. 이력관리 개정번호개발자변경사항변경일자 Ver 1.0변재범 AntennaSpecification 제정 (OliveMaxEarbudsFPCB Touch/ANT) 2022.11.14 4of 12 ⒸPartron–Since 2003 All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior written consent of the copyright owner The information furnished in this publication is subject to changes without notice. Approval sheet Olive Max Earbuds ANT/Touch Olive Max Earbuds FPCB Antenna RevisionDate 1.02022.11.14 2. 부품의개요및치수규격 2.1 . 부품개요 FPCB 구조의얇은동박으로패턴을형성하여특성을구현함 2.2 . 부품치수규격 크기[mm] W = 28.86 ±0.05 L = 11.13 ±0.05 T = 0.1 ±0.05 온도[ °C ]-40 ~ +80 습도[%]상온에서RH 100 항목내용 보관상온에장시간보관시밀봉하여보관 동작임의의설계변경시특성이변경될수있음 3. 중점관리항목( ) W L 5of 12 ⒸPartron–Since 2003 All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior written consent of the copyright owner The information furnished in this publication is subject to changes without notice. Approval sheet Olive Max Earbuds ANT/Touch Olive Max Earbuds FPCB Antenna RevisionDate 1.02022.11.14 4. 전기적특성 4.1 . Passive Gain Left Right 6of 12 ⒸPartron–Since 2003 All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior written consent of the copyright owner The information furnished in this publication is subject to changes without notice. Approval sheet Olive Max Earbuds ANT/Touch Olive Max Earbuds FPCB Antenna RevisionDate 1.02022.11.14 4.2 . Chamber Data 2400MHz2420MHz 2460MHz 3D Data_Left 2440MHz 2480MHz 2500MHz 2D Data_Left 7of 12 ⒸPartron–Since 2003 All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior written consent of the copyright owner The information furnished in this publication is subject to changes without notice. Approval sheet Olive Max Earbuds ANT/Touch Olive Max Earbuds FPCB Antenna RevisionDate 1.02022.11.14 4.2 . Chamber Data 2400MHz2420MHz 2460MHz 3D Data_Right 2440MHz 2480MHz 2500MHz 2D Data_Left 8of 12 ⒸPartron–Since 2003 All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior written consent of the copyright owner The information furnished in this publication is subject to changes without notice. Approval sheet Olive Max Earbuds ANT/Touch Olive Max Earbuds FPCB Antenna RevisionDate 1.02022.11.14 4.3 . 시료실장측정그래프 Left Right 9of 12 ⒸPartron–Since 2003 All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior written consent of the copyright owner The information furnished in this publication is subject to changes without notice. Approval sheet Olive Max Earbuds ANT/Touch Olive Max Earbuds FPCB Antenna RevisionDate 1.02022.11.14 5. 시험방법 5.1 . SWR/Return loss Network Analyzer를이용하여SWR / Return loss를측정하여표준샘플을선별, 수동지그측정또는자동화검사장비를이용하여양품과불량품을선별한다. 시료측정조건 Network Analyzer ProtekA338 CableRF Cable (300 mm) Test Condition 10of 12 ⒸPartron–Since 2003 All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior written consent of the copyright owner The information furnished in this publication is subject to changes without notice. Approval sheet Olive Max Earbuds ANT/Touch Olive Max Earbuds FPCB Antenna RevisionDate 1.02022.11.14 5.2 . 이득 당사가보유한전파난반사실에서상기4.1에서측정된시료를이용하여 안테나이득을측정한다. 5.3 . 이득측정을위한회로구성도 11of 12 ⒸPartron–Since 2003 All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior written consent of the copyright owner The information furnished in this publication is subject to changes without notice. Approval sheet Olive Max Earbuds ANT/Touch Olive Max Earbuds FPCB Antenna RevisionDate 1.02022.11.14 6. 기구적특성 6.1 . 안테나패턴도면 12of 12 ⒸPartron–Since 2003 All rights reserved. The material contained herein…

Text truncated - open the document above for the full version.

Test Report No.: NK-22-R-271-1_R01 FCC ID : 2AOLH-OU1P0102 NKQF-27-18 (Rev. 01) Nemko Korea Co., Ltd. Page 1 of 69 Nemko Korea Co., Ltd. 165-51, Yurim-ro, Cheoin-gu, Yongin-si,Gyeonggi-do,17042, Republic of Korea TEL:+82 31 330-1700 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : Dates of Issue : Olive Union inc January 18, 2023 5F, 24, Banpo-daero 28-gil, Seocho-gu, Seoul, Republic of Korea Test Site : Nemko Korea Co., Ltd. Model: OU1P0102 Additional Model(s): EUT Type: Olive Max Earbuds Classification: FCC Part 15 Spread Spectrum Transmitter (DSS) Date of Test: November 02, 2022 ~ December 26, 2022 Applied Standard: FCC 47 CFR Part 15.247 The device bearing the brand name and model specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : Jaehyong Lee Reviewed By : Hoonpyo Lee Test Engineer Technical Manager FCC ID: 2AOLH-OU1P0102 Applicant : Olive Union inc Brand Name : Test Report No.: NK-22-R-271-1_R01 FCC ID : 2AOLH-OU1P0102 NKQF-27-18 (Rev. 01) Nemko Korea Co., Ltd. Page 2 of 69 Revision History Rev. Issue Date Revisions Revised By 00 December 27, 2022 Initial issue Jaehyong Lee 01 January 18, 2023 Updated to address TCB’s question Jaehyong Lee Test Report No.: NK-22-R-271-1_R01 FCC ID : 2AOLH-OU1P0102 NKQF-27-18 (Rev. 01) Nemko Korea Co., Ltd. Page 3 of 69 TABLE OF CONTENTS 1. INTRODUCTION............................................................................................................................ 5 1.1 Test facility ................................................................................................................................. 5 2.2 Accreditation and listing ............................................................................................................. 5 2. EUT INFORMATION & TEST CONDITIONS ............................................................................. 6 2.1 EUT Information ........................................................................................................................ 6 2.2 Operation During Test ................................................................................................................ 7 2.3 Support Equipment .................................................................................................................... 9 2.4 Setup Drawing ........................................................................................................................... 9 3. ANTENNA REQUIREMENTS ..................................................................................................... 10 4. SUMMARY OF TEST RESULTS .............................................................................................. 11 5. TEST METHODOLOGY .............................................................................................................. 11 6. DESCRIPTION OF TESTS ........................................................................................................ 12 6.1 Duty Cycle ............................................................................................................................... 12 6.2 20 dB Bandwidth ..................................................................................................................... 13 6.3 Carrier Frequency Separation ................................................................................................. 13 6.4 Transmitter Average Time of Occupancy ................................................................................. 14 6.5 Number of Hopping Channels ................................................................................................. 14 6.6 Peak Output Power and E.I.R.P............................................................................................... 15 6.7 Conducted Spurious Emissions ............................................................................................... 15 6.6 Radiated Emissions ................................................................................................................. 16 6.7 Conducted Emissions .............................................................................................................. 17 7. TEST DATA ................................................................................................................................ 18 7.1 Duty Cycle ............................................................................................................................... 18 7.2 20 dB Bandwidth ..................................................................................................................... 21 7.3 Carrier Frequency Separation ................................................................................................. 26 7.4 Transmitter Average Time of Occupancy ................................................................................. 29 7.5 Number of Hopping Channels ................................................................................................. 31 7.6 Peak Output Power ................................................................................................................. 33 7.7 Conducted Spurious Emissions ............................................................................................... 41 Test Report No.: NK-22-R-271-1_R01 FCC ID : 2AOLH-OU1P0102 NKQF-27-18 (Rev. 01…
