2AONA-WX07PROWireless Charger

Shenzhen Pilot Technology Co., Ltd

Click to zoom

Application Details

Equipment Class: DCD - Part 15 Low Power Transmitter Below 1705 kHz
Date of Grant: Sep 13, 2020
Application Purpose: Original Equipment
Date of Application: Sep 13, 2020
Equipment Note: Wireless Charger
Frequency Range: 0.11010000 - 0.20500000
Company: Shenzhen Pilot Technology Co., Ltd
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

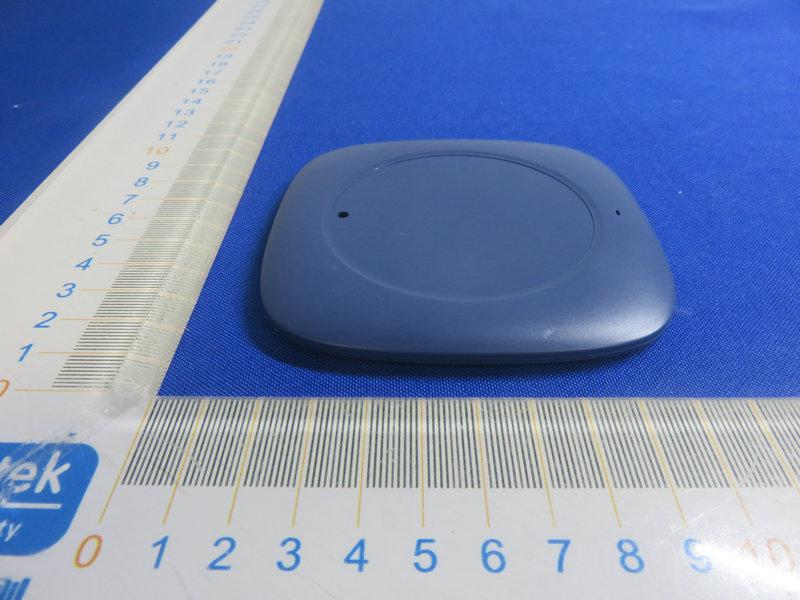

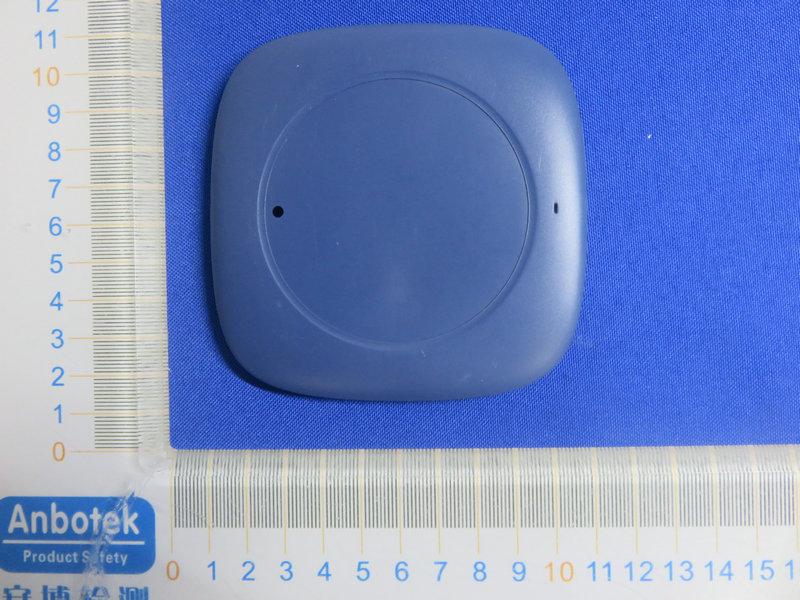

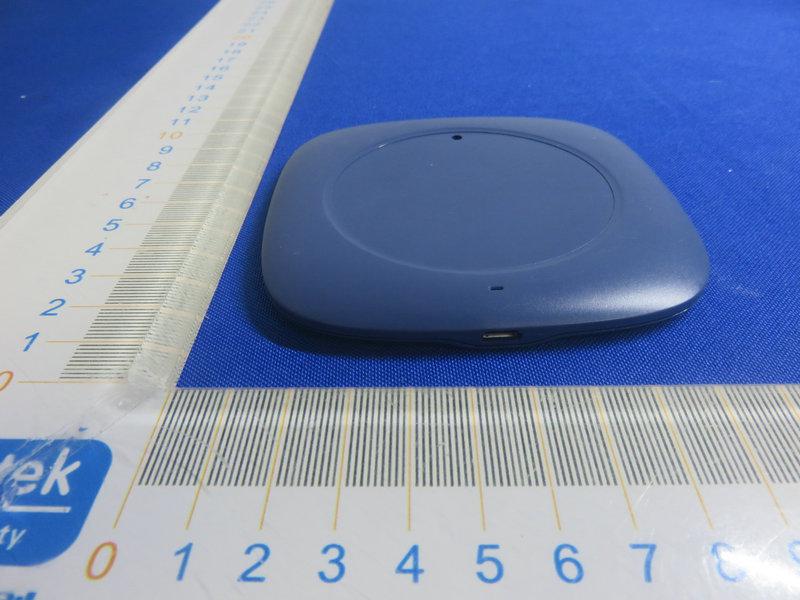

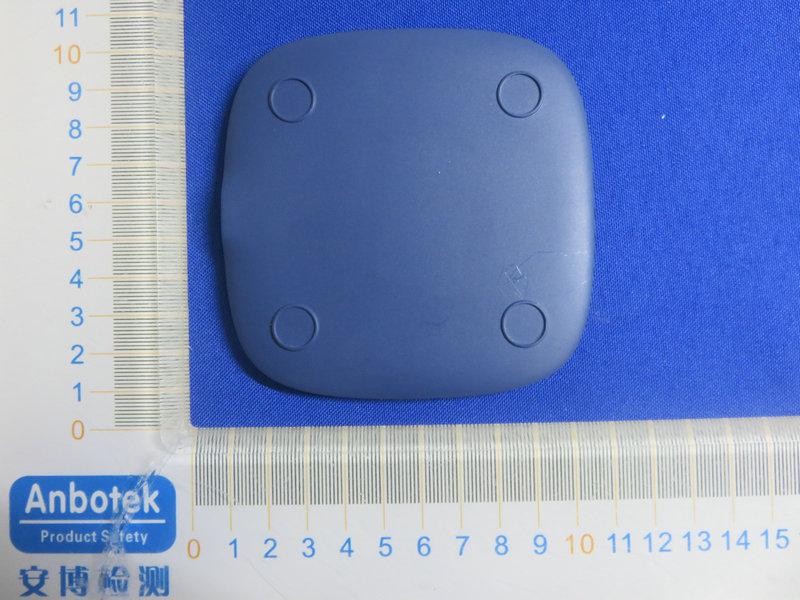

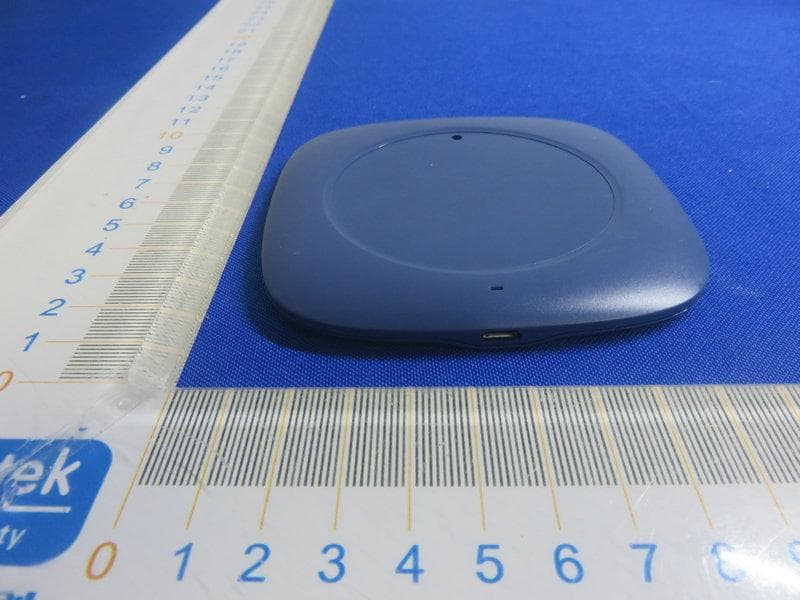

External Photos

FCCID:2AONA-WX07PRO

ID Label/Location Info

LabelLocationOnEUT Label ProductName:WirelessCharger ModelNo.:WX07Pro FCCID:2AONA-WX07PRO ThisdevicecomplieswithPart15oftheFCCRules.Operation issubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation.

Internal Photos

FCCID:2AONA-WX07PRO ANT

Operational Description

version01 ShenzhenPilotTechnologyCo.,Ltd DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:WX07Pro FCCID:2AONA-WX07PRO fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsforinternalantennatype(s) describedbelow: ModelNo.ofantenna:N/A Typeofantenna:InductiveloopcoilAntenna Gainoftheantenna:0dBi Frequencyrange:110.1-205KHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:ShenzhenPilotTechnologyCo.,Ltd Address:101A1IndustrialPark,buildinga1,No.7ShankengRoad,Shanxiacommunity,Pinghu Street,LonggangDistrict,ShenzhenCity,China City:Shenzhen ZIP/Postalcode:N/A Country:China Place:ShenzhenDate: 2020-09-14 Signature:
