2AOPD-UT56Rugged Smart Tablet

UT56 Quick Start Guide Function introduction 1 volumeMicro SDNano SIM 3.5mm Headset Type-c Hang rope hole Power Kensington Lock Docking Contact Pins Light Sensor Charging LED Camera LED Front Camera Mic F1 F2 F3 Rear cameraLED flash Air vent Speaker 2 Micro SD SIM INSERT/REMOVE SD/SIM Install or remove SD card as shown below Notice 1. Some special places, such as airports, hospitals, gas stations and other places, do not allow the use of electronic equipment. Please comply with the rules and do not use this product in these places. 2. For your safety and the safety of others, please do not use this product while driving a vehicle. 3. In order to avoid potential safety problems, do not put this product near the vehicle's airbag. 4. For your safety, please do not use this product during thunderstorms. 5. Although this product is waterproof, do not leave this product for long periods of time in areas with water or moisture. 6. This product has an operating temperature range of -10°C~+55°C and a storage temperature range of -40°C~+70°C. Extreme temperatures can affect the device's performance and service life. 7. Please use an original rechargeable lithium battery. Low-quality batteries will affect the performance and service life of the device, and may even have the danger of explosion. 8. Although the product has been tested to withstand harsh operating environments, do use the product in an improper manner. 9. Please do not disassemble this product. In case of failure, please send to our authorized service centres to proceed with repairs. 10. After the device has reached the end of its service life, please discard in a proper way to avoid environmental pollution. 11. When replacing the battery or during the use of an external power supply, shut down the device completely before removing the battery or disconnecting the external power supply to prevent damage. 12. This product is a Class B product, which may cause radio interference. The user may be required to take necessary preventive measures. Battery Instructions 1. This product uses a rechargeable lithium battery as a power source. When the power is low, please charge the battery. To maintain battery life, it is recommended to deplete the battery's power before charging. 2. When the battery charger is not in use, please remove it from the power supply. Do not connect the charger to the battery for more than one week. Excessive charging will shorten the battery life. 3. Temperature affects the battery charging limit. Therefore, the battery may need to be cooled or warmed up before charging. 4. Please use the battery for its original intended purpose to prevent short-circuiting the battery. A short circuit will occur when a conductive material connects the battery’s positive and negative terminals. 5. Do not use a battery that is damaged. 6. Placing the battery in extremely cold or hot places will lead to shortened battery life. Exposing the battery to extreme temperatures may cause the phone to malfunction, even if the battery is fully charged. 7. Do not put the battery in a fire. Please discard the battery in a proper manner or take the battery to a battery recycling station. Please dispose waste batteries in accordance with local laws and regulations. Importer : UniStrong APAC Pte Ltd 51 Ubi Ave 1 #01-22 Paya Ubi Industrial Park Singapore 408933 +65 62968238 Manufacturer : Shenzhen UniStrong Science & Technology Co.,Ltd. B Zone, No.4-4 Workshop Zhengcheng 2nd Road, Fuyong Street,Bao’an District, Shenzhen City, Guangdong Province, P.R. China NOTICE: The SAR limit of Europe is 2.0 W/kg. Device types UT56 has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification when properly worn on the body is 0.534W/kg This device was tested for typical body - worn operations with the back of the handset kept 0 cm from the body. To maintain compliance with RF exposure requirements, use accessories that maintain a 0 cm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with RF exposure requirements, and should be avoided. Hereby, [Shenzhen UniStrong Science & Technology Co.,Ltd.] declares that the radio equipment type [UT56] is in compliance with Directive 2014 / 53 /EU. The full text of the EU declaration of conformity is available at the following internet address: http:en.unistrong.com/declaration.html Notice This device is restricted to indoor use where operated in the European and USA.Canada Community using frequency in 5150MHz ~ 5250MHz to reduce the potential for interference. Restriction in BE, BG, CZ, DK,DE,EE,IE,EL,ES,FR,HR,IT,CY,LV,LT, LU,HU,MT,NL,AT,PL,PT,RO,SI,SK,FI,SE,UK. NOTICE: The SAR limit of FCC and ISED is 1.6 W/kg averaged over one gram of tissue. Device types UT56 ( FCC ID:2AOPD-UT56 and IC: 11546A-UT56 ) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use on the body is 1.041 W/kg. This device was tested for typical body -worn operations with the back of the handset kept 0 cm from the body. To maintain compliance with FCC and ISED RF exposure requirements, use accessories that maintain a 0 cm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic compo- nents in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC and ISED RF exposure requirements, and should be avoided. NOTICE: This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, inc…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (obsolete) 4.0 5.0 Sep-16-2014 Updated company name & logo (current) 5.0 6.0 Jun-27-2018 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 6.0 Shenzhen UniStrong Science & Technology Co.,Ltd. (2020-7-7) To: BVCPS, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ Shenzhen UniStrong Science & Technology Co.,Ltd._____ hereby authorize Bureau Veritas Consumer Product Services, Inc. to act as a Certification Body for certifying for the following project(s): FCC ID: 2AOPD-UT56 Product Description: Rugged android tablet Model: UT56 Sincerely, Name: LilyZheng Title: Compliance Manager Company Name: Shenzhen UniStrong Science & Technology Co.,Ltd. Address: B,4-4Factory, Zhengcheng Road, FuyongBaoan District, Shenzhen,China TEL: 021-54467182 FAX: 021-54467117 Email: [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (obsolete) 4.0 5.0 Nov-19-2015 Updated company logo (current) 5.0 6.0 Jun-26-2019 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 6.0 Shenzhen UniStrong Science & Technology Co.,Ltd. (2020-7-7) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AOPD-UT56 Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - Block Diagram - Schematics - Operational Description - Tune up Procedure - FCC Software Security Requirements for UNII devices Rev 2.1 - Bom List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Name: LilyZheng Title: Compliance Manager Company Name: Shenzhen UniStrong Science & Technology Co.,Ltd. Address: B,4-4Factory, Zhengcheng Road, FuyongBaoan District, Shenzhen,China TEL: 021-54467182 FAX: 021-54467117 Email: [email protected]

Shenzhen UniStrong Science & Technology Co.,Ltd. SCS-F190 WiFi Channel 12&13 Declaration Letter Page 1 of 2 WIFI Channel 12 and 13 Declaration Letter Reason for Amendment Revision History Approved Date From To Initial Release (current) 0.0 1.0 December 22, 2015 Modify the select options 1.0 2.0 Sep-23-2016 Shenzhen UniStrong Science & Technology Co.,Ltd. SCS-F190 WiFi Channel 12&13 Declaration Letter Page 2 of 2 WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2AOPD-UT56 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo-location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name: Lily Zheng Title: Compliance Manager Company Name: Shenzhen UniStrong Science & Technology Co.,Ltd. Address: B,4-4Factory, Zhengcheng Road, FuyongBaoan District, Shenzhen, China TEL: 021-54467182 FAX: 021-54467117 Email: [email protected]

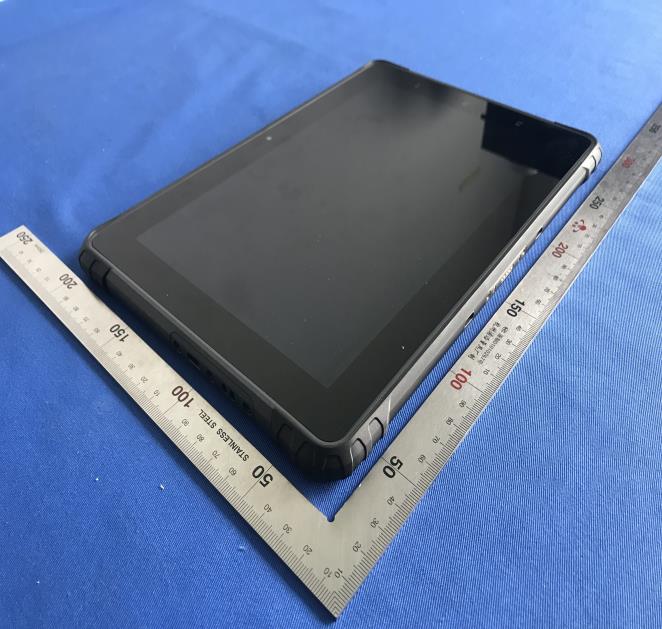

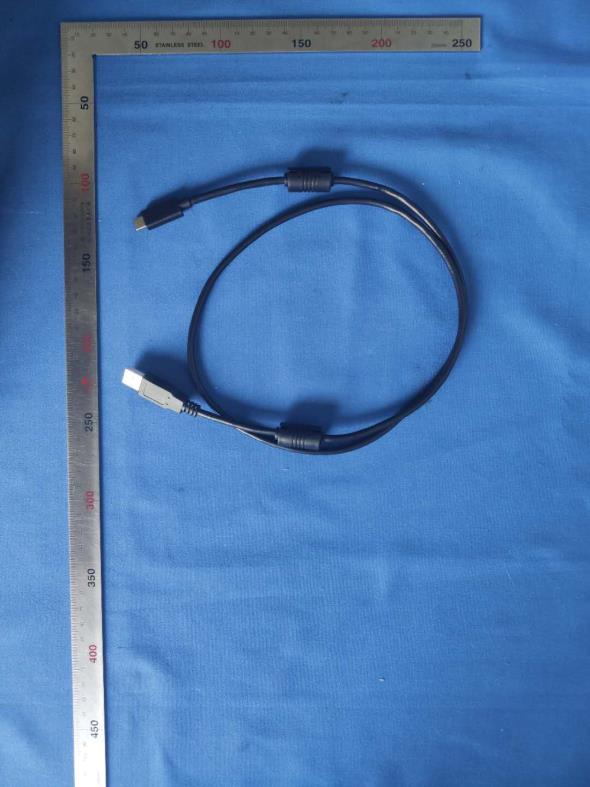

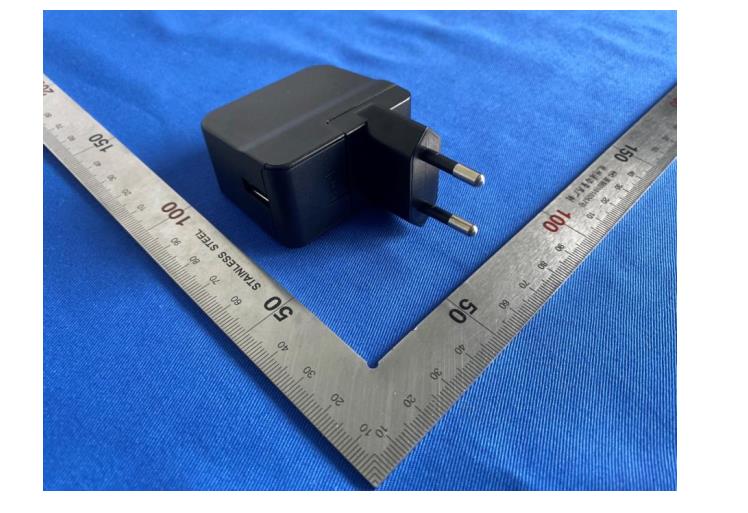

Front Side Back Side Accessories

Wifi BT antenna 234G TX antenna

TEST REPORT Report No.： SHE20040045-02SE Date： 2020-07-13 Page 1 of 90 Applicant : Shenzhen UniStrong Science & Technology Co.,Ltd. Address of Applicant : B,4-4Factory, Zhengcheng Road, Fuyong Baoan District, Shenzhen, China Product Name : Rugged android tablet Model No. : UT56 Sample No. : E20040045-01#03 Standards : FCC 47 CFR § 2.1093 IEEE Std1528-2013 ANSI C95.1-2005 RSS-102 Issue 5 March 2015 Date of Receipt : 2020-04-14 Date of Test : 2020-04-25~2020-05-26 Date of Issue : 2020-07-13 Remark: This report details the results of the testing carried out on one sample, the results contained in this report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. Prepared by： Reviewed by： Approved by： (Jennifer Zhou) (Jesse (Authorized signatory: Guoyou Chi) 0 TEST REPORT Report No.： SHE20040045-02SE Date： 2020-07-13 Page 2 of 90 Revision Record Version Date Revisions Revised By 1.0 2020-03-27 Original -- TEST REPORT Report No.： SHE20040045-02SE Date： 2020-07-13 Page 3 of 90 Contents 1 GENERAL INFORMATION ................................................................................................................................................... 5 1.1 TESTING LABORATORY ............................................................................................................................................................... 5 1.2 DETAILS OF APPLICATION .......................................................................................................................................................... 5 1.3 DETAILS OF EUT ........................................................................................................................................................................ 5 1.4 IDENTIFICATION OF AUXILIARY EQUIPMENT ............................................................................................................................... 6 1.5 THE HIGHEST REPORTED SAR VALUES ................................................................................................................................... 6 1.6 TEST METHODOLOGY ................................................................................................................................................................. 7 1.7 SAR LIMITS ................................................................................................................................................................................ 7 2 TEST ENVIRONMENT ........................................................................................................................................................... 9 2.1 ENVIRONMENTAL CONDITIONS ................................................................................................................................................... 9 2.2 EQUIPMENT LIST ........................................................................................................................................................................ 9 2.3 MEASUREMENT UNCERTAINTY................................................................................................................................................. 10 3 SAR MEASUREMENT SYSTEM ........................................................................................................................................ 12 3.1 DASY5 MEASUREMENT SERVER ............................................................................................................................................ 13 3.2 DATA ACQUISITION ELECTRONICS ........................................................................................................................................... 13 3.3 EX3DV4 E-FIELD PROBE ........................................................................................................................................................ 13 3.4 SAM PHANTOM ........................................................................................................................................................................ 14 3.5 DEVICE HOLDER FOR SAM TWIN PHANTOM ........................................................................................................................... 14 4 SAR MEASUREMENT PROCEDURES ............................................................................................................................ 16 4.1 POWER REFERENCE MEASUREMENT ...................................................................................................................................... 16 4.2 AREA SCAN PROCEDURES ....................................................................................................................................................... 16 4.3 ZOOM SCAN PROCEDURES ...................................................................................................................................................... 16 4.4 POWER DRIFT MEASUREMENT .................................................................................................................................................. 17 4.5 DEFINITION FOR BODY-WORN ACCESSORY CONFIGURATIONS .............................................................................................. 17 4.6 DEFINITION FOR WIRELESS ROUTER CONFIGURATIONS ......................................................................................................... 17 4.7 DIELECTRIC PROPERTY MEASUREMENTS ............................................................................................................................... 18 4.8 SAR SYSTEM VERIFICATION .................................................................................................................................................... 20 5 SAR MEASUREMENT PROCEDURE .................................................................................................…

Text truncated - open the document above for the full version.

Document number:SHE20040045-02FE EXHIBIT A- RADIATED SPURIOUS EMISSION DATA Note : Transmit frequency is ignore ,mark 30M-1G BLE-Horizontal-TX 英格尔 Test result Project Number: Certification Test Time: 2020-05-20_10.40.36 EUT Name: N.A Test Engineer: XCJ Manufacturer: N.A Test Standard: FCC Model: N.A Work Addition: normal Temp.(oC): 24.8 Load: full load Hum.: 52 Remark: DR-RSE01-E20040045-01#05 No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 48.910 26.15 -23.90 40.0 -13.85 Peak 211.90 100 Horizontal Pass 2 96.913 22.96 -26.76 43.5 -20.54 Peak 0.00 200 Horizontal Pass 3 238.621 27.73 -24.84 46.0 -18.27 Peak 0.00 108 Horizontal Pass 3* 238.621 26.13 -24.84 46.0 -19.87 QP 0.00 108 Horizontal Pass 4 432.207 32.09 -19.22 46.0 -13.91 Peak 0.00 200 Horizontal Pass 5 575.489 35.16 -16.04 46.0 -10.84 Peak 227.30 200 Horizontal Pass 6 915.631 41.22 -10.20 46.0 -4.78 Peak 0.00 200 Horizontal Pass Document number:SHE20040045-02FE BLE-Vertical-TX 英格尔 Test result Project Number: Certification Test Time: 2020-05-20_10.34.02 EUT Name: N.A Test Engineer: XCJ Manufacturer: N.A Test Standard: FCC Model: N.A Work Addition: normal Temp.(oC): 24.8 Load: full load Hum.: 52 Remark: DR-RSE01-E20040045-01#05 No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 51.200 28.59 -24.50 40.0 -11.41 Peak 297.60 100 Vertical Pass 1* 51.200 25.63 -24.50 40.0 -14.37 QP 297.60 100 Vertical Pass 2 63.699 27.99 -25.81 40.0 -12.01 Peak 360.00 200 Vertical Pass 3 118.248 24.06 -27.14 43.5 -19.44 Peak 360.00 200 Vertical Pass 4 238.498 27.28 -24.84 46.0 -18.72 Peak 100.40 100 Vertical Pass 5 431.480 31.63 -19.37 46.0 -14.37 Peak 360.00 200 Vertical Pass 6 576.697 25.15 -16.01 46.0 -20.85 Peak 185.00 156 Vertical Pass 6* 576.697 20.87 -16.01 46.0 -25.13 QP 185.00 156 Vertical Pass Document number:SHE20040045-02FE 1-18G BLE-Low channel-Horizontal-TX 英格尔 Test result Project Number: 验证测试 Test Time: 2020-06-28_11.01.38 EUT Name: N.A Test Engineer: Xiang Cheng Jie Manufacturer: N.A Test Standard: FCC Model: N.A Work Addition: Normal Temp.(oC): 24.5 Load: Full load Hum.: 56% Remark: DR-RSE01-E20040045-01#05 No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 1161.730 49.21 -4.49 74.0 -24.79 Peak 0.00 100 Horizontal Pass 1** 1161.730 37.60 -4.49 54.0 -16.40 AV 0.00 100 Horizontal Pass 2 1584.677 48.81 -5.20 74.0 -25.19 Peak 352.10 100 Horizontal Pass 2** 1584.677 37.33 -5.20 54.0 -16.67 AV 352.10 100 Horizontal Pass 3 1910.886 50.62 -3.02 74.0 -23.38 Peak 72.80 100 Horizontal Pass 3** 1910.886 39.54 -3.02 54.0 -14.46 AV 72.80 100 Horizontal Pass 4 2400.575 58.66 5.35 74.0 -15.34 Peak 248.50 100 Horizontal Pass 4** 2400.575 47.91 5.35 54.0 -6.09 AV 248.50 100 Horizontal Pass 5 2991.251 53.95 3.15 74.0 -20.05 Peak 0.00 100 Horizontal Pass 5** 2991.251 43.44 3.15 54.0 -10.56 AV 0.00 100 Horizontal Pass 6 4741.282 52.26 1.00 74.0 -21.74 Peak 125.00 100 Horizontal Pass 6** 4741.282 40.55 1.00 54.0 -13.45 AV 125.00 100 Horizontal Pass Document number:SHE20040045-02FE 英格尔 Test result Project Number: 验证测试 Test Time: 2020-06-28_11.31.58 EUT Name: N.A Test Engineer: Xiang Cheng Jie Manufacturer: N.A Test Standard: FCC Model: N.A Work Addition: Normal Temp.(oC): 24.5 Load: Full load Hum.: 56% Remark: DR-RSE01-E20040045-01#05 No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 32.182 33.86 -28.17 40.0 -6.14 Peak 278.80 100 Horizontal Pass 2 54.244 24.96 -25.41 40.0 -15.04 Peak 24.60 200 Horizontal Pass 3 102.732 23.46 -26.78 43.5 -20.04 Peak 109.50 100 Horizontal Pass 4 157.523 26.82 -27.73 43.5 -16.68 Peak 241.30 200 Horizontal Pass 5 203.344 27.33 -26.53 43.5 -16.17 Peak 270.60 100 Horizontal Pass 6 454.269 31.53 -19.39 46.0 -14.47 Peak 360.00 200 Horizontal Pass BLE-Low channel-Vertical-TX Document number:SHE20040045-02FE 英格尔 Test result Project Number: 验证测试 Test Time: 2020-06-28_10.46.35 EUT Name: N.A Test Engineer: Xiang Cheng Jie Manufacturer: N.A Test Standard: CE Model: N.A Work Addition: Normal Temp.(oC): 24.5 Load: Full load Hum.: 56% Remark: DR-RSE01-E20040045-01#05 No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 1110.236 48.75 -3.88 74.0 -25.25 Peak 11.10 100 Vertical Pass 1** 1110.236 37.62 -3.88 54.0 -16.38 AV 11.10 100 Vertical Pass 2 1290.714 49.34 -4.31 74.0 -24.66 Peak 53.50 100 Vertical Pass 2** 1290.714 38.09 -4.31 54.0 -15.91 AV 53.50 100 Vertical Pass 3 1607.924 48.53 -5.12 74.0 -25.47 Peak 351.70 100 Vertical Pass 3** 1607.924 37.19 -5.12 54.0 -16.81 AV 351.70 100 Vertical Pass 4 2402.075 59.03 5.29 74.0 -14.97 Peak 34.90 100 Vertical Pass 4** 2402.075 47.89 5.29 54.0 -6.11 AV 34.90 100 Vertical Pass 5 2956.255 55.03 2.35 74.0 -18.97 Peak 153.40 100 Vertical Pass 5** 2956.255 42.39 2.35 54.0 -11.61 AV 153.40 100 Vertical Pass 6 4160.355 50.77 -0.04 74.0 -23.23 Peak 56.10 100 Vertical Pass 6** 4160.355 39.42 -0.04 54.0 -14.58 AV 56.10 100 Vertical Pass Document number:SHE20040045-02FE 英格尔 Test result Project Number: 验证测试 Test Time: 2020-06-28_11.23.12 EUT Name: N.A Test Engineer: Xiang Cheng Jie Manufacturer: N.A Test Standard: FCC Model: N.A Work Addition: Normal Temp.(oC): 24.5 Load: Full load Hum.: 56% Remark: DR-RSE01-E20040045-01#05 No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 35.576 34.31 -26.85 40.0 -5.69 Peak 111.20 100 Vertical Pass 2 48.668 37.08 -23.83 40.0 -2.92 Peak 111.20 100 Vertical Pass 3 119.945 22.71 -27.10 43.5 -20.79 Peak 133.20 100 Vertical Pass 4 156.068 30.81 -27.43 43.5 -12.69 Peak 164.40 100 Vertical Pass 5 242.134 25.70 -24.96 46.0 -20.30 Peak 1.20 100 Vertical Pass 6 375.961 28.49 -21.55 46.0 -17.51 Peak …

Text truncated - open the document above for the full version.

Document number ：SHE20040045-02GE EXHIBIT A- RADIATED SPURIOUS EMISSION DATA report number :SHE20040045-01GE Note : Transmit frequency is ignore ,mark 30M-1G WIFI2.4G- Horizontal-TX 英格尔 Test result Project Number: Certification Test Time: 2020-05-20_11.49.03 EUT Name: N.A Test Engineer: XCJ Manufacturer: N.A Test Standard: FCC Model: N.A Work Addition: normal Temp.(oC): 24.8 Load: full load Hum.: 52 Remark: DR-RSE01-E20040045-01#05 No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 47.941 25.29 -23.67 40.0 -14.71 Peak 18.20 200 Horizontal Pass 2 98.610 23.89 -26.64 43.5 -19.61 Peak 271.10 200 Horizontal Pass 3 157.523 23.02 -27.73 43.5 -20.48 Peak 359.80 100 Horizontal Pass 4 210.375 27.23 -25.77 43.5 -16.27 Peak 64.10 100 Horizontal Pass 5 243.180 26.94 -25.21 46.0 -19.06 Peak 173.90 108 Horizontal Pass 5* 243.180 25.44 -25.21 46.0 -20.56 QP 173.90 108 Horizontal Pass 6 798.775 38.94 -11.77 46.0 -7.06 Peak 306.00 200 Horizontal Pass Document number ：SHE20040045-02GE WIFI2.4G-Vertical-TX 英格尔 Test result Project Number: Certification Test Time: 2020-05-20_12.26.00 EUT Name: N.A Test Engineer: XCJ Manufacturer: N.A Test Standard: FCC Model: N.A Work Addition: normal Temp.(oC): 24.8 Load: full load Hum.: 52 Remark: DR-RSE01-E20040045-01#05 No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 47.999 27.56 -23.67 40.0 -12.44 Peak 242.90 108 Vertical Pass 1* 47.999 24.83 -23.67 40.0 -15.17 QP 242.90 108 Vertical Pass 2 56.447 28.47 -25.52 40.0 -11.53 Peak 106.70 100 Vertical Pass 2* 56.447 24.84 -25.52 40.0 -15.16 QP 106.70 100 Vertical Pass 3 97.398 24.18 -26.72 43.5 -19.32 Peak 360.00 200 Vertical Pass 4 243.104 26.25 -25.21 46.0 -19.75 Peak 31.60 100 Vertical Pass 5 456.693 31.79 -19.29 46.0 -14.21 Peak 115.70 100 Vertical Pass 6 799.745 39.02 -12.21 46.0 -6.98 Peak 221.00 100 Vertical Pass Document number ：SHE20040045-02GE 1-18G WIFI2.4G-B- Low channel-Horizontal-TX 英格尔 Test result Project Number: Certification Test Time: 2020-05-06_13.09.33 EUT Name: N.A Test Engineer: XCJ Manufacturer: N.A Test Standard: FCC Model: N.A Work Addition: normal Temp.(oC): 24.8 Load: full load Hum.: 52 Remark: DR-RSE01-E20040045-01#05 No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 1459.693 49.09 -5.44 74.0 -24.91 Peak 105.30 100 Horizontal Pass 1** 1459.693 37.04 -5.44 54.0 -16.96 AV 105.30 100 Horizontal Pass 2 2032.371 51.75 -1.53 74.0 -22.25 Peak 260.10 100 Horizontal Pass 2** 2032.371 41.16 -1.53 54.0 -12.84 AV 260.10 100 Horizontal Pass 3 2209.599 53.23 -0.03 74.0 -20.77 Peak 353.80 100 Horizontal Pass 3** 2209.599 42.70 -0.03 54.0 -11.30 AV 353.80 100 Horizontal Pass 4 2402.325 58.22 5.28 74.0 -15.78 Peak 217.60 100 Horizontal Pass 4** 2402.325 47.76 5.28 54.0 -6.24 AV 217.60 100 Horizontal Pass 5 2976.503 54.15 2.82 74.0 -19.85 Peak 199.00 100 Horizontal Pass 5** 2976.503 43.05 2.82 54.0 -10.95 AV 199.00 100 Horizontal Pass 6 4823.772 55.59 1.11 74.0 -18.41 Peak 115.90 100 Horizontal Pass 6** 4823.772 50.57 1.11 54.0 -3.43 AV 115.90 100 Horizontal Pass Document number ：SHE20040045-02GE 英格尔 Test result Project Number: Certification Test Time: 2020-05-06_14.01.03 EUT Name: N.A Test Engineer: XCJ Manufacturer: N.A Test Standard: FCC Model: N.A Work Addition: normal Temp.(oC): 24.8 Load: full load Hum.: 52 Remark: DR-RSE01-E20040045-01#05 No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 8844.789 37.90 7.48 74.0 -36.10 Peak 85.30 100 Horizontal Pass 1** 8844.789 28.15 7.48 54.0 -25.85 AV 85.30 100 Horizontal Pass 2 9345.164 40.18 9.75 74.0 -33.82 Peak 70.80 100 Horizontal Pass 2** 9345.164 29.14 9.75 54.0 -24.86 AV 70.80 100 Horizontal Pass 3 10219.445 40.87 10.58 74.0 -33.13 Peak 281.30 100 Horizontal Pass 3** 10219.445 30.55 10.58 54.0 -23.45 AV 281.30 100 Horizontal Pass 4 11154.211 43.39 10.82 74.0 -30.61 Peak 267.50 100 Horizontal Pass 4** 11154.211 32.77 10.82 54.0 -21.23 AV 267.50 100 Horizontal Pass 5 11638.090 42.96 10.98 74.0 -31.04 Peak 240.40 100 Horizontal Pass 5** 11638.090 32.81 10.98 54.0 -21.19 AV 240.40 100 Horizontal Pass 6 14502.874 50.25 17.09 74.0 -23.75 Peak 66.30 100 Horizontal Pass 6** 14502.874 40.20 17.09 54.0 -13.80 AV 66.30 100 Horizontal Pass Document number ：SHE20040045-02GE WIFI2.4G-B-Low channel-Vertical-TX 英格尔 Test result Project Number: Certification Test Time: 2020-05-06_09.54.46 EUT Name: N.A Test Engineer: XCJ Manufacturer: N.A Test Standard: FCC Model: N.A Work Addition: normal Temp.(oC): 24.8 Load: full load Hum.: 52 Remark: DR-RSE01-E20040045-01#05 No. Frequency (MHz) Results (dBuV/m) Factor (dB) Limit (dBuV/m) Over Limit (dB) Detector Table (Degree) Height (cm) Antenna Verdict 1 1763.655 52.15 -5.14 74.0 -21.85 Peak 305.60 100 Vertical Pass 1** 1763.655 46.55 -5.14 54.0 -7.45 AV 305.60 100 Vertical Pass 2 2156.105 53.69 -0.71 74.0 -20.31 Peak 0.00 100 Vertical Pass 2** 2156.105 41.77 -0.71 54.0 -12.23 AV 0.00 100 Vertical Pass 3 2391.576 58.40 5.00 74.0 -15.60 Peak 360.00 100 Vertical Pass 3** 2391.576 47.44 5.00 54.0 -6.56 AV 360.00 100 Vertical Pass 4 2920.260 55.00 2.84 74.0 -19.00 Peak 2.30 100 Vertical Pass 4** 2920.260 43.36 2.84 54.0 -10.64 AV 2.30 100 Vertical Pass 5 4823.772 52.60 1.11 74.0 -21.40 Peak 71.00 100 Vertical Pass 5** 4823.772 46.99 1.11 54.0 -7.01 AV 71.00 100 Vertical Pass 6 6719.035 57.21 5.86 74.0 -16.79 Peak 22.60 100 Vertical Pass 6** 6719.035 46.10 5.86 54.0 -7.90 AV 22.60 100 Vertical Pass Document number ：SHE20040045-02GE 英格尔 Test result Project Number: Certification Test Time: 2020-05-06_14.50.18 EUT Name: N.A Test Engineer: XCJ Manufacturer: N.A Test Standard: FCC Model: N.A Work Addition: normal Temp.(oC): 24.8 Load: full load Hum.: 52 Remark: DR-RSE01-E20040045-01#05 No. Frequency (MHz) Results (dBuV/m)…
