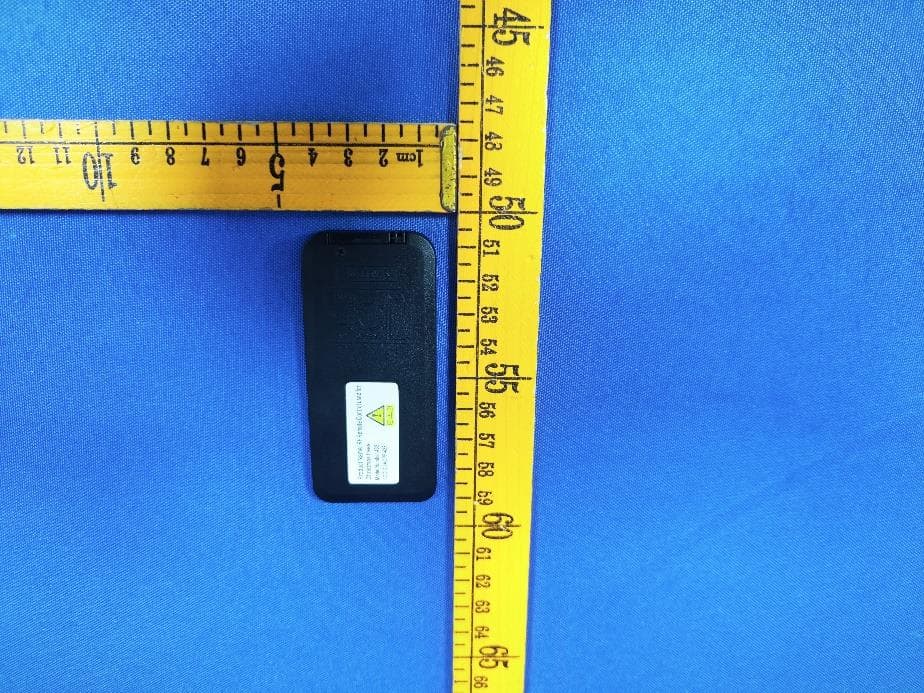

2AOPF-433-2RGBW remote control

RGBW 控制器功能说明 Automatically demonstrates seven modes in the blue area Seven colored waves RGB color Touch-1：White Touch-2：White Flash Touch-3：White Breathe (Reuse building) Touch-1:Colorful Touch-2:Colorful Twinkle Touch-3：RGB Random (Reuse building) RGB+W Touch-1： White Touch-2： Color Touch-3：White/Color Alternate Touch-4：White/Color Random (Reuse building) TIME： Touch-1: Controller lndicator Light Blue Brighting2H,Dormant 22H Touch-2：Controller lndicator Light Red Brighting 4H,Dormant 20H Touch-3：Controller lndicator Light Green Brighting 6H,Dormant 18H Touch-4：Controller lndicator Light White Brighting 8H,Dormant 16H Turn OFF the Christmas lights and timer after the OFF button。 Monochrome Flash/Two-color flash (Reuse building) Touch-1:Two-color twinkle Touch-2:Three-color twinkle Sync slow flash Sync jump Colorful slow flash Colorful jump 4 speed This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

FCC ID: 2AOPF-433-2 FCC ID: 2AOPF-433-2 FCC ID: 2AOPF-433-2

FCC ID: 2AOPF-433-2 FCC ID: 2AOPF-433-2 FCC ID: 2AOPF-433-2 FCC ID: 2AOPF-433-2 ANT

Page 1 of 3 RF EXPOSURE EVALUATION FCC ID: 2AOPF-433-2 Product Name : RF Remote Control used for Model Name : 433-2 Operating frequency : 433.85MHz Numbers of Channel : 1 channels For SRD Antenna Type : PCB Antenna Antenna Gain : 0dBi Type of Modulation : ASK Power supply : Li-ion Battery : DC 3V Hardware Version : N/A Software Version : N/A Page 2 of 3 Standard Requirement According to § 15.247(i) and § 1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See KDB 447498 D01 General RF Exposure Guidance v06, section 4. 3. 1. The 1-g and 10-g SAR test exclusion thresholds for 100MHz to 6GHz at test separation distances ≤ 50mm are determined by: [ (max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]*[ √f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g SAR extremity SAR, where ⚫ f(GHz) is the RF channel transmit frequency in GHz ⚫ Power and distance are rounded to the nearest mW and mm before calculation ⚫ The result is rounded to one decimal place for comparison. The test exclusions are applicable only when the minimum test separation distance is ≤ 50mm and for transmission frequencies between 100MHz and 6GHz. When the minimum test separation distance is <5mm, a distance of 5mm is applied to determine SAR test exclusion. Routine SAR evaluation refers to that specifically required by § 2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to quality for TCB approval. Page 3 of 3 RF Output power Freq. (MHz) Field strength(max)(dBuV/m) EIRP (max) (dBm) 433.92 84.53 -10.67 Note: EIRP=E-104.8+20logD, Where E is the electric field strength in dBμV/m. EIRP is the equivalent isotropically radiated power in dBm. d is the specified measurement distance in m. where D=3, EIRP=E-95.2. Channel (MHz) Maximum output power (dBm) Tune up tolerance (dBm) Max Tune Up Power (mW) Distance (mm) Calculation results Limit Operating Mode 433.85 -10.67 -10.67 ± 1 0.107895 5 0.014213 3 SRD According to KDB 447498, no stand-alone required for BT antenna, and no simultaneous SAR measurement is required. Signature Ronnie Liu Manager Date: 2023-12-11

Remote control antenna specification 433M antenna, Material: Copper Antenna size: This is the onboard antenna, 28mm wide and 65mm longAntenna Gain: 0 dBi Manufacture's name: SHENZHEN XINDAJING ELECTRONICS CO., LTD Address: 2F, Xingyongfeng industrial park, NO.49 Yangtaishan road,Liguang community,Shiyan street,Baoan District,Shenzhen Thickness: 1mm

FCC TEST REPORT FCC ID: 2AOPF-433-2 Product : RGBW remote control Model Name : 433-2 Brand : N/A Report No. : PTC23112200401E-FC01 Prepared for Terry Electronics Technology Company Limited 2/F, Building D, Dingfeng Technology Park, Shuitian Community, Shiyan Town,Baoan District,Shenzhen,Guangdong Prepared by Precise Testing & Certification Co., Ltd Building 1, No. 6, Tongxin Road, Dongcheng Street, Dongguan, Guangdong, China Report No.: PTC23112200401E-FC01 Page 2 of 32 1. TEST RESULT CERTIFICATION Applicant’s name : Terry Electronics Technology Company Limited Address : 2/F, Building D, Dingfeng Technology Park, Shuitian Community, Shiyan Town,Baoan District,Shenzhen,Guangdong Manufacture's name : SHENZHEN XINDAJING ELECTRONICS CO., LTD Address : 2F, Xingyongfeng industrial park, NO.49 Yangtaishan road,Liguang community,Shiyan street,Baoan District,Shenzhen Product : RGBW remote control Model : 433-2 Standards : FCC CFR47 Part 15 Section 15.231 Test procedure : ANSI C63.10:2013 Test Date : Nov. 24, 2023 to Dec. 05, 2023 Date of Issue : Dec. 12, 2023 Test Result : Pass This device described above has been tested by PTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of PTC, this document may be altered or revised by PTC, personal only, and shall be noted in the revision of the document. Test Engineer: Jack zhou / Engineer Technical Manager: Simon Pu / Manager Report No.: PTC23112200401E-FC01 Page 3 of 32 Contents Page 2 TEST SUMMARY ........................................................................................................................................ 4 3 GENERAL INFORMATION ....................................................................................................................... 5 3.1 GENERAL DESCRIPTION OF E.U.T. .................................................................................................... 5 3.2 TEST MODE ........................................................................................................................................ 5 3.3 TEST SITE ........................................................................................................................................... 5 4 EQUIPMENT DURING TEST .................................................................................................................... 6 4.1 EQUIPMENTS LIST ............................................................................................................................... 6 4.2 MEASUREMENT UNCERTAINTY ........................................................................................................... 6 5 CONDUCTED EMISSION .......................................................................................................................... 7 5.1 E.U.T. OPERATION ............................................................................................................................. 7 5.2 EUT SETUP ........................................................................................................................................ 7 5.3 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 8 5.4 MEASUREMENT PROCEDURE ............................................................................................................. 8 5.5 CONDUCTED EMISSION LIMIT ............................................................................................................. 8 5.6 MEASUREMENT DESCRIPTION ............................................................................................................ 8 5.7 CONDUCTED EMISSION TEST RESULT ............................................................................................... 8 6 PERIODIC OPERATION ............................................................................................................................ 9 7 RADIATED SPURIOUS EMISSIONS .................................................................................................... 13 8 TEST REQUIREMENT:........................................................................................................................... 13 8.1 EUT OPERATION .............................................................................................................................. 14 8.2 TEST SETUP ...................................................................................................................................... 15 8.3 SPECTRUM ANALYZER SETUP .......................................................................................................... 16 8.4 TEST PROCEDURE ............................................................................................................................ 17 8.5 SUMMARY OF TEST RESULTS........................................................................................................... 18 9 20DB BANDWIDTH MEASUREMENT.................................................................................................. 19 9.1 TEST PROCEDURE ............................................................................................................................ 22 9.2 TEST RESULT .................................................................................................................................... 23 10 ANTENNA REQUIREMENT .................................................................................................................... 24 11 TEST SETUP ............................................................................................................................................. 25 12 EUT PHOTOS ............................................................................................................................................ 26 Report No.…

Text truncated - open the document above for the full version.

FCC ID: 2AOPF-433-2 Radiated Spurious Emissions From 30MHz-1000MHz Test frequency from Above 1GHz
