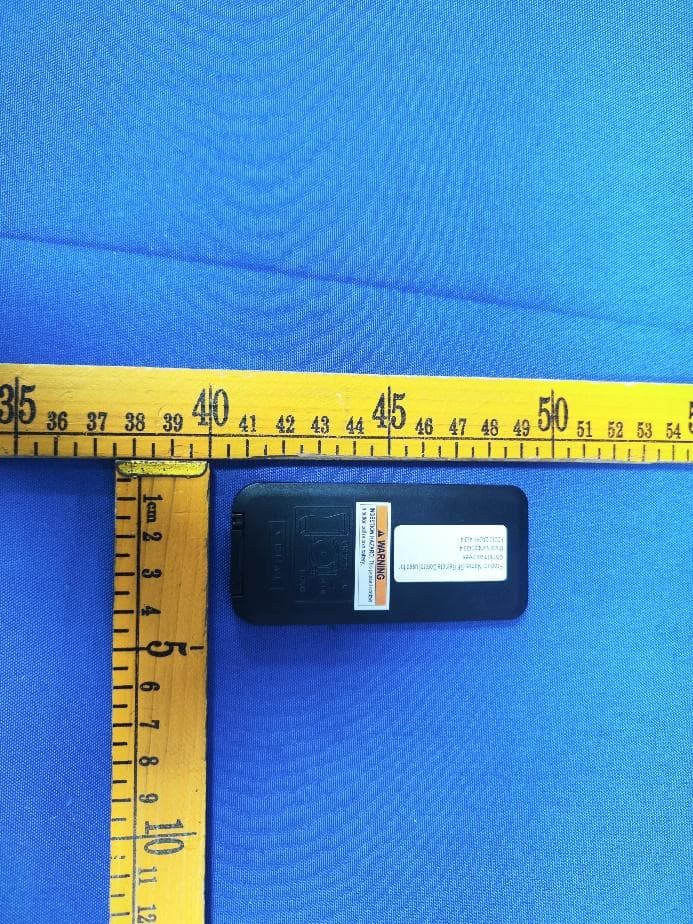

2AOPF-433-4RF Remote Control used for Christmas trees

1.Removethebatteryinsulation. 2.RedOFFkey：close 3.FNkey:autoswitchmode 4.GreenONkey:open 5.9Englishdescriptionsrepresent9modes (1).LightShow（Loopallfunctions） (2).Twinkling（5:1.Bubbleflashing） (3).WWSteady（Thewhitelightisalwayson） (4).WWFlash（Whitelightflashing） (5).WWSlowFade（Whitelightbreathingflickers） (6).MLTWWSteady（Thecolorlightisalwayson） (7).SlowColorVariable (8).SlowFadeMulti (9).FastFlip（FastFlipWarmWhitetoMulti） (10).SlowFlip（SlowFlipWarmWhitetoMulti） (11).SlowFade（SlowFadeWarmWhitetoMulti） 6.2Hkey:TimedChristmaslightsonfor2hours,offfor22hours,infinitecyclefor24hours 7.4Hkey:TimedChristmaslightsonfor4hours,offfor20hours,infinitecyclefor24hours 8.6Hkey:TimedChristmaslightsonfor6hours,offfor18hours,infinitecyclefor24hours 9.8Hkey:TimedChristmaslightsonfor8hours,offfor16hours,infinitecyclefor24hours FCCCaution. Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemust acceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation. AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser'sauthoritytooperatetheequipment. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovide reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedin accordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.If thisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe interferencebyoneormoreofthefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement.Thedevicecanbeusedinportableexposureconditionwithoutrestriction. FCCID:2AOPF-433-4 Model:433-4 ProductManual RFRemoteControlusedforChristmastrees ProductName:RFRemoteControlusedforChristmastrees ModelNo:433-4

FCCID:2AOPF-433-4 FCCID:2AOPF-433-4 FCCID:2AOPF-433-4

FCCID:2AOPF-433-4 FCCID:2AOPF-433-4 FCCID:2AOPF-433-4 FCCID:2AOPF-433-4 ANT

Page 1 of 3 RF EXPOSURE EVALUATION FCC ID: 2AOPF-433-4 Product Name : RF Remote Control used for Christmas trees Model Name : 433-4 Operating frequency : 434.02MHz Numbers of Channel : 1 channel For SRD Antenna Type : PCB Antenna Antenna Gain : 0dBi Type of Modulation : ASK Power supply : Li-ion Battery : DC 3V Hardware Version : N/A Software Version : N/A Page 2 of 3 Standard Requirement According to § 15.247(i) and § 1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See KDB 447498 D01 General RF Exposure Guidance v06, section 4. 3. 1. The 1-g and 10-g SAR test exclusion thresholds for 100MHz to 6GHz at test separation distances ≤ 50mm are determined by: [ (max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]*[ √f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g SAR extremity SAR, where ⚫ f(GHz) is the RF channel transmit frequency in GHz ⚫ Power and distance are rounded to the nearest mW and mm before calculation ⚫ The result is rounded to one decimal place for comparison. The test exclusions are applicable only when the minimum test separation distance is ≤ 50mm and for transmission frequencies between 100MHz and 6GHz. When the minimum test separation distance is <5mm, a distance of 5mm is applied to determine SAR test exclusion. Routine SAR evaluation refers to that specifically required by § 2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to quality for TCB approval. Page 3 of 3 RF Output power Freq. (MHz) Field strength(max)(dBuV/m) EIRP (max) (dBm) 434.02 84.68 -10.52 Note: EIRP=E-104.8+20logD, Where E is the electric field strength in dBμV/m. EIRP is the equivalent isotropically radiated power in dBm. d is the specified measurement distance in m. where D=3, EIRP=E-95.2. Channel (MHz) Maximum output power (dBm) Tune up tolerance (dBm) Max Tune Up Power (mW) Distance (mm) Calculation results Limit Operating Mode 434.02 -10.52 -10.52 ± 1 0.111686 5 0.014716 3 SRD According to KDB 447498, no stand-alone required for SRD antenna, and no simultaneous SAR measurement is required. Signature Simon Pu Manager Date: 2024-03-06

Remote control antenna specification 433M antenna, Material: Copper Antenna size: This is the onboard antenna, 28mm wide and 65mm longAntenna Gain: 0 dBi Manufacture's name: SHENZHEN XINDAJING ELECTRONICS CO., LTD Address: 2F, Xingyongfeng industrial park, NO.49 Yangtaishan road,Liguang community,Shiyan street,Baoan District,Shenzhen Thickness: 1mm

FCCTESTREPORT FCCID:2AOPF-433-4 Product: RFRemoteControlusedforChristmastrees ModelName: 433-4 Brand: N/A ReportNo.: PTC24022112101E-FC01 Preparedfor TerryElectronicsTechnologyCompanyLimited 2/F,BuildingD,DingfengTechnologyPark,ChangchengRoad,ShuitianCommunity, Shiyan,Baoan,Shenzhen,China Preparedby PreciseTesting&CertificationCo.,Ltd Building1,No.6,TongxinRoad,DongchengStreet,Dongguan,Guangdong,China ReportNo.:PTC24022112101E-FC01 Page 2 of 32 1.TESTRESULTCERTIFICATION Applicant’sname:TerryElectronicsTechnologyCompanyLimited Address: 2/F,BuildingD,DingfengTechnologyPark,ChangchengRoad,Shuitian Community,Shiyan,Baoan,Shenzhen,China Manufacture'sname:SHENZHENXINDAJINGELECTRONICSCO.,LTD Address:2F,Xingyongfengindustrialpark,NO.49Yangtaishanroad,Liguang community,Shiyanstreet,BaoanDistrict,Shenzhen Product:RFRemoteControlusedforChristmastrees Model:433-4 Standards :FCCCFR47Part15Section15.231 Testprocedure :ANSIC63.10:2013 TestDate: Feb.22,2024toMar.06,2024 DateofIssue: Mar.06,2024 TestResult :Pass ThisdevicedescribedabovehasbeentestedbyPTC,andthetestresultsshowthatthe equipmentundertest(EUT)isincompliancewiththeFCCrequirements.Anditisapplicable onlytothetestedsampleidentifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofPTC,this documentmaybealteredorrevisedbyPTC,personalonly,andshallbenotedintherevision ofthedocument. TestEngineer: Jackzhou/Engineer TechnicalManager: SimonPu/Manager ReportNo.:PTC24022112101E-FC01 Page 3 of 32 Contents Page 2TESTSUMMARY.........................................................................................................................................4 3GENERALINFORMATION........................................................................................................................5 3.1GENERALDESCRIPTIONOFE.U.T.....................................................................................................5 3.2TESTMODE.........................................................................................................................................5 3.3TESTSITE............................................................................................................................................5 4EQUIPMENTDURINGTEST.....................................................................................................................6 4.1EQUIPMENTSLIST...............................................................................................................................6 4.2MEASUREMENTUNCERTAINTY...........................................................................................................6 5CONDUCTEDEMISSION..........................................................................................................................7 5.1E.U.T.OPERATION.............................................................................................................................7 5.2EUTSETUP.........................................................................................................................................7 5.3TESTSET-UP(BLOCKDIAGRAMOFCONFIGURATION)...................................................................8 5.4MEASUREMENTPROCEDURE..............................................................................................................8 5.5CONDUCTEDEMISSIONLIMIT.............................................................................................................8 5.6MEASUREMENTDESCRIPTION............................................................................................................8 5.7CONDUCTEDEMISSIONTESTRESULT...............................................................................................8 6PERIODICOPERATION............................................................................................................................9 7RADIATEDSPURIOUSEMISSIONS.....................................................................................................13 8TESTREQUIREMENT:...........................................................................................................................13 8.1EUTOPERATION...............................................................................................................................14 8.2TESTSETUP......................................................................................................................................15 8.3SPECTRUMANALYZERSETUP..........................................................................................................16 8.4TESTPROCEDURE............................................................................................................................17 8.5SUMMARYOFTESTRESULTS...........................................................................................................18 920DBBANDWIDTHMEASUREMENT..................................................................................................19 9.1TESTPROCEDURE............................................................................................................................22 9.2TESTRESULT....................................................................................................................................23 10ANTENNAREQUIREMENT....................................................................................................................24 11TESTSETUP..............................................................................................................................................25 12EUTPHOTOS.............................................................................................................................................26 ReportNo.:PTC24022112101E-FC01 Page 4 of 32 2TestSummary TestItemsTestRequirementResult ConductedEmissions15.207N/A TransmissionCeaseTime15.231(a)PASS RadiatedEmission 15.209 15.205(a) PASS PeriodicOperation15.35(c)PASS OutsideofBandEmission 15.231(b) 15.205 15.209 PASS 20dBBandwidth 15…

Text truncated - open the document above for the full version.

FCCID:2AOPF-433-4 RadiatedSpuriousEmissions From30MHz-1000MHz Above1GHz
