NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Shenzhen Shengxingwang Precision Technology Co., Ltd Agent Authorization Company: Shenzhen Shengxingwang Precision Technology Co., Ltd Address: 5F, Building No.2, Xiaxue Technology Park, Bantian Street, Longgang District, Shenzhen, Guangdong Product Name: TouchBone Model Number(s): BC-8 Product Description: TouchBone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-08-04 Name: bruce ye Company: Shenzhen Shengxingwang Precision Technology Co., Ltd

Shenzhen shengxingwang Precision Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-07-29 Subject; Request for Confidentiality FCC ID: 2AOQK-BC8 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Shenzhen Shengxingwang Precision Technology Co., Ltd Contact person: bruce ye

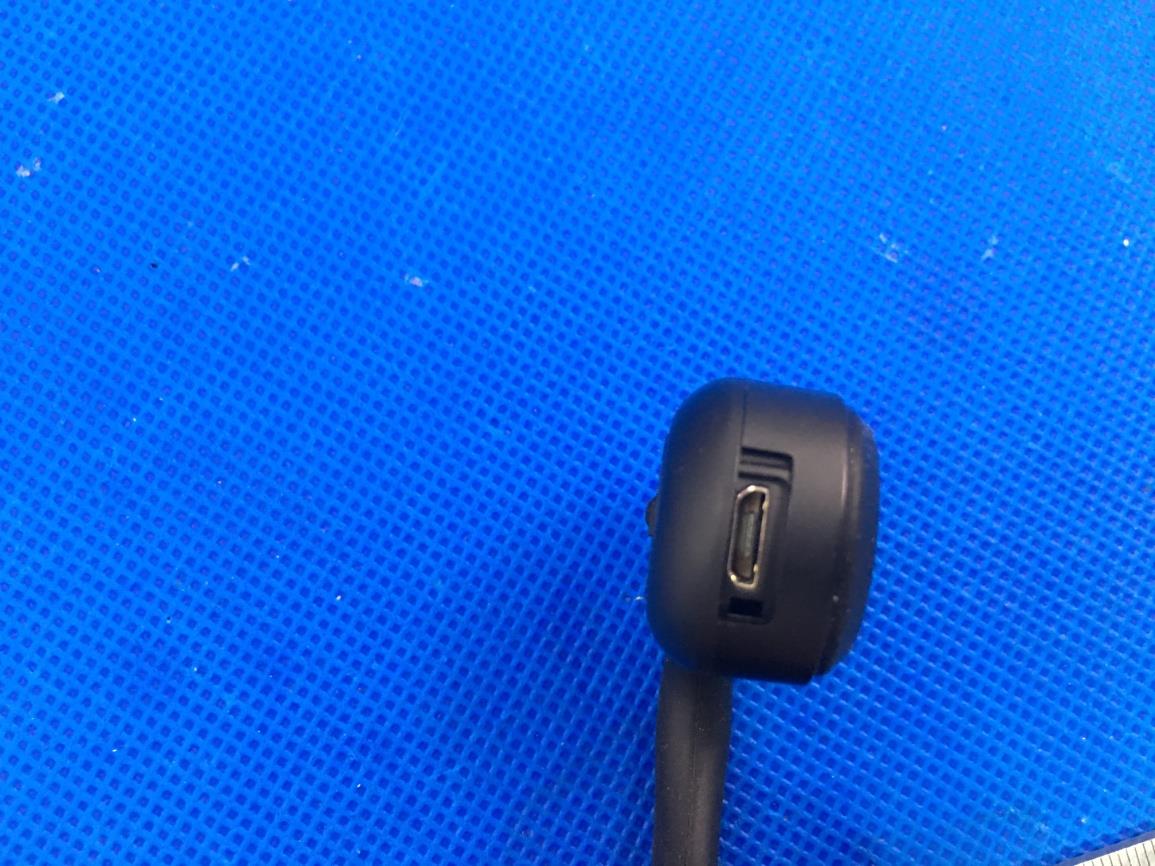

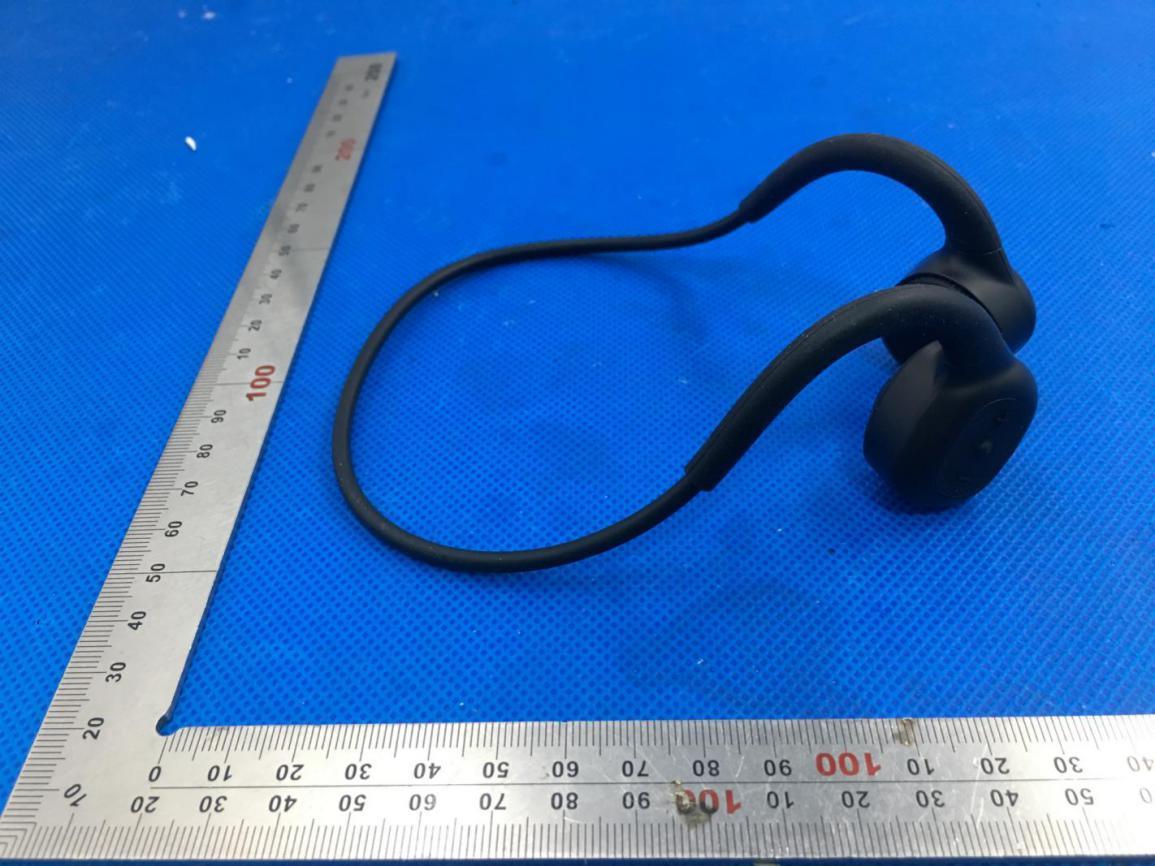

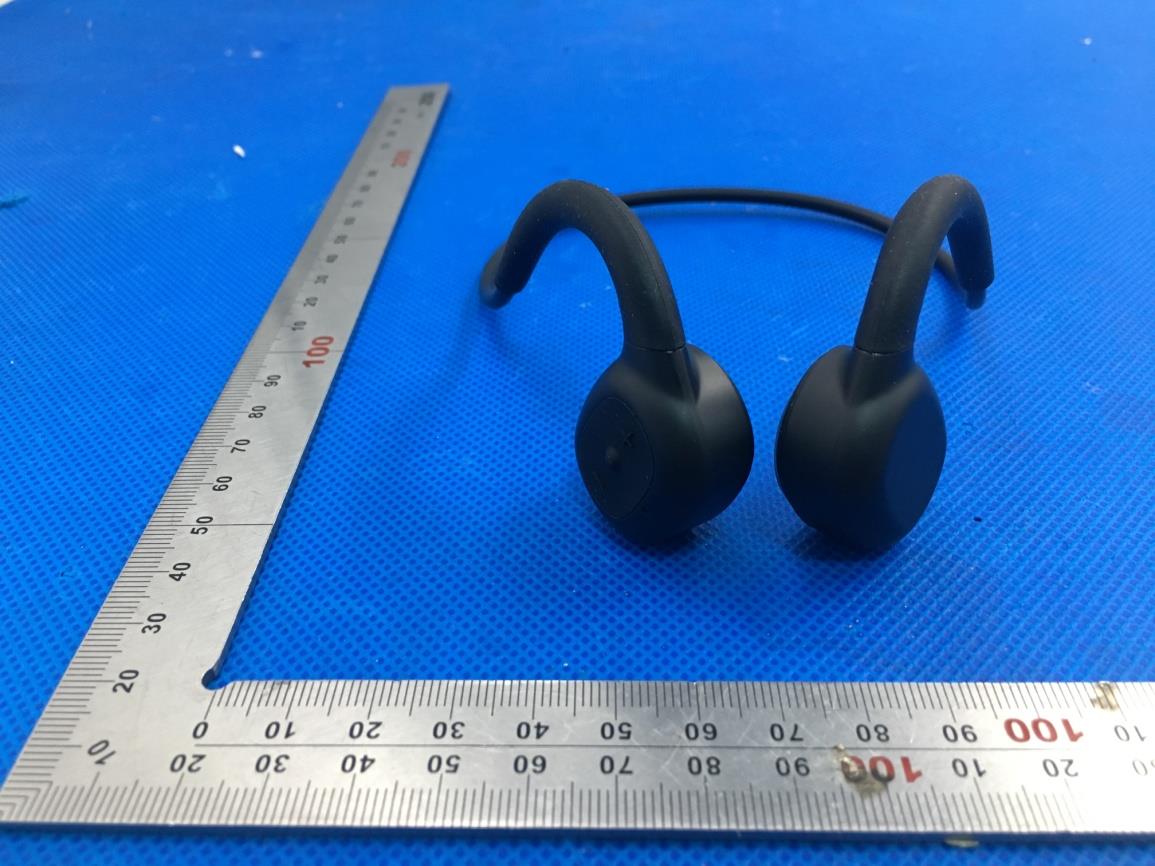

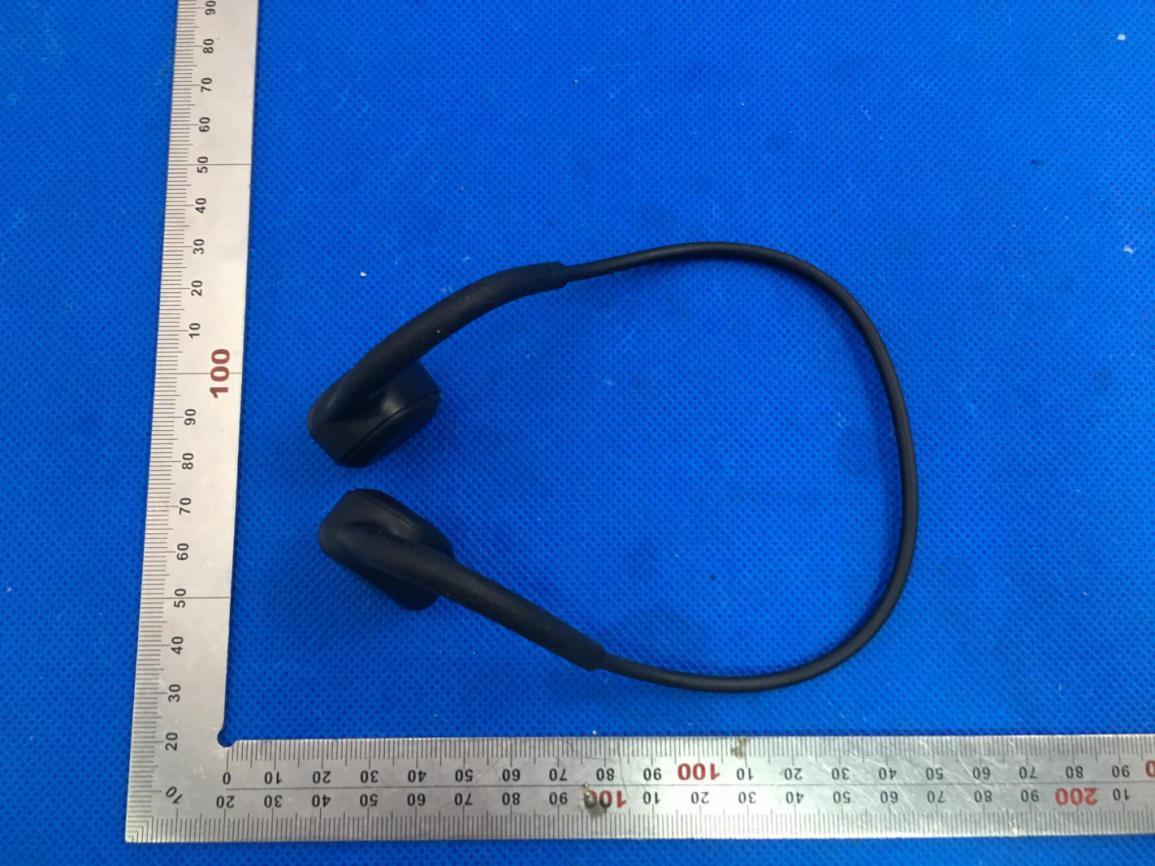

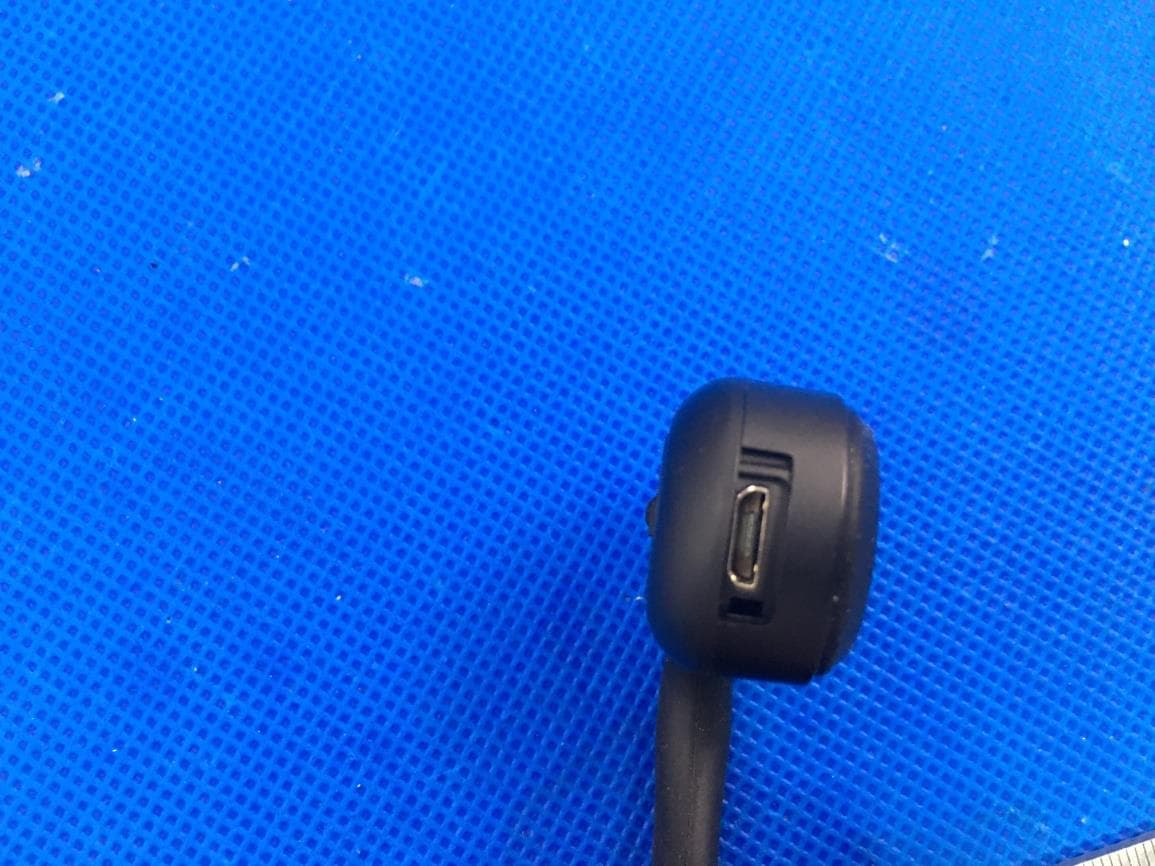

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)

FCC ID Label Location 5mm&8mm FCC ID: 2AOQK-BC8

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT Antenna VIEW OF EUT BATTERY

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description TouchBone Model Name BC-8 FCC ID 2AOQK-BC8 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t =-0.148dBm=0.97mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.97mW /5mm) .[√2.402(GHz)]= 0.30<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 66 FCC Test Report Report No.: AGC05814200704FE03 FCC ID : 2AOQK-BC8 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : TouchBone BRAND NAME : Earteana MODEL NAME : BC-8 APPLICANT : Shenzhen Shengxingwang Precision Technology Co., Ltd DATE OF ISSUE : Aug. 10, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC05814200704FE03 Page 2 of 66 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Aug. 10, 2020 Valid Initial Release Report No.: AGC05814200704FE03 Page 3 of 66 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ................................................................................................................. 6 2.2. TABLE OF CARRIER FREQUENCYS ................................................................................................ 6 2.3. RECEIVER INPUT BANDWIDTH ....................................................................................................... 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE .................................................................. 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) ............................................................................................. 8 2.7. TEST METHODOLOGY ...................................................................................................................... 8 2.8. SPECIAL ACCESSORIES .................................................................................................................. 8 2.9. EQUIPMENT MODIFICATIONS .......................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................... 10 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM ................................................................................................ 11 5.2 EQUIPMENT USED IN TESTED SYSTEM ......................................................................................... 11 5.3. SUMMARY OF TEST RESULTS ........................................................................................................ 11 6. TEST FACILITY ........................................................................................................................................... 12 7. ANTENNA REQUIREMENT ......................................................................................................................... 13 8. PEAK OUTPUT POWER ............................................................................................................................. 14 8.1. MEASUREMENT PROCEDURE ...................................................................................................... 14 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ............................................................. 14 8.3. LIMITS AND MEASUREMENT RESULT ........................................................................................... 15 9. 20DB BANDWIDTH ..................................................................................................................................... 21 9.1. MEASUREMENT PROCEDURE ...................................................................................................... 21 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ............................................................. 21 9.3. LIMITS AND MEASUREMENT RESULTS ........................................................................................ 22 10. CONDUCTED SPURIOUS EMISSION ...................................................................................................... 28 10.1. MEASUREMENT PROCEDURE .................................................................................................... 28 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ........................................................... 28 10.3. MEASUREMENT EQUIPMENT USED ........................................................................................... 28 10.4. LIMITS AND MEASUREMENT RESULT ......................................................................................... 28 11. RADIATED EMISSION ............................................................................................................................... 41 11.1. MEASUREMENT PROCEDURE ..................................................................................................... 41 11.2. TEST SETUP .................................................................................................................................. 43 Report No.: AGC05814200704FE03 Page 4 of 66 11.3. LIMITS AND MEASUREMENT RESULT ......................................................................................... 44 11.4. TEST RESULT ................................................................................................................................ 44 12. NUMBER OF HOPPING FREQUENCY ..................................................................................................... 54 12.1. MEASUREMENT PROCEDURE .................................................................................................... 54 12.2. TEST SETUP (BLOCK DIAGR…

Text truncated - open the document above for the full version.

Report No.: AGC05814200704FE03 Page 45 of 66 RADIATED EMISSION BELOW 1GHZ EUT TouchBone Model Name BC-8 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 4 Antenna Horizontal RESULT: PASS Report No.: AGC05814200704FE03 Page 46 of 66 EUT TouchBone Model Name BC-8 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 4 Antenna Vertical RESULT: PASS Note: 1. Factor=Antenna Factor + Cable loss, Margin=Measurement-Limit. 2. All test modes had been pre-tested. The mode 4 is the worst case and recorded in the report. Report No.: AGC05814200704FE03 Page 47 of 66 RADIATED EMISSION ABOVE 1GHZ EUT TouchBone Model Name BC-8 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4804.000 46.4274-27.58 peak 4804.000 38.254-15.8 AVG 7206.000 43.774-30.3 peak 7206.000 34.8554-19.15 AVG 46.340.08 38.120.08 41.492.21 32.642.21 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. EUT TouchBone Model Name BC-8 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4804.000 45.2774-28.73 peak 4804.000 36.2654-17.74 AVG 7206.000 41.9374-32.07 peak 7206.000 32.4754-21.53 AVG 45.190.08 36.180.08 39.722.21 30.262.21 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Report No.: AGC05814200704FE03 Page 48 of 66 EUT TouchBone Model Name BC-8 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 2 Antenna Horizontal FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4882.000 46.3374-27.67 peak 4882.000 38.1554-15.85 AVG 7323.000 44.1374-29.87 peak 7323.000 35.7454-18.26 AVG 46.190.14 38.010.14 41.772.36 33.382.36 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. EUT TouchBone Model Name BC-8 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 2 Antenna Vertical FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4882.000 47.0174-26.99 peak 4882.000 38.0554-15.95 AVG 7323.000 43.3974-30.61 peak 7323.000 34.9454-19.06 AVG 46.870.14 37.910.14 41.032.36 32.582.36 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Report No.: AGC05814200704FE03 Page 49 of 66 EUT TouchBone Model Name BC-8 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4960.000 46.4774-27.53 peak 4960.000 38.6654-15.34 AVG 7440.000 43.6174-30.39 peak 7440.000 34.7854-19.22 AVG 46.250.22 38.440.22 40.972.64 32.142.64 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. EUT TouchBone Model Name BC-8 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4960.000 45.8974-28.11 peak 4960.000 37.5354-16.47 AVG 7440.000 43.7174-30.29 peak 7440.000 35.9254-18.08 AVG 45.670.22 37.310.22 41.072.64 33.282.64 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. RESULT: PASS Note: Other emissions from 1G~25GHz are 20dB below the limits. No recording in the test report. Factor = Antenna Factor + Cable loss - Amplifier gain, Over=Measure-Limit. The “Factor” value can be calculated automatically by software of measurement system. All test modes had been tested. The GFSK modulation is the worst case and recorded in the report. Report No.: AGC05814200704FE03 Page 50 of 66 TEST RESULT FOR RESTRICTED BANDS REQUIREMENTS EUT TouchBone Model Name BC-8 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC05814200704FE03 Page 51 of 66 EUT TouchBone Model Name BC-8 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical PK AV RESULT: PASS Report No.: AGC05814200704FE03 Page 52 of 66 EUT TouchBone Model Name BC-8 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC05814200704FE03 Page 53 of 66 EUT TouchBone Model Name BC-8 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical PK AV RESULT: PASS Note: The factor had been edited in the “Input Correction” of the Spectrum Analyzer. The GFSK modulation is the worst case and recorded in the report. Report No.: AGC05814200704FE03 Page 54 of 66 12. NUMBER OF HOPPING FREQUENCY 12.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: The frequency band of operation. Depending on the number of channels the device supports, it may be necessary to divide the frequency range of operation across multiple spans, to allow the individual channels to be clearly seen. 2. RBW: To identify clearly the individual channels, set the RBW to less than 30% of the channel spacing or the 20 dB bandwidth, whichever is smaller. 3. VBW ≥ RBW. Sweep: Auto. Detector function: Peak. Trace: Max hold. 4. Allow the trace to stabilize. 12.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 8.2 12.3. MEASUREMENT EQUIPMENT USED The same as described in section 6 12.4. LIMITS AND MEASUREMENT RESULT TOTAL NO. OF HOPPING CHANNEL LIMIT (NO. OF CH) MEASUREMENT (NO. OF CH) RESULT >=15 79 PASS TEST PLOT FOR NO. OF TOTAL CHANNELS Note: …

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ
