i12 User Manual Wireless Earphones First Use Note Ensure the charging case and earbuds are full charged before you start to use. How to Wear Select the best fitting ear tip and then wear earphones. Make sure that it fits snugly and seamlessly inside your ear to get the best sound and Noise Canceling performance. Power On Option 1: Open lid to power on earbuds and wait LED of earbuds turn on blue and red light for 1s. Option 2: Keep pressing smart finger touch for 3s to power on, if the case is not at hand. Power Off 1、Put earbuds into charging case and close lid to power them off. 2、Keep pressing smart finger touch for 6s,It will power off without connection and operation of your phone. How to Connect For the first time pairing, take the earbuds out of case and search bluetooth “cheero Light Style” on your phone, and tap to connect. ( Earbuds will auto re-connect to the last time device in connectivity records). How to Reset If earbuds is not working properly, follow below steps to the Factory Setting. Step 1: Take earbuds out of charging case , then press 5 times till LED blue light flashes to clear pairing. Put earbuds into the case and close the lip. Step 2: Open the lip，take earbuds out of the case，earbuds will auto paired with each other successfully. How to Charge Earbuds: Put earbuds into charging case, close the lid and they will be charged automatically. Charging Case: Charging the case with included cable and your DC5V/1A adapter ( PC USB port or other DC5V also compatible). LED blue light will show up when charging status, a long blue light when fully charged. Functional Operation Music Press X1 : either earbud for Pause / Play. Press X2: the left earbud for previous song; the right earbud for next song. Incoming Call Press X1: either earbud to answer /end a call Long Press 2s: either earbud to reject a call. Mode Switch Press X3: right earbud to activate siri voice assistant. Press X3: left earbud to switch gaming mode/normal mode. Volume adjustment Long Press : the left earbud to reduce the volume (-); the right earbud to increase the volume (+). Specification Bluetooth version V5.2 Support profile A2DP/AVRCP/HFP/HSP Transmission distance 10M/32.8FT Frequency range 2402MHz~2480MHz Driver Ф12MM*2 Hi-Fi Speaker Voltage 3.7V Talking time About 5H Playing time About 5H Charging Time About 1H Earphone battery 35mAh Support system IOS/Android/Windows Certification CE/FCC/ROHS What’s in the packing box? Charging Case*1 piece Wireless Earbuds*1 pair Manual*1 piece USB-C Charging Cable*1 piece FAQ Q: Earbuds can not be charged? A: 1. Ensure the charging case is fully charged, then put earbuds into the charging case to charge. 2. Dry clean the charging points as there maybe dirty. Q: No sound from left or right earbud? A: Ensure two earbuds are paired successfully. You can follow the “ How to Reset” to pair the earbuds. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Manufacturer: Shenzhen Shengxingwang Precision Technology Co., Ltd Address: 8F，Building D，Zhenhan Industrial Park, Zhenhan Road, Jihua Street, Longgang District, Shenzhen, Guangdong FCC ID: 2AOQKI12

Shenzhen Shengxingwang Precision Technology Co., Ltd. Agent Authorization Company: Shenzhen Shengxingwang Precision Technology Co., Ltd. Address: 8F, Building D, Zhenhan Industrial Park, Zhenhan Road, Jihua Street, Longgang District, Shenzhen, Guangdong,China Product Name: Wireless Earphones Model Number(s): i12 Product Description: Wireless Earphones We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-02-23 Name: Bruce Ye Company: Shenzhen shengxingwang Precision Technology Co., Ltd.

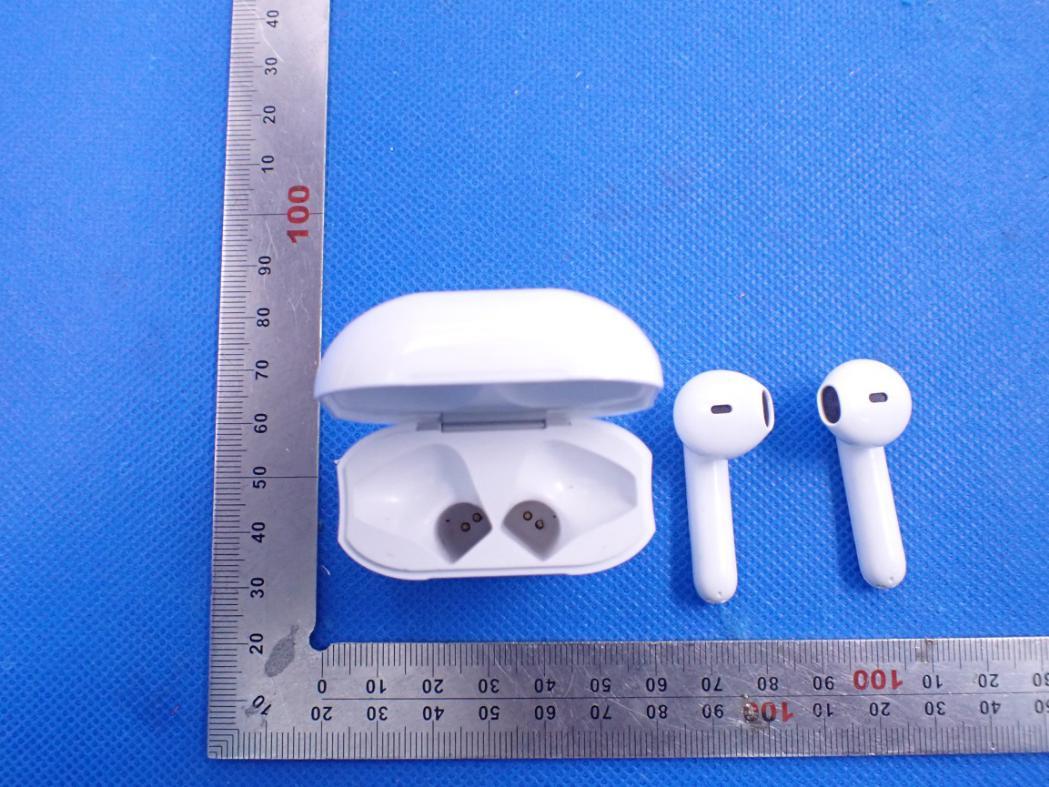

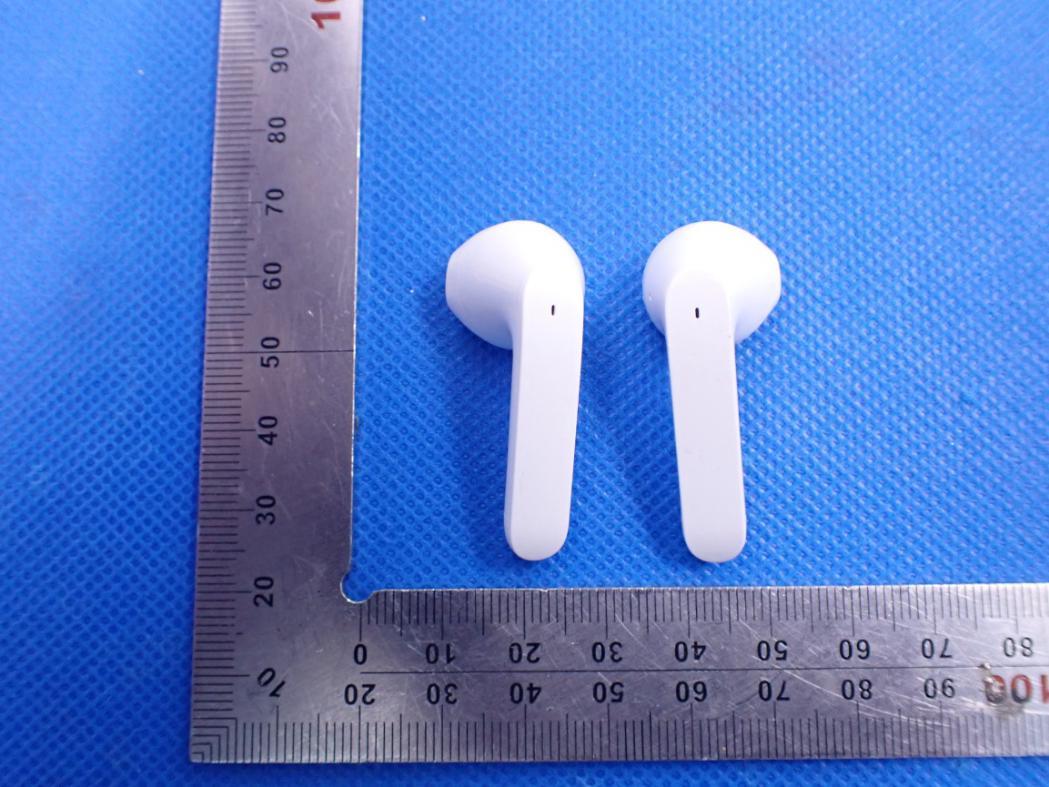

External Photos ALL VIEW-1 OF EUT EXTERNAL VIEW-1 OF EUT EXTERNAL VIEW-2 OF EUT EXTERNAL VIEW-3 OF EUT EXTERNAL VIEW-4 OF EUT EXTERNAL VIEW-5 OF EUT EXTERNAL VIEW-6 OF EUT

Label Location The product does not have enough space to place the label, and FCC ID label is reflected in the user manual and package, as below:

Internal Photos INTERNAL VIEW-1 OF EUT(Left earphone) INTERNAL VIEW-2 OF EUT(Left earphone) INTERNAL VIEW-3 OF EUT(Left earphone) INTERNAL VIEW-4 OF EUT(Left earphone) Antenna INTERNAL VIEW-5 OF EUT(Left earphone) INTERNAL VIEW-1 OF EUT(Right earphone) INTERNAL VIEW-2 OF EUT(Right earphone) INTERNAL VIEW-3 OF EUT(Right earphone) Antenna INTERNAL VIEW-4 OF EUT(Right earphone) INTERNAL VIEW-5 OF EUT(Right earphone)

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Wireless Earphones Model Name i12 FCC ID 2AOQKI12 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BR/EDR: P t = 3.472dBm=2.22mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(2.22mW /5mm) .[√2.402GHz)]=0.69<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 71 FCC Test Report Report No.: AGC05814210202FE03 FCC ID : 2AOQKI12 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Wireless Earphones BRAND NAME : N/A MODEL NAME : i12 APPLICANT : Shenzhen Shengxingwang Precision Technology Co., Ltd. DATE OF ISSUE : Feb. 22, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC05814210202FE03 Page 2 of 71 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Feb. 22, 2021 Valid Initial Release Report No.: AGC05814210202FE03 Page 3 of 71 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ..................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ............................................................................................................ 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ....................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ........................................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................. 8 2.7. TEST METHODOLOGY .......................................................................................................................... 8 2.8. SPECIAL ACCESSORIES ....................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS .............................................................................................................. 8 2.10. ANTENNA REQUIREMENT .................................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................... 10 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM .................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM ............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................. 11 6. TEST FACILITY ........................................................................................................................................... 12 7. PEAK OUTPUT POWER ............................................................................................................................. 13 7.1. MEASUREMENT PROCEDURE ........................................................................................................... 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 14 8. 20DB BANDWIDTH ..................................................................................................................................... 20 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 20 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 20 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 21 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 27 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 27 Report No.: AGC05814210202FE03 Page 4 of 71 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 27 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 27 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 27 10. RADIATED EMISSION ............................................................................................................................... 40 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 40 10.2. TEST SETUP ....................................................................................................................................... 42 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 43 10.4. TEST RESULT ..................................................................................................................................... 43 11. NUMBER OF HOPPING FREQUENCY ..................................................................................................... 53 11.1. MEASUREMENT PROCEDURE .....…
