2AOWK-3116Mobile Phone

1 GQ3116 User Guide 2 Contents I. CAUTIONS ON MOBILE PHONE USE ............................................................................................................... 4 1.1 INTERFERENCE ......................................................................................................................................... 4 1.2 REASONABLE USE .................................................................................................................................... 4 1.3 QUALIFIED MAINTENANCE SERVICE .......................................................................................................... 4 1.4 WATER-RESISTANCE ................................................................................................................................. 4 1.5 EMERGENCY CALLS .................................................................................................................................. 4 2 PRECAUTIONS FOR USE OF BATTERY ........................................................................................................... 4 3 CAUTIONS FOR CHILDREN ............................................................................................................................ 5 II. KEYS AND PARTS ........................................................................................................................................ 5 III. START TO USE ........................................................................................................................................... 5 3.1 TO INSERT SIM CARD(S): ......................................................................................................................... 5 3.2 CHARGE THE BATTERY ............................................................................................................................. 6 IV. BASIC FUNCTIONS ..................................................................................................................................... 6 1. LOCK AND UNLOCK THE SCREEN ................................................................................................................ 6 2. MAKE IT YOURS .......................................................................................................................................... 8 3. SWITCH TO RECENTLY USED APPLICATION .............................................................................................. 14 4. MAKE A CALL ........................................................................................................................................... 15 5. CALL LOG ................................................................................................................................................. 16 3 6. ANSWERING PHONE CALLS AND REJECTION ............................................................................................. 17 7. ADD A CONTACT ....................................................................................................................................... 18 8. SEND AND RECEIVE MESSAGE(S) ............................................................................................................. 19 9. BROWSER THE WEB ................................................................................................................................. 21 10. ENJOY MUSIC ......................................................................................................................................... 21 11. DOWNLOAD APPLICATIONS FROM PLAY STORE ...................................................................................... 22 12. MANAGE APPLICATIONS ......................................................................................................................... 23 13. APPLICATIONS & UTILITIES ............................................................................................................ 24 14. SETTINGS ............................................................................................................................................... 24 V. TECHNICAL INFORMATION........................................................................................... 错误！未定义书签。 4 I. Cautions on mobile phone use 1.1 Interference All phones may be interfered, which affect phone calls. 1.2 Reasonable use Use only in the normal position. Do not touch the antenna area unnecessarily. 1.3 Qualified maintenance service Only qualified personnel may install or repair this product. 1.4 Water-resistance Your device is non water-resistant. Keep it dry. 1.5 Emergency calls Ensure the phone is switched on and in service. Enter the emergency number and press the Dialer icon. 2 Precautions for use of battery 2.1 Do not dispose of batteries near or in a fire to avoid dangers. 2.2 Do not dispose of batteries in the garbage. Dispose of batteries to assigned battery recycling center. 5 3 Cautions for children Keep your device out the reach of children in case of accidental injury caused by incorrect use of the device as toys. II. Keys and parts  1. Audio jack  2. USB Connector  3. Front Camera  4. Receiver  5. Light sensor / Proximity sensor  6. LCD  7. Mic  8. Adjust volume key  9. Power key  10. Rear Camera  11. Flashlight  12. Speaker III. Start to use 3.1 To insert SIM card(S): Insert the SIM card correctly in the card slot(s) (See figure below), suggest switch off the phone when you insert SIM card. Insert the Micro SD card into the slot with the correct direction (See figure below), suggest switch 6 off the phone when you insert SIM card. Note: Use only compatible memory cards with this device. Incompatible memory cards may damage the card or the device and corrupt the data stored in the card. 3.2 Charge the battery During charging, the battery indicator on the phone is a thunder icon. If the device is switched off during charging, there will still be a charging indication on the screen that shows the phone is being charged. …

Text truncated - open the document above for the full version.

Shenzhen Gotron Electronic CO.,LTD. Family models difference declaration Mobile Phone Model: GQ3116, Armor 24, Armor 24 Pro, Armor 24 Ultra, Armor 24 Lite, Armor 24 Plus, Armor 24S, Armor 24P, Armor 24T, Armor 24E Difference declaration: All models are the same circuit and RF module, except the model name and colour. Regards, Signature Yongbin Tang/ Manager Date/City: 2023-09-18 / Shenzhen Phone: 0755-8389 5989 Fax: 0755-8389 5909 E-mail: [email protected]

(Shenzhen Gotron Electronic CO.,LTD.) (2023.09.18) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID:2AOWK-3116) [Shenzhen Gotron Electronic CO.,LTD.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, tangyongbin (Shenzhen Gotron Electronic CO.,LTD.) (2023.09.18) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2AOWK-3116) [Shenzhen Gotron Electronic CO.,LTD.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, tangyongbin

THREE STONES MEDIA LLC U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: 9/18/2023 Ref: Attestation Statement – Part2.911(d)(7) filing FCC ID：2AOWK-3116 Shenzhen Gotron Electronic CO.,LTD (“the applicant”) certifies that, as of the date of the filing of the application, THREE STONES MEDIA LLC(“the agent”) i s our designated U.S. agent for service of process for the abovereference FCC ID. The applicant accepts to maintain an agent for service of process in the United States forno less than one year after either the grantee has permanently terminated all marketing and importation of theapplicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicialproceeding involving the equipment, whichever is later. The applicant further acknowledges it is ourresponsibility to inform the FCC whenever the agent information changes. THREE STONES MEDIA LLC ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: THREE STONES MEDIA LLC FRN: 0033401761 GC: 2A99E Address: 1200 Broadway St. APT 329, Los Angeles, CA90015 Signature: Contact Person: Sijie Zhang Tel: +1 267 909 3692 Email: [email protected] Applicant Company Name: Shenzhen Gotron Electronic CO.,LTD Address: 7B01, Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Signature: Contact Person: Yongbin Tang Tel: +86-755-83895989 Email: [email protected]

Shenzhen Gotron Electronic CO.,LTD. Agent Authorization Letter 2023/9/18 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District, Shenzhen, Guangdong, China Alex.li [email protected] to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Yongbin Tang/ Manager Date/City: 2023/9/18 / Shenzhen Phone: 0755-8389 5989 Fax: 0755-8389 5909 E-mail: [email protected]

Shenzhen Gotron Electronic CO.,LTD. Long Term Confidentiality Request Letter (2023-09-18) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product: Mobile Phone Model: GQ3116, Armor 24, Armor 24 Pro, Armor 24 Ultra, Armor 24 Lite, Armor 24 Plus, Armor 24S, Armor 24P, Armor 24T, Armor 24E FCC ID: 2AOWK-3116 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the  Schematic Diagram  Block Diagram  Part List / BOM List / PCB Layout  Operational Description  Tune-up Procedure  FCC Software Configuration Control Declaration  FCC Software Security Requirements for UNII devices Required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Please contact me if there is any information you may need. Sincerely, Yongbin Tang / Manager Date/City: 2023-09-18 / Shenzhen Phone: 0755-8389 5989 Fax: 0755-8389 5909 E-mail: [email protected]

Shenzhen Gotron Electronic CO.,LTD. Short Term Confidentiality Request Letter (2023-09-18) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request For Product: Mobile Phone Model: GQ3116, Armor 24, Armor 24 Pro, Armor 24 Ultra, Armor 24 Lite, Armor 24 Plus, Armor 24S, Armor 24P, Armor 24T, Armor 24E FCC ID: 2AOWK-3116 To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, < Shenzhen Gotron Electronic CO.,LTD. >. requests short-term Confidentiality of following sections of this application for a period of 180 days after grant is issued. Test setup photos Internal photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which < Shenzhen Gotron Electronic CO.,LTD. > considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, < Shenzhen Gotron Electronic CO.,LTD. > feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Yongbin T ang / Manager Date/City: 2023-09-18 / Shenzhen Phone: 0755-8389 5989 Fax: 0755-8389 5909 E-mail:[email protected]

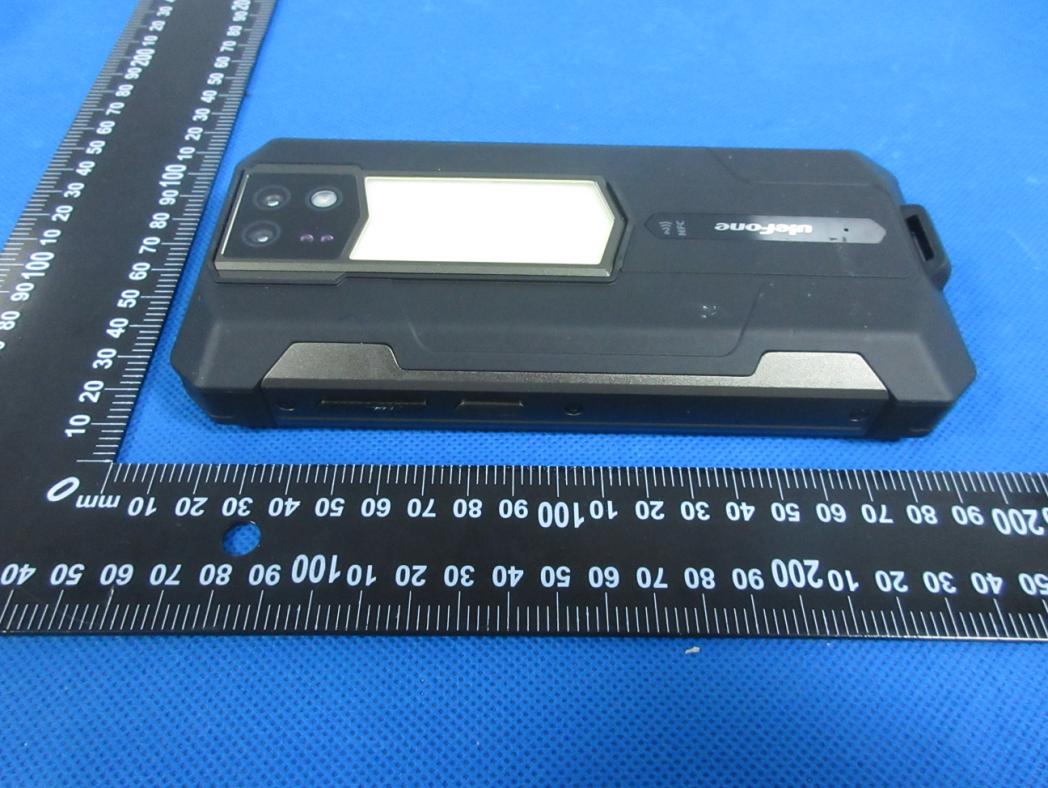

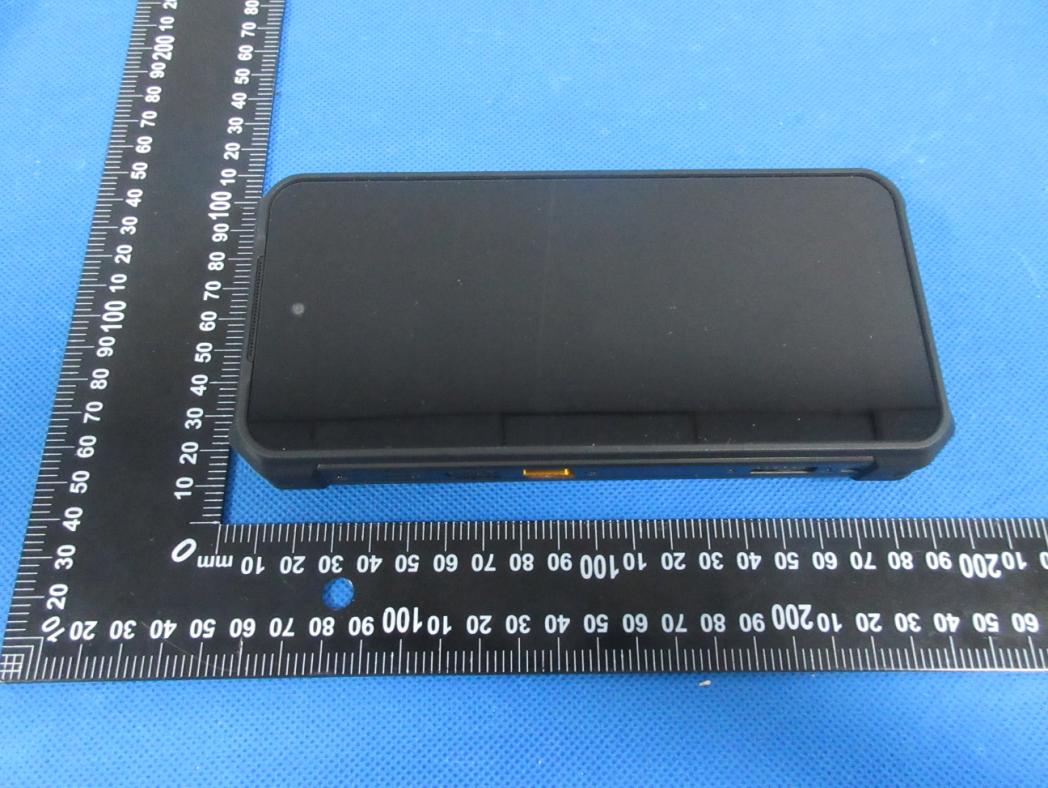

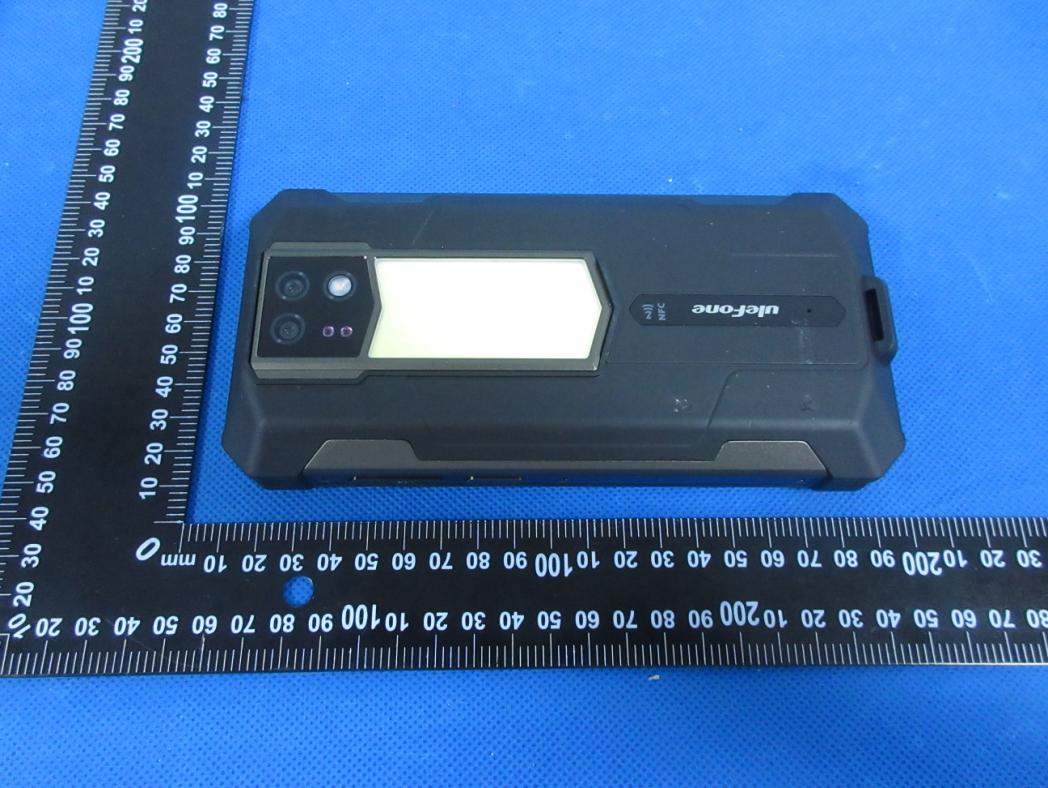

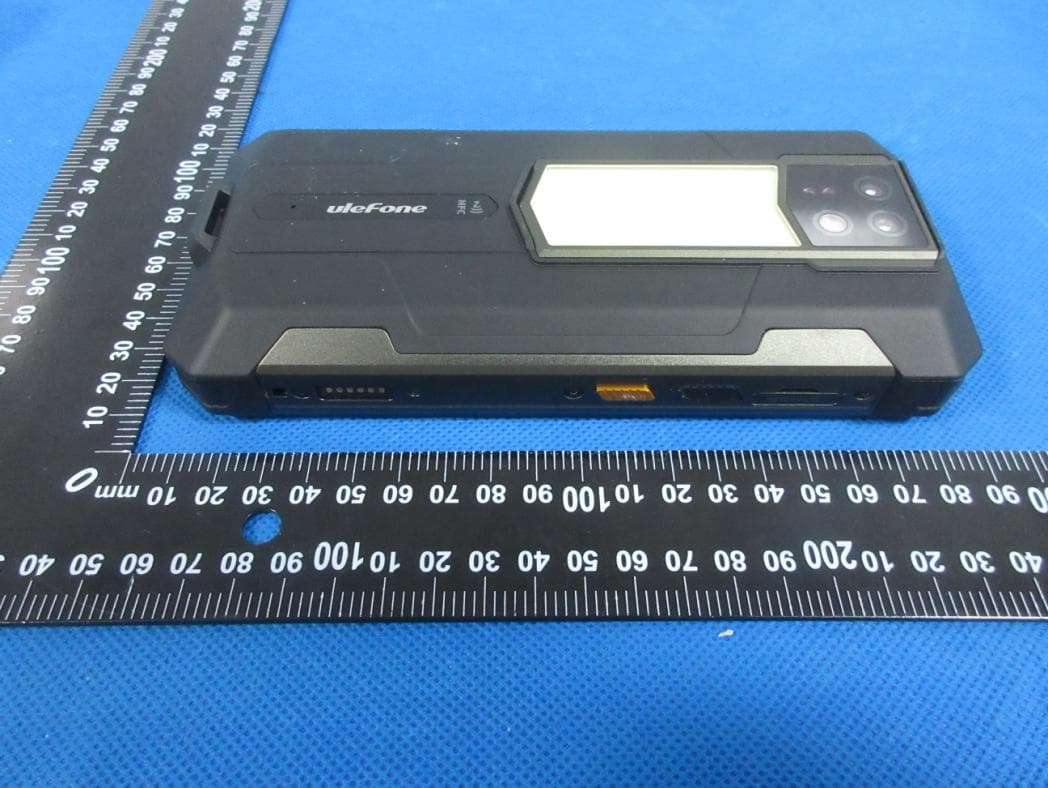

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18 BT/WIFI/GPS ANT Photo 19 Photo 20 NFC ANT LTE AUX ANT FM RX ANT Photo 21 GSM/WCDMA/LTE Main ANT

Page 1 of 250 Report No.: S23072005406001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Mobile Phone Brand Name： ulefone Model Name： GQ3116 Family Model： Armor 24, Armor 24 Pro, Armor 24 Ultra, Armor 24 Lite, Armor 24 Plus, Armor 24S, Armor 24P, Armor 24T, Armor 24E Report No.： S23072005406001 FCC ID： 2AOWK-3116 Prepared for Shenzhen Gotron Electronic CO.,LTD. 7B01, Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 250 Report No.: S23072005406001 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Gotron Electronic CO.,LTD. Address .................................. : 7B01, Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Manufacturer's Name .......... : Shenzhen Gotron Electronic CO.,LTD. Address .................................. : 7B01, Building A, Block 1, Anhongji Tianyao Plaza, Longhua District, Shenzhen City, Guangdong Province China Product description Product name ........................ : Mobile Phone Brand Name ......................... : ulefone Model and/or type reference .............................. : GQ3116 Family Model ......................... : Armor 24, Armor 24 Pro, Armor 24 Ultra, Armor 24 Lite, Armor 24 Plus, Armor 24S, Armor 24P, Armor 24T, Armor 24E Standards ............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number ............................. S230720054006 Date of Test Date (s) of performance of tests .............. : Jul. 24, 2023 ~ Aug. 10, 2023 Date of Issue ........................................... : Sep. 15, 2023 Test Result ............................................... : Pass Prepared By (Test Engineer) : (Jack Li) Approved By (Lab Manager) : (Alex Li) Page 3 of 250 Report No.: S23072005406001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Sep. 15, 2023 Jack Li Page 4 of 250 Report No.: S23072005406001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 19 3.1. Power Reference ................................................................................... 19 3.2. Area scan & Zoom scan .......................................................................... 19 3.3. Description of interpolation/extrapolation scheme .............................. 21 3.4. Volumetric Scan ..................................................................................... 21 3.5. Power Drift ............................................................................................ 21 4. System Verification Procedure .......................................................................... 22 4.1. Tissue Verification ................................................................................. 22 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 23 4.2. System Verification Procedure .............................................................. 24 4.2.1. System Verification Results ...........................................................…

Text truncated - open the document above for the full version.

Page 113 of 250 Report No.: S23072005406001 MEASUREMENT 9 Date of measurement: 5/8/2023 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Left head Device Position Cheek Band Band5_WCDMA850 Channels Middle Signal WCDMA (Crest factor: 1.0) ConvF 1.50 B. SAR Measurement Results Frequency (MHz) 836.400000 Relative permittivity (real part) 40.269619 Relative permittivity (imaginary part) 19.639992 Conductivity (S/m) 0.912605 Variation (%) -0.960000 SURFACE SAR VOLUME SAR Maximum location: X=-49.00, Y=-17.00 SAR Peak: 0.22 W/kg SAR 10g (W/Kg) 0.154559 SAR 1g (W/Kg) 0.192455 Page 114 of 250 Report No.: S23072005406001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.2147 0.1938 0.1709 0.1506 0.1286 0.1055 0.0885 3D screen shot Hot spot position Page 115 of 250 Report No.: S23072005406001 MEASUREMENT 10 Date of measurement: 5/8/2023 A. Experimental conditions. Area Scan dx=15mm dy=15mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm Phantom Validation plane Device Position Body Band Band5_WCDMA850 Channels Middle Signal WCDMA (Crest factor: 1.0) ConvF 1.50 B. SAR Measurement Results Frequency (MHz) 836.400000 Relative permittivity (real part) 40.269619 Relative permittivity (imaginary part) 19.639992 Conductivity (S/m) 0.912605 Variation (%) -2.660000 SURFACE SAR VOLUME SAR Maximum location: X=-11.00, Y=29.00 SAR Peak: 0.53 W/kg SAR 10g (W/Kg) 0.327497 SAR 1g (W/Kg) 0.433240 Page 116 of 250 Report No.: S23072005406001 Z (mm) 0.00 4.00 9.00 14.00 19.00 24.00 29.00 SAR (W/Kg) 0.5329 0.4397 0.3462 0.2700 0.2163 0.1709 0.1364 3D screen shot Hot spot position Page 117 of 250 Report No.: S23072005406001 MEASUREMENT 11 Date of measurement: 10/8/2023 A. Experimental conditions. Area Scan dx=10mm dy=10mm, h= 2.00 mm ZoomScan 7x7x12,dx=4mm dy=4mm dz=2mm Phantom Left head Device Position Cheek Band IEEE 802.11ac U-NII Channels Low Signal IEEE802.11ac (Crest factor: 1.0) ConvF 1.80 B. SAR Measurement Results Frequency (MHz) 5190.000000 Relative permittivity (real part) 34.809364 Relative permittivity (imaginary part) 15.779915 Conductivity (S/m) 4.549875 Variation (%) 1.800000 SURFACE SAR VOLUME SAR Maximum location: X=-25.00, Y=5.00 SAR Peak: 0.37 W/kg SAR 10g (W/Kg) 0.088257 SAR 1g (W/Kg) 0.153853 Page 118 of 250 Report No.: S23072005406001 Z (m m) 0.00 2.00 4.00 6.00 8.00 10.0 0 12.0 0 14.0 0 16.0 0 18.0 0 20.0 0 22.0 0 SA R (W/ Kg) 0.23 70 0.15 99 0.11 42 0.08 03 0.06 07 0.06 44 0.06 61 0.05 71 0.05 43 0.05 76 0.04 21 0.06 84 3D screen shot Hot spot position Page 119 of 250 Report No.: S23072005406001 MEASUREMENT 12 Date of measurement: 24/7/2023 A. Experimental conditions. Area Scan dx=10mm dy=10mm, h= 2.00 mm ZoomScan 7x7x12,dx=4mm dy=4mm dz=2mm Phantom Left head Device Position Cheek Band IEEE 802.11a U-NII Channels Low Signal IEEE802.11a (Crest factor: 1.0) ConvF 2.07 B. SAR Measurement Results Frequency (MHz) 5745.000000 Relative permittivity (real part) 34.653738 Relative permittivity (imaginary part) 16.331868 Conductivity (S/m) 5.212588 Variation (%) -2.520000 SURFACE SAR VOLUME SAR Maximum location: X=-6.00, Y=14.00 SAR Peak: 0.32 W/kg SAR 10g (W/Kg) 0.091671 SAR 1g (W/Kg) 0.135613 Page 120 of 250 Report No.: S23072005406001 Z (m m) 0.00 2.00 4.00 6.00 8.00 10.0 0 12.0 0 14.0 0 16.0 0 18.0 0 20.0 0 22.0 0 SA R (W/ Kg) 0.17 32 0.14 17 0.09 23 0.09 44 0.07 72 0.07 77 0.06 34 0.06 30 0.06 82 0.05 93 0.06 80 0.08 50 3D screen shot Hot spot position Page 121 of 250 Report No.: S23072005406001 MEASUREMENT 13 Date of measurement: 24/7/2023 A. Experimental conditions. Area Scan dx=10mm dy=10mm, h= 2.00 mm ZoomScan 7x7x12,dx=4mm dy=4mm dz=2mm Phantom Validation plane Device Position Body Band IEEE 802.11a U-NII Channels Low Signal IEEE802.11a (Crest factor: 1.0) ConvF 2.07 B. SAR Measurement Results Frequency (MHz) 5745.000000 Relative permittivity (real part) 34.653738 Relative permittivity (imaginary part) 16.331868 Conductivity (S/m) 5.212588 Variation (%) -2.600000 SURFACE SAR VOLUME SAR Maximum location: X=10.00, Y=28.00 SAR Peak: 0.10 W/kg SAR 10g (W/Kg) 0.051111 SAR 1g (W/Kg) 0.058447 Page 122 of 250 Report No.: S23072005406001 Z (m m) 0.00 2.00 4.00 6.00 8.00 10.0 0 12.0 0 14.0 0 16.0 0 18.0 0 20.0 0 22.0 0 SA R (W/ Kg) 0.08 67 0.07 05 0.05 24 0.04 81 0.04 94 0.05 01 0.04 20 0.04 27 0.04 90 0.03 87 0.04 88 0.05 15 3D screen shot Hot spot position Page 123 of 250 Report No.: S23072005406001 MEASUREMENT 14 Date of measurement: 10/8/2023 A. Experimental conditions. Area Scan dx=10mm dy=10mm, h= 2.00 mm ZoomScan 7x7x12,dx=4mm dy=4mm dz=2mm Phantom Validation plane Device Position Body Band IEEE 802.11ac U-NII Channels Low Signal IEEE802.11ac (Crest factor: 1.0) ConvF 1.80 B. SAR Measurement Results Frequency (MHz) 5190.000000 Relative permittivity (real part) 34.809364 Relative permittivity (imaginary part) 15.779915 Conductivity (S/m) 4.549875 Variation (%) 0.120000 SURFACE SAR VOLUME SAR Maximum location: X=1.00, Y=18.00 SAR Peak: 0.39 W/kg SAR 10g (W/Kg) 0.064172 SAR 1g (W/Kg) 0.083433 Page 124 of 250 Report No.: S23072005406001 Z (m m) 0.00 2.00 4.00 6.00 8.00 10.0 0 12.0 0 14.0 0 16.0 0 18.0 0 20.0 0 22.0 0 SA R (W/ Kg) 0.39 00 0.20 50 0.07 24 0.04 49 0.03 23 0.04 91 0.05 61 0.05 20 0.04 25 0.04 33 0.05 23 0.03 96 3D screen shot Hot spot position Page 125 of 250 Report No.: S23072005406001 MEASUREMENT 15 Date of measurement: 26/7/2023 A. Experimental conditions. Area Scan dx=12mm dy=12mm, h= 5.00 mm ZoomScan 7x7x7,dx=5mm dy=5mm dz=5mm Phantom Left head Device Position Cheek Band IEEE 802.11b ISM Channels Low Signal IEEE802.11b (Crest factor: 1.0) ConvF 1.98 B. SAR Measurement Results Frequency (MHz) 2412.000000 Relative permittivity (real part) 37.822538 Relative permittivity (imaginary part) 13.102747 Conductivity (S/m) 1.755768 Variation (%) -2.610000 SURFACE SAR VOLUME SAR Maximum location: X=-22.00, Y=13.00 SAR Peak: 0.46 W/kg SAR 10g (W/Kg) 0.146500 SAR 1g (W/Kg) 0.264487 Page 126 of 250 Report No.: S23072005406001 Z (m…

Text truncated - open the document above for the full version.

Page 198 of 250 Report No.: S23072005406001 Page 199 of 250 Report No.: S23072005406001 Page 200 of 250 Report No.: S23072005406001 Page 201 of 250 Report No.: S23072005406001 Page 202 of 250 Report No.: S23072005406001 Page 203 of 250 Report No.: S23072005406001 Page 204 of 250 Report No.: S23072005406001 Page 205 of 250 Report No.: S23072005406001 Page 206 of 250 Report No.: S23072005406001 Page 207 of 250 Report No.: S23072005406001 Page 208 of 250 Report No.: S23072005406001 Page 209 of 250 Report No.: S23072005406001 Page 210 of 250 Report No.: S23072005406001 Page 211 of 250 Report No.: S23072005406001 Page 212 of 250 Report No.: S23072005406001 Page 213 of 250 Report No.: S23072005406001 Page 214 of 250 Report No.: S23072005406001 Page 215 of 250 Report No.: S23072005406001 Page 216 of 250 Report No.: S23072005406001 Page 217 of 250 Report No.: S23072005406001 Page 218 of 250 Report No.: S23072005406001 Page 219 of 250 Report No.: S23072005406001 Page 220 of 250 Report No.: S23072005406001 Page 221 of 250 Report No.: S23072005406001 Page 222 of 250 Report No.: S23072005406001 Page 223 of 250 Report No.: S23072005406001 Page 224 of 250 Report No.: S23072005406001 Page 225 of 250 Report No.: S23072005406001 Page 226 of 250 Report No.: S23072005406001 Page 227 of 250 Report No.: S23072005406001 Page 228 of 250 Report No.: S23072005406001 Page 229 of 250 Report No.: S23072005406001 Page 230 of 250 Report No.: S23072005406001 Page 231 of 250 Report No.: S23072005406001 Page 232 of 250 Report No.: S23072005406001 Page 233 of 250 Report No.: S23072005406001 Page 234 of 250 Report No.: S23072005406001 Page 235 of 250 Report No.: S23072005406001 Page 236 of 250 Report No.: S23072005406001 Page 237 of 250 Report No.: S23072005406001 Page 238 of 250 Report No.: S23072005406001 Page 239 of 250 Report No.: S23072005406001 Page 240 of 250 Report No.: S23072005406001 Page 241 of 250 Report No.: S23072005406001 Page 242 of 250 Report No.: S23072005406001 Page 243 of 250 Report No.: S23072005406001 <Justification of the extended calibration> If dipoles are verified in return loss (<-20dB, within 20% of prior calibration for below 3GHz, and <-8dB, within 20% of prior calibration for 5GHz to 6GHz), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Head 750MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.80 - 56.4 - Mar. 01, 2021 -23.642 0.66 56.998 0.598 Feb. 28, 2022 -22.051 7.35 51.838 4.562 Feb. 18, 2023 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 244 of 250 Report No.: S23072005406001 <Head 835MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -25.44 - 54.40 - Mar. 01, 2021 -25.803 1.43 54.492 0.092 Feb. 28, 2022 -23.947 5.87 56.615 2.215 Feb. 18, 2023 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 245 of 250 Report No.: S23072005406001 <Head 1800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -28.85 - 47.90 - Mar. 01, 2021 -28.545 1.06 47.809 0.091 Feb. 28, 2022 -25.8 10.57 45.156 2.744 Feb. 18, 2023 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 246 of 250 Report No.: S23072005406001 <Head 1900MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -24.79 - 50.80 - Mar. 01, 2021 -24.518 1.10 50.516 0.284 Feb. 28, 2022 -23.144 6.64 53.604 2.804 Feb. 20, 2023 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 247 of 250 Report No.: S23072005406001 <Head 2450MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.18 - 56.30 - Mar. 01, 2021 -23.39 0.91 56.342 0.042 Feb. 28, 2022 -26.296 13.44 54.99 1.310 Feb. 20, 2023 The return loss is <-20dB, within 20% of prior calibration; the imped…
