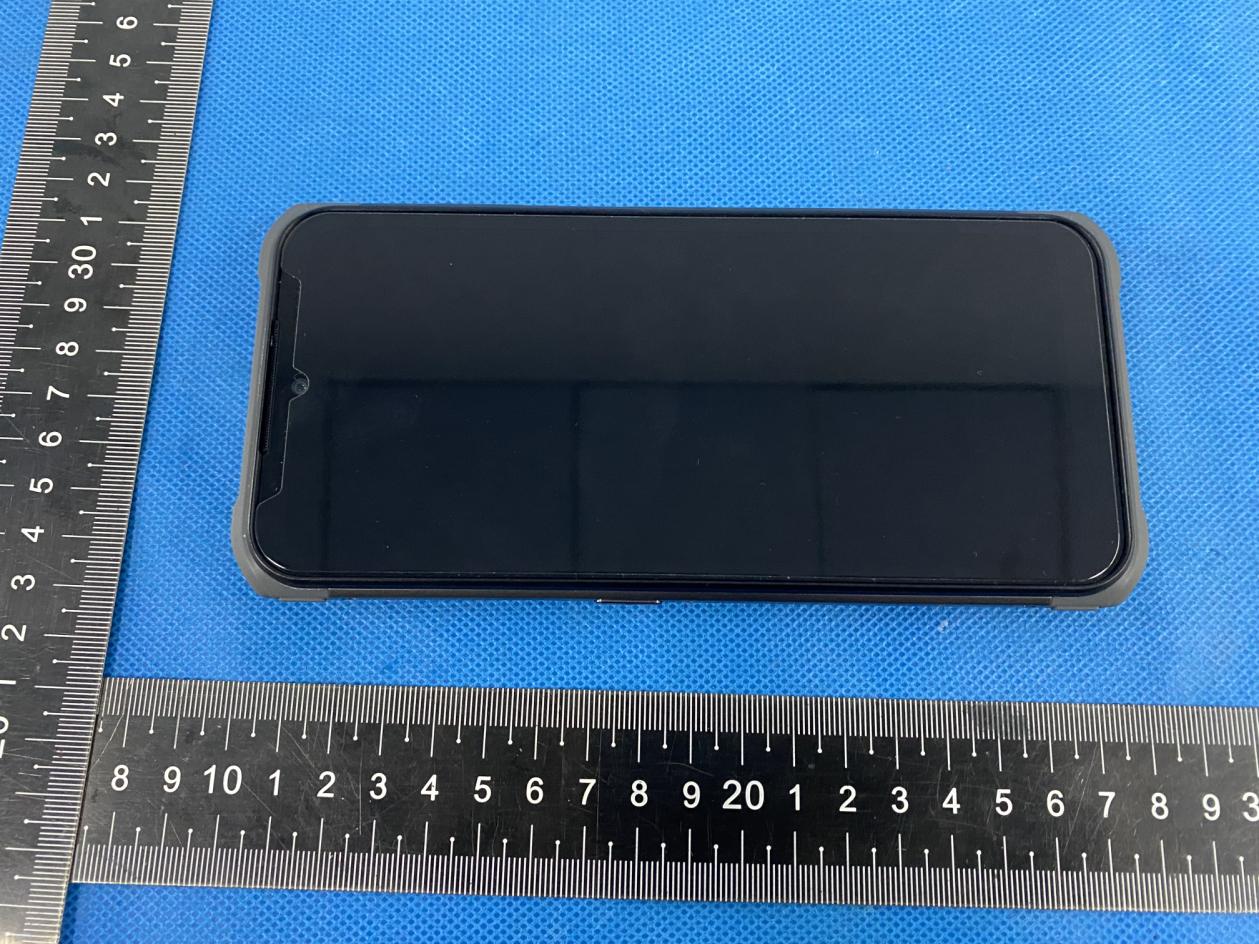

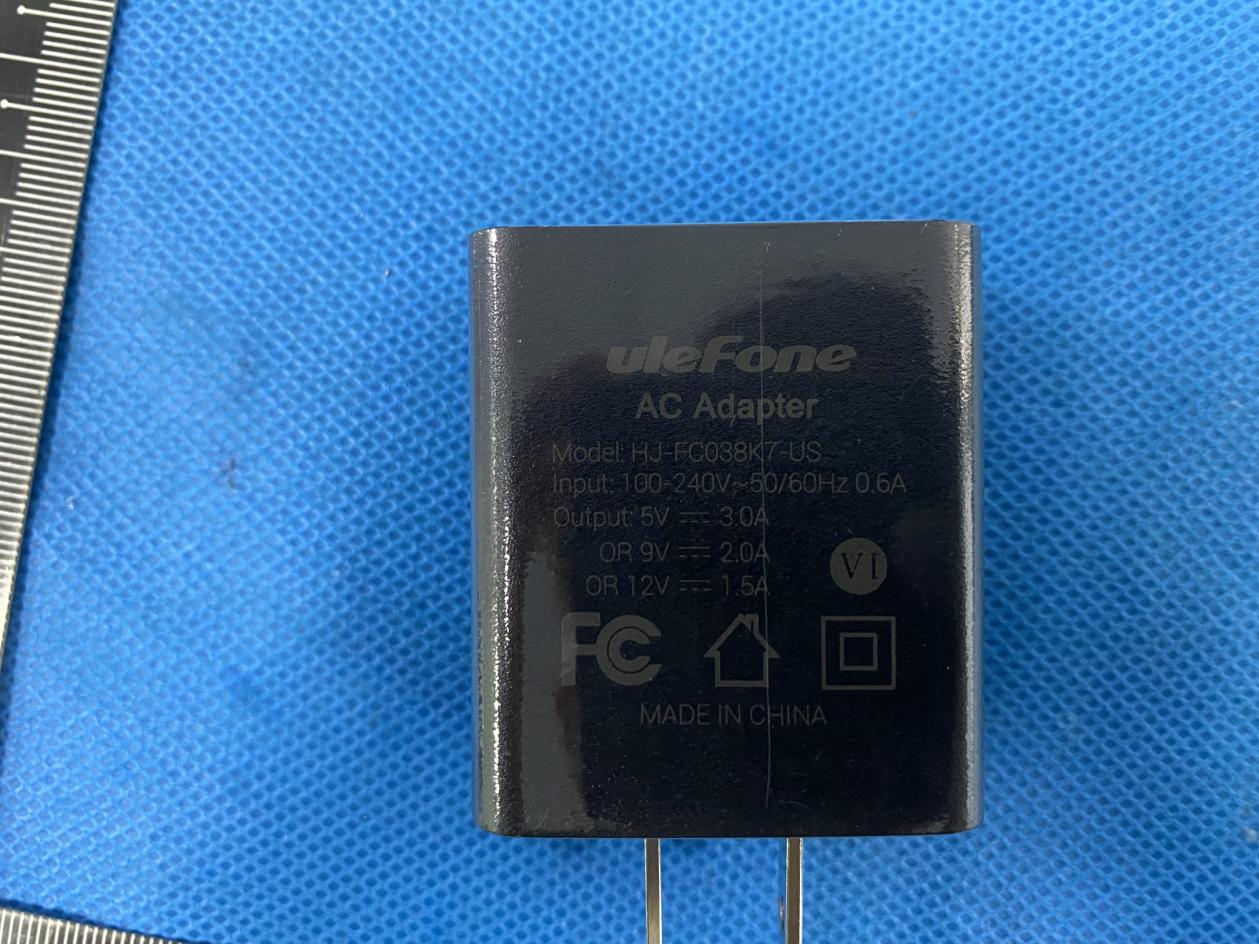

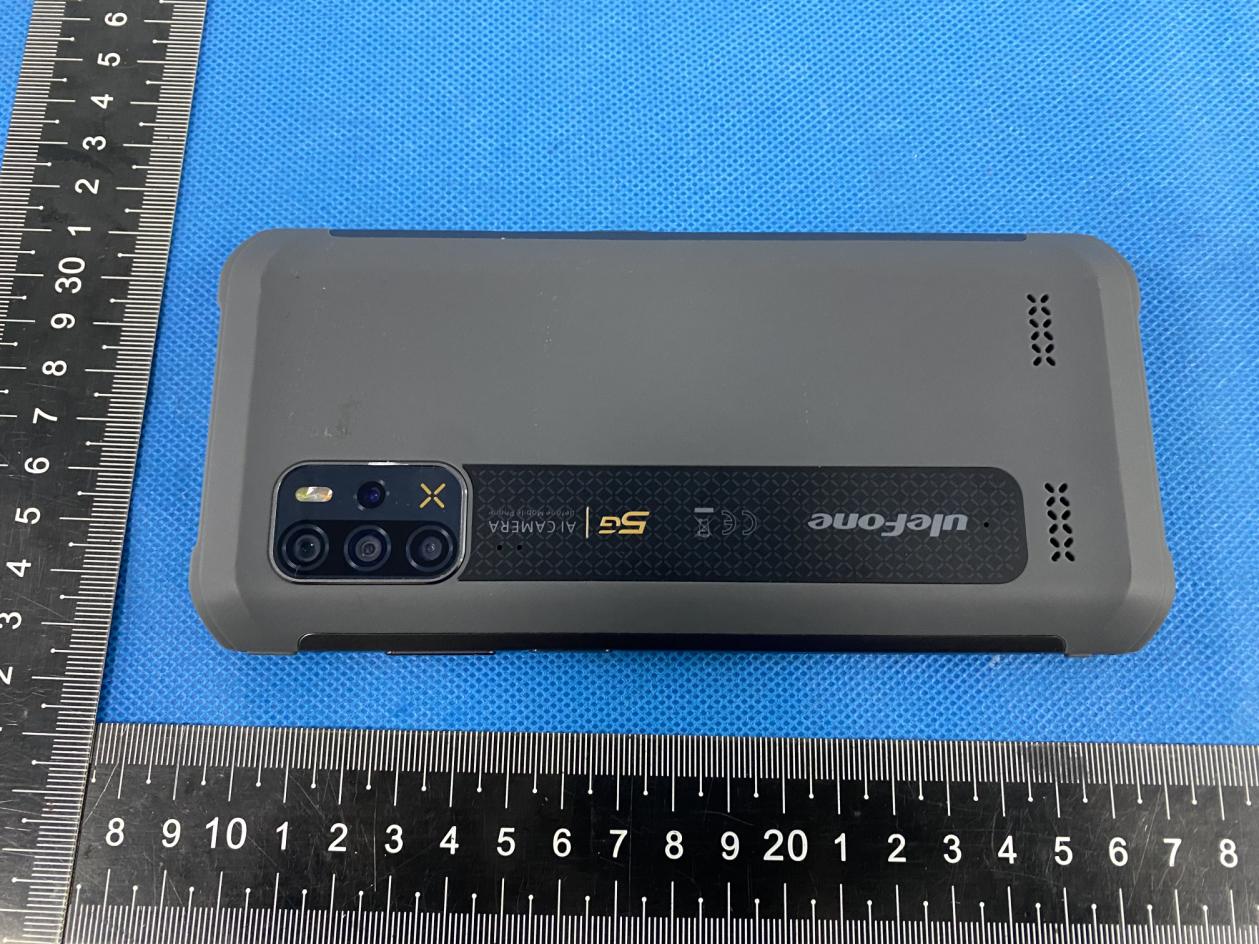

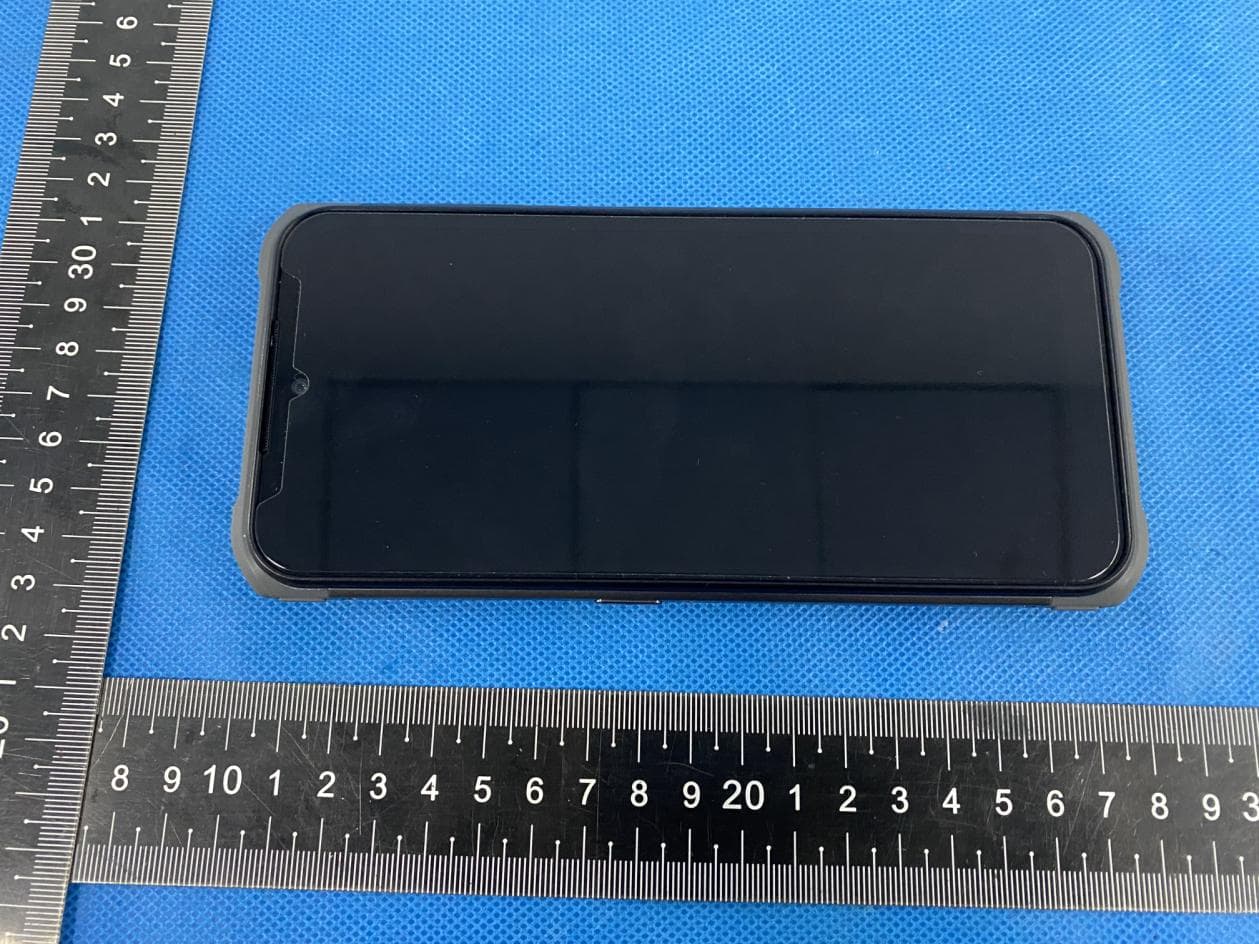

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18 Photo 19 Photo 20 Photo 21 Photo 22 Photo 23 Photo 24 Photo 25 Photo 26 Photo 27 Photo 28 Photo 29 Photo 30 Photo 31 Photo 32 Photo 33 Photo 34 Photo 35 Photo 36

Page 1 of 268 ReportNo.:STR210706002010E FCCSAREVALUATIONREPORT Inaccordancewiththerequirementsof FCC47CFRPart2(2.1093),ANSI/IEEEC95.1-1992and IEEEStd1528-2013 ProductName： 5GSmartPhone BrandName： ulefone ModelName： GQ5002 FamilyModel： Armor125G,Armor12T5G,Armor12P5G, Armor12E5G,Armor12S5G,Armor105G, Armor115G,Armor11T5G,Armor135G ReportNo.： STR210706002010E FCCID： 2AOWK-5002 Preparedfor ShenzhenGotronElectronicCO.,LTD. 7B01,BuildingA,Block1,AnhongjiTianyaoPlaza,LonghuaDistrict,ShenzhenCity, GuangdongProvinceChina Preparedby ShenzhenNTEKTestingTechnologyCo.,Ltd. 1/F,BuildingE,FendaSciencePark,SanweiCommunity,XixiangStreet, Bao'anDistrict,Shenzhen518126P.R.China. Tel.400-800-6106,0755-23200050,0755-23200090 Website:http://www.ntek.org.cn Page 2 of 268 ReportNo.:STR210706002010E TESTRESULTCERTIFICATION Applicant’sname....................:ShenzhenGotronElectronicCO.,LTD. Address......................................: 7B01,BuildingA,Block1,AnhongjiTianyaoPlaza,Longhua District,ShenzhenCity,GuangdongProvinceChina Manufacturer'sName.............:ShenzhenGotronElectronicCO.,LTD. Address......................................: 7B01,BuildingA,Block1,AnhongjiTianyaoPlaza,Longhua District,ShenzhenCity,GuangdongProvinceChina Productdescription Productname............................:5GSmartPhone BrandName.............................:ulefone Modeland/ortypereference.:GQ5002 FamilyModel ............................. : Armor125G,Armor12T5G,Armor12P5G,Armor12E5G, Armor12S5G,Armor105G,Armor115G,Armor11T5G,Armor 135G Standards..................................: FCC47CFRPart2(2.1093) ANSI/IEEEC95.1-1992 IEEEStd1528-2013 PublishedRFexposureKDBprocedures ThisdevicedescribedabovehasbeentestedbyShenzhenNTEK.Inaccordancewiththe measurementmethodsandproceduresspecifiedinIEEEStd1528-2013andKDB865664D01. Testinghasshownthatthisdeviceiscapableofcompliancewithlocalizedspecificabsorptionrate (SAR)specifiedinFCC47CFRPart2(2.1093)andANSI/IEEEC95.1-1992.Thetestresultsinthis reportapplyonlytothetestedsampleofthestateddevice/equipment.Othersimilar device/equipmentwillnotnecessarilyproducethesameresultsduetoproductiontoleranceand measurementuncertainties. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenNTEK, thisdocumentmaybealteredorrevisedbyShenzhenNTEK,personalonly,andshallbenotedin therevisionofthedocument. DateofTest Date(s)ofperformanceoftests...............:Jul.12,2021~Jul.27,2021 DateofIssue .............................................. : Sep.10,2021 TestResult..................................................:Pass PreparedBy (TestEngineer) : (JacobChen) ApprovedBy (LabManager) : (AlexLi) Page 3 of 268 ReportNo.:STR210706002010E ※※RevisionHistory※※ REV.DESCRIPTIONISSUEDDATEREMARK Rev.1.0InitialTestReportReleaseSep.10,2021JacobChen Page 4 of 268 ReportNo.:STR210706002010E TABLEOFCONTENTS 1.GeneralInformation .............................................................................................. 6 1.1.RFexposurelimits ..................................................................................... 6 1.2.StatementofCompliance ......................................................................... 7 1.3.EUTDescription ......................................................................................... 7 1.4.Testspecification(s) ................................................................................... 9 1.5.AmbientCondition .................................................................................... 9 2.SARMeasurementSystem .................................................................................. 10 2.1.SATIMOSARMeasurementSet-upDiagram ......................................... 10 2.2.Robot ........................................................................................................ 11 2.3.E-FieldProbe ............................................................................................ 12 2.3.1.E-FieldProbeCalibration .................................................................. 12 2.4.SAMphantoms ........................................................................................ 13 2.4.1.TechnicalData .................................................................................... 14 2.5.DeviceHolder .......................................................................................... 15 2.6.TestEquipmentList .................................................................................. 16 3.SARMeasurementProcedures ........................................................................... 18 3.1.PowerReference ..................................................................................... 18 3.2.Areascan&Zoomscan ........................................................................... 18 3.3.Descriptionofinterpolation/extrapolationscheme ............................. 20 3.4.VolumetricScan ....................................................................................... 20 3.5.PowerDrift .............................................................................................. 20 4.SystemVerificationProcedure ........................................................................... 21 4.1.TissueVerification ................................................................................... 21 4.1.1.TissueDielectricParameterCheckResults ...................................... 22 4.2.SystemVerificationProcedure ............................................................... 23 4.2.1.SystemVerificationResults .............................................................. 24 5.SARMeasurementvariabilityanduncertainty .................................................. 25 5.1.SARmeasurementvariability ................................................................. 25 5.2.SARmeasurementuncertainty ............................................................... 25 6.RFExposurePositions ......................................................................................... 26 6.1.Earandh…

Text truncated - open the document above for the full version.

Page 61 of 268 ReportNo.:STR210706002010E Test Positionof Hotspotwith 10mm Test channel /Freq. TestMode SARValue (W/kg) Power Drift (±5%) Conducted power (dBm) Tune-up power (dBm) Scaled SAR 1g (W/Kg) Date 1g10g FrontSide4182/836.4RMC12.2K0.1680.100-3.7422.5023.000.1882021/7/12 BackSide4182/836.4RMC12.2K0.2350.1410.0322.5023.000.2642021/7/12 LeftSide4182/836.4RMC12.2K0.0810.048-1.2922.5023.000.0912021/7/12 RightSide4182/836.4RMC12.2K0.0780.0460.9522.5023.000.0882021/7/12 BottomSide4182/836.4RMC12.2K0.1400.081-0.5722.5023.000.1572021/7/12 NOTE:HotspotSARtestresultsofWCDMABand5 10.1.6.SARmeasurementResultofCDMABandBC0 Test Positionof Head Test channel /Freq. TestMode SARValue (W/kg) Power Drift (±5%) Conducted power (dBm) Tune-up power (dBm) Scaled SAR 1g (W/Kg) Date 1g10g Left Cheek 384/836.52 1xRTT(RC3, SO55) 0.1390.105-1.9424.0224.500.1552021/7/12 LeftTilt15 Degree 384/836.52 1xRTT(RC3, SO55) 0.0770.0590.5924.0224.500.0862021/7/12 Right Cheek 384/836.52 1xRTT(RC3, SO55) 0.1220.0971.9524.0224.500.1362021/7/12 RightTilt 15Degree 384/836.52 1xRTT(RC3, SO55) 0.0640.0533.6124.0224.500.0712021/7/12 Left Cheek 384/836.52 1xEV-Do Rel.0 0.1200.0952.2223.9524.500.1362021/7/12 LeftTilt15 Degree 384/836.52 1xEV-Do Rel.0 0.0650.0461.2623.9524.500.0742021/7/12 Right Cheek 384/836.52 1xEV-Do Rel.0 0.1180.0900.5523.9524.500.1342021/7/12 RightTilt 15Degree 384/836.52 1xEV-Do Rel.0 0.0580.0452.3123.9524.500.0662021/7/12 NOTE:HeadSARtestresultsofCDMABandBC0 Test Positionof Body-Worn with10mm Test channel /Freq. TestMode SARValue (W/kg) Power Drift (±5%) Conducted power (dBm) Tune-up power (dBm) Scaled SAR 1g (W/Kg) Date 1g10g FrontSide384/836.521xRTT(RC3,0.1380.0723.8524.0324.500.1542021/7/12 Page 62 of 268 ReportNo.:STR210706002010E SO32(+F-SCH)) BackSide384/836.52 1xRTT(RC3, SO32(+F-SCH)) 0.2230.122-0.0924.0324.500.2482021/7/12 NOTE:Body-WornSARtestresultsofCDMABandBC0 Test Position of Hotspot with 10mm Test channel /Freq. TestMode SARValue (W/kg) Power Drift (±5%) Conducted power (dBm) Tune-up power (dBm) Scaled SAR 1g (W/Kg) Date 1g10g Front Side 384/836.52 1xRTT(RC3, SO32(+F-SCH)) 0.1380.0723.8524.0324.500.1542021/7/12 Back Side 384/836.52 1xRTT(RC3, SO32(+F-SCH)) 0.2230.122-0.0924.0324.500.2482021/7/12 Left Side 384/836.52 1xRTT(RC3, SO32(+F-SCH)) 0.0810.0430.8324.0324.500.0902021/7/12 Right Side 384/836.52 1xRTT(RC3, SO32(+F-SCH)) 0.0720.0390.0224.0324.500.0802021/7/12 Bottom Side 384/836.52 1xRTT(RC3, SO32(+F-SCH)) 0.1250.0660.8624.0324.500.1392021/7/12 NOTE:HotspotSARtestresultsofCDMABandBC0 10.1.7.SARmeasurementResultofCDMABandBC1 Test Positionof Head Test channel /Freq. TestMode SARValue (W/kg) Power Drift (±5%) Conducted power (dBm) Tune-up power (dBm) Scaled SAR 1g (W/Kg) Date 1g10g LeftCheek600/1880 1xRTT(RC3, SO55) 0.1650.128-1.1322.8923.500.1902021/7/19 LeftTilt15 Degree 600/1880 1xRTT(RC3, SO55) 0.0910.072-3.2022.8923.500.1052021/7/19 Right Cheek 600/1880 1xRTT(RC3, SO55) 0.1430.1070.6022.8923.500.1652021/7/19 RightTilt 15Degree 600/1880 1xRTT(RC3, SO55) 0.0660.052-1.5422.8923.500.0762021/7/19 LeftCheek600/1880 1xEV-Do Rel.0 0.1600.1240.3422.7923.500.1882021/7/19 LeftTilt15 Degree 600/1880 1xEV-Do Rel.0 0.0850.0680.3322.7923.500.1002021/7/19 Page 63 of 268 ReportNo.:STR210706002010E Right Cheek 600/1880 1xEV-Do Rel.0 0.1370.0982.1522.7923.500.1612021/7/19 RightTilt 15Degree 600/1880 1xEV-Do Rel.0 0.0560.047-1.1122.7923.500.0662021/7/19 NOTE:HeadSARtestresultsofCDMABandBC1 Test Positionof Body-Worn with10mm Test channel /Freq. TestMode SARValue (W/kg) Power Drift (±5%) Conducted power (dBm) Tune-up power (dBm) Scaled SAR 1g (W/Kg) Date 1g10g FrontSide600/1880 1xRTT(RC3, SO32(+F-SCH)) 0.3060.183-2.7122.9923.500.3442021/7/19 BackSide600/1880 1xRTT(RC3, SO32(+F-SCH)) 0.4890.292-0.5322.9923.500.5502021/7/19 NOTE:Body-WornSARtestresultsofCDMABandBC1 Test Position of Hotspot with 10mm Test channel /Freq. TestMode SARValue (W/kg) Power Drift (±5%) Conducted power (dBm) Tune-up power (dBm) Scaled SAR 1g (W/Kg) Date 1g10g Front Side 600/1880 1xRTT(RC3, SO32(+F-SCH)) 0.3060.183-2.7122.9923.500.3442021/7/19 Back Side 600/1880 1xRTT(RC3, SO32(+F-SCH)) 0.4890.292-0.5322.9923.500.5502021/7/19 LeftSide600/1880 1xRTT(RC3, SO32(+F-SCH)) 0.1590.095-3.8522.9923.500.1792021/7/19 Right Side 600/1880 1xRTT(RC3, SO32(+F-SCH)) 0.1500.090-2.3622.9923.500.1692021/7/19 Bottom Side 600/1880 1xRTT(RC3, SO32(+F-SCH)) 0.2550.149-0.3622.9923.500.2872021/7/19 NOTE:HotspotSARtestresultsofCDMABandBC1 10.1.8.SARmeasurementResultofLTEBand2 Test Position ofHead Test channel /Freq. TestMode SARValue (W/kg) Power Drift (±5%) Conducted power (dBm) Tune-up power (dBm) Scaled SAR1g (W/Kg) Date 1g10g 1RB Left Cheek 18900/1880 20M QPSK(1,49) 0.1370.0901.0721.2622.000.1622021/7/19 Page 64 of 268 ReportNo.:STR210706002010E LeftTilt 15 Degree 18900/1880 20M QPSK(1,49) 0.0740.053-4.6621.2622.000.0882021/7/19 Right Cheek 18900/1880 20M QPSK(1,49) 0.1190.0774.9721.2622.000.1412021/7/19 Right Tilt15 Degree 18900/1880 20M QPSK(1,49) 0.0590.0402.0621.2622.000.0702021/7/19 50%RB Left Cheek 18900/1880 20M QPSK(50,0) 0.0730.052-0.6620.9021.000.0752021/7/19 LeftTilt 15 Degree 18900/1880 20M QPSK(50,0) 0.0400.0271.0920.9021.000.0412021/7/19 Right Cheek 18900/1880 20M QPSK(50,0) 0.0670.0450.9420.9021.000.0692021/7/19 Right Tilt15 Degree 18900/1880 20M QPSK(50,0) 0.0330.020-1.2520.9021.000.0342021/7/19 NOTE:HeadSARtestresultsofLTEBand2 Test Positionof Body-Worn with10mm Test channel /Freq. TestMode SARValue (W/kg) Power Drift (±5%) Conducted power (dBm) Tune-up power (dBm) Scaled SAR1g (W/Kg) Date 1g10g 1RB FrontSide18900/1880 20M QPSK(1,49) 0.3540.188-2.2621.2622.000.4202021/7/19 BackSide18900/1880 20M QPSK(1,49) 0.5690.3110.3021.2622.000.6752021/7/19 50%RB FrontSide18900/1880 20M QPSK(50,0) 0.1860.095-2.1020.9021.000.1902021/7/19 BackSide18900/1880 20M QPSK(50,0) 0.3280.1641.2420.9021.000.3362021/7/19 NOTE:Body-WornSARtestresultsofLTEBand2 Test Position of Hotspot Test channel /Freq. TestMode SARValue (W/kg) Power Drift (±5%) Conducted power (dBm)…

Text truncated - open the document above for the full version.

Page 141 of 268 ReportNo.:STR210706002010E Z(mm)0.004.009.0014.0019.0024.0029.00 SAR (W/Kg) 0.30200.19790.11650.06760.04510.03020.0233 3DscreenshotHotspotposition Page 142 of 268 ReportNo.:STR210706002010E MEASUREMENT20 Dateofmeasurement:20/7/2021 A.Experimentalconditions. AreaScandx=12mmdy=12mm,h=5.00mm ZoomScan7x7x7,dx=5mmdy=5mmdz=5mm PhantomValidationplane DevicePositionBody BandIEEE802.11bISM ChannelsMiddle SignalIEEE802.11b(Crestfactor:1.0) B.SARMeasurementResults Frequency(MHz)2437.000000 Relativepermittivity(realpart)40.697720 Relativepermittivity (imaginarypart) 13.212899 Conductivity(S/m)1.788880 Variation(%)-2.510000 SURFACESARVOLUMESAR Maximumlocation:X=9.00,Y=-9.00 SARPeak:0.29W/kg SAR10g(W/Kg)0.040738 SAR1g(W/Kg)0.096916 Page 143 of 268 ReportNo.:STR210706002010E Z(mm)0.004.009.0014.0019.0024.0029.00 SAR (W/Kg) 0.28620.12940.03800.02670.02080.01800.0175 3DscreenshotHotspotposition Page 144 of 268 ReportNo.:STR210706002010E MEASUREMENT21 Dateofmeasurement:19/7/2021 A.Experimentalconditions. AreaScandx=15mmdy=15mm,h=5.00mm ZoomScan5x5x7,dx=8mmdy=8mmdz=5mm PhantomLefthead DevicePositionCheek BandLTEband2 ChannelsMiddle SignalLTE(Crestfactor:1.0) B.SARMeasurementResults Frequency(MHz)1880.000000 Relativepermittivity(realpart)38.526512 Relativepermittivity (imaginarypart) 13.733387 Conductivity(S/m)1.434376 Variation(%)1.070000 SURFACESARVOLUMESAR Maximumlocation:X=-48.00,Y=-47.00 SARPeak:0.19W/kg SAR10g(W/Kg)0.089915 SAR1g(W/Kg)0.137408 Page 145 of 268 ReportNo.:STR210706002010E Z(mm)0.004.009.0014.0019.0024.0029.00 SAR (W/Kg) 0.18170.14130.09970.07290.05200.03880.0334 3DscreenshotHotspotposition Page 146 of 268 ReportNo.:STR210706002010E MEASUREMENT22 Dateofmeasurement:19/7/2021 A.Experimentalconditions. AreaScandx=15mmdy=15mm,h=5.00mm ZoomScan5x5x7,dx=8mmdy=8mmdz=5mm PhantomValidationplane DevicePositionBody BandLTEband2 ChannelsMiddle SignalLTE(Crestfactor:1.0) B.SARMeasurementResults Frequency(MHz)1880.000000 Relativepermittivity(realpart)38.526512 Relativepermittivity (imaginarypart) 13.733387 Conductivity(S/m)1.434376 Variation(%)0.300000 SURFACESARVOLUMESAR Maximumlocation:X=5.00,Y=47.00 SARPeak:0.88W/kg SAR10g(W/Kg)0.311032 SAR1g(W/Kg)0.569241 Page 147 of 268 ReportNo.:STR210706002010E Z(mm)0.004.009.0014.0019.0024.0029.00 SAR (W/Kg) 0.84700.57820.35650.22780.14180.09060.0573 3DscreenshotHotspotposition Page 148 of 268 ReportNo.:STR210706002010E MEASUREMENT23 Dateofmeasurement:15/7/2021 A.Experimentalconditions. AreaScandx=15mmdy=15mm,h=5.00mm ZoomScan5x5x7,dx=8mmdy=8mmdz=5mm PhantomLefthead DevicePositionCheek BandLTEband4 ChannelsMiddle SignalLTE(Crestfactor:1.0) B.SARMeasurementResults Frequency(MHz)1732.500000 Relativepermittivity(realpart)40.185455 Relativepermittivity (imaginarypart) 13.692273 Conductivity(S/m)1.317881 Variation(%)3.980000 SURFACESARVOLUMESAR Maximumlocation:X=-50.00,Y=-39.00 SARPeak:0.10W/kg SAR10g(W/Kg)0.044924 SAR1g(W/Kg)0.066600 Page 149 of 268 ReportNo.:STR210706002010E Z(mm)0.004.009.0014.0019.0024.0029.00 SAR (W/Kg) 0.09420.06900.04970.03850.02940.02690.0198 3DscreenshotHotspotposition Page 150 of 268 ReportNo.:STR210706002010E MEASUREMENT24 Dateofmeasurement:15/7/2021 A.Experimentalconditions. AreaScandx=15mmdy=15mm,h=5.00mm ZoomScan5x5x7,dx=8mmdy=8mmdz=5mm PhantomValidationplane DevicePositionBody BandLTEband4 ChannelsMiddle SignalLTE(Crestfactor:1.0) B.SARMeasurementResults Frequency(MHz)1732.500000 Relativepermittivity(realpart)40.185455 Relativepermittivity (imaginarypart) 13.692273 Conductivity(S/m)1.317881 Variation(%)4.590000 SURFACESARVOLUMESAR Maximumlocation:X=3.00,Y=-26.00 SARPeak:0.71W/kg SAR10g(W/Kg)0.255936 SAR1g(W/Kg)0.456357 Page 151 of 268 ReportNo.:STR210706002010E Z(mm)0.004.009.0014.0019.0024.0029.00 SAR (W/Kg) 0.69060.47750.30140.19290.12670.08260.0543 3DscreenshotHotspotposition Page 152 of 268 ReportNo.:STR210706002010E MEASUREMENT25 Dateofmeasurement:12/7/2021 A.Experimentalconditions. AreaScandx=15mmdy=15mm,h=5.00mm ZoomScan5x5x7,dx=8mmdy=8mmdz=5mm PhantomLefthead DevicePositionCheek BandLTEband5 ChannelsMiddle SignalLTE(Crestfactor:1.0) B.SARMeasurementResults Frequency(MHz)836.500000 Relativepermittivity(realpart)42.707466 Relativepermittivity (imaginarypart) 19.960083 Conductivity(S/m)0.927589 Variation(%)2.920000 SURFACESARVOLUMESAR Maximumlocation:X=-50.00,Y=-24.00 SARPeak:0.21W/kg SAR10g(W/Kg)0.143912 SAR1g(W/Kg)0.180558 Page 153 of 268 ReportNo.:STR210706002010E Z(mm)0.004.009.0014.0019.0024.0029.00 SAR (W/Kg) 0.20250.18130.15770.13350.11440.09750.0810 3DscreenshotHotspotposition Page 154 of 268 ReportNo.:STR210706002010E MEASUREMENT26 Dateofmeasurement:12/7/2021 A.Experimentalconditions. AreaScandx=15mmdy=15mm,h=5.00mm ZoomScan5x5x7,dx=8mmdy=8mmdz=5mm PhantomValidationplane DevicePositionBody BandLTEband5 ChannelsMiddle SignalLTE(Crestfactor:1.0) B.SARMeasurementResults Frequency(MHz)836.500000 Relativepermittivity(realpart)42.707466 Relativepermittivity (imaginarypart) 19.960083 Conductivity(S/m)0.927589 Variation(%)-0.270000 SURFACESARVOLUMESAR Maximumlocation:X=5.00,Y=17.00 SARPeak:0.31W/kg SAR10g(W/Kg)0.196436 SAR1g(W/Kg)0.256751 Page 155 of 268 ReportNo.:STR210706002010E Z(mm)0.004.009.0014.0019.0024.0029.00 SAR (W/Kg) 0.31150.25970.20740.16830.13360.10680.0851 3DscreenshotHotspotposition Page 156 of 268 ReportNo.:STR210706002010E MEASUREMENT27 Dateofmeasurement:17/7/2020 A.Experimentalconditions. AreaScandx=12mmdy=12mm,h=5.00mm ZoomScan7x7x7,dx=5mmdy=5mmdz=5mm PhantomLefthead DevicePositionCheek BandLTEband7 ChannelsMiddle SignalLTE(Crestfactor:1.0) B.SARMeasurementResults Frequency(MHz)2535.000000 Relativepermittivity(realpart)39.952293 Relativepermittivity (imaginarypart) 14.000509 Conductivity(S/m)1.971738 Variation(%)-3.120000 SURFACESARVOLUMESAR Maximumlocation:X=-48.00,Y=-49.00 SARPeak:0.51W/kg SAR10g(W/Kg)0.162038 SAR1g(W/Kg)0.304669 Page 157 of 268 ReportNo.:STR210706002010E Z(mm)0.004.009.0014.0019.0024.0029.00 SAR (W/Kg) 0.50760.32230.17950.10930.06560.04680.0335 3DscreenshotHotspotposition P…

Text truncated - open the document above for the full version.

Page 171 of 268 ReportNo.:STR210706002010E Z(mm)0.004.009.0014.0019.0024.0029.00 SAR (W/Kg) 0.87120.50240.24040.14500.07540.05350.0337 3DscreenshotHotspotposition Page 172 of 268 ReportNo.:STR210706002010E MEASUREMENT35 Dateofmeasurement:27/7/2021 A.Experimentalconditions. AreaScandx=12mmdy=12mm,h=5.00mm ZoomScan7x7x7,dx=5mmdy=5mmdz=5mm PhantomLefthead DevicePositionCheek BandNRN78 ChannelsMiddle Signal(Crestfactor:1.6) B.SARMeasurementResults Frequency(MHz)3750.000000 Relativepermittivity(realpart)37.923397 Relativepermittivity (imaginarypart) 14.931474 Conductivity(S/m)3.110724 Variation(%)-4.830000 SURFACESARVOLUMESAR Maximumlocation:X=1.00,Y=-21.00 SARPeak:1.09W/kg SAR10g(W/Kg)0.230962 SAR1g(W/Kg)0.514119 Page 173 of 268 ReportNo.:STR210706002010E Z(mm)0.004.009.0014.0019.0024.0029.00 SAR (W/Kg) 1.00040.54760.23740.09710.05240.03390.0248 3DscreenshotHotspotposition Page 174 of 268 ReportNo.:STR210706002010E MEASUREMENT36 Dateofmeasurement:27/7/2021 A.Experimentalconditions. AreaScandx=12mmdy=12mm,h=5.00mm ZoomScan7x7x7,dx=5mmdy=5mmdz=5mm PhantomValidationplane DevicePositionBody BandNRN78 ChannelsMiddle Signal(Crestfactor:1.6) B.SARMeasurementResults Frequency(MHz)3750.000000 Relativepermittivity(realpart)37.923397 Relativepermittivity (imaginarypart) 14.931474 Conductivity(S/m)3.110724 Variation(%)-0.910000 SURFACESARVOLUMESAR Maximumlocation:X=-5.00,Y=-13.00 SARPeak:0.45W/kg SAR10g(W/Kg)0.090099 SAR1g(W/Kg)0.160253 Page 175 of 268 ReportNo.…
